4. gateway入口 handle方法详解-handlerMappings获取

天幕繁星

已于 2022-09-29 23:01:38 修改

阅读量1.7k

点赞数

分类专栏： spring-cloud-gateway探秘文章标签： gateway java servlet

于 2022-08-20 16:10:28 首次发布

本文链接：https://blog.csdn.net/dydyswr/article/details/126440256

版权

spring-cloud-gateway探秘专栏收录该内容

6 篇文章

订阅专栏

本文详细解析了Spring Cloud Gateway中handlerMappings的获取机制，涉及WebFluxEndpointHandlerMapping、ControllerEndpointHandlerMapping、RouterFunctionMapping、RequestMappingHandlerMapping和RoutePredicateHandlerMapping等关键组件的初始化源码和应用场景。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1. 概览

上一节分享到了gateway的入口DispatcherHandler.handle()方法，本节分享handle方法的实现原理。由于handle方法步骤较多，本节只分享handlerMappings的获取。

2. handle方法回顾

为了方便分享，我再把handle方法的源码展示如下:

@Override
public Mono<Void> handle(ServerWebExchange exchange) {
   if (this.handlerMappings == null) {
      return createNotFoundError();
   }
   return Flux.fromIterable(this.handlerMappings)
         .concatMap(mapping -> mapping.getHandler(exchange))
         .next()
         .switchIfEmpty(createNotFoundError())
         .flatMap(handler -> invokeHandler(exchange, handler))
         .flatMap(result -> handleResult(exchange, result));
}

handle方法处理请求总共分为四部分，首先通过handlerMappings找到请求对应的handlerMapping，第二步通过handlerMappings找到对应的handler方法，第三步调用handler方法获取到结果，最后通过handleResult方法处理结果。本节主要分享handlerMapping是如何组织的。

3.handlerMappings获取

handlerMappings是在initStrategies方法中初始化的，通过BeanFactoryUtils获取到所有HandlerMapping类型的Bean，代码如下：

protected void initStrategies(ApplicationContext context) {
   Map<String, HandlerMapping> mappingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
         context, HandlerMapping.class, true, false);
   ArrayList<HandlerMapping> mappings = new ArrayList<>(mappingBeans.values());
   AnnotationAwareOrderComparator.sort(mappings);
   this.handlerMappings = Collections.unmodifiableList(mappings);


   Map<String, HandlerAdapter> adapterBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
         context, HandlerAdapter.class, true, false);
   this.handlerAdapters = new ArrayList<>(adapterBeans.values());
   AnnotationAwareOrderComparator.sort(this.handlerAdapters);


   Map<String, HandlerResultHandler> beans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
         context, HandlerResultHandler.class, true, false);
   this.resultHandlers = new ArrayList<>(beans.values());
   AnnotationAwareOrderComparator.sort(this.resultHandlers);
}

      那都获得了那些handlerMappings呢，在我的项目中，我通过debug发现，handlerMappings List里一共有6个对象，分别是
      1. WebFluxEndpointHandlerMapping
      2. ControllerEndpointHandlerMapping
      3. RouterFunctionMapping
      4. RequestMappingHandlerMapping
      5. RoutePredicateHandlerMapping
      6. SimpleUrlHandlerMapping

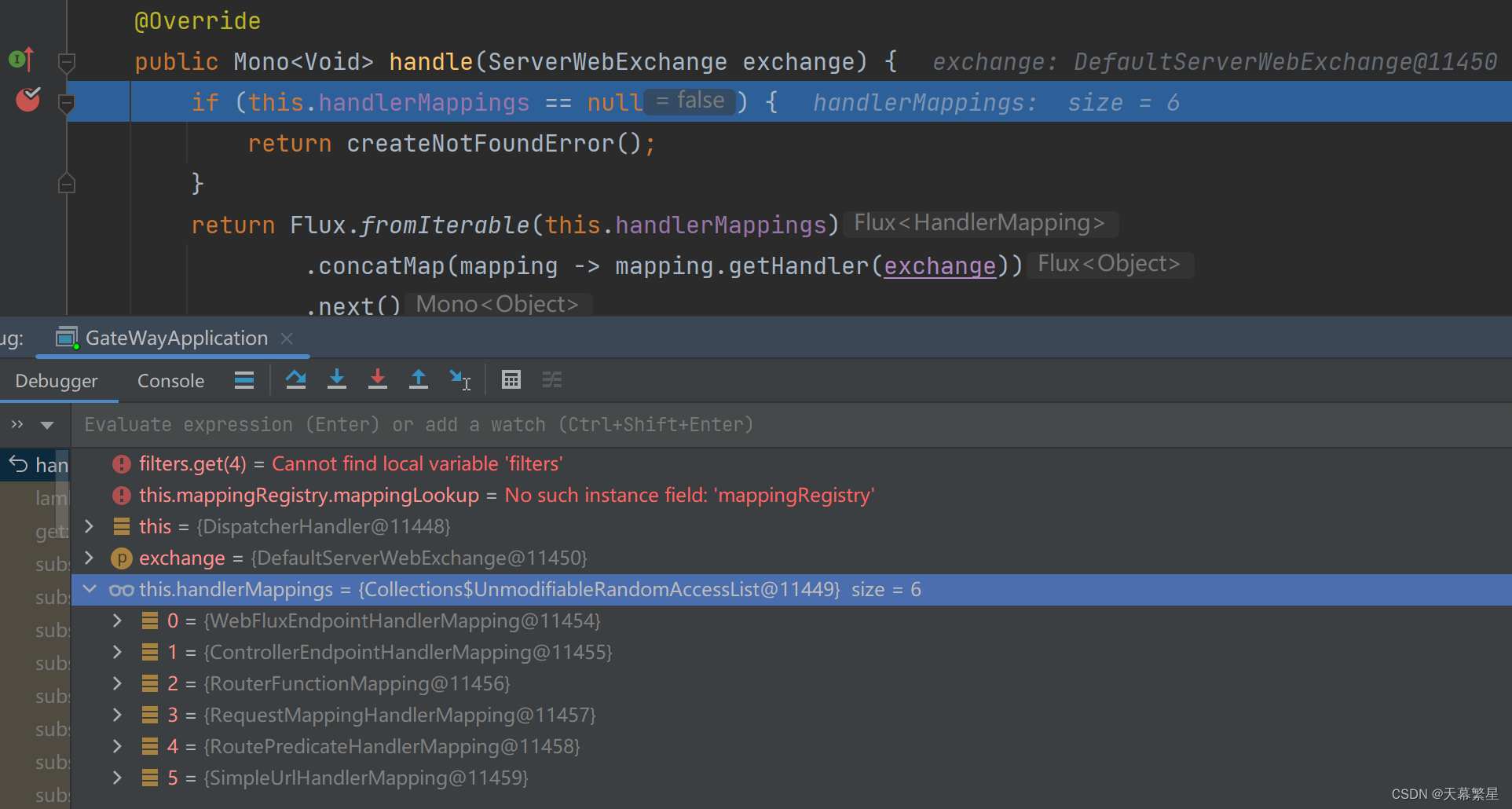

在这里插入图片描述
      他们有什么作用，以及是何时被初始化的呢，接下来我们一个一个探索一下。

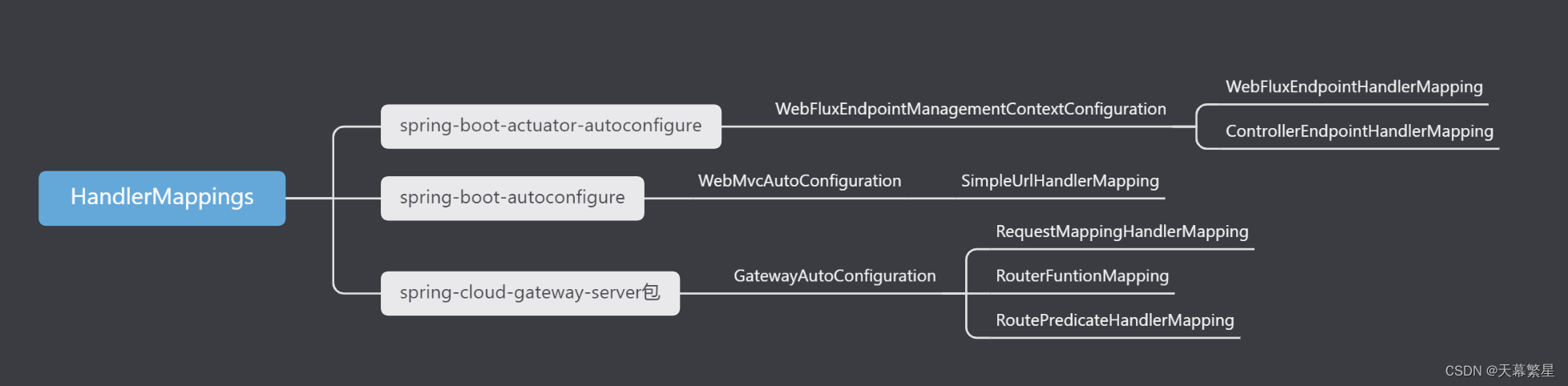

4.HandlerMapping初始化

4.1 WebFluxEndpointHandlerMapping 初始化

WebFluxEndpointHandlerMapping的初始化在WebFluxEndpointManagementContextConfiguration类中，类声明如下：

@ManagementContextConfiguration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.REACTIVE)
@ConditionalOnClass({ DispatcherHandler.class, HttpHandler.class })
@ConditionalOnBean(WebEndpointsSupplier.class)
@EnableConfigurationProperties(CorsEndpointProperties.class)
public class WebFluxEndpointManagementContextConfiguration {

WebFluxEndpointHandlerMapping注册bean代码如下

@Bean
@ConditionalOnMissingBean
public WebFluxEndpointHandlerMapping webEndpointReactiveHandlerMapping(WebEndpointsSupplier webEndpointsSupplier,
      ControllerEndpointsSupplier controllerEndpointsSupplier, EndpointMediaTypes endpointMediaTypes,
      CorsEndpointProperties corsProperties, WebEndpointProperties webEndpointProperties,
      Environment environment) {
   String basePath = webEndpointProperties.getBasePath();
   EndpointMapping endpointMapping = new EndpointMapping(basePath);
   Collection<ExposableWebEndpoint> endpoints = webEndpointsSupplier.getEndpoints();
   List<ExposableEndpoint<?>> allEndpoints = new ArrayList<>();
   allEndpoints.addAll(endpoints);
   allEndpoints.addAll(controllerEndpointsSupplier.getEndpoints());
   return new WebFluxEndpointHandlerMapping(endpointMapping, endpoints, endpointMediaTypes,
         corsProperties.toCorsConfiguration(), new EndpointLinksResolver(allEndpoints, basePath),
         shouldRegisterLinksMapping(environment, basePath));
}

4.1.1 WebFluxEndpointManagementContextConfiguration

WebFluxEndpointManagementContextConfiguration这个类不在spring-cloud-gateway-server包中，它在spring-boot-actuator-autoconfigure包中，是spring.factories文件指定的自动装配类

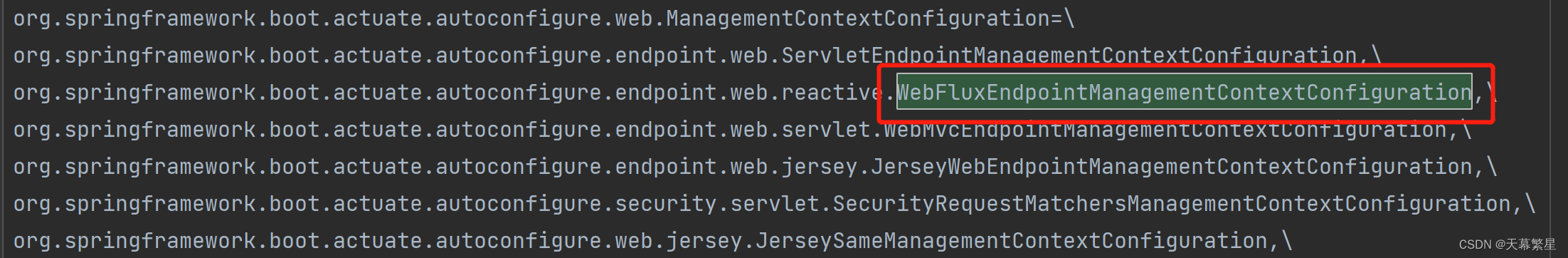

在这里插入图片描述

4.2 ControllerEndpointHandlerMapping

ControllerEndpointHandlerMapping类的初始化也在WebFluxEndpointManagementContextConfiguration类中，代码如下：

@Bean
@ConditionalOnMissingBean
public ControllerEndpointHandlerMapping controllerEndpointHandlerMapping(
      ControllerEndpointsSupplier controllerEndpointsSupplier, CorsEndpointProperties corsProperties,
      WebEndpointProperties webEndpointProperties) {
   EndpointMapping endpointMapping = new EndpointMapping(webEndpointProperties.getBasePath());
   return new ControllerEndpointHandlerMapping(endpointMapping, controllerEndpointsSupplier.getEndpoints(),
         corsProperties.toCorsConfiguration());
}

4.3 RouterFuntionMapping 初始化

RouterFuntionMapping的初始化在WebFluxAutoConfiguration的内部类WelcomePageConfiguration里
WebFluxAutoConfiguration在GatewayAutoConfiguration里触发加载，代码如下

@AutoConfigureBefore({ HttpHandlerAutoConfiguration.class,
      WebFluxAutoConfiguration.class })

WebFluxAutoConfiguration类声明如下:

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
@ConditionalOnClass(WebFluxConfigurer.class)
@ConditionalOnMissingBean({ WebFluxConfigurationSupport.class })
@AutoConfigureAfter({ ReactiveWebServerFactoryAutoConfiguration.class, CodecsAutoConfiguration.class,
      ValidationAutoConfiguration.class })
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
public class WebFluxAutoConfiguration {

RouterFunctionMapping 加载代码如下:

@Configuration(proxyBeanMethods = false)
public static class WelcomePageConfiguration {

   @Bean
   public RouterFunctionMapping welcomePageRouterFunctionMapping(ApplicationContext applicationContext,
         WebFluxProperties webFluxProperties, ResourceProperties resourceProperties) {
      WelcomePageRouterFunctionFactory factory = new WelcomePageRouterFunctionFactory(
            new TemplateAvailabilityProviders(applicationContext), applicationContext,
            resourceProperties.getStaticLocations(), webFluxProperties.getStaticPathPattern());
      RouterFunction<ServerResponse> routerFunction = factory.createRouterFunction();
      if (routerFunction != null) {
         RouterFunctionMapping routerFunctionMapping = new RouterFunctionMapping(routerFunction);
         routerFunctionMapping.setOrder(1);
         return routerFunctionMapping;
      }
      return null;
   }
}

除了RouterFunctionMapping，WebFluxAutoConfiguration还加载了另外两个重要的配置ResourceProperties 和 WebFluxProperties 用来加载WebFlux配置使用。

@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties({ ResourceProperties.class, WebFluxProperties.class })
@Import({ EnableWebFluxConfiguration.class })
public static class WebFluxConfig implements WebFluxConfigurer {

4.4 RequestMappingHandlerMapping初始化

RequestMappingHandlerMapping 在 WebFluxConfigurationSupport中被实例化，代码如下：

@Bean
public RequestMappingHandlerMapping requestMappingHandlerMapping(
      @Qualifier("webFluxContentTypeResolver") RequestedContentTypeResolver contentTypeResolver) {

   RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
   mapping.setOrder(0);
   mapping.setContentTypeResolver(contentTypeResolver);
   mapping.setCorsConfigurations(getCorsConfigurations());

   PathMatchConfigurer configurer = getPathMatchConfigurer();
   Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
   if (useTrailingSlashMatch != null) {
      mapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
   }
   Boolean useCaseSensitiveMatch = configurer.isUseCaseSensitiveMatch();
   if (useCaseSensitiveMatch != null) {
      mapping.setUseCaseSensitiveMatch(useCaseSensitiveMatch);
   }
   Map<String, Predicate<Class<?>>> pathPrefixes = configurer.getPathPrefixes();
   if (pathPrefixes != null) {
      mapping.setPathPrefixes(pathPrefixes);
   }

   return mapping;
}

WebFluxConfigurationSupport 在GatewayAutoConfiguration类中，由注解

@AutoConfigureBefore({ HttpHandlerAutoConfiguration.class,
      WebFluxAutoConfiguration.class })

注入到spring中.

4.5 RoutePredicateHandlerMapping 初始化

RoutePredicateHandlerMapping 是在GatewayAutoConfiguration类中初始化。
RoutePredicateHandlerMapping声明的代码如下：

@Bean
public RoutePredicateHandlerMapping routePredicateHandlerMapping(
      FilteringWebHandler webHandler, RouteLocator routeLocator,
      GlobalCorsProperties globalCorsProperties, Environment environment) {
   return new RoutePredicateHandlerMapping(webHandler, routeLocator,
         globalCorsProperties, environment);
}

从RoutePredicateHandlerMapping初始化的类我判断handle方法使用的mapping应该是它。

4.6 SimpleUrlHandlerMapping的初始化

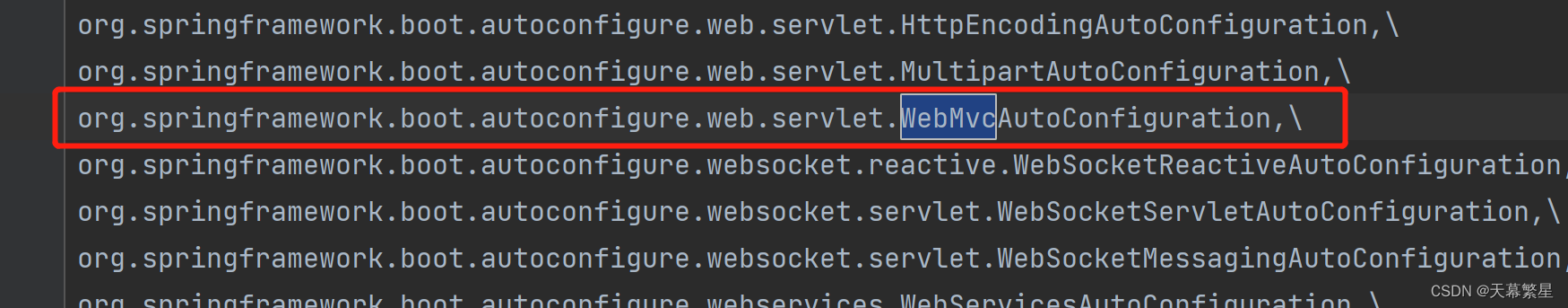

SimpleUrlHandlerMapping的初始化在WebMvcAutoConfiguration类中，我们先来看一下这个类，类上面声明了好多的注解，其中@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class }) 可以看到，它是用来处理mvc请求的。

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class,
      ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {

具体实例化的代码如下所示，在第14行调用registry.getHandlerMapping()获得了一个mapping，这个mapping就是SimpleUrlHandlerMapping

@Bean
@Override
public HandlerMapping resourceHandlerMapping(@Qualifier("mvcUrlPathHelper") UrlPathHelper urlPathHelper,
      @Qualifier("mvcPathMatcher") PathMatcher pathMatcher,
      @Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
      @Qualifier("mvcConversionService") FormattingConversionService conversionService,
      @Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {
   Assert.state(getApplicationContext() != null, "No ApplicationContext set");
   Assert.state(getServletContext() != null, "No ServletContext set");
   AutoConfigurationResourceHandlerRegistry registry = new AutoConfigurationResourceHandlerRegistry(
         getApplicationContext(), getServletContext(), contentNegotiationManager, urlPathHelper,
         this.mvcProperties);
   addResourceHandlers(registry); //增加了registry
   AbstractHandlerMapping mapping = registry.getHandlerMapping(); //
   if (mapping == null) {
      return null;
   }
   mapping.setPathMatcher(pathMatcher);
   mapping.setUrlPathHelper(urlPathHelper);
   mapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
   mapping.setCorsConfigurations(getCorsConfigurations());
   return mapping;
}

registry.getHandlerMapping()方法如下所示

@Override
protected AbstractHandlerMapping getHandlerMapping() {
   SimpleUrlHandlerMapping mapping = (SimpleUrlHandlerMapping) super.getHandlerMapping();
   reconfigure(mapping);
   return mapping;
}
