  在这一章节中,将介绍 Dart Native API 的使用方法。


一、介绍


  Dart Native API 提供了 C/C++ 与 Dart 交互的能力。在 Dart SDK 目录下,有一个 include 文件夹,里面包含了 Dart Native API 的声明:

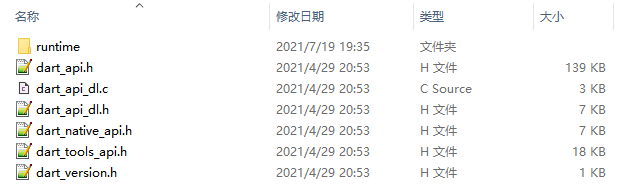

在这里插入图片描述
  上面这些文件,只需要导入到项目中,直接 include 即可使用。

  Dart SDK 提供了两种使用方式:

  • Statically Linking :静态链接;
  • Dynamically Linking:动态链接。

  【静态链接】适用于 Dart embedder,就是把 Dart SDK 直接编译到 app 的场景,例如:Flutter Engine 开发者。这种方式可以直接访问所有 Dart Native API。

  对于 Flutter App 开发者来说,只能使用【动态链接】的方式。这种方式只能访问少量 Dart Native API。也就是 dart_api_dl.h 中定义的函数dart_api.hdart_native_api.h 中定义的类型

  dart_api_dl.h 代码如下:

#ifndef RUNTIME_INCLUDE_DART_API_DL_H_
#define RUNTIME_INCLUDE_DART_API_DL_H_

#include "dart_api.h"        /* NOLINT */
#include "dart_native_api.h" /* NOLINT */

/** \mainpage Dynamically Linked Dart API
 *
 * This exposes a subset of symbols from dart_api.h and dart_native_api.h
 * available in every Dart embedder through dynamic linking.
 *
 * All symbols are postfixed with _DL to indicate that they are dynamically
 * linked and to prevent conflicts with the original symbol.
 *
 * Link `dart_api_dl.c` file into your library and invoke
 * `Dart_InitializeApiDL` with `NativeApi.initializeApiDLData`.
 */

#ifdef __cplusplus
#define DART_EXTERN extern "C"
#else
#define DART_EXTERN extern
#endif

DART_EXTERN intptr_t Dart_InitializeApiDL(void* data);

// ============================================================================
// IMPORTANT! Never update these signatures without properly updating
// DART_API_DL_MAJOR_VERSION and DART_API_DL_MINOR_VERSION.
//
// Verbatim copy of `dart_native_api.h` and `dart_api.h` symbol names and types
// to trigger compile-time errors if the sybols in those files are updated
// without updating these.
//
// Function return and argument types, and typedefs are carbon copied. Structs
// are typechecked nominally in C/C++, so they are not copied, instead a
// comment is added to their definition.
typedef int64_t Dart_Port_DL;

typedef void (*Dart_NativeMessageHandler_DL)(Dart_Port_DL dest_port_id,
                                             Dart_CObject* message);

// dart_native_api.h symbols can be called on any thread.
#define DART_NATIVE_API_DL_SYMBOLS(F)                                          \
  /***** dart_native_api.h *****/                                              \
  /* Dart_Port */                                                              \
  F(Dart_PostCObject, bool, (Dart_Port_DL port_id, Dart_CObject * message))    \
  F(Dart_PostInteger, bool, (Dart_Port_DL port_id, int64_t message))           \
  F(Dart_NewNativePort, Dart_Port_DL,                                          \
    (const char* name, Dart_NativeMessageHandler_DL handler,                   \
     bool handle_concurrently))                                                \
  F(Dart_CloseNativePort, bool, (Dart_Port_DL native_port_id))

// dart_api.h symbols can only be called on Dart threads.
#define DART_API_DL_SYMBOLS(F)                                                 \
  /***** dart_api.h *****/                                                     \
  /* Errors */                                                                 \
  F(Dart_IsError, bool, (Dart_Handle handle))                                  \
  F(Dart_IsApiError, bool, (Dart_Handle handle))                               \
  F(Dart_IsUnhandledExceptionError, bool, (Dart_Handle handle))                \
  F(Dart_IsCompilationError, bool, (Dart_Handle handle))                       \
  F(Dart_IsFatalError, bool, (Dart_Handle handle))                             \
  F(Dart_GetError, const char*, (Dart_Handle handle))                          \
  F(Dart_ErrorHasException, bool, (Dart_Handle handle))                        \
  F(Dart_ErrorGetException, Dart_Handle, (Dart_Handle handle))                 \
  F(Dart_ErrorGetStackTrace, Dart_Handle, (Dart_Handle handle))                \
  F(Dart_NewApiError, Dart_Handle, (const char* error))                        \
  F(Dart_NewCompilationError, Dart_Handle, (const char* error))                \
  F(Dart_NewUnhandledExceptionError, Dart_Handle, (Dart_Handle exception))     \
  F(Dart_PropagateError, void, (Dart_Handle handle))                           \
  /* Dart_Handle, Dart_PersistentHandle, Dart_WeakPersistentHandle */          \
  F(Dart_HandleFromPersistent, Dart_Handle, (Dart_PersistentHandle object))    \
  F(Dart_HandleFromWeakPersistent, Dart_Handle,                                \
    (Dart_WeakPersistentHandle object))                                        \
  F(Dart_NewPersistentHandle, Dart_PersistentHandle, (Dart_Handle object))     \
  F(Dart_SetPersistentHandle, void,                                            \
    (Dart_PersistentHandle obj1, Dart_Handle obj2))                            \
  F(Dart_DeletePersistentHandle, void, (Dart_PersistentHandle object))         \
  F(Dart_NewWeakPersistentHandle, Dart_WeakPersistentHandle,                   \
    (Dart_Handle object, void* peer, intptr_t external_allocation_size,        \
     Dart_HandleFinalizer callback))                                           \
  F(Dart_DeleteWeakPersistentHandle, void, (Dart_WeakPersistentHandle object)) \
  F(Dart_UpdateExternalSize, void,                                             \
    (Dart_WeakPersistentHandle object, intptr_t external_allocation_size))     \
  F(Dart_NewFinalizableHandle, Dart_FinalizableHandle,                         \
    (Dart_Handle object, void* peer, intptr_t external_allocation_size,        \
     Dart_HandleFinalizer callback))                                           \
  F(Dart_DeleteFinalizableHandle, void,                                        \
    (Dart_FinalizableHandle object, Dart_Handle strong_ref_to_object))         \
  F(Dart_UpdateFinalizableExternalSize, void,                                  \
    (Dart_FinalizableHandle object, Dart_Handle strong_ref_to_object,          \
     intptr_t external_allocation_size))                                       \
  /* Dart_Port */                                                              \
  F(Dart_Post, bool, (Dart_Port_DL port_id, Dart_Handle object))               \
  F(Dart_NewSendPort, Dart_Handle, (Dart_Port_DL port_id))                     \
  F(Dart_SendPortGetId, Dart_Handle,                                           \
    (Dart_Handle port, Dart_Port_DL * port_id))                                \
  /* Scopes */                                                                 \
  F(Dart_EnterScope, void, ())                                                 \
  F(Dart_ExitScope, void, ())

#define DART_API_ALL_DL_SYMBOLS(F)                                             \
  DART_NATIVE_API_DL_SYMBOLS(F)                                                \
  DART_API_DL_SYMBOLS(F)
// IMPORTANT! Never update these signatures without properly updating
// DART_API_DL_MAJOR_VERSION and DART_API_DL_MINOR_VERSION.
//
// End of verbatim copy.
// ============================================================================

#define DART_API_DL_DECLARATIONS(name, R, A)                                   \
  typedef R(*name##_Type) A;                                                   \
  DART_EXTERN name##_Type name##_DL;

DART_API_ALL_DL_SYMBOLS(DART_API_DL_DECLARATIONS)

#undef DART_API_DL_DEFINITIONS

#undef DART_EXTERN

#endif /* RUNTIME_INCLUDE_DART_API_DL_H_ */ /* NOLINT */

  说明

  • 接口函数都是以 DL 结尾的(即:Dynamically Linked 的缩写),例如:Dart_PostCObject 接口,在使用的时候就变成了 Dart_PostCObject_DL
  • 接口类型可以直接使用,不需要加 DL 后缀,例如:Dart_PortDart_CObject


  调用非 DL 结尾的函数会导致 Linker 链接失败,例如,Dart_IsNull 用于判断一个 Dart 对象是否为 null,它属于 Dart Native API 的一个接口,但是并没有在 dart_api_dl.h 中声明,如果直接调用会报错,如下:

E:/Team_Bass/flutter_ffi/ios/Runner/native_ffi.cpp:22: undefined reference to `Dart_IsNull'
clang++: error: linker command failed with exit code 1 (use -v to see invocation)
ninja: build stopped: subcommand failed.


  所以,就目前看来,我们只能使用 dart_api_dl.h 来中声明的API。最常用的用途就是用来解决 C 与 Dart 异步通讯的事情。下面来介绍一下具体用法。



二、初始化


  先将 include 目录下的文件拷贝到项目中,然后修改 CMakeLists.txt,如下:

cmake_minimum_required(VERSION 3.4.1)  # for example

add_library(native_ffi
            # Sets the library as a shared library.
            SHARED
            # Provides a relative path to your source file(s).
            ../../ios/Runner/dart_api/dart_api.h
            ../../ios/Runner/dart_api/dart_api_dl.h
            ../../ios/Runner/dart_api/dart_native_api.h
            ../../ios/Runner/dart_api/dart_version.h
            ../../ios/Runner/dart_api/internal/dart_api_dl_impl.h
            ../../ios/Runner/dart_api/dart_api_dl.c
            ../../ios/Runner/native_ffi.cpp
            )

  使用 Dart Native API,必须需要初始化:
  首先需要在 C 定义一个初始化函数,供 Dart 使用:

#include "dart_api/dart_api.h"
#include "dart_api/dart_native_api.h"
#include "dart_api/dart_api_dl.h"

// Initialize `dart_api_dl.h`
DART_EXPORT intptr_t InitDartApiDL(void* data) { //定义一个初始化函数给Dart使用
  return Dart_InitializeApiDL(data); //这里调用了DartSDK的函数进行初始化
}

  说明:

  • 首先定义一个 InitDartApiDL 函数,这个函数是给 Dart 使用的,所以需要加上 DART_EXPORT 修饰;
  • DART_EXPORT 是 Dart Native API 里面的一个宏定义,其实就是 extern "C"
  • Dart_InitializeApiDL 是 Dart Native API 里面的一个初始化 API,返回 0 表示成功;
  • void* data 是从 Dart 传递进来的指针,指针向 C 中的 DartApi 结构体。可以在 Dart 中调用 NativeApi.initializeApiDLData 获取到这个指针;
  • DartApi 结构体中包含了版本(major, minor)以及函数表(functions)信息,在 Dart_InitializeApiDL() 被调用的时候,该函数表与 dart_api_dl.h 中定义的宏进行映射,这样我们在调用 Dart_PostCObject_DL 等以 DL 结尾的 API 时,就可以正确关联到原始的函数 Dart_PostCObject。感兴趣的同学可以在 Dart_InitializeApiDL() 函数中下断点分析一下。

  然后,需要在 Dart 调用 C 中的 InitDartApiDL 接口:
  函数类型定义:

typedef Native_Dart_InitializeApiDL = Int32 Function(Pointer<Void> data);
typedef FFI_Dart_InitializeApiDL = int Function(Pointer<Void> data);

  Dart 调用 C 的 InitDartApiDL 函数:

//加载符号信息
DynamicLibrary nativeApi = Platform.isAndroid
        ? DynamicLibrary.open("libnative_ffi.so")
        : DynamicLibrary.process();

//查找初始化函数
FFI_Dart_InitializeApiDL initializeFunc = nativeApi.lookupFunction<
    Native_Dart_InitializeApiDL, FFI_Dart_InitializeApiDL>("InitDartApiDL");

//调用初始化函数
var nativeInited = initializeFunc(NativeApi.initializeApiDLData);

//检查是否成功
assert(nativeInited == 0, 'init api-dl failed.');

  说明:

  • 调用 InitDartApiDL 成功之后,会返回 0



三、异步回调


  Dart 中的代码默认都是在 Main Isolate 中执行的,这个相当于主线程。因此,当 C / C++ 回调 Dart 函数的时候,也必须保证是同一个线程。否则的话,会出现崩溃。但是在实际开发中,我们需要把一个任务放到 C/C++ 的子线程中执行,如果在子线程直接调用 Dart 的全局函数,必定会引起崩溃。


  解决异步回调的方法,就是使用 Dart 的 SendPort / ReceivePort 机制,步骤如下:

  • 在 Dart 中创建 ReceivePort,并调用 listen 进行监听;
  • 将 上面 ReceivePort 所关联的 SendPort 传递给 C/C++;
  • C/C++ 保存接收到的 SendPort,并创建子线程执行耗时任务;
  • 当任务执行完成之后,通过 SendPort 将数据传递给 Dart 。

  下面直接给出详细代码和注释:
  C++ 代码:

#include <thread>
#include <string>

#include "dart_api/dart_api.h"
#include "dart_api/dart_native_api.h"
#include "dart_api/dart_api_dl.h"

// 1.声明线程执行函数
void thread_func(Dart_Port sendPort, char *name);

// 2.初始化 Dart Native API
DART_EXPORT intptr_t InitDartApiDL(void* data) {
  return Dart_InitializeApiDL(data);
}

// 3.开启线程
DART_EXPORT void NativeAsyncExecute(Dart_Port sendPort, char *name) {
    std::thread thread1(thread_func, sendPort, name);
    thread1.detach();
}

// 4.线程实际操作
void thread_func(Dart_Port sendPort, char *name) {
    printf("thread is running, arg=%s", name);

     //等待一段时间
    std::this_thread::sleep_for(std::chrono::seconds(3));

    std::string greeting("Hello, ");
    greeting += std::string(name);

    //创建一个Dart对象,然后发给给Dart
    Dart_CObject dart_object;
    dart_object.type = Dart_CObject_kString;	//Dart对象的类型
    dart_object.value.as_string = (char*) greeting.c_str();	//Dart对象的值
    Dart_PostCObject_DL(sendPort, &dart_object);	//发送给Dart

    free(name); //释放内存

    printf("thread is over, return=%s", greeting.c_str());
}


说明:

  • 通过 Dart_PostCObject_DL 向指定的 SendPort 发送数据;
  • Dart_CObject_kString 是一个枚举类型,其它枚举值请参考 Dart_CObject_Type
  • Dart_PostCObject_DL 似乎一次只能发送一个对象,因此如果需要传递复杂的数据类型的话,可以考虑传递 结构体 或 JSON 字符串等其它方案。

  Dart 代码如下:


typedef Native_Dart_InitializeApiDL = Int32 Function(Pointer<Void> data);
typedef FFI_Dart_InitializeApiDL = int Function(Pointer<Void> data);

typedef Native_NativeAsyncExecute = Void Function(Int64, Pointer<Int8>);
typedef FFI_NativeAsyncExecute = void Function(int, Pointer<Int8>);

class _DemoState extends State<Demo> {
  late DynamicLibrary nativeApi;
  late ReceivePort _receivePort;

  @override
  void initState() {
    super.initState();
    testNative();
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(home: Scaffold(body: Center(child: Text("FFI Demo"))));
  }

  void testNative() {
    //加载符号表
    nativeApi = Platform.isAndroid
        ? DynamicLibrary.open("libnative_ffi.so")
        : DynamicLibrary.process();

    //1.查找初始化函数
    FFI_Dart_InitializeApiDL initFunc = nativeApi.lookupFunction<
        Native_Dart_InitializeApiDL, FFI_Dart_InitializeApiDL>("InitDartApiDL");

    //2.调用初始化函数,并判断是否成功
    var nativeInited = initFunc(NativeApi.initializeApiDLData);
    assert(nativeInited == 0, '初始化Dart Native API失败');

    //3.创建ReceivePort,用于接收Native异步返回的数据
    _receivePort = new ReceivePort();
    _receivePort.listen((message) {
      print("ReceivePort, message=$message, type=${message.runtimeType}");
      _receivePort.close();
    });

    //4.查找Native异步函数
    FFI_NativeAsyncExecute asyncExecuteFunc = nativeApi.lookupFunction<
        Native_NativeAsyncExecute, FFI_NativeAsyncExecute>("NativeAsyncExecute");

    //5.调用Native异步函数
    final name = "Clark".toNativeUtf8().cast<Int8>();
    asyncExecuteFunc(_receivePort.sendPort.nativePort, name);
  }
}

说明:

  • 通过 receivePort.sendPort.nativePort 可以获取到 SendPort 的句柄,它是一个 int64 类型,可以传递给 C/C++ 使用。

  上述代码输出如下:

I/flutter: ReceivePort, message=Hello, Clark, type=String

说明:

  • 从输出可以得知,Dart 已经自动帮我们把 char* 类型转化为 Dart String 类型了,十分方便;



四、总结


  Dart Native API 提供了 Native 与 Dart 交互的能力,作为 Flutter App 开发者,我们可以使用 dart_api_dl.h 中定义的 API 实现 C 与 Dart 的异步回调功能。

  当然, dart_api_dl.h 还有很多 API 这里没有介绍,用到时候直接看 dart_native_api.h 这些头文件,里面有详细的解释。

  另外,如果自己定制 Flutter Engine 的话,甚至可以把更多的 Dart Native API 暴露出来,这样就可以在 C/C++ 中自由地调用 Dart 的对象和方法了。






  • 3
    点赞
  • 4
    收藏
  • 打赏
    打赏
  • 3
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
©️2022 CSDN 皮肤主题:大白 设计师:CSDN官方博客 返回首页
评论 3

打赏作者

又吹风_Bassy

你的鼓励将是我创作的最大动力

¥2 ¥4 ¥6 ¥10 ¥20
输入1-500的整数
余额支付 (余额:-- )
扫码支付
扫码支付:¥2
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
