【问题记录】Mellanox PCIe分析工具neohost执行get_device_performance_counters.py报错No JSON object？（安装jsonschema）-CSDN博客

本文链接：https://blog.csdn.net/essencelite/article/details/147776060

文章目录

背景
报错
问题解决
其他
- 安装报错：`IOError: [Errno 2] No such file or directory: '/tmp/pip-build-P5zLhv/jsonschema/setup.py'`
- 安装老版本jsonschema报错：`No matching distribution found for jsonschema==2.6.0`
实操

背景

本文记录了Mellanox PCIe分析工具在安装后遇到没有JSON输出的问题处理记录。改文章会死第二次安装，相对比较快，更详细的过程参考第一次的兄弟篇文章。
另外本文主要遇到的是python版本、jsonschema的python工具包问题。

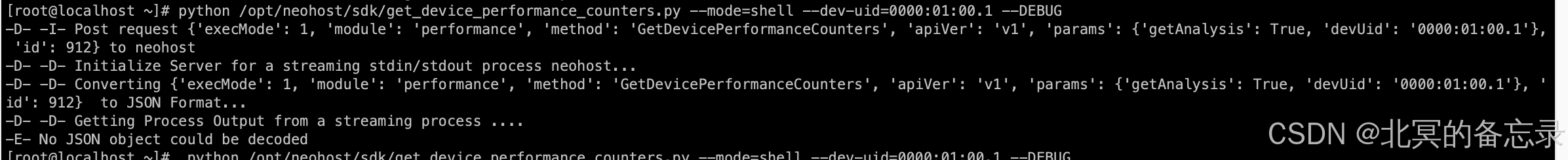

报错

可以看到没有其他报错

-E- No JSON object could be decoded

在这里插入图片描述

问题解决

结合以前的经验有jsonschema等问题。更多参考兄弟篇：【问题记录】Mellanox网卡性能调试工具neohost1.5.0安装遇到的问题记录

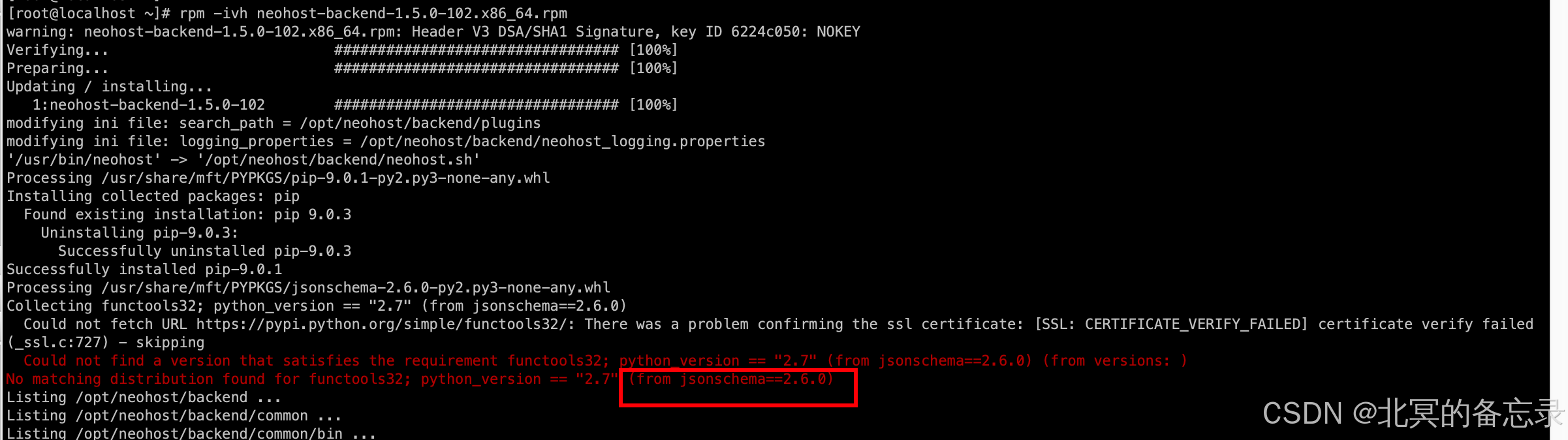

以及回忆到安装neohost的时候，有一些轻微报错：
在这里插入图片描述
那么重新安装一些jsonschema以及重新安装rpm，具体参考兄弟篇。
本文处理了几个地方：

yum install python2
sudo alternatives --config python

rpm -ivh neohost-backend-1.5.0-102.x86_64.rpm

#注意需要老版本的jsonschema，并且国内镜像源建议用阿里云
# 设置pip国内镜像源
mkdir -p ~/.pip
touch ~/.pip/pip.conf
vim ~/.pip/pip.conf
#添加下面的内容：
[global]
index-url = https://mirrors.aliyun.com/pypi/simple/
trusted-host = mirrors.aliyun.com

# 安装json模块，一定要先安装，避免neohost安装执行中有些失败
pip2 install jsonschema==2.6.0

# 安装neohost sdk
rpm -ivh neohost-* --force #因为安装过一次，所以要重新安装

其他

安装报错：`IOError: [Errno 2] No such file or directory: '/tmp/pip-build-P5zLhv/jsonschema/setup.py'`

该问题上篇文章提到过，是因为jsonschema版本太新，解决办法用老的版本：pip install jsonschema==2.6.0
在这里插入图片描述

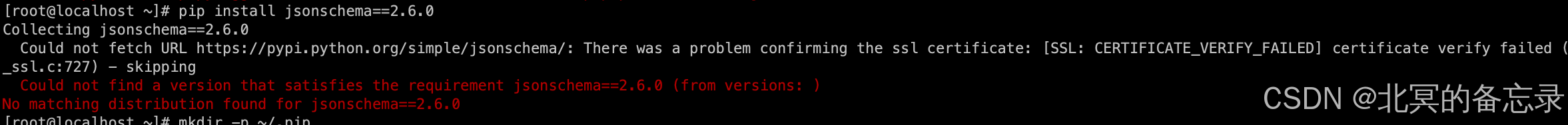

安装老版本jsonschema报错：`No matching distribution found for jsonschema==2.6.0`

在这里插入图片描述
解决办法，使用国内镜像源：

# 设置pip国内镜像源
mkdir -p ~/.pip
touch ~/.pip/pip.conf
vim ~/.pip/pip.conf
#添加下面的内容：
[global]
index-url = https://mirrors.aliyun.com/pypi/simple/
trusted-host = mirrors.aliyun.com

# 安装json模块，一定要先安装，避免neohost安装执行中有些失败
pip2 install jsonschema==2.6.0

实操

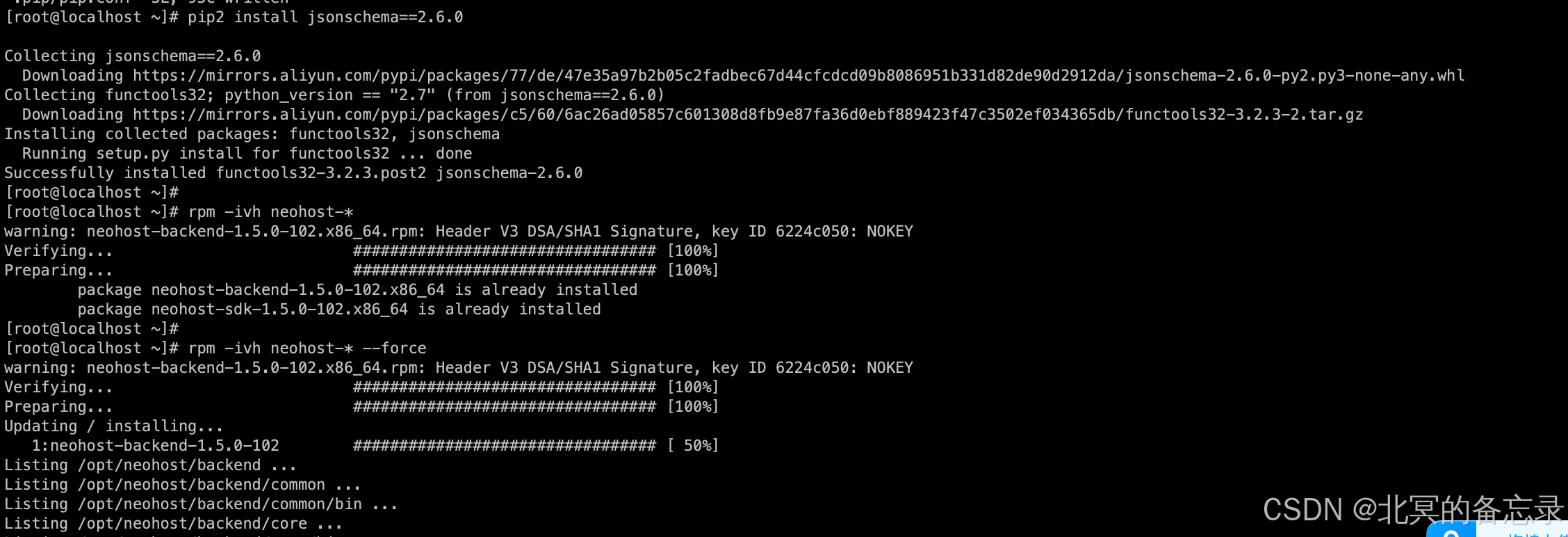

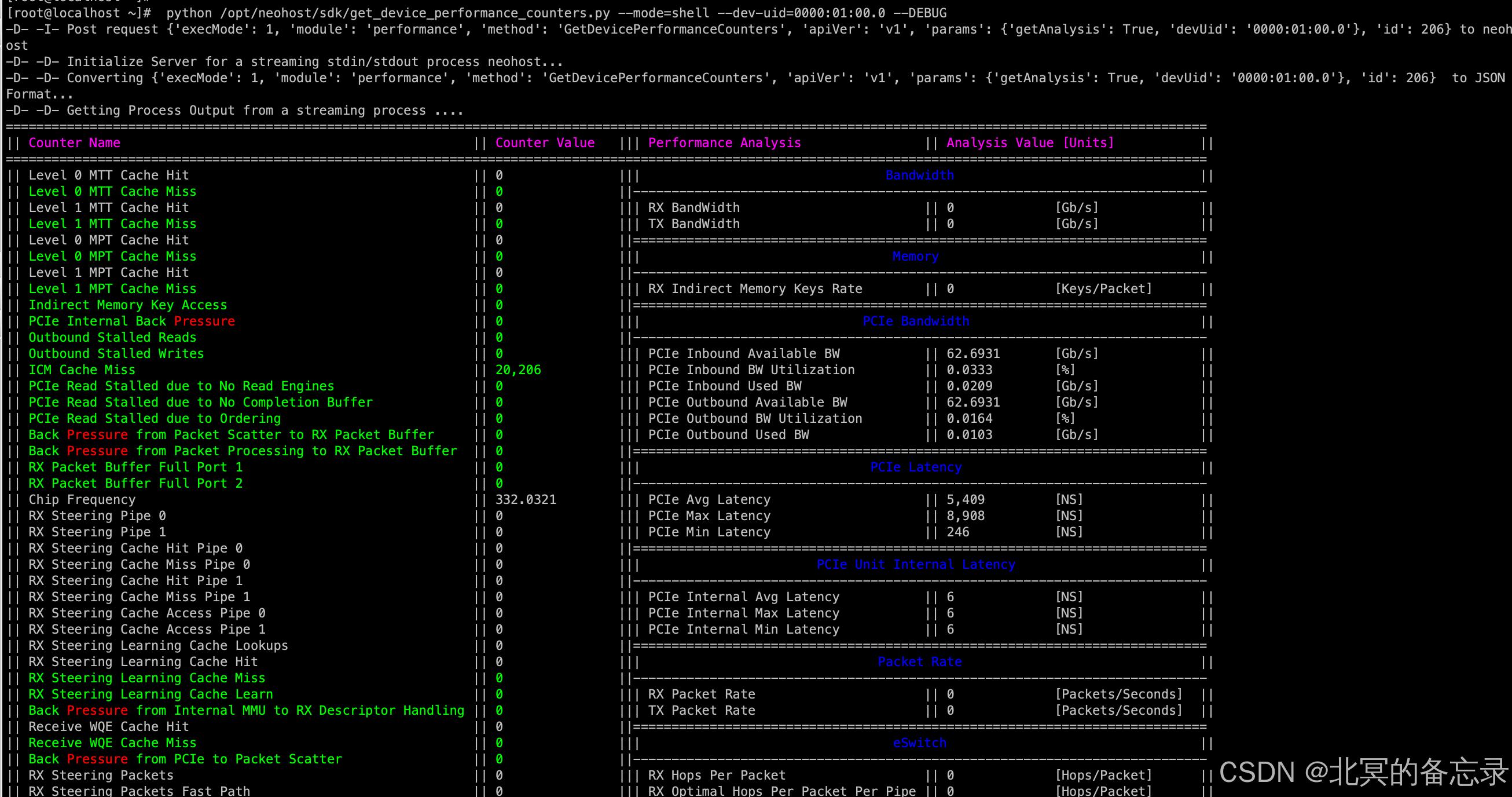

重新配置json后安装效果：
在这里插入图片描述
全量日志：

[root@localhost ~]# rpm -ivh neohost-* --force
warning: neohost-backend-1.5.0-102.x86_64.rpm: Header V3 DSA/SHA1 Signature, key ID 6224c050: NOKEY
Verifying...                          ################################# [100%]
Preparing...                          ################################# [100%]
Updating / installing...
   1:neohost-backend-1.5.0-102        ################################# [ 50%]
Listing /opt/neohost/backend ...
Listing /opt/neohost/backend/common ...
Listing /opt/neohost/backend/common/bin ...
Listing /opt/neohost/backend/core ...
Listing /opt/neohost/backend/core/bin ...
Listing /opt/neohost/backend/core/pysrc ...
Listing /opt/neohost/backend/core/schemas ...
Listing /opt/neohost/backend/plugins ...
Listing /opt/neohost/backend/plugins/configFlows ...
Listing /opt/neohost/backend/plugins/configFlows/schemas ...
Listing /opt/neohost/backend/plugins/mftCables ...
Listing /opt/neohost/backend/plugins/mftCables/schemas ...
Listing /opt/neohost/backend/plugins/mftConfig ...
Listing /opt/neohost/backend/plugins/mftConfig/database ...
Listing /opt/neohost/backend/plugins/mftConfig/schemas ...
Listing /opt/neohost/backend/plugins/mftCore ...
Listing /opt/neohost/backend/plugins/mftCore/schemas ...
Listing /opt/neohost/backend/plugins/mftDebug ...
Listing /opt/neohost/backend/plugins/mftDebug/database ...
Listing /opt/neohost/backend/plugins/mftDebug/schemas ...
Listing /opt/neohost/backend/plugins/mftFw ...
Listing /opt/neohost/backend/plugins/mftFw/schemas ...
Listing /opt/neohost/backend/plugins/mftFw/tools ...
Listing /opt/neohost/backend/plugins/performance ...
Listing /opt/neohost/backend/plugins/performance/api ...
Listing /opt/neohost/backend/plugins/performance/common ...
Listing /opt/neohost/backend/plugins/performance/entities ...
Listing /opt/neohost/backend/plugins/performance/schemas ...
Listing /opt/neohost/backend/plugins/performance/services ...
Listing /opt/neohost/backend/plugins/performance/services/analysis ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_1 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_2 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_3 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_4 ...
Listing /opt/neohost/backend/plugins/performance/services/command ...
Listing /opt/neohost/backend/plugins/performance/services/communication ...
Listing /opt/neohost/backend/plugins/performance/services/cpu ...
Listing /opt/neohost/backend/plugins/performance/services/filtering ...
Listing /opt/neohost/backend/plugins/performance/services/mcra ...
Listing /opt/neohost/backend/plugins/performance/services/support ...
Listing /opt/neohost/backend/plugins/performance/services/workers ...
Listing /opt/neohost/backend/plugins/performance/utilities ...
Listing /opt/neohost/backend/usr ...
Listing /opt/neohost/backend ...
Listing /opt/neohost/backend/common ...
Listing /opt/neohost/backend/common/bin ...
Listing /opt/neohost/backend/core ...
Listing /opt/neohost/backend/core/bin ...
Listing /opt/neohost/backend/core/pysrc ...
Listing /opt/neohost/backend/core/schemas ...
Listing /opt/neohost/backend/plugins ...
Listing /opt/neohost/backend/plugins/configFlows ...
Listing /opt/neohost/backend/plugins/configFlows/schemas ...
Listing /opt/neohost/backend/plugins/mftCables ...
Listing /opt/neohost/backend/plugins/mftCables/schemas ...
Listing /opt/neohost/backend/plugins/mftConfig ...
Listing /opt/neohost/backend/plugins/mftConfig/database ...
Listing /opt/neohost/backend/plugins/mftConfig/schemas ...
Listing /opt/neohost/backend/plugins/mftCore ...
Listing /opt/neohost/backend/plugins/mftCore/schemas ...
Listing /opt/neohost/backend/plugins/mftDebug ...
Listing /opt/neohost/backend/plugins/mftDebug/database ...
Listing /opt/neohost/backend/plugins/mftDebug/schemas ...
Listing /opt/neohost/backend/plugins/mftFw ...
Listing /opt/neohost/backend/plugins/mftFw/schemas ...
Listing /opt/neohost/backend/plugins/mftFw/tools ...
Listing /opt/neohost/backend/plugins/performance ...
Listing /opt/neohost/backend/plugins/performance/api ...
Listing /opt/neohost/backend/plugins/performance/common ...
Listing /opt/neohost/backend/plugins/performance/entities ...
Listing /opt/neohost/backend/plugins/performance/schemas ...
Listing /opt/neohost/backend/plugins/performance/services ...
Listing /opt/neohost/backend/plugins/performance/services/analysis ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_1 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_2 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_3 ...
Listing /opt/neohost/backend/plugins/performance/services/analysis/analyzers/layer_4 ...
Listing /opt/neohost/backend/plugins/performance/services/command ...
Listing /opt/neohost/backend/plugins/performance/services/communication ...
Listing /opt/neohost/backend/plugins/performance/services/cpu ...
Listing /opt/neohost/backend/plugins/performance/services/filtering ...
Listing /opt/neohost/backend/plugins/performance/services/mcra ...
Listing /opt/neohost/backend/plugins/performance/services/support ...
Listing /opt/neohost/backend/plugins/performance/services/workers ...
Listing /opt/neohost/backend/plugins/performance/utilities ...
Listing /opt/neohost/backend/usr ...
   2:neohost-sdk-1.5.0-102            ################################# [100%]
Listing /opt/neohost/sdk ...
Compiling /opt/neohost/sdk/get_application_file_data.py ...
Compiling /opt/neohost/sdk/get_application_file_meta_data.py ...
Compiling /opt/neohost/sdk/get_device_cr_dump.py ...
Compiling /opt/neohost/sdk/get_device_flash_dump.py ...
Compiling /opt/neohost/sdk/get_device_flash_info.py ...
Compiling /opt/neohost/sdk/get_device_fw_image_info.py ...
Compiling /opt/neohost/sdk/get_device_nv_config.py ...
Compiling /opt/neohost/sdk/get_device_nv_config_meta_data.py ...
Compiling /opt/neohost/sdk/get_device_performance_counters.py ...
Compiling /opt/neohost/sdk/get_device_reset_level.py ...
Compiling /opt/neohost/sdk/get_device_roce_state.py ...
Compiling /opt/neohost/sdk/get_device_roce_validation.py ...
Compiling /opt/neohost/sdk/get_device_sriov_state.py ...
Compiling /opt/neohost/sdk/get_device_temperature.py ...
Compiling /opt/neohost/sdk/get_device_thermal_thresholds.py ...
Compiling /opt/neohost/sdk/get_device_up_time.py ...
Compiling /opt/neohost/sdk/get_device_vpd.py ...
Compiling /opt/neohost/sdk/get_interface_info.py ...
Compiling /opt/neohost/sdk/get_job_status.py ...
Compiling /opt/neohost/sdk/get_port_cable_info.py ...
Compiling /opt/neohost/sdk/get_port_info.py ...
Compiling /opt/neohost/sdk/get_system_devices.py ...
Compiling /opt/neohost/sdk/get_system_dump.py ...
Compiling /opt/neohost/sdk/get_system_information.py ...
Compiling /opt/neohost/sdk/neohost_config.py ...
Compiling /opt/neohost/sdk/neohost_dumps.py ...
Compiling /opt/neohost/sdk/neohost_ports.py ...
Compiling /opt/neohost/sdk/run_neohost.py ...
Compiling /opt/neohost/sdk/set_device_fw_update.py ...
Compiling /opt/neohost/sdk/set_device_nv_config.py ...
Compiling /opt/neohost/sdk/set_device_nv_config_defaults.py ...
Compiling /opt/neohost/sdk/set_device_reset.py ...
Compiling /opt/neohost/sdk/set_device_roce.py ...
Compiling /opt/neohost/sdk/set_device_roce_cleanup.py ...
Compiling /opt/neohost/sdk/set_device_sriov.py ...
Listing /opt/neohost/sdk ...
Compiling /opt/neohost/sdk/command_sdk.py ...
Compiling /opt/neohost/sdk/common_meta.py ...
Compiling /opt/neohost/sdk/exec_command.py ...
Compiling /opt/neohost/sdk/get_application_file_data.py ...
Compiling /opt/neohost/sdk/get_application_file_meta_data.py ...
Compiling /opt/neohost/sdk/get_device_cr_dump.py ...
Compiling /opt/neohost/sdk/get_device_flash_dump.py ...
Compiling /opt/neohost/sdk/get_device_flash_info.py ...
Compiling /opt/neohost/sdk/get_device_fw_image_info.py ...
Compiling /opt/neohost/sdk/get_device_nv_config.py ...
Compiling /opt/neohost/sdk/get_device_nv_config_meta_data.py ...
Compiling /opt/neohost/sdk/get_device_performance_counters.py ...
Compiling /opt/neohost/sdk/get_device_reset_level.py ...
Compiling /opt/neohost/sdk/get_device_roce_state.py ...
Compiling /opt/neohost/sdk/get_device_roce_validation.py ...
Compiling /opt/neohost/sdk/get_device_sriov_state.py ...
Compiling /opt/neohost/sdk/get_device_temperature.py ...
Compiling /opt/neohost/sdk/get_device_thermal_thresholds.py ...
Compiling /opt/neohost/sdk/get_device_up_time.py ...
Compiling /opt/neohost/sdk/get_device_vpd.py ...
Compiling /opt/neohost/sdk/get_interface_info.py ...
Compiling /opt/neohost/sdk/get_job_status.py ...
Compiling /opt/neohost/sdk/get_port_cable_info.py ...
Compiling /opt/neohost/sdk/get_port_info.py ...
Compiling /opt/neohost/sdk/get_system_devices.py ...
Compiling /opt/neohost/sdk/get_system_dump.py ...
Compiling /opt/neohost/sdk/get_system_information.py ...
Compiling /opt/neohost/sdk/neohost_backend_server.py ...
Compiling /opt/neohost/sdk/neohost_config.py ...
Compiling /opt/neohost/sdk/neohost_dumps.py ...
Compiling /opt/neohost/sdk/neohost_ports.py ...
Compiling /opt/neohost/sdk/neohost_sdk_constants.py ...
Compiling /opt/neohost/sdk/neohost_sdk_exception.py ...
Compiling /opt/neohost/sdk/neohost_shell_server.py ...
Compiling /opt/neohost/sdk/neohost_socket_client.py ...
Compiling /opt/neohost/sdk/neohost_socket_server.py ...
Compiling /opt/neohost/sdk/print_data.py ...
Compiling /opt/neohost/sdk/run_neohost.py ...
Compiling /opt/neohost/sdk/set_device_fw_update.py ...
Compiling /opt/neohost/sdk/set_device_nv_config.py ...
Compiling /opt/neohost/sdk/set_device_nv_config_defaults.py ...
Compiling /opt/neohost/sdk/set_device_reset.py ...
Compiling /opt/neohost/sdk/set_device_roce.py ...
Compiling /opt/neohost/sdk/set_device_roce_cleanup.py ...
Compiling /opt/neohost/sdk/set_device_sriov.py ...
[root@localhost ~]#
