21款凯美瑞车机系统安装软件及OTA升级包浅析

概要

本文分两个部分：
1、分析21款凯美瑞车机系统安装软件；
2、浅析OTA升级包，以车机固件v1.000062版本为例。
声明：
1、本文刷机包来源于 西窗浪人分享 https://www.bigxd.com/2023/04/1093.html
2、解包工具来源：https://github.com/bassrock/AVIC-NEX

一、安装软件教程

前言

21款凯美瑞车整体体验尚可，但是对车机不甚满意，尝试各种方法无果，为了这个车机也是操碎了心。无意间发现网上有卖这车机的emmc数据，于是购买了一份来研究。

车机配置

通过解析emmc数据，发现车机硬件配置：采用恩智浦的I.MX6Q处理器，辅以 4GB内存、32GB硬盘，集成4G上网模块，运行深度定制的安卓7.1.2-user版本系统，这个配置在合资车中还算不错。

进入正题

深入分析emmc数据，发现系统脚本有打开和关闭adb 的脚本，脚本比较简单就不具体分析了，代码如下：
打开adb脚本：role_to_adb.sh

#!/bin/bash

#CDP CB1 pin
echo 0 > /sys/class/gpio/gpio145/value
sleep 1

#start adbd
echo 1 > /sys/class/gpio/gpio34/value
setprop sys.usb.config mtp,adb
setprop persist.sys.usb.config adb
setprop sys.usb.config adb
setprop sys.usb.state adb

echo 0 > /sys/class/gpio/gpio111/value

关闭adb的脚本：role_to_dio.sh

#!/bin/bash

#CDP CB1 pin
echo 1 > /sys/class/gpio/gpio145/value

#stop adbd
echo 0 > /sys/class/gpio/gpio34/value
echo 1 > /sys/class/gpio/gpio111/value

通过这两个脚本就可以分析，系统是有打开adb的方法的，只是没发现而已，一般隐藏菜单都是在系统设置里面，于是分析系统app，找到setting.apk，反编译定位到jp.pioneer.ceam.setting.debugmode，具体代码如下：

package jp.pioneer.ceam.setting.debugmode;

import android.app.Fragment;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.EditText;
import android.widget.RelativeLayout;
import android.widget.TextView;
import java.lang.ref.WeakReference;
import jp.pioneer.ceam.KeyManager.KeyManagerController;
import jp.pioneer.ceam.KeyManager.KeyManagerListener;

/* compiled from: DebugMode_PasswordInput.java */
/* loaded from: classes.dex */
public class U extends Fragment {

    /* renamed from: a  reason: collision with root package name */
    private static String f871a = "DebugMode_PasswordInput";

    /* renamed from: b  reason: collision with root package name */
    private static String f872b = "piodevelopdbg";

    /* renamed from: c  reason: collision with root package name */
    private TextView f873c;
    private EditText d;
    private Button e = null;
    private KeyManagerListener f = new Q(this);
    WeakReference<KeyManagerListener> g = new WeakReference<>(this.f);

    /* JADX INFO: Access modifiers changed from: private */
    public void c() {
        Log.d(f871a, "DebugMode_PasswordInput transactionToMainFrag");
        try {
            FragmentTransaction beginTransaction = getFragmentManager().beginTransaction();
            beginTransaction.replace(getId(), (P) P.class.newInstance());
            beginTransaction.addToBackStack(null);
            beginTransaction.commit();
        } catch (IllegalAccessException | InstantiationException unused) {
        }
    }

    @Override // android.app.Fragment
    public void onCreate(Bundle bundle) {
        super.onCreate(bundle);
        Log.d(f871a, "DebugMode_PasswordInput onCreate");
    }

    @Override // android.app.Fragment
    public View onCreateView(LayoutInflater layoutInflater, ViewGroup viewGroup, Bundle bundle) {
        Log.d(f871a, "DebugMode_PasswordInput onCreateView");
        ViewGroup.LayoutParams layoutParams = new ViewGroup.LayoutParams(-1, -1);
        RelativeLayout relativeLayout = new RelativeLayout(getContext());
        relativeLayout.setLayoutParams(layoutParams);
        this.f873c = new TextView(getContext());
        this.f873c.setWidth(200);
        this.f873c.setHeight(50);
        this.f873c.setX(100.0f);
        this.f873c.setY(100.0f);
        this.f873c.setTextColor(-1);
        this.f873c.setTextSize(20.0f);
        relativeLayout.addView(this.f873c);
        this.f873c.setGravity(17);
        this.f873c.setText("请输入密码：");
        this.e = new Button(getContext());
        this.e.setX(880.0f);
        this.e.setY(100.0f);
        this.e.setWidth(150);
        this.e.setHeight(50);
        relativeLayout.addView(this.e);
        this.e.setText("确定");
        this.d = new EditText(getContext());
        this.d.setX(300.0f);
        this.d.setY(100.0f);
        this.d.setWidth(580);
        this.d.setHeight(50);
        relativeLayout.addView(this.d);
        this.d.setImeOptions(6);
        this.d.setEms(10);
        this.d.setSingleLine();
        return relativeLayout;
    }

    @Override // android.app.Fragment
    public void onDestroy() {
        super.onDestroy();
        Log.d(f871a, "DebugMode_PasswordInput onDestroy");
    }

    @Override // android.app.Fragment
    public void onDestroyView() {
        super.onDestroyView();
        this.f873c = null;
        this.d = null;
        this.e = null;
        Log.d(f871a, "DebugMode_PasswordInput onDestroyView");
    }

    @Override // android.app.Fragment
    public void onPause() {
        super.onPause();
        Log.d(f871a, "DebugMode_PasswordInput onPause");
    }

    @Override // android.app.Fragment
    public void onResume() {
        super.onResume();
        Log.d(f871a, "DebugMode_PasswordInput onResume");
        this.e.setOnClickListener(new S(this));
        this.d.setOnEditorActionListener(new T(this));
    }

    @Override // android.app.Fragment
    public void onStart() {
        super.onStart();
        KeyManagerController.getInstance(getContext()).registerKeyManagerListener(this.g, -1);
        Log.d(f871a, "DebugMode_PasswordInput onStart");
    }

    @Override // android.app.Fragment
    public void onStop() {
        super.onStop();
        KeyManagerController.getInstance(getContext()).unregisterKeyManagerListener(this.g);
        Log.d(f871a, "DebugMode_PasswordInput onStop");
    }
}

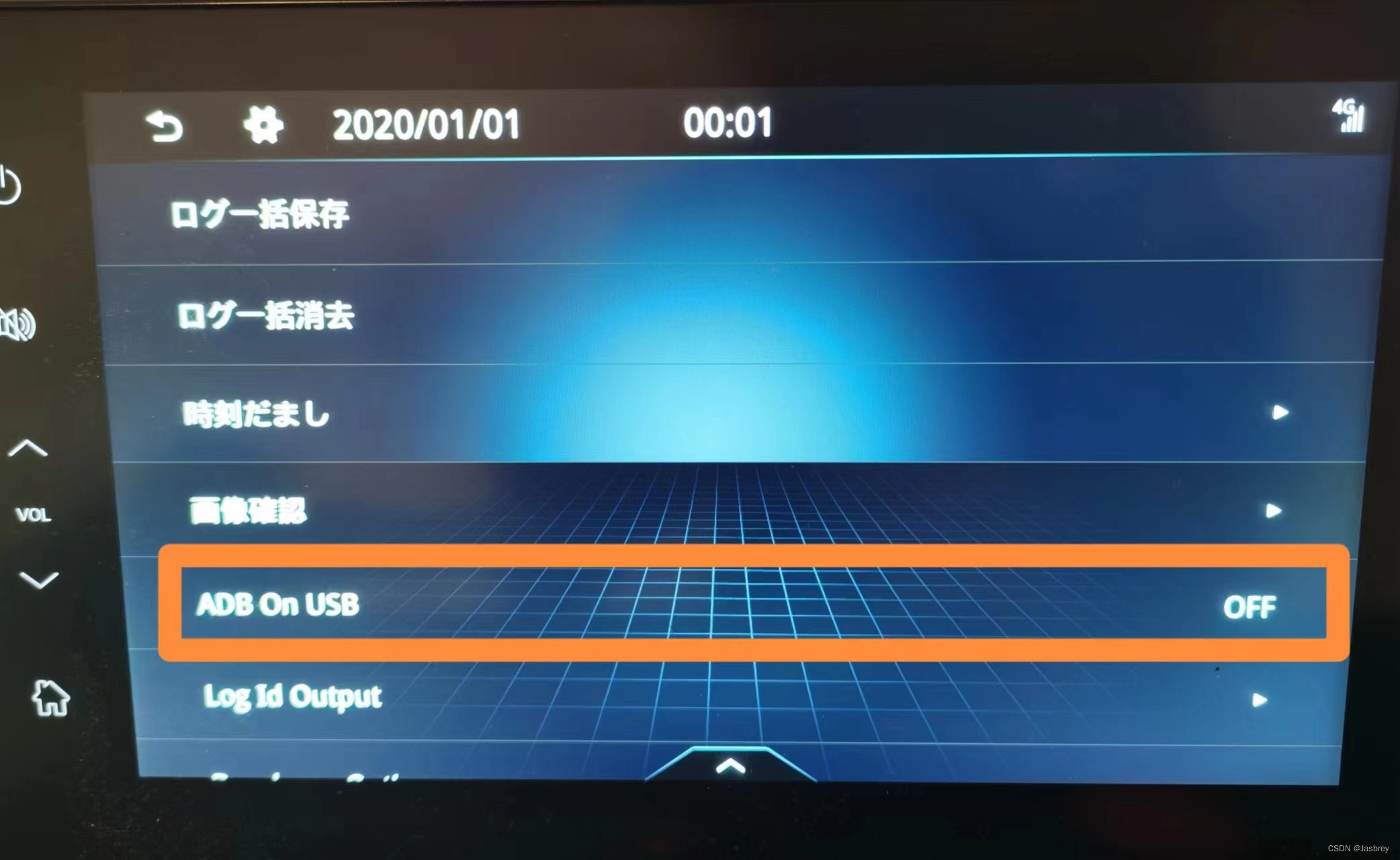

分析代码就找到了进入诊断模式的密码为：piodevelopdbg ，进一步分析知道，打开车机设置——系统——OSS——系统信息——连续点击蓝牙地址 10 次跳出密码框，输入以上密码就可以进去了。如图：


点击ADB On USB 就可以打开adb调试，满天欢喜使用双公头数据线连接电脑安装软件，给我来了个报错，错误代码如下：
Performing Streamed Install
adb: failed to install D:\BaiduNetdiskDownload\qqmusiccar_1.9.8.22.apk: Failure [INSTALL_FAILED_VERIFICATION_FAILURE: app is not in the whitelist. packageName:com.tencent.qqmusiccar]

居然有白名单验证，查看emmc数据，发现白名单文件在system\etcwhitelistapps.txt里面，得替换系统文件才行，由于是安卓7.1.2系统，有分区验证，打开原生安卓设置，没有oem选项，adb 无法打开fastboot模式。尝试三方root软件无果，目前只能安装白名单里面的软件，或者卸载白名单内三方软件，修改包名（跳转）安装其他三方软件，网上有方法这里就不再赘述。

二、浅析OTA升级包解包打包（未测试通过）

adb方式走不通，网上有大佬分享的刷机包，于是下载来看看。
刷机包格式与安卓常用的刷机包不一样，无法使用常规方式解包，网上一搜，国外有大佬研究过先锋的安卓导航系统，于是下载来学习解包。
解包工具来源：https://github.com/bassrock/AVIC-NEX

根据21款凯美瑞车型刷机文件夹NVF-9108ZT，修改NVF.sh脚本，关键代码如下：

#this function is called when system is not Linux, user is not root, or user did not specify a file
function usage() {
  echo "usage:"
  echo "  NVF.sh /path_to/firmware.zip [NVF Model] [NVF firmware version]"
  echo "where NVF Model = 9108"
  echo "where NVF firmware version = 190"
  exit
}
function generateVERFile() {
	originalVerFile=$1
	prgFile=$2

	dd if="$originalVerFile" of="$originalVerFile.part1" bs=172 skip=0 count=1

	SIZE="$(stat -c%s $prgFile)"
	echo "$prgFile size is: $SIZE"
	UNSWAPPEDHEXSIZE="$(printf '%x\n' $SIZE)"
	vSIZE="$UNSWAPPEDHEXSIZE"
	SWAPPEDHEXSIZE="${vSIZE:6:2}${vSIZE:4:2}${vSIZE:2:2}${vSIZE:0:2}"
	LEN=$(echo ${#SWAPPEDHEXSIZE})
	if [ $LEN -eq 6 ]; then
        SWAPPEDHEXSIZE=${SWAPPEDHEXSIZE}00
	fi
	UNSWAPPEDHEXCRC="$(crc32 $prgFile)"
	vCRC="$UNSWAPPEDHEXCRC"
	SWAPPEDHEXCRC="${vCRC:6:2}${vCRC:4:2}${vCRC:2:2}${vCRC:0:2}"

	echo "$prgFile Unswapped prg size hex is: $UNSWAPPEDHEXSIZE"
	echo "$prgFile Swapped prg size hex is: $SWAPPEDHEXSIZE"
	echo "$prgFile Unswapped prg crc hex is: $UNSWAPPEDHEXCRC"
	echo "$prgFile Swapped prg crc hex is: $SWAPPEDHEXCRC"

	#perl -e "print pack 'H*', '${defaultheaderver}${SWAPPEDHEXSIZE}${SWAPPEDHEXCRC}A55A5AA5'" > PJ${version}PLT.VERSTART


	perl -e "print pack 'H*', '${SWAPPEDHEXSIZE}${SWAPPEDHEXCRC}A55A5AA5'" > "$originalVerFile.part2"

	cat "$originalVerFile.part1" "$originalVerFile.part2" > "$originalVerFile.combined"



	UNSWAPPEDHEXCRC="$(crc32 $originalVerFile.combined)"
	vCRC="$UNSWAPPEDHEXCRC"
	SWAPPEDHEXCRC="${vCRC:6:2}${vCRC:4:2}${vCRC:2:2}${vCRC:0:2}"
	echo "$originalVerFile.combined Unswapped verstart crc hex is: $UNSWAPPEDHEXCRC"
	echo "$originalVerFile.combined Swapped verstart crc hex is: $SWAPPEDHEXCRC"

	perl -e "print pack 'H*', '${SWAPPEDHEXCRC}'" > "$originalVerFile.combined1"

	cat "$originalVerFile.combined" "$originalVerFile.combined1" > "$originalVerFile.new"



	mv "$originalVerFile.new" "$originalVerFile"
}

function generatePRGFile() {
	originalPRGFile=$1
	imgToMakePRG=$2

	dd if=$originalPRGFile of=originalPRGFile.header bs=4 skip=3 count=125
	#get image size
	# for mac
	# SIZE="$(stat -f%z PJ${version}PLT.IMG)"
	#for linux
	SIZE="$(stat -c%s ${imgToMakePRG})"
	echo "${imgToMakePRG} size is: $SIZE"

	#We have to swap the hex values from big endian to little endian cause the ZT is arm.
	UNSWAPPEDHEXSIZE="$(printf '%x\n' $SIZE)"
	vSIZE="$UNSWAPPEDHEXSIZE"
	SWAPPEDHEXSIZE="${vSIZE:6:2}${vSIZE:4:2}${vSIZE:2:2}${vSIZE:0:2}"
	LEN=$(echo ${#SWAPPEDHEXSIZE})
	if [ $LEN -eq 6 ]; then
        SWAPPEDHEXSIZE=${SWAPPEDHEXSIZE}00
	fi
	UNSWAPPEDHEXCRC="$(crc32 ${imgToMakePRG})"
	vCRC="$UNSWAPPEDHEXCRC"
	SWAPPEDHEXCRC="${vCRC:6:2}${vCRC:4:2}${vCRC:2:2}${vCRC:0:2}"

	echo "${imgToMakePRG} Unswapped size hex is: $UNSWAPPEDHEXSIZE"
	echo "${imgToMakePRG} Swapped size hex is: $SWAPPEDHEXSIZE"
	echo "${imgToMakePRG} Unswapped crc hex is: $UNSWAPPEDHEXCRC"
	echo "${imgToMakePRG} Swapped crc hex is: $SWAPPEDHEXCRC"

	#create new header
	perl -e "print pack 'H*', 'A55A5AA5${SWAPPEDHEXSIZE}${SWAPPEDHEXCRC}'" > firstheaderhalf.header
	cat firstheaderhalf.header originalPRGFile.header "$imgToMakePRG" > "$originalPRGFile.new"
	rm -rf firstheaderhalf.header
	rm -rf originalPRGFile.header

	rm -rf "$originalPRGFile"
	rm -rf "$imgToMakePRG"
	mv "$originalPRGFile.new" "$originalPRGFile"
}

function createImgFile() {
	prgFile=$1
	newImgFile=$2
	dd if="$prgFile" of="$newImgFile" bs=512 skip=1

修改后打包即可。这种方式目前未走通，最后刷机校验有点问题，有时间折腾再续…

小结

**提示： 1.有兴趣的可以继续研究刷机方式，以及反汇编libNPSysCtrlHandler.so 文件，找到正确的TESTMODE.KEY进入工厂模式绕过验证刷机。 2、目前西窗浪人已研究出：一条代码关闭APP白名单配置，任意安装APP**
