HM2459B是一款内部集成了MOSFET异步整流降压型稳压器，提供SOT23-6封装

深圳市泛海微电子有限公司

于 2022-12-13 21:41:41 发布

阅读量308

点赞数

分类专栏： DCDC降压IC 文章标签：锂电池保护IC 单片机无感升压ic

本文链接：https://blog.csdn.net/fanhaidz/article/details/128308463

版权

DCDC降压IC 专栏收录该内容

34 篇文章

订阅专栏

HM2459B是一款800 mA降压IC，输入电压范围为4.75V至40V，适用于电池供电设备等应用。其最大效率可达90%，工作频率固定为550 kHz，支持PWM和PFM切换，并具有软启动功能。该IC内置了过热保护等多种保护措施。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

HM2459B系列800 mA降压IC，up to 40V Input Step-Down DC/DC Regulator

The +0% is PWM DC/DC buck (step-down)regulators. With a wide input range from 4.75V-40V, theyare suitable for a wide range of applications such as powerconditioning from unregulated sources. They feature a lowRDSON (0.9Ωtypical) internal switch for maximum efficiency90%. Operating frequency is fixed at 550 KHz allowing theuse of small external components while still being able tohave low output voltage ripple. The system has PWM andPFM switching function to ensure high efficiency under lowload. The built-in soft-start prevents inrush current atturn-on. the +0% is optimized for up to 800 mA loadcurrent. Both have a 0.8V nominal feedback voltage.Additional features include: thermal shutdown, VINunder-voltage lockout, and gate drive under-voltage lockout.●Feedback pin voltage of 0.8V●Input voltage range of 4.75V to 40V●Output current up to 800 mA●550 KHz switching frequency●maximum efficiency 90%●PWM and PFM switching●Low shutdown IQ , 10 μA typical●Short circuit protected●Internally compensated●Soft-start circuitry●SOT23-6 packageApplications●Battery powered equipment●Industrial distributed power applications●Portable media players●Portable hand held instruments

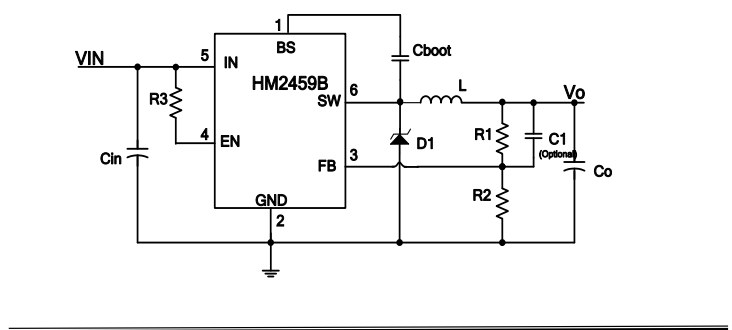

HM2459B电路电原理图
