Open-his 支付系统

1.目的

就是为用户提供一些支付的手段，提供类似银联支付，微信支付，支付宝支付等等的手段！

2.说明

我们在众多的支付系统里面，应该优先选择微信支付（因为我们现在微信的小程序，但是微信支付必须是企业用户，而且你的小程序已经上线 2 周左右，你才能使用微信支付）所以我们这里面只能选择支付宝支付了因为支付宝宝的支付流程和微信支持的流程非常相似，我们会一个，别的道理差不多
3.申请支付宝的账号

支付宝开放平台

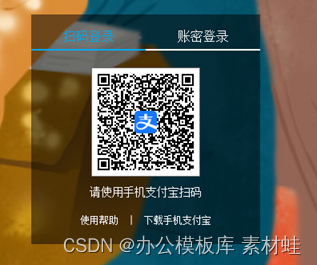

3.1扫码登录

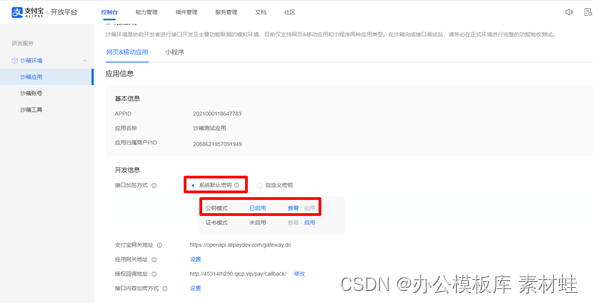

3.2账号申请

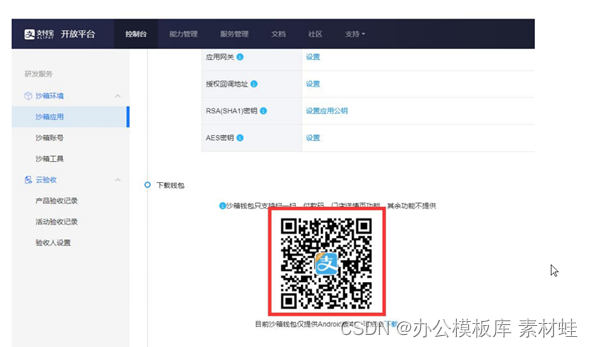

3.3下载支付宝测试版

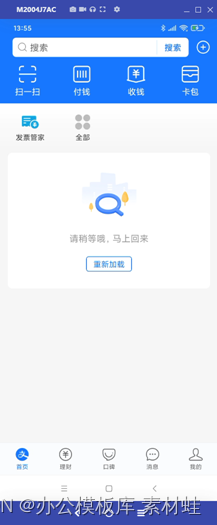

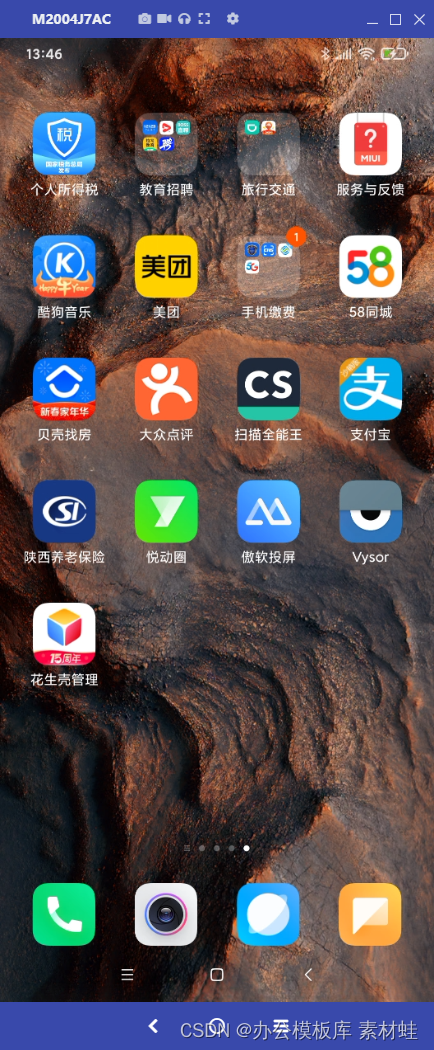

安装好的效果

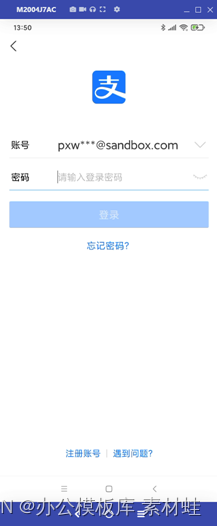

3.4登录测试版支付宝

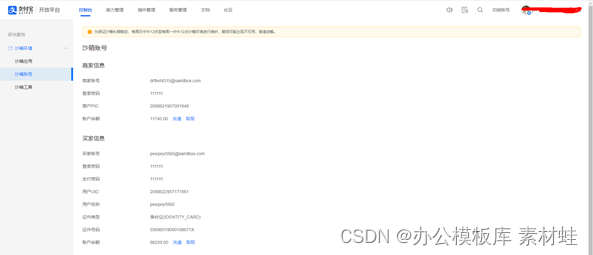

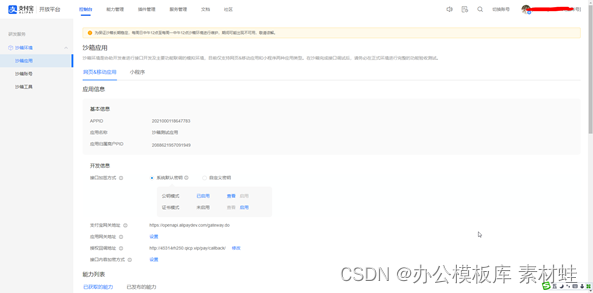

3.5登录成功后

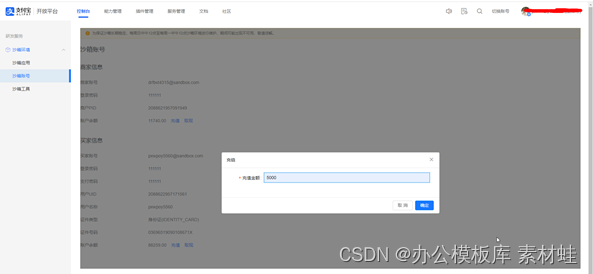

3.6充值

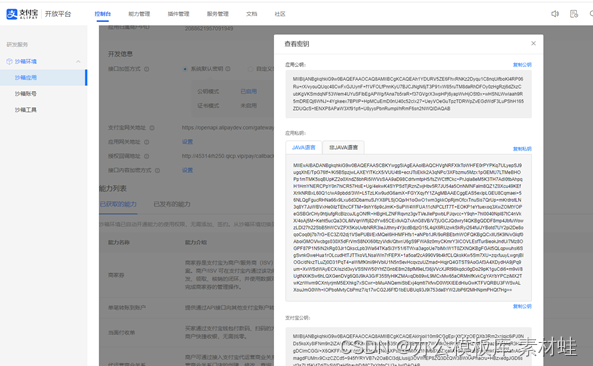

4.生成公钥和私钥

5.集成支付宝扫码支付功能

5.1创建项目 alipay-demo

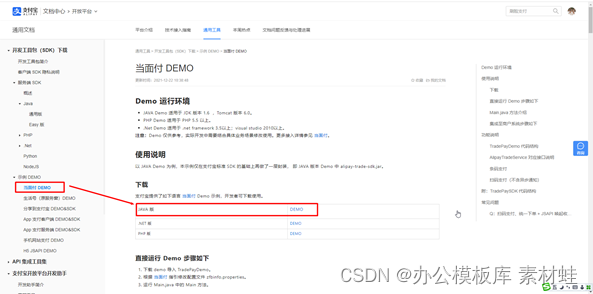

下载demo

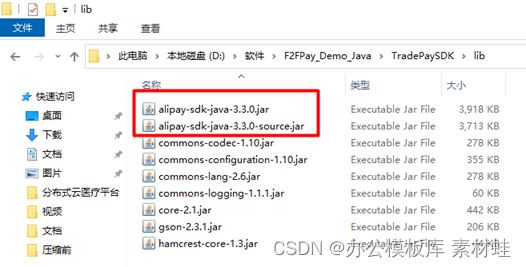

5.2导入依赖包

5.2.1修改pom文件

<!--引入支付宝相关的jar包-->
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>alipay-sdk-java</artifactId>
    <version>3.3.0</version>
    <scope>system</scope>
    <systemPath>${project.basedir}/lib/alipay-sdk-java-3.3.0.jar</systemPath> </dependency>
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>alipay-trade-sdk-java</artifactId>
    <version>1.0</version>
    <scope>system</scope>  
    <systemPath>${project.basedir}/lib/alipay-trade-sdk-1.0.jar</systemPath> </dependency>

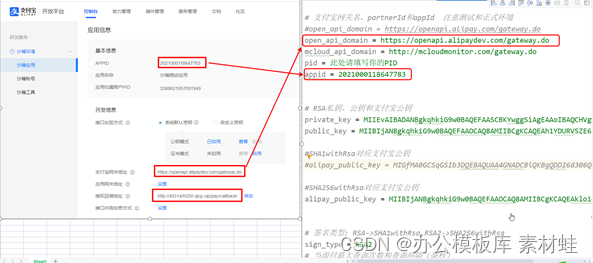

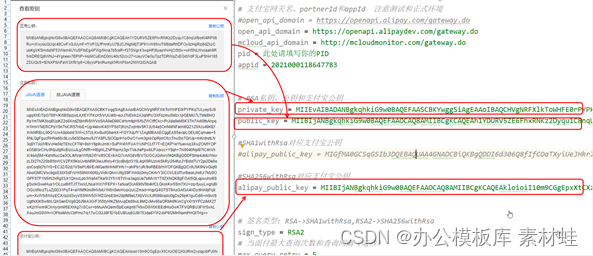

5.3.创建zfbinfo.properties

5.5创建payService

import com.alipay.api.response.AlipayTradePrecreateResponse;
import com.alipay.demo.trade.config.Configs;
import com.alipay.demo.trade.model.builder.AlipayTradePrecreateRequestBuilder; import com.alipay.demo.trade.model.builder.AlipayTradeRefundRequestBuilder; import com.alipay.demo.trade.model.result.AlipayF2FPrecreateResult;
import com.alipay.demo.trade.model.result.AlipayF2FRefundResult;
import com.alipay.demo.trade.service.AlipayTradeService;
import com.alipay.demo.trade.service.impl.AlipayTradeServiceImpl;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

import java.util.HashMap; import java.util.Map;

/**
 * @Author:
 * 支付类
 */
public class PayService {  

    //输出日志
    static Log log = LogFactory.getLog("trade_precreate");     //支付定当关付的对象
    static AlipayTradeService tradeService;

    //初始化对象
    static {
        // 一定要在创建AlipayTradeService之前设置参数
        Configs.init("zfbinfo.properties");
        tradeService = new AlipayTradeServiceImpl.ClientBuilder().build();     }

    // 商户操作员编号，添加此参数可以为商户操作员做销售统计     static String operatorId = "test_operator_id";

    // (必填) 商户门店编号，通过门店号和商家后台可以配置精准到门店的折扣信息，详询支付宝技术支 持
    static String storeId = "test_store_id";

    // 支付超时，定义为120分钟
    static String timeoutExpress = "120m";


    /**
     * 支付的方法
     * @param outTradeNo  (必填) 商户网站订单系统中唯一订单号，64个字符以内，只能包含字母、 数字、下划线， 需保证商户系统端不能重复，建议通过数据库sequence生成，
     * @param subject (必填) 订单标题，粗略描述用户的支付目的。如“喜士多（浦东店）消费”
     * @param totalAmount (必填) 订单总金额，单位为元，不能超过1亿元
     * @param undiscountableAmount (可选) 订单不可打折金额，可以配合商家平台配置折扣活 动，如果酒水不参与打折，则将对应金额填写至此字段
     * @param body 订单描述，可以对交易或商品进行一个详细地描述，比如填写"购买商品2件共15.00 元"
     * @param notifyUrl /支付宝服务器主动通知商户服务器里指定的页面http路径,根据需要设置
     * @return
     */
    public static Map<String,Object> pay(String outTradeNo,
                                        String subject,
                                         String totalAmount,
                                         String undiscountableAmount,
                                         String body,
                                         String notifyUrl
                                        ){
        System.out.println(notifyUrl);
        AlipayTradePrecreateRequestBuilder builder =new  AlipayTradePrecreateRequestBuilder()
                .setSubject(subject)
                .setTotalAmount(totalAmount)
                .setOutTradeNo(outTradeNo)
                .setUndiscountableAmount(undiscountableAmount)
                .setBody(body)
                .setOperatorId(operatorId)
                .setStoreId(storeId)
                .setTimeoutExpress(timeoutExpress)
                .setNotifyUrl(notifyUrl);
//              .setNotifyUrl("http://www.test-notify-url.com");//支付宝服务器主动通 知商户服务器里指定的页面http路径,根据需要设置
        //发起支付


8  
        AlipayF2FPrecreateResult result = tradeService.tradePrecreate(builder);         Map<String,Object> map=new HashMap<>();
        String msg;
        Integer code;
        switch (result.getTradeStatus()) {
            case SUCCESS:
                log.info("支付宝预下单成功: )");
                AlipayTradePrecreateResponse res = result.getResponse();
                //得到支付码,本质就是一个URL
                String qrCode=res.getQrCode();
                map.put("qrCode",qrCode);
                msg="下单成功";
                code=200;
                break;
            case FAILED:
                log.error("支付宝预下单失败!!!");
                msg="下单失败";
                code=500;
                break;

            case UNKNOWN:
                log.error("系统异常，预下单状态未知!!!");
                msg="系统异常";
                code=404;
                break;
            default:
                log.error("不支持的交易状态，交易返回异常!!!");                 msg="不支持的交易状态";
                code=404;
                break;
        }
        map.put("msg",msg);
        map.put("code",code);
        return map;
    }
}

5.6测试支付

import java.util.Map;

/**
 * @Author:
 */
public class TestPay {
    public static void main(String[] args) {
        String outTradeNo="OD123124124ABCDE94";
        String subject="SXT-医疗管理系统支付平台";
        String totalAmount="100";
        String undiscountableAmount=null;
        String body="买药用的";
        String notifyUrl="http://45314rh250.qicp.vip/pay/callback/"+outTradeNo;         Map<String, Object> pay = PayService.pay(outTradeNo, subject,  totalAmount, undiscountableAmount, body, notifyUrl);
        System.out.println(pay);
    }
}  
10
http://45314rh250.qicp.vip/pay/callback/OD123124124ABCDE94
16:21:48.372 [main] INFO
com.alipay.demo.trade.service.impl.AlipayTradeServiceImpl - trade.precreate  bizContent:
{"out_trade_no":"OD123124124ABCDE94","total_amount":"100","subject":"SXT-医疗管理 系统支付平台","body":"买药用
的","operator_id":"test_operator_id","store_id":"test_store_id","timeout_express" :"120m"}
16:21:48.925 [main] DEBUG sdk.biz.err - 2030-02-13
16:21:48^_^https://openapi.alipaydev.com/gateway.do?alipay_sdk=alipay-sdk-java- 3.3.0&app_id=2021000118647783&biz_content=%7B%22out_trade_no%22%3A%22OD123124124 ABCDE94%22%2C%22total_amount%22%3A%22100%22%2C%22subject%22%3A%22SXT- %E5%8C%BB%E7%96%97%E7%AE%A1%E7%90%86%E7%B3%BB%E7%BB%9F%E6%94%AF%E4%BB%98%E5%B9%B 3%E5%8F%B0%22%2C%22body%22%3A%22%E4%B9%B0%E8%8D%AF%E7%94%A8%E7%9A%84%22%2C%22ope rator_id%22%3A%22test_operator_id%22%2C%22store_id%22%3A%22test_store_id%22%2C%2 2timeout_express%22%3A%22120m%22%7D&charset=utf- 8&format=json&method=alipay.trade.precreate&notify_url=http%3A%2F%2F45314rh250.q icp.vip%2Fpay%2Fcallback%2FOD123124124ABCDE94&sign=PGusujk2v%2F3Qy4dPwTJldcjJ8AE 30VWpHlvFdEPPHsrWlkWD65f7fkAe8cxdxGYUShwatdEIe9NUhJixAUfZ4G3h30fpn8nAjtxCSRSG%2B 51C3MLQDM%2FMeCf1Gb3P6%2Fr11VFBu8vYTs1kjaTl1XAiFCCSRdseD1A3AzUdSvLcJxMPGAzYxICfq EVQjnqswqGN5%2FQaOjvSm3GTCSBbAt9rxA9t6%2Bq4JABZjFX4lurHeocnSBTRAbRQb%2FtD%2FpErZ AR2eUm%2B8FEeLg2l0U6kBNZjvPZmeYs%2FyIXllCoeq3bhhNjPTrANBZoG3ERDOomRMVC95ZsCrpBmB PJrOr4VnbmAtQ%3D%3D&sign_type=RSA2&timestamp=2022-02-13+16%3A21%3A48&version=1.0 16:21:50.223 [main] INFO sdk.biz.err -
Summary^_^10000^_^null^_^ProtocalMustParams:charset=utf-
8&method=alipay.trade.precreate&sign=PGusujk2v/3Qy4dPwTJldcjJ8AE30VWpHlvFdEPPHsr WlkWD65f7fkAe8cxdxGYUShwatdEIe9NUhJixAUfZ4G3h30fpn8nAjtxCSRSG+51C3MLQDM/MeCf1Gb3 P6/r11VFBu8vYTs1kjaTl1XAiFCCSRdseD1A3AzUdSvLcJxMPGAzYxICfqEVQjnqswqGN5/QaOjvSm3G TCSBbAt9rxA9t6+q4JABZjFX4lurHeocnSBTRAbRQb/tD/pErZAR2eUm+8FEeLg2l0U6kBNZjvPZmeYs
/yIXllCoeq3bhhNjPTrANBZoG3ERDOomRMVC95ZsCrpBmBPJrOr4VnbmAtQ==&notify_url=http:// 45314rh250.qicp.vip/pay/callback/OD123124124ABCDE94&version=1.0&app_id=202100011 8647783&sign_type=RSA2&timestamp=2022-02-13  16:21:48^_^ProtocalOptParams:alipay_sdk=alipay-sdk-java- 3.3.0&format=json^_^ApplicationParams:biz_content= {"out_trade_no":"OD123124124ABCDE94","total_amount":"100","subject":"SXT-医疗管理 系统支付平台","body":"买药用
的","operator_id":"test_operator_id","store_id":"test_store_id","timeout_express" :"120m"}^_^553ms,1282ms,16ms
16:21:50.223 [main] INFO
com.alipay.demo.trade.service.impl.AlipayTradeServiceImpl -
{"alipay_trade_precreate_response":
{"code":"10000","msg":"Success","out_trade_no":"OD123124124ABCDE94","qr_code":"h ttps:\/\/qr.alipay.com\/bax04481md03pfwbl1ay00ad"},"sign":"bRlOc5cL2psx0MeNwLVwB kMwTlvQA79UjNNV76yim3ImkxM643DiXU5Q0D04wfYoNVUvELWpJ9NqNo0bztr0gT1t8nafOkqnOwSN0 525DjT8gWwEldyyqsCjlCTpgDh66LGK3/4JbuYXysb5bhKQHzAVB5Ux8TxK2sbo1tpSYjCRlBc5x6GzS FQ2f8H+cPQgjcikDOILS5ZGUG6dZZ3gGHraswLmlpAftkl8j6yB4i/o/lnhBTUnOerAnTubSTutH+ARp 0iiEMyG4EjVfp0bQso7Ll+EY+bbvqSXIXmL5Q5cRWKPZO21oGxPSSL+M16AFVShgvulFkU5sMyFB7/fa A=="}
16:21:50.223 [main] INFO trade_precreate - 支付宝预下单成功: )

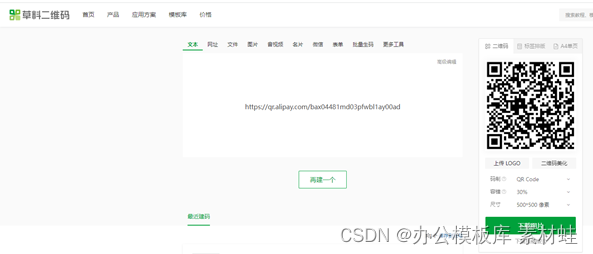

{msg=下单成功, code=200, qrCode=https://qr.alipay.com/bax04481md03pfwbl1ay00ad}

5.7创建PayController回调方法

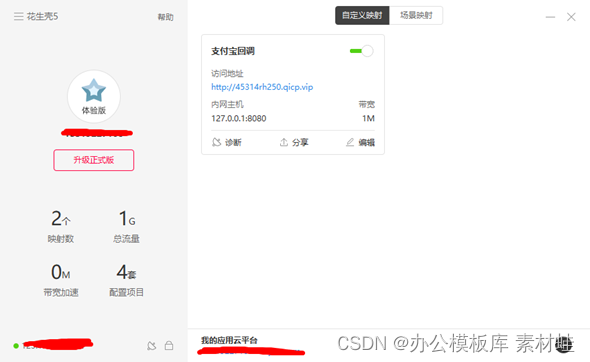

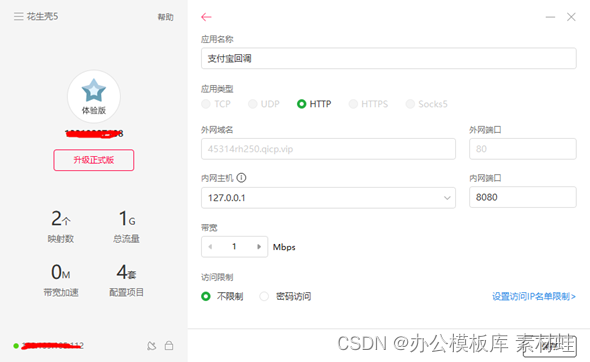

下载花生壳，配置回调地址

5.7.1编写controller

import com.alibaba.fastjson.JSON;
import com.alipay.api.AlipayApiException;
import com.alipay.api.internal.util.AlipaySignature;
import com.bjsxt.pay.AlipayConfig;
import org.apache.commons.lang3.StringUtils;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.web.bind.annotation.PathVariable; import org.springframework.web.bind.annotation.PostMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest; import java.util.Enumeration;
import java.util.HashMap;
import java.util.Map;

/**
 * @Author:
 */
@RestController @RequestMapping("pay")
public class PayController {

    //输出日志
    static Log log = LogFactory.getLog("PayController");

    @PostMapping("callback/{orderId}")
    public void callback(@PathVariable String orderId, HttpServletRequest  request) {
        Map<String, String> parameterMap = this.getParameterMap(request);
        String trade_status = parameterMap.get("trade_status");
        if ("TRADE_SUCCESS".equals(trade_status)) {
            try {  

                //验证是否为支付宝发来的信息
                boolean singVerified = AlipaySignature.rsaCheckV1(parameterMap,  AlipayConfig.alipay_public_key, AlipayConfig.charset, AlipayConfig.sign_type);
                System.out.println(singVerified);//只有支付宝调用我们系统的接口才能去更 新系统订单状态
                log.info("验证签名结果{}:" + singVerified);
                String refund_fee = parameterMap.get("refund_fee");
                if (StringUtils.isNotBlank(refund_fee)) {
                    //说明是退费
                    System.out.println("退费成功：退费的子订单ID为：" +
parameterMap.get("out_biz_no"));
                    //更新订单状态
                } else {
                    //说明支付
                    System.out.println("收费成功，平台ID" +
parameterMap.get("trade_no"));
                }
                System.out.println(JSON.toJSON(parameterMap));
            } catch (AlipayApiException e) {
                e.printStackTrace();
                log.error(orderId + "验证签名出现异常");
            }
        }else if("WAIT_BUYER_PAY".equals(trade_status)){
            System.out.println("二维码已扫描，等待支付");
        }
    }

    /**
     * 获取request中的参数集合转Map
     * Map<String,String> parameterMap = RequestUtil.getParameterMap(request)      *
     * @param request
     * @return
     */
    public Map<String, String> getParameterMap(HttpServletRequest request) {
        Map<String, String> map = new HashMap<>();
        Enumeration<String> paramNames = request.getParameterNames();
        while (paramNames.hasMoreElements()) {
            String paramName = paramNames.nextElement();
            String[] paramValues = request.getParameterValues(paramName);
            if (paramValues.length == 1) {
                String paramValue = paramValues[0];
                if (paramValue.length() != 0) {
                    map.put(paramName, paramValue);
                }
            }
        }
        return map;
    }
}


13

5.7.2测试结果

当用户扫码之后会回调一次，支付成功之后会回调一次

5.8测试退费

修改PayService

/**
     * 退费
     * @param outTradeNo  外部应该交易ID
     * @param tradeNo  平台在支付成之后返回的平台【属于支付宝平台的ID】
     * @param refundAmount  退款金额
     * @param refundReason 退款原因
     * @param outRequestNo  是否支持部分退款
     */
    public static Map<String,Object>  payBack(String outTradeNo,String
tradeNo,String refundAmount,String refundReason,String outRequestNo){
        AlipayTradeRefundRequestBuilder builder = new  AlipayTradeRefundRequestBuilder()
                .setOutTradeNo(outTradeNo)//outTradeNo  tradeNo只需要有一个就行
                .setTradeNo(tradeNo)
                .setRefundAmount(refundAmount)
                .setRefundReason(refundReason)
                .setOutRequestNo(outRequestNo)
//                .setNotifyUrl(notifyUrl)//没有用 因为这个回调地址就是收费时的回调地址                 .setStoreId(storeId);
        //退费请求
        AlipayF2FRefundResult result = tradeService.tradeRefund(builder);
        Map<String,Object> map=new HashMap<>();
        Integer code=null;
        String msg="";
        switch (result.getTradeStatus()) {
            case SUCCESS:
                log.info("支付宝退款成功: )");
                code=200;
                msg=result.getResponse().getSubMsg();
                break;

            case FAILED:
                log.error("支付宝退款失败!!!");
                code=500;
                msg=result.getResponse().getSubMsg();                 break;

            case UNKNOWN:
                log.error("系统异常，订单退款状态未知!!!");                 code=500;
                msg=result.getResponse().getSubMsg();
                break;

            default:
                log.error("不支持的交易状态，交易返回异常!!!");                 code=500;
                msg=result.getResponse().getSubMsg();
                break;
        }
        map.put("code",code);
        map.put("msg",msg);
        return map;
    }

创建测试类TestRefund

/**
 * @Author:
 * 测试退费
 */
public class TestRefund {
    public static void main(String[] args) {
        String outTradeNo="OD123124124ABCDEF5";
        String tradeNo="2021110922001471560501815457";
        String subject="SXT-医疗管理系统支付平台";
        String refudAmount="60";
        String refudReason="不想要了";
        Map<String, Object> map = PayService.payBack(outTradeNo, tradeNo,  refudAmount, refudReason, "BK12345681");
        System.out.println(map);
    }
}


15
