IPV6现在国家正在大力推广,同时会进行一些安全认证。IPoE现在已经成为业界的主流要求之一。

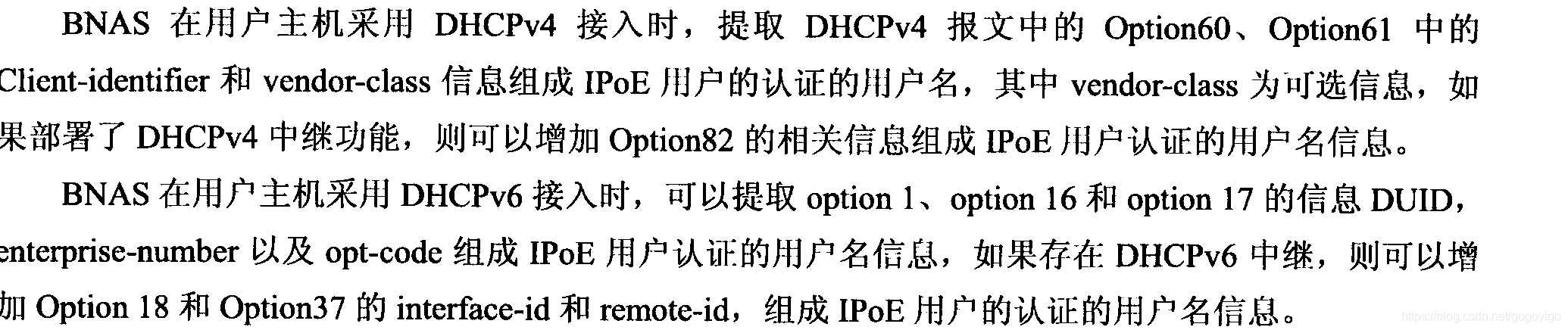

根据工信部的双栈宽带接入服务器技术要求(YD/T 2785-2014)的描述(下图),需要这些字段。

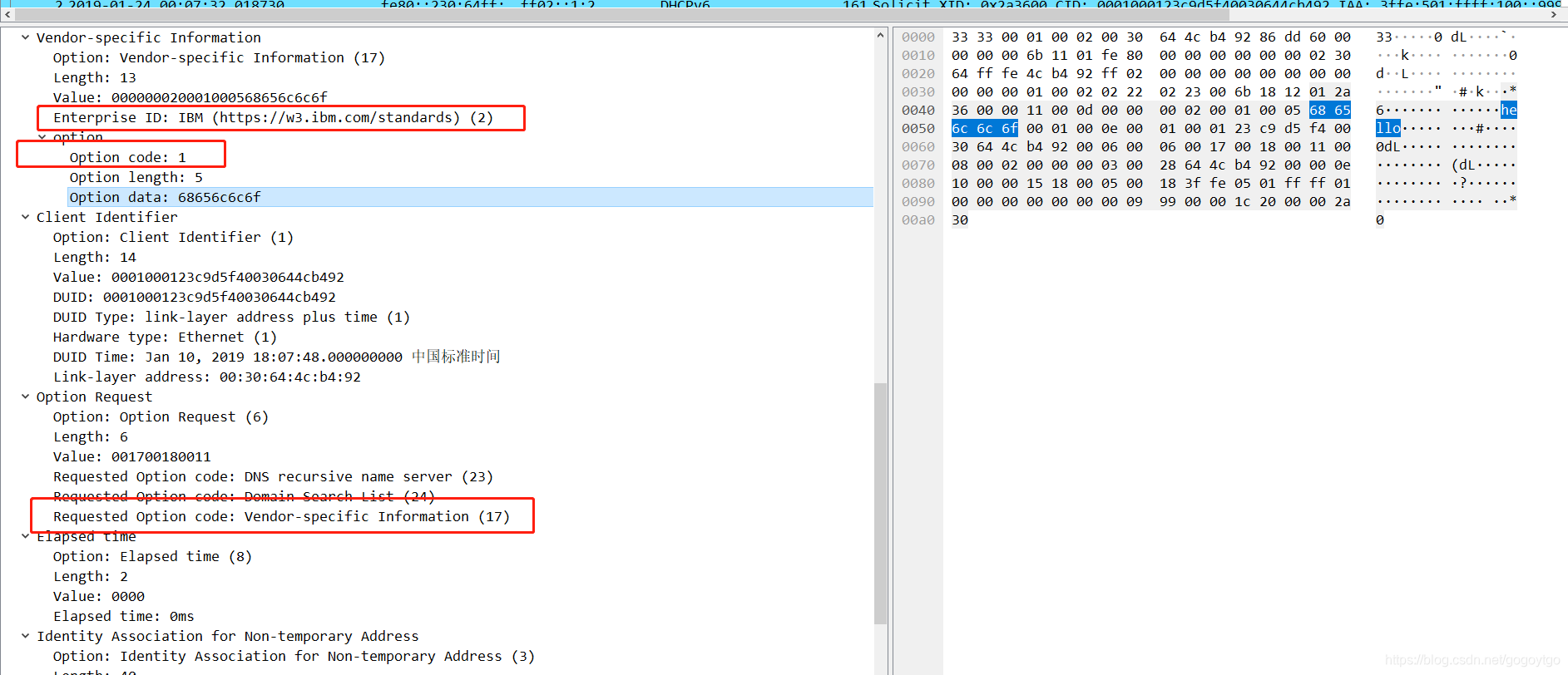

我们查看ISC DHCP默认的报文,可以看到Option1和在其中的DUID有了,但是其他Option缺失。
man dhclient.conf
man dhcp-options
查阅帮助文档,确认是可以通过修改dhclient.conf,达到报告报文的目的。
Enterprise ID需要自行向IANA进行申请,当然是实验室的话你随便写就好
在该网站查询所有已注册的厂商
https://www.iana.org/assignments/enterprise-numbers/enterprise-numbers
在17中,也有EnterpriseId,因此我认为16是非必要的(这个只是我的认知,不确定)
#按照包体写入发送内容
send dhcp6.vendor-opts
#厂商占4位
00:00:00:02:
# 00:01是OptCode,00:05是长度
00:01:00:05:
#这个随便写吧,我是写了hello
68:65:6c:6c:6f;
#这个对应Request中包含17的请求
also request dhcp6.vendor-opts;
-
附1:手工启动DHCP客户端的方法
#释放旧的DHCP
dhclient -r -6 网卡名
#重新注册,dhclient的位置可自行指定
dhclient -6 -cf /etc/dhcp/dhclient.conf 网卡名
如果使用了NetworkManager,请查看对应的脚本,他会去寻找对应网卡名的dhclient配置文件。
-
附2:DHCPV6 服务端配置
-
配置你的网卡IP为V6地址,假设你配置成2001:db8::2/64
-
修改/etc/dhcp/dhcpd6.conf
# Server configuration file example for DHCPv6
# From the file used for TAHI tests.
# IPv6 address valid lifetime
# (at the end the address is no longer usable by the client)
# (set to 30 days, the usual IPv6 default)
default-lease-time 2592000;
# IPv6 address preferred lifetime
# (at the end the address is deprecated, i.e., the client should use
# other addresses for new connections)
# (set to 7 days, the usual IPv6 default)
preferred-lifetime 604800;
# T1, the delay before Renew
# (default is 1/2 preferred lifetime)
# (set to 1 hour)
option dhcp-renewal-time 3600;
# T2, the delay before Rebind (if Renews failed)
# (default is 3/4 preferred lifetime)
# (set to 2 hours)
option dhcp-rebinding-time 7200;
# Enable RFC 5007 support (same than for DHCPv4)
allow leasequery;
# Global definitions for name server address(es) and domain search list
option dhcp6.name-servers 2001:db8::2;
option dhcp6.domain-search "test.example.com","example.com";
# Set preference to 255 (maximum) in order to avoid waiting for
# additional servers when there is only one
##option dhcp6.preference 255;
# Server side command to enable rapid-commit (2 packet exchange)
##option dhcp6.rapid-commit;
# The delay before information-request refresh
# (minimum is 10 minutes, maximum one day, default is to not refresh)
# (set to 6 hours)
option dhcp6.info-refresh-time 21600;
# The path of the lease file
dhcpv6-lease-file-name "/var/lib/dhcpd/dhcpd6.leases";
# Static definition (must be global)
host myclient {
# The entry is looked up by this
host-identifier option
dhcp6.client-id 00:01:00:01:00:04:93:e0:00:00:00:00:a2:a2;
# A fixed address
fixed-address6 2001:db8::2;
# A fixed prefix
fixed-prefix6 2001:db8::/64;
# Override of the global definitions,
# works only when a resource (address or prefix) is assigned
option dhcp6.name-servers 2001:db8::2;
#a For debug (to see when the entry statements are executed)
# (log "sol" when a matching Solicitation is received)
##if packet(0,1) = 1 { log(debug,"sol"); }
}
# The subnet where the server is attached
# (i.e., the server has an address in this subnet)
subnet6 2001:db8::/64 {
# Two addresses available to clients
# (the third client should get NoAddrsAvail)
range6 2001:db8::100 2001:db8::999;
# Use the whole /64 prefix for temporary addresses
# (i.e., direct application of RFC 4941)
range6 2001:db8:: temporary;
# Some /64 prefixes available for Prefix Delegation (RFC 3633)
prefix6 2001:db8:: 2001:db8:: /64;
}
- 安装网关radvd并配置
默认DHCPD6装好后无网关,如果你是一个小局域网,需要再部署一个radvd,否则WIN的系统无法正常工作。
yum install radvd
vi /etc/radvd.conf
默认情况下,把出厂注释掉的那些开出来,改下网卡和就能用了。
interface eno2
{
AdvSendAdvert on;
MinRtrAdvInterval 30;
MaxRtrAdvInterval 100;
prefix 2001:db8::/64
{
AdvOnLink on;
AdvAutonomous on;
AdvRouterAddr off;
};
};
- 启动服务
service dhcpd6 start
chkconfig dhcpd6 on
service radvd start
chkconfig radvd on
