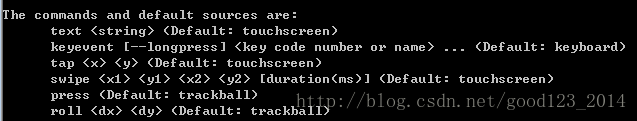

在实体 TP 无法操作时,可用adb shell input 模拟TP操作,来判读是否TP出现问题,
- adb shell text
该命令主要是用于向获得焦点的EditText控件输入内容,
Eg : adb shell input text "hello,world"
- adb input keyevent
该命令主要是向系统发送一个按键指令,实现模拟用户在键盘上的按键动作:
Eg :
adb shell input keyevent 26
or
adb shell input keyevent "KEYCODE_POWER"
关于键值宏的定义在 KeyEvent.java文件中有定义,一般都会用默认值,这里也包括黑屏手势的宏定义。
- adb shell input tap
该命令是用于向设备发送一个点击操作的指令,参数是<x> <y>坐标
adbshell input tap 100 100
- input swipe [duration(ms)]
向设备发送一个滑动指令,并且可以选择设置滑动时长。
//滑动操作
adb shell input swipe 100 100 200 200 300 //从 100 100 经历300毫秒滑动到 200 200
//长按操作
adb shell input swipe 100 100 100 100 1000 //在 100 100 位置长按 1000毫秒
- press rool 是轨迹球操作,在手机上没啥用。
附上Android键值宏定义
/** Key code constant: Unknown key code. */
82 public static final int KEYCODE_UNKNOWN = 0;
83 /** Key code constant: Soft Left key.
84 * Usually situated below the display on phones and used as a multi-function
85 * feature key for selecting a software defined function shown on the bottom left
86 * of the display. */
87 public static final int KEYCODE_SOFT_LEFT = 1;
88 /** Key code constant: Soft Right key.
89 * Usually situated below the display on phones and used as a multi-function
90 * feature key for selecting a software defined function shown on the bottom right
91 * of the display. */
92 public static final int KEYCODE_SOFT_RIGHT = 2;
93 /** Key code constant: Home key.
94 * This key is handled by the framework and is never delivered to applications. */
95 public static final int KEYCODE_HOME = 3;
96 /** Key code constant: Back key. */
97 public static final int KEYCODE_BACK = 4;
98 /** Key code constant: Call key. */
99 public static final int KEYCODE_CALL = 5;
100 /** Key code constant: End Call key. */
101 public static final int KEYCODE_ENDCALL = 6;
102 /** Key code constant: '0' key. */
103 public static final int KEYCODE_0 = 7;
104 /** Key code constant: '1' key. */
105 public static final int KEYCODE_1 = 8;
106 /** Key code constant: '2' key. */
107 public static final int KEYCODE_2 = 9;
108 /** Key code constant: '3' key. */
109 public static final int KEYCODE_3 = 10;
110 /** Key code constant: '4' key. */
111 public static final int KEYCODE_4 = 11;
112 /** Key code constant: '5' key. */
113 public static final int KEYCODE_5 = 12;
114 /** Key code constant: '6' key. */
115 public static final int KEYCODE_6 = 13;
116 /** Key code constant: '7' key. */
117 public static final int KEYCODE_7 = 14;
118 /** Key code constant: '8' key. */
119 public static final int KEYCODE_8 = 15;
120 /** Key code constant: '9' key. */
121 public static final int KEYCODE_9 = 16;
122 /** Key code constant: '*' key. */
123 public static final int KEYCODE_STAR = 17;
124 /** Key code constant: '#' key. */
125 public static final int KEYCODE_POUND = 18;
126 /** Key code constant: Directional Pad Up key.
127 * May also be synthesized from trackball motions. */
128 public static final int KEYCODE_DPAD_UP = 19;
129 /** Key code constant: Directional Pad Down key.
130 * May also be synthesized from trackball motions. */
131 public static final int KEYCODE_DPAD_DOWN = 20;
132 /** Key code constant: Directional Pad Left key.
133 * May also be synthesized from trackball motions. */
134 public static final int KEYCODE_DPAD_LEFT = 21;
135 /** Key code constant: Directional Pad Right key.
136 * May also be synthesized from trackball motions. */
137 public static final int KEYCODE_DPAD_RIGHT = 22;
138 /** Key code constant: Directional Pad Center key.
139 * May also be synthesized from trackball motions. */
140 public static final int KEYCODE_DPAD_CENTER = 23;
141 /** Key code constant: Volume Up key.
142 * Adjusts the speaker volume up. */
143 public static final int KEYCODE_VOLUME_UP = 24;
144 /** Key code constant: Volume Down key.
145 * Adjusts the speaker volume down. */
146 public static final int KEYCODE_VOLUME_DOWN = 25;
147 /** Key code constant: Power key. */
148 public static final int KEYCODE_POWER = 26;
149 /** Key code constant: Camera key.
150 * Used to launch a camera application or take pictures. */
151 public static final int KEYCODE_CAMERA = 27;
152 /** Key code constant: Clear key. */
153 public static final int KEYCODE_CLEAR = 28;
154 /** Key code constant: 'A' key. */
155 public static final int KEYCODE_A = 29;
156 /** Key code constant: 'B' key. */
157 public static final int KEYCODE_B = 30;
158 /** Key code constant: 'C' key. */
159 public static final int KEYCODE_C = 31;
160 /** Key code constant: 'D' key. */
161 public static final int KEYCODE_D = 32;
162 /** Key code constant: 'E' key. */
163 public static final int KEYCODE_E = 33;
164 /** Key code constant: 'F' key. */
165 public static final int KEYCODE_F = 34;
166 /** Key code constant: 'G' key. */
167 public static final int KEYCODE_G = 35;
168 /** Key code constant: 'H' key. */
169 public static final int KEYCODE_H = 36;
170 /** Key code constant: 'I' key. */
171 public static final int KEYCODE_I = 37;
172 /** Key code constant: 'J' key. */
173 public static final int KEYCODE_J = 38;
174 /** Key code constant: 'K' key. */
175 public static final int KEYCODE_K = 39;
176 /** Key code constant: 'L' key. */
177 public static final int KEYCODE_L = 40;
178 /** Key code constant: 'M' key. */
179 public static final int KEYCODE_M = 41;
180 /** Key code constant: 'N' key. */
181 public static final int KEYCODE_N = 42;
182 /** Key code constant: 'O' key. */
183 public static final int KEYCODE_O = 43;
184 /** Key code constant: 'P' key. */
185 public static final int KEYCODE_P = 44;
186 /** Key code constant: 'Q' key. */
187 public static final int KEYCODE_Q = 45;
188 /** Key code constant: 'R' key. */
189 public static final int KEYCODE_R = 46;
190 /** Key code constant: 'S' key. */
191 public static final int KEYCODE_S = 47;
192 /** Key code constant: 'T' key. */
193 public static final int KEYCODE_T = 48;
194 /** Key code constant: 'U' key. */
195 public static final int KEYCODE_U = 49;
196 /** Key code constant: 'V' key. */
197 public static final int KEYCODE_V = 50;
198 /** Key code constant: 'W' key. */
199 public static final int KEYCODE_W = 51;
200 /** Key code constant: 'X' key. */
201 public static final int KEYCODE_X = 52;
202 /** Key code constant: 'Y' key. */
203 public static final int KEYCODE_Y = 53;
204 /** Key code constant: 'Z' key. */
205 public static final int KEYCODE_Z = 54;
206 /** Key code constant: ',' key. */
207 public static final int KEYCODE_COMMA = 55;
208 /** Key code constant: '.' key. */
209 public static final int KEYCODE_PERIOD = 56;
210 /** Key code constant: Left Alt modifier key. */
211 public static final int KEYCODE_ALT_LEFT = 57;
212 /** Key code constant: Right Alt modifier key. */
213 public static final int KEYCODE_ALT_RIGHT = 58;
214 /** Key code constant: Left Shift modifier key. */
215 public static final int KEYCODE_SHIFT_LEFT = 59;
216 /** Key code constant: Right Shift modifier key. */
217 public static final int KEYCODE_SHIFT_RIGHT = 60;
218 /** Key code constant: Tab key. */
219 public static final int KEYCODE_TAB = 61;
220 /** Key code constant: Space key. */
221 public static final int KEYCODE_SPACE = 62;
222 /** Key code constant: Symbol modifier key.
223 * Used to enter alternate symbols. */
224 public static final int KEYCODE_SYM = 63;
225 /** Key code constant: Explorer special function key.
226 * Used to launch a browser application. */
227 public static final int KEYCODE_EXPLORER = 64;
228 /** Key code constant: Envelope special function key.
229 * Used to launch a mail application. */
230 public static final int KEYCODE_ENVELOPE = 65;
231 /** Key code constant: Enter key. */
232 public static final int KEYCODE_ENTER = 66;
233 /** Key code constant: Backspace key.
234 * Deletes characters before the insertion point, unlike {@link #KEYCODE_FORWARD_DEL}. */
235 public static final int KEYCODE_DEL = 67;
236 /** Key code constant: '`' (backtick) key. */
237 public static final int KEYCODE_GRAVE = 68;
238 /** Key code constant: '-'. */
239 public static final int KEYCODE_MINUS = 69;
240 /** Key code constant: '=' key. */
241 public static final int KEYCODE_EQUALS = 70;
242 /** Key code constant: '[' key. */
243 public static final int KEYCODE_LEFT_BRACKET = 71;
244 /** Key code constant: ']' key. */
245 public static final int KEYCODE_RIGHT_BRACKET = 72;
246 /** Key code constant: '\' key. */
247 public static final int KEYCODE_BACKSLASH = 73;
248 /** Key code constant: ';' key. */
249 public static final int KEYCODE_SEMICOLON = 74;
250 /** Key code constant: ''' (apostrophe) key. */
251 public static final int KEYCODE_APOSTROPHE = 75;
252 /** Key code constant: '/' key. */
253 public static final int KEYCODE_SLASH = 76;
254 /** Key code constant: '@' key. */
255 public static final int KEYCODE_AT = 77;
256 /** Key code constant: Number modifier key.
257 * Used to enter numeric symbols.
258 * This key is not Num Lock; it is more like {@link #KEYCODE_ALT_LEFT} and is
259 * interpreted as an ALT key by {@link android.text.method.MetaKeyKeyListener}. */
260 public static final int KEYCODE_NUM = 78;
261 /** Key code constant: Headset Hook key.
262 * Used to hang up calls and stop media. */
263 public static final int KEYCODE_HEADSETHOOK = 79;
264 /** Key code constant: Camera Focus key.
265 * Used to focus the camera. */
266 public static final int KEYCODE_FOCUS = 80; // *Camera* focus
267 /** Key code constant: '+' key. */
268 public static final int KEYCODE_PLUS = 81;
269 /** Key code constant: Menu key. */
270 public static final int KEYCODE_MENU = 82;
271 /** Key code constant: Notification key. */
272 public static final int KEYCODE_NOTIFICATION = 83;
273 /** Key code constant: Search key. */
274 public static final int KEYCODE_SEARCH = 84;
275 /** Key code constant: Play/Pause media key. */
276 public static final int KEYCODE_MEDIA_PLAY_PAUSE= 85;
277 /** Key code constant: Stop media key. */
278 public static final int KEYCODE_MEDIA_STOP = 86;
279 /** Key code constant: Play Next media key. */
280 public static final int KEYCODE_MEDIA_NEXT = 87;
281 /** Key code constant: Play Previous media key. */
282 public static final int KEYCODE_MEDIA_PREVIOUS = 88;
283 /** Key code constant: Rewind media key. */
284 public static final int KEYCODE_MEDIA_REWIND = 89;
285 /** Key code constant: Fast Forward media key. */
286 public static final int KEYCODE_MEDIA_FAST_FORWARD = 90;
287 /** Key code constant: Mute key.
288 * Mutes the microphone, unlike {@link #KEYCODE_VOLUME_MUTE}. */
289 public static final int KEYCODE_MUTE = 91;
290 /** Key code constant: Page Up key. */
291 public static final int KEYCODE_PAGE_UP = 92;
292 /** Key code constant: Page Down key. */
293 public static final int KEYCODE_PAGE_DOWN = 93;
294 /** Key code constant: Picture Symbols modifier key.
295 * Used to switch symbol sets (Emoji, Kao-moji). */
296 public static final int KEYCODE_PICTSYMBOLS = 94; // switch symbol-sets (Emoji,Kao-moji)
297 /** Key code constant: Switch Charset modifier key.
298 * Used to switch character sets (Kanji, Katakana). */
299 public static final int KEYCODE_SWITCH_CHARSET = 95; // switch char-sets (Kanji,Katakana)
300 /** Key code constant: A Button key.
301 * On a game controller, the A button should be either the button labeled A
302 * or the first button on the bottom row of controller buttons. */
303 public static final int KEYCODE_BUTTON_A = 96;
304 /** Key code constant: B Button key.
305 * On a game controller, the B button should be either the button labeled B
306 * or the second button on the bottom row of controller buttons. */
307 public static final int KEYCODE_BUTTON_B = 97;
308 /** Key code constant: C Button key.
309 * On a game controller, the C button should be either the button labeled C
310 * or the third button on the bottom row of controller buttons. */
311 public static final int KEYCODE_BUTTON_C = 98;
312 /** Key code constant: X Button key.
313 * On a game controller, the X button should be either the button labeled X
314 * or the first button on the upper row of controller buttons. */
315 public static final int KEYCODE_BUTTON_X = 99;
316 /** Key code constant: Y Button key.
317 * On a game controller, the Y button should be either the button labeled Y
318 * or the second button on the upper row of controller buttons. */
319 public static final int KEYCODE_BUTTON_Y = 100;
320 /** Key code constant: Z Button key.
321 * On a game controller, the Z button should be either the button labeled Z
322 * or the third button on the upper row of controller buttons. */
323 public static final int KEYCODE_BUTTON_Z = 101;
324 /** Key code constant: L1 Button key.
325 * On a game controller, the L1 button should be either the button labeled L1 (or L)
326 * or the top left trigger button. */
327 public static final int KEYCODE_BUTTON_L1 = 102;
328 /** Key code constant: R1 Button key.
329 * On a game controller, the R1 button should be either the button labeled R1 (or R)
330 * or the top right trigger button. */
331 public static final int KEYCODE_BUTTON_R1 = 103;
332 /** Key code constant: L2 Button key.
333 * On a game controller, the L2 button should be either the button labeled L2
334 * or the bottom left trigger button. */
335 public static final int KEYCODE_BUTTON_L2 = 104;
336 /** Key code constant: R2 Button key.
337 * On a game controller, the R2 button should be either the button labeled R2
338 * or the bottom right trigger button. */
339 public static final int KEYCODE_BUTTON_R2 = 105;
340 /** Key code constant: Left Thumb Button key.
341 * On a game controller, the left thumb button indicates that the left (or only)
342 * joystick is pressed. */
343 public static final int KEYCODE_BUTTON_THUMBL = 106;
344 /** Key code constant: Right Thumb Button key.
345 * On a game controller, the right thumb button indicates that the right
346 * joystick is pressed. */
347 public static final int KEYCODE_BUTTON_THUMBR = 107;
348 /** Key code constant: Start Button key.
349 * On a game controller, the button labeled Start. */
350 public static final int KEYCODE_BUTTON_START = 108;
351 /** Key code constant: Select Button key.
352 * On a game controller, the button labeled Select. */
353 public static final int KEYCODE_BUTTON_SELECT = 109;
354 /** Key code constant: Mode Button key.
355 * On a game controller, the button labeled Mode. */
356 public static final int KEYCODE_BUTTON_MODE = 110;
357 /** Key code constant: Escape key. */
358 public static final int KEYCODE_ESCAPE = 111;
359 /** Key code constant: Forward Delete key.
360 * Deletes characters ahead of the insertion point, unlike {@link #KEYCODE_DEL}. */
361 public static final int KEYCODE_FORWARD_DEL = 112;
362 /** Key code constant: Left Control modifier key. */
363 public static final int KEYCODE_CTRL_LEFT = 113;
364 /** Key code constant: Right Control modifier key. */
365 public static final int KEYCODE_CTRL_RIGHT = 114;
366 /** Key code constant: Caps Lock key. */
367 public static final int KEYCODE_CAPS_LOCK = 115;
368 /** Key code constant: Scroll Lock key. */
369 public static final int KEYCODE_SCROLL_LOCK = 116;
370 /** Key code constant: Left Meta modifier key. */
371 public static final int KEYCODE_META_LEFT = 117;
372 /** Key code constant: Right Meta modifier key. */
373 public static final int KEYCODE_META_RIGHT = 118;
374 /** Key code constant: Function modifier key. */
375 public static final int KEYCODE_FUNCTION = 119;
376 /** Key code constant: System Request / Print Screen key. */
377 public static final int KEYCODE_SYSRQ = 120;
378 /** Key code constant: Break / Pause key. */
379 public static final int KEYCODE_BREAK = 121;
380 /** Key code constant: Home Movement key.
381 * Used for scrolling or moving the cursor around to the start of a line
382 * or to the top of a list. */
383 public static final int KEYCODE_MOVE_HOME = 122;
384 /** Key code constant: End Movement key.
385 * Used for scrolling or moving the cursor around to the end of a line
386 * or to the bottom of a list. */
387 public static final int KEYCODE_MOVE_END = 123;
388 /** Key code constant: Insert key.
389 * Toggles insert / overwrite edit mode. */
390 public static final int KEYCODE_INSERT = 124;
391 /** Key code constant: Forward key.
392 * Navigates forward in the history stack. Complement of {@link #KEYCODE_BACK}. */
393 public static final int KEYCODE_FORWARD = 125;
394 /** Key code constant: Play media key. */
395 public static final int KEYCODE_MEDIA_PLAY = 126;
396 /** Key code constant: Pause media key. */
397 public static final int KEYCODE_MEDIA_PAUSE = 127;
398 /** Key code constant: Close media key.
399 * May be used to close a CD tray, for example. */
400 public static final int KEYCODE_MEDIA_CLOSE = 128;
401 /** Key code constant: Eject media key.
402 * May be used to eject a CD tray, for example. */
403 public static final int KEYCODE_MEDIA_EJECT = 129;
404 /** Key code constant: Record media key. */
405 public static final int KEYCODE_MEDIA_RECORD = 130;
406 /** Key code constant: F1 key. */
407 public static final int KEYCODE_F1 = 131;
408 /** Key code constant: F2 key. */
409 public static final int KEYCODE_F2 = 132;
410 /** Key code constant: F3 key. */
411 public static final int KEYCODE_F3 = 133;
412 /** Key code constant: F4 key. */
413 public static final int KEYCODE_F4 = 134;
414 /** Key code constant: F5 key. */
415 public static final int KEYCODE_F5 = 135;
416 /** Key code constant: F6 key. */
417 public static final int KEYCODE_F6 = 136;
418 /** Key code constant: F7 key. */
419 public static final int KEYCODE_F7 = 137;
420 /** Key code constant: F8 key. */
421 public static final int KEYCODE_F8 = 138;
422 /** Key code constant: F9 key. */
423 public static final int KEYCODE_F9 = 139;
424 /** Key code constant: F10 key. */
425 public static final int KEYCODE_F10 = 140;
426 /** Key code constant: F11 key. */
427 public static final int KEYCODE_F11 = 141;
428 /** Key code constant: F12 key. */
429 public static final int KEYCODE_F12 = 142;
430 /** Key code constant: Num Lock key.
431 * This is the Num Lock key; it is different from {@link #KEYCODE_NUM}.
432 * This key alters the behavior of other keys on the numeric keypad. */
433 public static final int KEYCODE_NUM_LOCK = 143;
434 /** Key code constant: Numeric keypad '0' key. */
435 public static final int KEYCODE_NUMPAD_0 = 144;
436 /** Key code constant: Numeric keypad '1' key. */
437 public static final int KEYCODE_NUMPAD_1 = 145;
438 /** Key code constant: Numeric keypad '2' key. */
439 public static final int KEYCODE_NUMPAD_2 = 146;
440 /** Key code constant: Numeric keypad '3' key. */
441 public static final int KEYCODE_NUMPAD_3 = 147;
442 /** Key code constant: Numeric keypad '4' key. */
443 public static final int KEYCODE_NUMPAD_4 = 148;
444 /** Key code constant: Numeric keypad '5' key. */
445 public static final int KEYCODE_NUMPAD_5 = 149;
446 /** Key code constant: Numeric keypad '6' key. */
447 public static final int KEYCODE_NUMPAD_6 = 150;
448 /** Key code constant: Numeric keypad '7' key. */
449 public static final int KEYCODE_NUMPAD_7 = 151;
450 /** Key code constant: Numeric keypad '8' key. */
451 public static final int KEYCODE_NUMPAD_8 = 152;
452 /** Key code constant: Numeric keypad '9' key. */
453 public static final int KEYCODE_NUMPAD_9 = 153;
454 /** Key code constant: Numeric keypad '/' key (for division). */
455 public static final int KEYCODE_NUMPAD_DIVIDE = 154;
456 /** Key code constant: Numeric keypad '*' key (for multiplication). */
457 public static final int KEYCODE_NUMPAD_MULTIPLY = 155;
458 /** Key code constant: Numeric keypad '-' key (for subtraction). */
459 public static final int KEYCODE_NUMPAD_SUBTRACT = 156;
460 /** Key code constant: Numeric keypad '+' key (for addition). */
461 public static final int KEYCODE_NUMPAD_ADD = 157;
462 /** Key code constant: Numeric keypad '.' key (for decimals or digit grouping). */
463 public static final int KEYCODE_NUMPAD_DOT = 158;
464 /** Key code constant: Numeric keypad ',' key (for decimals or digit grouping). */
465 public static final int KEYCODE_NUMPAD_COMMA = 159;
466 /** Key code constant: Numeric keypad Enter key. */
467 public static final int KEYCODE_NUMPAD_ENTER = 160;
468 /** Key code constant: Numeric keypad '=' key. */
469 public static final int KEYCODE_NUMPAD_EQUALS = 161;
470 /** Key code constant: Numeric keypad '(' key. */
471 public static final int KEYCODE_NUMPAD_LEFT_PAREN = 162;
472 /** Key code constant: Numeric keypad ')' key. */
473 public static final int KEYCODE_NUMPAD_RIGHT_PAREN = 163;
474 /** Key code constant: Volume Mute key.
475 * Mutes the speaker, unlike {@link #KEYCODE_MUTE}.
476 * This key should normally be implemented as a toggle such that the first press
477 * mutes the speaker and the second press restores the original volume. */
478 public static final int KEYCODE_VOLUME_MUTE = 164;
479 /** Key code constant: Info key.
480 * Common on TV remotes to show additional information related to what is
481 * currently being viewed. */
482 public static final int KEYCODE_INFO = 165;
483 /** Key code constant: Channel up key.
484 * On TV remotes, increments the television channel. */
485 public static final int KEYCODE_CHANNEL_UP = 166;
486 /** Key code constant: Channel down key.
487 * On TV remotes, decrements the television channel. */
488 public static final int KEYCODE_CHANNEL_DOWN = 167;
489 /** Key code constant: Zoom in key. */
490 public static final int KEYCODE_ZOOM_IN = 168;
491 /** Key code constant: Zoom out key. */
492 public static final int KEYCODE_ZOOM_OUT = 169;
493 /** Key code constant: TV key.
494 * On TV remotes, switches to viewing live TV. */
495 public static final int KEYCODE_TV = 170;
496 /** Key code constant: Window key.
497 * On TV remotes, toggles picture-in-picture mode or other windowing functions.
498 * On Android Wear devices, triggers a display offset. */
499 public static final int KEYCODE_WINDOW = 171;
500 /** Key code constant: Guide key.
501 * On TV remotes, shows a programming guide. */
502 public static final int KEYCODE_GUIDE = 172;
503 /** Key code constant: DVR key.
504 * On some TV remotes, switches to a DVR mode for recorded shows. */
505 public static final int KEYCODE_DVR = 173;
506 /** Key code constant: Bookmark key.
507 * On some TV remotes, bookmarks content or web pages. */
508 public static final int KEYCODE_BOOKMARK = 174;
509 /** Key code constant: Toggle captions key.
510 * Switches the mode for closed-captioning text, for example during television shows. */
511 public static final int KEYCODE_CAPTIONS = 175;
512 /** Key code constant: Settings key.
513 * Starts the system settings activity. */
514 public static final int KEYCODE_SETTINGS = 176;
515 /** Key code constant: TV power key.
516 * On TV remotes, toggles the power on a television screen. */
517 public static final int KEYCODE_TV_POWER = 177;
518 /** Key code constant: TV input key.
519 * On TV remotes, switches the input on a television screen. */
520 public static final int KEYCODE_TV_INPUT = 178;
521 /** Key code constant: Set-top-box power key.
522 * On TV remotes, toggles the power on an external Set-top-box. */
523 public static final int KEYCODE_STB_POWER = 179;
524 /** Key code constant: Set-top-box input key.
525 * On TV remotes, switches the input mode on an external Set-top-box. */
526 public static final int KEYCODE_STB_INPUT = 180;
527 /** Key code constant: A/V Receiver power key.
528 * On TV remotes, toggles the power on an external A/V Receiver. */
529 public static final int KEYCODE_AVR_POWER = 181;
530 /** Key code constant: A/V Receiver input key.
531 * On TV remotes, switches the input mode on an external A/V Receiver. */
532 public static final int KEYCODE_AVR_INPUT = 182;
533 /** Key code constant: Red "programmable" key.
534 * On TV remotes, acts as a contextual/programmable key. */
535 public static final int KEYCODE_PROG_RED = 183;
536 /** Key code constant: Green "programmable" key.
537 * On TV remotes, actsas a contextual/programmable key. */
538 public static final int KEYCODE_PROG_GREEN = 184;
539 /** Key code constant: Yellow "programmable" key.
540 * On TV remotes, acts as a contextual/programmable key. */
541 public static final int KEYCODE_PROG_YELLOW = 185;
542 /** Key code constant: Blue "programmable" key.
543 * On TV remotes, acts as a contextual/programmable key. */
544 public static final int KEYCODE_PROG_BLUE = 186;
545 /** Key code constant: App switch key.
546 * Should bring up the application switcher dialog. */
547 public static final int KEYCODE_APP_SWITCH = 187;
548 /** Key code constant: Generic Game Pad Button #1.*/
549 public static final int KEYCODE_BUTTON_1 = 188;
550 /** Key code constant: Generic Game Pad Button #2.*/
551 public static final int KEYCODE_BUTTON_2 = 189;
552 /** Key code constant: Generic Game Pad Button #3.*/
553 public static final int KEYCODE_BUTTON_3 = 190;
554 /** Key code constant: Generic Game Pad Button #4.*/
555 public static final int KEYCODE_BUTTON_4 = 191;
556 /** Key code constant: Generic Game Pad Button #5.*/
557 public static final int KEYCODE_BUTTON_5 = 192;
558 /** Key code constant: Generic Game Pad Button #6.*/
559 public static final int KEYCODE_BUTTON_6 = 193;
560 /** Key code constant: Generic Game Pad Button #7.*/
561 public static final int KEYCODE_BUTTON_7 = 194;
562 /** Key code constant: Generic Game Pad Button #8.*/
563 public static final int KEYCODE_BUTTON_8 = 195;
564 /** Key code constant: Generic Game Pad Button #9.*/
565 public static final int KEYCODE_BUTTON_9 = 196;
566 /** Key code constant: Generic Game Pad Button #10.*/
567 public static final int KEYCODE_BUTTON_10 = 197;
568 /** Key code constant: Generic Game Pad Button #11.*/
569 public static final int KEYCODE_BUTTON_11 = 198;
570 /** Key code constant: Generic Game Pad Button #12.*/
571 public static final int KEYCODE_BUTTON_12 = 199;
572 /** Key code constant: Generic Game Pad Button #13.*/
573 public static final int KEYCODE_BUTTON_13 = 200;
574 /** Key code constant: Generic Game Pad Button #14.*/
575 public static final int KEYCODE_BUTTON_14 = 201;
576 /** Key code constant: Generic Game Pad Button #15.*/
577 public static final int KEYCODE_BUTTON_15 = 202;
578 /** Key code constant: Generic Game Pad Button #16.*/
579 public static final int KEYCODE_BUTTON_16 = 203;
580 /** Key code constant: Language Switch key.
581 * Toggles the current input language such as switching between English and Japanese on
582 * a QWERTY keyboard. On some devices, the same function may be performed by
583 * pressing Shift+Spacebar. */
584 public static final int KEYCODE_LANGUAGE_SWITCH = 204;
585 /** Key code constant: Manner Mode key.
586 * Toggles silent or vibrate mode on and off to make the device behave more politely
587 * in certain settings such as on a crowded train. On some devices, the key may only
588 * operate when long-pressed. */
589 public static final int KEYCODE_MANNER_MODE = 205;
590 /** Key code constant: 3D Mode key.
591 * Toggles the display between 2D and 3D mode. */
592 public static final int KEYCODE_3D_MODE = 206;
593 /** Key code constant: Contacts special function key.
594 * Used to launch an address book application. */
595 public static final int KEYCODE_CONTACTS = 207;
596 /** Key code constant: Calendar special function key.
597 * Used to launch a calendar application. */
598 public static final int KEYCODE_CALENDAR = 208;
599 /** Key code constant: Music special function key.
600 * Used to launch a music player application. */
601 public static final int KEYCODE_MUSIC = 209;
602 /** Key code constant: Calculator special function key.
603 * Used to launch a calculator application. */
604 public static final int KEYCODE_CALCULATOR = 210;
605 /** Key code constant: Japanese full-width / half-width key. */
606 public static final int KEYCODE_ZENKAKU_HANKAKU = 211;
607 /** Key code constant: Japanese alphanumeric key. */
608 public static final int KEYCODE_EISU = 212;
609 /** Key code constant: Japanese non-conversion key. */
610 public static final int KEYCODE_MUHENKAN = 213;
611 /** Key code constant: Japanese conversion key. */
612 public static final int KEYCODE_HENKAN = 214;
613 /** Key code constant: Japanese katakana / hiragana key. */
614 public static final int KEYCODE_KATAKANA_HIRAGANA = 215;
615 /** Key code constant: Japanese Yen key. */
616 public static final int KEYCODE_YEN = 216;
617 /** Key code constant: Japanese Ro key. */
618 public static final int KEYCODE_RO = 217;
619 /** Key code constant: Japanese kana key. */
620 public static final int KEYCODE_KANA = 218;
621 /** Key code constant: Assist key.
622 * Launches the global assist activity. Not delivered to applications. */
623 public static final int KEYCODE_ASSIST = 219;
624 /** Key code constant: Brightness Down key.
625 * Adjusts the screen brightness down. */
626 public static final int KEYCODE_BRIGHTNESS_DOWN = 220;
627 /** Key code constant: Brightness Up key.
628 * Adjusts the screen brightness up. */
629 public static final int KEYCODE_BRIGHTNESS_UP = 221;
630 /** Key code constant: Audio Track key.
631 * Switches the audio tracks. */
632 public static final int KEYCODE_MEDIA_AUDIO_TRACK = 222;
633 /** Key code constant: Sleep key.
634 * Puts the device to sleep. Behaves somewhat like {@link #KEYCODE_POWER} but it
635 * has no effect if the device is already asleep. */
636 public static final int KEYCODE_SLEEP = 223;
637 /** Key code constant: Wakeup key.
638 * Wakes up the device. Behaves somewhat like {@link #KEYCODE_POWER} but it
639 * has no effect if the device is already awake. */
640 public static final int KEYCODE_WAKEUP = 224;
641 /** Key code constant: Pairing key.
642 * Initiates peripheral pairing mode. Useful for pairing remote control
643 * devices or game controllers, especially if no other input mode is
644 * available. */
645 public static final int KEYCODE_PAIRING = 225;
646 /** Key code constant: Media Top Menu key.
647 * Goes to the top of media menu. */
648 public static final int KEYCODE_MEDIA_TOP_MENU = 226;
649 /** Key code constant: '11' key. */
650 public static final int KEYCODE_11 = 227;
651 /** Key code constant: '12' key. */
652 public static final int KEYCODE_12 = 228;
653 /** Key code constant: Last Channel key.
654 * Goes to the last viewed channel. */
655 public static final int KEYCODE_LAST_CHANNEL = 229;
656 /** Key code constant: TV data service key.
657 * Displays data services like weather, sports. */
658 public static final int KEYCODE_TV_DATA_SERVICE = 230;
659 /** Key code constant: Voice Assist key.
660 * Launches the global voice assist activity. Not delivered to applications. */
661 public static final int KEYCODE_VOICE_ASSIST = 231;
662 /** Key code constant: Radio key.
663 * Toggles TV service / Radio service. */
664 public static final int KEYCODE_TV_RADIO_SERVICE = 232;
665 /** Key code constant: Teletext key.
666 * Displays Teletext service. */
667 public static final int KEYCODE_TV_TELETEXT = 233;
668 /** Key code constant: Number entry key.
669 * Initiates to enter multi-digit channel nubmber when each digit key is assigned
670 * for selecting separate channel. Corresponds to Number Entry Mode (0x1D) of CEC
671 * User Control Code. */
672 public static final int KEYCODE_TV_NUMBER_ENTRY = 234;
673 /** Key code constant: Analog Terrestrial key.
674 * Switches to analog terrestrial broadcast service. */
675 public static final int KEYCODE_TV_TERRESTRIAL_ANALOG = 235;
676 /** Key code constant: Digital Terrestrial key.
677 * Switches to digital terrestrial broadcast service. */
678 public static final int KEYCODE_TV_TERRESTRIAL_DIGITAL = 236;
679 /** Key code constant: Satellite key.
680 * Switches to digital satellite broadcast service. */
681 public static final int KEYCODE_TV_SATELLITE = 237;
682 /** Key code constant: BS key.
683 * Switches to BS digital satellite broadcasting service available in Japan. */
684 public static final int KEYCODE_TV_SATELLITE_BS = 238;
685 /** Key code constant: CS key.
686 * Switches to CS digital satellite broadcasting service available in Japan. */
687 public static final int KEYCODE_TV_SATELLITE_CS = 239;
688 /** Key code constant: BS/CS key.
689 * Toggles between BS and CS digital satellite services. */
690 public static final int KEYCODE_TV_SATELLITE_SERVICE = 240;
691 /** Key code constant: Toggle Network key.
692 * Toggles selecting broacast services. */
693 public static final int KEYCODE_TV_NETWORK = 241;
694 /** Key code constant: Antenna/Cable key.
695 * Toggles broadcast input source between antenna and cable. */
696 public static final int KEYCODE_TV_ANTENNA_CABLE = 242;
697 /** Key code constant: HDMI #1 key.
698 * Switches to HDMI input #1. */
699 public static final int KEYCODE_TV_INPUT_HDMI_1 = 243;
700 /** Key code constant: HDMI #2 key.
701 * Switches to HDMI input #2. */
702 public static final int KEYCODE_TV_INPUT_HDMI_2 = 244;
703 /** Key code constant: HDMI #3 key.
704 * Switches to HDMI input #3. */
705 public static final int KEYCODE_TV_INPUT_HDMI_3 = 245;
706 /** Key code constant: HDMI #4 key.
707 * Switches to HDMI input #4. */
708 public static final int KEYCODE_TV_INPUT_HDMI_4 = 246;
709 /** Key code constant: Composite #1 key.
710 * Switches to composite video input #1. */
711 public static final int KEYCODE_TV_INPUT_COMPOSITE_1 = 247;
712 /** Key code constant: Composite #2 key.
713 * Switches to composite video input #2. */
714 public static final int KEYCODE_TV_INPUT_COMPOSITE_2 = 248;
715 /** Key code constant: Component #1 key.
716 * Switches to component video input #1. */
717 public static final int KEYCODE_TV_INPUT_COMPONENT_1 = 249;
718 /** Key code constant: Component #2 key.
719 * Switches to component video input #2. */
720 public static final int KEYCODE_TV_INPUT_COMPONENT_2 = 250;
721 /** Key code constant: VGA #1 key.
722 * Switches to VGA (analog RGB) input #1. */
723 public static final int KEYCODE_TV_INPUT_VGA_1 = 251;
724 /** Key code constant: Audio description key.
725 * Toggles audio description off / on. */
726 public static final int KEYCODE_TV_AUDIO_DESCRIPTION = 252;
727 /** Key code constant: Audio description mixing volume up key.
728 * Louden audio description volume as compared with normal audio volume. */
729 public static final int KEYCODE_TV_AUDIO_DESCRIPTION_MIX_UP = 253;
730 /** Key code constant: Audio description mixing volume down key.
731 * Lessen audio description volume as compared with normal audio volume. */
732 public static final int KEYCODE_TV_AUDIO_DESCRIPTION_MIX_DOWN = 254;
733 /** Key code constant: Zoom mode key.
734 * Changes Zoom mode (Normal, Full, Zoom, Wide-zoom, etc.) */
735 public static final int KEYCODE_TV_ZOOM_MODE = 255;
736 /** Key code constant: Contents menu key.
737 * Goes to the title list. Corresponds to Contents Menu (0x0B) of CEC User Control
738 * Code */
739 public static final int KEYCODE_TV_CONTENTS_MENU = 256;
740 /** Key code constant: Media context menu key.
741 * Goes to the context menu of media contents. Corresponds to Media Context-sensitive
742 * Menu (0x11) of CEC User Control Code. */
743 public static final int KEYCODE_TV_MEDIA_CONTEXT_MENU = 257;
744 /** Key code constant: Timer programming key.
745 * Goes to the timer recording menu. Corresponds to Timer Programming (0x54) of
746 * CEC User Control Code. */
747 public static final int KEYCODE_TV_TIMER_PROGRAMMING = 258;
748 /** Key code constant: Help key. */
749 public static final int KEYCODE_HELP = 259;
750 /** Key code constant: Navigate to previous key.
751 * Goes backward by one item in an ordered collection of items. */
752 public static final int KEYCODE_NAVIGATE_PREVIOUS = 260;
753 /** Key code constant: Navigate to next key.
754 * Advances to the next item in an ordered collection of items. */
755 public static final int KEYCODE_NAVIGATE_NEXT = 261;
756 /** Key code constant: Navigate in key.
757 * Activates the item that currently has focus or expands to the next level of a navigation
758 * hierarchy. */
759 public static final int KEYCODE_NAVIGATE_IN = 262;
760 /** Key code constant: Navigate out key.
761 * Backs out one level of a navigation hierarchy or collapses the item that currently has
762 * focus. */
763 public static final int KEYCODE_NAVIGATE_OUT = 263;
764 /** Key code constant: Primary stem key for Wear
765 * Main power/reset button on watch. */
766 public static final int KEYCODE_STEM_PRIMARY = 264;
767 /** Key code constant: Generic stem key 1 for Wear */
768 public static final int KEYCODE_STEM_1 = 265;
769 /** Key code constant: Generic stem key 2 for Wear */
770 public static final int KEYCODE_STEM_2 = 266;
771 /** Key code constant: Generic stem key 3 for Wear */
772 public static final int KEYCODE_STEM_3 = 267;
773 /** Key code constant: Directional Pad Up-Left */
774 public static final int KEYCODE_DPAD_UP_LEFT = 268;
775 /** Key code constant: Directional Pad Down-Left */
776 public static final int KEYCODE_DPAD_DOWN_LEFT = 269;
777 /** Key code constant: Directional Pad Up-Right */
778 public static final int KEYCODE_DPAD_UP_RIGHT = 270;
779 /** Key code constant: Directional Pad Down-Right */
780 public static final int KEYCODE_DPAD_DOWN_RIGHT = 271;
781 /** Key code constant: Skip forward media key. */
782 public static final int KEYCODE_MEDIA_SKIP_FORWARD = 272;
783 /** Key code constant: Skip backward media key. */
784 public static final int KEYCODE_MEDIA_SKIP_BACKWARD = 273;
785 /** Key code constant: Step forward media key.
786 * Steps media forward, one frame at a time. */
787 public static final int KEYCODE_MEDIA_STEP_FORWARD = 274;
788 /** Key code constant: Step backward media key.
789 * Steps media backward, one frame at a time. */
790 public static final int KEYCODE_MEDIA_STEP_BACKWARD = 275;
791 /** Key code constant: put device to sleep unless a wakelock is held. */
792 public static final int KEYCODE_SOFT_SLEEP = 276;
793 /** Key code constant: Cut key. */
794 public static final int KEYCODE_CUT = 277;
795 /** Key code constant: Copy key. */
796 public static final int KEYCODE_COPY = 278;
797 /** Key code constant: Paste key. */
798 public static final int KEYCODE_PASTE = 279;
799 /** Key code constant: Consumed by the system for navigation up */
800 public static final int KEYCODE_SYSTEM_NAVIGATION_UP = 280;
801 /** Key code constant: Consumed by the system for navigation down */
802 public static final int KEYCODE_SYSTEM_NAVIGATION_DOWN = 281;
803 /** Key code constant: Consumed by the system for navigation left*/
804 public static final int KEYCODE_SYSTEM_NAVIGATION_LEFT = 282;
805 /** Key code constant: Consumed by the system for navigation right */
806 public static final int KEYCODE_SYSTEM_NAVIGATION_RIGHT = 283;
807 /** Key code constant: Show all apps
808 * @hide */
809 public static final int KEYCODE_ALL_APPS = 284;
