一、什么是GRPC

1.概述

GRPC是由Google开发的一款语言中立、平台中立、开源的远程过程调用( RPC)技术，主要用来解决性能损失的问题。gRPC使客户端和服务端应用程序可以透明地进行通信，并简化了连接系统的构建。它使用HTTP/2作为通信协议，使用ProtocolBuffers作为序列化协议。

1.1.Rest和GRPC的对比

1.1.1优势

        (1)拥有现代高性能轻量级RPC框架。
        (2)约定优先的API开发，默认使用Protocol Buffers 作为描述语言，允许与语言无关的实现。
        (3)可用于多种语言的工具，以生成强类型的服务器和客户端。
        (4)支持客户端和服务器双向流调用。
        (5)通过Protocol Buffers 二进制序列化减少网络使用。

(6)Rest只支持一元(客户端发出单个请求并接收单个响应)传输，GRPC支持一元,服务端流,客户端流,双向流。

(7)REST遵循基于HTTP 1.1的请求-响应通信模型，而gRPC遵循基于HTTP 2.0的客户端-响应通信模型。HTTP 2.0在速度上有着绝对的优势

Http发展路程

从 Http/0.9 到 Http/2 要发送多个请求，从多个 Tcp 连接=>keep-alive=>管道化=>多路复用不断的减少多次创建 Tcp 等等带来的性能损耗。

多个 Tcp 连接

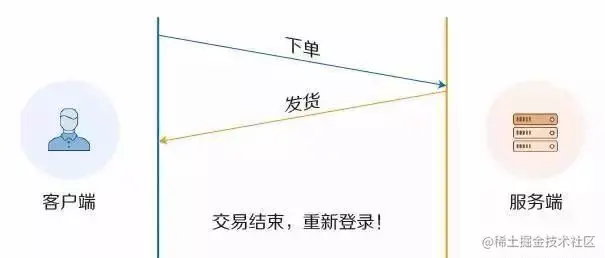

在最早的时候没有keep-alive只能创建多个Tcp连接来做多次请求。多次 http 请求效果如下图所示：

一次请求完成就会关闭本次的 Tcp 连接，下个请求又要从新建立 Tcp 连接传输完成数据再关闭，造成很大的性能损耗。

Keep-Alive

Keep-Alive解决的核心问题是：一定时间内，同一域名多次请求数据，只建立一次 HTTP 请求，其他请求可复用每一次建立的连接通道，以达到提高请求效率的问题。这里面所说的一定时间是可以配置的，不管你用的是Apache还是nginx。以往，浏览器判断响应数据是否接收完毕，是看连接是否关闭。在使用Keep-Alive后，就不能这样了，这就要求服务器对持久连接的响应头部一定要返回content-length标识body的长度，供浏览器判断界限。有时，content-length的方法并不是太准确，也可以使用 Transfer-Encoding: chunked 头部发送一串一串的数据，最后由长度为 0 的chunked标识结束。多次 http 请求效果如下图所示：

上图：设置 Connection:Keep-Alive，保持连接在一段时间内不断开。

Keep-Alive还是存在如下问题：

串行的文件传输。
同域并行请求限制带来的阻塞（6~8）个

管线化

HTTP 管线化可以克服同域并行请求限制带来的阻塞，它是建立在持久连接之上，是把所有请求一并发给服务器，但是服务器需要按照顺序一个一个响应，而不是等到一个响应回来才能发下一个请求，这样就节省了很多请求到服务器的时间。不过，HTTP 管线化仍旧有阻塞的问题，若上一响应迟迟不回，后面的响应都会被阻塞到。

上图：HTTPpipelining：建立多个连接

多路复用

多路复用代替原来的序列和阻塞机制。所有就是请求的都是通过一个 TCP 连接并发完成。因为在多路复用之前所有的传输是基于基础文本的，在多路复用中是基于二进制数据帧的传输、消息、流，所以可以做到乱序的传输。多路复用对同一域名下所有请求都是基于流，所以不存在同域并行的阻塞。多次请求如下图：

上图：多路复用

REST使用JSON或XML编码格式承载数据，而gRPC默认使用ProtoBuf编码格式承载数据。JSON或XML编码格式以文本形式传输，而ProtoBuf是以二进制数据进行传输，所以在传输速率上gRPC更具有优势。

转载：Http系列(二) Http2中的多路复用 - 掘金

1.1.2劣势

(1)几乎所有的浏览器都支持REST，而支持gRPC的浏览器非常有限。这是REST相对于gRPC的主要优势。 (grpc-web客户端)

GRPC尚未提供连接池，需要自行实现(envoy解决)

尚未提供“服务发现”、“负载均衡”机制(istio+envoy解决)

1.2.应用场景

适用于低延迟,高吞吐的场景。

grpc服务可以实时推送消息到客户端,无需前端轮训。

使用protobuff,独立于语言协议，实现跨语言RPC通讯。

grpc服务受益于h2和pb协议，传输数据量小

二、GRPC服务端示例(java语言实现)

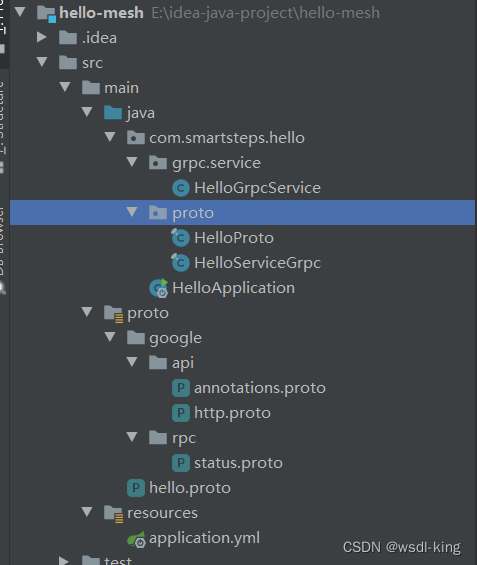

2.1服务端

hello.proto

// proto3版本协议
syntax = "proto3";
//生成的描述信息在一个java文件中
option java_multiple_files = false;
// 生成的包
option java_package = "com.smartsteps.hello.proto";
//该文件声明了入参与回参的相关信息，不需要改动。
option java_outer_classname = "HelloProto";

import "google/api/annotations.proto";


//项目
package hello;

//生成名字+Grpc 该文件声明了接口的信息
service HelloService {
  rpc Hello(HelloReq) returns (HelloRsp){
    option (google.api.http) = {
      get: "/hello"
    };
  }//
}


message  HelloReq{
  string  name = 1;
  string  msg = 2;
}

message  HelloRsp{
  int32  reply = 1;
}

google的三个文件

annotations.proto

// Copyright 2015 Google LLC
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

syntax = "proto3";

package google.api;

import "google/api/http.proto";
import "google/protobuf/descriptor.proto";

option go_package = "google.golang.org/genproto/googleapis/api/annotations;annotations";
option java_multiple_files = true;
option java_outer_classname = "AnnotationsProto";
option java_package = "com.google.api";
option objc_class_prefix = "GAPI";

extend google.protobuf.MethodOptions {
  // See `HttpRule`.
  HttpRule http = 72295728;
}

http.proto

// Copyright 2015 Google LLC
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

syntax = "proto3";

package google.api;

option cc_enable_arenas = true;
option go_package = "google.golang.org/genproto/googleapis/api/annotations;annotations";
option java_multiple_files = true;
option java_outer_classname = "HttpProto";
option java_package = "com.google.api";
option objc_class_prefix = "GAPI";

// Defines the HTTP configuration for an API service. It contains a list of
// [HttpRule][google.api.HttpRule], each specifying the mapping of an RPC method
// to one or more HTTP REST API methods.
message Http {
  // A list of HTTP configuration rules that apply to individual API methods.
  //
  // **NOTE:** All service configuration rules follow "last one wins" order.
  repeated HttpRule rules = 1;

  // When set to true, URL path parameters will be fully URI-decoded except in
  // cases of single segment matches in reserved expansion, where "%2F" will be
  // left encoded.
  //
  // The default behavior is to not decode RFC 6570 reserved characters in multi
  // segment matches.
  bool fully_decode_reserved_expansion = 2;
}

// # gRPC Transcoding
//
// gRPC Transcoding is a feature for mapping between a gRPC method and one or
// more HTTP REST endpoints. It allows developers to build a single API service
// that supports both gRPC APIs and REST APIs. Many systems, including [Google
// APIs](https://github.com/googleapis/googleapis),
// [Cloud Endpoints](https://cloud.google.com/endpoints), [gRPC
// Gateway](https://github.com/grpc-ecosystem/grpc-gateway),
// and [Envoy](https://github.com/envoyproxy/envoy) proxy support this feature
// and use it for large scale production services.
//
// `HttpRule` defines the schema of the gRPC/REST mapping. The mapping specifies
// how different portions of the gRPC request message are mapped to the URL
// path, URL query parameters, and HTTP request body. It also controls how the
// gRPC response message is mapped to the HTTP response body. `HttpRule` is
// typically specified as an `google.api.http` annotation on the gRPC method.
//
// Each mapping specifies a URL path template and an HTTP method. The path
// template may refer to one or more fields in the gRPC request message, as long
// as each field is a non-repeated field with a primitive (non-message) type.
// The path template controls how fields of the request message are mapped to
// the URL path.
//
// Example:
//
//     service Messaging {
//       rpc GetMessage(GetMessageRequest) returns (Message) {
//         option (google.api.http) = {
//             get: "/v1/{name=messages/*}"
//         };
//       }
//     }
//     message GetMessageRequest {
//       string name = 1; // Mapped to URL path.
//     }
//     message Message {
//       string text = 1; // The resource content.
//     }
//
// This enables an HTTP REST to gRPC mapping as below:
//
// HTTP | gRPC
// -----|-----
// `GET /v1/messages/123456`  | `GetMessage(name: "messages/123456")`
//
// Any fields in the request message which are not bound by the path template
// automatically become HTTP query parameters if there is no HTTP request body.
// For example:
//
//     service Messaging {
//       rpc GetMessage(GetMessageRequest) returns (Message) {
//         option (google.api.http) = {
//             get:"/v1/messages/{message_id}"
//         };
//       }
//     }
//     message GetMessageRequest {
//       message SubMessage {
//         string subfield = 1;
//       }
//       string message_id = 1; // Mapped to URL path.
//       int64 revision = 2;    // Mapped to URL query parameter `revision`.
//       SubMessage sub = 3;    // Mapped to URL query parameter `sub.subfield`.
//     }
//
// This enables a HTTP JSON to RPC mapping as below:
//
// HTTP | gRPC
// -----|-----
// `GET /v1/messages/123456?revision=2&sub.subfield=foo` |
// `GetMessage(message_id: "123456" revision: 2 sub: SubMessage(subfield:
// "foo"))`
//
// Note that fields which are mapped to URL query parameters must have a
// primitive type or a repeated primitive type or a non-repeated message type.
// In the case of a repeated type, the parameter can be repeated in the URL
// as `...?param=A&param=B`. In the case of a message type, each field of the
// message is mapped to a separate parameter, such as
// `...?foo.a=A&foo.b=B&foo.c=C`.
//
// For HTTP methods that allow a request body, the `body` field
// specifies the mapping. Consider a REST update method on the
// message resource collection:
//
//     service Messaging {
//       rpc UpdateMessage(UpdateMessageRequest) returns (Message) {
//         option (google.api.http) = {
//           patch: "/v1/messages/{message_id}"
//           body: "message"
//         };
//       }
//     }
//     message UpdateMessageRequest {
//       string message_id = 1; // mapped to the URL
//       Message message = 2;   // mapped to the body
//     }
//
// The following HTTP JSON to RPC mapping is enabled, where the
// representation of the JSON in the request body is determined by
// protos JSON encoding:
//
// HTTP | gRPC
// -----|-----
// `PATCH /v1/messages/123456 { "text": "Hi!" }` | `UpdateMessage(message_id:
// "123456" message { text: "Hi!" })`
//
// The special name `*` can be used in the body mapping to define that
// every field not bound by the path template should be mapped to the
// request body.  This enables the following alternative definition of
// the update method:
//
//     service Messaging {
//       rpc UpdateMessage(Message) returns (Message) {
//         option (google.api.http) = {
//           patch: "/v1/messages/{message_id}"
//           body: "*"
//         };
//       }
//     }
//     message Message {
//       string message_id = 1;
//       string text = 2;
//     }
//
//
// The following HTTP JSON to RPC mapping is enabled:
//
// HTTP | gRPC
// -----|-----
// `PATCH /v1/messages/123456 { "text": "Hi!" }` | `UpdateMessage(message_id:
// "123456" text: "Hi!")`
//
// Note that when using `*` in the body mapping, it is not possible to
// have HTTP parameters, as all fields not bound by the path end in
// the body. This makes this option more rarely used in practice when
// defining REST APIs. The common usage of `*` is in custom methods
// which don't use the URL at all for transferring data.
//
// It is possible to define multiple HTTP methods for one RPC by using
// the `additional_bindings` option. Example:
//
//     service Messaging {
//       rpc GetMessage(GetMessageRequest) returns (Message) {
//         option (google.api.http) = {
//           get: "/v1/messages/{message_id}"
//           additional_bindings {
//             get: "/v1/users/{user_id}/messages/{message_id}"
//           }
//         };
//       }
//     }
//     message GetMessageRequest {
//       string message_id = 1;
//       string user_id = 2;
//     }
//
// This enables the following two alternative HTTP JSON to RPC mappings:
//
// HTTP | gRPC
// -----|-----
// `GET /v1/messages/123456` | `GetMessage(message_id: "123456")`
// `GET /v1/users/me/messages/123456` | `GetMessage(user_id: "me" message_id:
// "123456")`
//
// ## Rules for HTTP mapping
//
// 1. Leaf request fields (recursive expansion nested messages in the request
//    message) are classified into three categories:
//    - Fields referred by the path template. They are passed via the URL path.
//    - Fields referred by the [HttpRule.body][google.api.HttpRule.body]. They are passed via the HTTP
//      request body.
//    - All other fields are passed via the URL query parameters, and the
//      parameter name is the field path in the request message. A repeated
//      field can be represented as multiple query parameters under the same
//      name.
//  2. If [HttpRule.body][google.api.HttpRule.body] is "*", there is no URL query parameter, all fields
//     are passed via URL path and HTTP request body.
//  3. If [HttpRule.body][google.api.HttpRule.body] is omitted, there is no HTTP request body, all
//     fields are passed via URL path and URL query parameters.
//
// ### Path template syntax
//
//     Template = "/" Segments [ Verb ] ;
//     Segments = Segment { "/" Segment } ;
//     Segment  = "*" | "**" | LITERAL | Variable ;
//     Variable = "{" FieldPath [ "=" Segments ] "}" ;
//     FieldPath = IDENT { "." IDENT } ;
//     Verb     = ":" LITERAL ;
//
// The syntax `*` matches a single URL path segment. The syntax `**` matches
// zero or more URL path segments, which must be the last part of the URL path
// except the `Verb`.
//
// The syntax `Variable` matches part of the URL path as specified by its
// template. A variable template must not contain other variables. If a variable
// matches a single path segment, its template may be omitted, e.g. `{var}`
// is equivalent to `{var=*}`.
//
// The syntax `LITERAL` matches literal text in the URL path. If the `LITERAL`
// contains any reserved character, such characters should be percent-encoded
// before the matching.
//
// If a variable contains exactly one path segment, such as `"{var}"` or
// `"{var=*}"`, when such a variable is expanded into a URL path on the client
// side, all characters except `[-_.~0-9a-zA-Z]` are percent-encoded. The
// server side does the reverse decoding. Such variables show up in the
// [Discovery
// Document](https://developers.google.com/discovery/v1/reference/apis) as
// `{var}`.
//
// If a variable contains multiple path segments, such as `"{var=foo/*}"`
// or `"{var=**}"`, when such a variable is expanded into a URL path on the
// client side, all characters except `[-_.~/0-9a-zA-Z]` are percent-encoded.
// The server side does the reverse decoding, except "%2F" and "%2f" are left
// unchanged. Such variables show up in the
// [Discovery
// Document](https://developers.google.com/discovery/v1/reference/apis) as
// `{+var}`.
//
// ## Using gRPC API Service Configuration
//
// gRPC API Service Configuration (service config) is a configuration language
// for configuring a gRPC service to become a user-facing product. The
// service config is simply the YAML representation of the `google.api.Service`
// proto message.
//
// As an alternative to annotating your proto file, you can configure gRPC
// transcoding in your service config YAML files. You do this by specifying a
// `HttpRule` that maps the gRPC method to a REST endpoint, achieving the same
// effect as the proto annotation. This can be particularly useful if you
// have a proto that is reused in multiple services. Note that any transcoding
// specified in the service config will override any matching transcoding
// configuration in the proto.
//
// Example:
//
//     http:
//       rules:
//         # Selects a gRPC method and applies HttpRule to it.
//         - selector: example.v1.Messaging.GetMessage
//           get: /v1/messages/{message_id}/{sub.subfield}
//
// ## Special notes
//
// When gRPC Transcoding is used to map a gRPC to JSON REST endpoints, the
// proto to JSON conversion must follow the [proto3
// specification](https://developers.google.com/protocol-buffers/docs/proto3#json).
//
// While the single segment variable follows the semantics of
// [RFC 6570](https://tools.ietf.org/html/rfc6570) Section 3.2.2 Simple String
// Expansion, the multi segment variable **does not** follow RFC 6570 Section
// 3.2.3 Reserved Expansion. The reason is that the Reserved Expansion
// does not expand special characters like `?` and `#`, which would lead
// to invalid URLs. As the result, gRPC Transcoding uses a custom encoding
// for multi segment variables.
//
// The path variables **must not** refer to any repeated or mapped field,
// because client libraries are not capable of handling such variable expansion.
//
// The path variables **must not** capture the leading "/" character. The reason
// is that the most common use case "{var}" does not capture the leading "/"
// character. For consistency, all path variables must share the same behavior.
//
// Repeated message fields must not be mapped to URL query parameters, because
// no client library can support such complicated mapping.
//
// If an API needs to use a JSON array for request or response body, it can map
// the request or response body to a repeated field. However, some gRPC
// Transcoding implementations may not support this feature.
message HttpRule {
  // Selects a method to which this rule applies.
  //
  // Refer to [selector][google.api.DocumentationRule.selector] for syntax details.
  string selector = 1;

  // Determines the URL pattern is matched by this rules. This pattern can be
  // used with any of the {get|put|post|delete|patch} methods. A custom method
  // can be defined using the 'custom' field.
  oneof pattern {
    // Maps to HTTP GET. Used for listing and getting information about
    // resources.
    string get = 2;

    // Maps to HTTP PUT. Used for replacing a resource.
    string put = 3;

    // Maps to HTTP POST. Used for creating a resource or performing an action.
    string post = 4;

    // Maps to HTTP DELETE. Used for deleting a resource.
    string delete = 5;

    // Maps to HTTP PATCH. Used for updating a resource.
    string patch = 6;

    // The custom pattern is used for specifying an HTTP method that is not
    // included in the `pattern` field, such as HEAD, or "*" to leave the
    // HTTP method unspecified for this rule. The wild-card rule is useful
    // for services that provide content to Web (HTML) clients.
    CustomHttpPattern custom = 8;
  }

  // The name of the request field whose value is mapped to the HTTP request
  // body, or `*` for mapping all request fields not captured by the path
  // pattern to the HTTP body, or omitted for not having any HTTP request body.
  //
  // NOTE: the referred field must be present at the top-level of the request
  // message type.
  string body = 7;

  // Optional. The name of the response field whose value is mapped to the HTTP
  // response body. When omitted, the entire response message will be used
  // as the HTTP response body.
  //
  // NOTE: The referred field must be present at the top-level of the response
  // message type.
  string response_body = 12;

  // Additional HTTP bindings for the selector. Nested bindings must
  // not contain an `additional_bindings` field themselves (that is,
  // the nesting may only be one level deep).
  repeated HttpRule additional_bindings = 11;
}

// A custom pattern is used for defining custom HTTP verb.
message CustomHttpPattern {
  // The name of this custom HTTP verb.
  string kind = 1;

  // The path matched by this custom verb.
  string path = 2;
}

status.proto

// Copyright 2020 Google LLC
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//     http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

syntax = "proto3";

package google.rpc;

import "google/protobuf/any.proto";

option cc_enable_arenas = true;
option go_package = "google.golang.org/genproto/googleapis/rpc/status;status";
option java_multiple_files = true;
option java_outer_classname = "StatusProto";
option java_package = "com.google.rpc";
option objc_class_prefix = "RPC";

// The `Status` type defines a logical error model that is suitable for
// different programming environments, including REST APIs and RPC APIs. It is
// used by [gRPC](https://github.com/grpc). Each `Status` message contains
// three pieces of data: error code, error message, and error details.
//
// You can find out more about this error model and how to work with it in the
// [API Design Guide](https://cloud.google.com/apis/design/errors).
message Status {
  // The status code, which should be an enum value of [google.rpc.Code][google.rpc.Code].
  int32 code = 1;

  // A developer-facing error message, which should be in English. Any
  // user-facing error message should be localized and sent in the
  // [google.rpc.Status.details][google.rpc.Status.details] field, or localized by the client.
  string message = 2;

  // A list of messages that carry the error details.  There is a common set of
  // message types for APIs to use.
  repeated google.protobuf.Any details = 3;
}

编译proto文件的 java pom

  <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <java.version>1.8</java.version>
        <maven-compiler-plugin.version>3.1</maven-compiler-plugin.version>
        <protobuf-maven-plugin.version>0.6.1</protobuf-maven-plugin.version>
        <grpc-stater-version>2.11.0.RELEASE</grpc-stater-version>
    </properties>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath/>
    </parent>



    <dependencies>
        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-spring-boot-starter</artifactId>
            <version>${grpc-stater-version}</version>
        </dependency>
        <dependency>
            <groupId>com.google.protobuf</groupId>
            <artifactId>protobuf-java-util</artifactId>
            <version>3.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.8</version>
        </dependency>

    </dependencies>


    <build>

        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId><!--引入操作系统os设置的属性插件,否则${os.detected.classifier} 操作系统版本会找不到 -->
                <version>1.5.0.Final</version>
            </extension>
        </extensions>

        <finalName>${project.artifactId}</finalName>
        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>${protobuf-maven-plugin.version}</version>
                <configuration>
                    <protocArtifact>com.google.protobuf:protoc:3.5.1-1:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.16.1:exe:${os.detected.classifier}</pluginArtifact>
                    <protoSourceRoot>${project.basedir}/src/main/proto</protoSourceRoot>
                    <outputDirectory>${project.basedir}/src/main/java</outputDirectory>
                    <clearOutputDirectory>false</clearOutputDirectory>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>


            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>compile</phase>
                        <goals>
                            <goal>compile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                        <configuration>
                            <mainClass>com.smartsteps.hello.HelloApplication</mainClass>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

        </plugins>


    </build>

在目录下执行mvn clean compile即可生成相关的java文件。

HelloGrpcService代码:

@GrpcService
@Slf4j
public class HelloGrpcService extends HelloServiceGrpc.HelloServiceImplBase {

    @Override
    public void hello(HelloProto.HelloReq request, StreamObserver<HelloProto.HelloRsp> responseObserver) {
        String name = request.getName();
        String msg = request.getMsg();
        log.info("收到客户端发来的消息.name->{},msg->{}", name, msg);
        HelloProto.HelloRsp helloRsp = HelloProto.HelloRsp.newBuilder().setReply(1).build();
        responseObserver.onNext(helloRsp);
        responseObserver.onCompleted();
    }
}

yml配置文件

grpc:
  server:
    port: 8080
    enable-keep-alive: true #是否使用keepalive
    keep-alive-time: 30s #client发送keepalive的间隔
    keep-alive-timeout: 10s # keepalive 超时时间
    permit-keep-alive-without-calls: true # 没有数据包也可发送ping,保活状态

此时程序可以作为一个GRPC服务运行起来，可以供其他GRPC客户端调用。

三、Envoy代理GRPC服务端

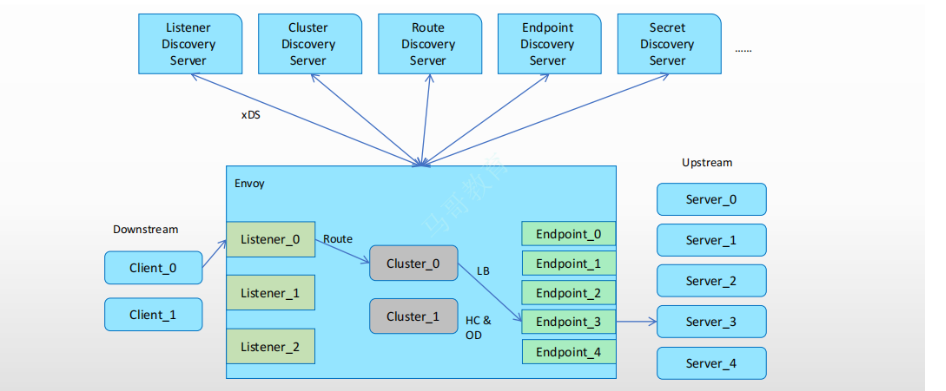

3.1.什么是Envoy

envoy 是作为微服务服务架构中以独立进程方式实现高级网络功能的，轻量级的7层服务代理程序，通常以sidecar的方式运行在应用程序的周边，也可以作为网络的边缘代理来运行
envoy 的特性进程外体系结构，L3/L4过滤器体系结构，HTTP L7过滤器体系结构，一流的HTTP/2支持， HTTP/3支持（目前为alpha），HTTP L7路由，gRPC支持，服务发现和动态配置，健康检查，高级负载平衡，前端/边缘代理支持，一流的可观察性

3.2.Envoy组件拓扑

3.3. Envoy代理服务端支持restful访问

直接上配置文件:

static_resources:
  listeners:
  - name: listener_0
    address:
      socket_address: { address: 0.0.0.0, port_value: 10000 }
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          codec_type: auto
          stat_prefix: ingress_http
          route_config:
            name: local_route
            virtual_hosts:
            - name: local_service
              domains: ["*"]
              routes:
              - match: { prefix: "/" }
                route:
                  #timeout: 0s
                  cluster: hello_service
                  max_stream_duration:
                    grpc_timeout_header_max: 0s
              cors:
                allow_origin_string_match:
                - prefix: "*"
                allow_credentials: true
                allow_methods: GET, PUT, DELETE, POST, OPTIONS
                allow_headers: keep-alive,user-agent,cache-control,content-type,content-transfer-encoding,custom-header-1,x-accept-content-transfer-encoding,x-accept-response-streaming,x-user-agent,x-grpc-web,grpc-timeout
                max_age: "17280000"
                expose_headers: custom-header-1,grpc-status,grpc-message
          http_filters:
          - name: envoy.filters.http.grpc_web
          - name: envoy.filters.http.grpc_json_transcoder
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.grpc_json_transcoder.v3.GrpcJsonTranscoder
              proto_descriptor: "/etc/envoy/hello.pb"
              services: ["hello.HelloService"]
              print_options:
                add_whitespace: true
                always_print_primitive_fields: true
                always_print_enums_as_ints: false
                preserve_proto_field_names: false
          - name: envoy.filters.http.cors
          - name: envoy.filters.http.router
  clusters:
  - name: hello_service
    connect_timeout: 0.25s
    type: logical_dns
    http2_protocol_options: {}
    lb_policy: round_robin
    load_assignment:
      cluster_name: cluster_0
      endpoints:
        - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: app
                    port_value: 8080

我使用10000端口代理后端GRPC服务的8080端口。

pb文件需要自己生成,我选择用python生成,需要自己安装python环境和googleapi-master,google的依赖包我已经给出

googleapi-master: github.com/googleapis/googleapis

命令:

python -m grpc_tools.protoc -I ../../../../googleapis-master -I.  --include_imports --include_source_info  --descrip
tor_set_out=hello.pb --python_out=.. --grpc_python_out=.. hello.proto

envoy的Dockerfile

FROM envoyproxy/envoy:v1.18-latest
#FROM envoyproxy/envoy-alpine:v1.18-latest
COPY envoy.yaml /etc/envoy/envoy.yaml
COPY hello.pb /etc/envoy/hello.pb

Docker-compose:

version: '3'
services:
  envoy:
    build:
      context: ./envoy
      dockerfile: Dockerfile
    image: smartp/envoy
    depends_on:
      - app
      - power
    ports:
      - "10000:10000"
    networks:
      - eproxy
  app:
    build:
      context: ./app
      dockerfile: Dockerfile
    image: smartp/dbapp
    networks:
      - eproxy


networks:
  eproxy:
    driver: bridge

访问测试:

http://localhost:10000/hello?name=hello&msg=word
