附上github的地址:git@github.com:201705010201/SpringBoot-vue-demo.git
一 . 数据库信息:
create database mis;
use mis;
drop table student;
drop table course;
drop table sc;
create table student (
sno char(12) not null ,
sname varchar(20) ,
ssex char(3) ,
sage int,
sdept varchar(20) ,
primary key(sno)
);
insert into student(sno, sname, ssex, sage, sdept)
values('200215121', '李勇', '男',20,'cs');
insert into student(sno, sname, ssex, sage, sdept)
values('200215122', '刘晨', '女',19,'cs');
insert into student(sno, sname, ssex, sage, sdept)
values('200215123', '王敏', '女',18,'ma');
insert into student(sno, sname, ssex, sage, sdept)
values('200215125', '张立', '男',19,'is');
create table course (
cno varchar(6) not null ,
cname varchar(20) not null ,
cpno varchar(6) ,
ccredit int ,
primary key (cno)
);
insert into course(cno, cname, cpno ,ccredit)
values('1', '数据库','5',4);
insert into course(cno, cname, cpno ,ccredit)
values('2', '数学',null,2);
insert into course(cno, cname, cpno ,ccredit)
values('3', '信息系统','1',4);
insert into course(cno, cname, cpno ,ccredit)
values('4', '操作系统','6',3);
insert into course(cno, cname, cpno ,ccredit)
values('5', '数据结构','7',4);
insert intocourse(cno, cname, cpno ,ccredit)
values('6', '数据处理',null,2);
insert into course(cno, cname, cpno ,ccredit)
values('7', 'PASCAL语言','6',4);
create table sc (
sno char(12) not null ,
cno varchar(6) not null ,
grade int,
PRIMARY KEY (sno,cno)
) ;
insert into sc(sno, cno, grade)
values('200215121','1',92);
insert into sc(sno, cno, grade)
values('200215121','2',85);
insert into sc(sno, cno, grade)
values('200215121','3',88);
insert into sc(sno, cno, grade)
values('200215122','2',90);
insert into sc(sno, cno, grade)
values('200215122','3',80);
关于数据库的操作,这里就不做介绍了。

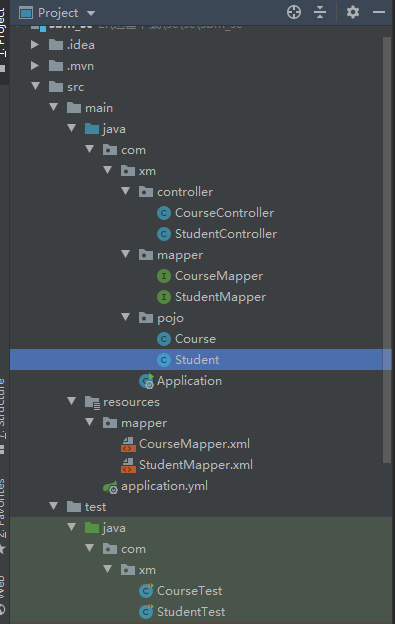

二. 项目结构:
三. 主要后端代码介绍
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.xm</groupId>
<artifactId>sbm_sc</artifactId>
<version>0.0.1</version>
<packaging>jar</packaging>
<name>sbm_sc</name>
<description>Demo project for Spring Boot</description>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.4.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.1.0</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
application.yml
#端口,项目上下文根
server:
port: 8080
servlet:
context-path: /sc
#配置mybatis
mybatis:
#配置xml映射路径
mapper-locations: classpath:mapper/*.xml
#配置实体类的别名
type-aliases-package: com.xm.pojo
configuration:
#开启驼峰命名法
map-underscore-to-camel-case: true
#配置mysql连接
spring:
datasource:
url: jdbc:mysql://localhost:3306/mis?serverTimezone=Asia/Shanghai
username: root
password: 123456
里面数据库的信息需要根据你自己的改。
bean包下的实体类。Student类
package com.xm.pojo;
/**
* name:学生实体
* @author xxm
*
*/
public class Student {
/**
* content:学号
*/
private String sno;
/**
* content:姓名
*/
private String sname;
/**
* content:性别
*/
private String ssex;
/**
* content:年龄
*/
private int sage;
/**
* content:系别
*/
private String sdept;
public Student() {
}
public String getSno() {
return sno;
}
public void setSno(String sno) {
this.sno = sno;
}
public String getSname() {
return sname;
}
public void setSname(String sname) {
this.sname = sname;
}
public String getSsex() {
return ssex;
}
public void setSsex(String ssex) {
this.ssex = ssex;
}
public int getSage() {
return sage;
}
public void setSage(int sage) {
this.sage = sage;
}
public String getSdept() {
return sdept;
}
public void setSdept(String sdept) {
this.sdept = sdept;
}
@Override
public String toString() {
return "Student{" + "sno=" + sno + ", sname=" + sname + ", ssex=" + ssex + ", sage=" + sage + ", sdept=" + sdept + '}';
}
}
Course类
package com.xm.pojo;
public class Course {
private String cno;
private String cname;
private String cpno;
private int ccredit;
public Course() {
}
public Course(String cno, String cname, String cpno, int ccredit) {
this.cno = cno;
this.cname = cname;
this.cpno = cpno;
this.ccredit = ccredit;
}
public String getCno() {
return cno;
}
public void setCno(String cno) {
this.cno = cno;
}
public String getCname() {
return cname;
}
public void setCname(String cname) {
this.cname = cname;
}
public String getCpno() {
return cpno;
}
public void setCpno(String cpno) {
this.cpno = cpno;
}
public int getCcredit() {
return ccredit;
}
public void setCcredit(int ccredit) {
this.ccredit = ccredit;
}
@Override
public String toString() {
return "Course{" +
"cno='" + cno + '\'' +
", cname='" + cname + '\'' +
", cpno='" + cpno + '\'' +
", ccredit=" + ccredit +
'}';
}
}
mapper包下的接口。
StudentMapper
package com.xm.mapper;
import java.util.List;
import com.xm.pojo.Student;
import java.util.Map;
public interface StudentMapper {
/**
* 根据id查询
* @param sno
* @return
*/
public Student getById(String sno) ;
/**
* 查询全部
* @return
*/
public List<Student> list();
/**
* 查询成绩
* @return
*/
public List<Map> grade();
/**
* 插入
* @param student
* @return
*/
public int insert(Student student);
/**
* 根据student的id修改
* @param student
* @return
*/
public int update(Student student);
/**
* 根据id删除
* @return
* @param sno
*/
public int delete(String sno);
}
CourseMapper
package com.xm.mapper;
import com.xm.pojo.Course;
import com.xm.pojo.Student;
import java.util.List;
import java.util.Map;
public interface CourseMapper {
/**
* 根据id查询
* @param cno
* @return
*/
public Course getById(String cno) ;
/**
* 查询全部
* @return
*/
public List<Course> list();
/**
* 查询成绩
* @return
*/
// public List<Map> grade();
/**
* 插入
* @param course
* @return
*/
public int insert(Course course);
/**
* 根据course的id修改
* @param course
* @return
*/
public int update(Course course);
/**
* 根据id删除
* @return
* @param cno
*/
public int delete(String cno);
}
resources目录下的mapper中的 xml文件。
StudentMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.xm.mapper.StudentMapper">
<!-- 根据学号查询学生 -->
<select id="getById" parameterType="String" resultType="Student">
select * from student where sno=#{sno}
</select>
<!-- 查询所有学生 -->
<select id="list" resultType="Student">
select * from student
</select>
<!-- 查询所有学生成绩 -->
<select id="grade" resultType="map">
select sname,cname,grade from sc,course,student where sc.sno=student.sno and sc.cno=course.cno order by sname
</select>
<!-- 插入一个学生 -->
<insert id="insert" parameterType="Student">
insert into student(sno,sname,ssex,sage,sdept) values(#{sno},#{sname},#{ssex},#{sage},#{sdept})
</insert>
<!-- 根据学号修改学生信息 -->
<update id="update" parameterType="Student" >
update student set sname=#{sname},ssex=#{ssex},sage=#{sage},sdept=#{sdept} where sno=#{sno}
</update>
<!-- 根据学号删除学生 -->
<delete id="delete" parameterType="String" >
delete from student where sno=#{sno}
</delete>
</mapper>
CourseMapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.xm.mapper.CourseMapper">
<!-- 根据课程号查询课程 -->
<select id="getById" parameterType="String" resultType="Course">
select * from course where cno=#{cno}
</select>
<!-- 查询所有课程 -->
<select id="list" resultType="Course">
select * from course
</select>
<!-- 查询所有学生成绩 -->
<!-- <select id="grade" resultType="map">-->
<!-- select sname,cname,grade from sc,course,student where sc.sno=student.sno and sc.cno=course.cno order by sname-->
<!-- </select>-->
<!-- 插入一门课程 -->
<insert id="insert" parameterType="Course">
insert into course(cno,cname,cpno,ccredit) values(#{cno},#{cname},#{cpno},#{ccredit})
</insert>
<!-- 根据课程号修改课程信息 -->
<update id="update" parameterType="Course" >
update course set cname=#{cname},cpno=#{cpno},ccredit=#{ccredit} where cno=#{cno}
</update>
<!-- 根据课程号删除课程 -->
<delete id="delete" parameterType="String" >
delete from course where cno=#{cno}
</delete>
</mapper>
controller包下的类。
StudentController类
package com.xm.controller;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestBody;
import com.xm.mapper.StudentMapper;
import com.xm.pojo.Student;
import java.util.Map;
@CrossOrigin//允许跨域访问
@RestController
public class StudentController {
@Autowired
private StudentMapper studentMapper;
/**
* 根据id查询学生
* @param sno
* @return
*/
@GetMapping("/student/{sno}")
public Student getById(@PathVariable("sno") String sno) {
Student student = studentMapper.getById(sno);
return student;
}
/**
* 查询全部学生
* @return
*/

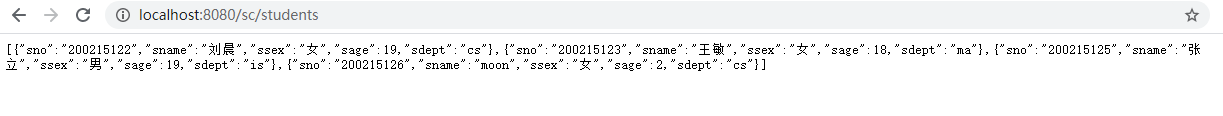

@GetMapping("/students")
public List<Student> list(){
List<Student> students = studentMapper.list();
return students;
}
/**
* 查询学生成绩
* @return
*/
@GetMapping("/grades")
public List<Map> gradelist(){
List<Map> grademap = studentMapper.grade();
return grademap;
}
/**
* 插入
* @param student
* @return
*/
@PostMapping("/student")
public String insert(@RequestBody Student student) {
int rows=studentMapper.insert(student);
return "{\"rows\":\""+rows+"\"}" ;
}
/**
* 修改
* @param student
* @return
*/
@PutMapping("/student")
public String update(@RequestBody Student student) {
int rows=studentMapper.update(student);
return "{\"rows\":\""+rows+"\"}" ;
}
/**
* 根据id删除
* @param sno
* @return
*/
@DeleteMapping("/student/{sno}")
public String delete(@PathVariable("sno") String sno) {
int rows=studentMapper.delete(sno);
return "{\"rows\":\""+rows+"\"}" ;
}
}
CourseController
package com.xm.controller;
import com.xm.mapper.CourseMapper;
import com.xm.pojo.Course;
import com.xm.pojo.Student;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import java.util.List;
import java.util.Map;
@CrossOrigin//允许跨域访问
@RestController
public class CourseController {
@Autowired
private CourseMapper courseMapper;
/**
* 根据id查询课程
* @param cno
* @return
*/
@GetMapping("/course/{cno}")
public Course getById(@PathVariable("cno") String cno) {
Course course = courseMapper.getById(cno);
return course;
}
/**
* 查询全部课程
* @return
*/
@GetMapping("/courses")
public List<Course> list(){
List<Course> Courses = courseMapper.list();
return Courses;
}
/**
* 查询学生成绩
* @return
*/
// @GetMapping("/grades")
// public List<Map> gradelist(){
// List<Map> grademap = courseMapper.grade();
// return grademap;
// }
/**
* 插入
* @param course
* @return
*/
@PostMapping("/course")
public String insert(@RequestBody Course course) {
int rows=courseMapper.insert(course);
return "{\"rows\":\""+rows+"\"}" ;
}
/**
* 修改
* @param course
* @return
*/
@PutMapping("/course")
public String update(@RequestBody Course course) {
int rows=courseMapper.update(course);
return "{\"rows\":\""+rows+"\"}" ;
}
/**
* 根据id删除
* @param cno
* @return
*/
@DeleteMapping("/course/{cno}")
public String delete(@PathVariable("cno") String cno) {
int rows=courseMapper.delete(cno);
return "{\"rows\":\""+rows+"\"}" ;
}
}
四. 前段代码。
student.html
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width,initial-scale=1.0" />
<script src="https://cdn.staticfile.org/vue/2.4.2/vue.min.js"></script>
<script src="https://cdn.staticfile.org/vue-resource/1.5.1/vue-resource.min.js"></script>
<link rel="stylesheet" type="text/css" href="https://cdn.staticfile.org/twitter-bootstrap/4.1.0/css/bootstrap.min.css">
<title></title>
</head>
<body>
<div id="app" class="container">
<table class="table table-bordered table-striped text-center" style="margin-top:20px;">
<thead>
<tr>
<th>学号</th>
<th>姓名</th>
<th>性别</th>
<th>年龄</th>
<th>学院</th>
<th colspan="2">操作</th>
</tr>
</thead>
<tr>
<td><input v-bind:readOnly="isedit" type="text" v-model="rowtp.sno" class="form-control" placeholder="">
</td>
<td><input type="text" v-model="rowtp.sname" class="form-control" placeholder=""></td>
<td><input type="text" v-model="rowtp.ssex" class="form-control" placeholder=""></td>
<td><input type="text" v-model="rowtp.sage" class="form-control" placeholder=""></td>
<td><input type="text" v-model="rowtp.sdept" class="form-control" placeholder=""></td>
<td><button type="button" class="btn btn-primary" v-on:click="Save">保存</button></td>
<td><button type="button" class="btn btn-primary" v-on:click="Clear">放弃</button></td>
</tr>
<tr v-for="(row,index) in students">
<td>{{ row.sno}}</td>
<td>{{ row.sname}}</td>
<td>{{ row.ssex}}</td>
<td>{{ row.sage}}</td>
<td>{{ row.sdept}}</td>
<td><a href="#" v-on:click="Edit(row)">编辑</a> </td>
<td><a href="#" v-on:click="Delete(index)">删除</a> </td>
</tr>
</table>
</div>
<script>
new Vue({
el: "#app",
data: {
students: [],
rowtp: { sno: '', sname: '', ssex: '', sage: '', sdept: '' },
isedit: false
},
mounted: function () {
//发送get请求
this.$http.get('http://localhost:8080/sc/students').then(function (res) {
this.students = res.body;
}, function () {
alert('请求失败');
});
},
methods: {
Save: function () {
if (this.rowtp.sno == '' || this.rowtp.sname == '' || this.rowtp.ssex == '' || this.rowtp.sage == '' || this.rowtp.sdept == '') {
alert("学号、姓名等不能为空!");
return;
}
var temp = this.rowtp;
//var ejson = JSON.stringify(temp);
if (this.isedit == false) {
//增加数据库
//Vue.http.options.emulateJSON = true; // 全局启用emulateJSON 选项
this.$http.post('http://localhost:8080/sc/student',JSON.stringify(temp)).then(function (res) {
//console.log(res);
if (res.body.rows > 0) {
this.students.push(temp);
}
}, function (res) {
// 这里是处理错误的回调
//console.log(res)
});
} else {
//修改数据库
this.$http.put('http://localhost:8080/sc/student',JSON.stringify(temp)).then(function (res) {
//console.log(res);
if (res.body.rows > 0) {
for (var i = 0; i < this.students.length; i++) {
if (this.students[i].sno == temp.sno) {
this.students[i].sname = temp.sname;
this.students[i].ssex = temp.ssex;
this.students[i].sage = temp.sage;
this.students[i].sdept = temp.sdept;
break;
}
};
}
}, function (res) {
// 这里是处理错误的回调
console.log(res)
});
}
//还原模板
this.Clear();
this.isedit = false;
},
Delete: function (index) {
//数据库操作
this.$http.delete('http://localhost:8080/sc/student/' + this.students[index].sno ).then(function (res) {
if (res.body.rows > 0) {
this.students.splice(index, 1);//从下标i开始删除1个元素:删除下标为i的元素
this.Clear();
}
}, function (res) {
// 这里是处理错误的回调
console.log(res)
});
},
Edit: function (row) {
this.rowtp.sno = row.sno;
this.rowtp.sname = row.sname;
this.rowtp.ssex = row.ssex;
this.rowtp.sage = row.sage;
this.rowtp.sdept = row.sdept;
this.isedit = true;
},
Clear: function () {
this.rowtp = { sno: '', sname: '', ssex: '', sage: '', sdept: '' };
this.isedit = false;
}
}
});
</script>
</body>
</html>
course.html类似的
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width,initial-scale=1.0" />
<script src="https://cdn.staticfile.org/vue/2.4.2/vue.min.js"></script>
<script src="https://cdn.staticfile.org/vue-resource/1.5.1/vue-resource.min.js"></script>
<link rel="stylesheet" type="text/css" href="https://cdn.staticfile.org/twitter-bootstrap/4.1.0/css/bootstrap.min.css">
<title></title>
</head>
<body>
<div id="app" class="container">
<table class="table table-bordered table-striped text-center" style="margin-top:20px;">
<thead>
<tr>
<th>课程号</th>
<th>课程名</th>
<th>cpno</th>
<th>学分</th>
<th colspan="2">操作</th>
</tr>
</thead>
<tr>
<td><input v-bind:readOnly="isedit" type="text" v-model="rowtp.cno" class="form-control" placeholder="">
</td>
<td><input type="text" v-model="rowtp.cname" class="form-control" placeholder=""></td>
<td><input type="text" v-model="rowtp.cpno" class="form-control" placeholder=""></td>
<td><input type="text" v-model="rowtp.ccredit" class="form-control" placeholder=""></td>
<td><button type="button" class="btn btn-primary" v-on:click="Save">保存</button></td>
<td><button type="button" class="btn btn-primary" v-on:click="Clear">放弃</button></td>
</tr>
<tr v-for="(row,index) in courses">
<td>{{ row.cno}}</td>
<td>{{ row.cname}}</td>
<td>{{ row.cpno}}</td>
<td>{{ row.ccredit}}</td>
<td><a href="#" v-on:click="Edit(row)">编辑</a> </td>
<td><a href="#" v-on:click="Delete(index)">删除</a> </td>
</tr>
</table>
</div>
<script>
new Vue({
el: "#app",
data: {
courses: [],
rowtp: { cno: '', cname: '', cpno: '', ccredit: ''},
isedit: false
},
mounted: function () {
//发送get请求
this.$http.get('http://localhost:8080/sc/courses').then(function (res) {
this.courses = res.body;
}, function () {
alert('请求失败');
});
},
methods: {
Save: function () {
if (this.rowtp.cno == '' || this.rowtp.cname == '') {
alert("课程号、课程名不能为空!");
return;
}
var temp = this.rowtp;
//var ejson = JSON.stringify(temp);
if (this.isedit == false) {
//增加数据库
//Vue.http.options.emulateJSON = true; // 全局启用emulateJSON 选项
this.$http.post('http://localhost:8080/sc/course',JSON.stringify(temp)).then(function (res) {
//console.log(res);
if (res.body.rows > 0) {
this.courses.push(temp);
}
}, function (res) {
// 这里是处理错误的回调
//console.log(res)
});
} else {
//修改数据库
this.$http.put('http://localhost:8080/sc/course',JSON.stringify(temp)).then(function (res) {
//console.log(res);
if (res.body.rows > 0) {
for (var i = 0; i < this.courses.length; i++) {
if (this.courses[i].cno == temp.cno) {
this.courses[i].cname = temp.cname;
this.courses[i].cpno = temp.cpno;
this.courses[i].ccredit = temp.ccredit;
break;
}
};
}
}, function (res) {
// 这里是处理错误的回调
console.log(res)
});
}
//还原模板
this.Clear();
this.isedit = false;
},
Delete: function (index) {
//数据库操作
this.$http.delete('http://localhost:8080/sc/course/' + this.courses[index].cno ).then(function (res) {
if (res.body.rows > 0) {
this.courses.splice(index, 1);//从下标i开始删除1个元素:删除下标为i的元素
this.Clear();
}
}, function (res) {
// 这里是处理错误的回调
console.log(res)
});
},
Edit: function (row) {
this.rowtp.cno = row.cno;
this.rowtp.cname = row.cname;
this.rowtp.cpno = row.cpno;
this.rowtp.ccredit = row.ccredit;
this.isedit = true;
},
Clear: function () {
this.rowtp = { cno: '', cname: '', cpno: '', ccredit: '' };
this.isedit = false;
}
}
});
</script>
</body>
</html>
五. 运行。
首先你用IDEA或者别的软件将后端项目跑起来,然后进入浏览器,输入http://localhost:8080/sc/students,然后再运行前端html即可,就可以显示出来学生信息,进行增删改查。课程也是类似的。
这里展示一下student的页面。
可以进行一下简单的增删改查操作。
