基于 vSphere 环境安装 Oracle19c RAC 详细过程

方先森有点懒

已于 2023-10-07 16:45:11 修改

阅读量3.4k

点赞数 11

分类专栏：数据库运维文章标签： oracle 数据库

于 2023-08-28 10:33:08 首次发布

本文链接：https://blog.csdn.net/hffwj/article/details/132493089

版权

数据库运维专栏收录该内容

7 篇文章

订阅专栏

文章目录

前言
1. 安装环境说明
2. 配置规划说明
- 2.1. 网络规划
- 2.2. 目录规划
- 2.3. 磁盘规划
3. 设置系统环境
- 3.1. 删除 virbr0 设备
- 3.2. 配置主机网络
- 3.3. 配置 hosts 解析
- 3.4. 关闭系统防火墙
- 3.5. 关闭 SELINUX
- 3.6. 关闭时钟同步服务
- 3.7. 关闭 avahi-daemon 守护进程
- 3.8. 准备软件安装包
- 3.9. 配置 yum 源安装依赖包
4. 修改参数文件
- 4.1. 修改内核参数
- 4.2. 修改资源限制
- 4.3. 修改 PAM 配置文件
- 4.4. 设置 NOZEROCONF 参数
5. 创建用户组和用户
6. 创建目录
7. 配置环境变量
8. 配置节点互信
9. 配置 ASM 共享磁盘

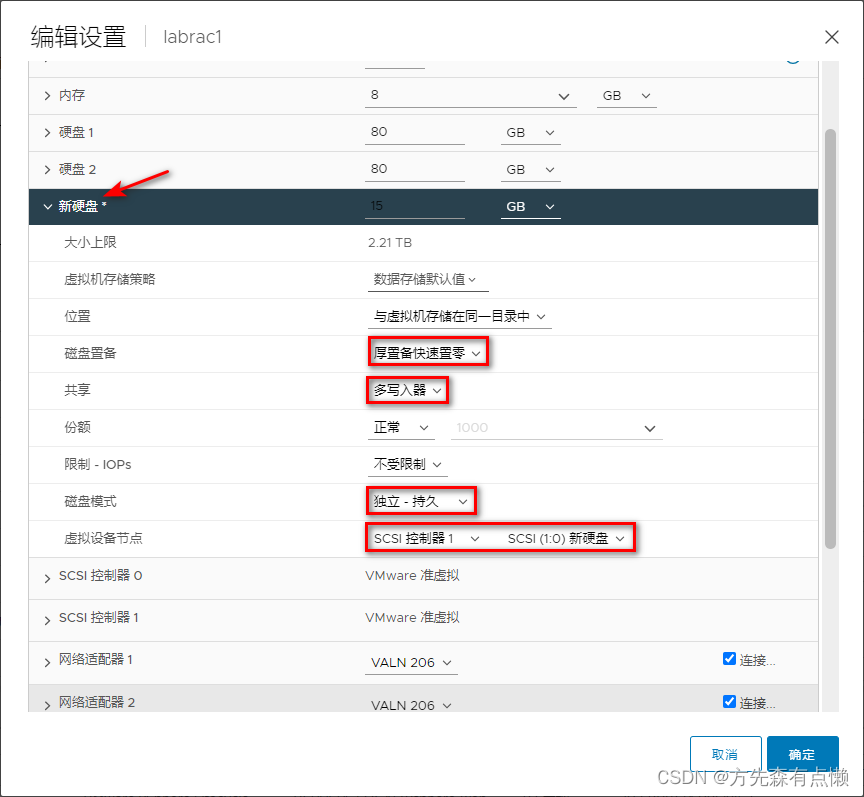

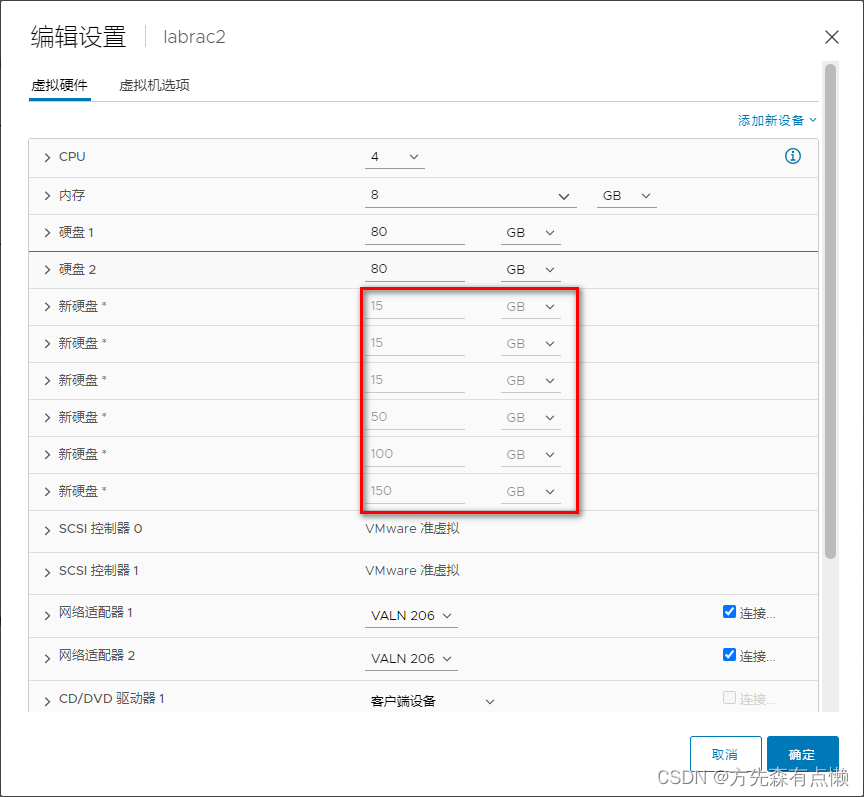

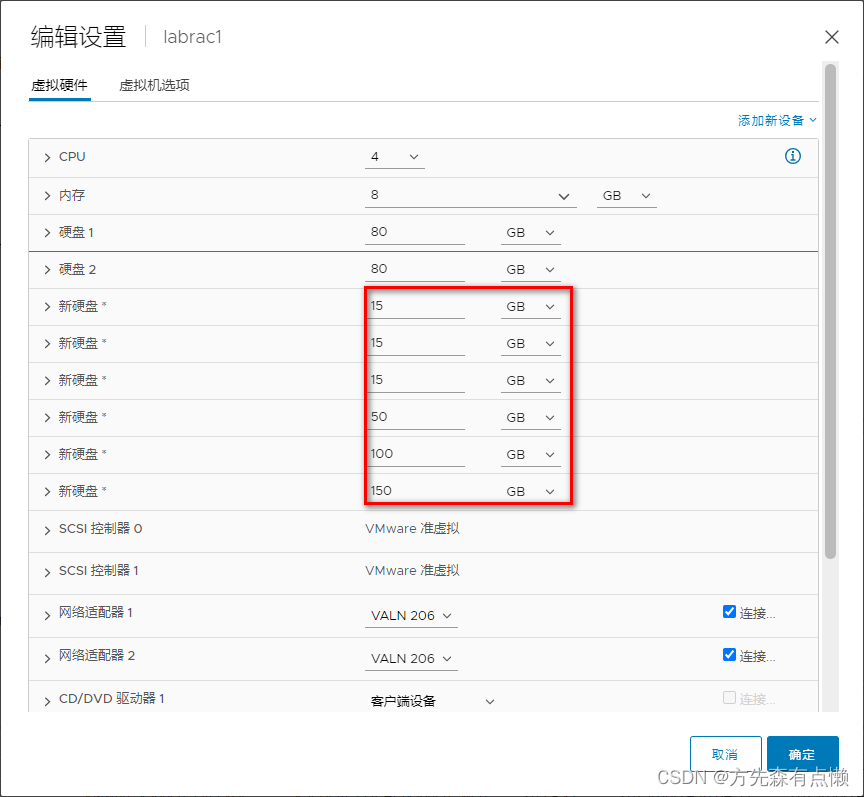

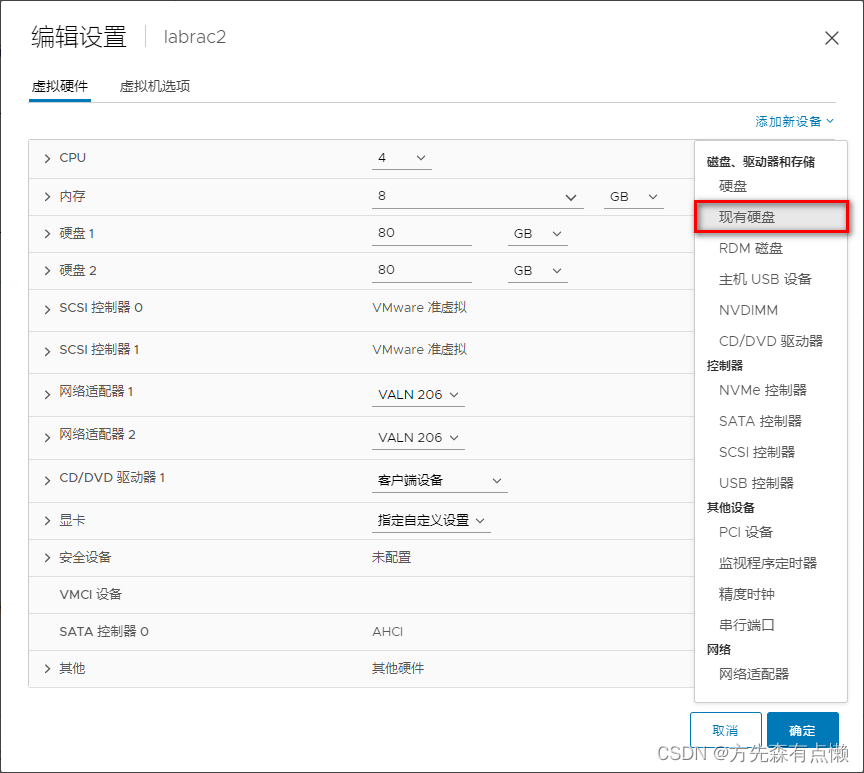

- 9.1. vSphere 虚拟化层配置共享磁盘
- 9.2. 使用 udev 规则配置 asm 磁盘

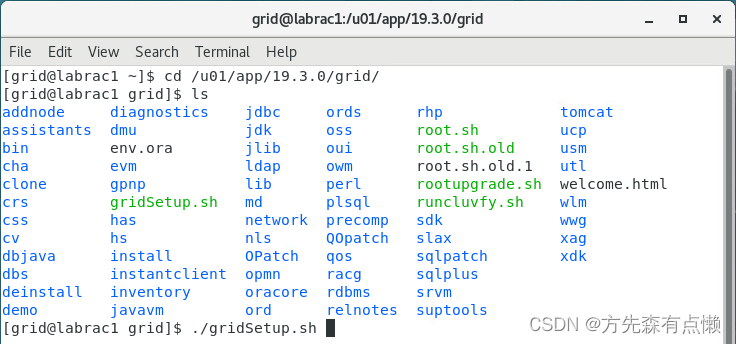

10. 安装 Grid 软件
- 10.1. 解压 grid 安装包
- 10.2. 安装 cvuqdisk 包

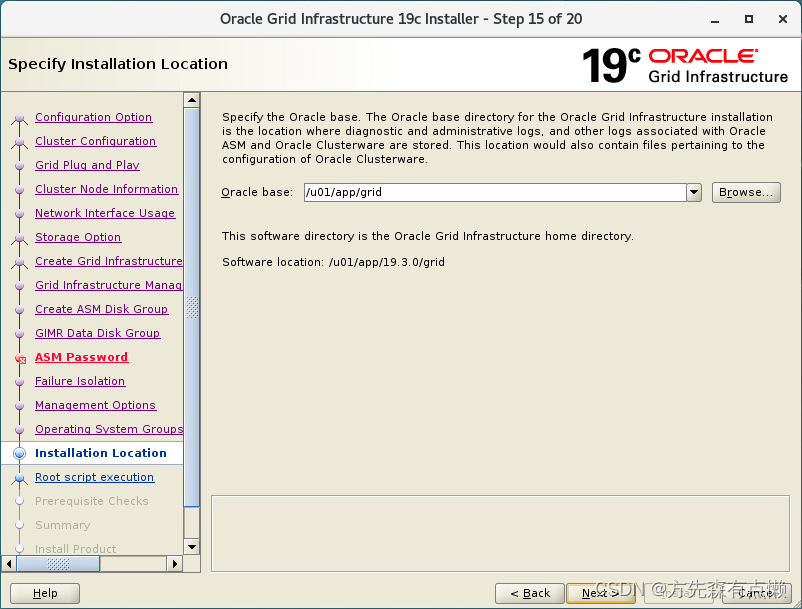

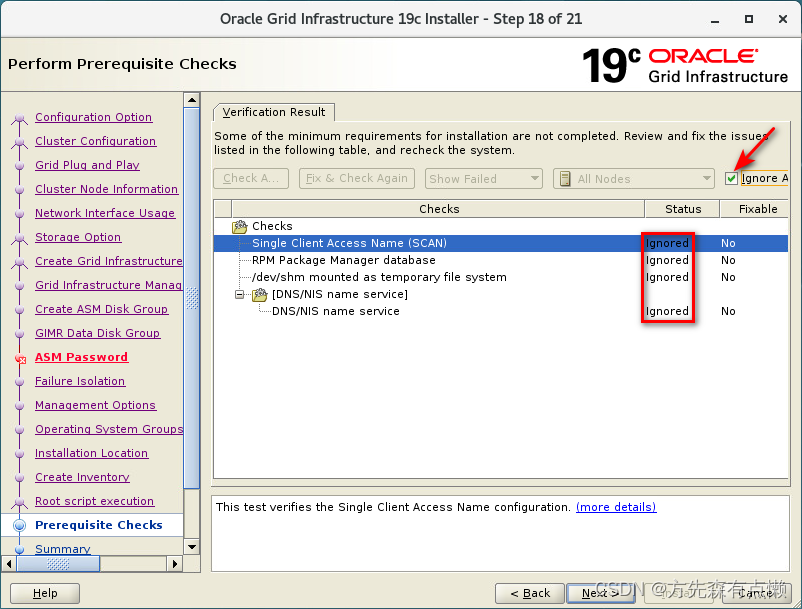

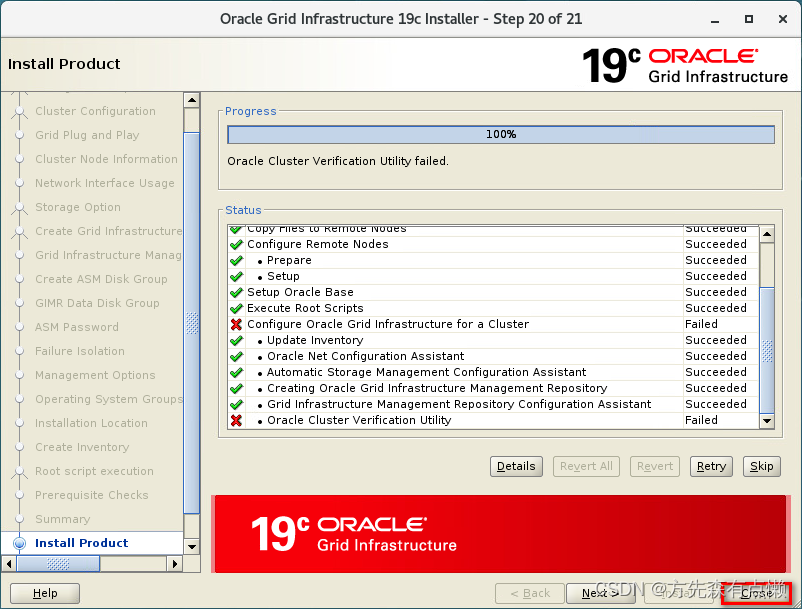

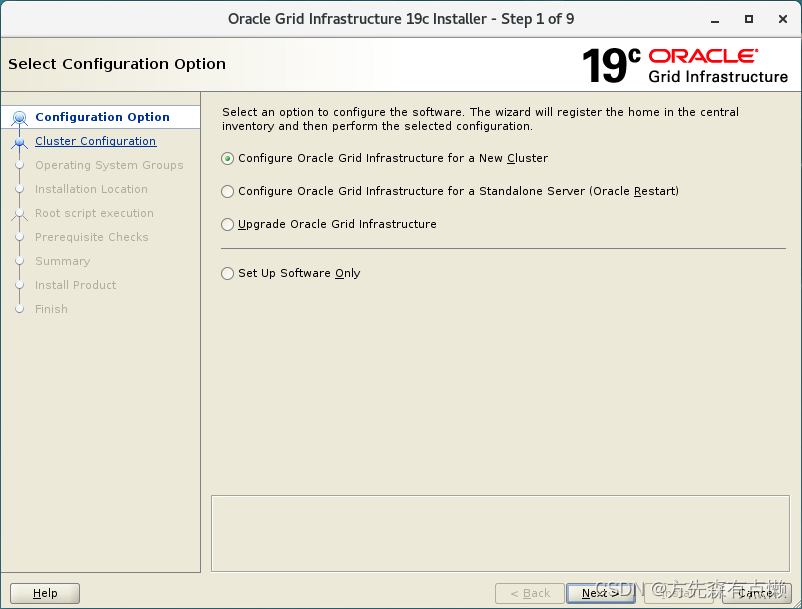

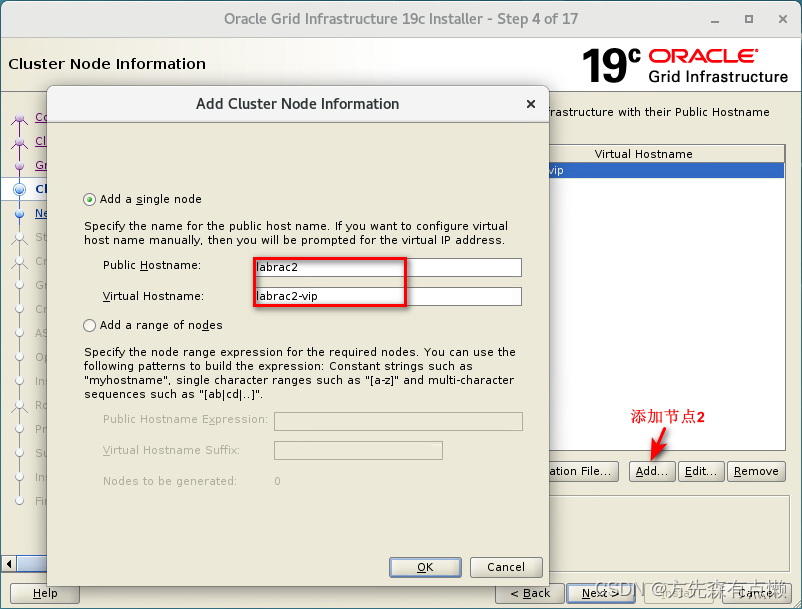

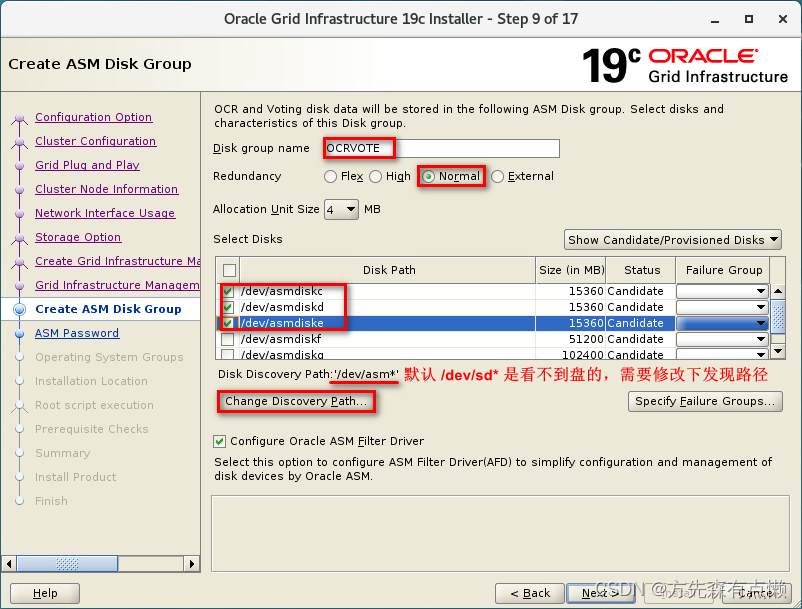

- 10.3. 执行 grid 软件安装

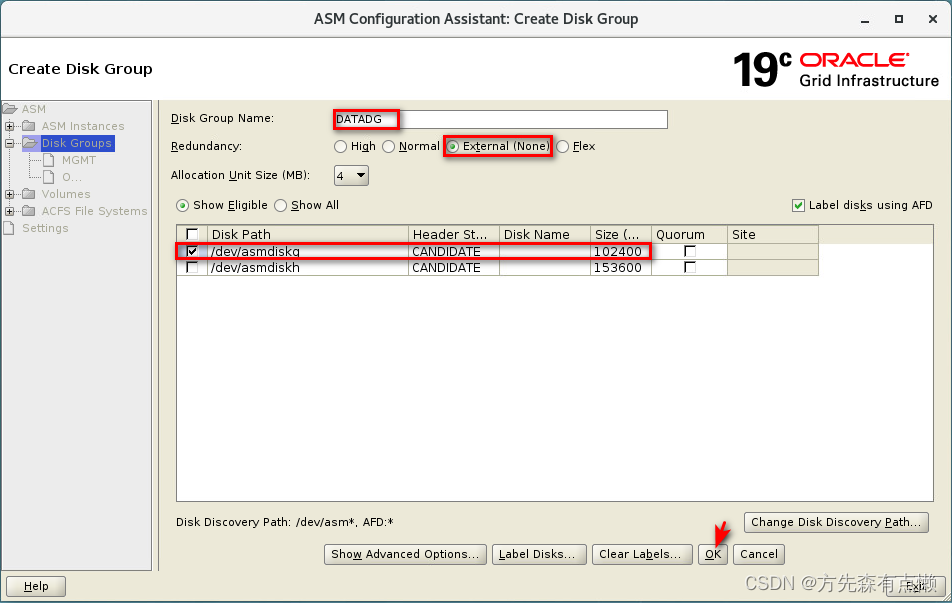

- 10.4. 配置剩余磁盘组
11. 安装 Oracle 软件
- 11.1. 解压 oracle 安装包

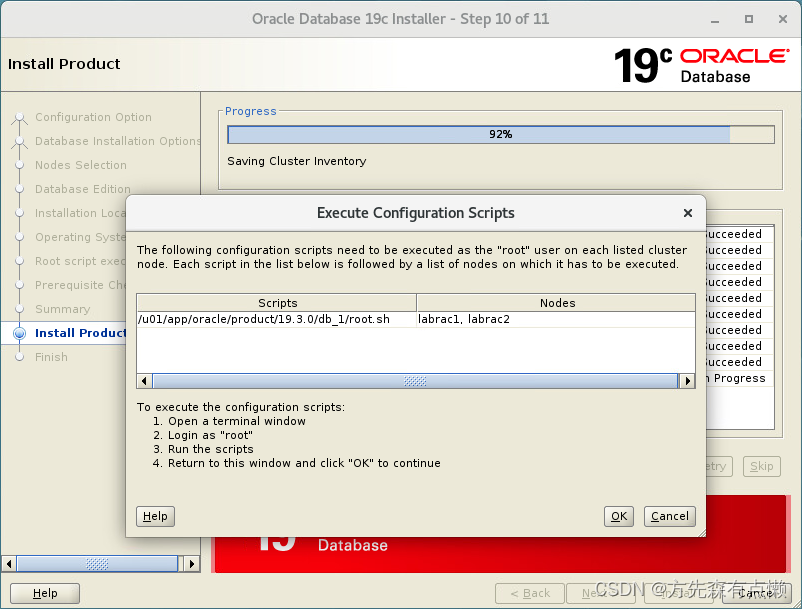

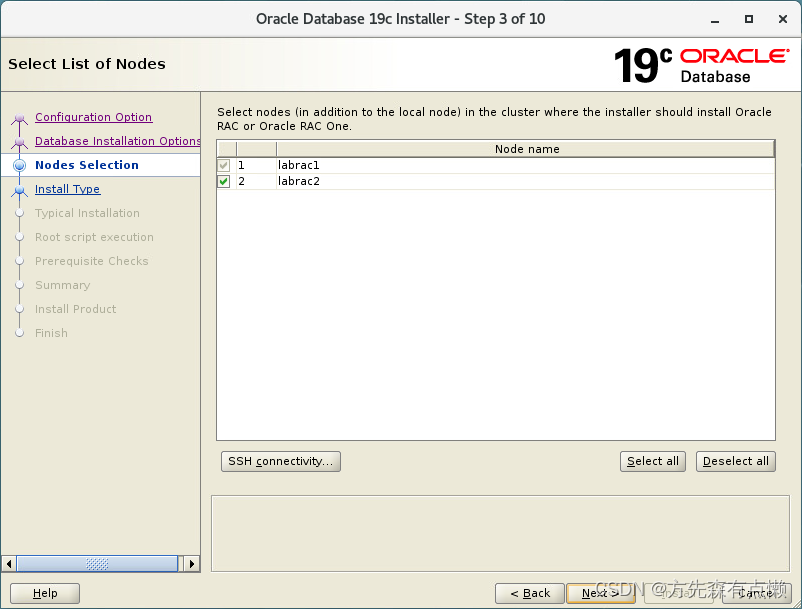

- 11.2. 执行 oracle 软件安装

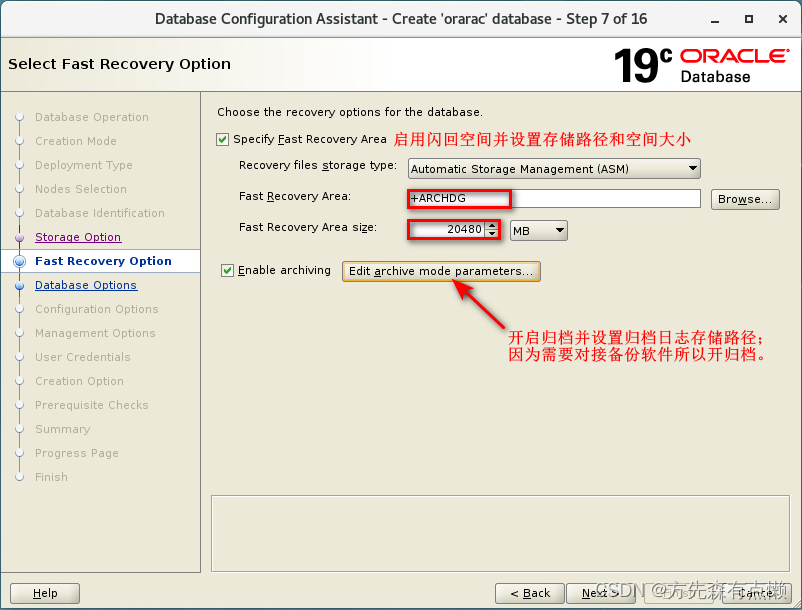

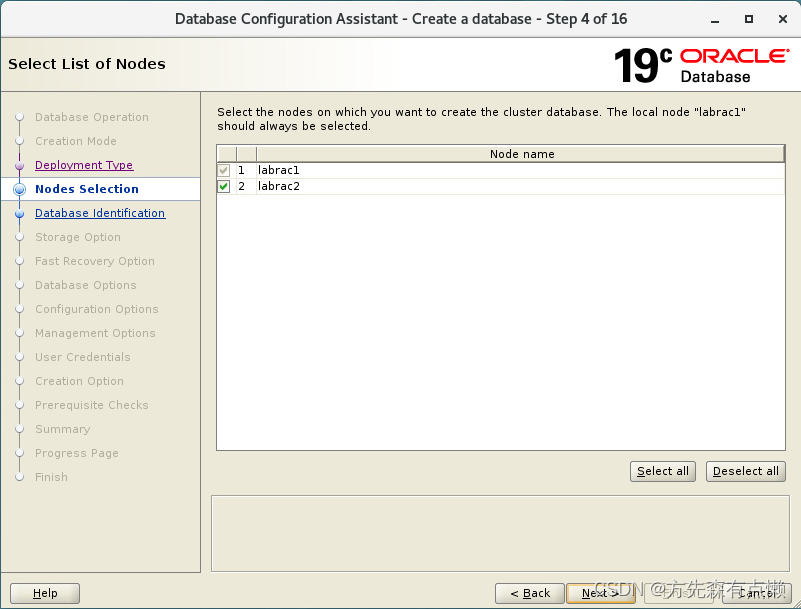

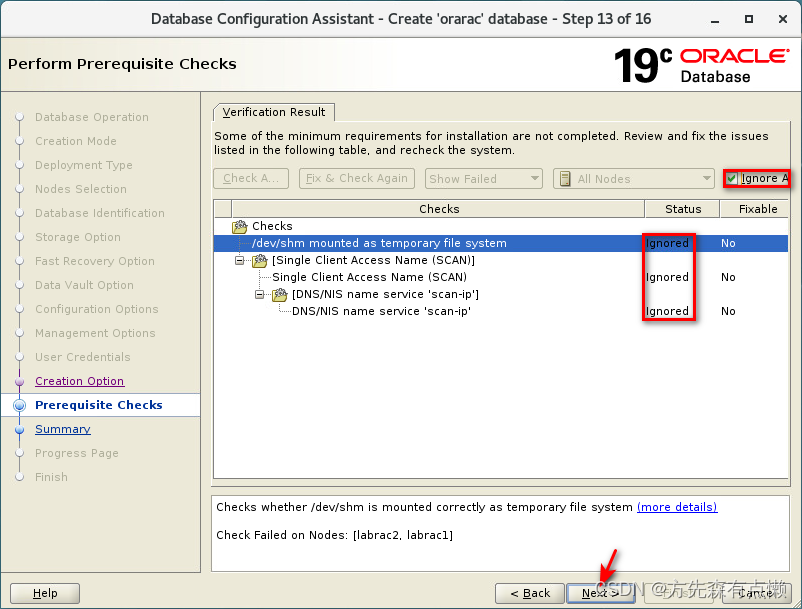

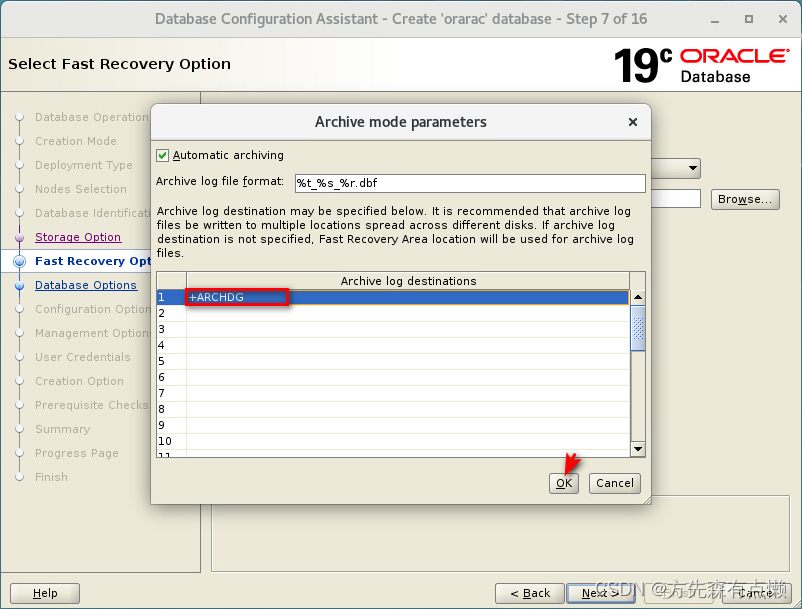

12. 创建数据库
13. 检查集群和数据库
- 13.1. 检查集群状态
- 13.2. 检查数据库状态
- 13.3. 检查监听服务
- 13.4. 检查实例运行状态
总结

前言

前阵子因为工作和考证的事情比较多，很长一段时间没有更新 CSDN 博客导致原力都失效了 ~~ 这阵子得了些空，可以继续更新啦。

搭建 19c rac 这个事情很早之前就想做，断断续续一直拖到现在。还是那句老话，本文仅供安装学习使用，生产环境建议从硬件到软件完成各项检查与评估，依据更加详细和专业的方案完成部署，并根据实际需要对数据库进行优化！

1. 安装环境说明

Description	Value
vSphere Version	7.0U2
OS Version	Red Hat Enterprise Linux Server release 7.9 (Maipo)
Kernel Version	3.10.0-1160.el7.x86_64
Oracle Version	19.3.0.0.0
GI Package	LINUX.X64_193000_grid_home.zip
DB Package	LINUX.X64_193000_db_home.zip

2. 配置规划说明

2.1. 网络规划

Cluster Instance Name：orarac
Scan IP：172.16.206.150

Network	Device	Node1	Node2
Public IP	ens192	172.16.206.151	172.16.206.152
Virtual IP	ens192	172.16.206.153	172.16.206.154
Private IP	ens224	192.168.100.1	192.168.100.2

2.2. 目录规划

Directory	Path
ORACLE_SOFTWARE	/u01/orasoft
ORACLE_BASE For Oracle	/u01/app/oracle
ORACLE_HOME For Oracle	/u01/app/oracle/product/19.3.0/db_1
ORACLE_BASE For Grid	/u01/app/grid
ORACLE_HOME For Grid	/u01/app/19.3.0/grid

2.3. 磁盘规划

Disk Identifier	Disk Size	Diskgroup	Disk Configuration
sda	80GB	System Partition	非共享盘，精简置备
sdb	80GB	Software Installation	非共享盘，精简置备
sdc	15GB	OCRVOTE	共享磁盘，独立持久，厚置备
sdd	15GB	OCRVOTE	共享磁盘，独立持久，厚置备
sde	15GB	OCRVOTE	共享磁盘，独立持久，厚置备
sdf	50GB	MGMT	共享磁盘，独立持久，厚置备
sdg	100GB	DATADG	共享磁盘，独立持久，厚置备
sdh	150GB	ARCHDG	共享磁盘，独立持久，厚置备

3. 设置系统环境

3.1. 删除 virbr0 设备

两个节点都需要执行此操作：

ifconfig virbr0 down
brctl delbr virbr0
systemctl stop libvirtd.service
systemctl disable libvirtd.service

3.2. 配置主机网络

labrac1 节点网络配置信息如下所示：

[root@labrac1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens192
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens192
DEVICE=ens192
ONBOOT=yes
IPADDR=172.16.206.151
PREFIX=24
GATEWAY=172.16.206.254
DNS1=114.114.114.114

[root@labrac1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens224
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens224
DEVICE=ens224
ONBOOT=yes
IPADDR=192.168.100.1
PREFIX=24

labrac2 节点网络配置信息如下所示：

[root@labrac2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens192
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens192
DEVICE=ens192
ONBOOT=yes
IPADDR=172.16.206.152
PREFIX=24
GATEWAY=172.16.206.254
DNS1=114.114.114.114

[root@labrac2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens224
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens224
DEVICE=ens224
ONBOOT=yes
IPADDR=192.168.100.2
PREFIX=24

3.3. 配置 hosts 解析

两个节点都需要执行此操作，配置信息相同，如下所示：

[root@labrac1 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

#Public IP
172.16.206.151 labrac1
172.16.206.152 labrac2

#Virtual IP
172.16.206.153 labrac1-vip
172.16.206.154 labrac2-vip

#Private IP
192.168.100.1 labrac1-priv
192.168.100.2 labrac2-priv

#Scan IP
172.16.206.150 scan-ip

3.4. 关闭系统防火墙

两个节点都需要执行此操作：

systemctl stop firewalld.service
systemctl disable firewalld.service

3.5. 关闭 SELINUX

两个节点都需要执行此操作：

setenforce 0
SELINUX_STATE=`cat /etc/selinux/config |grep "\<SELINUX\>" |grep -v "^#" |awk -F '=' '{print $2}'`
sed -i "s/SELINUX="${SELINUX_STATE}"/SELINUX=disabled/g" /etc/selinux/config   //重启系统生效。

3.6. 关闭时钟同步服务

两个节点都需要执行此操作：

[root@labrac1 ~]# systemctl stop chronyd
[root@labrac1 ~]# systemctl disable chronyd
[root@labrac1 ~]# mv /etc/chrony.conf /etc/chrony.conf.bak

3.7. 关闭 avahi-daemon 守护进程

两个节点都需要执行此操作：

[root@labrac1 ~]# systemctl stop avahi-daemon
[root@labrac1 ~]# systemctl disable avahi-daemon

3.8. 准备软件安装包

labrac1 节点配置如下（安装包上传至 labrac1 节点即可）：

[root@labrac1 ~]# pvcreate /dev/sdb
[root@labrac1 ~]# vgcreate vgora /dev/sdb
[root@labrac1 ~]# lvcreate -n lvora -l +100%FREE vgora
[root@labrac1 ~]# mkfs.xfs /dev/vgora/lvora
[root@labrac1 ~]# mkdir /u01
[root@labrac1 ~]# echo "/dev/vgora/lvora /u01 xfs defaults 0 0" >> /etc/fstab
[root@labrac1 ~]# mount -a
[root@labrac1 ~]# mkdir /u01/orasoft
[root@labrac1 ~]# ls -ltr /u01/orasoft/
total 5809468
-rw-r--r-- 1 root root 3059705302 Aug 23 10:55 LINUX.X64_193000_db_home.zip
-rw-r--r-- 1 root root 2889184573 Aug 23 11:03 LINUX.X64_193000_grid_home.zip

labrac2 节点配置如下：

[root@labrac2 ~]# pvcreate /dev/sdb
[root@labrac2 ~]# vgcreate vgora /dev/sdb
[root@labrac2 ~]# lvcreate -n lvora -l +100%FREE vgora
[root@labrac2 ~]# mkfs.xfs /dev/vgora/lvora
[root@labrac2 ~]# mkdir /u01
[root@labrac2 ~]# echo "/dev/vgora/lvora /u01 xfs defaults 0 0" >> /etc/fstab
[root@labrac2 ~]# mount -a
[root@labrac2 ~]# mkdir /u01/orasoft

3.9. 配置 yum 源安装依赖包

两个节点都需要配置本地 yum 源，配置步骤相同，如下所示：

[root@labrac1 ~]# mkdir /iso   //将 iso 文件上传至此目录。
[root@labrac1 ~]# mkdir /mnt/cdrom
[root@labrac1 ~]# mkdir /etc/yum.repos.d/repo_backup
[root@labrac1 ~]# mv /etc/yum.repos.d/*.repo /etc/yum.repos.d/repo_backup/
[root@labrac1 ~]# mount -o loop /iso/rhel-7.9-x86_64-dvd.iso /mnt/cdrom/
[root@labrac1 ~]# vim /etc/yum.repos.d/local.repo   //创建新的 repo 文件并填写如下信息。
[local]
name=local
baseurl=file:///mnt/cdrom
enabled=1
gpgcheck=0
[root@labrac1 ~]# yum clean all
[root@labrac1 ~]# yum repolist

两个节点都需要安装如下所示的依赖包：

yum -y install binutils* compat-libstdc++-33* elfutils-libelf* elfutils-libelf-devel* gcc* gcc-c++* glibc* glibc-common* glibc-devel* glibc-headers* ksh* libaio* libaio-devel* libgcc-4* libstdc++* libstdc++-devel* make* numactl-devel* sysstat* unixODBC* unixODBC-devel* xterm* bc compat-libcap* libXp* glibc-kernheaders net-tools-*

特别说明：在使用本地 yum 源安装依赖包时会提示 No package compat-libstdc++-33* available.，需要单独下载这个包进行手动安装，两个节点都需要进行安装。

rpm -ivh /u01/orasoft/compat-libstdc++-33-3.2.3-72.el7.x86_64.rpm

4. 修改参数文件

4.1. 修改内核参数

两个节点都需要执行此操作：

[root@labrac1 ~]# vim /etc/sysctl.conf
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
kernel.shmall = 2097152
kernel.shmmax = 8589934591
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
net.ipv4.tcp_wmem = 262144 262144 262144
net.ipv4.tcp_rmem = 4194304 4194304 4194304
kernel.panic_on_oops = 1

[root@labrac1 ~]# sysctl -p   //使配置立即生效。

4.2. 修改资源限制

两个节点都需要执行此操作：

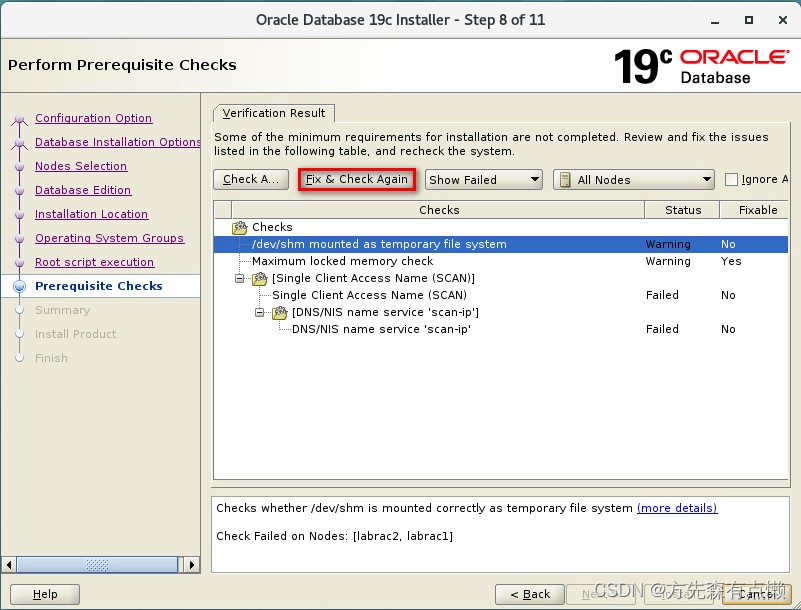

特别说明：建议设置 memlock 限制，否则在安装 Oracle 软件进行检查时会显示 Maximum locked memory check：Warning，博主一开始没有设置 memlock 限制，所以在检查那一步执行了 Fix & Check Again，然后发现了 Oracle recommended value for memlock is set to 3145728 for user oracle，所以还是提前设置下比较好。

[root@labrac1 ~]# vim /etc/security/limits.conf
grid  soft  nproc  2047
grid  hard  nproc  16384
grid  soft  nofile  1024
grid  hard  nofile  65536
grid  soft  stack  10240
grid  hard  stack  32768
oracle  soft  nproc  2047
oracle  hard  nproc  16384
oracle  soft  nofile  1024
oracle  hard  nofile  65536
oracle  soft  stack  10240
oracle  hard  stack  32768
oracle  soft  memlock  3145728
oracle  hard  memlock  3145728

4.3. 修改 PAM 配置文件

两个节点都需要执行此操作：

[root@labrac1 ~]# echo "session required pam_limits.so" >> /etc/pam.d/login

4.4. 设置 NOZEROCONF 参数

两个节点都需要执行此操作：

[root@labrac1 ~]# echo "NOZEROCONF=yes" >> /etc/sysconfig/network

5. 创建用户组和用户

两个节点都需要执行此操作：

[root@labrac1 ~]# groupadd -g 54321 oinstall
[root@labrac1 ~]# groupadd -g 54322 dba
[root@labrac1 ~]# groupadd -g 54323 oper
[root@labrac1 ~]# groupadd -g 54324 backupdba
[root@labrac1 ~]# groupadd -g 54325 dgdba
[root@labrac1 ~]# groupadd -g 54326 kmdba
[root@labrac1 ~]# groupadd -g 54327 asmdba
[root@labrac1 ~]# groupadd -g 54328 asmoper
[root@labrac1 ~]# groupadd -g 54329 asmadmin
[root@labrac1 ~]# groupadd -g 54330 racdba
[root@labrac1 ~]# useradd -u 54321 -g oinstall -G dba,asmdba,oper oracle
[root@labrac1 ~]# useradd -u 54322 -g oinstall -G dba,oper,backupdba,dgdba,kmdba,asmdba,asmoper,asmadmin,racdba grid
[root@labrac1 ~]# echo "oracle" |passwd --stdin oracle
[root@labrac1 ~]# echo "grid" |passwd --stdin grid

6. 创建目录

两个节点都需要执行此操作：

[root@labrac1 ~]# mkdir -p /u01/app/grid
[root@labrac1 ~]# mkdir -p /u01/app/19.3.0/grid
[root@labrac1 ~]# mkdir -p /u01/app/oracle/product/19.3.0/db_1
[root@labrac1 ~]# chown -R grid:oinstall /u01/
[root@labrac1 ~]# chown -R oracle:oinstall /u01/app/oracle/
[root@labrac1 ~]# chmod -R 775 /u01/

7. 配置环境变量

labrac1 节点 oracle 用户环境变量配置信息如下：

[root@labrac1 ~]# vim /home/oracle/.bash_profile
export PATH   //<---在此之后添加如下内容即可。
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=$ORACLE_BASE/product/19.3.0/db_1
export ORACLE_UNQNAME=orarac
export ORACLE_SID=orarac1
export ORACLE_TERM=xterm
export NLS_LANG=AMERICAN_AMERICA.ZHS16GBK
export BASE_PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$BASE_PATH
export NLS_DATE_FORMAT="yyyy-mm-dd hh24:mi:ss"
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib
if [ $USER = "oracle" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
fi

labrac2 节点 oracle 用户环境变量配置信息如下：

[root@labrac2 ~]# vim /home/oracle/.bash_profile
export PATH   //<---在此之后添加如下内容即可。
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=$ORACLE_BASE/product/19.3.0/db_1
export ORACLE_UNQNAME=orarac
export ORACLE_SID=orarac2
export ORACLE_TERM=xterm
export NLS_LANG=AMERICAN_AMERICA.ZHS16GBK
export BASE_PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$BASE_PATH
export NLS_DATE_FORMAT="yyyy-mm-dd hh24:mi:ss"
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib
if [ $USER = "oracle" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
fi

labrac1 节点 grid 用户环境变量配置信息如下：

[root@labrac1 ~]# vim /home/grid/.bash_profile
export PATH   //<---在此之后添加如下内容即可。
export ORACLE_SID=+ASM1
export ORACLE_BASE=/u01/app/grid
export ORACLE_HOME=/u01/app/19.3.0/grid
export ORACLE_TERM=xterm
export PATH=$ORACLE_HOME/bin:$PATH
if [ $USER = "oracle" ] || [ $USER = "grid" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi

labrac2 节点 grid 用户环境变量配置信息如下：

[root@labrac2 ~]# vim /home/grid/.bash_profile
export PATH   //<---在此之后添加如下内容即可。
export ORACLE_SID=+ASM2
export ORACLE_BASE=/u01/app/grid
export ORACLE_HOME=/u01/app/19.3.0/grid
export ORACLE_TERM=xterm
export PATH=$ORACLE_HOME/bin:$PATH
if [ $USER = "oracle" ] || [ $USER = "grid" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi

8. 配置节点互信

配置互信的逻辑是：两个节点各自生成 rsa & dsa 密钥 ---> 节点1将其公钥写入 authorized_keys 文件 ---> 节点1将 authorized_keys 文件拷贝至节点2 ---> 节点2将其公钥写入 authorized_keys 文件 ---> 节点2再将 authorized_keys 文件拷贝回节点1。

配置 oracle 用户互信：

labrac1 节点生成 rsa & dsa 密钥。

[root@labrac1 ~]# su - oracle
[oracle@labrac1 ~]$ ssh-keygen -t rsa
[oracle@labrac1 ~]$ ssh-keygen -t dsa

labrac2 节点生成 rsa & dsa 密钥。

[root@labrac2 ~]# su - oracle
[oracle@labrac2 ~]$ ssh-keygen -t rsa
[oracle@labrac2 ~]$ ssh-keygen -t dsa

labrac1 节点将其公钥写入 authorized_keys 文件并拷贝到 labrac2 节点。

[oracle@labrac1 ~]$ cat ~/.ssh/*.pub >> ~/.ssh/authorized_keys
[oracle@labrac1 ~]$ scp /home/oracle/.ssh/authorized_keys oracle@labrac2:/home/oracle/.ssh/

labrac2 节点将其公钥写入 authorized_keys 文件并拷贝回 labrac1 节点。

[oracle@labrac2 ~]$ cat ~/.ssh/*.pub >> ~/.ssh/authorized_keys
[oracle@labrac2 ~]$ scp /home/oracle/.ssh/authorized_keys oracle@labrac1:/home/oracle/.ssh/

验证 oracle 用户互信。

[root@labrac1 ~]# su - oracle
[oracle@labrac1 ~]$ ssh labrac1 date   //需要输入“yes”，因为 known_hosts 文件中没有此记录。
[oracle@labrac1 ~]$ ssh labrac2 date   //不需要输入“yes”，之前 scp 过因此 known_hosts 文件中有此记录。
[root@labrac2 ~]# su - oracle
[oracle@labrac2 ~]$ ssh labrac1 date   //不需要输入“yes”。
[oracle@labrac2 ~]$ ssh labrac2 date   //需要输入“yes”。

配置 grid 用户互信：

labrac1 节点生成 rsa & dsa 密钥。

[root@labrac1 ~]# su - grid
[grid@labrac1 ~]$ ssh-keygen -t rsa
[grid@labrac1 ~]$ ssh-keygen -t dsa

labrac2 节点生成 rsa & dsa 密钥。

[root@labrac2 ~]# su - grid
[grid@labrac2 ~]$ ssh-keygen -t rsa
[grid@labrac3 ~]$ ssh-keygen -t dsa

labrac1 节点将其公钥写入 authorized_keys 文件并拷贝到 labrac2 节点。

[grid@labrac1 ~]$ cat ~/.ssh/*.pub >> ~/.ssh/authorized_keys
[grid@labrac1 ~]$ scp /home/grid/.ssh/authorized_keys grid@labrac2:/home/grid/.ssh/

labrac2 节点将其公钥写入 authorized_keys 文件并拷贝回 labrac1 节点。

[grid@labrac2 ~]$ cat ~/.ssh/*.pub >> ~/.ssh/authorized_keys
[grid@labrac2 ~]$ scp /home/grid/.ssh/authorized_keys grid@labrac1:/home/grid/.ssh/

验证 grid 用户互信。

[root@labrac1 ~]# su - grid
[grid@labrac1 ~]$ ssh labrac1 date   //需要输入“yes”。
[grid@labrac1 ~]$ ssh labrac2 date   //不需要输入“yes”。
[root@labrac2 ~]# su - grid
[grid@labrac2 ~]$ ssh labrac1 date   //不需要输入“yes”。
[grid@labrac2 ~]$ ssh labrac2 date   //需要输入“yes”。

9. 配置 ASM 共享磁盘

9.1. vSphere 虚拟化层配置共享磁盘

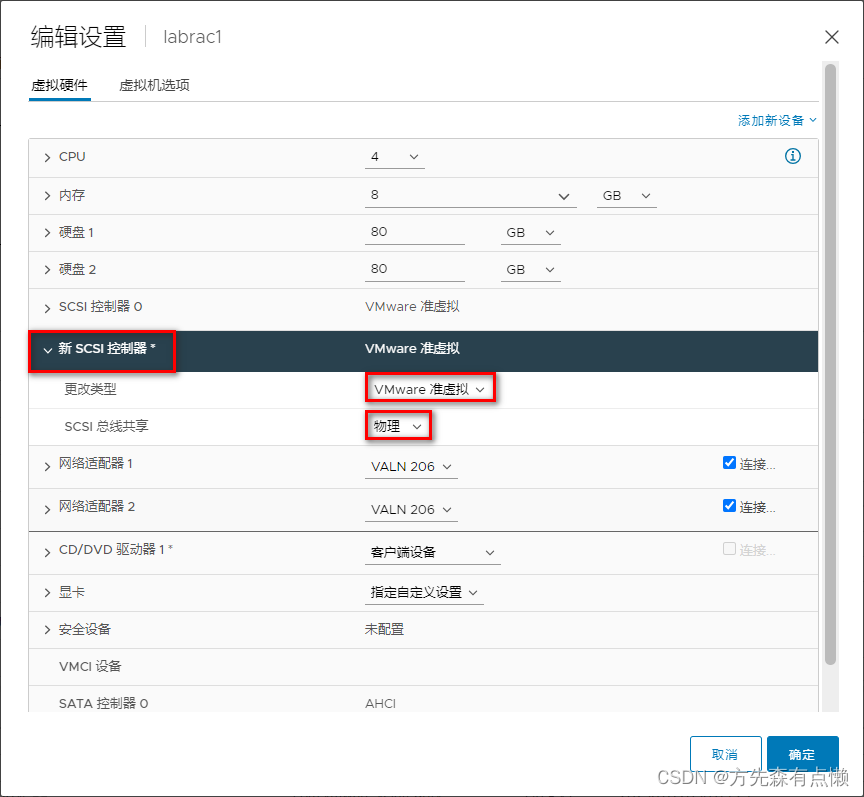

关闭两个节点，为 labrac1 节点添加一个新的 SCSI 控制器，然后添加所需硬盘；关于 SCSI 控制器的属性配置以及硬盘的属性配置，请详细查看下面所示的截图。

在这里插入图片描述

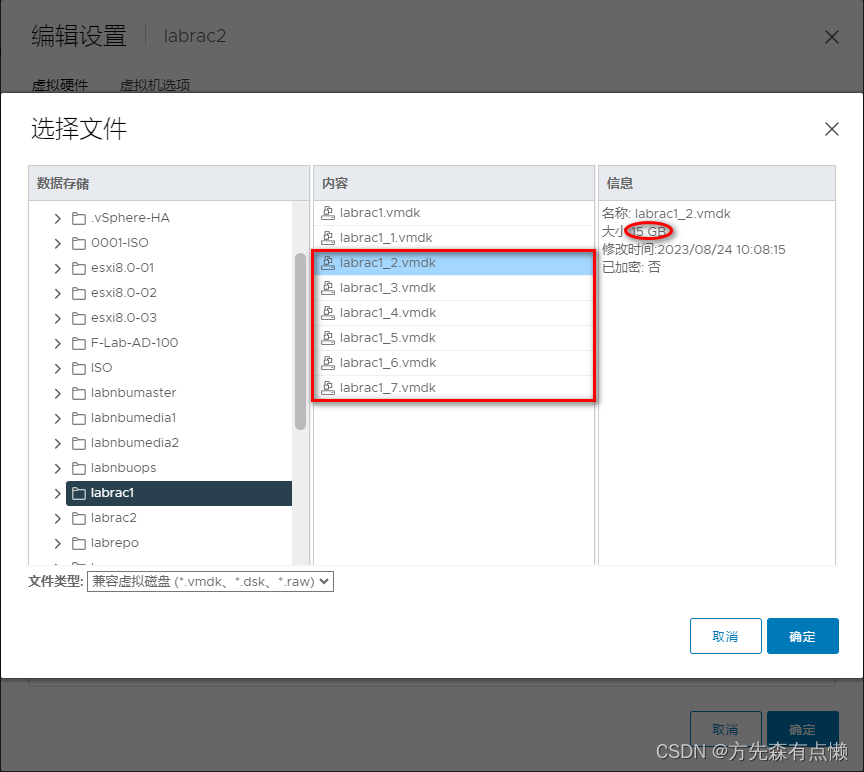

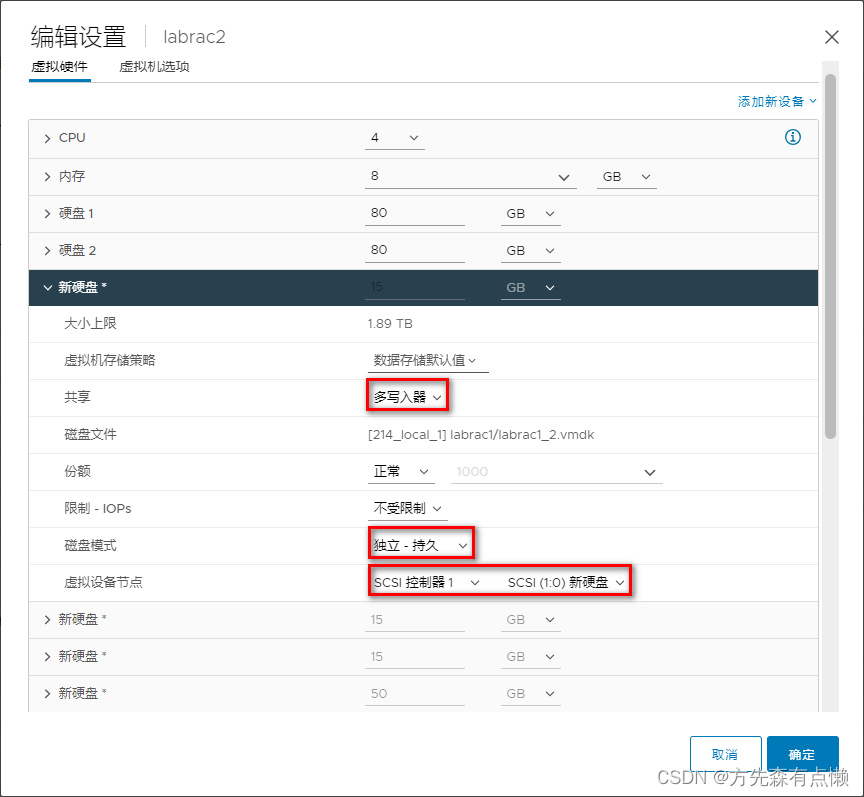

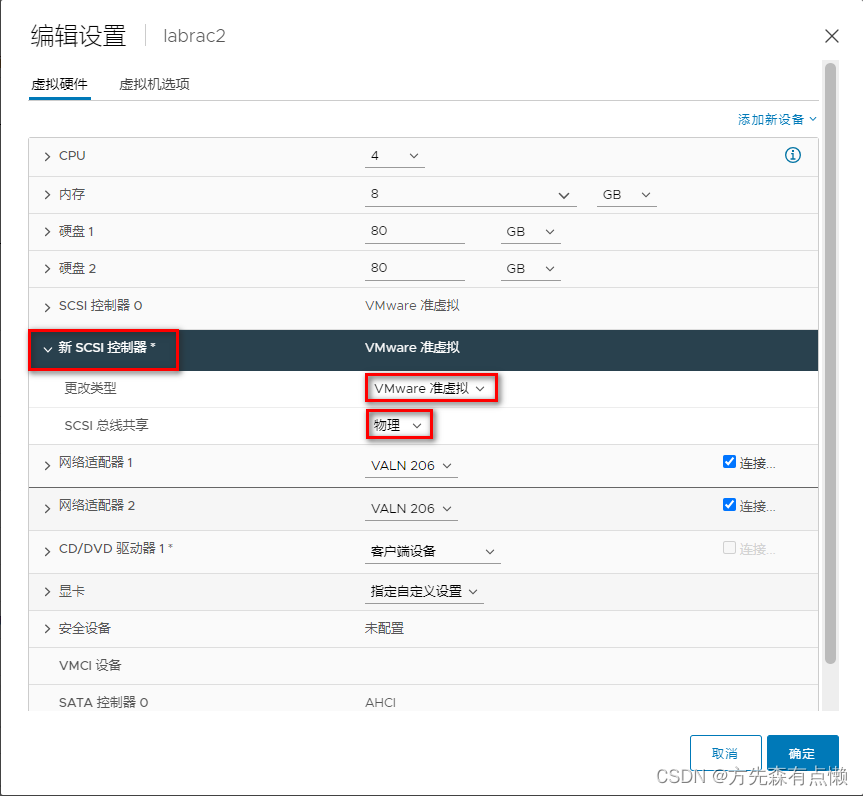

在 labrac1 节点配置完成后，同样为 labrac2 节点添加一个新的 SCSI 控制器，只不过在添加硬盘时我们不选择新硬盘，而是添加现有硬盘，即找到 labrac1 节点刚刚新加的那些硬盘。关于 SCSI 控制器的属性配置以及硬盘的属性配置，请详细查看下面所示的截图。

在这里插入图片描述

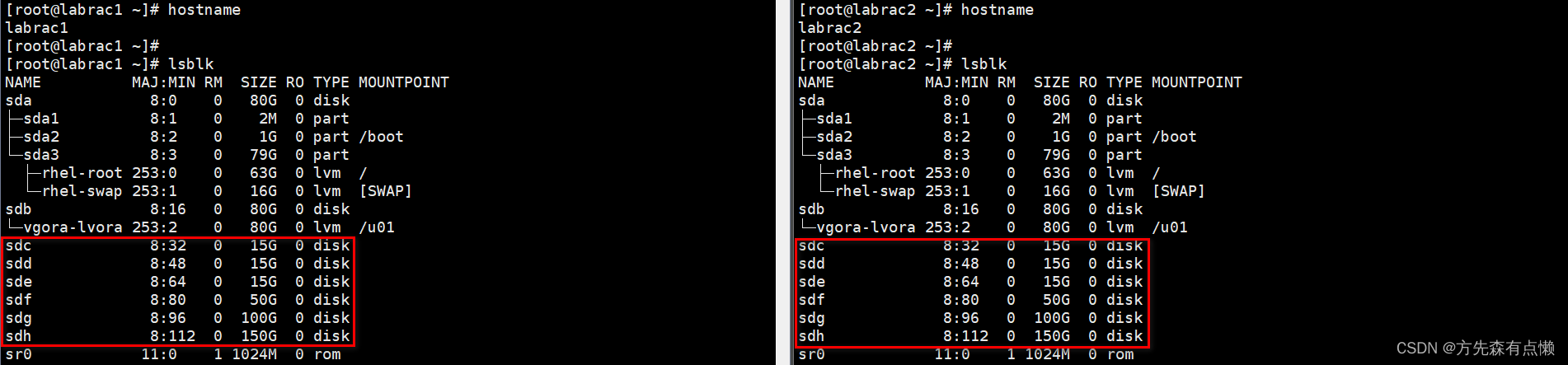

两个节点都配置完成后，开机检查硬盘的识别情况，正常两个节点识别到的硬盘应该是一模一样的。

在这里插入图片描述

9.2. 使用 udev 规则配置 asm 磁盘

常见的配置 asm 磁盘的方式有两种，一种是用 asmlib 工具来配置，一种是用 udev 规则来生成。关于 asmlib 的配置，可以参考我的另一篇博文《基于 vSphere 环境安装 Oracle 11g RAC 详细过程》，本文来介绍下如何使用 udev 规则来生成盘符。

两个节点都需要执行此操作：

创建 udev 规则。

[root@labrac1 ~]# for i in {c..h}; do echo "KERNEL==\"sd*\", ENV{DEVTYPE}==\"disk\", SUBSYSTEM==\"block\", PROGRAM==\"/usr/lib/udev/scsi_id -g -u -d %N\", RESULT==\"`/usr/lib/udev/scsi_id -g -u /dev/sd$i`\", RUN+=\"/bin/sh -c 'mknod /dev/asmdisk$i b \$major \$minor; chown grid:asmadmin /dev/asmdisk$i; chmod 0660 /dev/asmdisk$i'\"" >> /etc/udev/rules.d/99-oracle-asmdevices.rules; done

查看 udev 规则。

[root@labrac1 ~]# cat /etc/udev/rules.d/99-oracle-asmdevices.rules
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c29b98587c0f5880544b26d90bfe", RUN+="/bin/sh -c 'mknod /dev/asmdiskc b $major $minor; chown grid:asmadmin /dev/asmdiskc; chmod 0660 /dev/asmdiskc'"
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c29ad94f3bebf6fafccc61d80602", RUN+="/bin/sh -c 'mknod /dev/asmdiskd b $major $minor; chown grid:asmadmin /dev/asmdiskd; chmod 0660 /dev/asmdiskd'"
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c29ede6c75f6712c29510ab2f47a", RUN+="/bin/sh -c 'mknod /dev/asmdiske b $major $minor; chown grid:asmadmin /dev/asmdiske; chmod 0660 /dev/asmdiske'"
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c29b0fff7f909b32ec0102cb7630", RUN+="/bin/sh -c 'mknod /dev/asmdiskf b $major $minor; chown grid:asmadmin /dev/asmdiskf; chmod 0660 /dev/asmdiskf'"
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c2992f7ff746479049e15b0da868", RUN+="/bin/sh -c 'mknod /dev/asmdiskg b $major $minor; chown grid:asmadmin /dev/asmdiskg; chmod 0660 /dev/asmdiskg'"
KERNEL=="sd*", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d %N", RESULT=="36000c290f244e524c091991abc1297a1", RUN+="/bin/sh -c 'mknod /dev/asmdiskh b $major $minor; chown grid:asmadmin /dev/asmdiskh; chmod 0660 /dev/asmdiskh'"

触发 udev 规则。

[root@labrac1 ~]# udevadm control -R
[root@labrac1 ~]# udevadm trigger

检查 asm 磁盘属性。

[root@labrac1 ~]# ls -ltr /dev/asm*
brw-rw---- 1 grid asmadmin 8,  32 Aug 24 15:02 /dev/asmdiskc
brw-rw---- 1 grid asmadmin 8,  80 Aug 24 15:02 /dev/asmdiskf
brw-rw---- 1 grid asmadmin 8,  48 Aug 24 15:02 /dev/asmdiskd
brw-rw---- 1 grid asmadmin 8,  64 Aug 24 15:02 /dev/asmdiske
brw-rw---- 1 grid asmadmin 8,  96 Aug 24 15:02 /dev/asmdiskg
brw-rw---- 1 grid asmadmin 8, 112 Aug 24 15:02 /dev/asmdiskh

10. 安装 Grid 软件

10.1. 解压 grid 安装包

以 grid 用户登录系统，将软件直接解压缩到 GRID_HOME 目录，此操作只需要在 labrac1 节点执行：

[root@labrac1 ~]# su - grid
[grid@labrac1 ~]$ unzip -d /u01/app/19.3.0/grid/ /u01/orasoft/LINUX.X64_193000_grid_home.zip

10.2. 安装 cvuqdisk 包

两个节点都需要执行此操作：

[root@labrac1 ~]# rpm -ivh /u01/app/19.3.0/grid/cv/rpm/cvuqdisk-1.0.10-1.rpm
[root@labrac1 ~]# scp /u01/app/19.3.0/grid/cv/rpm/cvuqdisk-1.0.10-1.rpm root@labrac2:/u01/orasoft/

[root@labrac2 ~]# rpm -ivh /u01/orasoft/cvuqdisk-1.0.10-1.rpm

10.3. 执行 grid 软件安装

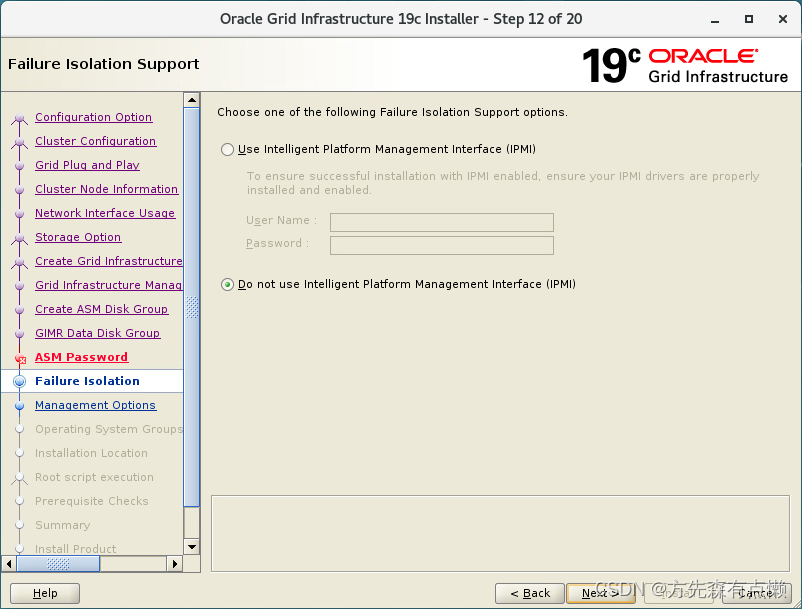

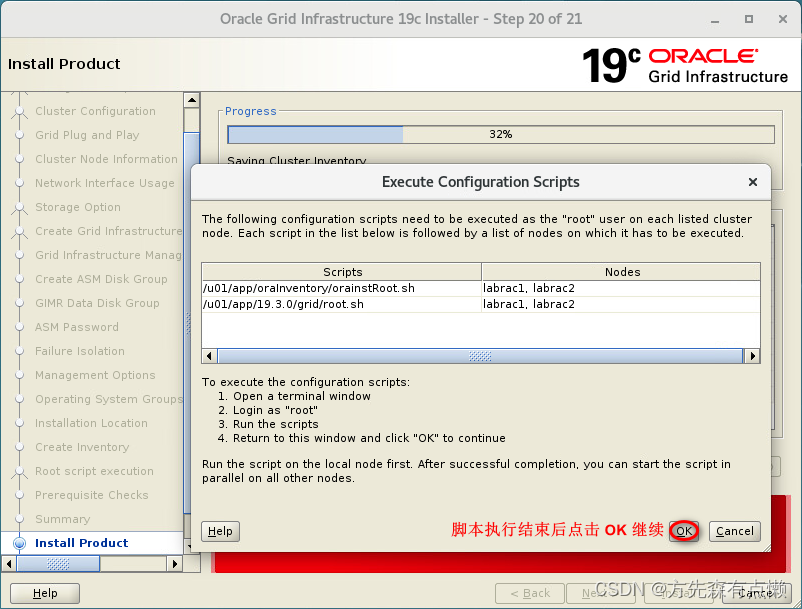

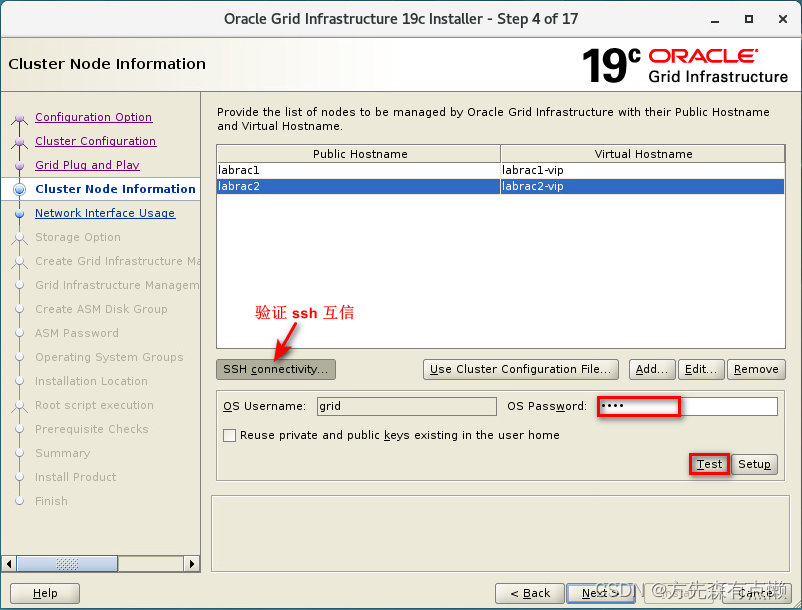

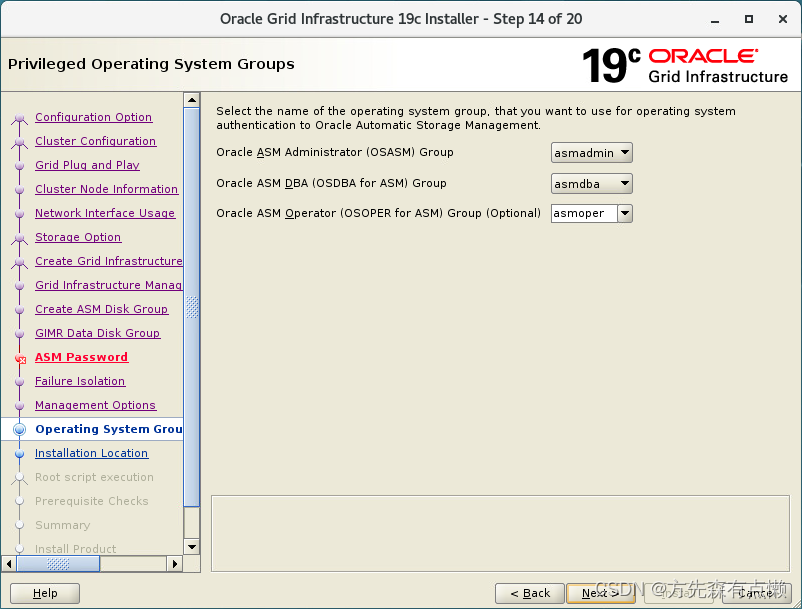

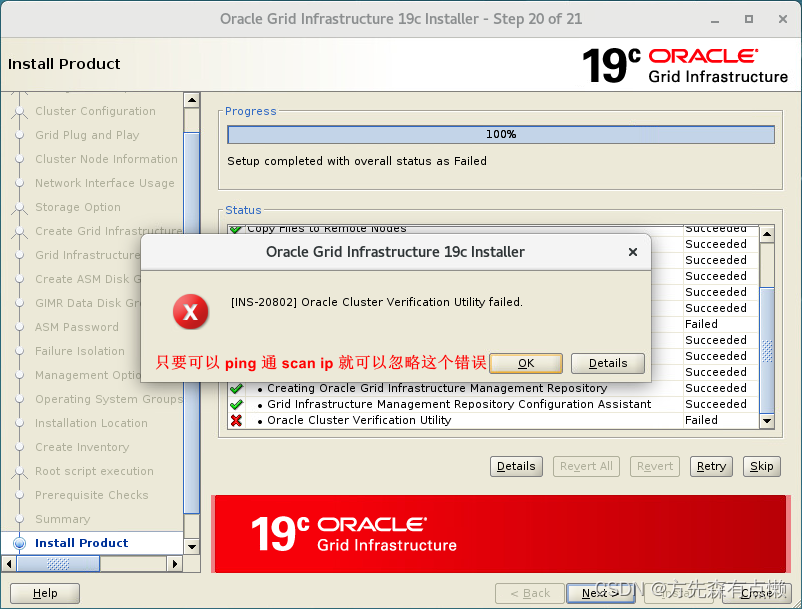

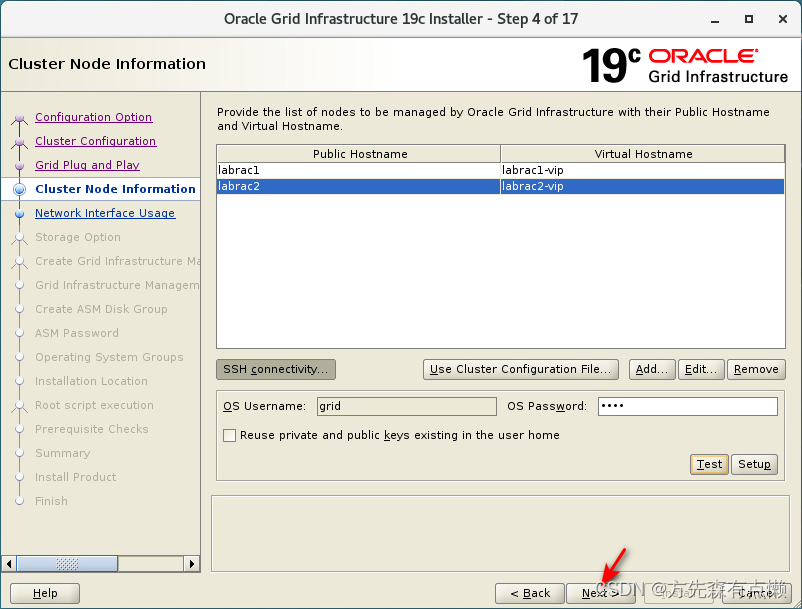

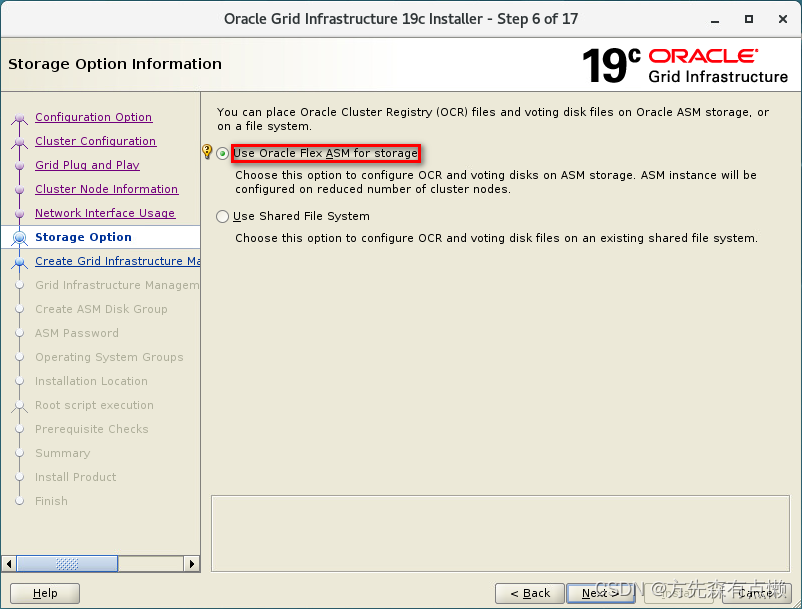

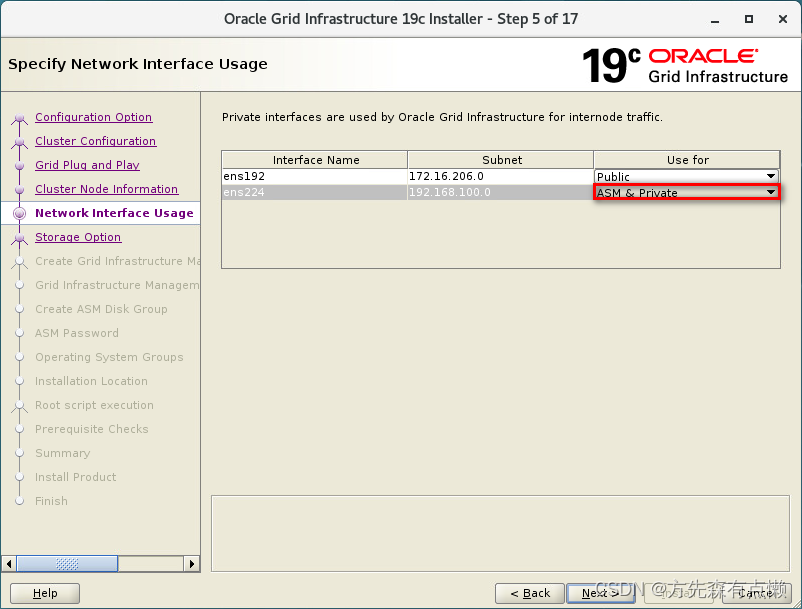

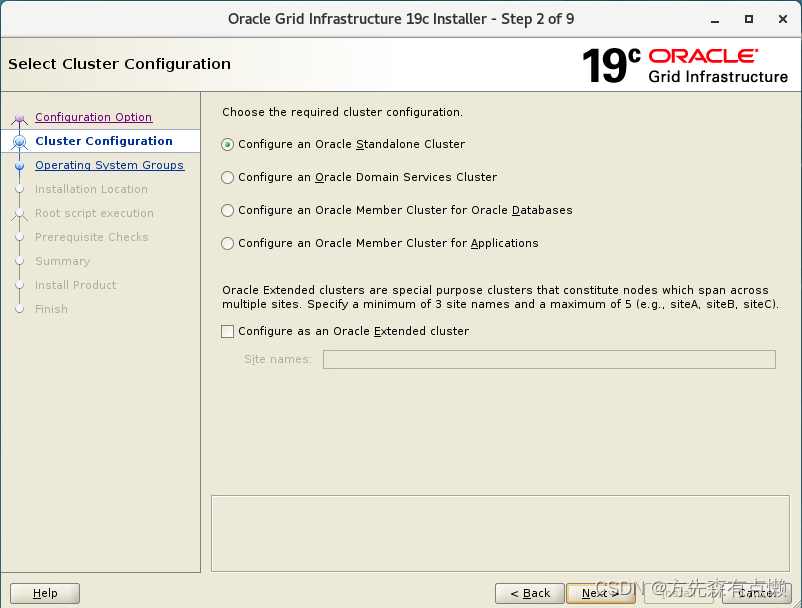

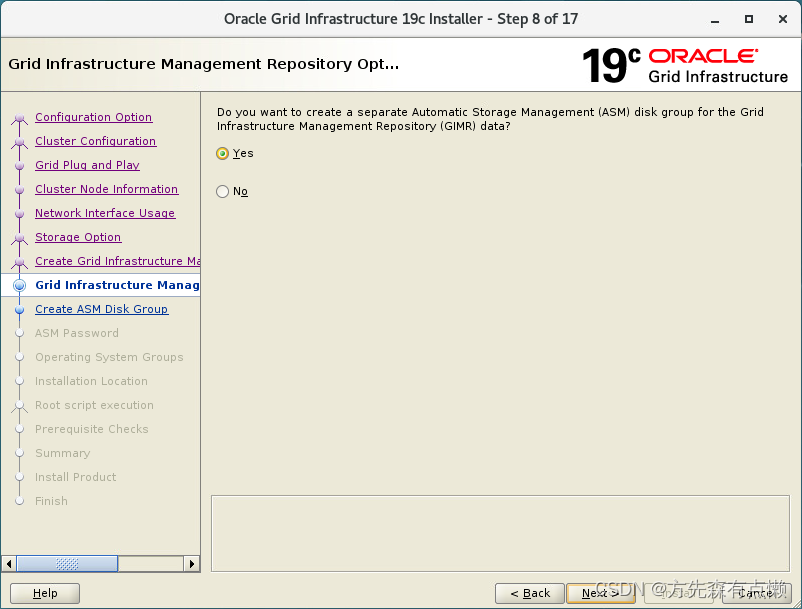

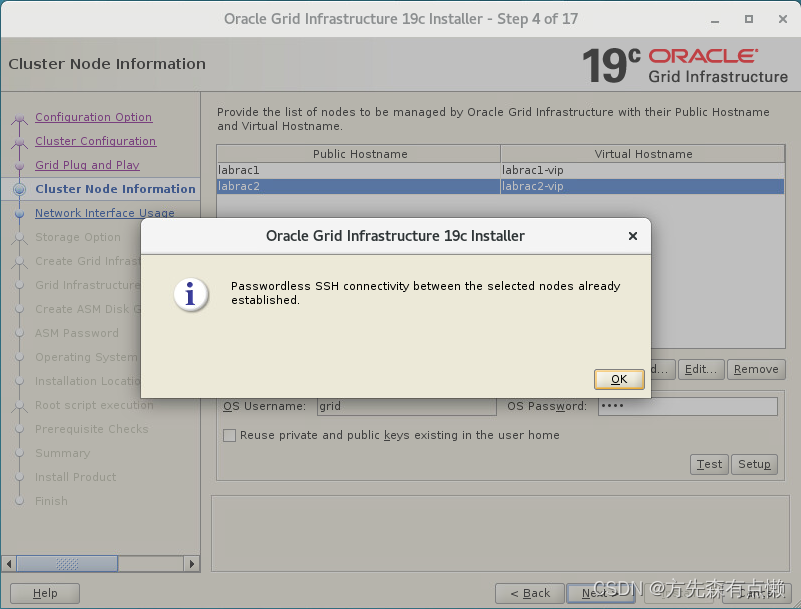

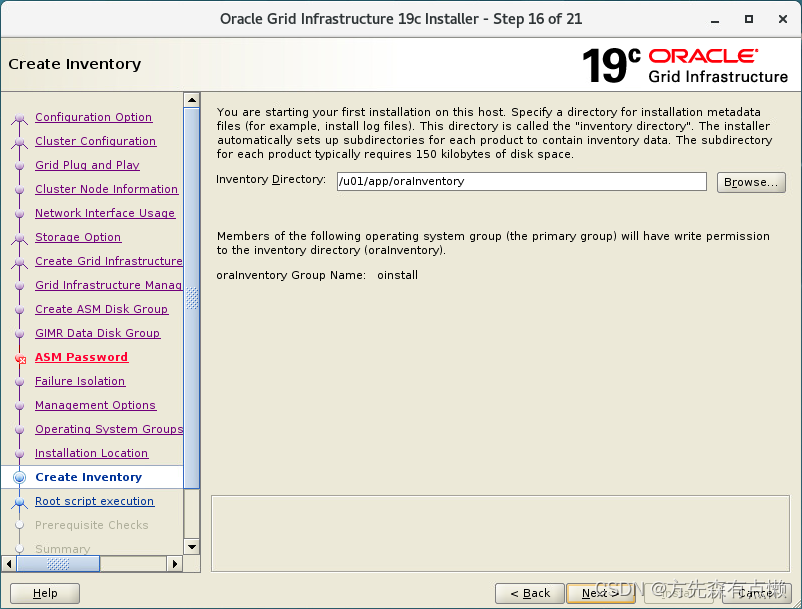

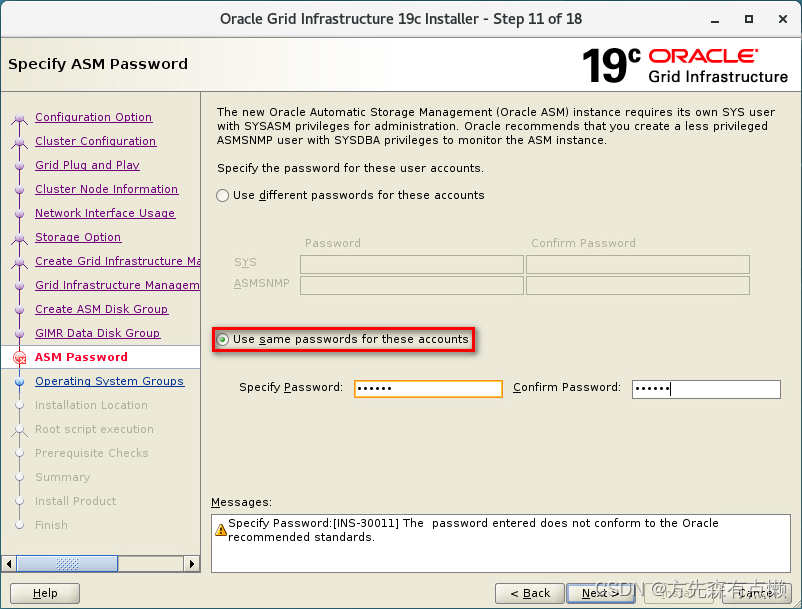

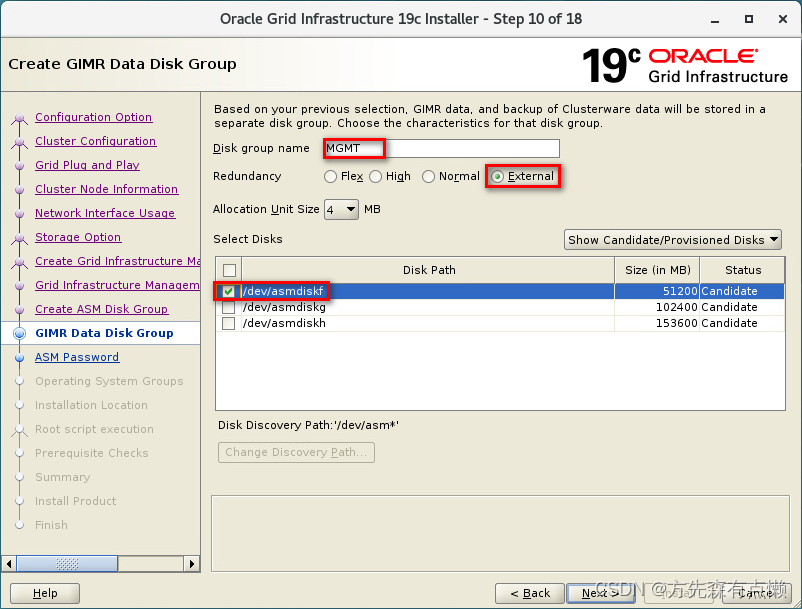

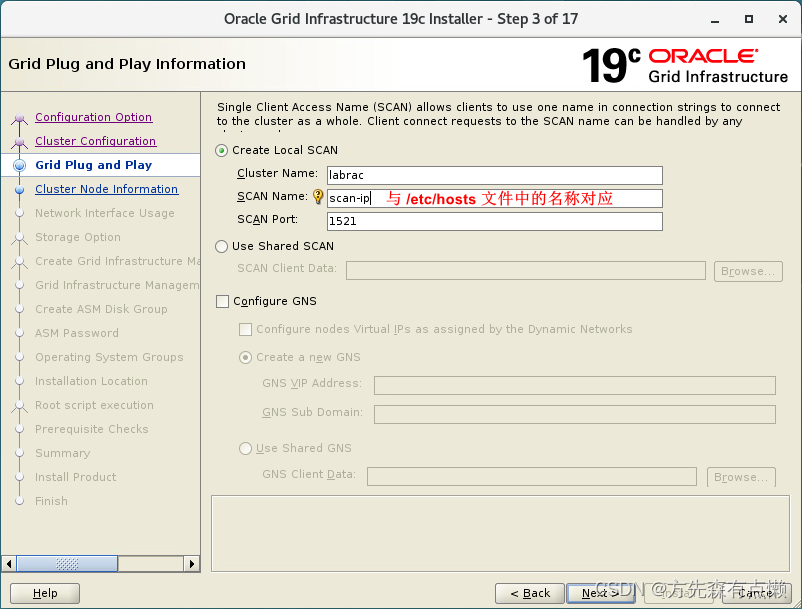

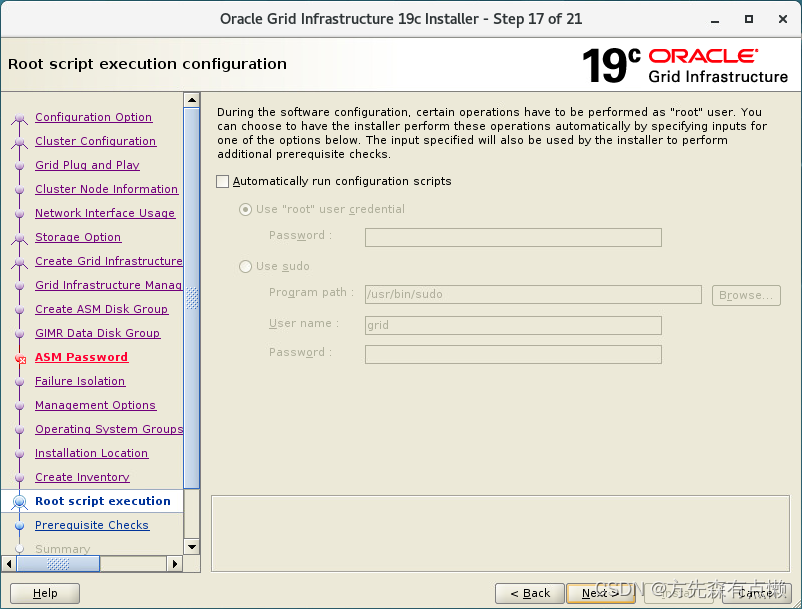

详细安装截图如下所示，所有需要进行配置的地方都已经做了特殊标记：

在这里插入图片描述

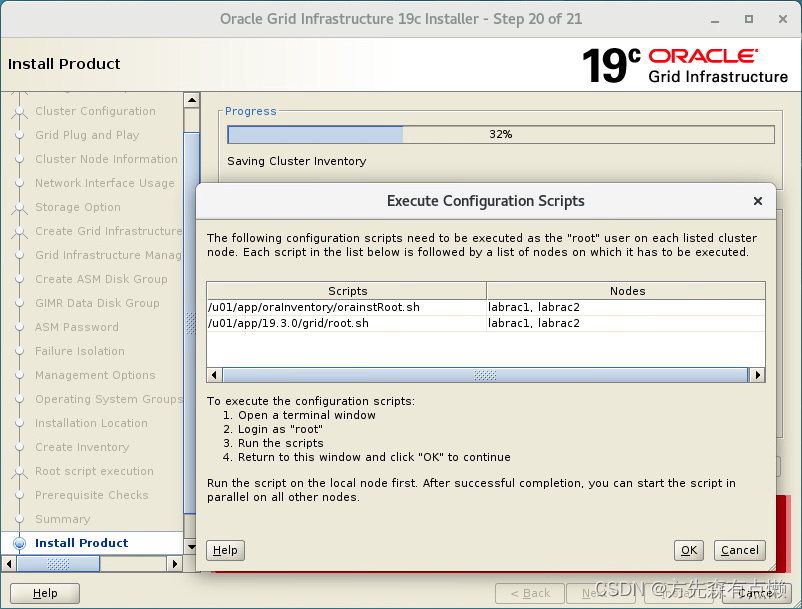

首先在 labrac1 节点以 root 身份执行脚本（执行速度很快）：

[root@labrac1 ~]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.

然后在 labrac2 节点以 root 身份执行脚本（执行速度很快）：

[root@labrac2 ~]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.

同样先在 labrac1 节点以 root 身份执行脚本（速度比较慢）：

[root@labrac1 ~]# /u01/app/19.3.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/19.3.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
   Copying dbhome to /usr/local/bin ...
   Copying oraenv to /usr/local/bin ...
   Copying coraenv to /usr/local/bin ...


Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19.3.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/labrac1/crsconfig/rootcrs_labrac1_2023-08-24_04-22-40PM.log
2023/08/24 16:23:18 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2023/08/24 16:23:18 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2023/08/24 16:23:18 CLSRSC-363: User ignored prerequisites during installation
2023/08/24 16:23:18 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2023/08/24 16:23:20 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2023/08/24 16:23:21 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2023/08/24 16:23:21 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2023/08/24 16:23:21 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2023/08/24 16:23:39 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2023/08/24 16:23:43 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2023/08/24 16:23:47 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2023/08/24 16:24:00 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2023/08/24 16:24:00 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2023/08/24 16:24:05 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2023/08/24 16:24:05 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2023/08/24 16:25:17 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2023/08/24 16:27:19 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2023/08/24 16:28:15 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2023/08/24 16:28:19 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.

[INFO] [DBT-30161] Disk label(s) created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-230824PM042856.log for details.


2023/08/24 16:32:44 CLSRSC-482: Running command: '/u01/app/19.3.0/grid/bin/ocrconfig -upgrade grid oinstall'
CRS-4256: Updating the profile
Successful addition of voting disk cdfbd49764644fe8bfc9a12907f5d94d.
Successful addition of voting disk fb01445d21d94f00bf490b2f0563595a.
Successful addition of voting disk a36ca609de6a4f33bf848597f5d82806.
Successfully replaced voting disk group with +OCRVOTE.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
##  STATE    File Universal Id                File Name Disk group
--  -----    -----------------                --------- ---------
 1. ONLINE   cdfbd49764644fe8bfc9a12907f5d94d (AFD:OCRVOTE1) [OCRVOTE]
 2. ONLINE   fb01445d21d94f00bf490b2f0563595a (AFD:OCRVOTE2) [OCRVOTE]
 3. ONLINE   a36ca609de6a4f33bf848597f5d82806 (AFD:OCRVOTE3) [OCRVOTE]
Located 3 voting disk(s).
2023/08/24 16:34:24 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2023/08/24 16:35:44 CLSRSC-343: Successfully started Oracle Clusterware stack
2023/08/24 16:35:44 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2023/08/24 16:37:53 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.

[INFO] [DBT-30161] Disk label(s) created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-230824PM043758.log for details.
[INFO] [DBT-30001] Disk groups created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-230824PM043758.log for details.


2023/08/24 16:40:50 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded

然后在 labrac2 节点以 root 身份执行脚本（速度比较慢，最后那两个 Error 可以忽略，继续执行）：

[root@labrac2 ~]# /u01/app/19.3.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/19.3.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
   Copying dbhome to /usr/local/bin ...
   Copying oraenv to /usr/local/bin ...
   Copying coraenv to /usr/local/bin ...


Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19.3.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/labrac2/crsconfig/rootcrs_labrac2_2023-08-24_04-41-53PM.log
2023/08/24 16:42:32 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2023/08/24 16:42:32 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2023/08/24 16:42:32 CLSRSC-363: User ignored prerequisites during installation
2023/08/24 16:42:32 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2023/08/24 16:42:34 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2023/08/24 16:42:34 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2023/08/24 16:42:34 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2023/08/24 16:42:35 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2023/08/24 16:42:37 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2023/08/24 16:42:37 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2023/08/24 16:42:47 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2023/08/24 16:42:47 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2023/08/24 16:42:49 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2023/08/24 16:42:49 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2023/08/24 16:43:00 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2023/08/24 16:43:58 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2023/08/24 16:45:57 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2023/08/24 16:46:47 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2023/08/24 16:46:48 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
2023/08/24 16:47:01 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2023/08/24 16:48:11 CLSRSC-343: Successfully started Oracle Clusterware stack
2023/08/24 16:48:11 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2023/08/24 16:48:42 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2023/08/24 16:49:52 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
Error 4 opening dom ASM/Self in 0x7b50220
Domain name to open is ASM/Self
Error 4 opening dom ASM/Self in 0x7b50220

在这里插入图片描述

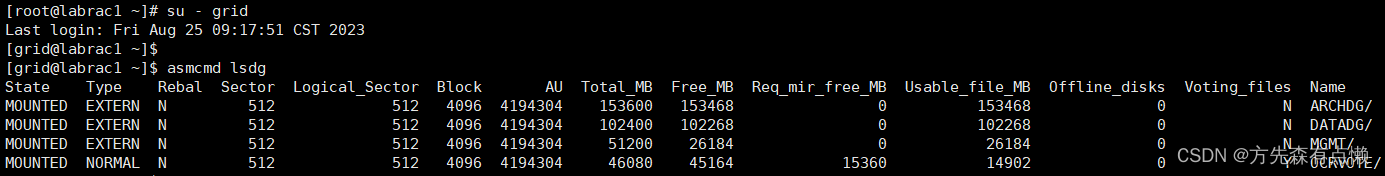

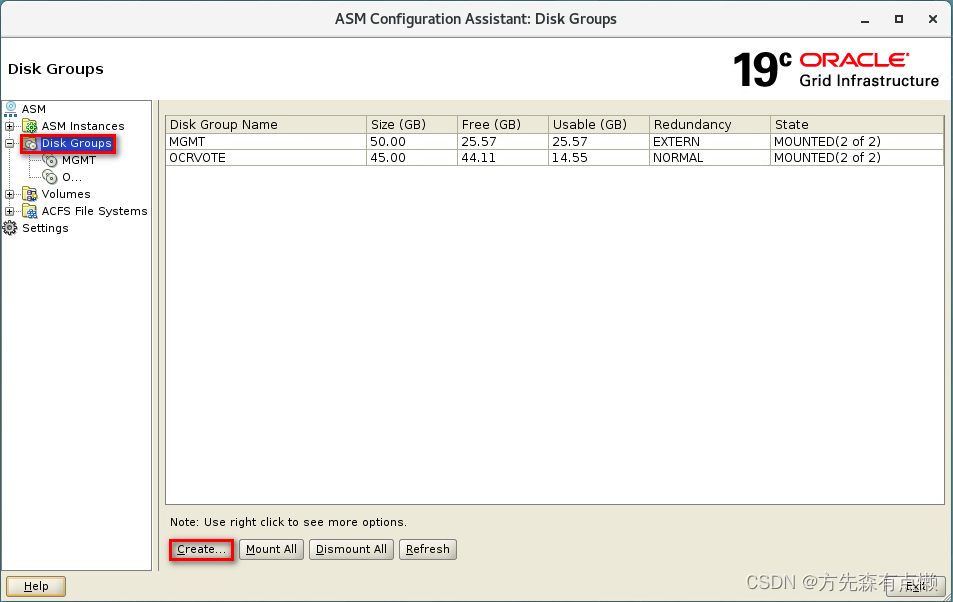

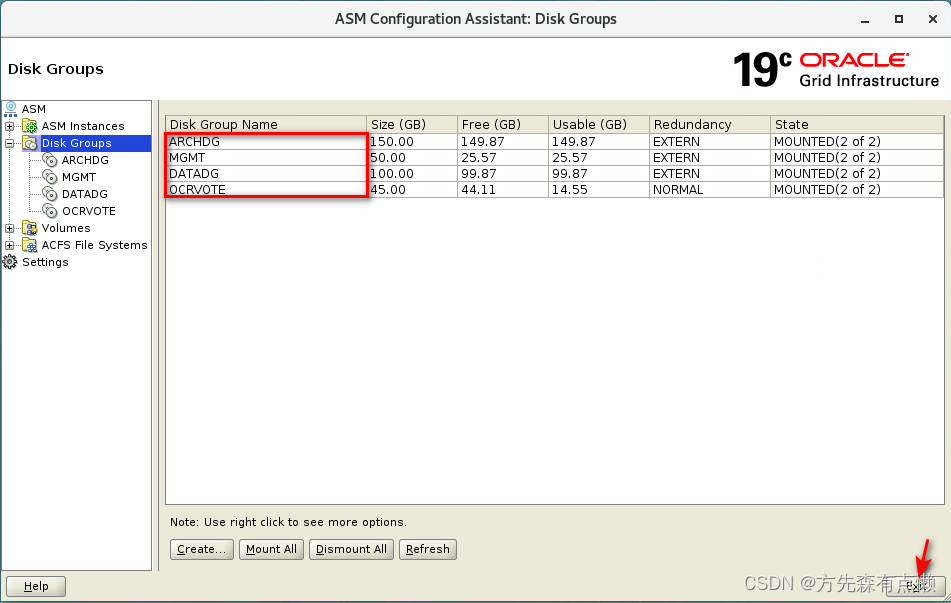

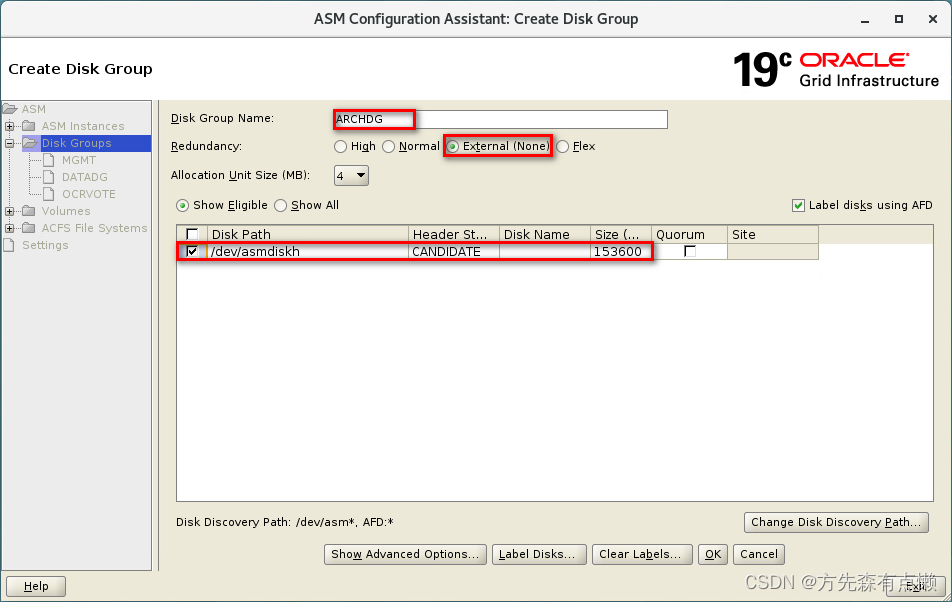

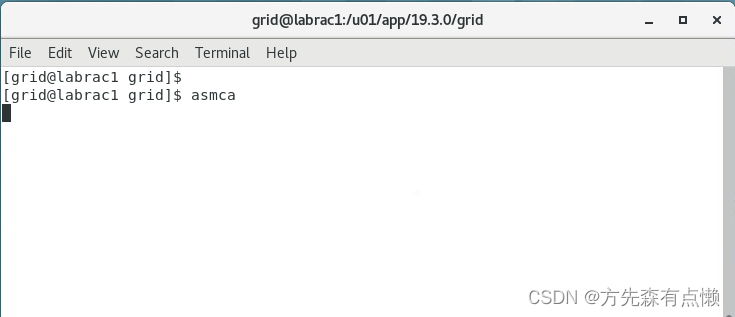

10.4. 配置剩余磁盘组

在这里插入图片描述

11. 安装 Oracle 软件

11.1. 解压 oracle 安装包

以 oracle 用户登录系统，将软件直接解压缩到 ORACLE_HOME 目录，此操作只需要在 labrac1 节点执行：

[root@labrac1 ~]# su - oracle
[oracle@labrac1 ~]$ unzip -d /u01/app/oracle/product/19.3.0/db_1/ /u01/orasoft/LINUX.X64_193000_db_home.zip

11.2. 执行 oracle 软件安装

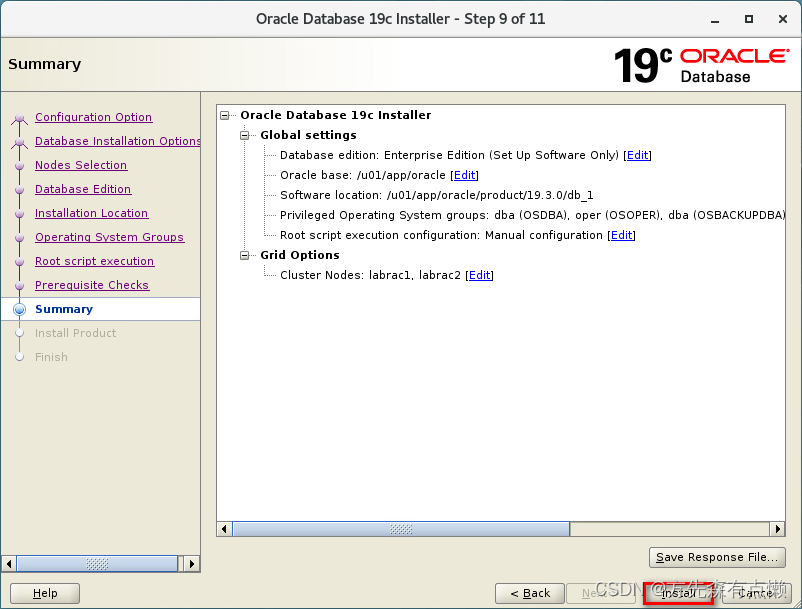

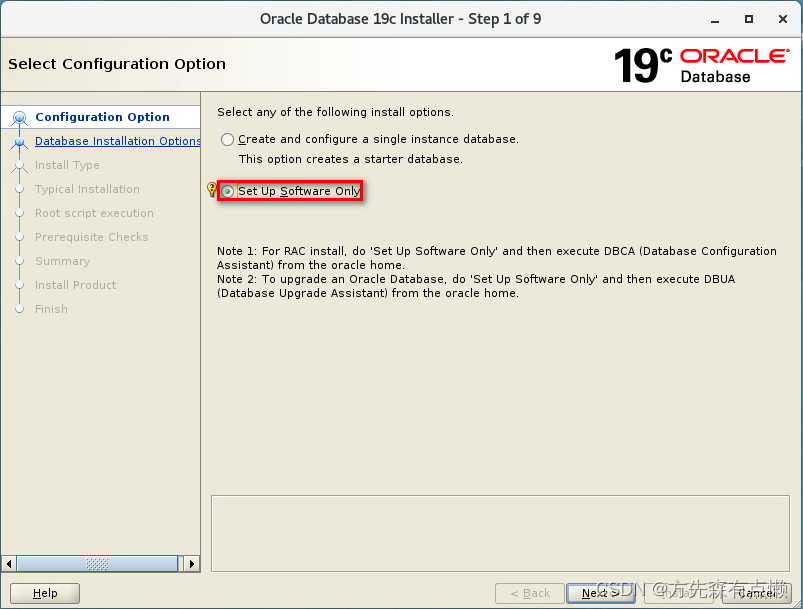

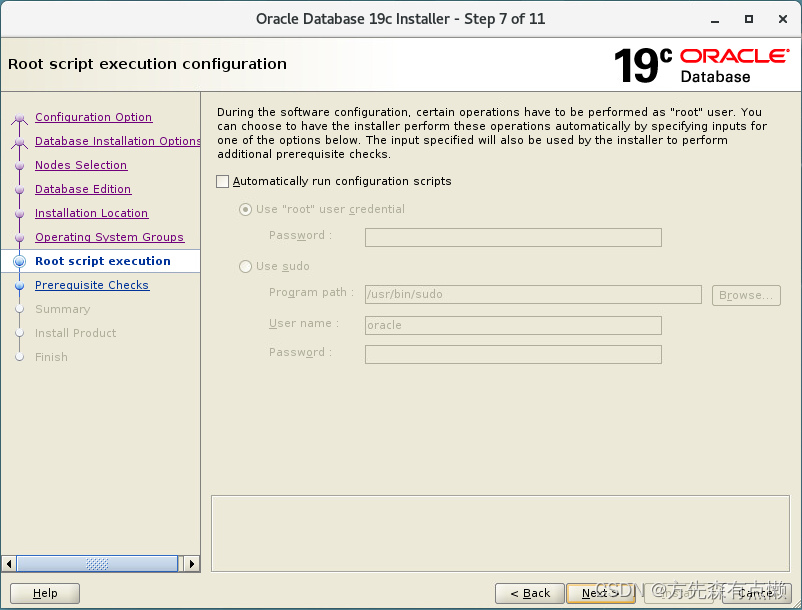

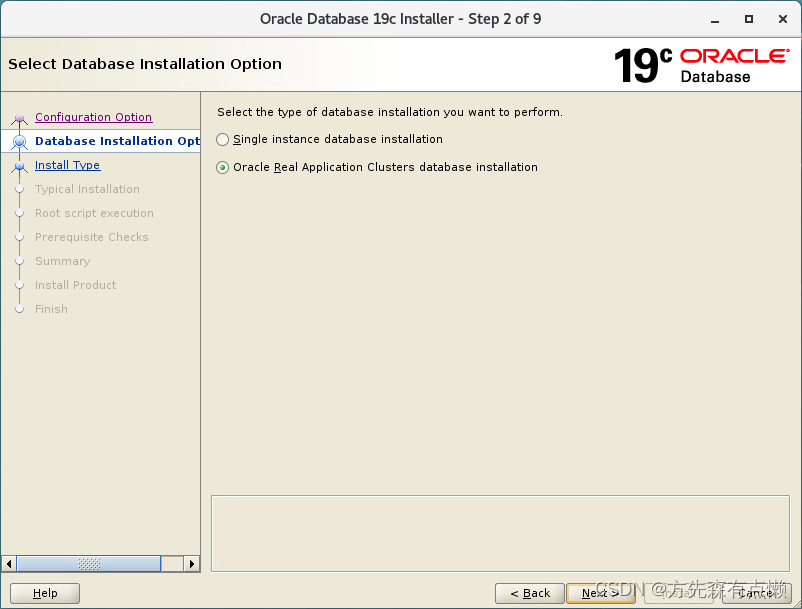

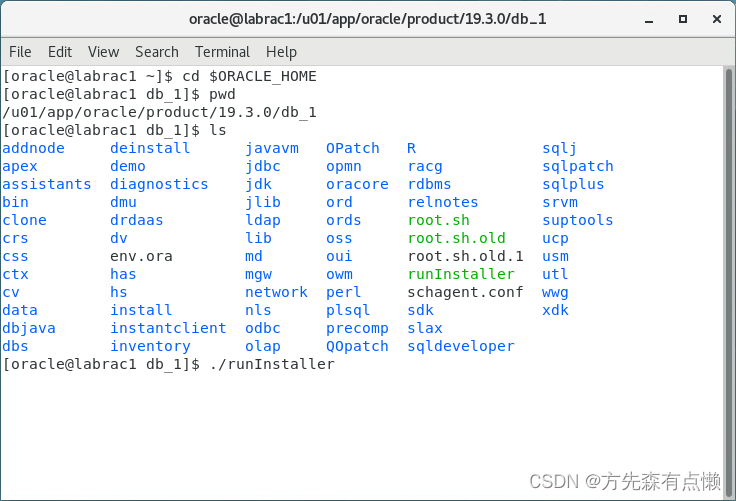

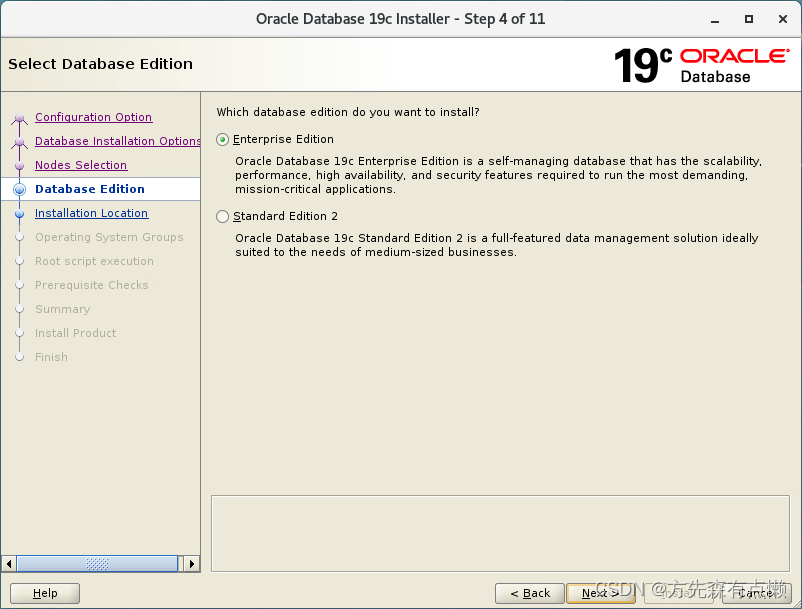

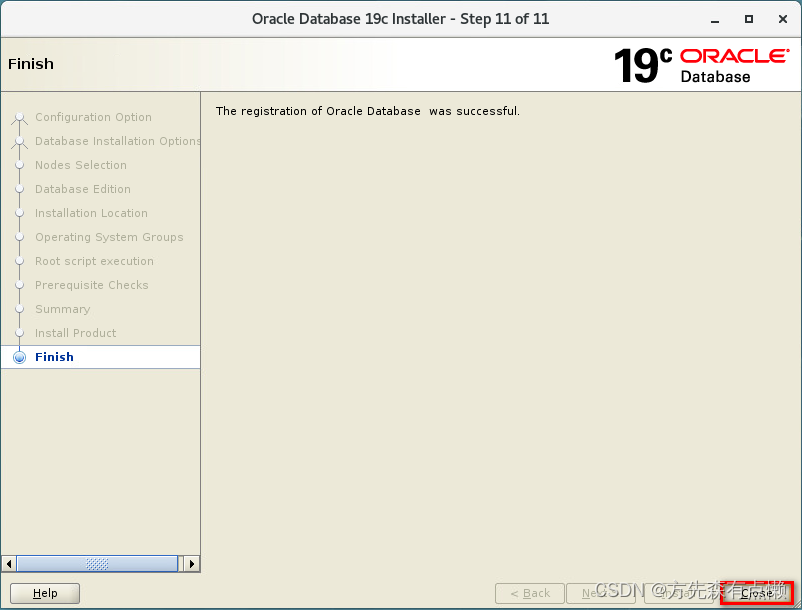

详细安装截图如下所示，所有需要进行配置的地方都已经做了特殊标记：

在这里插入图片描述

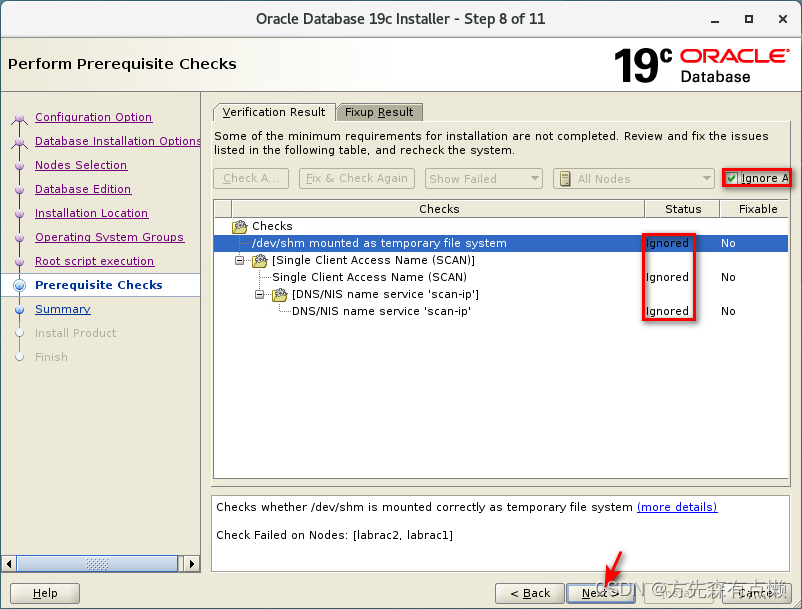

在点击了 Fix & Check Again 后需要在两个节点上依次执行脚本，该脚本执行完以后，就会在 /etc/security/limits.conf 文件中新增 memlock 限制；至于其它告警和错误，可以选择 Ignore 进行忽略。

[root@labrac2 ~]# /tmp/InstallActions2023-08-25_09-34-15AM/CVU_19.0.0.0.0_oracle/runfixup.sh
All Fix-up operations were completed successfully.

[root@labrac1 ~]# /tmp/InstallActions2023-08-25_09-34-15AM/CVU_19.0.0.0.0_oracle/runfixup.sh
All Fix-up operations were completed successfully.

在这里插入图片描述

首先在 labrac1 节点以 root 身份执行脚本（执行速度很快）：

[root@labrac1 ~]# /u01/app/oracle/product/19.3.0/db_1/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /u01/app/oracle/product/19.3.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.

然后在 labrac2 节点以 root 身份执行脚本（执行速度很快）：

[root@labrac2 ~]# /u01/app/oracle/product/19.3.0/db_1/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /u01/app/oracle/product/19.3.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.

在这里插入图片描述

12. 创建数据库

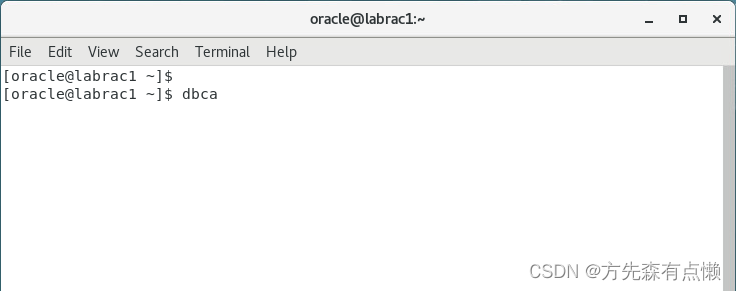

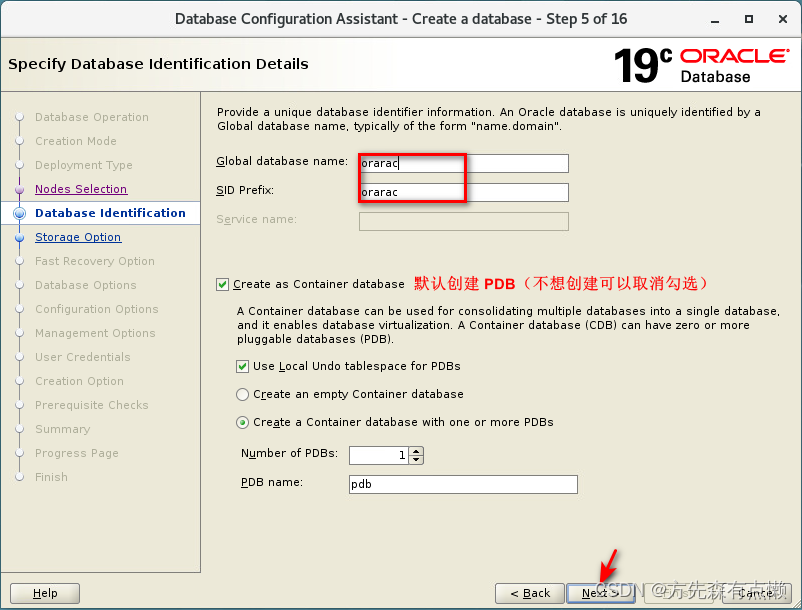

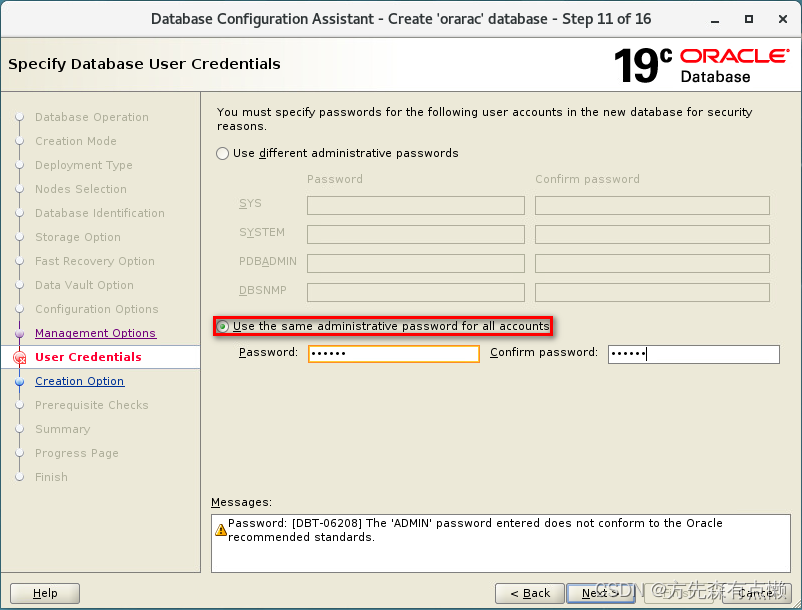

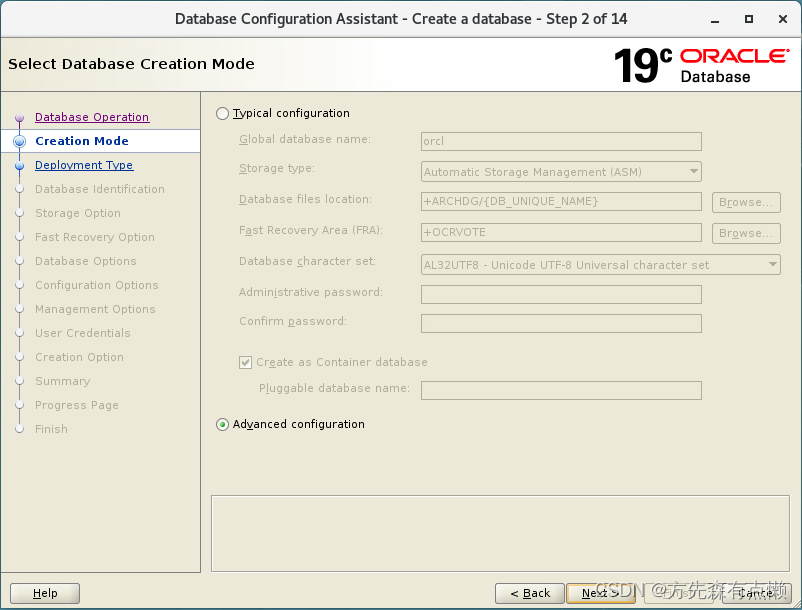

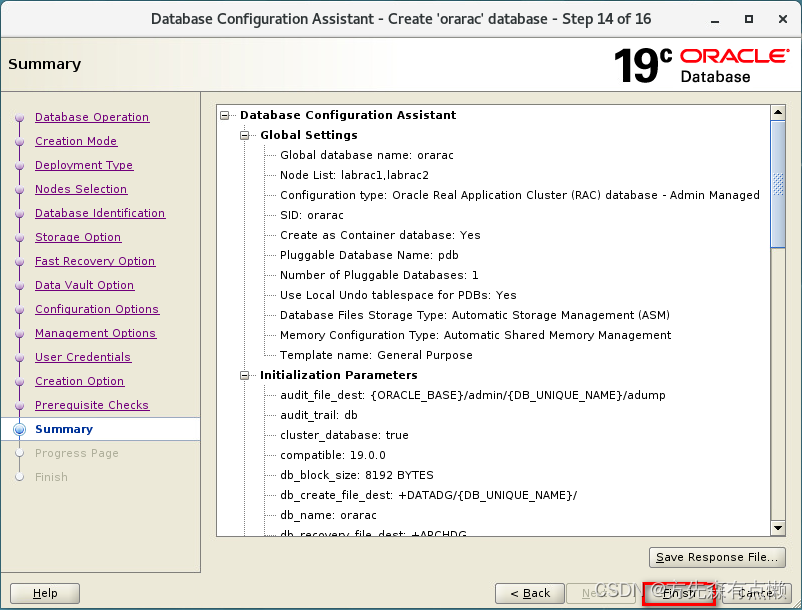

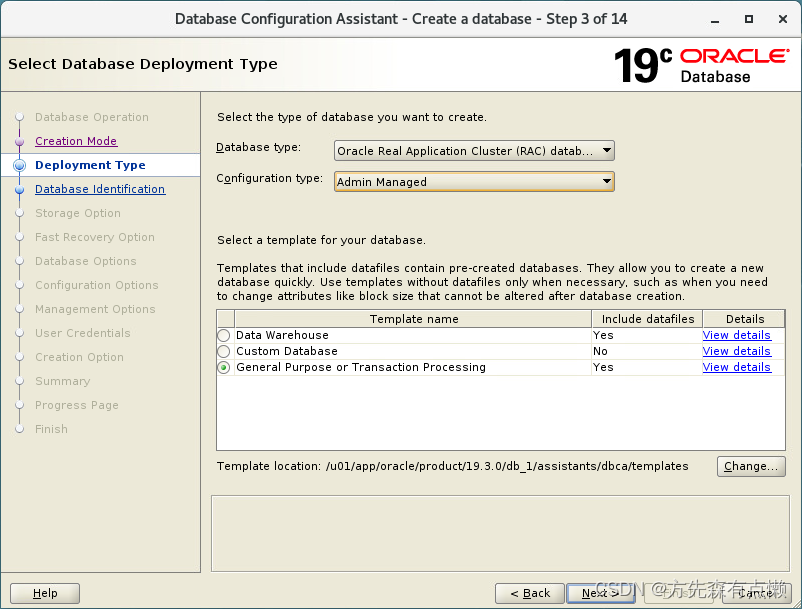

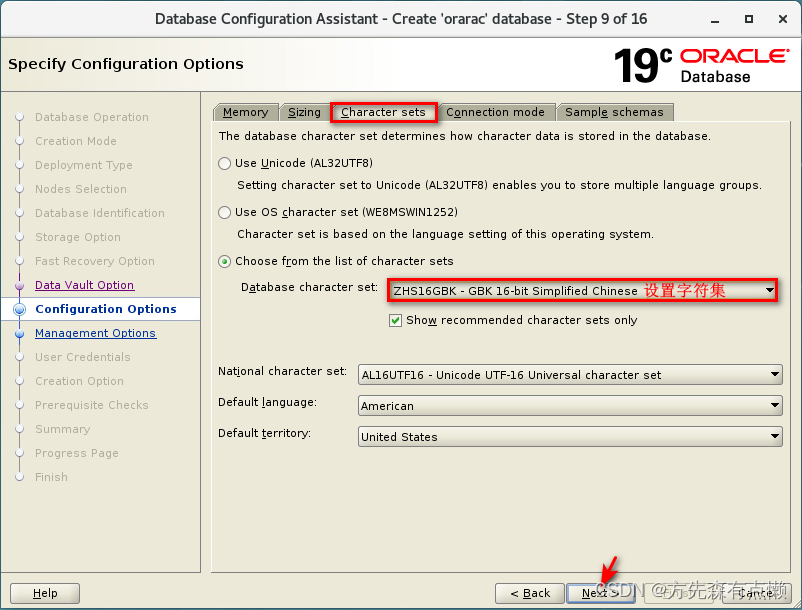

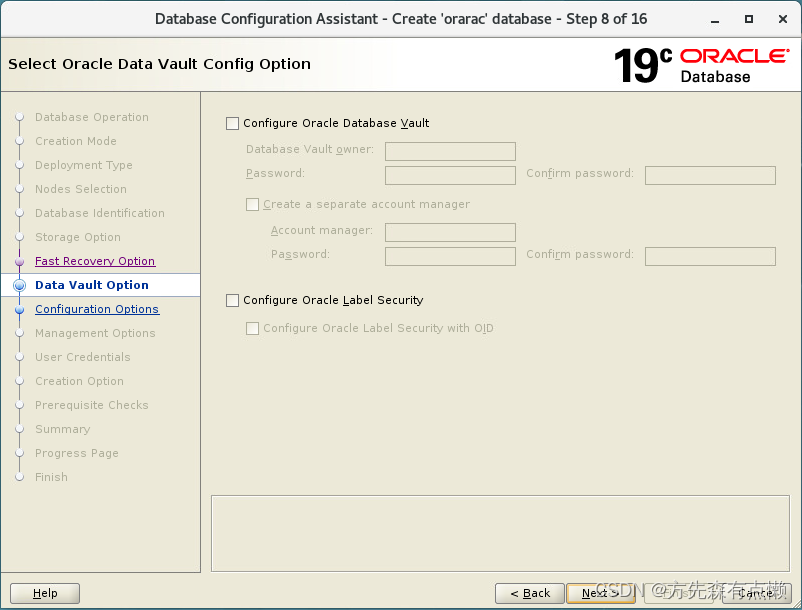

详细安装截图如下所示，所有需要进行配置的地方都已经做了特殊标记：

在这里插入图片描述

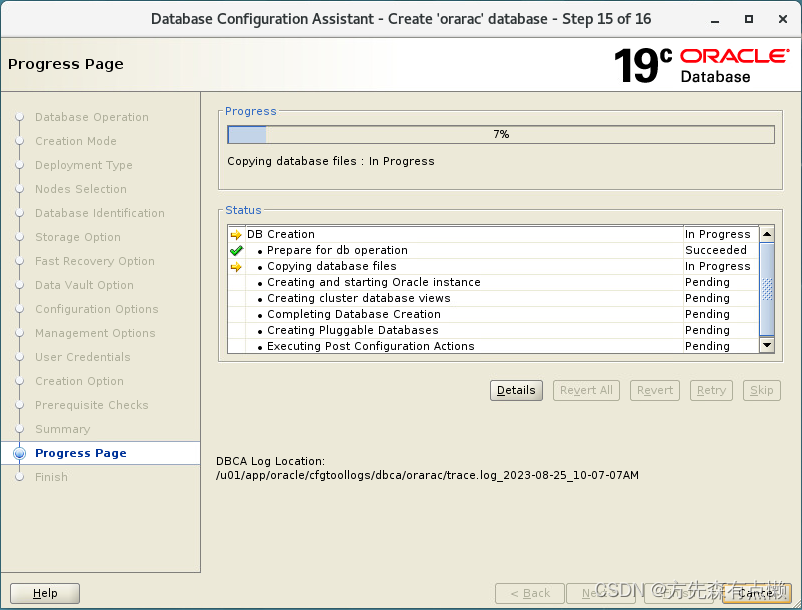

注意事项：如果安装进度在7%左右出现了 ORA-00443 错误，大概率是因为主机分配的内存不够，此时可以考虑终止建库动作，将 CRS 集群关闭，然后关闭两台主机并添加内存，开机等待 CRS 服务正常以后，重新执行 dbca 建库；也可以通过合理分配 SGA 和 PGA 来解决这个问题（这种方式博主还没有尝试过，因为是虚拟机，所以博主选择了直接关机加内存的方式）。

在这里插入图片描述

13. 检查集群和数据库

13.1. 检查集群状态

[root@labrac1 ~]# su - grid
Last login: Fri Aug 25 17:16:11 CST 2023
[grid@labrac1 ~]$ crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       labrac1                  STABLE
               ONLINE  ONLINE       labrac2                  STABLE
ora.MGMT.GHCHKPT.advm
               OFFLINE OFFLINE      labrac1                  STABLE
               OFFLINE OFFLINE      labrac2                  STABLE
ora.chad
               ONLINE  ONLINE       labrac1                  STABLE
               ONLINE  ONLINE       labrac2                  STABLE
ora.helper
               OFFLINE OFFLINE      labrac1                  IDLE,STABLE
               OFFLINE OFFLINE      labrac2                  IDLE,STABLE
ora.mgmt.ghchkpt.acfs
               OFFLINE OFFLINE      labrac1                  STABLE
               OFFLINE OFFLINE      labrac2                  STABLE
ora.net1.network
               ONLINE  ONLINE       labrac1                  STABLE
               ONLINE  ONLINE       labrac2                  STABLE
ora.ons
               ONLINE  ONLINE       labrac1                  STABLE
               ONLINE  ONLINE       labrac2                  STABLE
ora.proxy_advm
               OFFLINE OFFLINE      labrac1                  STABLE
               OFFLINE OFFLINE      labrac2                  STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ARCHDG.dg(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.DATADG.dg(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       labrac1                  STABLE
ora.MGMT.dg(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.MGMTLSNR
      1        ONLINE  ONLINE       labrac1                  169.254.19.83 192.16
                                                             8.100.1,STABLE
ora.OCRVOTE.dg(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  Started,STABLE
      2        ONLINE  ONLINE       labrac2                  Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       labrac1                  STABLE
      2        ONLINE  ONLINE       labrac2                  STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       labrac1                  STABLE
ora.labrac1.vip
      1        ONLINE  ONLINE       labrac1                  STABLE
ora.labrac2.vip
      1        ONLINE  ONLINE       labrac2                  STABLE
ora.mgmtdb
      1        ONLINE  ONLINE       labrac1                  Open,STABLE
ora.orarac.db
      1        ONLINE  ONLINE       labrac1                  Open,HOME=/u01/app/o
                                                             racle/product/19.3.0
                                                             /db_1,STABLE
      2        ONLINE  ONLINE       labrac2                  Open,HOME=/u01/app/o
                                                             racle/product/19.3.0
                                                             /db_1,STABLE
ora.qosmserver
      1        ONLINE  ONLINE       labrac1                  STABLE
ora.rhpserver
      1        OFFLINE OFFLINE                               STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       labrac1                  STABLE
--------------------------------------------------------------------------------

13.2. 检查数据库状态

[oracle@labrac1 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Aug 25 12:09:27 2023
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0

SQL> show pdbs;

    CON_ID CON_NAME			  OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
	 2 PDB$SEED			  READ ONLY  NO
	 3 PDB				  READ WRITE NO
SQL> select open_mode from v$database;

OPEN_MODE
--------------------
READ WRITE

SQL> select status from v$instance;

STATUS
------------
OPEN

13.3. 检查监听服务

[root@labrac1 ~]# su - grid
Last login: Fri Aug 25 17:26:02 CST 2023 on pts/0
[grid@labrac1 ~]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 25-AUG-2023 17:26:37

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                25-AUG-2023 12:33:53
Uptime                    0 days 4 hr. 52 min. 44 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/19.3.0/grid/network/admin/listener.ora
Listener Log File         /u01/app/grid/diag/tnslsnr/labrac1/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=172.16.206.151)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=172.16.206.153)(PORT=1521)))
Services Summary...
Service "+ASM" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "+ASM_ARCHDG" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "+ASM_DATADG" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "+ASM_MGMT" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "+ASM_OCRVOTE" has 1 instance(s).
  Instance "+ASM1", status READY, has 1 handler(s) for this service...
Service "03b85b99ca66b766e06398ce10ac9fbe" has 1 instance(s).
  Instance "orarac1", status READY, has 1 handler(s) for this service...
Service "86b637b62fdf7a65e053f706e80a27ca" has 1 instance(s).
  Instance "orarac1", status READY, has 1 handler(s) for this service...
Service "orarac" has 1 instance(s).
  Instance "orarac1", status READY, has 1 handler(s) for this service...
Service "oraracXDB" has 1 instance(s).
  Instance "orarac1", status READY, has 1 handler(s) for this service...
Service "pdb" has 1 instance(s).
  Instance "orarac1", status READY, has 1 handler(s) for this service...
The command completed successfully

13.4. 检查实例运行状态

[root@labrac1 ~]# ps -ef |grep pmon
grid       4387      1  0 12:33 ?        00:00:01 asm_pmon_+ASM1
grid       7539      1  0 12:34 ?        00:00:01 mdb_pmon_-MGMTDB
oracle     7766      1  0 12:34 ?        00:00:01 ora_pmon_orarac1
root      70416  78256  0 17:28 pts/0    00:00:00 grep --color=auto pmon

[root@labrac2 ~]# ps -ef |grep pmon
grid      13416      1  0 12:36 ?        00:00:01 asm_pmon_+ASM2
oracle    15118      1  0 12:37 ?        00:00:01 ora_pmon_orarac2
root      56632  72188  0 17:28 pts/0    00:00:00 grep --color=auto pmon
