海思android随笔之hippo客制化db

继上篇海思android随笔之hippo数据交互文章，讲解如何客制化db

本篇是案例实战，调用流程原理请看上篇文章

---

---

前言

提示：本文是基于海思android 9.0 tv系统进行分析的

年后一直忙着android 12的项目，没时间弄。最近利用空闲时间整理了出来，分享给各位看官。

---

1. 流程图

2. 代码详解

这里举例新增两个自定义数据，1个数据可以菜单复位掉，1个无法菜单复位

2.1. 客制化ini

2.1.1. 新增ini定义

Android/device/hisilicon/bigfish/hippo/include/hi_mw_common.h

static const HI_CHAR* ATV_INI_TEST_INI_PATH  = "atv/ini/test.ini";

2.1.2. 新建ini文件

Android/device/hisilicon/bigfish/hippo/vendor/custom/hisilicon/ini/CUSTOM/test.ini

[iniversion]
VerNumber = 1;

[databasedef]
DatabaseTestVersion = 0x0006;
test_one = 5;
test_two = 55;

2.1.3. 修改mk文件

Android/device/hisilicon/bigfish/hippo/hippo_copyfile.mak

PRODUCT_COPY_FILES += $(HISI_HIPPO_DIR)/vendor/custom/hisilicon/ini/CUSTOM/test.ini:atv/ini/test.ini

提示：这里copy的路径视项目而定，hisi AN9一般是copy到/atv/ini下，AN10以后改在了/odm/atv/ini下

2.1.4. 初始化ini

Android/device/hisilicon/bigfish/hippo/vendor/common/config/iniprovider/hi_mw_ini_provider.cpp

HI_VOID INIProvider::LoadIniFile()
{
    ******
    iniPath = hi_get_one_cfg_file(ATV_INI_TEST_INI_PATH, CUST_TYPE_CONFIG, filePath);
    LOGI("hi_get_one_cfg_file. testIniPath:%s", iniPath);
    if ((iniPath == HI_NULL) || (strlen(filePath) > PATH_MAX)) {
        LOGI("hi_get_one_cfg_file failed. %s", filePath);
        return;
    }
    mIniPathVec.push_back(string(iniPath));
    ******
}

2.2. 客制化db

2.2.1. 新增db配置

Android/device/hisilicon/bigfish/hippo/vendor/custom/hisilicon/ini/CUSTOM/cfg.ini

databasetest = /atv/db/test.db;

Android/device/hisilicon/bigfish/hippo/vendor/common/db/hi_mw_dbo.h

enum HI_MW_ATTR_E {
    ******
    HI_MW_ATTR_TEST = 0x450,
    HI_MW_ATTR_TEST_ONE = 0x451,
    HI_MW_ATTR_TEST_TWO = 0x452,
    HI_MW_ATTR_TEST_END,

    HI_MW_ATTR_BUTT = 0x500,
};

enum HI_MW_DB_E {
    ******
    HI_MW_DB_TEST = HI_MW_ATTR_TEST,
    HI_MW_DB_BUTT = HI_MW_ATTR_BUTT
};

2.2.2. 初始化db

Android/device/hisilicon/bigfish/hippo/vendor/common/db/hi_mw_dbo.h

class HiDBO {
public:
    ******
    HI_VOID RestoreTest(HI_BOOL bMenuReset);
private:
    ******
}

Android/device/hisilicon/bigfish/hippo/vendor/common/db/hi_mw_dbo.cpp

static HI_VOID InsertTestDefault(HiDBO* pDbo, HiDB* pDb, HI_BOOL bMenuReset)
{
    if((HI_NULL == pDbo) || (HI_NULL == pDb))
    {
        LOGE("pDbo or pDb is null !");
        return;
    }

    pDb->CreateRecord(HI_MW_ATTR_TEST_ONE);
    HI_U32 testOne = 0;
    updateTestOne(testOne);
    pDb->Insert(HI_MW_ATTR_TEST_ONE, (HI_U8*)&testOne, sizeof(testOne));
    pDbo->Attach(HI_MW_ATTR_TEST_ONE, pDb);

    if (bMenuReset == HI_FALSE) {
        pDb->CreateRecord(HI_MW_ATTR_TEST_TWO);
        HI_U32 testTwo = 0;
        updateTestTwo(testTwo);
        pDb->Insert(HI_MW_ATTR_TEST_TWO, (HI_U8*)&testTwo, sizeof(testTwo));
        pDbo->Attach(HI_MW_ATTR_TEST_TWO, pDb);
    }

    LOGD("insert CVTE default data done.");
}

static HI_S32 LoadTestSetting(HiDBO * pDbo)
{
    string dbFile = HiCfgFact::Get()->ParseString("databasepath:databasetest");
    HI_U16 u16TestVersion = (HI_U16)HiCfgFact::Get()->ParseInt("databasedef:DatabaseTestVersion");
    HI_S32 s32Ret;
    HiDB *db = HI_NULL;
    s32Ret = CreateFile(dbFile, &db);
    if (s32Ret != HI_SUCCESS) {
        return s32Ret;
    }

    HI_U16 u16Version = 0;
    HI_BOOL bRestoreDefault = HI_FALSE;

    s32Ret = db->QueryVersion(u16Version);
    if (s32Ret == HI_MW_DB_FIRSTBOOT_EER) {
        bRestoreDefault = HI_TRUE;
    } else {
        if (u16Version != u16TestVersion) {
            LOGI("Update data version!");
            db->Clear();
            bRestoreDefault = HI_TRUE;
        }
    }

    if (bRestoreDefault == HI_FALSE) {
        HI_S32 s32Ret = db->Load();
        if (s32Ret == HI_SUCCESS) {
            list<HI_U32> records;
            list<HI_U32>::iterator it;
            db->GetRecords(records);
            if (records.size() < (HI_MW_ATTR_TEST_END - HI_MW_ATTR_TEST - 1)) {
                LOGI("Record is lose [%d, %d]!", records.size(), (HI_MW_ATTR_TEST_END - HI_MW_ATTR_TEST - 1));
            } else {
                for (it = records.begin(); it != records.end(); ++it) {
                    pDbo->Attach((HI_MW_ATTR_E)*it, db);
                }
            }

            LOGI("load Test Setting data success!");
            return HI_SUCCESS;
        }

        LOGI("Load data fail!");
        db->Clear();
    }
    LOGI("Insert default data!");
    db->InsertVersion(u16TestVersion);
    InsertTestDefault(pDbo, db, HI_FALSE);
    return HI_SUCCESS;
}

HI_VOID HiDBO::RestoreTest(HI_BOOL bMenuReset)
{
    HiDB* db = NULL;

    if (!Obtain(HI_MW_DB_TEST, &db) && (NULL != db))
    {
        if (bMenuReset) {
            db->Erase(HI_MW_ATTR_TEST_ONE);
        } else {
            db->Clear();
        }
        db->InsertVersion(HiCfgFact::Get()->ParseInt("databasedef:DatabaseTestVersion"));
        InsertTestDefault(this, db, bMenuReset);
        LOGD("restore Test data success.");
    }
}
******
HiDBO::HiDBO()
{
    ******
    ret = LoadTestSetting(this);
    RET_CHECK_ERR_LOG(ret, "LoadTestSetting failure.ret: 0x%x", ret);
    ******
}
******

Android/device/hisilicon/bigfish/hippo/vendor/common/db/hi_mw_db_def.h

HI_VOID updateTestOne(HI_U32 & value);
HI_VOID updateTestTwo(HI_U32 & value);

Android/device/hisilicon/bigfish/hippo/vendor/common/db/hi_mw_db_def.cpp

HI_VOID RestoreDbAttrSubEightPartB(HI_U32 u32Id, HI_U8 *pData, HI_MW_SRC_E &enSource)
{
    ******
    switch (u32Id >> ATTR_BW) {
        ******
        case HI_MW_ATTR_TEST_ONE:
        {
            HI_U32 testOne = 0;
            updateTestOne(testOne);
            memcpy(pData, &testOne, sizeof(testOne));
            break;
        }
        case HI_MW_ATTR_TEST_TWO:
        {
            HI_U32 testTwo = 0;
            updateTestTwo(testTwo);
            memcpy(pData, &testTwo, sizeof(testTwo));
            break;
        }
        ******
    }
    ******
}

HI_VOID GetLengthFromIDSubSix(HI_U32 u32Id, HI_U32 &u32Length)
{
    switch (u32Id) {
        ******
        case HI_MW_ATTR_TEST_ONE:
        case HI_MW_ATTR_TEST_TWO:
            u32Length = sizeof(HI_U32);
            break;
        ******
    }
}

HI_VOID updateTestOne(HI_U32 & value)
{
    value = HiCfgFact::Get()->ParseInt("databasedef:test_one");
}

HI_VOID updateTestTwo(HI_U32 & value)
{
    value = HiCfgFact::Get()->ParseInt("databasedef:test_two");
}

2.2.3. 完善hippo接口

Android/device/hisilicon/bigfish/hippo/vendor/adapter/hi_tv_instruct.h

enum ATV_CMD_ID_E {
    ******
    CMD_SYSTEM_RESTORETEST = 0x8040,
    CMD_SYSTEM_SETTEST = 0x8041,
    CMD_SYSTEM_GETTEST = 0x8042,
    ******
}

Android/device/hisilicon/bigfish/hippo/vendor/logic/module_api/hi_mw_logic_system_module.cpp

static HI_S32 RestoreTest(const Parcel &in, Parcel &out)
{
    HI_BOOL bMenuReset = (HI_BOOL)in.readInt32();
    HI_S32 ret = HiSystem::instance()->RestoreTest(bMenuReset);

    LOGI("bMenuReset:%d, ret:%d", bMenuReset, ret);
    return ret;
}

static HI_S32 SetTest(const Parcel &in, Parcel &out)
{
    HI_U32 u32Type;
    HI_U32 u32Value;
    u32Type = (HI_U32)in.readInt32();
    u32Value = (HI_U32)in.readInt32();
    HI_S32 ret = HiSystem::instance()->SetTest(u32Type, u32Value);
    LOGI("SetTest to DB, type:%d, value = %d, ret:%d", u32Type, u32Value, ret);
    return ret;
}

static HI_S32 GetTest(const Parcel &in, Parcel &out)
{
    HI_U32 u32Type;
    HI_U32 u32Value;
    u32Type = (HI_U32)in.readInt32();
    HI_S32 ret = HiSystem::instance()->GetTest(u32Type, &u32Value);
    out.writeInt32(u32Value);
    LOGI("GetTest from DB, type:%d, value = %d, ret:%d", u32Type, u32Value, ret);
    return ret;
}

static LocalAtomicInfo g_astSystemModuleLocalAtomicInfo[] = {
    ******
    { CMD_SYSTEM_RESTORETEST,         RestoreTest },
    { CMD_SYSTEM_SETTEST,             SetTest },
    { CMD_SYSTEM_GETTEST,             GetTest },
}

Android/device/hisilicon/bigfish/hippo/vendor/logic/include/hi_mw_logic_system.h

class HiSystem : public HiMWThread {
public:
    ******
    HI_S32 RestoreTest(HI_BOOL bMenuReset);

    HI_S32 SetTest(HI_U32 type, HI_U32 value);

    HI_S32 GetTest(HI_U32 type, HI_U32 *value);

private:
    ******
};

Android/device/hisilicon/bigfish/hippo/vendor/logic/setting/hi_mw_logic_system.cpp

HI_S32 HiSystem::RestoreTest(HI_BOOL bMenuReset)
{
    HiDBOFact::GetDBO()->RestoreTest(bMenuReset);
    LOGI("HiSystem::RestoreTest:%d", bMenuReset);
    return HI_SUCCESS;
}

HI_S32 HiSystem::SetTest(HI_U32 type, HI_U32 value)
{
    HI_U32 tmp = value;
    switch(type) {
        case 1:
            HiDBOFact::GetDBO()->Update(HI_MW_ATTR_TEST_ONE, (HI_U8 *)&tmp, sizeof(HI_U32));
            break;
        case 2:
            HiDBOFact::GetDBO()->Update(HI_MW_ATTR_TEST_TWO, (HI_U8 *)&tmp, sizeof(HI_U32));
            break;
        default:
            break;
    }
    LOGI("HiSystem::SetTest type:%d value:%d tmp:%d", type, value, tmp);
    return HI_SUCCESS;
}

HI_S32 HiSystem::GetTest(HI_U32 type, HI_U32 *value)
{
    if (value == HI_NULL) {
        LOGE("value is null ptr");
        return HI_FAILURE;
    }

    switch(type) {
        case 1:
            HiDBOFact::GetDBO()->Query(HI_MW_ATTR_TEST_ONE, (HI_U8 *)value, sizeof(HI_U32));
            break;
        case 2:
            HiDBOFact::GetDBO()->Query(HI_MW_ATTR_TEST_TWO, (HI_U8 *)value, sizeof(HI_U32));
            break;
        default:
            break;
    }
    LOGI("HiSystem::GetTest type:%d value=%d", type, *value);
    return HI_SUCCESS;
}

Android/device/hisilicon/bigfish/hippo/vendor/debug/hidebug/cmds.conf

[restoretest]
    command = rst
    belong module = system
    instruction    = 0x8040
    para format = d
    description = which way to reset test db data. eg: rst 1. [0:allreset 1:menureset]

[settest]
    command = stest
    belong module = system
    instruction    = 0x8041
    para format = dd
    description = set test one or two value. eg: stext 1 10. [1:test_one 2:test_two]

[gettest]
    command = gtest
    belong module = system
    instruction    = 0x8042
    para format = d
    print format = d
    print tags = test one or two value
    description = get test one or two value. eg: gtest 1. [1:test_one 2:test_two]

2.2.4. 完善jar包接口

Android/device/hisilicon/bigfish/hippo/api/java/com/hisilicon/android/tvapi/constant/EnumSystemCmd.java

public abstract class EnumSystemCmd {
    ******
    public static final int CMD_SYSTEM_RESTORETEST = 0x8040;
    public static final int CMD_SYSTEM_SETTEST = 0x8041;
    public static final int CMD_SYSTEM_GETTEST = 0x8042;
    ******
}

Android/device/hisilicon/bigfish/hippo/api/java/com/hisilicon/android/tvapi/impl/SystemSettingImpl.java

******
    public int RestoreTest(boolean bMenuReset) {
        int ret = HitvManager.getInstance().excuteCommandSet(EnumSystemCmd.CMD_SYSTEM_RESTORETEST, bMenuReset ? 1 : 0);

        HiMwLogTool.info(TAG, "RestoreTest, menureset:" + bMenuReset + retStatu(ret));
        return ret;
    }

    public int SetTest(int type, int value) {
        int ret = HitvManager.getInstance().excuteCommandSet(EnumSystemCmd.CMD_SYSTEM_SETTEST, type, value);

        HiMwLogTool.info(TAG, "SetTest, type:" + type + " value:" + value + retStatu(ret));
        return ret;
    }

    public int GetTest(int type) {
        int ret = HitvManager.getInstance().excuteCommandGet(EnumSystemCmd.CMD_SYSTEM_GETTEST, type);

        HiMwLogTool.info(TAG, "GetTest, type" + type + retStatu(ret));
        return ret;
    }
******

这里选择已经暴露给应用层的SystemSettingImpl实列，通过它调用对应CMD去实现功能。也可以使用海思其他实例，比如CusExImpl

3. 使用案例

3.1. hidebug

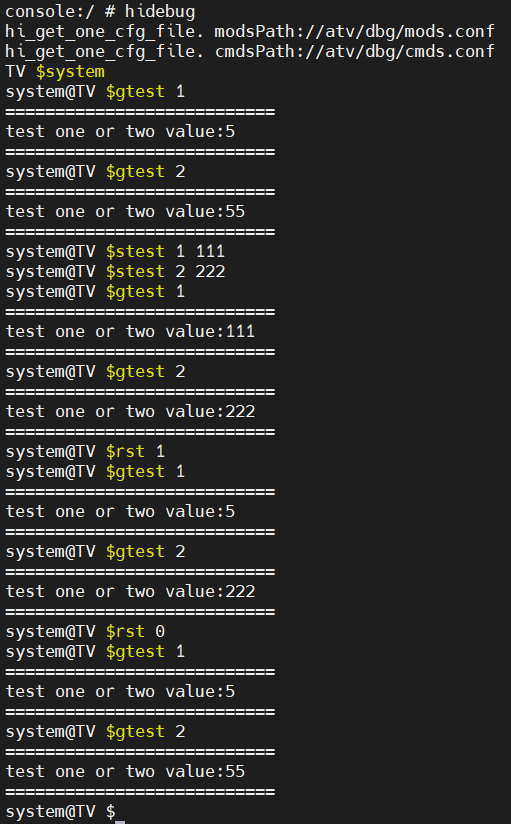

如图，依次执行命令，验证结果OK

3.2. appdebug

上面修改导入源码，编译后生成的新jar包，路径是

Android\out\target\common\obj\JAVA_LIBRARIES\HiDtvShare_intermediates\classes.jar

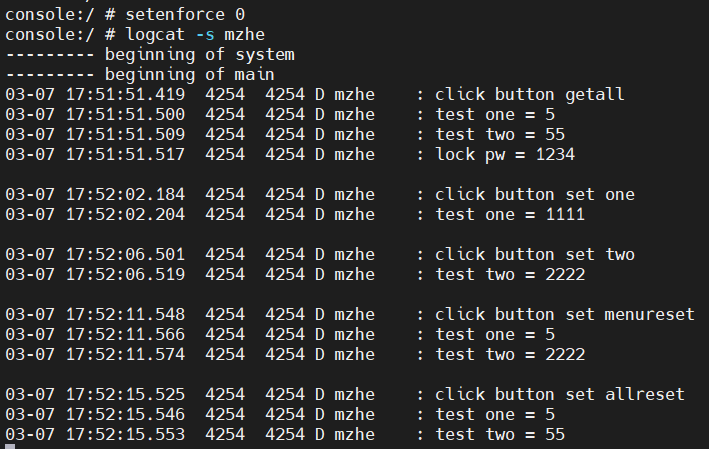

app导入jar包，调用接口

    @Override
    public void onClick(View view) {
        switch (view.getId()) {
            case R.id.buttonSetting:
                Log.d("mzhe", "click button getall");
                Log.d("mzhe", "test one = " + SystemSettingImpl.getInstance().GetTest(1));
                Log.d("mzhe", "test two = " + SystemSettingImpl.getInstance().GetTest(2));
                break;
            case R.id.buttonMiracast:
                Log.d("mzhe", "click button set one");
                SystemSettingImpl.getInstance().SetTest(1, 1111);
                Log.d("mzhe", "test one = " + SystemSettingImpl.getInstance().GetTest(1));
                break;
            case R.id.buttonMedia:
                Log.d("mzhe", "click button set two");
                SystemSettingImpl.getInstance().SetTest(2, 2222);
                Log.d("mzhe", "test two = " + SystemSettingImpl.getInstance().GetTest(2));
                break;
            case R.id.buttonStore:
                Log.d("mzhe", "click button set menureset");
                SystemSettingImpl.getInstance().RestoreTest(true);
                Log.d("mzhe", "test one = " + SystemSettingImpl.getInstance().GetTest(1));
                Log.d("mzhe", "test two = " + SystemSettingImpl.getInstance().GetTest(2));
                break;
            case R.id.buttonInputSource:
                Log.d("mzhe", "click button set allreset");
                SystemSettingImpl.getInstance().RestoreTest(false);
                Log.d("mzhe", "test one = " + SystemSettingImpl.getInstance().GetTest(1));
                Log.d("mzhe", "test two = " + SystemSettingImpl.getInstance().GetTest(2));
                break;
            default:
                break;
        }
    }

使用的时候记得关闭selinux，或者加上对应的权限也行。这里简单调试，就直接setenforce 0关闭selinux了

---

总结

本文是实例分享，做了个简单demo，图方便直接使用了system module。

其实海思有预留客户空间，专门用来客制化hippo接口，有兴趣的话可以去了解CusExImpl结构。可以把所有客制化接口放单独的文件夹统一管理。
