RIP协议
概述 RIP(Routing Information Protocol)是一种内部网关协议(IGP),用于在自治系统(AS)内部的路由器之间交换路由信息。RIP基于距离矢量算法,即路由器根据到达目的地的跳数(hop count)来选择最佳路径。跳数是指数据包从源到目的地所必须经过的路由器数量。
RIP有两个主要版本:RIPv1和RIPv2。RIPv1是一个有类别的协议,不支持VLSM和CIDR,因此在现代网络中很少使用。RIPv2是一个无类别的协议,支持VLSM和CIDR,是目前常用的版本。
VLSM(Variable Length Subnet Mask)允许在一个网络中使用不同的子网掩码,这样可以更有效地使用IP地址空间。CIDR(Classless Inter-Domain Routing)是一种IP地址分配和路由技术,它消除了传统的A、B、C类网络的划分,允许连续的IP地址块被分配给单个网络。
RIP适用于小型网络,因为它限制了最大跳数为15,这意味着任何超过15跳的目的地都被视为不可达。这个限制使得RIP不适用于大型或复杂的网络环境。
在RIP网络中,路由器会定期(默认每30秒)向其相邻路由器广播自己的完整路由表,以便所有路由器都能了解网络拓扑的变化。
- 思科路由器中配置RIP路由的常用命令
在思科路由器上配置RIP路由通常涉及以下命令:
router rip
:启用RIP路由协议。version {1|2}
:指定RIP协议的版本。network network-addr
:指定与该路由器直接相连的网络地址,这样RIP就会在该网络内广播路由更新。neighbor ip-addr
:指定邻接路由器的IP地址,以便它们可以交换路由信息。passive-interface type number
:阻止在指定的接口发送路由更新信息,这在不需要在该接口上传播RIP更新时非常有用。show ip route
:显示路由器的路由表信息。show ip protocols
:显示路由器上运行的路由协议及其相关参数。
- 配置RIP的示例场景(使用Cisco Packet Tracer Student)
假设我们要配置一个包含四台路由器的网络,使用RIPv2协议。以下是大致的步骤:
- 打开Cisco Packet Tracer Student。
- 创建一个网络拓扑,包含四台路由器和必要的网络设备(如交换机、主机等)。
- 为每台路由器配置IP地址、子网掩码和其他必要的接口设置。
- 在每台路由器上进入全局配置模式,输入以启用RIP。
router rip
- 输入以指定使用RIPv2。
version 2
- 对于每台路由器,使用命令指定与其直连的网络。
network
- 保存配置并退出配置模式。
- 等待一段时间,让路由器交换路由信息,并通过和命令检查路由表和RIP状态。
show ip route
show ip protocols
请注意,实际配置时可能需要根据具体的网络拓扑和需求进行调整。此外,由于RIP的局限性,它在现代网络中通常被更先进的路由协议(如OSPF或EIGRP)所取代
如何配置RIP_4台路由器 模拟器使用Cisco Packet Tracer Student

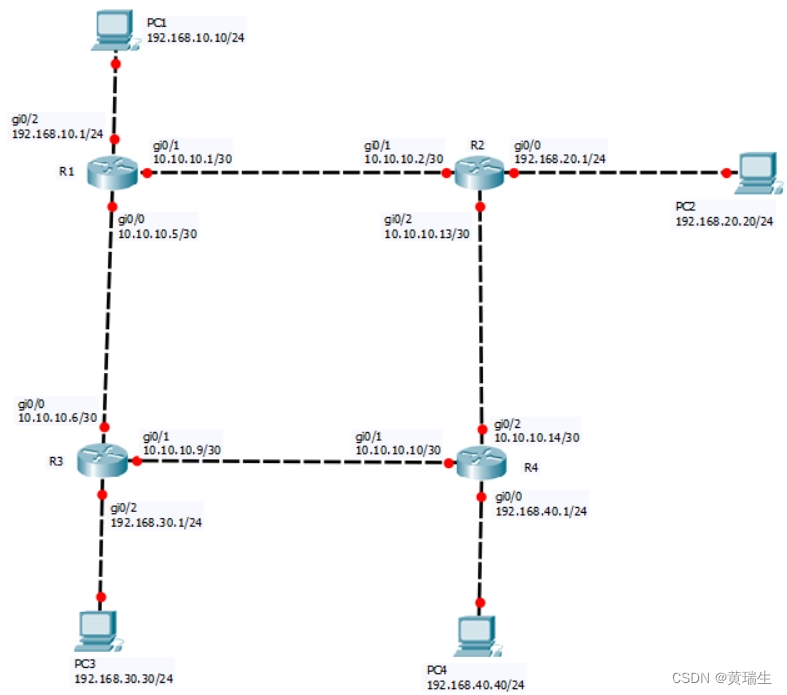

根据网络拓扑图在cisco packet tracer中绘制,使用RIPv2进行配置,实现PC1能ping通PC2、PC3和PC4。
R1 配置及其解释
enable
configure terminal
no logging on
no ip domain-lookup
hostname R1
interface GigabitEthernet 0/0
no shutdown
ip address 10.10.10.5 255.255.255.252
exit
interface GigabitEthernet 0/1
no shutdown
ip address 10.10.10.1 255.255.255.0
exit
interface GigabitEthernet 0/2
no shutdown
ip address 192.168.10.1 255.255.255.0
exit
router rip
version 2
network 10.10.10.0
network 10.10.10.4
network 192.168.10.0
no auto-summary
exit
exit
write
copy running-config startup-config
R2 配置及其解释
enable
configure terminal
no logging on
no ip domain-lookup
hostname R2
interface GigabitEthernet 0/0
no shutdown
ip address 192.168.20.1 255.255.255.0
exit
interface GigabitEthernet 0/1
no shutdown
ip address 10.10.10.2 255.255.255.252
exit
interface GigabitEthernet 0/2
no shutdown
ip address 10.10.10.13 255.255.255.252
exit
router rip
version 2
network 192.168.20.0
network 10.10.10.0
network 10.10.10.12
no auto-summary
exit
exit
write
copy running-config startup-config
R3 配置及其解释
enable
configure terminal
no logging on
no ip domain-lookup
hostname R3
interface GigabitEthernet 0/0
no shutdown
ip address 10.10.10.6 255.255.255.252
exit
interface GigabitEthernet 0/1
no shutdown
ip address 10.10.10.9 255.255.255.252
exit
interface GigabitEthernet 0/2
no shutdown
ip address 192.168.30.1 255.255.255.0
exit
router rip
version 2
network 10.10.10.4
network 10.10.10.8
network 192.168.30.0
no auto-summary
exit
exit
write
copy running-config startup-config
R4 配置及其解释
enable
configure terminal
no logging on
no ip domain-lookup
hostname R1
interface GigabitEthernet 0/0
no shutdown
ip address 192.168.40.1 255.255.255.255
exit
interface GigabitEthernet 0/1
no shutdown
ip address 10.10.10.10 255.255.255.252
exit
interface GigabitEthernet 0/2
no shutdown
ip address 10.10.10.14 255.255.255.252
exit
router rip
version 2
network 192.168.40.0
network 10.10.10.18
network 10.10.10.12
no auto-summary
exit
exit
write
copy running-config startup-config
配置验证
PC1要能ping通PC3和PC4
PC2要能ping通PC3和PC4
L-local,本地路由信息,上图中,192.168.1.1/32就是L,上图是R1的路由信息,192.168.1.1/32这个IP地址就是在R1的gigabitethernet 0/1上面,因此是R1的本地路由信息。
C-connected直连路由信息,上图中,192.168.1.0/24这个网段是R1的gi0/1口连接的,因此,R1的直连路由就包括192.168.1.0/24这个网段。
R-rip,路由器R1从其gigabitethernet0/0口收到来自192.168.1.2发给它的关于10.1.1.0/24这个网段的信息。
在本案例中,如果R1和R2没有配置RIP,PC1是否能ping通PC4,为什么?
R1只能获得192.168.1.0/24、192.168.2.0/24,192.168.1.0/30网段的信息,无法获得10.1.1.0/24和10.2.2.0/24网段的信息。同理R2无法获得192.168.1.0/24、192.168.2.0/24网段的信息。要么配静态路由,要么配动态路由。
