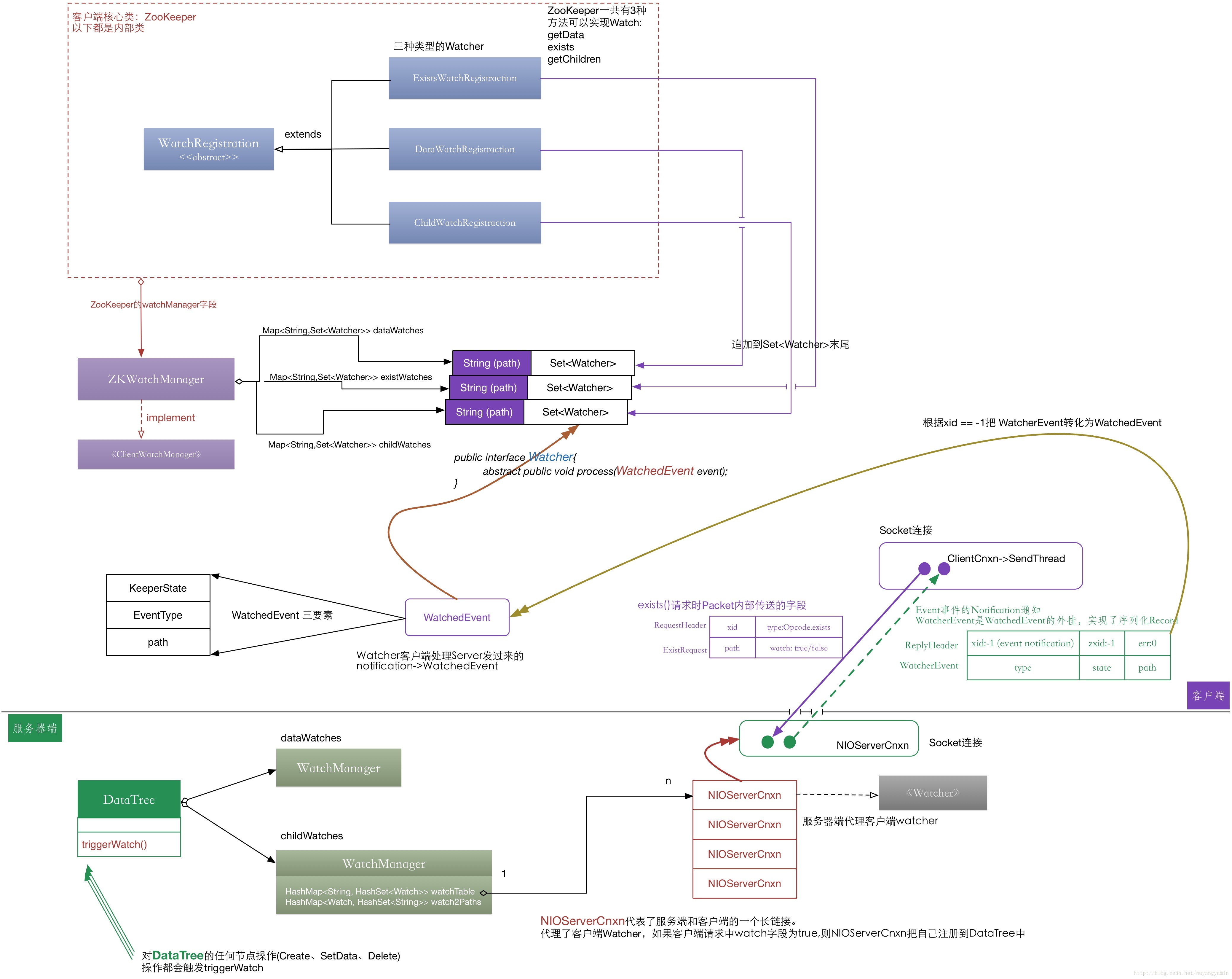

watcher实现数据结构和数据流图
客户端
客户端接收Watch event的notification消息
所有的Watcher最终回调都是在ClientCnxn内部类SendThread中进行接收消息。server发给客户端的Notification事件通知的消息体的xid字段比较特殊,为-1.
class SendThread extends Thread {
private long lastPingSentNs;
private final ClientCnxnSocket clientCnxnSocket;
private Random r = new Random(System.nanoTime());
private boolean isFirstConnect = true;
void readResponse(ByteBuffer incomingBuffer) throws IOException {
ByteBufferInputStream bbis = new ByteBufferInputStream(
incomingBuffer);
BinaryInputArchive bbia = BinaryInputArchive.getArchive(bbis);
ReplyHeader replyHdr = new ReplyHeader();
replyHdr.deserialize(bbia, "header");
if (replyHdr.getXid() == -2) {
// -2 is the xid for pings
if (LOG.isDebugEnabled()) {
LOG.debug("Got ping response for sessionid: 0x"
+ Long.toHexString(sessionId)
+ " after "
+ ((System.nanoTime() - lastPingSentNs) / 1000000)
+ "ms");
}
return;
}
if (replyHdr.getXid() == -4) {
// -4 is the xid for AuthPacket
if(replyHdr.getErr() == KeeperException.Code.AUTHFAILED.intValue()) {
state = States.AUTH_FAILED;
eventThread.queueEvent( new WatchedEvent(Watcher.Event.EventType.None,
Watcher.Event.KeeperState.AuthFailed, null) );
}
if (LOG.isDebugEnabled()) {
LOG.debug("Got auth sessionid:0x"
+ Long.toHexString(sessionId));
}
return;
}
if (replyHdr.getXid() == -1) { //目前我们只关注 xid == -1 代表WatchedEvent的事件Notification
// -1 means notification
if (LOG.isDebugEnabled()) {
LOG.debug("Got notification sessionid:0x"
+ Long.toHexString(sessionId));
}
WatcherEvent event = new WatcherEvent(); //WatcherEvent用来序列化和反序列化,内部字段顺序和WatchedEvent完全一致
event.deserialize(bbia, "response");
// convert from a server path to a client path
if (chrootPath != null) {
String serverPath = event.getPath();
if(serverPath.compareTo(chrootPath)==0)
event.setPath("/");
else if (serverPath.length() > chrootPath.length())
event.setPath(serverPath.substring(chrootPath.length()));
else {
LOG.warn("Got server path " + event.getPath()
+ " which is too short for chroot path "
+ chrootPath);
}
}
WatchedEvent we = new WatchedEvent(event);
if (LOG.isDebugEnabled()) {
LOG.debug("Got " + we + " for sessionid 0x"
+ Long.toHexString(sessionId));
}
eventThread.queueEvent( we ); //最终Event事件执行靠EventThread线程,先放到EventThread的内部队列中
return;
}
// If SASL authentication is currently in progress, construct and
// send a response packet immediately, rather than queuing a
// response as with other packets.
....
}
....
}
客户端对WatchedEvent处理的入口
而EventThread异步线程run()函数如下:
class EventThread extends Thread {
private final LinkedBlockingQueue<Object> waitingEvents =
new LinkedBlockingQueue<Object>();
@Override
public void run() {
try {
isRunning = true;
while (true) {
Object event = waitingEvents.take();
if (event == eventOfDeath) {
wasKilled = true;
} else {
processEvent(event);
}
if (wasKilled)
synchronized (waitingEvents) {
if (waitingEvents.isEmpty()) {
isRunning = false;
break;
}
}
}
} catch (InterruptedException e) {
LOG.error("Event thread exiting due to interruption", e);
}
LOG.info("EventThread shut down");
}
....
}
服务器端
服务器端,所有对ZNode节点数据的增删改,都会触发事件。
DataTree触发Watcher入口
现在先以修改znode数据为例
文件:DataTree.java
public Stat setData(String path, byte data[], int version, long zxid,
long time) throws KeeperException.NoNodeException {
Stat s = new Stat();
DataNode n = nodes.get(path);
if (n == null) {
throw new KeeperException.NoNodeException();
}
byte lastdata[] = null;
synchronized (n) {
lastdata = n.data;
n.data = data;
n.stat.setMtime(time);
n.stat.setMzxid(zxid);
n.stat.setVersion(version);
n.copyStat(s);
}
// now update if the path is in a quota subtree.
String lastPrefix;
if((lastPrefix = getMaxPrefixWithQuota(path)) != null) {
this.updateBytes(lastPrefix, (data == null ? 0 : data.length)
- (lastdata == null ? 0 : lastdata.length));
}
dataWatches.triggerWatch(path, EventType.NodeDataChanged);
return s;
}
在最后,调用dataWatchers.triggerWatch(path, EventType.NodeDataChanged) 对path路径的节点进行Watcher回调。
文件:WatchManager.java
public Set<Watcher> triggerWatch(String path, EventType type, Set<Watcher> supress) {
WatchedEvent e = new WatchedEvent(type,
KeeperState.SyncConnected, path);
HashSet<Watcher> watchers;
synchronized (this) {
watchers = watchTable.remove(path);
if (watchers == null || watchers.isEmpty()) {
if (LOG.isTraceEnabled()) {
ZooTrace.logTraceMessage(LOG,
ZooTrace.EVENT_DELIVERY_TRACE_MASK,
"No watchers for " + path);
}
return null;
}
for (Watcher w : watchers) {
HashSet<String> paths = watch2Paths.get(w);
if (paths != null) {
paths.remove(path);
}
}
}
for (Watcher w : watchers) {
//这里的Watcher w实际上服务器代理客户端Watch对象,为NIOServerCnxn类
if (supress != null && supress.contains(w)) {
continue;
}
w.process(e);
}
return watchers;
}
NIOServerCnxn代理Watcher进行数据通信
首先,介绍下NIOServerCnxn,其是客户端和Server进行通信的封装类,内部包含了socket连接的input、outputStream,是从NIO SelectedKey衍生出来的输入输出。
NIOServerCnxn的另外一个重要作用,使他实现了Watcher接口,完成对客户端Watcher的代理。
文件: NIOServerCnxn
@Override
synchronized public void process(WatchedEvent event) {
ReplyHeader h = new ReplyHeader(-1, -1L, 0); //注意这里xid为-1
if (LOG.isTraceEnabled()) {
ZooTrace.logTraceMessage(LOG, ZooTrace.EVENT_DELIVERY_TRACE_MASK,
"Deliver event " + event + " to 0x"
+ Long.toHexString(this.sessionId)
+ " through " + this);
}
// Convert WatchedEvent to a type that can be sent over the wire
WatcherEvent e = event.getWrapper();
sendResponse(h, e, "notification"); //对WatcherEvent进行序列化,网络传输
}
