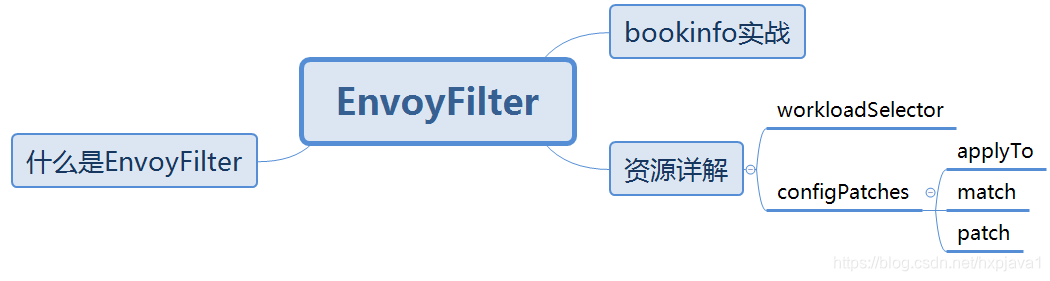

学习目标
什么是EnvoyFilter
EnvoyFilter provides a mechanism to customize the Envoy configuration generated by Istio Pilot. Use EnvoyFilter to modify values for certain fields, add specific filters, or even add entirely new listeners, clusters, etc. This feature must be used with care, as incorrect configurations could potentially destabilize the entire mesh. Unlike other Istio networking objects, EnvoyFilters are additively applied. Any number of EnvoyFilters can exist for a given workload in a specific namespace. The order of application of these EnvoyFilters is as follows: all EnvoyFilters in the config root namespace, followed by all matching EnvoyFilters in the workload’s namespace.
资源详解
| Field | Type | Description | Required |
|---|---|---|---|
workloadSelector | WorkloadSelector | Criteria used to select the specific set of pods/VMs on which this patch configuration should be applied. If omitted, the set of patches in this configuration will be applied to all workload instances in the same namespace. If omitted, the EnvoyFilter patches will be applied to all workloads in the same namespace. If the EnvoyFilter is present in the config root namespace, it will be applied to all applicable workloads in any namespace. | No |
configPatches | EnvoyConfigObjectPatch[] | One or more patches with match conditions. | Yes |
没有workloadSelector
全局有效
ef-accesslog-global.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: access-log
namespace: istio-system
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
access_log:
- name: envoy.access_loggers.file
typed_config:
"@type": "type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog"
path: /dev/stdout
log_format:
text_format: "[%START_TIME%] \" %RESPONSE_CODE% \n"名称空间有效
ef-accesslog-namespeced.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: access-log
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
access_log:
- name: envoy.access_loggers.file
typed_config:
"@type": "type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog"
path: /dev/stdout
log_format:
text_format: "[%START_TIME%] \" %RESPONSE_CODE% \n"workloadSelector
ef-productpage-accesslog.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: access-log
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
access_log:
- name: envoy.access_loggers.file
typed_config:
"@type": "type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog"
path: /dev/stdout
log_format:
text_format: "[%START_TIME%] \" %RESPONSE_CODE% \n"configPatches
| Field | Type | Description | Required |
|---|---|---|---|
applyTo | ApplyTo | Specifies where in the Envoy configuration, the patch should be applied. The match is expected to select the appropriate object based on applyTo. For example, an applyTo with HTTP_FILTER is expected to have a match condition on the listeners, with a network filter selection on envoy.filters.network.http_connection_manager and a sub filter selection on the HTTP filter relative to which the insertion should be performed. Similarly, an applyTo on CLUSTER should have a match (if provided) on the cluster and not on a listener. | No |
match | EnvoyConfigObjectMatch | Match on listener/route configuration/cluster. | No |
patch | Patch | The patch to apply along with the operation. | No |
applyTo
ApplyTo specifies where in the Envoy configuration, the given patch should be applied.
| Name | Description |
|---|---|
INVALID | |
LISTENER | Applies the patch to the listener. |
FILTER_CHAIN | Applies the patch to the filter chain. |
NETWORK_FILTER | Applies the patch to the network filter chain, to modify an existing filter or add a new filter. |
HTTP_FILTER | Applies the patch to the HTTP filter chain in the http connection manager, to modify an existing filter or add a new filter. |
ROUTE_CONFIGURATION | Applies the patch to the Route configuration (rds output) inside a HTTP connection manager. This does not apply to the virtual host. Currently, only MERGE operation is allowed on the route configuration objects. |
VIRTUAL_HOST | Applies the patch to a virtual host inside a route configuration. |
HTTP_ROUTE | Applies the patch to a route object inside the matched virtual host in a route configuration. |
CLUSTER | Applies the patch to a cluster in a CDS output. Also used to add new clusters. |
EXTENSION_CONFIG | Applies the patch to or adds an extension config in ECDS output. Note that ECDS is only supported by HTTP filters. |
INVALID
LISTENER
kubectl apply -f gateway/gateway-https.yaml -n istio
ef-ingressgateway-remove-listener.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: LISTENER
match:
listener:
portNumber: 8080
patch:
operation: REMOVE删除8443 listener
kubectl port-forward istio-ingressgateway-d46c4ff9b-zsjgd -n istio-system --address 0.0.0.0 15001:15000
http://192.168.198.154:15001/config_dump
添加监听器
ef-productpage-add-listener.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: LISTENER
match:
context: SIDECAR_INBOUND
patch:
operation: ADD
value:
name: proxy
address:
socket_address:
protocol: TCP
address: 0.0.0.0
port_value: 8083
filter_chains:
- filters:
- name: "envoy.filters.network.http_connection_manager"
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
stat_prefix: ingress_proxy
route_config:
name: route_a
virtual_hosts:
- name: envoy_cyz
domains:
- "*"
routes:
- match:
prefix: "/"
route:
cluster: cluster123
http_filters:
- name: "envoy.filters.http.router
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.router.v3.Router"
- applyTo: CLUSTER
patch:
operation: ADD
value:
name: "cluster123"
type: STATIC
connect_timeout: 0.5s
lb_policy: ROUND_ROBIN
load_assignment:
cluster_name: cluster123
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: 127.0.0.1
port_value: 9080添加vs
vs-bookinfo.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- "*"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
prefix: /
route:
- destination:
host: productpage.istio.svc.cluster.local
port:
number: 8083k8s svc 添加端口
kubectl edit svc productpage -n istio
- name: http8083
port: 8083
protocol: TCP
targetPort: 8083访问:
http://bookinfo.demo:30986/productpage
添加listenerFilter
ef-listener-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: LISTENER
patch:
operation: MERGE
value:
listener_filters:
- name: envoy.filters.listener.original_src
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.listener.original_src.v3.OriginalSrc
- name: envoy.filters.listener.tls_inspectorFILTER_CHAIN
ef-ingressgateway-filter-chain-remove.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: FILTER_CHAIN
match:
listener:
portNumber: 8080
patch:
operation: REMOVE
ef-ingressgateway-filter-chain-merge.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: FILTER_CHAIN
match:
listener:
portNumber: 8080
patch:
operation: MERGE
value:
name: test
NETWORK_FILTER
ef-ingressgateway-network-filter-merge.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
name: envoy.filters.network.http_connection_manager
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
"stat_prefix": "test"
echo
先部署gateway
gateway/gateway-mysql.yaml
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: mysql
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 3306
name: mysql
protocol: MYSQL
hosts:
- "*"
ef-ingressgateway-network-filter-echo-3306.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
patch:
operation: REMOVE
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
patch:
operation: ADD
value:
name: envoy.filters.network.echo
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.echo.v3.Echo"
telnet 192.168.198.154 30300
direct_response
先部署网关，同上
ef-ingressgateway-network-filter-direct_response-3306.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
patch:
operation: REMOVE
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 3306
patch:
operation: ADD
value:
name: envoy.filters.network.direct_response
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.direct_response.v3.Config"
response:
inline_string: "test this is direct response||||||"
telnet 192.168.198.154 30300
dubbo
applyto/dubbo/dubbo-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: dubbo-sample-provider-v1
labels:
app: dubbo-sample-provider
spec:
selector:
matchLabels:
app: dubbo-sample-provider
replicas: 1
template:
metadata:
labels:
app: dubbo-sample-provider
version: v1
spec:
containers:
- name: dubbo-sample-provider
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/dubbo-sample-provider
imagePullPolicy: IfNotPresent
ports:
- containerPort: 20880
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: dubbo-sample-provider-v2
labels:
app: dubbo-sample-provider
spec:
selector:
matchLabels:
app: dubbo-sample-provider
replicas: 1
template:
metadata:
labels:
app: dubbo-sample-provider
version: v2
spec:
containers:
- name: dubbo-sample-provider
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/dubbo-sample-provider
imagePullPolicy: IfNotPresent
ports:
- containerPort: 20880
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: dubbo-sample-consumer
labels:
app: dubbo-sample-consumer
spec:
selector:
matchLabels:
app: dubbo-sample-consumer
replicas: 1
template:
metadata:
labels:
app: dubbo-sample-consumer
spec:
containers:
- name: dubbo-sample-consumer
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/dubbo-sample-consumer
imagePullPolicy: IfNotPresent
env:
- name: mode
value: demo
applyto/dubbo/se-dubbo.yaml
apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
name: test-dubbo-service
annotations:
interface: org.apache.dubbo.samples.basic.api.DemoService
spec:
hosts:
- org.apache.dubbo.samples.basic.api.demoservice
addresses:
- 192.168.198.166
ports:
- number: 20880
name: tcp-dubbo
protocol: TCP
workloadSelector:
labels:
app: dubbo-sample-provider
resolution: STATIC
applyto/dubbo/dr-dubbo.yaml
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: dubbo-sample-provider
spec:
host: org.apache.dubbo.samples.basic.api.demoservice
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
applyto/dubbo/ef-dubbo.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: envoyfilter-dubbo-proxy
namespace: istio-system
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: 193.193.192.192_20880
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.dubbo_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.dubbo_proxy.v3.DubboProxy
stat_prefix: outbound|20880||org.apache.dubbo.samples.basic.api.demoservice
protocol_type: Dubbo
serialization_type: Hessian2
route_config:
- name: outbound|20880||org.apache.dubbo.samples.basic.api.demoservice
interface: org.apache.dubbo.samples.basic.api.DemoService
routes:
- match:
method:
name:
exact: sayHello
route:
cluster: outbound|20880|v2|org.apache.dubbo.samples.basic.api.demoservice
- applyTo: NETWORK_FILTER
match:
listener:
name: virtualInbound
filterChain:
destination_port: 20880
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.dubbo_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.dubbo_proxy.v3.DubboProxy
stat_prefix: inbound|20880||
protocol_type: Dubbo
serialization_type: Hessian2
route_config:
- name: inbound|20880||
interface: org.apache.dubbo.samples.basic.api.DemoService
routes:
- match:
method:
name:
exact: sayHello
route:
cluster: inbound|20880||
thrift_proxy
1部署应用
applyto/thrift/thrift-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: thrift-sample-server-v1
labels:
app: thrift-sample-server
spec:
selector:
matchLabels:
app: thrift-sample-server
replicas: 1
template:
metadata:
labels:
app: thrift-sample-server
version: v1
spec:
containers:
- name: thrift-sample-server
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/thrift-sample-server:latest
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9090
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: thrift-sample-server-v2
labels:
app: thrift-sample-server
spec:
selector:
matchLabels:
app: thrift-sample-server
replicas: 1
template:
metadata:
labels:
app: thrift-sample-server
version: v2
spec:
containers:
- name: thrift-sample-server
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/thrift-sample-server:latest
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9090
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: thrift-sample-client
labels:
app: thrift-sample-client
spec:
selector:
matchLabels:
app: thrift-sample-client
replicas: 1
template:
metadata:
labels:
app: thrift-sample-client
spec:
containers:
- name: thrift-sample-client
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/thrift-sample-client:latest
imagePullPolicy: IfNotPresent
env:
- name: helloServer
value: "thrift-sample-server"
- name: mode
value: "demo"
---
apiVersion: v1
kind: Service
metadata:
name: thrift-sample-server
spec:
selector:
app: thrift-sample-server
ports:
- name: tcp-thrift-hello-server
protocol: TCP
port: 9090
targetPort: 9090
---
2配置dr
applyto/thrift/dr-thrift.yaml
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: thrift-sample-server
spec:
host: thrift-sample-server
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
3配置envoyfilter
applyto/thrift/envoyfilter-thrift-proxy.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: thrift-sample-server
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${thrift-sample-server-vip}_9090 # sed -i .bak "s/\${thrift-sample-server-vip}/`kubectl get svc thrift-sample-server -n thrift -o=jsonpath='{.spec.clusterIP}'`/" istio/envoyfilter-thrift-proxy.yaml
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.thrift_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.thrift_proxy.v3.ThriftProxy
stat_prefix: "outbound|9090||thrift-sample-server.thrift.svc.cluster.local"
transport: AUTO_TRANSPORT
protocol: AUTO_PROTOCOL
thrift_filters:
- name: envoy.filters.thrift.router
route_config:
routes:
- match:
# empty string matches any request method name
method_name: ""
route:
weighted_clusters:
clusters:
- name: "outbound|9090|v1|thrift-sample-server.istio.svc.cluster.local"
weight: 50
- name: "outbound|9090|v2|thrift-sample-server.istio.svc.cluster.local"
weight: 50
- applyTo: NETWORK_FILTER
match:
listener:
name: virtualInbound
filterChain:
destination_port: 9090
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.thrift_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.thrift_proxy.v3.ThriftProxy
stat_prefix: inbound|9090||
transport: AUTO_TRANSPORT
protocol: AUTO_PROTOCOL
thrift_filters:
- name: envoy.filters.thrift.router
route_config:
routes:
- match:
# empty string matches any request method name
method_name: ""
route:
cluster: inbound|9090||
替换${thrift-sample-server-vip}
4查看日志
kubectl logs --tail 10 -f thrift-sample-client-85696799d9-5bmn4 -n istio
zoonkeeper&kafka
1部署应用
helm repo add bitnami https://charts.bitnami.com/bitnami
helm repo update
helm install my-release --set persistence.enabled=false --set zookeeper.persistence.enabled=false bitnami/kafka -n istio
applyto/kafka-zoonkeeper/kafka-sample.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
name: kafka-cat-producer
spec:
selector:
matchLabels:
app: kafka-cat-producer
template:
metadata:
labels:
app: kafka-cat-producer
spec:
containers:
- name: kafka-cat-producer
image: confluentinc/cp-kafkacat
imagePullPolicy: IfNotPresent
command: ["/bin/sh"]
args: ["-c", "while true; do echo -e 'send kafka message '`date`'\r\n'|kafkacat -P -b my-release-kafka:9092 -t test; echo 'send message to kafka'; sleep $((1 + RANDOM % 11)); done"]
---
kind: Deployment
apiVersion: apps/v1
metadata:
name: kafka-cat-consumer
spec:
selector:
matchLabels:
app: kafka-cat-consumer
template:
metadata:
labels:
app: kafka-cat-consumer
spec:
containers:
- name: kafka-cat-consumer
image: confluentinc/cp-kafkacat
imagePullPolicy: IfNotPresent
command: ["/bin/sh"]
args: ["-c", "kafkacat -C -b my-release-kafka:9092 -t test"]
2配置kafka envoyfilter
applyto/kafka-zoonkeeper/envoyfilter-kafka-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: kafka-envoy-filter
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${my-release-kafka}_9092 # sed -i .bak "s/\${my-release-kafka}/`kubectl get svc my-release-kafka -n kafka -o=jsonpath='{.spec.clusterIP}'`/" istio/envoyfilter-kafka-filter.yaml
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.kafka_broker
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.kafka_broker.v3.KafkaBroker
stat_prefix: "outbound|9092||my-release-kafka.istio.svc.cluster.local"
替换${my-release-kafka}
3配置zoonkeeper envoyfilter
applyto/kafka-zoonkeeper/envoyfilter-zookeeper-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: zookeeper-envoy-filter
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${my-release-zookeeper}_2181 # sed -i .bak "s/\${my-release-zookeeper}/`kubectl get svc my-release-zookeeper -n kafka -o=jsonpath='{.spec.clusterIP}'`/" istio/envoyfilter-zookeeper-filter.yaml
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.zookeeper_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.zookeeper_proxy.v3.ZooKeeperProxy
stat_prefix: "outbound|2181||my-release-zookeeper.istio.svc.cluster.local"
替换${my-release-zookeeper}
4测试
kubectl exec -it kafka-cat-consumer-6865bdcf9b-c55h9 -n istio -- /bin/bash
kafkacat -C -b my-release-kafka:9092 -t test
mysql_proxy
ef-network_filter_mysql.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: mysqldb
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: 10.68.10.86_3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.mysql_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.mysql_proxy.v3.MySQLProxy
- applyTo: NETWORK_FILTER
match:
listener:
name: 10.68.10.86_3306
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.network.rbac
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.rbac.v3.RBAC
stat_prefix: rbac
rules:
action: DENY
policies:
"product-viewer":
permissions:
- metadata:
filter: envoy.filters.network.mysql_proxy
path:
- key: t1.test
value:
list_match:
one_of:
string_match:
prefix: update
principals:
- any: true
enforcement_type: CONTINUOUS
注意修改listener ip
csrf
applyto/csrf/samesite/csrf-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: csrf
labels:
app: csrf
spec:
selector:
matchLabels:
app: csrf
replicas: 1
template:
metadata:
labels:
app: csrf
version: v1
spec:
containers:
- name: csrf
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/csrf-satesite:latest
imagePullPolicy: Always
ports:
- containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
name: csrf
spec:
selector:
app: csrf
ports:
- name: tcp-csrf
protocol: TCP
port: 8080
targetPort: 8080
---
applyto/csrf/samesite/envoyfilter-csrf-gateway.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
#name: 0.0.0.0_8080
portNumber: 8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
name: envoy.filters.network.http_connection_manager
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
codec_type: AUTO
stat_prefix: ingress_http
route_config:
name: local_route
virtual_hosts:
- name: www
domains:
- "*"
cors:
allow_origin_string_match:
- safe_regex:
google_re2: {}
regex: .*
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
typed_per_filter_config:
envoy.filters.http.csrf:
"@type": type.googleapis.com/envoy.extensions.filters.http.csrf.v3.CsrfPolicy
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
runtime_key: csrf.www.enabled
shadow_enabled:
default_value:
numerator: 0
denominator: HUNDRED
runtime_key: csrf.www.shadow_enabled
routes:
- match:
prefix: "/csrf/disabled"
route:
cluster: generic_service
typed_per_filter_config:
envoy.filters.http.csrf:
"@type": type.googleapis.com/envoy.extensions.filters.http.csrf.v3.CsrfPolicy
filter_enabled:
default_value:
numerator: 0
denominator: HUNDRED
- match:
prefix: "/csrf/shadow"
route:
cluster: generic_service
typed_per_filter_config:
envoy.filters.http.csrf:
"@type": type.googleapis.com/envoy.extensions.filters.http.csrf.v3.CsrfPolicy
filter_enabled:
default_value:
numerator: 0
denominator: HUNDRED
shadow_enabled:
default_value:
numerator: 100
denominator: HUNDRED
- match:
prefix: "/csrf/additional_origin"
route:
cluster: generic_service
typed_per_filter_config:
envoy.filters.http.csrf:
"@type": type.googleapis.com/envoy.extensions.filters.http.csrf.v3.CsrfPolicy
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
additional_origins:
- safe_regex:
google_re2: {}
regex: .*
- match:
prefix: "/"
route:
cluster: generic_service
- applyTo: HTTP_FILTER
match:
listener:
#name: 0.0.0.0_8080
portNumber: 8080
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: envoy.filters.http.router
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.cors
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.cors.v3.Cors
- applyTo: HTTP_FILTER
match:
listener:
#name: 0.0.0.0_8080
portNumber: 8080
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: envoy.filters.http.router
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.csrf
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.csrf.v3.CsrfPolicy
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
- applyTo: CLUSTER
match:
context: ANY
cluster: {}
patch:
operation: ADD
value:
name: generic_service
connect_timeout: 0.25s
type: STRICT_DNS
lb_policy: ROUND_ROBIN
load_assignment:
cluster_name: generic_service
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: csrf.istio.svc.cluster.local
port_value: 8080
cors
index.html
<html>
<head><title></title></head>
<body>
<script type="text/javascript" src="https://code.jquery.com/jquery-3.2.1.min.js"></script>
<script>
$(function(){
$("#cors").click(
function(){
$.ajax({
type:"get",
dataType : "html",
url:"http://bookinfo.demo:30986/productpage",
success:function(data){
alert(data);
}
})
});
$("#cors2").click(
function(){
$.ajax({
type:"get",
dataType : "json",
url:"http://bookinfo.demo:30986/reviews/1",
contentType : 'application/json;charset=UTF-8',
success:function(data){
var jsonStr = JSON.stringify(data);
alert(jsonStr);
}
})
});
$("#cors3").click(
function(){
$.ajax({
type:"delete",
contentType : 'application/json;charset=UTF-8',
dataType : "json",
url:"http://bookinfo.demo:30986/reviews/1",
success:function(data){
var jsonStr = JSON.stringify(data);
alert(jsonStr);
}
})
});
$("#cors4").click(
function(){
$.ajax({
type:"get",
contentType : 'application/json;charset=UTF-8',
dataType : "json",
headers:{"X-Custom-Header":"value"},
url:"http://bookinfo.demo:30986/reviews/1",
success:function(data){
var jsonStr = JSON.stringify(data);
alert(jsonStr);
}
})
});
});
</script>
<input type="button" id="cors" value="简单请求"/>
<input type="button" id="cors2" value="非简单请求"/>
<input type="button" id="cors3" value="非简单请求delete"/>
<input type="button" id="cors4" value="非简单请求headers"/>
</body>
</html>
ef-cors.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: 0.0.0.0_8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
name: envoy.filters.network.http_connection_manager
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
codec_type: AUTO
stat_prefix: ingress_http
route_config:
name: local_route
virtual_hosts:
- name: local_route
domains:
- "*"
cors:
allow_methods: "GET,POST,OPTIONS,DELETE"
allow_headers: "content-type,x-custom-header"
max_age: "60"
allow_origin_string_match:
- exact: "http://mytest.com:8081"
filter_enabled:
default_value:
numerator: 100
denominator: HUNDRED
routes:
- match:
path: "/productpage"
route:
cluster: outbound|9080||productpage.istio.svc.cluster.local
- match:
prefix: "/reviews"
route:
cluster: outbound|9080||reviews.istio.svc.cluster.local
ext_authz
applyto/ext_authz/auth_deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: auth
labels:
app: auth
spec:
ports:
- name: http
port: 9002
targetPort: 9002
selector:
app: auth
---
kind: Deployment
apiVersion: apps/v1
metadata:
name: auth
labels:
app: auth
spec:
replicas: 1
selector:
matchLabels:
app: auth
template:
metadata:
labels:
app: auth
spec:
containers:
- name: auth
imagePullPolicy: Always
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/ext_authz_grpc:latest
ports:
- containerPort: 9002
applyto/ext_authz/ef-ext_auth.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: 0.0.0.0_8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
name: envoy.filters.network.http_connection_manager
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
codec_type: AUTO
stat_prefix: ingress_http
route_config:
name: local_route
virtual_hosts:
- name: upstream
domains:
- "*"
routes:
- match:
prefix: "/"
route:
cluster: outbound|9080||productpage.istio.svc.cluster.local
- applyTo: HTTP_FILTER
match:
listener:
name: 0.0.0.0_8080
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: envoy.filters.http.router
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.ext_authz
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ext_authz.v3.ExtAuthz
transport_api_version: V3
http_service:
server_uri:
uri: ext_authz
cluster: ext_authz-http-service
timeout: 0.250s
authorization_response:
allowed_upstream_headers:
patterns:
- exact: x-current-user
- applyTo: CLUSTER
match:
context: ANY
cluster: {}
patch:
operation: ADD
value:
name: ext_authz-http-service
connect_timeout: 0.25s
type: STRICT_DNS
lb_policy: ROUND_ROBIN
load_assignment:
cluster_name: grpc-authservice
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: auth.istio.svc.cluster.local
port_value: 9002
测试
curl http://bookinfo.demo:30986/productpage -H "Authorization: Bearer token1"
curl http://bookinfo.demo:30986/productpage -H "Authorization: Bearer token10"
HTTP_FILTER
ef-ingressgateway-http-filter-remove.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
portNumber: 8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.fault"
patch:
operation: REMOVE
ef-ingressgateway-http-filter-compression.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: envoy.filters.http.router
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
ef-ingressgateway-http-filter-compression-insert-after.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: istio.metadata_exchange
patch:
operation: INSERT_AFTER
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
ratelimit/envoyfilter-local-rate-limit.yaml
本地限流
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-local-ratelimit-svc
namespace: istio-system
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.local_ratelimit
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
value:
stat_prefix: http_local_rate_limiter
token_bucket:
max_tokens: 10
tokens_per_fill: 10
fill_interval: 60s
filter_enabled:
runtime_key: local_rate_limit_enabled
default_value:
numerator: 100
denominator: HUNDRED
filter_enforced:
runtime_key: local_rate_limit_enforced
default_value:
numerator: 100
denominator: HUNDRED
response_headers_to_add:
- append: false
header:
key: x-local-rate-limit
value: 'true'
lua filter
ef-http-filter-lua.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
portNumber: 9080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.lua
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.lua.v3.Lua"
inlineCode: |
function envoy_on_response(response_handle)
response_handle:logInfo(" ========= XXXXX ========== ")
response_handle:headers():add("X-User-Header", "worked")
end
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: sidecar-token-service-filter-for-bookinfo
namespace: default
spec:
workloadSelector:
labels:
app: productpage # target the app to which you want to apply the filter
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.http_connection_manager"
subFilter:
name: "envoy.filters.http.jwt_authn"
patch:
operation: INSERT_BEFORE
value:
name: envoy.ext_authz
config:
stat_prefix: ext_authz
grpc_service:
envoy_grpc:
cluster_name: ext_authz
timeout: 10s # Timeout for the entire request (including authcode for token exchange with the IDP)
- applyTo: CLUSTER
match:
context: ANY
cluster: {} # this line is required starting in istio 1.4.0
patch:
operation: ADD
value:
name: ext_authz
connect_timeout: 5s # This timeout controls the initial TCP handshake timeout - not the timeout for the entire request
type: LOGICAL_DNS
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: ext_authz
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: 127.0.0.1
port_value: 10003
grpc_web
https://github.com/superj80820/GRPC-Web-Simple-Demo
https://github.com/SafetyCulture/grpc-web-devtools/tree/master/example
grpc-web在vue中的使用_寒山苦旅的博客-CSDN博客
deploy
applyto/web-grpc/web-grpc-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: web-grpc
labels:
app: web-grpc
spec:
selector:
matchLabels:
app: web-grpc
replicas: 1
template:
metadata:
labels:
app: web-grpc
version: v1
spec:
containers:
- name: csrf
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/server:latest
imagePullPolicy: Always
ports:
- containerPort: 50051
---
apiVersion: v1
kind: Service
metadata:
name: web-grpc
spec:
selector:
app: web-grpc
ports:
- name: grpc-web-grpc
protocol: TCP
port: 50051
targetPort: 50051
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: web-grpc-client
labels:
app: web-grpc-client
spec:
selector:
matchLabels:
app: web-grpc-client
replicas: 1
template:
metadata:
labels:
app: web-grpc-client
version: v1
spec:
containers:
- name: csrf
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/client:latest
imagePullPolicy: Always
ports:
- containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
name: web-grpc-client
spec:
selector:
app: web-grpc-client
ports:
- name: http-web-grpc-client
protocol: TCP
port: 8080
targetPort: 8080
注意svc的port的名字grpc-web-grpc，表名用的是grpc协议
vs
applyto/web-grpc/vs-web-grpc.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: web-grpc
spec:
hosts:
- "*"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
prefix: /s12.example
corsPolicy:
allowOrigins:
- exact: http://192.168.198.154:30986
- exact: http://192.168.198.154:8081
allowMethods:
- GET
- OPTIONS
- POST
- PUT
- DELETE
maxAge: "1m"
allowHeaders:
- keep-alive
- user-agent
- cache-control
- content-type
- content-transfer-encoding
- custom-header-1
- x-accept-content-transfer-encoding
- x-accept-response-streaming
- x-user-agent
- x-grpc-web
- grpc-timeout
exposeHeaders:
- custom-header-1
- grpc-status
- grpc-message
route:
- destination:
host: web-grpc.istio.svc.cluster.local
port:
number: 50051
applyto/web-grpc/vs-web-grpc-client.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- "*"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
prefix: /
route:
- destination:
host: web-grpc-client.istio.svc.cluster.local
port:
number: 8080
applyto/web-grpc/ef-web-grpc.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: web-grpc
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
destination_port: 50051
transport_protocol: "tls"
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: istio.metadata_exchange
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.grpc_web
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.grpc_web.v3.GrpcWeb
访问：
fault
ef-fault.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: ANY
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.fault
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.fault.v3.HTTPFault
abort:
http_status: 503
percentage:
numerator: 100
denominator: HUNDRED
delay:
fixed_delay: 3s
percentage:
numerator: 100
denominator: HUNDRED
ROUTE_CONFIGURATION
ef-ingressgateway-route-configuration.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: ROUTE_CONFIGURATION
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
patch:
operation: MERGE
value:
name: "inbound|9080||"
virtual_hosts:
- name: “inbound|http|9080”
domains:
- "productpage.istio.svc.cluster.local"
- "productpage.istio.svc.cluster.local:9080"
- "productpage"
- "productpage:9080"
- "productpage.istio.svc.cluster"
- "productpage.istio.svc.cluster:9080"
- "productpage.istio.svc"
- "productpage.istio.svc:9080"
- "productpage.istio"
- "productpage.istio:9080"
routes:
- match:
prefix: "/"
direct_response:
status: 200
body:
inline_string: "example body\n"
ef-dubbo-route-configuration.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
configPatches:
- applyTo: ROUTE_CONFIGURATION
match:
context: SIDECAR_OUTBOUND
routeConfiguration:
portNumber: 9080
patch:
operation: MERGE
value:
name: "20882"
virtualHosts:
- name: "mosn.io.dubbo.DemoService:20882"
domains:
- mosn.io.dubbo.DemoService
retryPolicy:
numRetries: 3
routes:
- match:
headers:
- name: "zone"
exactMatch: "gz01"
route:
timeout: 10s
weightedClusters:
clusters:
- name: "outbound|20882|blue|mosn.io.dubbo.DemoService"
weight: 10
- name: "outbound|20882|green|mosn.io.dubbo.DemoService"
weight: 90
totalWeight: 100
retryPolicy:
retryOn: "true"
numRetries: 2
perTryTimeout: 2s
- match:
prefix: "/"
route:
timeout: 10s
cluster: "outbound|20880||quasra.dubbo.proxy"
retryPolicy:
retryOn: "true"
numRetries: 2
perTryTimeout: 2s
- name: "mosn.io.dubbo.DemoService2:20882"
domains:
- mosn.io.dubbo.DemoService2
retryPolicy:
numRetries: 5
routes:
- match:
prefix: "/"
route:
timeout: 5s
cluster: "outbound|20882||mosn.io.dubbo.DemoService2"
retryPolicy:
numRetries: 3
perTryTimeout: 1s
VIRTUAL_HOST
部署ratelimit
1创建cm
ratelimit/ratelimit-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: ratelimit-config
data:
config.yaml: |
domain: productpage-ratelimit
descriptors:
- key: PATH
value: "/productpage"
rate_limit:
unit: minute
requests_per_unit: 1
- key: PATH
rate_limit:
unit: minute
requests_per_unit: 100
2创建deployment
ratelimit/ratelimit-deploy.yaml
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: redis
spec:
ports:
- name: redis
port: 6379
selector:
app: redis
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
spec:
replicas: 1
selector:
matchLabels:
app: redis
template:
metadata:
labels:
app: redis
spec:
containers:
- image: redis:alpine
imagePullPolicy: Always
name: redis
ports:
- name: redis
containerPort: 6379
restartPolicy: Always
serviceAccountName: ""
---
apiVersion: v1
kind: Service
metadata:
name: ratelimit
labels:
app: ratelimit
spec:
ports:
- name: http-port
port: 8080
targetPort: 8080
protocol: TCP
- name: grpc-port
port: 8081
targetPort: 8081
protocol: TCP
- name: http-debug
port: 6070
targetPort: 6070
protocol: TCP
selector:
app: ratelimit
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratelimit
spec:
replicas: 1
selector:
matchLabels:
app: ratelimit
strategy:
type: Recreate
template:
metadata:
labels:
app: ratelimit
spec:
containers:
- image: envoyproxy/ratelimit:6f5de117 # 2021/01/08
imagePullPolicy: Always
name: ratelimit
command: ["/bin/ratelimit"]
env:
- name: LOG_LEVEL
value: debug
- name: REDIS_SOCKET_TYPE
value: tcp
- name: REDIS_URL
value: redis:6379
- name: USE_STATSD
value: "false"
- name: RUNTIME_ROOT
value: /data
- name: RUNTIME_SUBDIRECTORY
value: ratelimit
ports:
- containerPort: 8080
- containerPort: 8081
- containerPort: 6070
volumeMounts:
- name: config-volume
mountPath: /data/ratelimit/config/config.yaml
subPath: config.yaml
volumes:
- name: config-volume
configMap:
name: ratelimit-config
3创建envoy-filter
ratelimit/envoyfilter-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit
namespace: istio-system
spec:
workloadSelector:
# select by label in the same namespace
labels:
istio: ingressgateway
configPatches:
# The Envoy config you want to modify
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
# Adds the Envoy Rate Limit Filter in HTTP filter chain.
value:
name: envoy.filters.http.ratelimit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.ratelimit.v3.RateLimit
# domain can be anything! Match it to the ratelimter service config
domain: productpage-ratelimit
failure_mode_deny: true
rate_limit_service:
grpc_service:
envoy_grpc:
cluster_name: rate_limit_cluster
timeout: 10s
transport_api_version: V3
- applyTo: CLUSTER
match:
cluster:
service: ratelimit.istio.svc.cluster.local
patch:
operation: ADD
# Adds the rate limit service cluster for rate limit service defined in step 1.
value:
name: rate_limit_cluster
type: STRICT_DNS
connect_timeout: 10s
lb_policy: ROUND_ROBIN
http2_protocol_options: {}
load_assignment:
cluster_name: rate_limit_cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: ratelimit.istio.svc.cluster.local
port_value: 8081
4创建action envoyfilter
ratelimit/envoyfilter-action.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: filter-ratelimit-svc
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: GATEWAY
routeConfiguration:
vhost:
name: "*:80"
route:
action: ANY
patch:
operation: MERGE
# Applies the rate limit rules.
value:
rate_limits:
- actions: # any actions in here
- request_headers:
header_name: ":path"
descriptor_key: "PATH"
5访问
http://bookinfo.demo:30986/productpage
返回429，太多请求错误
cache
还在开发中
applyto/cache/cache-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: cache
labels:
app: cache
spec:
selector:
matchLabels:
app: cache
replicas: 1
template:
metadata:
labels:
app: cache
version: v1
spec:
containers:
- name: cache
image: registry.cn-hangzhou.aliyuncs.com/hxpdocker/cache:latest
imagePullPolicy: Always
ports:
- containerPort: 8083
---
apiVersion: v1
kind: Service
metadata:
name: cache
spec:
selector:
app: cache
ports:
- name: tcp-cache
protocol: TCP
port: 8083
targetPort: 8083
applyto/cache/vs-cache.yaml
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: cache
spec:
hosts:
- "*"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
prefix: /service
route:
- destination:
host: cache.istio.svc.cluster.local
port:
number: 8083
applyto/cache/ef-cache.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: cache
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_FIRST
value:
name: "envoy.filters.http.cache.simple_http_cache"
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.cache.v3alpha.CacheConfig"
typed_config:
"@type": "type.googleapis.com/envoy.extensions.cache.simple_http_cache.v3alpha.SimpleHttpCacheConfig"
记得修改时区
http://bookinfo.demo:30986/service/1/valid-for-minute
http://bookinfo.demo:30986/service/1/private
http://bookinfo.demo:30986/service/1/no-cache
HTTP_ROUTE
ef-ingressgateway-http-route.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
patch:
operation: MERGE
value:
match:
#headers:
# - name: some-header
# present_match: true
prefix: /
direct_response:
status: 200
body:
inline_string: "example body\n"
CLUSTER
ef-productpage-cluster.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
patch:
operation: MERGE
value:
match:
prefix: /
route:
cluster: "cluster123"
timeout: "111s"
- applyTo: CLUSTER
patch:
operation: ADD
value:
name: "cluster123"
type: STATIC
connect_timeout: 0.5s
lb_policy: ROUND_ROBIN
load_assignment:
cluster_name: cluster123
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: 127.0.0.1
port_value: 9080
redis_proxy
1部署redis
applyto/redis/redis-cluster-deploy.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
name: redis-cluster
data:
update-node.sh: |
#!/bin/sh
REDIS_NODES="/data/nodes.conf"
sed -i -e "/myself/ s/[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}/${POD_IP}/" ${REDIS_NODES}
exec "$@"
redis.conf: |+
cluster-enabled yes
cluster-require-full-coverage no
cluster-node-timeout 15000
cluster-config-file /data/nodes.conf
cluster-migration-barrier 1
appendonly yes
protected-mode no
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: redis-cluster
spec:
serviceName: redis-cluster
replicas: 6
selector:
matchLabels:
app: redis-cluster
template:
metadata:
labels:
app: redis-cluster
spec:
containers:
- name: redis
image: redis:6.0.8-alpine
imagePullPolicy: IfNotPresent
ports:
- containerPort: 6379
name: tcp-client
- containerPort: 16379
name: tcp-gossip
command: ["/conf/update-node.sh", "redis-server", "/conf/redis.conf", "--cluster-announce-ip $(POD_IP)"]
env:
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP
volumeMounts:
- name: conf
mountPath: /conf
readOnly: false
volumes:
- name: conf
configMap:
name: redis-cluster
defaultMode: 0755
---
apiVersion: v1
kind: Service
metadata:
name: redis-cluster
spec:
type: ClusterIP
ports:
- port: 6379
targetPort: 6379
name: tcp-client
- port: 16379
targetPort: 16379
name: tcp-gossip
selector:
app: redis-cluster
applyto/redis/redis-client-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-client
labels:
app: redis-client
spec:
selector:
matchLabels:
app: redis-client
replicas: 1
template:
metadata:
labels:
app: redis-client
spec:
containers:
- name: redis-client
image: redis
imagePullPolicy: IfNotPresent
applyto/redis/redis-mirror-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-mirror
labels:
app: redis-mirror
spec:
selector:
matchLabels:
app: redis-mirror
replicas: 1
template:
metadata:
labels:
app: redis-mirror
spec:
containers:
- name: redis-mirror
image: redis
imagePullPolicy: IfNotPresent
ports:
- containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
name: redis-mirror
spec:
selector:
app: redis-mirror
ports:
- name: tcp # istio will treat it as a normal tcp service since the prefix is tcp
port: 6379
protocol: TCP
targetPort: 6379
2设置 envoyfilter cluster
applyto/redis/envoyfilter-cluster.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: custom-redis-cluster
namespace: istio-system
spec:
configPatches:
- applyTo: CLUSTER
patch:
operation: INSERT_FIRST
value:
name: "custom-redis-cluster"
connect_timeout: 0.5s
lb_policy: CLUSTER_PROVIDED
load_assignment:
cluster_name: custom-redis-cluster
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: redis-cluster-0.redis-cluster.istio.svc.cluster.local
port_value: 6379
- endpoint:
address:
socket_address:
address: redis-cluster-1.redis-cluster.istio.svc.cluster.local
port_value: 6379
- endpoint:
address:
socket_address:
address: redis-cluster-2.redis-cluster.istio.svc.cluster.local
port_value: 6379
- endpoint:
address:
socket_address:
address: redis-cluster-3.redis-cluster.istio.svc.cluster.local
port_value: 6379
- endpoint:
address:
socket_address:
address: redis-cluster-4.redis-cluster.istio.svc.cluster.local
port_value: 6379
- endpoint:
address:
socket_address:
address: redis-cluster-5.redis-cluster.istio.svc.cluster.local
port_value: 6379
cluster_type:
name: envoy.clusters.redis
typed_config:
"@type": type.googleapis.com/google.protobuf.Struct
value:
cluster_refresh_rate: 5s
cluster_refresh_timeout: 3s
redirect_refresh_interval: 5s
redirect_refresh_threshold: 5
3设置redis_proxy
applyto/redis/envoyfilter-redis-proxy.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: add-redis-proxy
namespace: istio-system
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${REDIS_VIP}_6379 # Replace REDIS_VIP with the cluster IP of "redis-cluster service
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.redis_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.redis_proxy.v3.RedisProxy
stat_prefix: redis_stats
prefix_routes:
catch_all_route:
cluster: custom-redis-cluster
settings:
op_timeout: 5s
enable_redirection: true
enable_command_stats: true
read_policy: REPLICA
替换REDIS_VIP
4构建redis集群
获取pod ip
kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 ' -n istio
构建集群
kubectl exec -it redis-cluster-0 -n istio -- redis-cli --cluster create --cluster-replicas 1 172.20.0.227:6379 172.20.1.238:6379 172.20.2.209:6379 172.20.0.228:6379 172.20.1.239:6379 172.20.2.210:6379
验证集群是否成功
kubectl exec -it redis-cluster-0 -c redis -n istio -- redis-cli cluster info
进入客户端
kubectl exec -it redis-client-6c4b6c4fb5-7hbv9 -n istio -- /bin/bash
连接集群
redis-cli -h redis-cluster -p 6379
设置数据
set a a等
验证数据
kubectl exec redis-cluster-0 -c redis -n istio -- redis-cli --scan
5设置redis _proxy with mirror
applyto/redis/envoyfilter-redis-proxy-with-mirror.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: add-redis-proxy
namespace: istio-system
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${REDIS_VIP}_6379 # Replace REDIS_VIP with the cluster IP of "redis-cluster service
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.redis_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.redis_proxy.v3.RedisProxy
stat_prefix: redis_stats
prefix_routes:
catch_all_route:
request_mirror_policy:
- cluster: outbound|6379||redis-mirror.istio.svc.cluster.local
exclude_read_commands: True # Mirror write commands only:
cluster: custom-redis-cluster
settings:
op_timeout: 5s
enable_redirection: true
enable_command_stats: true
read_policy: REPLICA
替换REDIS_VIP
6进入客户端，连接集群，设置数据
7进入客户端，连接mirror，验证数据
EXTENSION_CONFIG
ef-extension-config.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
configPatches:
- applyTo: EXTENSION_CONFIG
patch:
operation: ADD
value:
name: my-wasm-extension
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm
config:
root_id: my-wasm-root-id
vm_config:
vm_id: my-wasm-vm-id
runtime: envoy.wasm.runtime.v8
code:
local:
inline_string: "envoy.wasm.stats"
#remote:
# http_uri:
# uri: http://my-wasm-binary-uri
configuration:
"@type": "type.googleapis.com/google.protobuf.StringValue"
value: |
{}
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: envoy.filters.http.router
patch:
operation: INSERT_BEFORE
value:
name: my-wasm-extension
config_discovery:
config_source:
ads: {}
type_urls: ["type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm"]
ef-extension-config-attributegen.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: istio.attributegen
config_discovery:
config_source:
ads: {}
initial_fetch_timeout: 0s
type_urls: [ "type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm"]
- applyTo: EXTENSION_CONFIG
match:
context: SIDECAR_INBOUND
patch:
operation: ADD
value:
name: istio.attributegen
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm
value:
config:
configuration:
"@type": "type.googleapis.com/google.protobuf.StringValue"
value: |
{
"attributes": [
{
"output_attribute": "istio_responseClass",
"match": [
{
"value": "2xx",
"condition": "response.code >= 200 && response.code <= 299"
}]
},
{
"output_attribute": "istio_operationId",
"match": [
{
"value": "getoperation",
"condition": "request.method == 'GET'"
}]
},
{
"output_attribute": "istio_grpcResponseStatus",
"match": [
{
"value": "OK",
"condition": "response.grpc_status == 0"
}]
}]
}
vm_config:
runtime: envoy.wasm.runtime.null
code:
local:
inline_string: envoy.wasm.attributegen
match
One or more match conditions to be met before a patch is applied to the generated configuration for a given proxy.
| Field | Type | Description | Required |
|---|---|---|---|
context | PatchContext | The specific config generation context to match on. Istio Pilot generates envoy configuration in the context of a gateway, inbound traffic to sidecar and outbound traffic from sidecar. | No |
proxy | ProxyMatch | Match on properties associated with a proxy. | No |
listener | ListenerMatch (oneof) | Match on envoy listener attributes. | No |
routeConfiguration | RouteConfigurationMatch (oneof) | Match on envoy HTTP route configuration attributes. | No |
cluster | ClusterMatch (oneof) | Match on envoy cluster attributes. | No |
context
| Name | Description |
|---|---|
ANY | All listeners/routes/clusters in both sidecars and gateways. |
SIDECAR_INBOUND | Inbound listener/route/cluster in sidecar. |
SIDECAR_OUTBOUND | Outbound listener/route/cluster in sidecar. |
GATEWAY | Gateway listener/route/cluster. |
ANY
applyto/fault/ef-fault.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: ANY
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.fault
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.fault.v3.HTTPFault
abort:
http_status: 503
percentage:
numerator: 100
denominator: HUNDRED
delay:
fixed_delay: 3s
percentage:
numerator: 100
denominator: HUNDRED
SIDECAR_INBOUND
applyto/ef-extension-config-attributegen.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: istio.attributegen
config_discovery:
config_source:
ads: {}
initial_fetch_timeout: 0s
type_urls: [ "type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm"]
- applyTo: EXTENSION_CONFIG
match:
context: SIDECAR_INBOUND
patch:
operation: ADD
value:
name: istio.attributegen
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm
value:
config:
configuration:
"@type": "type.googleapis.com/google.protobuf.StringValue"
value: |
{
"attributes": [
{
"output_attribute": "istio_responseClass",
"match": [
{
"value": "2xx",
"condition": "response.code >= 200 && response.code <= 299"
}]
},
{
"output_attribute": "istio_operationId",
"match": [
{
"value": "getoperation",
"condition": "request.method == 'GET'"
}]
},
{
"output_attribute": "istio_grpcResponseStatus",
"match": [
{
"value": "OK",
"condition": "response.grpc_status == 0"
}]
}]
}
vm_config:
runtime: envoy.wasm.runtime.null
code:
local:
inline_string: envoy.wasm.attributegen
SIDECAR_OUTBOUND
applyto/fault/ef-fault-outbound.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_OUTBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.fault
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.fault.v3.HTTPFault
abort:
http_status: 503
percentage:
numerator: 100
denominator: HUNDRED
delay:
fixed_delay: 3s
percentage:
numerator: 100
denominator: HUNDRED
GATEWAY
applyto/ef-ingressgateway-http-filter-compression-insert-after.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: istio.metadata_exchange
patch:
operation: INSERT_AFTER
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
proxy
| Field | Type | Description | Required |
|---|---|---|---|
proxyVersion | string | A regular expression in golang regex format (RE2) that can be used to select proxies using a specific version of istio proxy. The Istio version for a given proxy is obtained from the node metadata field ISTIO_VERSION supplied by the proxy when connecting to Pilot. This value is embedded as an environment variable (ISTIO_META_ISTIO_VERSION) in the Istio proxy docker image. Custom proxy implementations should provide this metadata variable to take advantage of the Istio version check option. | No |
metadata | map | Match on the node metadata supplied by a proxy when connecting to Istio Pilot. Note that while Envoy’s node metadata is of type Struct, only string key-value pairs are processed by Pilot. All keys specified in the metadata must match with exact values. The match will fail if any of the specified keys are absent or the values fail to match. | No |
ef-match-proxy.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_OUTBOUND
proxy:
proxyVersion: 1.9.2
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.fault
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.fault.v3.HTTPFault
abort:
http_status: 503
percentage:
numerator: 100
denominator: HUNDRED
delay:
fixed_delay: 3s
percentage:
numerator: 100
denominator: HUNDRED
listener
| Field | Type | Description | Required |
|---|---|---|---|
portNumber | uint32 | The service port/gateway port to which traffic is being sent/received. If not specified, matches all listeners. Even though inbound listeners are generated for the instance/pod ports, only service ports should be used to match listeners. | No |
filterChain | FilterChainMatch | Match a specific filter chain in a listener. If specified, the patch will be applied to the filter chain (and a specific filter if specified) and not to other filter chains in the listener. | No |
name | string | Match a specific listener by its name. The listeners generated by Pilot are typically named as IP:Port. | No |
portNumber
ef-match-listener-portnumber.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: LISTENER
match:
listener:
portNumber: 8080
patch:
operation: MERGE
value:
listener_filters:
- name: envoy.filters.listener.original_src
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.listener.original_src.v3.OriginalSrc
- name: envoy.filters.listener.tls_inspector
filterChain
| Field | Type | Description | Required |
|---|---|---|---|
name | string | The name assigned to the filter chain. | No |
sni | string | The SNI value used by a filter chain’s match condition. This condition will evaluate to false if the filter chain has no sni match. | No |
transportProtocol | string | Applies only to SIDECAR_INBOUND context. If non-empty, a transport protocol to consider when determining a filter chain match. This value will be compared against the transport protocol of a new connection, when it’s detected by the tls_inspector listener filter.Accepted values include:raw_buffer - default, used when no transport protocol is detected.tls - set when TLS protocol is detected by the TLS inspector. | No |
applicationProtocols | string | Applies only to sidecars. If non-empty, a comma separated set of application protocols to consider when determining a filter chain match. This value will be compared against the application protocols of a new connection, when it’s detected by one of the listener filters such as the http_inspector.Accepted values include: h2, http/1.1, http/1.0 | No |
filter | FilterMatch | The name of a specific filter to apply the patch to. Set this to envoy.filters.network.http_connection_manager to add a filter or apply a patch to the HTTP connection manager. | No |
destinationPort | uint32 | The destinationport value used by a filter chain’s match condition. This condition will evaluate to false if the filter chain has no destinationport match. | No |
name
先添加名字
applyto/ef-ingressgateway-filter-chain-merge.yaml
ef-match-filterchain-name.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
portNumber: 8080
filterChain:
name: test
patch:
operation: MERGE
value:
name: envoy.filters.network.http_connection_manager
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
"stat_prefix": "test"
sni
先添加server_names
applyto/ef-ingressgateway-filter-chain-merge.yaml
ef-match-filterchain-sni.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: NETWORK_FILTER
match:
context: GATEWAY
listener:
filterChain:
sni: bookinfo.demo
filter:
name: "envoy.filters.network.http_connection_manager"
patch:
operation: MERGE
value:
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
xff_num_trusted_hops: 5
common_http_protocol_options:
idle_timeout: 30s
transportProtocol
ef-match-filterchain-transportProtocol.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
portNumber: 9080
filterChain:
transportProtocol: raw_buffer
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.lua
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.lua.v3.Lua"
inlineCode: |
function envoy_on_response(response_handle)
response_handle:logInfo(" ========= XXXXX ========== ")
response_handle:headers():add("X-User-Header", "worked")
end
applicationProtocols
ef-match-filterchain-applicationProtocols.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
portNumber: 9080
filterChain:
applicationProtocols: http/1.1
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.lua
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.lua.v3.Lua"
inlineCode: |
function envoy_on_response(response_handle)
response_handle:logInfo(" ========= XXXXX ========== ")
response_handle:headers():add("X-User-Header", "worked")
end
destinationPort
ef-match-filterchain-destinationPort.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
portNumber: 9080
filterChain:
destinationPort: 9080
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.lua
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.lua.v3.Lua"
inlineCode: |
function envoy_on_response(response_handle)
response_handle:logInfo(" ========= XXXXX ========== ")
response_handle:headers():add("X-User-Header", "worked")
end
filter
| Field | Type | Description | Required |
|---|---|---|---|
name | string | The filter name to match on. For standard Envoy filters, canonical filter names should be used. | No |
subFilter | SubFilterMatch | The next level filter within this filter to match upon. Typically used for HTTP Connection Manager filters and Thrift filters. | No |
ef-match-filterchain-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.lua
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.lua.v3.Lua"
inlineCode: |
function envoy_on_response(response_handle)
response_handle:logInfo(" ========= XXXXX ========== ")
response_handle:headers():add("X-User-Header", "worked")
end
name
ef-match-listener-name.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: LISTENER
match:
listener:
name: 0.0.0.0_8080
patch:
operation: MERGE
value:
listener_filters:
- name: envoy.filters.listener.original_src
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.listener.original_src.v3.OriginalSrc
- name: envoy.filters.listener.tls_inspector
routeConfiguration
| Field | Type | Description | Required |
|---|---|---|---|
portNumber | uint32 | The service port number or gateway server port number for which this route configuration was generated. If omitted, applies to route configurations for all ports. | No |
portName | string | Applicable only for GATEWAY context. The gateway server port name for which this route configuration was generated. | No |
gateway | string | The Istio gateway config’s namespace/name for which this route configuration was generated. Applies only if the context is GATEWAY. Should be in the namespace/name format. Use this field in conjunction with the portNumber and portName to accurately select the Envoy route configuration for a specific HTTPS server within a gateway config object. | No |
vhost | VirtualHostMatch | Match a specific virtual host in a route configuration and apply the patch to the virtual host. | No |
name | string | Route configuration name to match on. Can be used to match a specific route configuration by name, such as the internally generated http_proxy route configuration for all sidecars. | No |
portNumber
ef-match-routeConfiguration-portNumber.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
patch:
operation: REMOVE
- applyTo: VIRTUAL_HOST
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
patch:
operation: ADD
value:
name: inbound|http|9080
domains:
- "*"
routes:
- match:
prefix: "/"
direct_response:
status: 200
body:
inline_string: "example body\n"
portName
只对https有效，gateway必须在istio-system中
ef-match-routeConfiguration-portName-https.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: VIRTUAL_HOST
match:
context: GATEWAY
routeConfiguration:
portName: https
# gateway: istio/bookinfo-gateway
patch:
operation: MERGE
value:
name: "mytest:443"
domains:
- "mytest.com"
routes:
- match:
prefix: "/"
direct_response:
status: 200
body:
inline_string: "example body\n"
gateway
vhost
| Field | Type | Description | Required |
|---|---|---|---|
name | string | The VirtualHosts objects generated by Istio are named as host:port, where the host typically corresponds to the VirtualService’s host field or the hostname of a service in the registry. | No |
route | RouteMatch | Match a specific route within the virtual host. | No |
| Field | Type | Description | Required |
|---|---|---|---|
name | string | The Route objects generated by default are named as default. Route objects generated using a virtual service will carry the name used in the virtual service’s HTTP routes. | No |
action | Action | Match a route with specific action type. | No |
| Name | Description |
|---|---|
ANY | All three route actions |
ROUTE | Route traffic to a cluster / weighted clusters. |
REDIRECT | Redirect request. |
DIRECT_RESPONSE | directly respond to a request with specific payload. |
name
ef-match-routeConfiguration-vhost-name.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body\n"
action
ANY
ef-match-routeConfiguration-vhost-route-action-ANY.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match-2
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
route:
action: ANY
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body3\n"
ROUTE
ef-match-routeConfiguration-vhost-route-action-ROUTE.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
route:
action: ROUTE
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body33\n"
REDIRECT
ef-match-routeConfiguration-vhost-route-action-REDIRECT.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
route:
action: ANY
patch:
operation: MERGE
value:
match:
prefix: /mypage
redirect:
host_redirect: "127.0.0.1:9080"
path_redirect: "/productpage"
response_code: "PERMANENT_REDIRECT"
ef-match-routeConfiguration-vhost-route-action-REDIRECT-2.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match-2
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
route:
action: REDIRECT
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body11\n"
DIRECT_RESPONSE
先运行ef-match-routeConfiguration-vhost-name.yaml
ef-match-routeConfiguration-vhost-route-action-DIRECT_RESPONSE.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match-2
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
portNumber: 9080
vhost:
name: inbound|http|9080
route:
action: DIRECT_RESPONSE
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body2\n"
name
ef-match-routeConfiguration-name.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_ROUTE
match:
context: SIDECAR_INBOUND
routeConfiguration:
name: inbound|9080||
patch:
operation: MERGE
value:
match:
prefix: /
direct_response:
status: 200
body:
inline_string: "example body44n"
cluster
| Field | Type | Description | Required |
|---|---|---|---|
portNumber | uint32 | The service port for which this cluster was generated. If omitted, applies to clusters for any port. | No |
service | string | The fully qualified service name for this cluster. If omitted, applies to clusters for any service. For services defined through service entries, the service name is same as the hosts defined in the service entry. | No |
subset | string | The subset associated with the service. If omitted, applies to clusters for any subset of a service. | No |
name | string | The exact name of the cluster to match. To match a specific cluster by name, such as the internally generated Passthrough cluster, leave all fields in clusterMatch empty, except the name. | No |
portNumber
ef-match-cluster-portNumber.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: CLUSTER
match:
cluster:
portNumber: 9080
name: outbound|9080||productpage.istio.svc.cluster.local
patch:
operation: MERGE
value:
connect_timeout: 112s
service
ef-match-cluster-service.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: CLUSTER
match:
cluster:
portNumber: 9080
service: productpage.istio.svc.cluster.local
name: outbound|9080||productpage.istio.svc.cluster.local
patch:
operation: MERGE
value:
connect_timeout: 113s
subset
ef-match-cluster-subset.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: CLUSTER
match:
cluster:
portNumber: 9080
service: productpage.istio.svc.cluster.local
subset: v1
patch:
operation: MERGE
value:
connect_timeout: 115s
name
ef-match-cluster-name.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: match
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: CLUSTER
match:
cluster:
name: outbound|9080||productpage.istio.svc.cluster.local
patch:
operation: MERGE
value:
connect_timeout: 116s
patch
Patch specifies how the selected object should be modified.
| Field | Type | Description | Required |
|---|---|---|---|
operation | Operation | Determines how the patch should be applied. | No |
value | Struct | The JSON config of the object being patched. This will be merged using proto merge semantics with the existing proto in the path. | No |
filterClass | FilterClass | Determines the filter insertion order. | No |
operation
| Name | Description |
|---|---|
INVALID | |
MERGE | Merge the provided config with the generated config using proto merge semantics. If you are specifying config in its entirety, use REPLACE instead. |
ADD | Add the provided config to an existing list (of listeners, clusters, virtual hosts, network filters, or http filters). This operation will be ignored when applyTo is set to ROUTE_CONFIGURATION, or HTTP_ROUTE. |
REMOVE | Remove the selected object from the list (of listeners, clusters, virtual hosts, network filters, routes, or http filters). Does not require a value to be specified. This operation will be ignored when applyTo is set to ROUTE_CONFIGURATION, or HTTP_ROUTE. |
INSERT_BEFORE | Insert operation on an array of named objects. This operation is typically useful only in the context of filters or routes, where the order of elements matter. Routes should be ordered based on most to least specific matching criteria since the first matching element is selected. For clusters and virtual hosts, order of the element in the array does not matter. Insert before the selected filter or sub filter. If no filter is selected, the specified filter will be inserted at the front of the list. |
INSERT_AFTER | Insert operation on an array of named objects. This operation is typically useful only in the context of filters or routes, where the order of elements matter. Routes should be ordered based on most to least specific matching criteria since the first matching element is selected. For clusters and virtual hosts, order of the element in the array does not matter. Insert after the selected filter or sub filter. If no filter is selected, the specified filter will be inserted at the end of the list. |
INSERT_FIRST | Insert operation on an array of named objects. This operation is typically useful only in the context of filters or routes, where the order of elements matter. Routes should be ordered based on most to least specific matching criteria since the first matching element is selected. For clusters and virtual hosts, order of the element in the array does not matter. Insert first in the list based on the presence of selected filter or not. This is specifically useful when you want your filter first in the list based on a match condition specified in Match clause. |
REPLACE | Replace contents of a named filter with new contents. REPLACE operation is only valid for HTTP_FILTER and NETWORK_FILTER. If the named filter is not found, this operation has no effect. |
INVALID
MERGE
applyto/ef-listener-filter.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
namespace: istio-system
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: LISTENER
patch:
operation: MERGE
value:
listener_filters:
- name: envoy.filters.listener.original_src
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.listener.original_src.v3.OriginalSrc
- name: envoy.filters.listener.tls_inspector
ADD
applyto/ef-productpage-add-listener.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
namespace: istio
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: LISTENER
match:
context: SIDECAR_INBOUND
patch:
operation: ADD
value:
name: proxy
address:
socket_address:
protocol: TCP
address: 0.0.0.0
port_value: 8083
filter_chains:
- filters:
- name: "envoy.filters.network.http_connection_manager"
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager"
stat_prefix: ingress_proxy
route_config:
name: route_a
virtual_hosts:
- name: envoy_cyz
domains:
- "*"
routes:
- match:
prefix: "/"
route:
cluster: cluster123
http_filters:
- name: "envoy.filters.http.router
typed_config:
"@type": "type.googleapis.com/envoy.extensions.filters.http.router.v3.Router"
- applyTo: CLUSTER
patch:
operation: ADD
value:
name: "cluster123"
type: STATIC
connect_timeout: 0.5s
lb_policy: ROUND_ROBIN
load_assignment:
cluster_name: cluster123
endpoints:
- lb_endpoints:
- endpoint:
address:
socket_address:
address: 127.0.0.1
port_value: 9080
REMOVE
applyto/ef-ingressgateway-http-filter-remove.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
portNumber: 8080
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.fault"
patch:
operation: REMOVE
INSERT_BEFORE
applyto/ef-extension-config.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: productpage
configPatches:
- applyTo: HTTP_FILTER
match:
context: SIDECAR_INBOUND
listener:
filterChain:
filter:
name: "envoy.filters.network.http_connection_manager"
subFilter:
name: "envoy.filters.http.router"
patch:
operation: INSERT_BEFORE
value:
name: istio.attributegen
config_discovery:
config_source:
ads: {}
initial_fetch_timeout: 0s
type_urls: [ "type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm"]
- applyTo: EXTENSION_CONFIG
match:
context: SIDECAR_INBOUND
patch:
operation: ADD
value:
name: istio.attributegen
typed_config:
"@type": type.googleapis.com/udpa.type.v1.TypedStruct
type_url: type.googleapis.com/envoy.extensions.filters.http.wasm.v3.Wasm
value:
config:
configuration:
"@type": "type.googleapis.com/google.protobuf.StringValue"
value: |
{
"attributes": [
{
"output_attribute": "istio_responseClass",
"match": [
{
"value": "2xx",
"condition": "response.code >= 200 && response.code <= 299"
}]
},
{
"output_attribute": "istio_operationId",
"match": [
{
"value": "getoperation",
"condition": "request.method == 'GET'"
}]
},
{
"output_attribute": "istio_grpcResponseStatus",
"match": [
{
"value": "OK",
"condition": "response.grpc_status == 0"
}]
}]
}
vm_config:
runtime: envoy.wasm.runtime.null
code:
local:
inline_string: envoy.wasm.attributegen
INSERT_AFTER
applyto/ef-ingressgateway-http-filter-compression-insert-after.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: apply-to
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: istio.metadata_exchange
patch:
operation: INSERT_AFTER
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
INSERT_FIRST
applyto/web-grpc/ef-web-grpc.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: apply-to
spec:
workloadSelector:
labels:
app: web-grpc
configPatches:
- applyTo: HTTP_FILTER
match:
listener:
destination_port: 50051
transport_protocol: "tls"
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
subFilter:
name: istio.metadata_exchange
patch:
operation: INSERT_BEFORE
value:
name: envoy.filters.http.grpc_web
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.grpc_web.v3.GrpcWeb
REPLACE
applyto/thrift/envoyfilter-thrift-proxy.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
name: thrift-sample-server
spec:
configPatches:
- applyTo: NETWORK_FILTER
match:
listener:
name: ${thrift-sample-server-vip}_9090 # sed -i .bak "s/\${thrift-sample-server-vip}/`kubectl get svc thrift-sample-server -n thrift -o=jsonpath='{.spec.clusterIP}'`/" istio/envoyfilter-thrift-proxy.yaml
filterChain:
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.thrift_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.thrift_proxy.v3.ThriftProxy
stat_prefix: "outbound|9090||thrift-sample-server.thrift.svc.cluster.local"
transport: AUTO_TRANSPORT
protocol: AUTO_PROTOCOL
thrift_filters:
- name: envoy.filters.thrift.router
route_config:
routes:
- match:
# empty string matches any request method name
method_name: ""
route:
weighted_clusters:
clusters:
- name: "outbound|9090|v1|thrift-sample-server.istio.svc.cluster.local"
weight: 50
- name: "outbound|9090|v2|thrift-sample-server.istio.svc.cluster.local"
weight: 50
- applyTo: NETWORK_FILTER
match:
listener:
name: virtualInbound
filterChain:
destination_port: 9090
filter:
name: "envoy.filters.network.tcp_proxy"
patch:
operation: REPLACE
value:
name: envoy.filters.network.thrift_proxy
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.thrift_proxy.v3.ThriftProxy
stat_prefix: inbound|9090||
transport: AUTO_TRANSPORT
protocol: AUTO_PROTOCOL
thrift_filters:
- name: envoy.filters.thrift.router
route_config:
routes:
- match:
# empty string matches any request method name
method_name: ""
route:
cluster: inbound|9090||
filterClass
未实现
| Name | Description |
|---|---|
UNSPECIFIED | Control plane decides where to insert the filter. Do not specify FilterClass if the filter is independent of others. |
AUTHN | Insert filter after Istio authentication filters. |
AUTHZ | Insert filter after Istio authorization filters. |
STATS | Insert filter before Istio stats filters. |
UNSPECIFIED
ef-patch-filterclass-UNSPECIFIED.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: patch
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
patch:
operation: ADD
filterClass: UNSPECIFIED
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
添加到了route后面
Error: terminal filter named envoy.filters.http.router of type envoy.filters.http.router must be the last filter in a http filter chain.
AUTHN
ef-patch-filterclass-AUTHN.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: patch
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
patch:
operation: ADD
filterClass: AUTHN
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
AUTHZ
ef-patch-filterclass-AUTHZ.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: patch
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
patch:
operation: ADD
filterClass: AUTHZ
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
STATS
ef-patch-filterclass-STATS.yaml
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
namespace: istio-system
name: patch
spec:
workloadSelector:
labels:
istio: ingressgateway
configPatches:
- applyTo: HTTP_FILTER
match:
context: GATEWAY
listener:
filterChain:
filter:
name: envoy.filters.network.http_connection_manager
patch:
operation: ADD
filterClass: STATS
value:
name: envoy.filters.http.compressor
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor
response_direction_config:
common_config:
min_content_length: 100
content_type:
- 'text/html'
compressor_library:
name: text_optimized
typed_config:
"@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip
memory_level: 3
window_bits: 10
compression_level: BEST_COMPRESSION
compression_strategy: DEFAULT_STRATEGY
wasm
1安装wasme
下载wasme
https://github.com/solo-io/wasm/releases
mkdir .wasme/bin -p
mv wasme-linux-amd64 ./.wasme/bin/wasme
chmod +x .wasme/bin/wasme
vi /etc/profile
export PATH=$HOME/.wasme/bin:$PATH
. /etc/profile
2创建应用
wasme init wasme-test
3build
wasme build assemblyscript -t webassemblyhub.io/hxpmark/add-header:v0.0.1 .
4push
wasme push webassemblyhub.io/hxpmark/add-header:v0.0.1 --username hxpmark --password test
5部署deploy
kubectl apply -f https://github.com/solo-io/wasme/releases/latest/download/wasme.io_v1_crds.yaml
kubectl apply -f https://github.com/solo-io/wasme/releases/latest/download/wasme-default.yaml
6编写yaml
envoyfilters/wasm/add-header.yaml
apiVersion: wasme.io/v1
kind: FilterDeployment
metadata:
labels:
app: wasme
name: add-header
namespace: istio
spec:
deployment:
istio:
kind: Deployment
labels:
app: productpage
filter:
config:
'@type': type.googleapis.com/google.protobuf.StringValue
value: world
image: webassemblyhub.io/hxpmark/add-header:v0.0.1
kubectl apply -f add-header.yaml -n istio
7访问
http://bookinfo.demo:30986/productpage
查看响应头
原理：
3087
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
