spring5 IOC 源码DefaultSingletonBeanRegistry分析

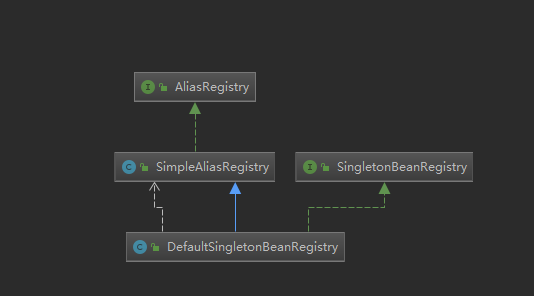

1、类的继承关系



这是DefaultSingletonBeanRegistry类的体系结构,由一个类一个责任的原则



• AliasRegistry : 提供别名注册的接口
• SingletonBeanRegistry :  提供单例bean注册的接口
• SimpleAliasRegistry: 它简单地实现了AliasRegistry接口。
• DefaultSingletonBeanRegistry:它继承SimpleAliasRegistry类和实现了SingletonBeanRegistry接口，因此这个类可以有别名注册的功能和单例bean注册的功能，并且他还支持注册DisposableBean实例;它依赖ObjectFactory接口和DisposableBean接口(关闭注册表时调用到了destroy方法)。

2、 重要字段说明

    /** Cache of singleton objects: bean name to bean instance. */
    //是存放singleton对象的缓存
	private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

	/** Cache of singleton factories: bean name to ObjectFactory. */
    // 是存放制造singleton的工厂对象的缓存
	private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);

	/** Cache of early singleton objects: bean name to bean instance. */
    //是存放早期singleton 的缓存
	private final Map<String, Object> earlySingletonObjects = new HashMap<>(16);

    /** Disposable bean instances: bean name to disposable instance. */
    //存放一次性bean的缓存
	private final Map<String, Object> disposableBeans = new LinkedHashMap<>();

	/** Map between containing bean names: bean name to Set of bean names that the bean contains. */
	private final Map<String, Set<String>> containedBeanMap = new ConcurrentHashMap<>(16);

	/** Map between dependent bean names: bean name to Set of dependent bean names. */
	private final Map<String, Set<String>> dependentBeanMap = new ConcurrentHashMap<>(64);

	/** Map between depending bean names: bean name to Set of bean names for the bean's dependencies. */
	private final Map<String, Set<String>> dependenciesForBeanMap = new ConcurrentHashMap<>(64);

	/** Set of registered singletons, containing the bean names in registration order. */
    //单例注册表
	private final Set<String> registeredSingletons = new LinkedHashSet<>(256);

	/** Names of beans that are currently in creation. */
    //目前正在创建中的单例bean的名称的集合
	private final Set<String> singletonsCurrentlyInCreation =
			Collections.newSetFromMap(new ConcurrentHashMap<>(16));

	/** Names of beans currently excluded from in creation checks. */
    //排除创建检查的集合
	private final Set<String> inCreationCheckExclusions =
			Collections.newSetFromMap(new ConcurrentHashMap<>(16));

	/** List of suppressed Exceptions, available for associating related causes. */
      // 存放异常的集合
	@Nullable
	private Set<Exception> suppressedExceptions;

	/** Flag that indicates whether we're currently within destroySingletons. */
	private boolean singletonsCurrentlyInDestruction = false;



 7个map

集合	作用
singletonObjects	存放singleton对象的缓存
singletonFactories	存放制造singleton对象工厂对象的缓存
earlySingletonObjects	早期单例对象的缓存
disposableBeans	存放一次性bean的缓存
containedBeanMap
dependentBeanMap
dependenciesForBeanMap

4个set集合

set集合	作用
registeredSingletons	单例注册表
singletonsCurrentlyInCreation	正在创建bean的集合
inCreationCheckExclusions	排除正在创建检查的bean的集合
suppressedExceptions	存放异常的集合

3、重要方法



3.1 registerSingleton

public void registerSingleton(String beanName, Object singletonObject) throws IllegalStateException {
        //beanName和singletonObject不能为空
		Assert.notNull(beanName, "Bean name must not be null");
		Assert.notNull(singletonObject, "Singleton object must not be null");
        //缓存的单例map作锁对象
		synchronized (this.singletonObjects) {
			Object oldObject = this.singletonObjects.get(beanName);
			if (oldObject != null) {
				throw new IllegalStateException("Could not register object [" + singletonObject +
						"] under bean name '" + beanName + "': there is already object [" + oldObject + "] bound");
			}
            //单例对象加入缓存
			addSingleton(beanName, singletonObject);
		}
	}

3.2 addSingleton

	protected void addSingleton(String beanName, Object singletonObject) {
		synchronized (this.singletonObjects) {
			this.singletonObjects.put(beanName, singletonObject);
			this.singletonFactories.remove(beanName);
			this.earlySingletonObjects.remove(beanName);
			this.registeredSingletons.add(beanName);
		}
	}

3.3 addSingletonFactory

	protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
		Assert.notNull(singletonFactory, "Singleton factory must not be null");
		synchronized (this.singletonObjects) {
			if (!this.singletonObjects.containsKey(beanName)) {
				this.singletonFactories.put(beanName, singletonFactory);
				this.earlySingletonObjects.remove(beanName);
				this.registeredSingletons.add(beanName);
			}
		}
	}

3.4 getSingleton

	protected Object getSingleton(String beanName, boolean allowEarlyReference) {
		Object singletonObject = this.singletonObjects.get(beanName);
		if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
			synchronized (this.singletonObjects) {
				singletonObject = this.earlySingletonObjects.get(beanName);
				if (singletonObject == null && allowEarlyReference) {
					ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
					if (singletonFactory != null) {
						singletonObject = singletonFactory.getObject();
						this.earlySingletonObjects.put(beanName, singletonObject);
						this.singletonFactories.remove(beanName);
					}
				}
			}
		}
		return singletonObject;
	}

上面的方法简单易懂

public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
		Assert.notNull(beanName, "Bean name must not be null");
		synchronized (this.singletonObjects) {
			Object singletonObject = this.singletonObjects.get(beanName);
			if (singletonObject == null) {
				if (this.singletonsCurrentlyInDestruction) {
					throw new BeanCreationNotAllowedException(beanName,
							"Singleton bean creation not allowed while singletons of this factory are in destruction " +
							"(Do not request a bean from a BeanFactory in a destroy method implementation!)");
				}
				if (logger.isDebugEnabled()) {
					logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
				}
                // 如果当前正在创建的单例池中有这个对象，抛出循环依赖异常
				beforeSingletonCreation(beanName);
				boolean newSingleton = false;
				boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
				if (recordSuppressedExceptions) {
					this.suppressedExceptions = new LinkedHashSet<>();
				}
                //通过单例构造工厂构造单例对象
				try {
					singletonObject = singletonFactory.getObject();
					newSingleton = true;
				}
				catch (IllegalStateException ex) {
					// Has the singleton object implicitly appeared in the meantime ->
					// if yes, proceed with it since the exception indicates that state.
					singletonObject = this.singletonObjects.get(beanName);
					if (singletonObject == null) {
						throw ex;
					}
				}
                //遍历set集合中的异常追加异常产生原因
				catch (BeanCreationException ex) {
					if (recordSuppressedExceptions) {
						for (Exception suppressedException : this.suppressedExceptions) {
							ex.addRelatedCause(suppressedException);
						}
					}
					throw ex;
				}
				finally {
					if (recordSuppressedExceptions) {
						this.suppressedExceptions = null;
					}
                    //如果当前正在创建的单例池中有这个对象，抛出循环依赖异常
					afterSingletonCreation(beanName);
				}
                //将创造好的对象加入map中
				if (newSingleton) {
					addSingleton(beanName, singletonObject);
				}
			}
			return singletonObject;
		}
	}
