1.日志收集规划

日志管理使用Elastic Stack框架，系统的重要日志进行聚合，统一管理。
涉及的组件包括：Elasticsearch、Filebeat、Logstash、Kibana、RabbitMQ、Nginx。

• 微服务日志采集

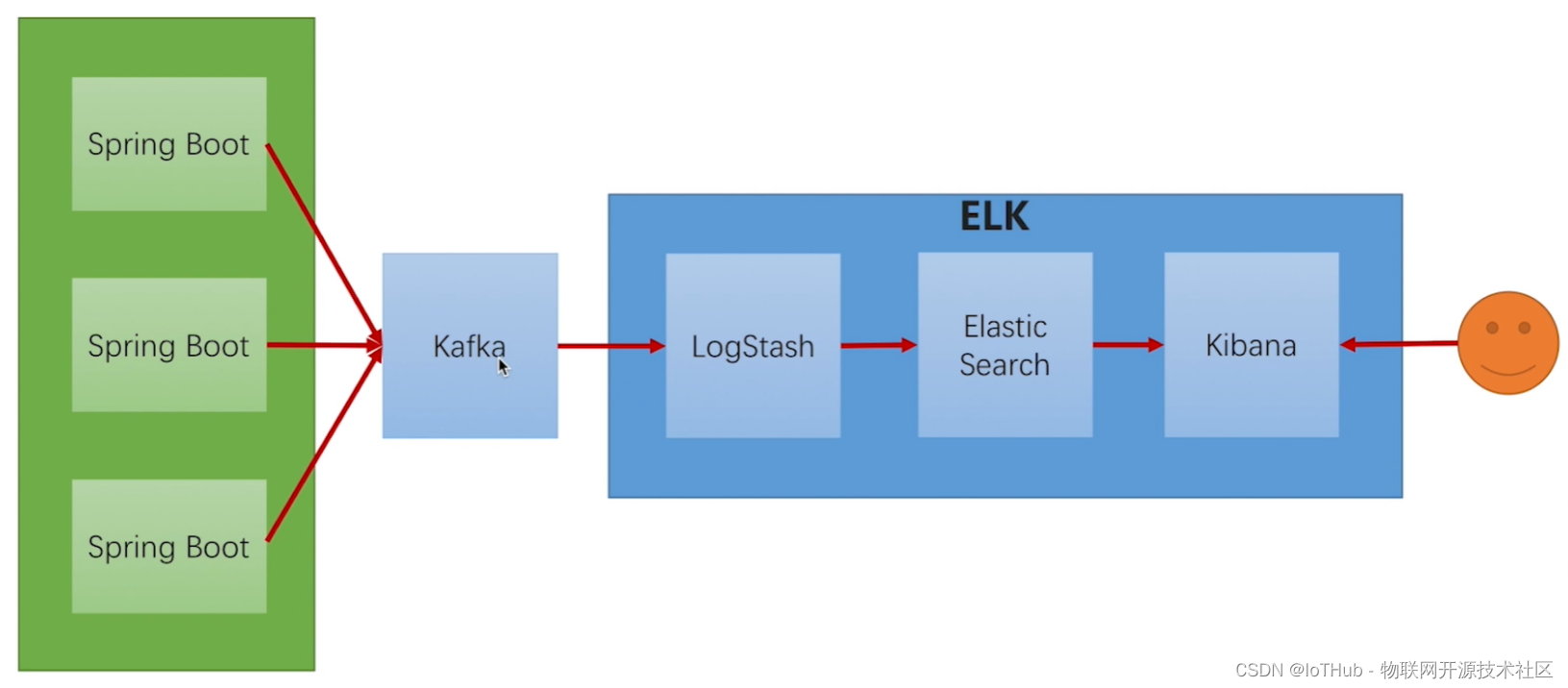

微服务日志通过Logback写到MQ（kafka或rabbitmq，目前选择rabbitmq），logstash读取MQ把日志写到Elasticsearch，通过Kibana查询。

• 中间件、数据库日志采集

中间件、数据库日志通过Filebeat写到Elasticsearch，通过Kibana查询。

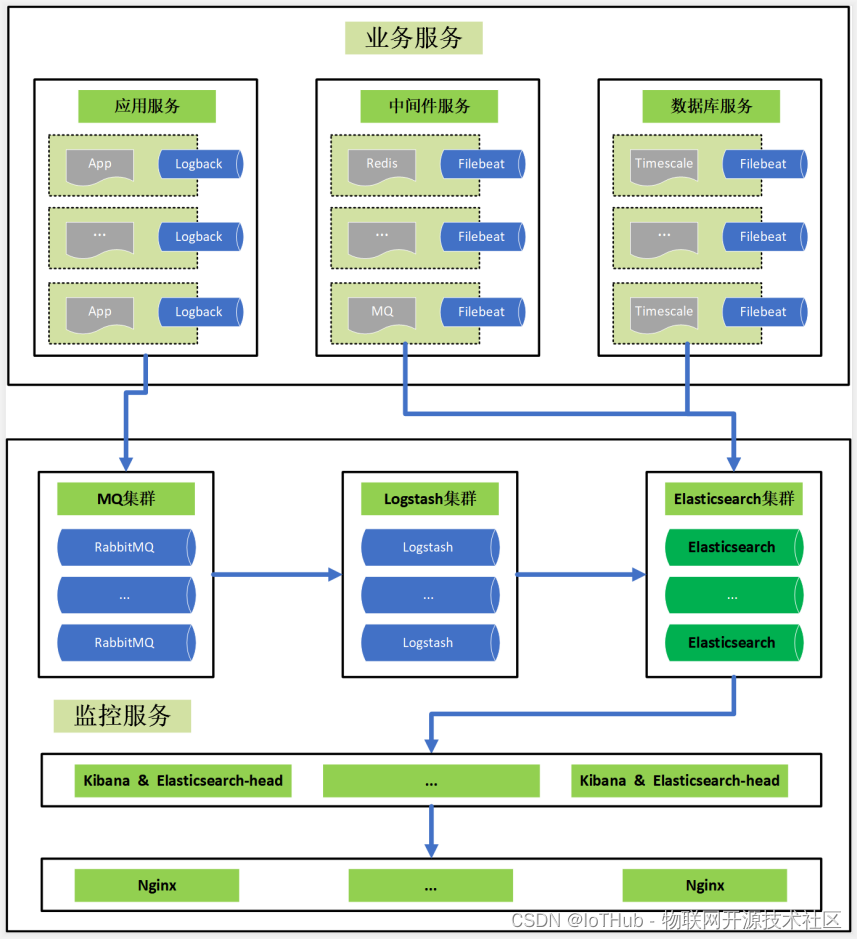

生产环境日志架构

2.Elasticsearch部署

2.1.Elasticsearch安装

• 准备工作

### 准备工作
# 启动简单版，然后 copy 文件到 宿主机，最后删除该容器

# 创建目录
mkdir -p /elk/cluster/es

# 运行docker
docker run -tid \
--name=elasticsearch \
-p 19200:9200 \
-p 19300:9300 \
-v /etc/localtime:/etc/localtime \
-e ES_JAVA_OPTS="-Xms4g -Xmx4g" \
-e TZ='Asia/Shanghai' \
-e LANG="en_US.UTF-8" \
elasticsearch:7.1.1

# 复制配置文件
docker cp elasticsearch:/usr/share/elasticsearch/config/   /elk/cluster/es/
docker cp elasticsearch:/usr/share/elasticsearch/data/   /elk/cluster/es/
docker cp elasticsearch:/usr/share/elasticsearch/logs/   /elk/cluster/es/
docker cp elasticsearch:/usr/share/elasticsearch/plugins/   /elk/cluster/es/

 # 删除镜像
docker stop elasticsearch
docker rm elasticsearch

• 配置es

### es-node-01配置（172.17.88.22）
# 修改配置文件
/elk/cluster/es/config/elasticsearch.yml

# elasticsearch.yml：
cluster.name: es-iids-cluster
node.name: es-node-01
node.master: true
node.data: true
network.host: 172.17.88.22
http.port: 9200
transport.tcp.port: 9300
discovery.seed_hosts: ["172.17.88.22", "172.17.88.19", "172.17.88.18"]
cluster.initial_master_nodes: ["es-node-01", "es-node-02", "es-node-03"]
bootstrap.memory_lock: false
http.cors.enabled: true
http.cors.allow-origin: "*"

# jvm.options
-Xms1g
-Xmx1g

其他三个节点配置相同。

• 运行Docker

# 运行docker

docker run -d --name es-node-01 --net host --restart=always \
-v /elk/cluster/es/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
-v /elk/cluster/es/config/jvm.options:/usr/share/elasticsearch/config/jvm.options \
-v /elk/cluster/es/data/:/usr/share/elasticsearch/data/ \
-v /elk/cluster/es/logs/:/usr/share/elasticsearch/logs/ \
-v /elk/cluster/es/plugins/:/usr/share/elasticsearch/plugins/ \
elasticsearch:7.1.1

### 访问地址

# es-node-01（172.17.88.22）
http://47.95.238.119:19200/
curl '172.17.88.22:9200'

2.2.Elasticsearch-head安装

• 运行Docker

# 运行Docker,三个节点分别安装

docker run -d --name es-head --restart=always -p 19100:9100 mobz/elasticsearch-head:5

### 安装遇到问题

# 连不上elasticsearch
docker exec -it elasticsearch /bin/bash
vi ES配置文件elasticsearch.yml加入2个参数，并重启

http.cors.enabled: true
http.cors.allow-origin: "*"

# 重启容器
docker restart elasticsearch

# 访问地址

http://47.95.238.119:19100/
curl '172.17.88.22:19100'

2.3.Elasticsearch设置分片数

elasticsearch7.x 设置默认副本 和默认分片

# 设置elasticsearch默认模板（之后创建索引副本为）
curl -X PUT 47.95.238.119:19200/_template/log  -H 'Content-Type: application/json' -d '{
  "template": "*",
  "settings": {
    "number_of_shards": 5,
    "number_of_replicas": "1"
  }
}'

"template": "*" 代表所有 索引
"template": "apple*" 代表生成apple*的索引都会按照这个模板来了

# 设置默认分片5，副本1

curl -X PUT 47.95.238.119:19200/_template/log  -H 'Content-Type: application/json' -d '{
  "template": "*",
  "settings": {
    "number_of_shards": 5,
    "number_of_replicas": 1
  }
}'

2.4.elasticsearch健康检查

# 常用查询命令

# 查看集群进程状态:
curl -u elastic:{password} -X GET "172.18.54.20:9200/_nodes/stats/process?pretty"
http://47.95.238.119:19200/_nodes/stats/process?pretty

#检查集群状态:
curl -u elastic:{password} -X GET "172.18.54.20:9200/_nodes/stats?pretty"
http://47.95.238.119:19200/_nodes/stats?pretty

# 查看ES集群健康状态
curl -u elastic:{password} -X GET "172.18.54.20:9200/_cluster/health?pretty"
http://47.95.238.119:19200/_cluster/health?pretty

curl -u elastic:{password} -X GET "172.18.54.20:9200/_cluster/health?level=indices"
http://47.95.238.119:19200/_cluster/health?level=indices

# 查看指定索引库的健康状态
curl -u elastic:{password} -X GET "172.18.54.20:9200/_cluster/health/{indexName}?pretty"
http://47.95.238.119:19200/_cluster/health/{indexName}?pretty

3.Kibana部署

• 准备工作

### 准备工作
# 启动简单版，然后 copy 文件到 宿主机，最后删除该容器

# 创建目录
mkdir -p /elk/cluster/kibana

# 运行docker
docker run -tid \
--name=kibana \
-p 15601:5601 \
-v /etc/localtime:/etc/localtime \
-e TZ='Asia/Shanghai' \
-e LANG="en_US.UTF-8" \
kibana:7.1.1

# 复制配置文件
docker cp kibana:/usr/share/kibana/config/ /elk/cluster/kibana/
docker cp kibana:/usr/share/kibana/data/ /elk/cluster/kibana/
docker cp kibana:/usr/share/kibana/plugins/ /elk/cluster/kibana/

# 删除镜像
docker stop kibana
docker rm kibana

chmod 777 /elk/cluster/kibana/data

• 修改配置文件

# 修改配置文件
/elk/cluster/kibana/config/kibana.yml

# kibana.yml
server.port: 15601
server.name: kibana
server.host: "0.0.0.0"
elasticsearch.hosts: [ "http://172.17.88.22:9200", "http://172.17.88.19:9200", "http://172.17.88.18:9200" ]
xpack.monitoring.ui.container.elasticsearch.enabled: true

# 没有配置以下内容
elasticsearch.username: kibana
elasticsearch.password: keda123456
xpack.security.encryptionKey: "something_at_least_32_characters"
xpack.reporting.encryptionKey: "something_at_least_32_characters"
xpack.security.sessionTimeout: 600000

• 运行Docker

# 运行docker

docker run -d --name kibana --net host --restart=always \
-v /elk/cluster/kibana/config/:/usr/share/kibana/config/ \
-v /elk/cluster/kibana/data/:/usr/share/kibana/data/ \
-v /elk/cluster/kibana/plugins/:/usr/share/kibana/plugins/ \
kibana:7.1.1

### 访问地址
http://47.95.238.119:15601
http://47.95.228.247:15601
http://123.56.18.37:15601

4.Logstash部署

• 准备工作

### 准备工作
# 启动简单版，然后 copy 文件到 宿主机，最后删除该容器

# 创建目录
mkdir -p /elk/cluster/logstash

# 运行docker
docker run -tid \
--name=logstash \
-p 15044:5044 \
-p 19600:9600 \
-v /etc/localtime:/etc/localtime \
-e TZ='Asia/Shanghai' \
-e LANG="en_US.UTF-8" \
logstash:7.1.1

# 复制配置文件
docker cp logstash:/usr/share/logstash/config/   /elk/cluster/logstash/
docker cp logstash:/usr/share/logstash/pipeline/   /elk/cluster/logstash/

# 先不用
docker cp logstash:/usr/share/logstash/data/   /elk/cluster/logstash/
docker cp logstash:/usr/share/logstash/vendor/   /elk/cluster/logstash/

# 删除镜像
docker stop logstash
docker rm logstash

• 修改配置文件

# 修改配置文件
/elk/cluster/logstash/config/logstash.yml (可不配置)
http.host: "0.0.0.0"
xpack.monitoring.enabled: false

# /elk/cluster/logstash/pipeline/logstash.conf
# logstash.conf：

#  采集rabbitmq
input {

  rabbitmq {
       type =>"msa"
       durable => true
       exchange => "iids-elk-msa-exchange"
       exchange_type => "direct"
       key => "log"
       host => "172.17.88.22"
       port => 5672
       user => "guest"
       password => "guest"
       queue => "iids-elk-msa-queue"
       auto_delete => false
  }

}

output {

    elasticsearch {
        hosts => ["172.17.88.22:9200", "172.17.88.19:9200", "172.17.88.18:9200"]
        index => "%{appname}-%{+YYYY.MM.dd}"
    }

    stdout {
        codec => rubydebug
    }

}


#  采集filebeat
input {
  beats {
    port => 5044
  }
}

output {

    elasticsearch {
        hosts => ["172.17.88.22:19200", "172.17.88.19:19200", "172.17.88.18:19200"]
        index => "%{appname}-%{+YYYY.MM.dd}"
    }

    stdout {
        codec => rubydebug
    }

}

• 运行Docker

# 运行docker

docker run -d --name logstash --net host --restart=always \
-v /elk/cluster/logstash/config:/usr/share/logstash/config \
-v /elk/cluster/logstash/pipeline:/usr/share/logstash/pipeline \
logstash:7.1.1

5.Filebeat部署

### rpm安装
rpm -vih filebeat-7.1.1-x86_64.rpm

# 启动filebeat服务
systemctl start filebeat

# 停止filebeat服务
systemctl stop  filebeat

# 设置开机自启动
systemctl enable filebeat


# 常用命令
systemctl start filebeat               #启动服务
systemctl stop  filebeat               #停止服务
systemctl enable filebeat              #设置开机自启动
systemctl disable filebeat             #停止开机自启动
systemctl status filebeat              #查看服务当前状态
systemctl restart filebeat　           #重新启动服务
systemctl list-units --type=service    #查看所有已启动的服务
