WF20积木设置无线STA单链接透传模式笔记

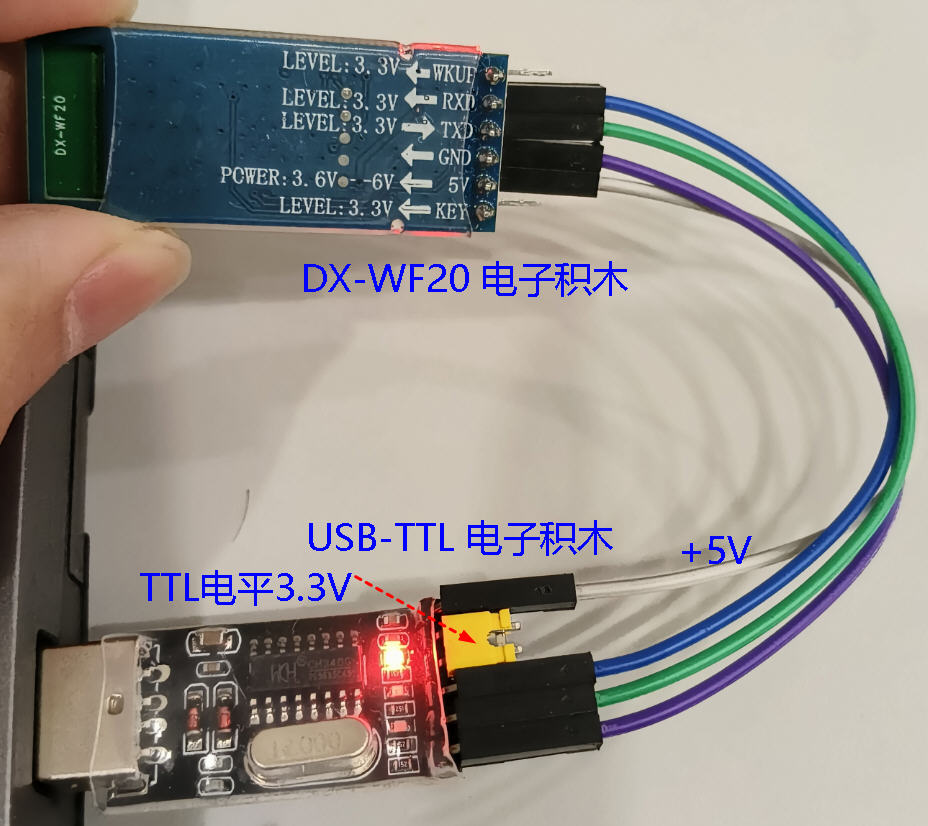

0、任意USB-TTL积木，短接帽选择3.3V TTL电平，并提供5V电源给WF20积木。

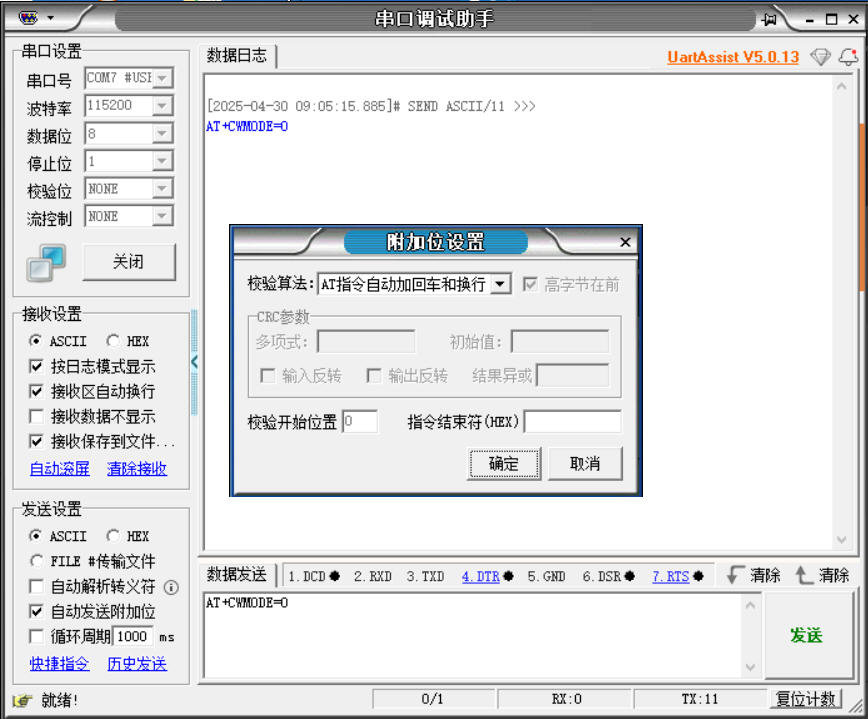

1、各种串口调试助手均可，但要注意AT指令后加回车换行，否则无响应。

2、单链接透传模式，单链接就是不能超过1个客户端，否则消息发送报错。只剩1个客户端时就正常收发了。

实践如下：

[2025-04-30 09:05:15.885]# SEND ASCII/11 >>>
AT+CWMODE=0

[2025-04-30 09:10:44.150]# SEND ASCII/13 >>>
AT+CWMODE=0

[2025-04-30 09:10:44.215]# RECV ASCII/14 <<<

ERROR:-401

[2025-04-30 09:11:07.441]# SEND ASCII/8 >>>
AT+RST

[2025-04-30 09:11:07.515]# RECV ASCII/6 <<<

OK

[2025-04-30 09:11:08.959]# RECV ASCII/12 <<<

power on

[2025-04-30 09:11:18.448]# SEND ASCII/24 >>>
AT+CWJAP=WIFI,abc12345

[2025-04-30 09:11:18.607]# RECV ASCII/6 <<<

OK

[2025-04-30 09:11:20.881]# RECV ASCII/33 <<<

+CWJAP:1,'WIFI',192.168.1.111

[2025-04-30 09:11:45.631]# SEND ASCII/14 >>>
AT+CIPMODE=1

[2025-04-30 09:11:45.702]# RECV ASCII/6 <<<

OK

[2025-04-30 09:12:09.893]# SEND ASCII/27 >>>
AT+CIPSERVER=1,8888,TCP,3

[2025-04-30 09:12:09.996]# RECV ASCII/6 <<<

OK

[2025-04-30 09:12:19.398]# SEND ASCII/12 >>>
AT+CIPSEND

[2025-04-30 09:12:19.471]# RECV ASCII/12 <<<

ERROR:-4

[2025-04-30 09:13:05.645]# RECV ASCII/40 <<<

+STA_CONNECTED:0,192.168.1.110,63394

[2025-04-30 09:13:56.650]# RECV ASCII/46 <<<

+TRDTS:0,192.168.1.110,63394,10,I am 63394

[2025-04-30 09:14:24.401]# RECV ASCII/40 <<<

+STA_CONNECTED:1,192.168.1.110,63412

[2025-04-30 09:15:06.966]# RECV ASCII/46 <<<

+TRDTS:1,192.168.1.110,63412,10,I am 63412

[2025-04-30 09:15:44.363]# RECV ASCII/40 <<<

+STA_CONNECTED:2,192.168.1.110,63435

[2025-04-30 09:16:01.115]# RECV ASCII/46 <<<

+TRDTS:2,192.168.1.110,63435,10,I am 63435

[2025-04-30 09:18:07.234]# SEND ASCII/15 >>>
hello everyone!

[2025-04-30 09:18:07.297]# RECV ASCII/10 <<<
ERROR:-1

[2025-04-30 09:18:56.127]# RECV ASCII/46 <<<

+TRDTS:0,192.168.1.110,63394,10,I am 63394

[2025-04-30 09:19:08.519]# RECV ASCII/46 <<<

+TRDTS:2,192.168.1.110,63435,10,I am 63435

[2025-04-30 09:19:16.023]# RECV ASCII/46 <<<

+TRDTS:1,192.168.1.110,63412,10,I am 63412

[2025-04-30 09:19:19.896]# SEND ASCII/15 >>>
hello everyone!

[2025-04-30 09:19:19.972]# RECV ASCII/10 <<<
ERROR:-1

[2025-04-30 09:19:47.382]# SEND ASCII/12 >>>
AT+CIPSEND

[2025-04-30 09:19:47.459]# RECV ASCII/12 <<<

ERROR:-4

[2025-04-30 09:19:52.982]# SEND ASCII/12 >>>
AT+CIPSEND

[2025-04-30 09:19:53.065]# RECV ASCII/12 <<<

ERROR:-4

[2025-04-30 09:20:09.369]# RECV ASCII/43 <<<

+STA_DISCONNECTED:2,192.168.1.110,63435

[2025-04-30 09:20:13.348]# RECV ASCII/43 <<<

+STA_DISCONNECTED:1,192.168.1.110,63412

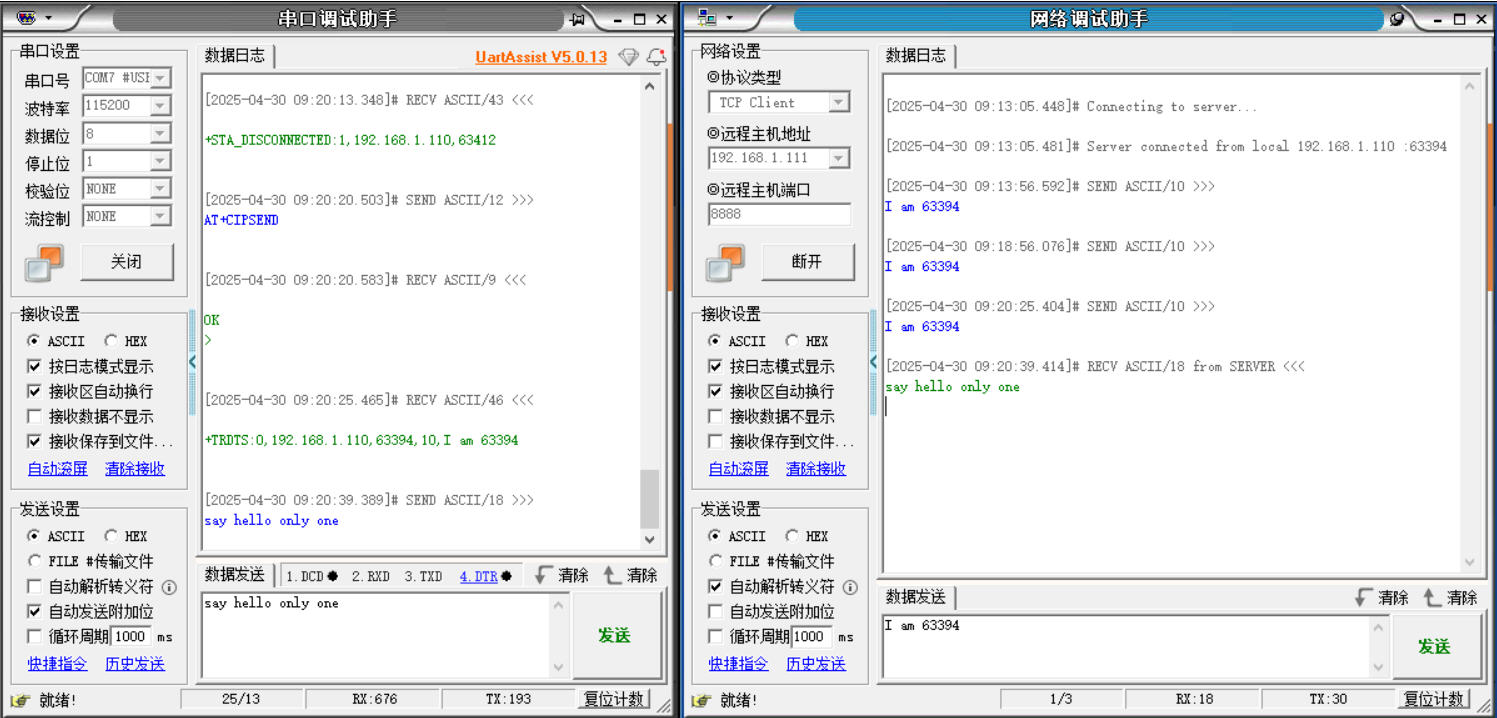

[2025-04-30 09:20:20.503]# SEND ASCII/12 >>>
AT+CIPSEND

[2025-04-30 09:20:20.583]# RECV ASCII/9 <<<

OK
>

[2025-04-30 09:20:25.465]# RECV ASCII/46 <<<

+TRDTS:0,192.168.1.110,63394,10,I am 63394

[2025-04-30 09:20:39.389]# SEND ASCII/18 >>>
say hello only one

AT+CWMODE=0 # STA MODE
AT+RST # 重启
AT+CWJAP=ljs,ljs20090126 # 连接WIFI
AT+CWJAP=WIFI,abc12345 # 连接WIFI
--断电后再上电，依旧可以重连WIFI

AT+CIPMODE=1 # 单链接透传模式 注意：多个客户端链接后，依旧可以进入透传状态，但是发消息就报错，直到仅剩1个客户端链接后才恢复正常
AT+CIPSERVER=1,8888,TCP,3 # 服务端口9527 TCP MAX3个客户
AT+CIPSEND # 进入透传状态 注意：没有客户端链接时会报错，等待链接建立后才执行成功
