MicroPython Modbus library v2.3.7使用笔记1

https://micropython-modbus.readthedocs.io/en/latest/readme_link.html#

MicroPython v1.24.1 on 2024-11-29; Generic ESP32 module with ESP32

1、线程：modbus slaver TCP协议，做电力仪表数据采集、处理、转发单元，配300个寄存器regs，二十几台表一次性轮询存入lista，再一次性写modbus slaver的set_ireg(0, lista)。

2、中断：modbus master RTU每3秒定时轮询电表，因为存在超时未完成情况，设置标志位，轮询未完成时，不进行新任务。

线程1modbus slaver TCP接收上位机查询Modbus Poll、Kepware等应用程序，如果线程2modbus master轮询完成正在写内存set_ireg()，同时读写，内核有机制避免资源冲突么？

用随机数set_ireg测试

lista = [urandom.randint(1, 65535) for i in range(300)]

t_randint.py 生产300个随机整数测试写mbSlaver.py实例

from micropython import const
import urandom,time
import mbSlaver

def set_iregs():

    while True :
        lista = [urandom.randint(1, 65535) for i in range(300)]
        # print(lista)
        time.sleep(1)
        set_ireg_startime = time.ticks_ms()
        mbSlaver.client.set_ireg(0, lista)
        set_ireg_endtime = time.ticks_ms()
        set_ireg_duration = set_ireg_endtime - set_ireg_startime
        print(f"main() set_ireg duration ：{set_ireg_duration} ms")

if __name__ == "__main__":
    set_iregs()

mbSlaver.py  modbus slaver TCP Server

# GW-DTU-301 数据转发单元
import network
from machine import Pin

# import modbus client classes
from umodbus.tcp import ModbusTCP

# TCP Slave setup
tcp_port = 502  # port to listen to
# set IP address of the MicroPython device explicitly
local_ip = "192.168.1.119"  # IP address
# or get it from the system after a connection to the network has been made

# ModbusTCP can get TCP requests from a host device to provide/set data
client = ModbusTCP()
is_bound = False

# check whether client has been bound to an IP and port
is_bound = client.get_bound_status()

if not is_bound:
    client.bind(local_ip=local_ip, local_port=tcp_port)

# commond slave register setup, to be used with the Master example above
register_definitions = {
    "COILS": {
        "COIL": {
            "register": 0,
            "len": 10,
            "val": [i for i in range(10)],  # 启用10个元素，初始赋值0
        }
    },
    "HREGS": {
        "HREG": {
            "register": 0,
            "len": 10,
            "val": [i for i in range(10)],  # 启用10个元素，初始赋值0
        }
    },
    "ISTS": {
        "ISTS": {
            "register": 0,
            "len": 10,
            "val": [i for i in range(10)],  # 启用10个元素，初始赋值0
        }
    },
    "IREGS": {
        "IREG": {
            "register": 0,
            "len": 300,
            "val": [0 for i in range(300)],  # 启用300个元素，初始赋值0
        }
    },
}

"""
# alternatively the register definitions can also be loaded from a JSON file
import json

with open('registers/example.json', 'r') as file:
    register_definitions = json.load(file)
"""
print("Setting up registers ... initial ...")
# use the defined values of each register type provided by register_definitions
client.setup_registers(registers=register_definitions)
# alternatively use dummy default values (True for bool regs, 999 otherwise)
# client.setup_registers(registers=register_definitions, use_default_vals=True)
print("Register setup done")
print("Serving as TCP client on {}:{}".format(local_ip, tcp_port))


def call_mbslaver():
    while True:
        try:
            result = client.process()
        except KeyboardInterrupt:
            print("KeyboardInterrupt, stopping TCP client...")
            break
        except Exception as e:
            print("Exception during execution: {}".format(e))
    print("Finished providing/accepting data as client")


if __name__ == "__main__":
    call_mbslaver()

main.py

# GW-DTU-301 数据转发单元 main
import network, _thread, micropython, esp32, machine
import mbSlaver,t_randint,time

lock = _thread.allocate_lock()

try:
    _thread.start_new_thread(mbSlaver.call_mbslaver, ())
except Exception as e:
    machine.reset()

time.sleep(3)
_thread.start_new_thread(t_randint.set_iregs, ())

while True:
#     lock.acquire()
#     lock.release()
    micropython.mem_info()
    print(time.localtime())
    time.sleep(10)  # 主线程阻塞，不影响其他线程调度执行

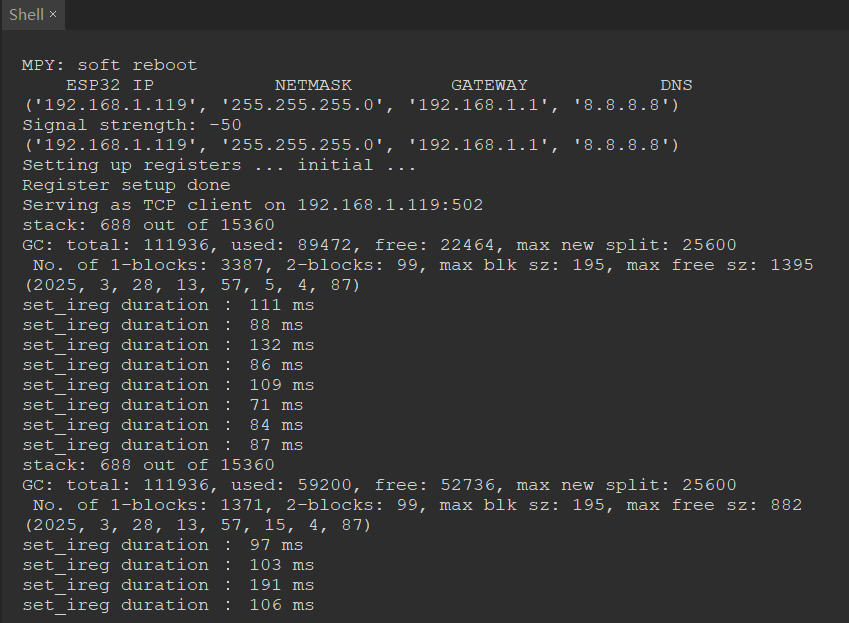

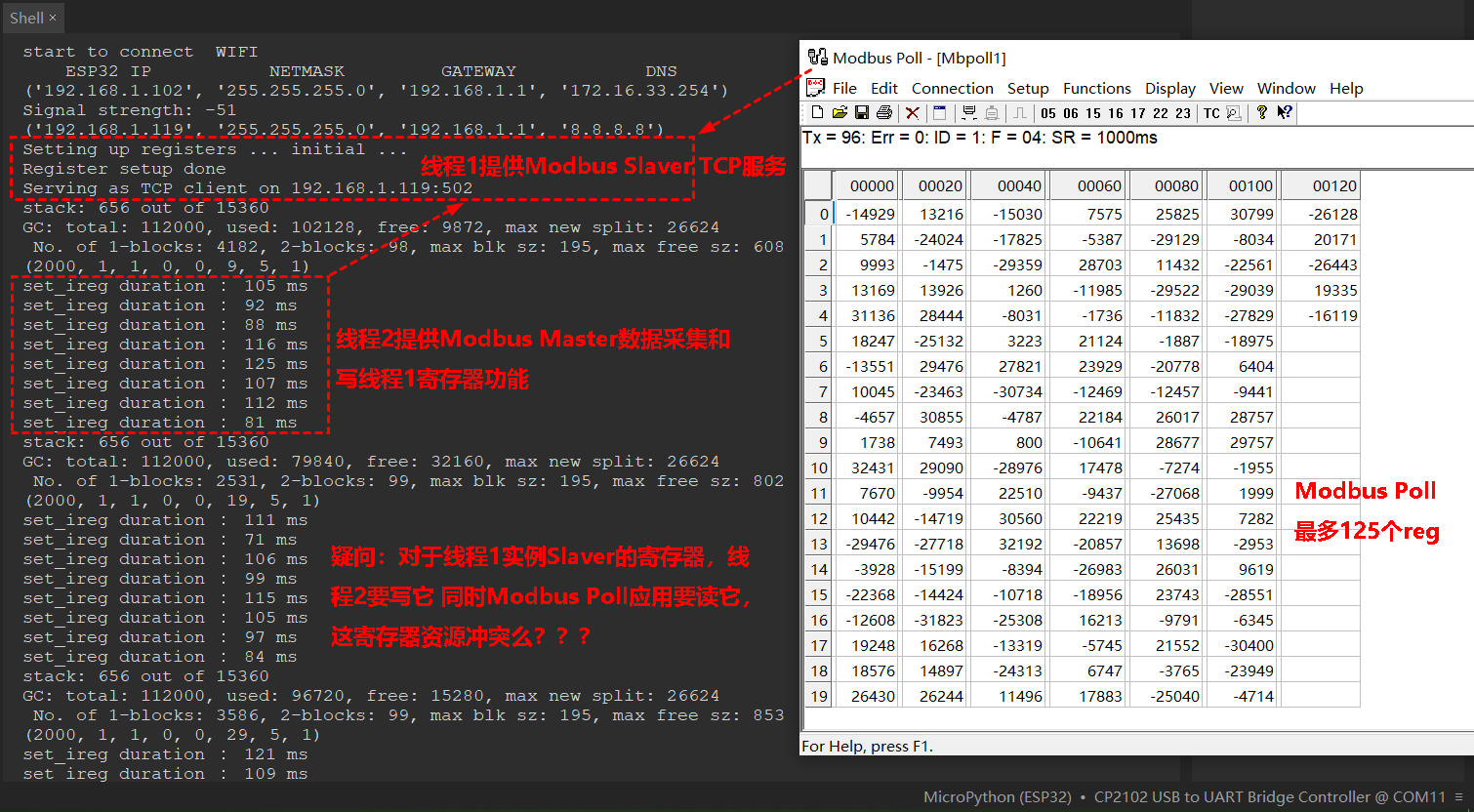

测试结果：

还有一个mbSlaver重复导入的问题，deepseek这样回答感觉与实际运行结果一致：

在Python中，处理文件导入重复的问题通常涉及模块导入机制和代码组织。

理解Python的模块缓存机制
Python默认会缓存已导入的模块（存储在 sys.modules 中），重复的 import 语句不会重新执行模块代码。例如：
# module_a.py
print("Module A 被导入")

# main.py
import module_a  # 输出 "Module A 被导入"
import module_a  # 无输出（已缓存）
