基于Akka模拟Spark中Master和Worker的通信过程

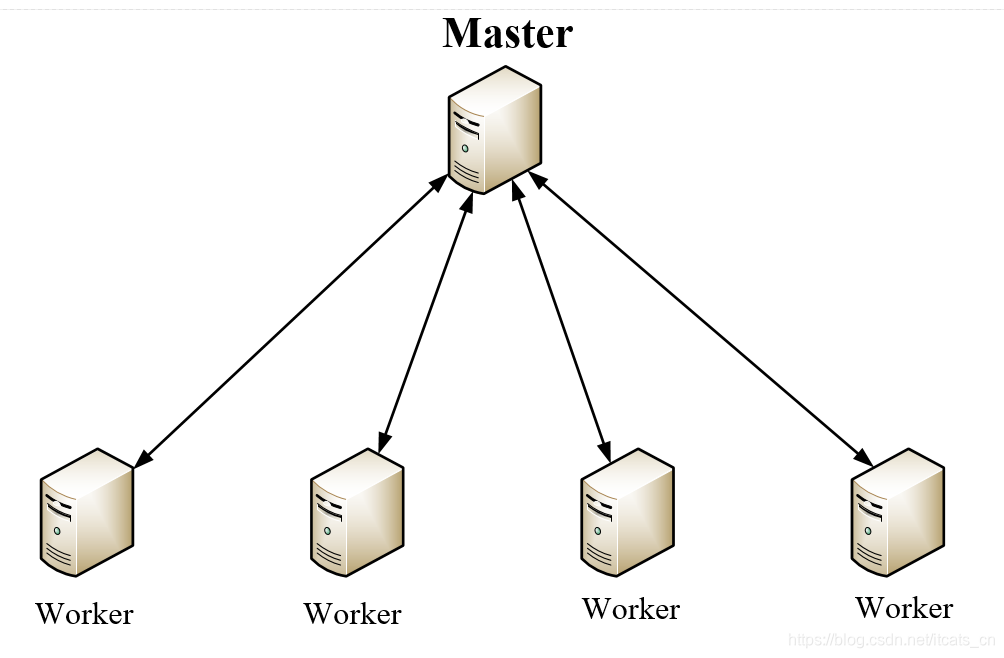

一、Spark中Master与Worker之间的通信过程

1、在启动时,Worker会向Master注册自己的信息(内存、核数等),以便

2、Master收到各Worker的注册信息后,会回复Worker已注册成功的信息

3、worker收到master的注册成功信息后,会定期向Master发送心跳包,回报自己的状态信息

4、Master定期收到Worker的心跳信息后,会更新各个Worker的状态信息。因为Worker在发送心跳包的时候会携带发送时间,Master会检查接收的心跳时间和当前的时间,如果两者的时间差值大于规定的时间,则表示Worker已挂掉。Master在分配任务的时候则不会给已挂掉的Worker分配任务

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.itcats</groupId>
    <artifactId>akka-test</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!-- 定义一下常量 -->
    <properties>
        <encoding>UTF-8</encoding>
        <scala.version>2.11.8</scala.version>
        <scala.compat.version>2.11</scala.compat.version>
        <akka.version>2.4.17</akka.version>
    </properties>

    <dependencies>
        <!-- 添加scala的依赖 -->
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>${scala.version}</version>
        </dependency>

        <!-- 添加akka的actor依赖 -->
        <dependency>
            <groupId>com.typesafe.akka</groupId>
            <artifactId>akka-actor_${scala.compat.version}</artifactId>
            <version>${akka.version}</version>
        </dependency>

        <!-- 多进程之间的Actor通信 -->
        <dependency>
            <groupId>com.typesafe.akka</groupId>
            <artifactId>akka-remote_${scala.compat.version}</artifactId>
            <version>${akka.version}</version>
        </dependency>
    </dependencies>

    <!-- 指定插件-->
    <build>
        <!-- 指定源码包和测试包的位置 -->
        <sourceDirectory>src/main/scala</sourceDirectory>
        <testSourceDirectory>src/test/scala</testSourceDirectory>
        <plugins>
            <!-- 指定编译scala的插件 -->
            <plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.2.2</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                        <configuration>
                            <args>
                                <arg>-dependencyfile</arg>
                                <arg>${project.build.directory}/.scala_dependencies</arg>
                            </args>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

            <!-- maven打包的插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <filters>
                                <filter>
                                    <artifact>*:*</artifact>
                                    <excludes>
                                        <exclude>META-INF/*.SF</exclude>
                                        <exclude>META-INF/*.DSA</exclude>
                                        <exclude>META-INF/*.RSA</exclude>
                                    </excludes>
                                </filter>
                            </filters>
                            <transformers>
                                <transformer implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>reference.conf</resource>
                                </transformer>
                                <!-- 指定main方法 -->
                                <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass>cn.itcats.spark.SparkMaster</mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>



SparkWorker

import java.util.UUID
import java.util.concurrent.TimeUnit
import akka.actor.{Actor, ActorSelection, ActorSystem, Props}
import com.typesafe.config.ConfigFactory
import scala.concurrent.duration._ //导入时间单位

//Worker向Master注册自己的信息

class SparkWorker(masterURL: String) extends Actor {
  //master的actorRef
  var masterProxy: ActorSelection = _
  val workId = UUID.randomUUID().toString

  override def preStart(): Unit = {
    masterProxy = context.actorSelection(masterURL)
  }

  override def receive = {
    case "started" => { //自己已就绪
      //向master注册自己的信息(id,核数,内存大小)
      masterProxy ! RegisterWorkerInfo(workId, 4, 32 * 1024)
    }
    case RegisteredWorkerInfo => { //Master给Worker发送的成功信息
      import context.dispatcher //使用调度器的时候必须导入Dispatcher
      //接收到Master发来的成功消息后,worker启动一个定时器,定时地向Master发送心跳信息
      context.system.scheduler.schedule(Duration.Zero, Duration(1500, TimeUnit.MILLISECONDS), self, SendHeartBeat)
    }
    case SendHeartBeat => {
      //向Master发送心跳
      masterProxy ! HeartBeat(workId) //此时Master将会收到心跳消息
      println(s"--------------- $workId 发送心跳 ---------------")
    }
  }

}

object SparkWorker {

  def main(args: Array[String]): Unit = {
    if (args.length != 4) {
      println("请输入参数 <host> <port> <workName> <masterURL>")
      sys.exit()
    }
    val host = args(0)
    val port = args(1)
    val workerName = args(2)
    val masterURL = args(3)

    val config = ConfigFactory.parseString(
      s"""
         |akka.actor.provider="akka.remote.RemoteActorRefProvider"
         |akka.remote.netty.tcp.hostname=$host
         |akka.remote.netty.tcp.port=$port
      """.stripMargin)
    val sparkWorkerSystem = ActorSystem("sparkWorker", config)
    val workActorRef = sparkWorkerSystem.actorOf(Props(new SparkWorker(masterURL)), workerName)
    workActorRef ! "started"
  }
}



SparkMaster

import java.util.concurrent.TimeUnit
import akka.actor.{Actor, ActorSystem, Props}
import com.typesafe.config.ConfigFactory
import scala.concurrent.duration.Duration

class SparkMaster extends Actor{

//  override def preStart(): Unit = {
//    context.system.scheduler.schedule(Duration.Zero, Duration(6000, TimeUnit.MILLISECONDS), self, RemoveTimeOutWorker)
//  }

  //存储worker信息到HashMap
  val idToWorkerInfoMap = scala.collection.mutable.HashMap[String,WorkerInfo]()

  override def receive = {
    //收到worker注册过来的信息
    case RegisterWorkerInfo(workId, core, ram) => {
      //将worker的信息存储起来,存入HashMap中
      if(!idToWorkerInfoMap.contains(workId)){
        val workerInfo = new WorkerInfo(workId,core,ram)
        idToWorkerInfoMap += ((workId,workerInfo))   //等同于idToWorkerInfoMap.put(workId,workerInfo)
        sender() ! RegisteredWorkerInfo //此时对应的worker会收到注册成功的消息
      }
    }
    case HeartBeat(workId) => {
      if(workId != null && !workId.trim.equals("")){
        //master收到worker的心跳包后更新上一次心跳的时间
        val workerInfo = idToWorkerInfoMap(workId)
        //更新上一次心跳时间
        workerInfo.lastHeartBeatTime = System.currentTimeMillis()
      }
    }
    //接收到自己发来的检查worker超时信息
    case CheckTimeOutWorker => {
      import context.dispatcher //使用调度器的时候必须导入Dispatcher
      //检查策略,周期性(6000ms)的取出两次心跳间隔超过3000ms的worker,并从map中剔除
      context.system.scheduler.schedule(Duration.Zero, Duration(6000, TimeUnit.MILLISECONDS), self, RemoveTimeOutWorker)
    }
    case RemoveTimeOutWorker => {
      //遍历map 查看当前时间和上一次心跳时间差 3000
      val workerInfos = idToWorkerInfoMap.values
      //过滤之后结果是超时的worker,使用foreach删除 没有返回值
      workerInfos.filter(workerInfo => System.currentTimeMillis() - workerInfo.lastHeartBeatTime > 3000 )
        .foreach(workerTimeOutNode => idToWorkerInfoMap.remove(workerTimeOutNode.id))
      println(s"还剩 ${idToWorkerInfoMap.size}个 存活的worker")
    }
  }
}

object SparkMaster{
  def main(args: Array[String]): Unit = {
    if (args.length != 3) {
      println("请输入参数 <host> <port> <workName>")
      sys.exit()
    }
    val host = args(0)
    val port = args(1)
    val masterName = args(2)

    val config = ConfigFactory.parseString(
      s"""
         |akka.actor.provider="akka.remote.RemoteActorRefProvider"
         |akka.remote.netty.tcp.hostname=$host
         |akka.remote.netty.tcp.port=$port
      """.stripMargin)
    val sparkWorkerSystem = ActorSystem("sparkMaster", config)
    val workActorRef = sparkWorkerSystem.actorOf(Props[SparkMaster], masterName)
    workActorRef ! CheckTimeOutWorker
  }
}



协议样例类MessageProtocol

//worker -> master
case class RegisterWorkerInfo(id: String, core: Int, ram: Int)

//worker给Master发送心跳信息(需要告知Master是谁)
case class HeartBeat(id: String)

//master -> worker
//master向worker发送注册成功的消息
case object RegisteredWorkerInfo

//Worker自己发送给自己  意味着需要定期向Master发送心跳信息
case object SendHeartBeat

//master给自己发送一个检查worker超时的信息,并启动一个调度器,周期性检查超时的worker
case object CheckTimeOutWorker

//master发送给自己的消息 删除超时的worker
case object RemoveTimeOutWorker

//存储worker信息的对象类
class WorkerInfo(val id: String, core: Int, ram: Int) {
  var lastHeartBeatTime: Long = _ //初始值为0
}

编辑Program arguments

SparkMaster

127.0.0.1 8877 master

SparkWorker

127.0.0.1 8878 wk-01 akka.tcp://sparkMaster@127.0.0.1:8877/user/master
