二叉树的递归遍历

所谓二叉树的遍历，本质上就是沿某条搜索路径访问树中的每个结点，使得每个节点均被访问一次，而且仅被访问一次。

由二叉树的基本定义可以知道，遍历一颗二叉树首先必须决定对根结点(N)，左子树(L)，右子树(R)的访问顺序，按照先遍历左孩子再遍历右孩子的原则，常见的遍历次序有先序遍历(NLR)，中序遍历(LNR)和后序遍历(LRN)三种遍历算法。

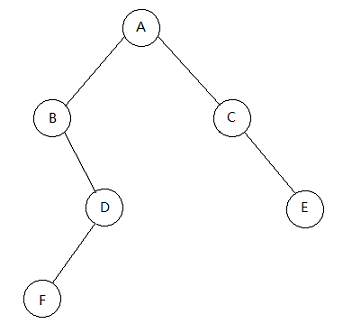

在这里使用做个简单的例子来说明下。

一.先序遍历

先序遍历的操作过程为：

开始二叉树是否为空？结束访问根结点先序遍历左子树先序遍历右子树yesno

那么先序遍历的结果应该为
A->B->D->F->C->E

这样根据定义便可以写出相应的算法描述

<code class="language-c hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PreOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
        PreOrder(T->lchild);
        PreOrder(T->rchild);
    }
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul>

二.中序遍历

中序遍历的过程为：

开始二叉树是否为空？结束先序遍历左子树访问根结点先序遍历右子树yesno

那么中序遍历的结果应该为
B->F->D->A->C->E

这样根据定义便可以写出相应的算法描述

<code class="language-c hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> InOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        InOrder(T->lchild);
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
        InOrder(T->rchild);
    }
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul>

三.后序遍历

后序遍历的过程为：

开始二叉树是否为空？结束先序遍历左子树先序遍历右子树访问根结点yesno

那么后序序遍历的结果应该为
F->D->B->E->C->A

这样根据定义便可以写出相应的算法描述

<code class="language-c hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PostOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        PostOrder(T->lchild);
        PostOrder(T->rchild);
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
    }
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul>

上述算法中，递归遍历左、右子树的顺序都是固定的，只是访问根结点的顺序不同。不管采用哪种遍历算法，每个节点都访问一次且仅访问一次，故时间复杂度都是 。在递归遍历中，递归工作栈的栈深度恰好为树的深度，所以在最坏的情况下，二叉树有n个结点且深度为n的单支树，遍历算法的空间复杂度为 。

完整代码见附件

---

附件

<code class="language-c hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-top-left-radius: 0px; border-top-right-radius: 0px; border-bottom-right-radius: 0px; border-bottom-left-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//AB#DF###C#E##</span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include<stdio.h></span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include<stdlib.h></span>

<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#define MaxSize 100</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">typedef</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">char</span> ElemType;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">typedef</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">struct</span> BiTNode{
    ElemType data;
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">struct</span> BiTNode *lchild, *rchild;
}BiTNode, *BiTree;

BiTree CreateBiTree(BiTNode*);
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PreOrder(BiTNode*);
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> InOrder(BiTNode*);
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PostOrder(BiTNode*);

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> main(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> argc, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">char</span>* argv[]){
    BiTNode *T;
    T=(BiTNode*)<span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">malloc</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">sizeof</span>(BiTNode));
    T=CreateBiTree(T);
    PreOrder(T);
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"\n"</span>);
    InOrder(T);
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"\n"</span>);
    PostOrder(T);
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"\n"</span>);
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;
}

BiTree CreateBiTree(BiTNode* T){
    ElemType x;
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">scanf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,&x);
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(x==<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">'#'</span>){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> T;
    }
    T=(BiTNode*)<span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">malloc</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">sizeof</span>(BiTNode));
    T->data=x;
    T->lchild=CreateBiTree(T->lchild);
    T->rchild=CreateBiTree(T->rchild);
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> T;
}

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PreOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
        PreOrder(T->lchild);
        PreOrder(T->rchild);
    }
}

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> InOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        InOrder(T->lchild);
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
        InOrder(T->rchild);
    }
}

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> PostOrder(BiTNode* T){
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>(T==NULL){
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span>{
        PostOrder(T->lchild);
        PostOrder(T->rchild);
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"%c"</span>,T->data);
    }
}</code>
