本篇重点:
1.HashMap的存储结构
2.HashMap的put和get操作过程
3.HashMap的扩容
4.关于transient关键字

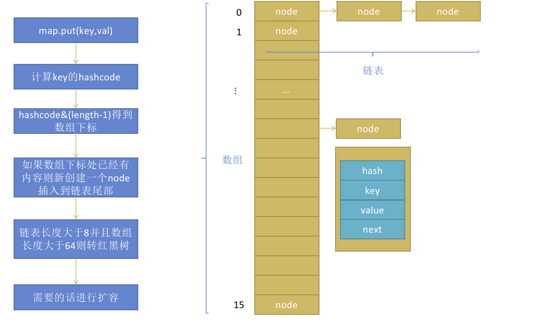

HashMap的存储结构
1. HashMap 总体是数组+链表的存储结构, 从JDK1.8开始,当数组的长度大于64,且链表的长度大于8的时候,会把链表转为红黑树。
2. 数组的默认长度是16。数组中的每一个元素为一个node,也就是链表的一个节点,node的数据包含: key的hashcode, key, value,指向下一个node节点的指针。
部分源码如下:
static class Node<K,V> implements Map.Entry<K,V> { final int hash; final K key; V value; Node<K,V> next; Node(int hash, K key, V value, Node<K,V> next) { this.hash = hash; this.key = key; this.value = value; this.next = next; } ... }
3. 随着put操作的进行,如果数组的长度超过64,且链表的长度大于8的时候, 则将链表转为红黑树,红黑树节点的结构如下,TreeNode继承的LinkedHashMap.Entry是继承HashMap.Node的,所以TreeNode是上面Node的子类。
static final class TreeNode<K,V> extends LinkedHashMap.Entry<K,V> { TreeNode<K,V> parent; // red-black tree links TreeNode<K,V> left; TreeNode<K,V> right; TreeNode<K,V> prev; // needed to unlink next upon deletion boolean red; TreeNode(int hash, K key, V val, Node<K,V> next) { super(hash, key, val, next); } //... }
4. HashMap类的主要成员变量:
/* ---------------- Fields -------------- */ /** * The table, in
