@Configuration源码解析
1. 读前准备
读本篇文章前最好先理解ConfigurationClassPostProcessor
SpringBoot 源码解析5：ConfigurationClassPostProcessor整体流程和@ComponentScan源码分析
2. Demo
@Configuration
public class MyConfiguration {
@Bean
public MyBean configuration1() {
return myBean();
}
@Bean
public MyBean configuration2() {
return myBean();
}
@Bean
public MyBean myBean() {
System.out.println("只会进入一次");
return new MyBean();
}
}
public class MyBean {
}
这是一个简单的demo，myBean方法只会被调用一次，源码解读以demo为例。
3. Configuration注解
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component
public @interface Configuration {
/**
* Explicitly specify the name of the Spring bean definition associated with the
* {@code @Configuration} class. If left unspecified (the common case), a bean
* name will be automatically generated.
* <p>The custom name applies only if the {@code @Configuration} class is picked
* up via component scanning or supplied directly to an
* {@link AnnotationConfigApplicationContext}. If the {@code @Configuration} class
* is registered as a traditional XML bean definition, the name/id of the bean
* element will take precedence.
* @return the explicit component name, if any (or empty String otherwise)
* @see AnnotationBeanNameGenerator
*/
@AliasFor(annotation = Component.class)
String value() default "";
/**
* Specify whether {@code @Bean} methods should get proxied in order to enforce
* bean lifecycle behavior, e.g. to return shared singleton bean instances even
* in case of direct {@code @Bean} method calls in user code. This feature
* requires method interception, implemented through a runtime-generated CGLIB
* subclass which comes with limitations such as the configuration class and
* its methods not being allowed to declare {@code final}.
* <p>The default is {@code true}, allowing for 'inter-bean references' within
* the configuration class as well as for external calls to this configuration's
* {@code @Bean} methods, e.g. from another configuration class. If this is not
* needed since each of this particular configuration's {@code @Bean} methods
* is self-contained and designed as a plain factory method for container use,
* switch this flag to {@code false} in order to avoid CGLIB subclass processing.
* <p>Turning off bean method interception effectively processes {@code @Bean}
* methods individually like when declared on non-{@code @Configuration} classes,
* a.k.a. "@Bean Lite Mode" (see {@link Bean @Bean's javadoc}). It is therefore
* behaviorally equivalent to removing the {@code @Configuration} stereotype.
* @since 5.2
*/
boolean proxyBeanMethods() default true;
}
- 我们可以看到，@Configuration注解由@Component标注。所以，在ComponentScan扫描器的时候，会扫描到@Configuration标注的类。
- value属性：就是Bean的别名。
- proxyBeanMethods：是否代理beanMethod。在Spring中，beanMethod指的就是由@Bean标注的方法。
- proxyBeanMethods = true属性的理解：为true就说明MyConfiguration 需要被代理，Spring会生成一个代理类，从而生成一个MyConfiguration 代理对象。读过AOP源码的都知道，代理的对象是会回调拦截器的。第一次会直接调用myBean()方法，获取方法的返回值，放入到缓存中；第二次调用myBean()方法的时候，会从缓存中获取，不会再次调用。这也就保证了bean的单例性。
4. ConfigurationClassPostProcessor解析Configuration注解
ConfigurationClassPostProcessor源码整体流程可阅读：SpringBoot 源码解析5：ConfigurationClassPostProcessor整体流程和@ComponentScan源码分析
4.1 设置是否需要代理的标识
Map<String, Object> config = metadata.getAnnotationAttributes(Configuration.class.getName());
if (config != null && !Boolean.FALSE.equals(config.get("proxyBeanMethods"))) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
}
else if (config != null || isConfigurationCandidate(metadata)) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
else {
return false;
}
- 配置类注解的解析是在ConfigurationClassPostProcessor中完成的，在解析的流程里面调用了ConfigurationClassUtils#checkConfigurationClassCandidate方法。
调用链：ConfigurationClassPostProcessor#postProcessBeanDefinitionRegistry → ConfigurationClassPostProcessor#processConfigBeanDefinitions → ConfigurationClassUtils#checkConfigurationClassCandidate - 我们可以看看到，如果proxyBeanMethods = true，那么就会设置一个CONFIGURATION_CLASS_FULL，便于后续判断该类是否要生成一个代理对象。
4.2 解析BeanMethod
//ConfigurationClassParser#doProcessConfigurationClass方法
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
private Set<MethodMetadata> retrieveBeanMethodMetadata(SourceClass sourceClass) {
AnnotationMetadata original = sourceClass.getMetadata();
// 通过jvm的方式，获取beanMethod
Set<MethodMetadata> beanMethods = original.getAnnotatedMethods(Bean.class.getName());
if (beanMethods.size() > 1 && original instanceof StandardAnnotationMetadata) {
// Try reading the class file via ASM for deterministic declaration order...
// Unfortunately, the JVM's standard reflection returns methods in arbitrary
// order, even between different runs of the same application on the same JVM.
// 如果存在多个BeanMethod，那么通过jvm的方法是不能保证BeanMethod的顺序的，那么就通过ASM方式
try {
AnnotationMetadata asm =
this.metadataReaderFactory.getMetadataReader(original.getClassName()).getAnnotationMetadata();
Set<MethodMetadata> asmMethods = asm.getAnnotatedMethods(Bean.class.getName());
if (asmMethods.size() >= beanMethods.size()) {
Set<MethodMetadata> selectedMethods = new LinkedHashSet<>(asmMethods.size());
for (MethodMetadata asmMethod : asmMethods) {
for (MethodMetadata beanMethod : beanMethods) {
if (beanMethod.getMethodName().equals(asmMethod.getMethodName())) {
selectedMethods.add(beanMethod);
break;
}
}
}
if (selectedMethods.size() == beanMethods.size()) {
// All reflection-detected methods found in ASM method set -> proceed
beanMethods = selectedMethods;
}
}
}
catch (IOException ex) {
logger.debug("Failed to read class file via ASM for determining @Bean method order", ex);
// No worries, let's continue with the reflection metadata we started with...
}
}
return beanMethods;
}
- ConfigurationClassParser#retrieveBeanMethodMetadata方法完成了对beanMethod的读取。
- 首先通过jvm的方式，获取beanMethod。jvm方法获方法是不能保证顺序的，如果有多个beanMethod，那么就通过ASM的方式获取beanMethod。
4.3 注册BeanDefinition
ConfigurationClassBeanDefinitionReader#loadBeanDefinitionsForBeanMethod
private void loadBeanDefinitionsForBeanMethod(BeanMethod beanMethod) {
ConfigurationClass configClass = beanMethod.getConfigurationClass();
MethodMetadata metadata = beanMethod.getMetadata();
String methodName = metadata.getMethodName();
// Do we need to mark the bean as skipped by its condition?
if (this.conditionEvaluator.shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN)) {
configClass.skippedBeanMethods.add(methodName);
return;
}
if (configClass.skippedBeanMethods.contains(methodName)) {
return;
}
AnnotationAttributes bean = AnnotationConfigUtils.attributesFor(metadata, Bean.class);
Assert.state(bean != null, "No @Bean annotation attributes");
// Consider name and any aliases
List<String> names = new ArrayList<>(Arrays.asList(bean.getStringArray("name")));
String beanName = (!names.isEmpty() ? names.remove(0) : methodName);
// Register aliases even when overridden
for (String alias : names) {
this.registry.registerAlias(beanName, alias);
}
// Has this effectively been overridden before (e.g. via XML)?
if (isOverriddenByExistingDefinition(beanMethod, beanName)) {
if (beanName.equals(beanMethod.getConfigurationClass().getBeanName())) {
throw new BeanDefinitionStoreException(beanMethod.getConfigurationClass().getResource().getDescription(),
beanName, "Bean name derived from @Bean method '" + beanMethod.getMetadata().getMethodName() +
"' clashes with bean name for containing configuration class; please make those names unique!");
}
return;
}
ConfigurationClassBeanDefinition beanDef = new ConfigurationClassBeanDefinition(configClass, metadata);
beanDef.setResource(configClass.getResource());
beanDef.setSource(this.sourceExtractor.extractSource(metadata, configClass.getResource()));
if (metadata.isStatic()) {
// static @Bean method
if (configClass.getMetadata() instanceof StandardAnnotationMetadata) {
beanDef.setBeanClass(((StandardAnnotationMetadata) configClass.getMetadata()).getIntrospectedClass());
}
else {
beanDef.setBeanClassName(configClass.getMetadata().getClassName());
}
beanDef.setUniqueFactoryMethodName(methodName);
}
else {
// instance @Bean method
beanDef.setFactoryBeanName(configClass.getBeanName());
beanDef.setUniqueFactoryMethodName(methodName);
}
if (metadata instanceof StandardMethodMetadata) {
beanDef.setResolvedFactoryMethod(((StandardMethodMetadata) metadata).getIntrospectedMethod());
}
beanDef.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_CONSTRUCTOR);
beanDef.setAttribute(org.springframework.beans.factory.annotation.RequiredAnnotationBeanPostProcessor.
SKIP_REQUIRED_CHECK_ATTRIBUTE, Boolean.TRUE);
AnnotationConfigUtils.processCommonDefinitionAnnotations(beanDef, metadata);
Autowire autowire = bean.getEnum("autowire");
if (autowire.isAutowire()) {
beanDef.setAutowireMode(autowire.value());
}
boolean autowireCandidate = bean.getBoolean("autowireCandidate");
if (!autowireCandidate) {
beanDef.setAutowireCandidate(false);
}
String initMethodName = bean.getString("initMethod");
if (StringUtils.hasText(initMethodName)) {
beanDef.setInitMethodName(initMethodName);
}
String destroyMethodName = bean.getString("destroyMethod");
beanDef.setDestroyMethodName(destroyMethodName);
// Consider scoping
ScopedProxyMode proxyMode = ScopedProxyMode.NO;
AnnotationAttributes attributes = AnnotationConfigUtils.attributesFor(metadata, Scope.class);
if (attributes != null) {
beanDef.setScope(attributes.getString("value"));
proxyMode = attributes.getEnum("proxyMode");
if (proxyMode == ScopedProxyMode.DEFAULT) {
proxyMode = ScopedProxyMode.NO;
}
}
// Replace the original bean definition with the target one, if necessary
BeanDefinition beanDefToRegister = beanDef;
if (proxyMode != ScopedProxyMode.NO) {
BeanDefinitionHolder proxyDef = ScopedProxyCreator.createScopedProxy(
new BeanDefinitionHolder(beanDef, beanName), this.registry,
proxyMode == ScopedProxyMode.TARGET_CLASS);
beanDefToRegister = new ConfigurationClassBeanDefinition(
(RootBeanDefinition) proxyDef.getBeanDefinition(), configClass, metadata);
}
if (logger.isTraceEnabled()) {
logger.trace(String.format("Registering bean definition for @Bean method %s.%s()",
configClass.getMetadata().getClassName(), beanName));
}
this.registry.registerBeanDefinition(beanName, beanDefToRegister);
}
可以看到BeanDefinition中保存了两个最重要的属性factoryBeanName和factoryMethodName。
5. 配置类增强
Spring是先回调ConfigurationClassPostProcessor#processConfigBeanDefinitions
再回调ConfigurationClassPostProcessor#postProcessBeanFactory。
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
int factoryId = System.identityHashCode(beanFactory);
if (this.factoriesPostProcessed.contains(factoryId)) {
throw new IllegalStateException(
"postProcessBeanFactory already called on this post-processor against " + beanFactory);
}
this.factoriesPostProcessed.add(factoryId);
if (!this.registriesPostProcessed.contains(factoryId)) {
// BeanDefinitionRegistryPostProcessor hook apparently not supported...
// Simply call processConfigurationClasses lazily at this point then.
processConfigBeanDefinitions((BeanDefinitionRegistry) beanFactory);
}
enhanceConfigurationClasses(beanFactory);
beanFactory.addBeanPostProcessor(new ImportAwareBeanPostProcessor(beanFactory));
}
而配置类增强，就是在postProcessBeanFactory方法中完成了，调用了ConfigurationClassPostProcessor#enhanceConfigurationClasses。
public void enhanceConfigurationClasses(ConfigurableListableBeanFactory beanFactory) {
// 存放的是要被增强的BeanDefinition
Map<String, AbstractBeanDefinition> configBeanDefs = new LinkedHashMap<>();
// 遍历所有已经注册完成的bean的名称
for (String beanName : beanFactory.getBeanDefinitionNames()) {
// 获取beanDefinition
BeanDefinition beanDef = beanFactory.getBeanDefinition(beanName);
// 获取是否代理的标识
Object configClassAttr = beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE);
MethodMetadata methodMetadata = null;
if (beanDef instanceof AnnotatedBeanDefinition) {
methodMetadata = ((AnnotatedBeanDefinition) beanDef).getFactoryMethodMetadata();
}
if ((configClassAttr != null || methodMetadata != null) && beanDef instanceof AbstractBeanDefinition) {
// Configuration class (full or lite) or a configuration-derived @Bean method
// -> resolve bean class at this point...
// 如果beanClass属性不是class类型，那么就设置classLoader，便于加载类。
AbstractBeanDefinition abd = (AbstractBeanDefinition) beanDef;
if (!abd.hasBeanClass()) {
try {
abd.resolveBeanClass(this.beanClassLoader);
}
catch (Throwable ex) {
throw new IllegalStateException(
"Cannot load configuration class: " + beanDef.getBeanClassName(), ex);
}
}
}
if (ConfigurationClassUtils.CONFIGURATION_CLASS_FULL.equals(configClassAttr)) {
if (!(beanDef instanceof AbstractBeanDefinition)) {
throw new BeanDefinitionStoreException("Cannot enhance @Configuration bean definition '" +
beanName + "' since it is not stored in an AbstractBeanDefinition subclass");
}
else if (logger.isInfoEnabled() && beanFactory.containsSingleton(beanName)) {
logger.info("Cannot enhance @Configuration bean definition '" + beanName +
"' since its singleton instance has been created too early. The typical cause " +
"is a non-static @Bean method with a BeanDefinitionRegistryPostProcessor " +
"return type: Consider declaring such methods as 'static'.");
}
configBeanDefs.put(beanName, (AbstractBeanDefinition) beanDef);
}
}
if (configBeanDefs.isEmpty()) {
// nothing to enhance -> return immediately
return;
}
// 走到这里，就说明有BeanDefinition需要被代理
ConfigurationClassEnhancer enhancer = new ConfigurationClassEnhancer();
for (Map.Entry<String, AbstractBeanDefinition> entry : configBeanDefs.entrySet()) {
AbstractBeanDefinition beanDef = entry.getValue();
// If a @Configuration class gets proxied, always proxy the target class
// 设置代理方式
beanDef.setAttribute(AutoProxyUtils.PRESERVE_TARGET_CLASS_ATTRIBUTE, Boolean.TRUE);
// Set enhanced subclass of the user-specified bean class
Class<?> configClass = beanDef.getBeanClass();
//生成代理类
Class<?> enhancedClass = enhancer.enhance(configClass, this.beanClassLoader);
if (configClass != enhancedClass) {
if (logger.isTraceEnabled()) {
logger.trace(String.format("Replacing bean definition '%s' existing class '%s' with " +
"enhanced class '%s'", entry.getKey(), configClass.getName(), enhancedClass.getName()));
}
// 将代理类方法到BeanDefinition中
beanDef.setBeanClass(enhancedClass);
}
}
}
- 先找到所有需要被代理的BeanDefinition。
- 通过ConfigurationClassEnhancer对代理类进行增强，放入到BeanDefinition中的beanClass是代理类，后期实例化生成的就是代理对象。
5.1 增强拦截器
ConfigurationClassEnhancer#enhance
public Class<?> enhance(Class<?> configClass, @Nullable ClassLoader classLoader) {
if (EnhancedConfiguration.class.isAssignableFrom(configClass)) {
if (logger.isDebugEnabled()) {
logger.debug(String.format("Ignoring request to enhance %s as it has " +
"already been enhanced. This usually indicates that more than one " +
"ConfigurationClassPostProcessor has been registered (e.g. via " +
"<context:annotation-config>). This is harmless, but you may " +
"want check your configuration and remove one CCPP if possible",
configClass.getName()));
}
return configClass;
}
Class<?> enhancedClass = createClass(newEnhancer(configClass, classLoader));
if (logger.isTraceEnabled()) {
logger.trace(String.format("Successfully enhanced %s; enhanced class name is: %s",
configClass.getName(), enhancedClass.getName()));
}
return enhancedClass;
}
createClass方法通过当前的类和classLoader生成代理类
private Class<?> createClass(Enhancer enhancer) {
Class<?> subclass = enhancer.createClass();
// Registering callbacks statically (as opposed to thread-local)
// is critical for usage in an OSGi environment (SPR-5932)...
Enhancer.registerStaticCallbacks(subclass, CALLBACKS);
return subclass;
}
可以看到设置了拦截器BeanMethodInterceptor
private static final Callback[] CALLBACKS = new Callback[] {
new BeanMethodInterceptor(),
new BeanFactoryAwareMethodInterceptor(),
NoOp.INSTANCE
};
接下来，我们就来查看BeanMethodInterceptor，也是保证单例bean的重要实现逻辑。
6. ConfigurationClassEnhancer.BeanMethodInterceptor#intercept
public Object intercept(Object enhancedConfigInstance, Method beanMethod, Object[] beanMethodArgs,
MethodProxy cglibMethodProxy) throws Throwable {
// 获取Bean工厂
ConfigurableBeanFactory beanFactory = getBeanFactory(enhancedConfigInstance);
// 获取bean的名称
String beanName = BeanAnnotationHelper.determineBeanNameFor(beanMethod);
// Determine whether this bean is a scoped-proxy
// 是否存在Scoped注解
if (BeanAnnotationHelper.isScopedProxy(beanMethod)) {
String scopedBeanName = ScopedProxyCreator.getTargetBeanName(beanName);
if (beanFactory.isCurrentlyInCreation(scopedBeanName)) {
beanName = scopedBeanName;
}
}
// To handle the case of an inter-bean method reference, we must explicitly check the
// container for already cached instances.
// First, check to see if the requested bean is a FactoryBean. If so, create a subclass
// proxy that intercepts calls to getObject() and returns any cached bean instance.
// This ensures that the semantics of calling a FactoryBean from within @Bean methods
// is the same as that of referring to a FactoryBean within XML. See SPR-6602.
// 判断是否为FactoryBean
if (factoryContainsBean(beanFactory, BeanFactory.FACTORY_BEAN_PREFIX + beanName) &&
factoryContainsBean(beanFactory, beanName)) {
Object factoryBean = beanFactory.getBean(BeanFactory.FACTORY_BEAN_PREFIX + beanName);
if (factoryBean instanceof ScopedProxyFactoryBean) {
// Scoped proxy factory beans are a special case and should not be further proxied
}
else {
// It is a candidate FactoryBean - go ahead with enhancement
return enhanceFactoryBean(factoryBean, beanMethod.getReturnType(), beanFactory, beanName);
}
}
// 判断beanMethod是否是当前正在创建
if (isCurrentlyInvokedFactoryMethod(beanMethod)) {
// The factory is calling the bean method in order to instantiate and register the bean
// (i.e. via a getBean() call) -> invoke the super implementation of the method to actually
// create the bean instance.
if (logger.isInfoEnabled() &&
BeanFactoryPostProcessor.class.isAssignableFrom(beanMethod.getReturnType())) {
logger.info(String.format("@Bean method %s.%s is non-static and returns an object " +
"assignable to Spring's BeanFactoryPostProcessor interface. This will " +
"result in a failure to process annotations such as @Autowired, " +
"@Resource and @PostConstruct within the method's declaring " +
"@Configuration class. Add the 'static' modifier to this method to avoid " +
"these container lifecycle issues; see @Bean javadoc for complete details.",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName()));
}
// 如果当前beanMethod为正在创建的beanMethod，那么就直接通过jvm回调我们自己写的方法
return cglibMethodProxy.invokeSuper(enhancedConfigInstance, beanMethodArgs);
}
//如果beanMethod不为当前正在创建的beanMethod，那么就说明正在嵌套调用，即一个beanMethod调用另外一个BeanMethod
return resolveBeanReference(beanMethod, beanMethodArgs, beanFactory, beanName);
}
- 在Spring实例化Bean的时候，调用这个拦截器之前，会将当前的方法放入到本地线程SimpleInstantiationStrategy#currentlyInvokedFactoryMethod中。通过isCurrentlyInvokedFactoryMethod方法可以判断当前的方法是否为正在创建的beanMethod。
- 如果不是正在创建的BeanMethod，就说明是嵌套调用。
- 通过之前的阅读我们可以知道，Spring通过ASM的方式保证了方法的顺序。

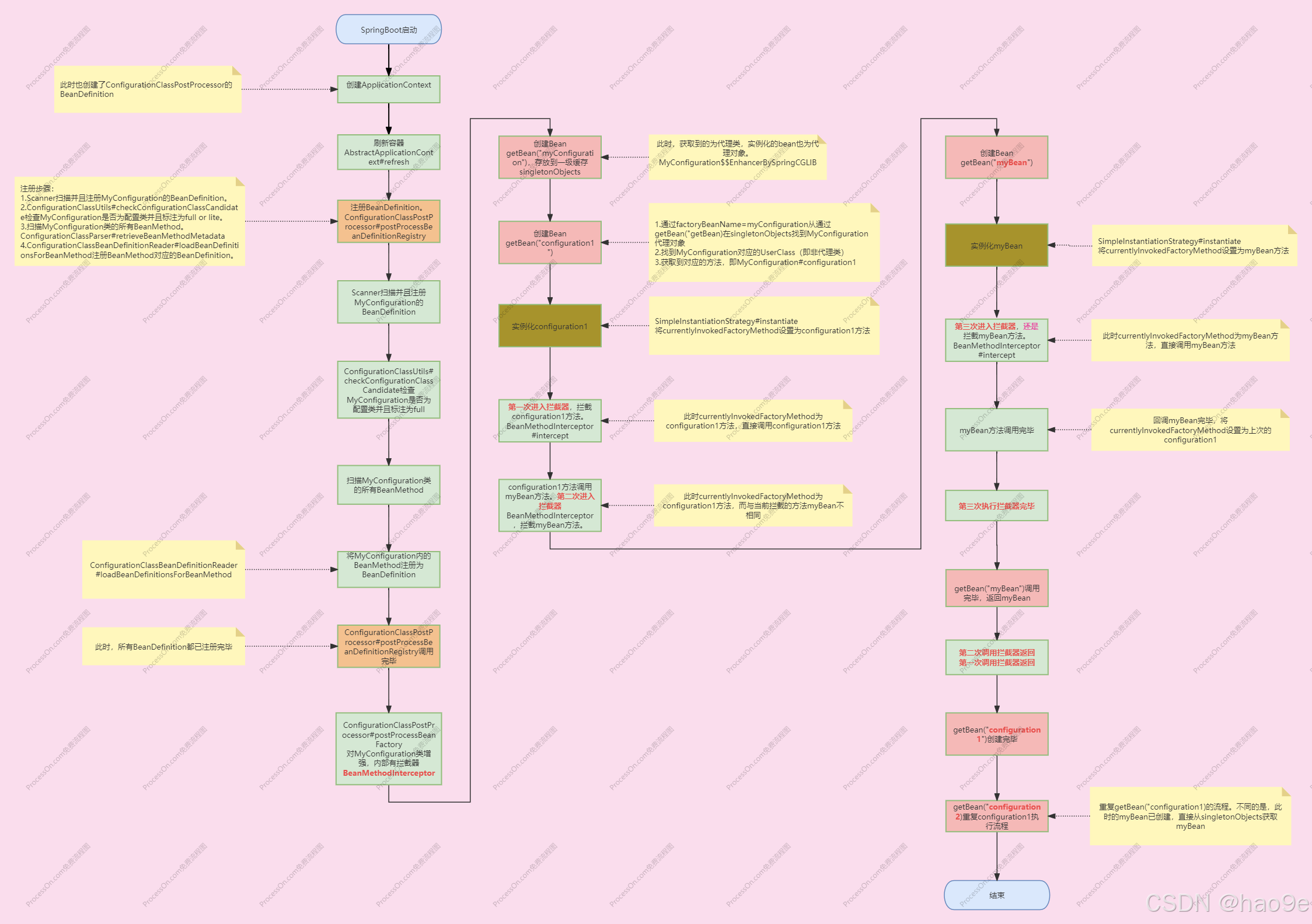

调用链：- 在createBeanInstance方法实例化bean的时候，会将configuration1方法保存到SimpleInstantiationStrategy#currentlyInvokedFactoryMethod中。
- 由于是MyConfiguration 是被代理的，方法的回调会进入拦截器。
- 第①次进入拦截器的方法为configuration1，会直接通过cglibMethodProxy.invokeSuper回调我们本地的configuration1方法。
- configuration1方法里面，调用了myBean方法，第②次进入拦截器的是myBean方法。但是在拦截器里面并没有修改currentlyInvokedFactoryMethod属性，所以currentlyInvokedFactoryMethod中存放的还是configuration1。
- 通过isCurrentlyInvokedFactoryMethod方法判断myBean失败，所以会走resolveBeanReference方法。在resolveBeanReference中会通过getBean方法获取到myBean方法对应的bean，此时也会第③次进入拦截器。不同的是，在拦截器外会修改currentlyInvokedFactoryMethod属性，所以isCurrentlyInvokedFactoryMethod判断成功，调用cglibMethodProxy.invokeSuper返回myBean，但是回调完毕之后会将currentlyInvokedFactoryMethod中存放的方法改为configuration1。
- 上一步创建完毕之后，返回到configuration1方法也回调完成，最终configuration1的Bean也创建完成。
- 当configuration2创建的时候，会第④次进入此拦截器，同样的是在拦截器外部设置了currentlyInvokedFactoryMethod为configuration2。所以会通过cglibMethodProxy.invokeSuper进入到本地写好的方法。
- configuration2中又调用了myBean，会第⑤次进入拦截器，currentlyInvokedFactoryMethod中保存的是configuration2，所以会调用resolveBeanReference方法。此时的myBean是从单例池singletonObjects中获取的，不会重复创建。最终，configuration2调用完毕。
7. ConfigurationClassEnhancer.BeanMethodInterceptor#resolveBeanReference
上面我们提到了多次resolveBeanReference方法，它的作用就是解决beanMethod的循环引用。
private Object resolveBeanReference(Method beanMethod, Object[] beanMethodArgs,
ConfigurableBeanFactory beanFactory, String beanName) {
// The user (i.e. not the factory) is requesting this bean through a call to
// the bean method, direct or indirect. The bean may have already been marked
// as 'in creation' in certain autowiring scenarios; if so, temporarily set
// the in-creation status to false in order to avoid an exception.
boolean alreadyInCreation = beanFactory.isCurrentlyInCreation(beanName);
try {
if (alreadyInCreation) {
beanFactory.setCurrentlyInCreation(beanName, false);
}
boolean useArgs = !ObjectUtils.isEmpty(beanMethodArgs);
if (useArgs && beanFactory.isSingleton(beanName)) {
// Stubbed null arguments just for reference purposes,
// expecting them to be autowired for regular singleton references?
// A safe assumption since @Bean singleton arguments cannot be optional...
for (Object arg : beanMethodArgs) {
if (arg == null) {
useArgs = false;
break;
}
}
}
Object beanInstance = (useArgs ? beanFactory.getBean(beanName, beanMethodArgs) :
beanFactory.getBean(beanName));
if (!ClassUtils.isAssignableValue(beanMethod.getReturnType(), beanInstance)) {
// Detect package-protected NullBean instance through equals(null) check
if (beanInstance.equals(null)) {
if (logger.isDebugEnabled()) {
logger.debug(String.format("@Bean method %s.%s called as bean reference " +
"for type [%s] returned null bean; resolving to null value.",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName(),
beanMethod.getReturnType().getName()));
}
beanInstance = null;
}
else {
String msg = String.format("@Bean method %s.%s called as bean reference " +
"for type [%s] but overridden by non-compatible bean instance of type [%s].",
beanMethod.getDeclaringClass().getSimpleName(), beanMethod.getName(),
beanMethod.getReturnType().getName(), beanInstance.getClass().getName());
try {
BeanDefinition beanDefinition = beanFactory.getMergedBeanDefinition(beanName);
msg += " Overriding bean of same name declared in: " + beanDefinition.getResourceDescription();
}
catch (NoSuchBeanDefinitionException ex) {
// Ignore - simply no detailed message then.
}
throw new IllegalStateException(msg);
}
}
Method currentlyInvoked = SimpleInstantiationStrategy.getCurrentlyInvokedFactoryMethod();
if (currentlyInvoked != null) {
String outerBeanName = BeanAnnotationHelper.determineBeanNameFor(currentlyInvoked);
beanFactory.registerDependentBean(beanName, outerBeanName);
}
return beanInstance;
}
finally {
if (alreadyInCreation) {
beanFactory.setCurrentlyInCreation(beanName, true);
}
}
}
这个方法很简单，通过getBean的方式去获取bean。
8. 实例化BeanMethod
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
在AbstractAutowireCapableBeanFactory#createBeanInstance中，BeanMethod的实例化是通过instantiateUsingFactoryMethod完成的。
8.1 ConstructorResolver#instantiateUsingFactoryMethod
public BeanWrapper instantiateUsingFactoryMethod(
String beanName, RootBeanDefinition mbd, @Nullable Object[] explicitArgs) {
BeanWrapperImpl bw = new BeanWrapperImpl();
this.beanFactory.initBeanWrapper(bw);
Object factoryBean;
Class<?> factoryClass;
boolean isStatic;
String factoryBeanName = mbd.getFactoryBeanName();
if (factoryBeanName != null) {
if (factoryBeanName.equals(beanName)) {
throw new BeanDefinitionStoreException(mbd.getResourceDescription(), beanName,
"factory-bean reference points back to the same bean definition");
}
// 先创建工厂bean
factoryBean = this.beanFactory.getBean(factoryBeanName);
if (mbd.isSingleton() && this.beanFactory.containsSingleton(beanName)) {
throw new ImplicitlyAppearedSingletonException();
}
factoryClass = factoryBean.getClass();
isStatic = false;
}
else {
// It's a static factory method on the bean class.
if (!mbd.hasBeanClass()) {
throw new BeanDefinitionStoreException(mbd.getResourceDescription(), beanName,
"bean definition declares neither a bean class nor a factory-bean reference");
}
factoryBean = null;
factoryClass = mbd.getBeanClass();
isStatic = true;
}
Method factoryMethodToUse = null;
ArgumentsHolder argsHolderToUse = null;
Object[] argsToUse = null;
if (explicitArgs != null) {
argsToUse = explicitArgs;
}
else {
Object[] argsToResolve = null;
synchronized (mbd.constructorArgumentLock) {
factoryMethodToUse = (Method) mbd.resolvedConstructorOrFactoryMethod;
if (factoryMethodToUse != null && mbd.constructorArgumentsResolved) {
// Found a cached factory method...
argsToUse = mbd.resolvedConstructorArguments;
if (argsToUse == null) {
argsToResolve = mbd.preparedConstructorArguments;
}
}
}
if (argsToResolve != null) {
argsToUse = resolvePreparedArguments(beanName, mbd, bw, factoryMethodToUse, argsToResolve, true);
}
}
if (factoryMethodToUse == null || argsToUse == null) {
// Need to determine the factory method...
// Try all methods with this name to see if they match the given arguments.
// 得到代理工厂类对应的实际的工厂类
factoryClass = ClassUtils.getUserClass(factoryClass);
List<Method> candidates = null;
if (mbd.isFactoryMethodUnique) {
//获取要实例化的方法
if (factoryMethodToUse == null) {
factoryMethodToUse = mbd.getResolvedFactoryMethod();
}
if (factoryMethodToUse != null) {
candidates = Collections.singletonList(factoryMethodToUse);
}
}
if (candidates == null) {
candidates = new ArrayList<>();
Method[] rawCandidates = getCandidateMethods(factoryClass, mbd);
for (Method candidate : rawCandidates) {
if (Modifier.isStatic(candidate.getModifiers()) == isStatic && mbd.isFactoryMethod(candidate)) {
candidates.add(candidate);
}
}
}
if (candidates.size() == 1 && explicitArgs == null && !mbd.hasConstructorArgumentValues()) {
Method uniqueCandidate = candidates.get(0);
if (uniqueCandidate.getParameterCount() == 0) {
mbd.factoryMethodToIntrospect = uniqueCandidate;
synchronized (mbd.constructorArgumentLock) {
mbd.resolvedConstructorOrFactoryMethod = uniqueCandidate;
mbd.constructorArgumentsResolved = true;
mbd.resolvedConstructorArguments = EMPTY_ARGS;
}
//实例化
bw.setBeanInstance(instantiate(beanName, mbd, factoryBean, uniqueCandidate, EMPTY_ARGS));
return bw;
}
}
if (candidates.size() > 1) { // explicitly skip immutable singletonList
candidates.sort(AutowireUtils.EXECUTABLE_COMPARATOR);
}
ConstructorArgumentValues resolvedValues = null;
boolean autowiring = (mbd.getResolvedAutowireMode() == AutowireCapableBeanFactory.AUTOWIRE_CONSTRUCTOR);
int minTypeDiffWeight = Integer.MAX_VALUE;
Set<Method> ambiguousFactoryMethods = null;
int minNrOfArgs;
if (explicitArgs != null) {
minNrOfArgs = explicitArgs.length;
}
else {
// We don't have arguments passed in programmatically, so we need to resolve the
// arguments specified in the constructor arguments held in the bean definition.
if (mbd.hasConstructorArgumentValues()) {
ConstructorArgumentValues cargs = mbd.getConstructorArgumentValues();
resolvedValues = new ConstructorArgumentValues();
minNrOfArgs = resolveConstructorArguments(beanName, mbd, bw, cargs, resolvedValues);
}
else {
minNrOfArgs = 0;
}
}
LinkedList<UnsatisfiedDependencyException> causes = null;
for (Method candidate : candidates) {
int parameterCount = candidate.getParameterCount();
if (parameterCount >= minNrOfArgs) {
ArgumentsHolder argsHolder;
Class<?>[] paramTypes = candidate.getParameterTypes();
if (explicitArgs != null) {
// Explicit arguments given -> arguments length must match exactly.
if (paramTypes.length != explicitArgs.length) {
continue;
}
argsHolder = new ArgumentsHolder(explicitArgs);
}
else {
// Resolved constructor arguments: type conversion and/or autowiring necessary.
try {
String[] paramNames = null;
ParameterNameDiscoverer pnd = this.beanFactory.getParameterNameDiscoverer();
if (pnd != null) {
paramNames = pnd.getParameterNames(candidate);
}
argsHolder = createArgumentArray(beanName, mbd, resolvedValues, bw,
paramTypes, paramNames, candidate, autowiring, candidates.size() == 1);
}
catch (UnsatisfiedDependencyException ex) {
if (logger.isTraceEnabled()) {
logger.trace("Ignoring factory method [" + candidate + "] of bean '" + beanName + "': " + ex);
}
// Swallow and try next overloaded factory method.
if (causes == null) {
causes = new LinkedList<>();
}
causes.add(ex);
continue;
}
}
int typeDiffWeight = (mbd.isLenientConstructorResolution() ?
argsHolder.getTypeDifferenceWeight(paramTypes) : argsHolder.getAssignabilityWeight(paramTypes));
// Choose this factory method if it represents the closest match.
if (typeDiffWeight < minTypeDiffWeight) {
factoryMethodToUse = candidate;
argsHolderToUse = argsHolder;
argsToUse = argsHolder.arguments;
minTypeDiffWeight = typeDiffWeight;
ambiguousFactoryMethods = null;
}
// Find out about ambiguity: In case of the same type difference weight
// for methods with the same number of parameters, collect such candidates
// and eventually raise an ambiguity exception.
// However, only perform that check in non-lenient constructor resolution mode,
// and explicitly ignore overridden methods (with the same parameter signature).
else if (factoryMethodToUse != null && typeDiffWeight == minTypeDiffWeight &&
!mbd.isLenientConstructorResolution() &&
paramTypes.length == factoryMethodToUse.getParameterCount() &&
!Arrays.equals(paramTypes, factoryMethodToUse.getParameterTypes())) {
if (ambiguousFactoryMethods == null) {
ambiguousFactoryMethods = new LinkedHashSet<>();
ambiguousFactoryMethods.add(factoryMethodToUse);
}
ambiguousFactoryMethods.add(candidate);
}
}
}
if (factoryMethodToUse == null || argsToUse == null) {
if (causes != null) {
UnsatisfiedDependencyException ex = causes.removeLast();
for (Exception cause : causes) {
this.beanFactory.onSuppressedException(cause);
}
throw ex;
}
List<String> argTypes = new ArrayList<>(minNrOfArgs);
if (explicitArgs != null) {
for (Object arg : explicitArgs) {
argTypes.add(arg != null ? arg.getClass().getSimpleName() : "null");
}
}
else if (resolvedValues != null) {
Set<ValueHolder> valueHolders = new LinkedHashSet<>(resolvedValues.getArgumentCount());
valueHolders.addAll(resolvedValues.getIndexedArgumentValues().values());
valueHolders.addAll(resolvedValues.getGenericArgumentValues());
for (ValueHolder value : valueHolders) {
String argType = (value.getType() != null ? ClassUtils.getShortName(value.getType()) :
(value.getValue() != null ? value.getValue().getClass().getSimpleName() : "null"));
argTypes.add(argType);
}
}
String argDesc = StringUtils.collectionToCommaDelimitedString(argTypes);
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"No matching factory method found: " +
(mbd.getFactoryBeanName() != null ?
"factory bean '" + mbd.getFactoryBeanName() + "'; " : "") +
"factory method '" + mbd.getFactoryMethodName() + "(" + argDesc + ")'. " +
"Check that a method with the specified name " +
(minNrOfArgs > 0 ? "and arguments " : "") +
"exists and that it is " +
(isStatic ? "static" : "non-static") + ".");
}
else if (void.class == factoryMethodToUse.getReturnType()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Invalid factory method '" + mbd.getFactoryMethodName() +
"': needs to have a non-void return type!");
}
else if (ambiguousFactoryMethods != null) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Ambiguous factory method matches found in bean '" + beanName + "' " +
"(hint: specify index/type/name arguments for simple parameters to avoid type ambiguities): " +
ambiguousFactoryMethods);
}
if (explicitArgs == null && argsHolderToUse != null) {
mbd.factoryMethodToIntrospect = factoryMethodToUse;
argsHolderToUse.storeCache(mbd, factoryMethodToUse);
}
}
bw.setBeanInstance(instantiate(beanName, mbd, factoryBean, factoryMethodToUse, argsToUse));
return bw;
}
- 先实例化工厂MyConfiguration。
- 再调用instantiate方法调用对应的方法实例化bean。
8.2 SimpleInstantiationStrategy#instantiate
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner,
@Nullable Object factoryBean, final Method factoryMethod, Object... args) {
try {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(factoryMethod);
return null;
});
}
else {
ReflectionUtils.makeAccessible(factoryMethod);
}
Method priorInvokedFactoryMethod = currentlyInvokedFactoryMethod.get();
try {
currentlyInvokedFactoryMethod.set(factoryMethod);
Object result = factoryMethod.invoke(factoryBean, args);
if (result == null) {
result = new NullBean();
}
return result;
}
finally {
if (priorInvokedFactoryMethod != null) {
currentlyInvokedFactoryMethod.set(priorInvokedFactoryMethod);
}
else {
currentlyInvokedFactoryMethod.remove();
}
}
}
catch (IllegalArgumentException ex) {
throw new BeanInstantiationException(factoryMethod,
"Illegal arguments to factory method '" + factoryMethod.getName() + "'; " +
"args: " + StringUtils.arrayToCommaDelimitedString(args), ex);
}
catch (IllegalAccessException ex) {
throw new BeanInstantiationException(factoryMethod,
"Cannot access factory method '" + factoryMethod.getName() + "'; is it public?", ex);
}
catch (InvocationTargetException ex) {
String msg = "Factory method '" + factoryMethod.getName() + "' threw exception";
if (bd.getFactoryBeanName() != null && owner instanceof ConfigurableBeanFactory &&
((ConfigurableBeanFactory) owner).isCurrentlyInCreation(bd.getFactoryBeanName())) {
msg = "Circular reference involving containing bean '" + bd.getFactoryBeanName() + "' - consider " +
"declaring the factory method as static for independence from its containing instance. " + msg;
}
throw new BeanInstantiationException(factoryMethod, msg, ex.getTargetException());
}
}
- 这里我们也能看到上面常常提到的currentlyInvokedFactoryMethod属性，用来保存正在调用的method。如果有嵌套的实例化method，会先试用嵌套内部的，嵌套内部使用完毕，再重新设置外部的。
- factoryMethod.invoke(factoryBean, args)这个方法中的factoryBean为MyConfiguration的代理对象，所以方法的回调会进入拦截器方法BeanMethodInterceptor#intercept。
读完这篇文章，我们要知道Configuration实现的真正原理。
389
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
