Spring注入 @Autowired & @Resource

1. 概述

1.1 职责

@Autowired注入是由AutowiredAnnotationBeanPostProcessor完成的。
@Resource注入是由CommonAnnotationBeanPostProcessor完成的。
由于两种方式代码重复率太高，原理基本一致，下面我们主要以AutowiredAnnotationBeanPostProcessor源码分析为主。

1.2 流程概述

AutowiredAnnotationBeanPostProcessor负责属性、方法的注入。
分为两个流程：

注册元数据：先将要注入的字段和方法组成元数据，放入缓存中。
赋值：通过缓存中的描述信息从beanFactory中获取bean，字段和方法注入。

2. Demo

AutoObjectA

@Component
public class AutoObjectA {

    @Autowired
    private AutoObjectB autoObjectB;

}

AutoObjectB

@Component
public class AutoObjectB {

}

3. AutowiredAnnotationBeanPostProcessor注册

在创建AnnotationConfigServletWebServerApplicationContext的时候，就已经注册了AutowiredAnnotationBeanPostProcessor和CommonAnnotationBeanPostProcessor。
SpringBoot 源码解析2：启动流程

AnnotationConfigUtils#registerAnnotationConfigProcessors

public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
		BeanDefinitionRegistry registry, @Nullable Object source) {

	DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
	if (beanFactory != null) {
		if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
			beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
		}
		if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
			beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
		}
	}

	Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);

	if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
	}

	if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
	}

	// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
	if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
	}

	// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
	if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition();
		try {
			def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
					AnnotationConfigUtils.class.getClassLoader()));
		}
		catch (ClassNotFoundException ex) {
			throw new IllegalStateException(
					"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
		}
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
	}

	if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
	}

	if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
	}

	return beanDefs;
}

4. 注册元数据

SpringBoot 源码解析7：Bean的创建② AbstractAutowireCapableBeanFactory#createBean

在doCreateBean方法源码中，我们可以知道，在实例化bean之后，会通过applyMergedBeanDefinitionPostProcessors方法回调MergedBeanDefinitionPostProcessor#postProcessMergedBeanDefinition。

protected void applyMergedBeanDefinitionPostProcessors(RootBeanDefinition mbd, Class<?> beanType, String beanName) {
	for (BeanPostProcessor bp : getBeanPostProcessors()) {
		if (bp instanceof MergedBeanDefinitionPostProcessor) {
			MergedBeanDefinitionPostProcessor bdp = (MergedBeanDefinitionPostProcessor) bp;
			bdp.postProcessMergedBeanDefinition(mbd, beanType, beanName);
		}
	}
}

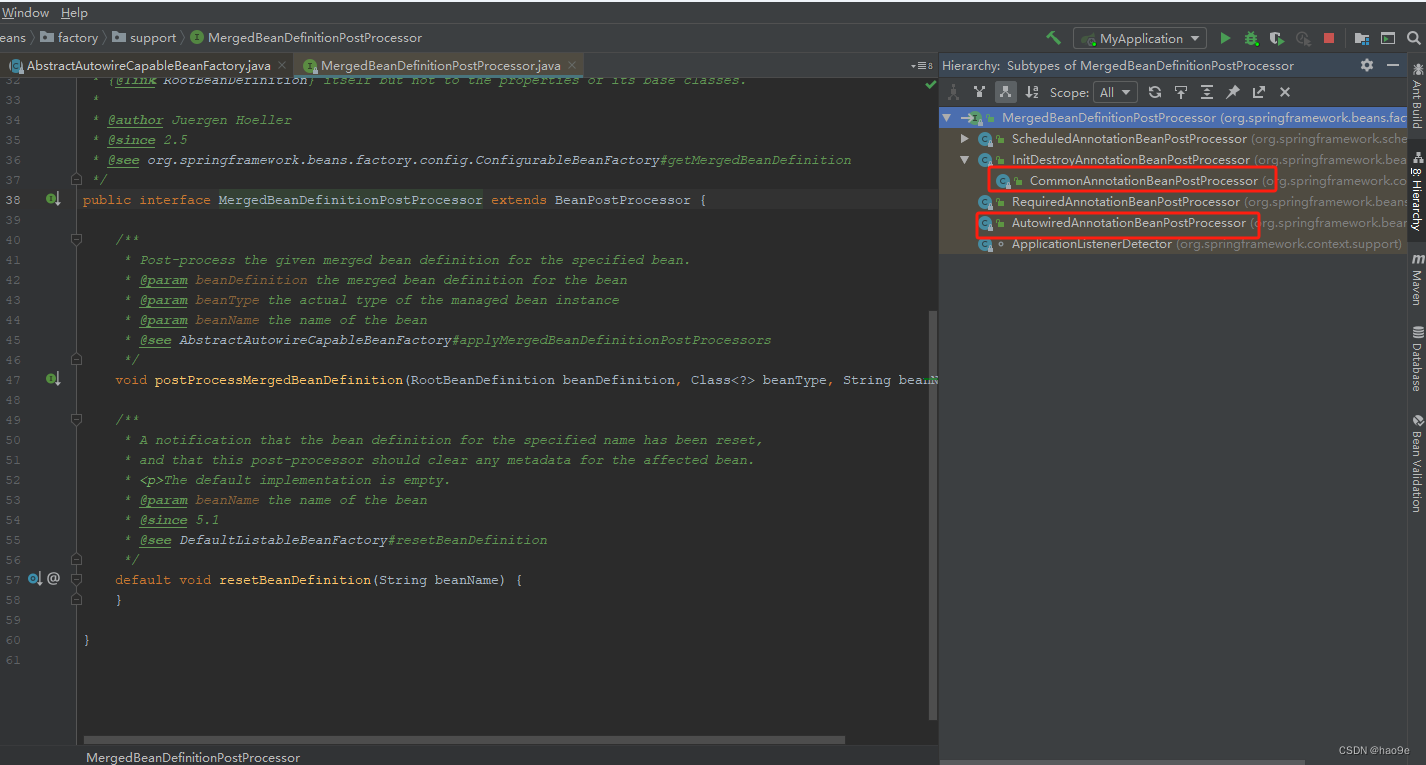

AutowiredAnnotationBeanPostProcessor继承了MergedBeanDefinitionPostProcessor
在这里插入图片描述
元数据的注册的核心逻辑就在AutowiredAnnotationBeanPostProcessor#postProcessMergedBeanDefinition

4.1 AutowiredAnnotationBeanPostProcessor#postProcessMergedBeanDefinition

@Override
public void postProcessMergedBeanDefinition(RootBeanDefinition beanDefinition, Class<?> beanType, String beanName) {
	InjectionMetadata metadata = findAutowiringMetadata(beanName, beanType, null);
	metadata.checkConfigMembers(beanDefinition);
}

通过findAutowiringMetadata方法找到需要注入的元数据，然后还会检查一下成员变量。
暂时不知道checkConfigMembers的作用。

4.2 AutowiredAnnotationBeanPostProcessor#findAutowiringMetadata

private InjectionMetadata findAutowiringMetadata(String beanName, Class<?> clazz, @Nullable PropertyValues pvs) {
	// Fall back to class name as cache key, for backwards compatibility with custom callers.
	String cacheKey = (StringUtils.hasLength(beanName) ? beanName : clazz.getName());
	// Quick check on the concurrent map first, with minimal locking.
	InjectionMetadata metadata = this.injectionMetadataCache.get(cacheKey);
	if (InjectionMetadata.needsRefresh(metadata, clazz)) {
		synchronized (this.injectionMetadataCache) {
			metadata = this.injectionMetadataCache.get(cacheKey);
			if (InjectionMetadata.needsRefresh(metadata, clazz)) {
				if (metadata != null) {
					metadata.clear(pvs);
				}
				metadata = buildAutowiringMetadata(clazz);
				this.injectionMetadataCache.put(cacheKey, metadata);
			}
		}
	}
	return metadata;
}

做了一个缓存injectionMetadataCache，将注入信息的流程与注入流程分开，注入时直接从缓存中获取信息。
pvs为已经注入的属性，metadata.clear(pvs)会清除掉这些信息，不会重复注入。

4.3 AutowiredAnnotationBeanPostProcessor#buildAutowiringMetadata


private final Set<Class<? extends Annotation>> autowiredAnnotationTypes = new LinkedHashSet<>(4);

private String requiredParameterName = "required";

public AutowiredAnnotationBeanPostProcessor() {
	this.autowiredAnnotationTypes.add(Autowired.class);
	this.autowiredAnnotationTypes.add(Value.class);
	try {
		this.autowiredAnnotationTypes.add((Class<? extends Annotation>)
				ClassUtils.forName("javax.inject.Inject", AutowiredAnnotationBeanPostProcessor.class.getClassLoader()));
		logger.trace("JSR-330 'javax.inject.Inject' annotation found and supported for autowiring");
	}
	catch (ClassNotFoundException ex) {
		// JSR-330 API not available - simply skip.
	}
}

private InjectionMetadata buildAutowiringMetadata(final Class<?> clazz) {
	if (!AnnotationUtils.isCandidateClass(clazz, this.autowiredAnnotationTypes)) {
		return InjectionMetadata.EMPTY;
	}

	List<InjectionMetadata.InjectedElement> elements = new ArrayList<>();
	Class<?> targetClass = clazz;

	do {
		final List<InjectionMetadata.InjectedElement> currElements = new ArrayList<>();
		// 1. 先扫描方法上面的注入注解
		ReflectionUtils.doWithLocalFields(targetClass, field -> {
			MergedAnnotation<?> ann = findAutowiredAnnotation(field);
			if (ann != null) {
				// 不支持静态字段
				if (Modifier.isStatic(field.getModifiers())) {
					if (logger.isInfoEnabled()) {
						logger.info("Autowired annotation is not supported on static fields: " + field);
					}
					return;
				}
				// 是否必须注入，默认为true，找不到bean就会抛出异常
				boolean required = determineRequiredStatus(ann);
				// 注册
				currElements.add(new AutowiredFieldElement(field, required));
			}
		});

		// 2. 再扫描方法上面的注入注解
		ReflectionUtils.doWithLocalMethods(targetClass, method -> {
			// 通过桥接方法找到原始的方法
			Method bridgedMethod = BridgeMethodResolver.findBridgedMethod(method);
			if (!BridgeMethodResolver.isVisibilityBridgeMethodPair(method, bridgedMethod)) {
				return;
			}
			// 判断方法上面是否有注入注解
			MergedAnnotation<?> ann = findAutowiredAnnotation(bridgedMethod);
			// 获取到具体的方法，此时的方法可能是父类中的方法，但已被子类复写
			if (ann != null && method.equals(ClassUtils.getMostSpecificMethod(method, clazz))) {
				if (Modifier.isStatic(method.getModifiers())) {
					if (logger.isInfoEnabled()) {
						logger.info("Autowired annotation is not supported on static methods: " + method);
					}
					return;
				}
				if (method.getParameterCount() == 0) {
					if (logger.isInfoEnabled()) {
						logger.info("Autowired annotation should only be used on methods with parameters: " +
								method);
					}
				}
				// 判断是否必须注入
				boolean required = determineRequiredStatus(ann);
				PropertyDescriptor pd = BeanUtils.findPropertyForMethod(bridgedMethod, clazz);
				//注册
				currElements.add(new AutowiredMethodElement(method, required, pd));
			}
		});
		// 优先是否方法注入
		elements.addAll(0, currElements);
		targetClass = targetClass.getSuperclass();
	}
	while (targetClass != null && targetClass != Object.class);

	return InjectionMetadata.forElements(elements, clazz);
}

这是获取需要注入的元数据的核心方法

支持的注入注解包含Autowired、Value、Inject。
不支持静态注入，因为静态属于类的信息。
将方法注入的元数据放入到前面，所以方法先注入，后面字段注入会覆盖方法注入。
字段注入创建的是AutowiredFieldElement，方法注入创建的是AutowiredMethodElement。字段注入和方法注入的逻辑基本一样的，后面讲解以demo中的字段注入为例。
最终，将要注入的信息封装到InjectionMetadata，完成注入信息的注册。

public static InjectionMetadata forElements(Collection<InjectedElement> elements, Class<?> clazz) {
	return (elements.isEmpty() ? InjectionMetadata.EMPTY : new InjectionMetadata(clazz, elements));
}

5. 字段注入逻辑

AbstractAutowireCapableBeanFactory#populateBean方法负责对bean的属性的初始化。回调了InstantiationAwareBeanPostProcessor#postProcessProperties。

PropertyDescriptor[] filteredPds = null;
if (hasInstAwareBpps) {
	if (pvs == null) {
		pvs = mbd.getPropertyValues();
	}
	for (BeanPostProcessor bp : getBeanPostProcessors()) {
		if (bp instanceof InstantiationAwareBeanPostProcessor) {
			InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
			PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
			if (pvsToUse == null) {
				if (filteredPds == null) {
					filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
				}
				pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
				if (pvsToUse == null) {
					return;
				}
			}
			pvs = pvsToUse;
		}
	}
}

每次调用postProcessProperties会传入PropertyValues

5.1 AutowiredAnnotationBeanPostProcessor#postProcessProperties

@Override
public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
	InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);
	try {
		metadata.inject(bean, beanName, pvs);
	}
	catch (BeanCreationException ex) {
		throw ex;
	}
	catch (Throwable ex) {
		throw new BeanCreationException(beanName, "Injection of autowired dependencies failed", ex);
	}
	return pvs;
}

第二次调用findAutowiringMetadata从缓存中获取要注入的元素信息，并且将已经注入成功的pvs删除掉。

5.2 AutowiredAnnotationBeanPostProcessor.AutowiredFieldElement#inject

@Override
protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
	Field field = (Field) this.member;
	Object value;
	if (this.cached) {
		value = resolvedCachedArgument(beanName, this.cachedFieldValue);
	}
	else {
		// 将字段和是否强制注入封装城描述信息
		DependencyDescriptor desc = new DependencyDescriptor(field, this.required);
		desc.setContainingClass(bean.getClass());
		Set<String> autowiredBeanNames = new LinkedHashSet<>(1);
		Assert.state(beanFactory != null, "No BeanFactory available");
		// 获取类型转换器
		TypeConverter typeConverter = beanFactory.getTypeConverter();
		try {
			// 创建依赖的bean，也就是字段所对应的bean
			value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
		}
		catch (BeansException ex) {
			// 创建bean依赖的bean失败
			throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(field), ex);
		}
		synchronized (this) {
			// 如果没有添加缓存，那么就会添加缓存
			if (!this.cached) {
				if (value != null || this.required) {
					this.cachedFieldValue = desc;
					// 注册bean的依赖关系
					registerDependentBeans(beanName, autowiredBeanNames);
					if (autowiredBeanNames.size() == 1) {
						String autowiredBeanName = autowiredBeanNames.iterator().next();
						if (beanFactory.containsBean(autowiredBeanName) &&
								beanFactory.isTypeMatch(autowiredBeanName, field.getType())) {
							this.cachedFieldValue = new ShortcutDependencyDescriptor(
									desc, autowiredBeanName, field.getType());
						}
					}
				}
				else {
					this.cachedFieldValue = null;
				}
				this.cached = true;
			}
		}
	}
	// 设置属性的值
	if (value != null) {
		ReflectionUtils.makeAccessible(field);
		field.set(bean, value);
	}
}

这是@Autowired注解字段注入的实现逻辑。将依赖的bean的描述信息封装在DependencyDescriptor 中，通过beanFactory.resolveDependency解决依赖，方法的返回值就是所依赖的bean。
cached：缓存了bean的依赖信息。
最终通过反射，完成了字段的初始化。

总结：beanFactory.resolveDependency方法获取到依赖的bean，通过反射field.set(bean, value)对字段赋值。

5.3 解决依赖关系 DefaultListableBeanFactory#doResolveDependency

@Nullable
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
		@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

	InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
	try {
		Object shortcut = descriptor.resolveShortcut(this);
		if (shortcut != null) {
			return shortcut;
		}

		Class<?> type = descriptor.getDependencyType();
		// 对@Value注解进行解析，返回的是value值
		Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
		if (value != null) {
			if (value instanceof String) {
				String strVal = resolveEmbeddedValue((String) value);
				BeanDefinition bd = (beanName != null && containsBean(beanName) ?
						getMergedBeanDefinition(beanName) : null);
				value = evaluateBeanDefinitionString(strVal, bd);
			}
			TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
			try {
				return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
			}
			catch (UnsupportedOperationException ex) {
				// A custom TypeConverter which does not support TypeDescriptor resolution...
				return (descriptor.getField() != null ?
						converter.convertIfNecessary(value, type, descriptor.getField()) :
						converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
			}
		}

		// 这里是对集合、数组、Map注入的支持
		Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
		if (multipleBeans != null) {
			return multipleBeans;
		}

		// 返回所有匹配的信息
		Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
		if (matchingBeans.isEmpty()) {
			if (isRequired(descriptor)) {
				raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
			}
			return null;
		}

		String autowiredBeanName;
		Object instanceCandidate;

		if (matchingBeans.size() > 1) {
			// 如果根据type匹配多个，那么就解析@Primary或者Order匹配
			autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
			if (autowiredBeanName == null) {
				if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
					return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
				}
				else {
					// In case of an optional Collection/Map, silently ignore a non-unique case:
					// possibly it was meant to be an empty collection of multiple regular beans
					// (before 4.3 in particular when we didn't even look for collection beans).
					return null;
				}
			}
			instanceCandidate = matchingBeans.get(autowiredBeanName);
		}
		else {
			// We have exactly one match.
			// By Type只能匹配到一个
			Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
			autowiredBeanName = entry.getKey();
			instanceCandidate = entry.getValue();
		}

		if (autowiredBeanNames != null) {
			autowiredBeanNames.add(autowiredBeanName);
		}
		if (instanceCandidate instanceof Class) {
			// 这里By name取bean实例
			instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
		}
		Object result = instanceCandidate;
		if (result instanceof NullBean) {
			// 校验bean是否与类型匹配
			if (isRequired(descriptor)) {
				raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
			}
			result = null;
		}
		if (!ClassUtils.isAssignableValue(type, result)) {
			throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
		}
		return result;
	}
	finally {
		ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
	}
}

getAutowireCandidateResolver().getSuggestedValue()：对@Value注解注入的支持。
resolveMultipleBeans：对数组、集合、Map注入的支持。
findAutowireCandidates：返回所有匹配的信息，返回一个map，key为beanName，如果依赖bean创建完毕，value就为依赖bean，否则就是beanClass。

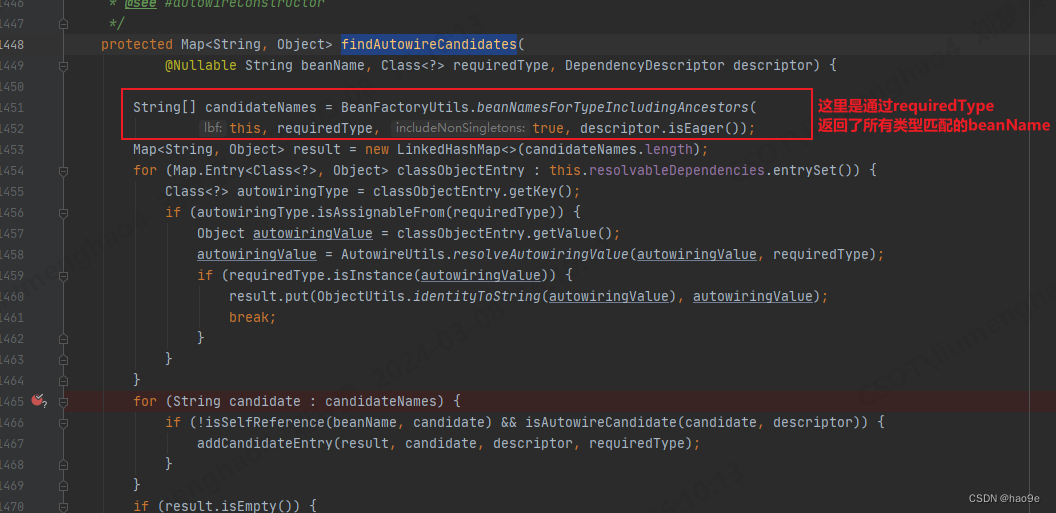

为什么说@Autowired注解是By Type注入的呢？原因就在DefaultListableBeanFactory#findAutowireCandidates这个方法！
BeanFactoryUtils.beanNamesForTypeIncludingAncestors通过给定的类型，找到所有的对应的beanName，然后在通过beanName去获取Bean。
不要将@Autowired注入方式简简单单的理解为通过类型直接匹配bean。在Spring中，不管是bean的注册（保存在beanDefinitionMap中，key为beanName）还是单例bean的保存（singletonObjects，key为beanName），他们的身份标识都为beanName，就算用户没有指定beanName，Spring中内置了BeanNameGenerator自动生成bean的名称。
如果有多个匹配的bean，那么就通过determineAutowireCandidate取最合适的那个，由@Primary注解和@Order决定。
上述说过，By Type匹配的时候，依赖bean还没有创建成功，返回的就是type，那么就会通过descriptor.resolveCandidate创建真正的bean。创建bean毫无疑问就要调用beanFactory.getBean。

public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
		throws BeansException {

	return beanFactory.getBean(beanName);
}

这个方法的本身就是By Type注入。如果需要By Name 注入，就要调用AbstractAutowireCapableBeanFactory#resolveBeanByName。

5.4 Autowired注入逻辑总结

核心方法是doResolveDependency。首先是By Type取出所有的beanName，然后通过beanName从beanFactory取出bean，最后设置属性中。

6. @Resource注入方式

读了上述内容，我们知道了注入方法。那么，@Resource的注入方式是什么呢？
那么就要看CommonAnnotationBeanPostProcessor源码了。

6.1 Demo

@Component
public class ResourceA {
    @Resource
    private ResourceB resourceB;
}

@Component
public class ResourceB {
}

字段注册和Autowired逻辑基本一致

6.2 Resource注入逻辑

调用链：

CommonAnnotationBeanPostProcessor#postProcessProperties
InjectedElement#inject
CommonAnnotationBeanPostProcessor.ResourceElement#getResourceToInject
CommonAnnotationBeanPostProcessor#getResource
CommonAnnotationBeanPostProcessor#autowireResource

6.3 CommonAnnotationBeanPostProcessor#autowireResource

protected Object autowireResource(BeanFactory factory, LookupElement element, @Nullable String requestingBeanName)
		throws NoSuchBeanDefinitionException {

	Object resource;
	Set<String> autowiredBeanNames;
	String name = element.name;

	if (factory instanceof AutowireCapableBeanFactory) {
		AutowireCapableBeanFactory beanFactory = (AutowireCapableBeanFactory) factory;
		DependencyDescriptor descriptor = element.getDependencyDescriptor();
		// 判断为True，就需要By Type的方式解决依赖
		if (this.fallbackToDefaultTypeMatch && element.isDefaultName && !factory.containsBean(name)) {
			autowiredBeanNames = new LinkedHashSet<>();
			resource = beanFactory.resolveDependency(descriptor, requestingBeanName, autowiredBeanNames, null);
			if (resource == null) {
				throw new NoSuchBeanDefinitionException(element.getLookupType(), "No resolvable resource object");
			}
		}
		else {
			// 这里是By Name的方式解决依赖
			resource = beanFactory.resolveBeanByName(name, descriptor);
			autowiredBeanNames = Collections.singleton(name);
		}
	}
	else {
		resource = factory.getBean(name, element.lookupType);
		autowiredBeanNames = Collections.singleton(name);
	}

	if (factory instanceof ConfigurableBeanFactory) {
		ConfigurableBeanFactory beanFactory = (ConfigurableBeanFactory) factory;
		for (String autowiredBeanName : autowiredBeanNames) {
			if (requestingBeanName != null && beanFactory.containsBean(autowiredBeanName)) {
				beanFactory.registerDependentBean(autowiredBeanName, requestingBeanName);
			}
		}
	}

	return resource;
}

判断条件
条件一：fallbackToDefaultTypeMatch默认为true。

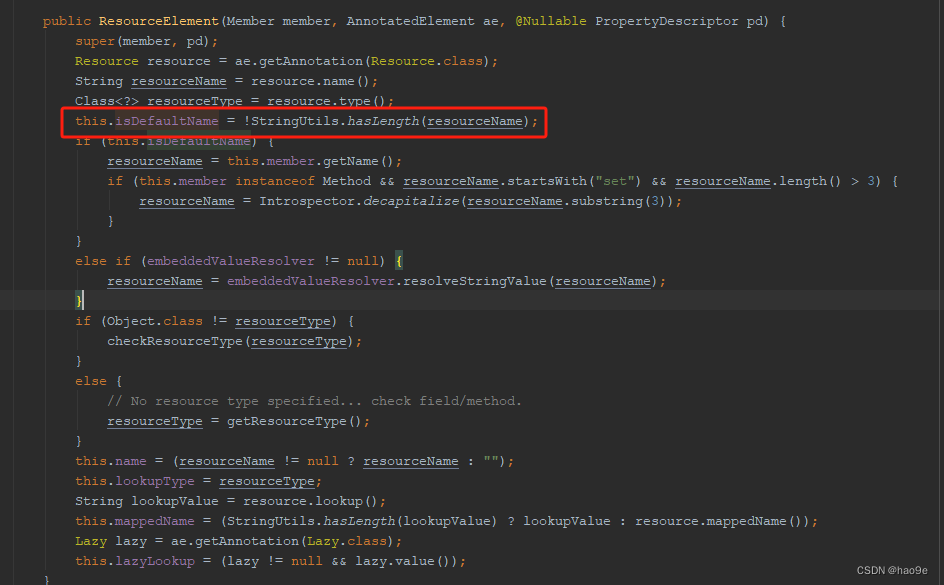

条件二：是否使用默认名称。如果用户指定了依赖的bean的名称，那么就认为指定的bean必然要存在，isDefaultName就为false，就需要By Name取获取依赖bean。否则就使用字段的名称。

条件三：beanName没有对应的实例或者beanDefinition。如果没有，那么就By Type去解决依赖关系。为什么这样呢？比如应该是

@Override
public boolean containsBean(String name) {
	String beanName = transformedBeanName(name);
	if (containsSingleton(beanName) || containsBeanDefinition(beanName)) {
		return (!BeanFactoryUtils.isFactoryDereference(name) || isFactoryBean(name));
	}
	// Not found -> check parent.
	BeanFactory parentBeanFactory = getParentBeanFactory();
	return (parentBeanFactory != null && parentBeanFactory.containsBean(originalBeanName(name)));
}

只有满足同时上述三个条件才会By Type获取bean。所以也兼容 By Type注入。
为什么要有条件三呢？
因为ResourceB对应的bean被默认的BeanNamegenerator生成的beanName为"resourceB"。兼容了即使用户写错了变量名称，也要注入成功。比如：

@Resource
private ResourceB b;

6.4 结论

所以，@Resource注入逻辑如下：

如果用户指定了beanName，那么就通过beanName注入。
如果用户没有指定beanName，注入的字段名称存在对应的bean，那么就By Name注入。如果不存在对应的bean就是 By Type注入。

hao9e

关注

22
点赞
踩
24

收藏

觉得还不错? 一键收藏
0
评论
SpringBoot扩展篇：Spring注入 @Autowired & @Resource

Autowired注入是由AutowiredAnnotationBeanPostProcessor完成的。@Resource注入是由CommonAnnotationBeanPostProcessor完成的。由于两种方式代码重复率太高，原理基本一致，下面我们主要以AutowiredAnnotationBeanPostProcessor源码分析为主。AutowiredAnnotationBeanPostProcessor负责属性、方法的注入。
复制链接

扫一扫
