5GNR SLIV计算

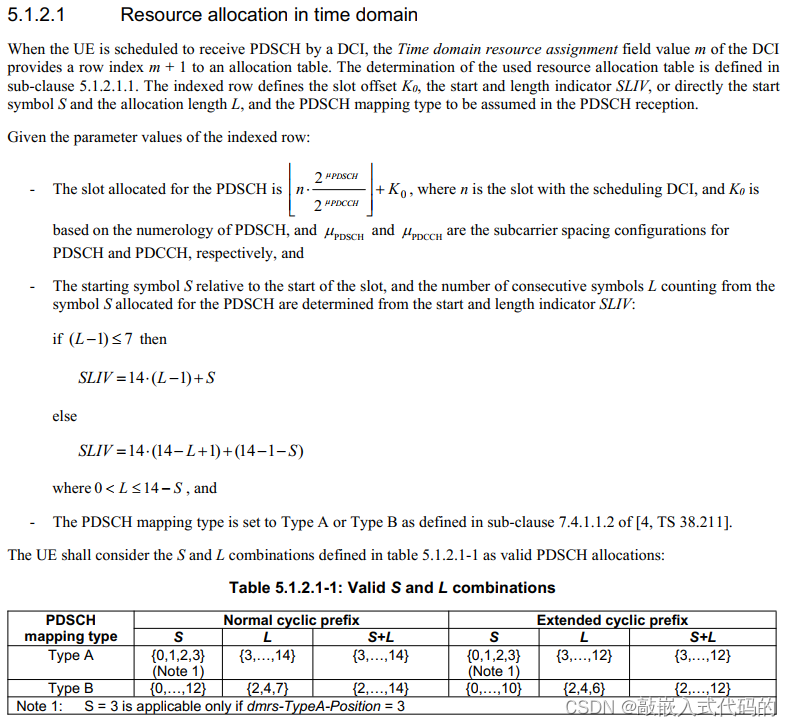

PDSCH Resource allocation in time domain

        3GPP 38.214 5.1.2.1

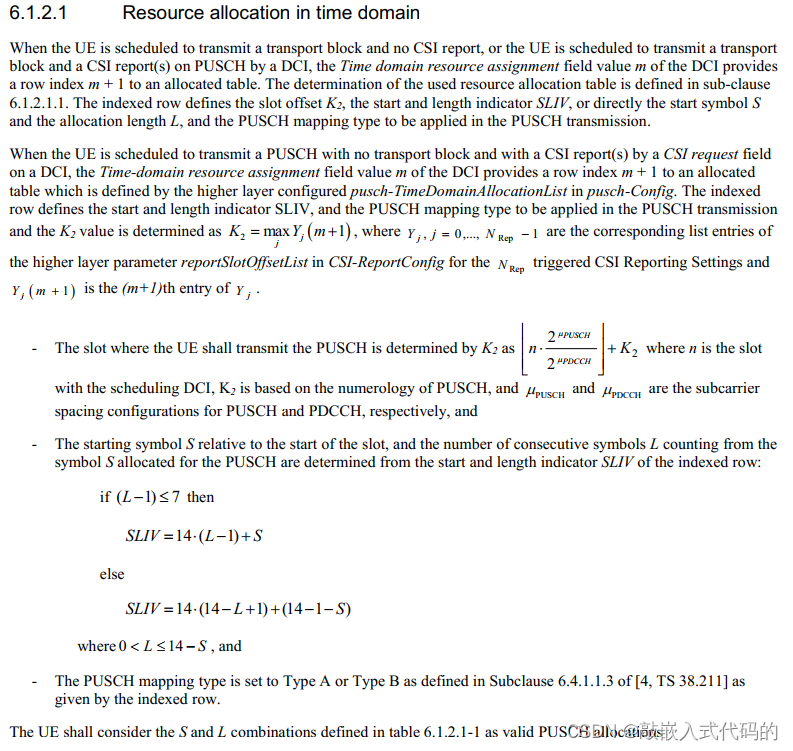

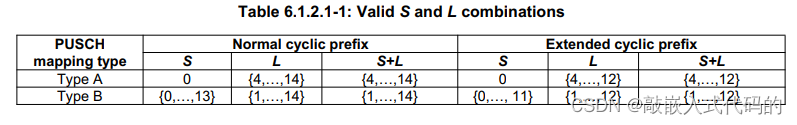

PUSCH Resource allocation in time domain

        3GPP 38.214 6.1.2.1

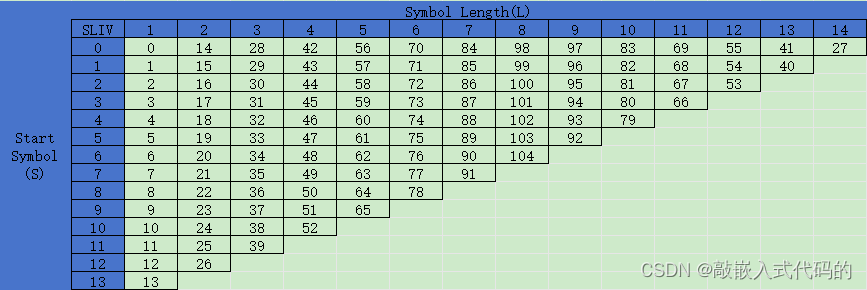

SLIV映射表

SLIV编码实现

U8 symbolStartAndLength2SLIV(U8 symbolStart, U8 symbolLength)
{
    U8 sliv = 0;
    if((symbolLength-1) <= 7)
    {
        sliv = 14 * (symbolLength-1) + symbolStart;
    }
    else
    {
        sliv = 14 * (14-symbolLength+1) + (14-1-symbolStart);
    }

    return sliv;
}

SLIV解码实现

bool getSymbStartLengthBySliv(const U8 sliv, U8 &symbolStart, U8 &symbolLength)
{
    const U8 temp = sliv/14 + sliv % 14;

    if(temp < 14)
    {
        symbolStart = sliv % 14;
        symbolLength = sliv/14 + 1;
    }
    else
    {
        symbolStart = 14 - sliv % 14 - 1;
        symbolLength = 14 - sliv/14 + 1;
    }
    return true;
}
