CUDA编程06——向量求和（并行规约，相邻配对）

并行规约通常用于处理大输入数据集，将一组输入值规约一个值。

数据特点：

（1）对于数据集中的元素没有顺序要求。

（2）可将数据分为若干小集合，每个线程处理一个集合。

操作可以是：求最大值（Max）、求最小值（Min）、求和（Sum）、求乘（Product）。

并行规约求和

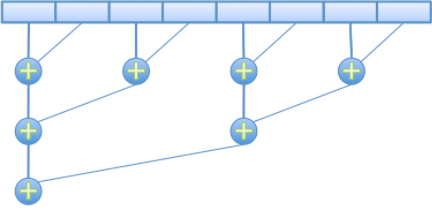

规约求和是常见应用，将输入数据求和得到一个值。如下面简单例子所示：

 规约求和的最简单思想是：先两两求和，然后再两两直至得到最后结果。

核函数代码

// device code
__global__ void vec_add_device(FLOAT* a, int width)
{
	int tid = threadIdx.y*blockDim.x + threadIdx.x;
	for (int stride = 1; stride < width; stride*=2)
	{
		if (tid % (2*stride) == 0)
		{
			a[tid] += a[tid + stride];
		}

		__syncthreads();
	}
}

代码中

完整代码

#include <stdio.h>
#include <stdlib.h>
#include <cuda.h>
#include <math.h>
#include <cuda_runtime.h>
#include <device_launch_parameters.h>
#include <windows.h>

typedef float FLOAT;

double get_time();
void warm_up();
void vec_add_host(FLOAT* M, int width);
__global__ void vec_add_device(FLOAT* M, FLOAT* N, FLOAT* P, int width);

// <2d grid, 1d block>
#define get_tid() ((blockIdx.y*gridDim.x + blockIdm.x)*blockDim.x + threadIdm.x)
#define get_bid() (blockIdx.y*gridDim.x + blockIdx.x)

double get_time()
{
	LARGE_INTEGER timer;
	static LARGE_INTEGER fre;
	static int init = 0;
	double t;

	if (init != 1)
	{
		QueryPerformanceFrequency(&fre);
		init = 1;
	}

	QueryPerformanceCounter(&timer);
	t = timer.QuadPart * 1. / fre.QuadPart;
	return t;
}

// warm up gpu
__global__ void warmup_knl(void)
{
	int i, j;
	i = 1;
	j = 1;
	i = i + j;
}

void warm_up()
{
	int i = 0;
	for (; i < 8; ++i)
	{
		warmup_knl <<<1, 256 >>> ();
	}
}

// host code
void vec_add_host(FLOAT* a, int len)
{
	FLOAT sum = a[0];
	for (int i = 1; i < len; ++i)
	{
		a[0] += a[i];
	}
}


// device code
__global__ void vec_add_device(FLOAT* a, int width)
{
	int tid = threadIdx.y*blockDim.x + threadIdx.x;
	for (int stride = 1; stride < width; stride*=2)
	{
		if (tid % (2*stride) == 0)
		{
			a[tid] += a[tid + stride];
		}

		__syncthreads();
	}
}

int main()
{
	int M = 32, sb = 1;
	int N = M*M;
	int sg = int(M / sb);
	int nbytes = N * sizeof(FLOAT);
	dim3 dimGrid(1, 1);
	dim3 dimBlock(1024, 1);
	cudaError_t cudaStatus = cudaSetDevice(0);

	FLOAT* dm = NULL, *hm = NULL;

	int iter = 1, i;
	double th, td;

	warm_up();

	/* allocate gpu memory */
	cudaMalloc((void**)&dm, nbytes);
	if (cudaStatus != cudaSuccess)
	{
		fprintf(stderr, "cudaMalloc dm failed!");
		goto Error;
	}

	hm = (FLOAT*)malloc(nbytes);
	if (hm == NULL)
	{
		fprintf(stderr, "mallo hm failed!");
		goto Error;
	}

	/* init */
	for (i = 0; i < N; ++i) hm[i] = 1.0;

	/* copy data to gpu*/
	cudaMemcpy(dm, hm, nbytes, cudaMemcpyHostToDevice);
	if (cudaStatus != cudaSuccess)
	{
		fprintf(stderr, "cudaMemcpy failed!");
		goto Error;
	}

	warm_up();

	// call for gpu
	cudaThreadSynchronize();
	td = get_time();

	for (i = 0; i < iter; ++i) vec_add_device << <dimGrid, dimBlock >> > (dm, N);

	cudaStatus = cudaGetLastError();
	if (cudaStatus != cudaSuccess)
	{
		fprintf(stderr, "launch kernel failed!");
		goto Error;
	}

	cudaThreadSynchronize();
	td = get_time() - td;

	// call for cpu
	th = get_time();
	for (i = 0; i < iter; ++i) vec_add_host(hm, N);
	th = get_time() - th;

	printf("GPU time: %.8f, CPU time: %.6f, Speedup: %g\n", td, th, th / td);

	FLOAT* hm2 = (FLOAT*)malloc(nbytes);
	for (int i = 0; i < N; ++i) hm2[i] = 0;

	cudaMemcpy(hm2, dm, nbytes, cudaMemcpyDeviceToHost);
	if (cudaStatus != cudaSuccess)
	{
		fprintf(stderr, "cudaMemcpy failed!");
		goto Error;
	}

	printf("%.1f, %.1f\n", hm[0], hm2[0]);

Error:
	// free
	cudaFree(dm);
	free(hm);
	free(hm2);

	// cudaDeviceReset must be called before exiting in order for profiling and
	// tracing tools such as Nsight and Visual Profiler to show complete traces.
	cudaStatus = cudaDeviceReset();
	if (cudaStatus != cudaSuccess)
	{
		fprintf(stderr, "cudaDeviceReset failed!");
		return -1;
	}

	return 0;
}

实验结果

GPU time: 0.00007460, CPU time: 0.000003, Speedup: 0.0361931
1024.0, 1024.0

存在问题：

上面的代码是最简单的规约求和方案，没有做任何的优化，数据处理量也不大。

注意：__syncthreads() 是用于块内同步，无法做到块间同步。
