68 linux framebuffer设备驱动之spi lcd屏驱动

前面驱动的spi lcd仅仅是刷了一下图而已, 如果要让QT图形程序在此lcd上显示的话,还需要实现标准的framebuffer设备驱动才可以.

实现一个fb设备驱动好, QT程序就可以在显存里显示出来。 只需要在设备驱动把显存的数据通过spi控制器发送到屏的驱动ic,就可以让QT程序在spi lcd屏上显示出来. 但显存的数据有可能经常发生变化(界面切换), spi lcd屏也应跟着显示出改变过的画面。

在设备驱动里用一个内核线程, 循环把显存的数据通过spi控制发送到屏的驱动ic. 这样应用程序只需改变显存里的数据就可以了,无需考虑屏幕的更新.

同时, QT程序不支持16位色的fb设备里显示,所以只能在设备驱动把32位色的显存转换成rgb565后,再把数据发送到屏的驱动ic.
/
设备驱动由两个文件组成:

fb_model.c主要实现fb设备驱动模型.


#include <linux/init.h>
#include <linux/module.h>
#include <linux/fb.h>
#include <linux/spi/spi.h>
#include <linux/dma-mapping.h>
#include <linux/sched.h>
#include <linux/wait.h>
#include <linux/delay.h>

#define X 240
#define Y 320


typedef struct {
    struct spi_device *spi; //记录fb_info对象对应的spi设备对象
    struct task_struct *thread; //记录线程对象的地址,此线程专用于把显存数据发送到屏的驱动ic
}lcd_data_t;


struct fb_ops fops = {


};

extern void show_fb(struct fb_info *fbi, struct spi_device *spi);
int thread_func(void *data)
{
    struct fb_info *fbi = (struct fb_info *)data;
    lcd_data_t *ldata = fbi->par;

    while (1)
    {
            if (kthread_should_stop())
                break;
        show_fb(fbi, ldata->spi);
        //
    }

    return 0;
}

int myfb_new(struct spi_device *spi) //此函数在spi设备驱动的probe函数里被调用
{
    struct fb_info *fbi;
    u8 *v_addr;
    u32 p_addr;
    lcd_data_t *data;

    v_addr = dma_alloc_coherent(NULL, X*Y*4, &p_addr, GFP_KERNEL);

    //额外分配lcd_data_t类型空间
    fbi = framebuffer_alloc(sizeof(lcd_data_t), NULL);
    //data = &fbi[1]; //data指针指向额外分配的空间
    data = fbi->par; //data指针指向额外分配的空间

    data->spi = spi;

    fbi->var.xres = X;
    fbi->var.yres = Y;
    fbi->var.xres_virtual = X;
    fbi->var.yres_virtual = Y;
    fbi->var.bits_per_pixel = 32; // 屏是rgb565, 但QT程序只能支持32位.还需要在刷图时把32位的像素数据转换成rgb565
    fbi->var.red.offset = 16;
    fbi->var.red.length = 8;
    fbi->var.green.offset = 8;
    fbi->var.green.length = 8;
    fbi->var.blue.offset = 0;
    fbi->var.blue.length = 8;

    strcpy(fbi->fix.id, "myfb");
    fbi->fix.smem_start = p_addr; //显存的物理地址
    fbi->fix.smem_len = X*Y*4;
    fbi->fix.type = FB_TYPE_PACKED_PIXELS;
    fbi->fix.visual = FB_VISUAL_TRUECOLOR;
    fbi->fix.line_length = X*4;

    fbi->fbops = &fops;
    fbi->screen_base = v_addr; //显存虚拟地址
    fbi->screen_size = X*Y*4; //显存大小

        spi_set_drvdata(spi, fbi);
    register_framebuffer(fbi);
    data->thread = kthread_run(thread_func, fbi, spi->modalias);
    return 0;
}

void myfb_del(struct spi_device *spi) //此函数在spi设备驱动remove时被调用
{
    struct fb_info *fbi = spi_get_drvdata(spi);
    lcd_data_t *data = fbi->par;

    kthread_stop(data->thread); //让刷图线程退出
    unregister_framebuffer(fbi);
    dma_free_coherent(NULL, fbi->screen_size, fbi->screen_base, fbi->fix.smem_start);
    framebuffer_release(fbi);


}

///
test.c 主要实现spi lcd的操作


#include <linux/init.h>
#include <linux/module.h>
#include <linux/spi/spi.h>
#include <linux/delay.h>
#include <linux/gpio.h>
#include <linux/fb.h>

struct myspi_lcd_pdata {
        int dc_io;
        int reset_io;
};

struct spi_lcd_cmd{
    u8  reg_addr; // command
    u8  len;  //需要从spi_lcd_datas数组里发出数据字节数
    int delay_ms; //此命令发送数据完成后,需延时多久
}cmds[] = {
    {0xCB, 5, 0},
    {0xCF, 3, 0},
    {0xEB, 3, 0},
    {0xEA, 2, 0},
    {0xED, 4, 0},
    {0xF7, 1, 0},
    {0xC0, 1, 0},
    {0xC1, 1, 0},
    {0xC5, 2, 0},
    {0xC7, 1, 0},
    {0x36, 1, 0},
    {0x3A, 1, 0},
    {0xB1, 2, 0},
    {0xB6, 3, 0},
    {0xF2, 1, 0},
    {0x26, 1, 0},
    {0xE0, 15, 0},
    {0xE1, 15, 0},
    {0x11, 0,  120},
    {0x29, 0, 0},
    {0x2c, 0, 0},
};


u8 spi_lcd_datas[] = {
    0x39, 0x2c, 0x00, 0x34, 0x20,           // command: 0xCB要发出的数据
    0x00, 0xC1, 0x30,                       // command: 0xCF
    0x85, 0x00, 0x78,                       // command: 0xEB
    0x00, 0x00,                             // command: 0xEA
    0x64, 0x03, 0x12, 0x81,                 // command: 0xED
    0x20,                                   // command: 0xF7
    0x23,                                   // command: 0xC0
    0x10,                                   // command: 0xC1
    0x3e, 0x28,                             // command: 0xC5
    0x86,                                   // command: 0xC7
    0x48,                                   // command: 0x36
    0x55,                                   // command: 0x3A
    0x00, 0x18,                             // command: 0xB1
    0x08, 0x82, 0x27,                       // command: 0xB6
    0x00,                                   // command: 0xF2
    0x01,                                   // command: 0x26
    0x0F, 0x31, 0x2B, 0x0C, 0x0E, 0x08, 0x4E, 0xF1, 0x37, 0x07, 0x10, 0x03, 0x0E, 0x09, 0x00,                           //command: 0xE0
    0x00, 0x0E, 0x14, 0x03, 0x11, 0x07, 0x31, 0xC1, 0x48, 0x08, 0x0F, 0x0C, 0x31, 0x36, 0x0F, //command: 0xE1

};


extern int myfb_new(struct spi_device *);
extern void myfb_del(struct spi_device *);
void write_command(struct spi_device *spi, u8 cmd)
{
    struct myspi_lcd_pdata *pdata = spi->dev.platform_data;

    // dc , command:0
    gpio_direction_output(pdata->dc_io, 0);
    spi_write(spi, &cmd, 1);
}

void write_data(struct spi_device *spi, u8 data)
{
    struct myspi_lcd_pdata *pdata = spi->dev.platform_data;
    // dc , data:1
    gpio_direction_output(pdata->dc_io, 1);
    spi_write(spi, &data, 1);
}

//初始化spi_lcd
void spi_lcd_init(struct spi_device *spi)
{
    struct myspi_lcd_pdata *pdata = spi->dev.platform_data;
    int i, j, n;

    // 屏复位
    gpio_direction_output(pdata->reset_io, 0);
    mdelay(100);
    gpio_set_value(pdata->reset_io, 1);
    mdelay(100);

    n = 0; // n用于记录数据数组spi_lcd_datas的位置
    //发命令,并发出命令所需的数据
    for (i = 0; i < ARRAY_SIZE(cmds); i++) //命令
    {
        write_command(spi, cmds[i].reg_addr);
        for (j = 0; j < cmds[i].len; j++) //发出命令后,需要发出的数据
            write_data(spi, spi_lcd_datas[n++]);

        if (cmds[i].delay_ms) //如有延时则延时
            mdelay(cmds[i].delay_ms);
    }
}

//设置要刷屏的开始坐标
void addset(struct spi_device *spi, unsigned int x,unsigned int y)
{
        write_command(spi, 0x2a); //发出x坐标
        write_data(spi, x>>8);
        write_data(spi, x&0xff);

        write_command(spi, 0x2b); //发出y坐标
        write_data(spi, y>>8);
        write_data(spi, y&0xff);

        write_command(spi, 0x2c);
}

void show_fb(struct fb_info *fbi, struct spi_device *spi)
{
    int x, y;
    u32 k;
    u32 *p = (u32 *)(fbi->screen_base);
    u16 c;
    u8 *pp;

    addset(spi, 0, 0); //从屏的0,0坐标开始刷
//  gpio_direction_output(pdata->dc_io, 1);
    for (y = 0; y < fbi->var.yres; y++)
    {
        for (x = 0; x < fbi->var.xres; x++)
        {
            k = p[y*fbi->var.xres+x];//取出一个像素点的32位数据
            // rgb8888 --> rgb565
            pp = (u8 *)&k;
            c = pp[0] >> 3; //蓝色
            c |= (pp[1]>>2)<<5; //绿色
            c |= (pp[2]>>3)<<11; //红色

            //发出像素数据的rgb565
            write_data(spi, c >> 8);
            write_data(spi, c & 0xff);
        }
    }

}


int myprobe(struct spi_device *spi)
{
    struct myspi_lcd_pdata *pdata = spi->dev.platform_data;
    int ret;
    int x, y;
    u16 color0 = 0x001f; // RGB565, blue
    u16 color1 = 0xf800; // red
    u16 color2 = 0x07e0; // green
    u16 color3 = 0xffff; // white
    u16 color;

    ret = gpio_request(pdata->reset_io, spi->modalias);
    if (ret < 0)
        goto err0;
    ret = gpio_request(pdata->dc_io, spi->modalias);
    if (ret < 0)
        goto err1;

    spi_lcd_init(spi); //初始化屏

    printk("probe ...%s\n", spi->modalias);
    return myfb_new(spi); //fb设备初始化
err1:
    gpio_free(pdata->reset_io);
err0:
    return ret;
}

int myremove(struct spi_device *spi)
{
    struct myspi_lcd_pdata *pdata = spi->dev.platform_data;

    myfb_del(spi); //fb设备回收

    gpio_free(pdata->dc_io);
    gpio_free(pdata->reset_io);
    printk("%s remove\n", spi->modalias);


    return 0;
}


struct spi_device_id ids[] = {
    {"myspi_lcd"},
    {},
};

struct spi_driver myspi_drv = {
    .driver = {
        .owner = THIS_MODULE,
        .name = "myspi_drv",
    },
    .probe = myprobe,
    .remove = myremove,
    .id_table = ids,
};

module_spi_driver(myspi_drv);
MODULE_LICENSE("GPL");

///
Makefile:


obj-m += test_fb.o
test_fb-objs := test.o fb_model.o

KSRC := /disk3/myown/h3/orangepi_sdk/source/linux-3.4.112/
export ARCH := arm
export CROSS_COMPILE := arm-linux-gnueabihf-

all:
    make -C $(KSRC) modules M=`pwd`


.PHONY : clean
clean:
    make -C $(KSRC) modules clean M=`pwd`

//
编译模块后,加载模块。/dev/目录下多生成一个fb8设备文件.
设置QT环境变量: export QT_QPA_PLATFORM=linuxfb:fb=/dev/fb8

然后执行交叉编译过的QT程序, QT程序就会在屏上显示出来(刷新比较慢), 效果如图:
这里写图片描述

QT程序在pc上的效果:

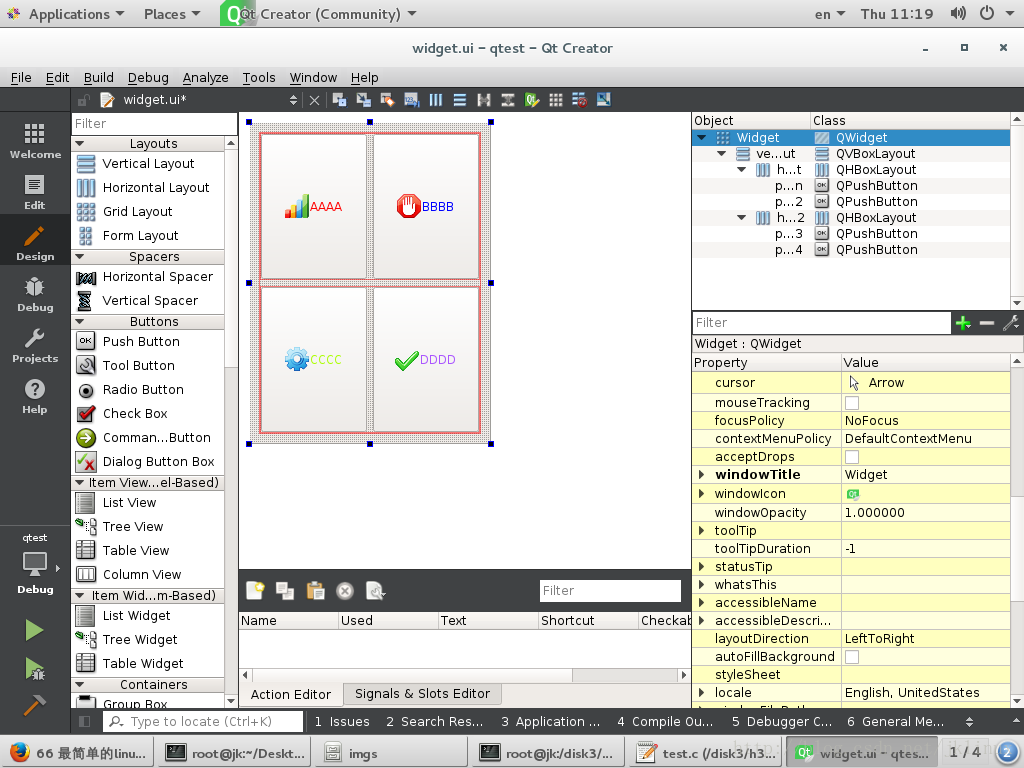

这里写图片描述
