管道设计软件：PIPEDATA-PRO

PIPEDATA-PRO

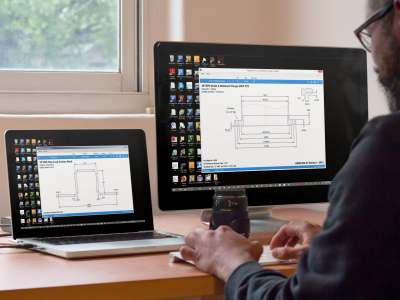

Pipedata-Pro 提高了管道设计的效率，减轻了查找管道信息的负担。它可以直观、轻松地检索最新的管道和设计数据。尺寸和重量单位可以设置为公制或美国惯用单位。

Pipedata-Pro 于 1996 年由 Zeataline Projects 推出，现在已遍布全球，Pipedata-Pro 管道表的映射版本用于流行的 3D 工厂建模套件和 Iso 生成包。Pipedata-Pro 已经过 ASME B31 机械设计委员会、ASME B31.3 委员会、MSS-SP-97 委员会和其他几个委员会的审查，以“正确证明”ASME 代码与 ISO 并正确衡量美国标准。它会定期更新，以保持与管道规范和操作系统的变化相一致。根据用户的反馈，Pipedata-Pro 对今天和未来都是新鲜和最新的。

PIPEDATA-PRO

DATA SUMMARY

FLANGES

ASME B16.5 Flanges

WeldNeck Flange
Slip On Flange
Blind Flange
Threaded Flange
SocketWelded FlangeLapped Flange
Long Welding Neck Flange

ASME B16.47 Series A Flanges

WeldNeck Flange
Blind Flange

ASME B16.47 Series B Flanges

WeldNeck Flange
Blind Flange

Din Flanges

Blind Flange
Threaded Flange
Flat Flange
Weldneck Flange
Lapped Flange

API Type 6B Flanges

API Type 6B Weldneck
API Type 6B Threaded Flange
API Type 6B Blind

API Type 6BX Flanges

API Type 6BX WeldNeck Flange
API Type 6BX Blind and Test Flange

BS10 Flanges

BS 10 Flanges

Hub and Clamp

Hub-Clamp Pipe Connector

Orifice Flanges

Orifice Flange - WeldNeck
Orifice Flange - Slip On
Orifice Flange - Threaded

Compact Flanges

Standard
Swivel
Blind

Reducing Flanges

Threaded
Slip-On


VALVES

Flanged Valves

Flanged Gate Valve
Flanged Globe Valve
Flanged Ball Valve
Flanged Control Valve
Flanged Swing Check Valve
Flanged Wafer Check Valve
Wafer type Butterfly Valves
Lug type Butterfly Valves
Relief Valves for Layout

Buttwelded Valves

ButtWelded Gate Valve
ButtWelded Globe Valve
ButtWelded Ball Valve
ButtWelded Swing Check Valve

Threaded Valves

Threaded Gate Valve
Threaded Globe Valve
Threaded Horizontal Check Valve
Threaded Vertical Check Valve

Socketwelded Valves

SocketWelded Gate Valve
SocketWelded Globe Valve
SocketWelded Horizontal Check Valve
SocketWelded Vertical Check Valve


BLINDS AND SPACERS
Spectacle Blind
Line Spade and Spacer
RTJ Male Type Reversible Spade
RTJ Male Type Line Spade


WELDED BRANCHES
ButtWelded Olets
Threaded Olets
SocketWelded Olets
Weldoflange
Elbowflange
Latroflange
Nipoflange


GASKETS
Flat C.A.F. ANSI
Flat C.A.F MSS
Flat C.A.F API 605
Spiral wound ANSI
Spiral wound ASME B16.47 Series A
Spiral wound ASME B16.47 Series B
RTJ soft iron ring type R
RTJ soft iron ring type RX
RTJ soft iron ring type BX


PIPE FITTINGS
Butt Welded
Threaded
Socket Welded
ANSI Composite Dimensions


PIPE
ANSI Pipe


NUTS
ISO Nuts
UNC Nuts


DESIGN ASSISTANTS

Pipe Flexibility

Pipe Leg
Pipe Loop

Safe spans

Safe rack spans

Safe Spacing

Safe Pipe Spacing
Safe Pipe Spacing with Insulation
Safe Flanged Pipe Spacing
Safe Flanged Pipe Spacing With Insulation
