HQChart使用教程37 - 如何在uni-app创建k线图(app)

插件目录

创建步骤

1. 拷贝插件到工程中

创建一个空的uni-app 工程， 把wechathqchart 目录拷贝到工程中。
例子里 我建了一个hqchart.uniapp的目录， 把插件的文件拷贝到这个目录里

2. 创建一个page页 在page页中

import umychart.wechat.3.0.js
创建一个画布元素
绑定手势事件

代码如下：

<template>
	<view>
		<view>
			<canvas id="kline" canvas-id='kline' class='kline' style="width: 400px; height: 600px"
			  @touchstart="KLineTouchStart" @touchmove='KLineTouchMove' @touchend='KLineTouchEnd' ></canvas>
		</view>

		<view class="button-sp-area">
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLinePeriod(PERIOD_ID.KLINE_DAY_ID)">日线</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLinePeriod(PERIOD_ID.KLINE_WEEK_ID)">周线</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLinePeriod(PERIOD_ID.KLINE_MINUTE_ID)">1分钟</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLinePeriod(PERIOD_ID.KLINE_15MINUTE_ID)">15分钟</button>
		</view>

		<view class="button-sp-area">
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(0,'BOLL')">BOLL</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(1,'RSI')">RSI</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(2,'WR')">WR</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(0,'MA')">MA</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(1,'VOL')">VOL</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeKLineIndex(1,'MACD')">MACD</button>
		</view>

		<view class="button-sp-area">
			<button class="mini-btn" type="default" size="mini" @click="ChangeSymbol('000001.sz')">000001.sz</button>
			<button class="mini-btn" type="default" size="mini" @click="ChangeSymbol('600000.sh')">600000.sh</button>
		</view>
	</view>

</template>

<script>
import {JSCommon} from '../../umychart.uniapp/umychart.wechat.3.0.js'

function DefaultData() { }

DefaultData.GetKLineOption = function ()
{
    let data =
    {
        Type: '历史K线图',

        Windows: //窗口指标
        [
            {Index:"MA",Modify: false, Change: false},
            {Index:"VOL",Modify: false, Change: false},
			{Index:"MACD",Modify: false, Change: false},
        ],

        CorssCursorTouchEnd:true,
		IsShowRightMenu:false,       //是否显示右键菜单
		CorssCursorInfo:{ Left:2,Right:2 },

        Border: //边框
        {
            Left:   1,
            Right:  1, //右边间距
            Top:    1,
            Bottom: 25,
        },

        KLine:
        {
            Right:1,                            //复权 0 不复权 1 前复权 2 后复权
            Period:0,                           //周期: 0 日线 1 周线 2 月线 3 年线
            PageSize:12,
            IsShowTooltip:false,
        },

		Frame:  //子框架设置 (Height 窗口高度比例值)
		[
			{   SplitCount:3,
				//Height:4,
				IsShowLeftText:true,
				IsShowRightText:false
			},
			{
				SplitCount:2,
				//Height:2,
				IsShowLeftText:true,
				IsShowRightText:false
			},
			{
				SplitCount:2,
				//Height:2,
				IsShowLeftText:true,
				IsShowRightText:false
			}
		],

		ExtendChart:
		[
			{Name:'KLineTooltip' },
		],

    };

    return data;
}

//周期枚举
var PERIOD_ID=
{
    KLINE_DAY_ID:0,
    KLINE_WEEK_ID:1,
    KLINE_MONTH_ID:2,
    KLINE_YEAR_ID:3,

    KLINE_MINUTE_ID:4,
    KLINE_5MINUTE_ID:5,
    KLINE_15MINUTE_ID:6,
    KLINE_30MINUTE_ID:7,
    KLINE_60MINUTE_ID:8
}

var g_KLine=
{
	JSChart:null
};

export default
{
	name:'HQChart',

	data()
	{
		let data=
		{
			Symbol:'600000.sh',

			KLine:
			{
				Option:DefaultData.GetKLineOption(),
				IsShow:false,
				Display:'none',
				Width:400,
				Height:600,
			},

			PERIOD_ID:PERIOD_ID,
		};

		return data;
	},

	onLoad()
	{

	},

	onReady()
	{
		this.ChangeKLinePeriod(PERIOD_ID.KLINE_DAY_ID);
	},

	methods:
	{
		//
		CreateKLineChart:function()
		{
			if (this.KLine.JSChart) return;

			let element = new JSCommon.JSCanvasElement();
			// #ifdef APP-PLUS
			element.IsUniApp=true;	//canvas需要指定下 是uniapp的app
			// #endif
			element.ID = 'kline';
			element.Height = this.KLine.Height;  //高度宽度需要手动绑定!!
			element.Width = this.KLine.Width;

			g_KLine.JSChart = JSCommon.JSChart.Init(element);
			this.KLine.Option.NetworkFilter=this.NetworkFilter;
			this.KLine.Option.Symbol=this.Symbol;
			this.KLine.Option.IsFullDraw=true; 	//每次手势移动全屏重绘
			g_KLine.JSChart.SetOption(this.KLine.Option);
		},

		//K线周期切换
		ChangeKLinePeriod:function(period)
		{
			if (!g_KLine.JSChart)    //不存在创建
			{
				this.KLine.Option.Period=period;
				this.CreateKLineChart();
			}
			else
			{
				g_KLine.JSChart.ChangePeriod(period);
			}
		},

		//切换指标 windowIndex=窗口索引 0开始, name=指标名字/ID
		ChangeKLineIndex:function(windowIndex, name)
		{
			if (!g_KLine.JSChart) return;

			g_KLine.JSChart.ChangeIndex(windowIndex,name);
		},

		//切换股票
		ChangeSymbol:function(symbol)
		{
			if (!g_KLine.JSChart) return;

			g_KLine.JSChart.ChangeSymbol(symbol);
		},

		NetworkFilter:function(data, callback)
		{
			console.log('[HQChart:NetworkFilter] data', data.Name);
		},

		//KLine事件
		KLineTouchStart: function (event)
		{
		  if (g_KLine.JSChart) g_KLine.JSChart.OnTouchStart(event);
		},

		KLineTouchMove: function (event)
		{
		  if (g_KLine.JSChart) g_KLine.JSChart.OnTouchMove(event);
		},

		KLineTouchEnd: function (event)
		{
		  if (g_KLine.JSChart) g_KLine.JSChart.OnTouchEnd(event);
		},
	}
}
</script>

<style>

	.content {
		display: flex;
		flex-direction: column;
		align-items: center;
		justify-content: center;
	}

	.logo {
		height: 200upx;
		width: 200upx;
		margin-top: 200upx;
		margin-left: auto;
		margin-right: auto;
		margin-bottom: 50upx;
	}

	.text-area {
		display: flex;
		justify-content: center;
	}

	.title {
		font-size: 36upx;
		color: #8f8f94;
	}
</style>

注意

 element.IsUniApp=true

如果是uniapp-app平台的需要设置为true,其他平台的不需要设置

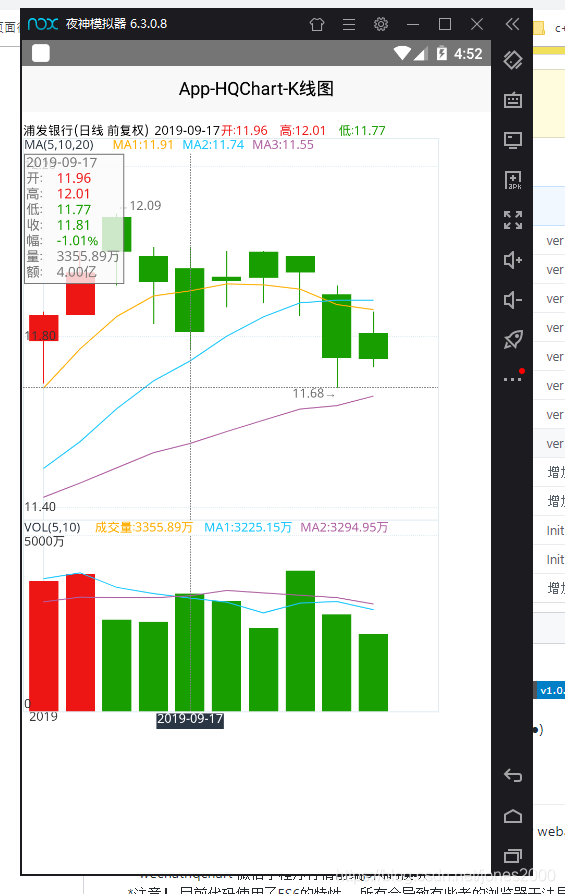

3.运行到模拟器

通过uniapp下载hqchart插件

安装

插件地址: https://ext.dcloud.net.cn/plugin?id=4591
直接通过HBuilder X就可以安装，一般安装的目录在uni_modules\jones-hqchart2下面

使用

改下import路径就可以，其他不变

// #ifdef H5
import HQChart from '@/uni_modules/jones-hqchart2/js_sdk/umychart.uniapp.h5.js'
//HQChart.JSChart.SetDomain("xxxxx.com");
//HQChart.JSComplier.SetDomain("xxxx.com");
// #endif

// #ifndef H5
import {JSCommon} from '@/uni_modules/jones-hqchart2/js_sdk/umychart.wechat.3.0.js'
import {JSCommonHQStyle} from '@/uni_modules/jones-hqchart2/js_sdk/umychart.style.wechat.js'
import {JSCommonComplier} from "@/uni_modules/jones-hqchart2/js_sdk/umychart.complier.wechat.js"

//禁用日志
JSConsole.Complier.Log=()=>{ };
JSConsole.Chart.Log=()=>{ };
// #endif

特别感谢 秋云

帮我解决了在uniapp-app 环境中measureText 无法计算的问题。
官方bugi地址： https://ask.dcloud.net.cn/question/70374

交流QQ群: 950092318

如果还有问题可以加交流QQ群: 950092318

HQChart代码地址

地址：github.com/jones2000/HQChart
