HQChart使用教程97-K线X轴滚动条

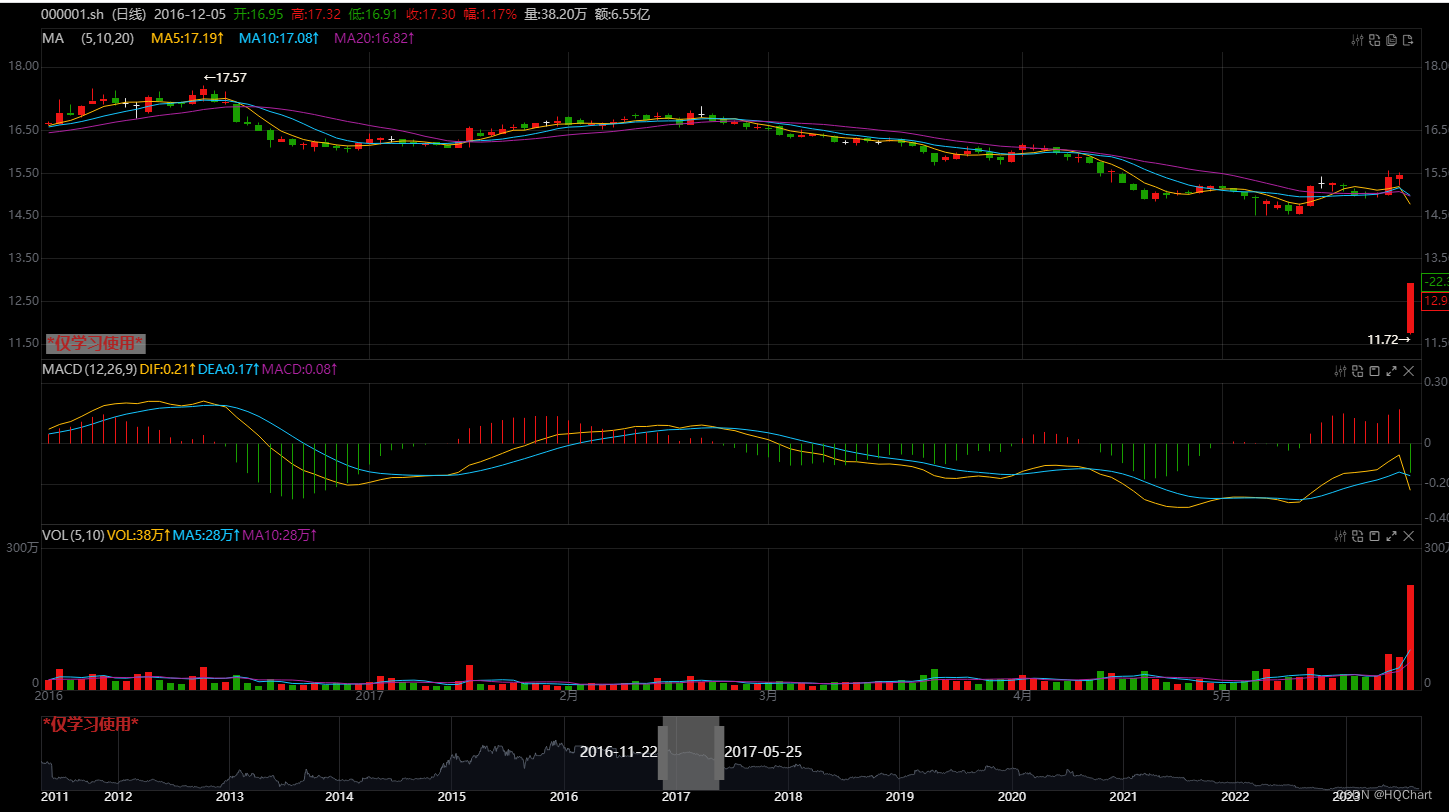

效果图
示例地址：https://jones2000.github.io/HQChart/webhqchart.demo/samples/kline_scrrollbar.html
创建步骤
1. 创建滚动条div
滚动条是一个独立的画布， 所有需要新建一个新的div
<body>
<div id="kline"></div>
<div id="kscrollbar"></div> <!-- K线滚动条div -->
...........................
2. 初始化滚动条实例
this.Scrollbar=JSScrollBarChart.Init(document.getElementById('kscrollbar'))
3. 配置滚动条属性
//一下是滚动条option里包含的属性
this.ScrollbarOption=
{
Border: //边框
{
Left:50, //左边间距
Right:50, //右边间距
Bottom:25, //底部间距
Top:1, //顶部间距
AutoLeft:true,
AutoRight:true
},
OnCreatedCallback:null, //滚动条创建完成以后回调
DelayDragFrequency:50, //拖动延时处理毫秒
}
4. 创建滚动条
通过setoption来创建滚动条
this.Create=function()
{
....
this.Scrollbar.SetOption(this.ScrollbarOption);
......
}
5. K线图和滚动条绑定
在创建完K线图和滚动条以后需要互相绑定，这样两个图形才能互相联动.
通过OnCreatedCallback创建完成回调函数来完成绑定
this.Create=function() //创建图形
{
this.ScrollbarOption.OnCreatedCallback=(chart)=> { this.OnCreateScrollBar(chart); }
this.Scrollbar.SetOption(this.ScrollbarOption);
......
this.Option.OnCreatedCallback=(chart)=> { this.OnCreateHQChart(chart); }
this.Chart.SetOption(this.Option); //设置K线配置
}
this.OnCreateHQChart=function(chart)
{
chart.ScrollBar=this.Scrollbar;
}
this.OnCreateScrollBar=function(chart)
{
chart.HQChart=this.Chart;
}
6. 滚动条显示位置
this.Create=function() //创建图形
{
......
var self=this;
$(window).resize(function() { self.OnSize( ); }); //绑定窗口大小变化事件
.......
}
this.OnSize=function(option) //自适应大小调整
{
var height= $(window).height()-150;
var width = $(window).width();
this.DivKLine.style.top='0px';
this.DivKLine.style.left='0px';
this.DivKLine.style.width=width+'px';
this.DivKLine.style.height=height+'px';
this.Chart.OnSize(option);
this.DivScrollBar.style.width=width+'px';
this.DivScrollBar.style.height='100px'; //高度100的滚动条
this.Scrollbar.OnSize(option);
}
完整示例
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta name="viewport" content="width=device-width, initial-scale=1.0, minimum-scale=1.0, maximum-scale=1.0, user-scalable=no" />
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>K线滚动条</title>
<!-- 加载资源 -->
<link rel="stylesheet" href="../jscommon/umychart.resource/css/tools.css" />
<link rel="stylesheet" href="../jscommon/umychart.resource/font/iconfont.css" />
</head>
<body>
<div id="kline"></div>
<div id="kscrollbar"></div>
<div>
<span id='button_1' class="btn-style">切换股票</span>
<span id='button_3' class="btn-style">窗口个数</span>
<span id='button_4' class="btn-style">叠加指标</span>
<span id='button_5' class="btn-style">切换指标</span>
<span id='button_6' class="btn-style">切换自定义指标</span>
<span id='button_7' class="btn-style">RSI</span>
<span id='button_8' class="btn-style">移动指标[下]</span>
<span id='button_9' class="btn-style" >移动指标[上]</span>
<span id='button_10' class="btn-style">移动指标[新窗口]</span>
<span id='button_11' class="btn-style">多语言</span>
</div>
<script src="../jscommon/umychart.resource/js/jquery.min.js"></script>
<script src='../jscommon/umychart.console.js'></script> <!-- 日志输出 -->
<script src="../jscommon/umychart.network.js"></script> <!-- 网络请求分装 -->
<script src="../jscommon/umychart.js"></script> <!-- K线图形 -->
<script src="../jscommon/umychart.complier.js"></script> <!-- 麦语言解析执行器 -->
<script src="../jscommon/umychart.index.data.js"></script> <!-- 基础指标库 -->
<script src="../jscommon/umychart.style.js"></script> <!-- 白色风格和黑色风格配置信息 -->
<script src="../jscommon/umychart.scrollbar.js"></script> <!-- 滚动条 -->
<script src="../jscommon/umychart.NetworkFilterTest.js"></script>
<script>
MARKET_SUFFIX_NAME.GetMarketStatus = function (symbol) { return 2; }
//简单的把K线控件封装下
function KLineChart(divKLine, divScrollBar)
{
this.DivKLine=divKLine;
this.Chart=JSChart.Init(divKLine); //把K线图绑定到一个Div上
this.DivScrollBar=divScrollBar;
this.Scrollbar=JSScrollBarChart.Init(divScrollBar)
//K线配置信息
this.Option= {
Type:'历史K线图', //创建图形类型
//Type:'历史K线图横屏',
//EnableBorderDrag:false,
Windows: //窗口指标
[
{Index:"MA" , OverlayIndexType:{ Position:1, LineSpace:3 }, Overlay:true , Export:true, IndexParamSpace:15, IndexTitleSpace:15},
//{Index:"OX", Args:[ { Name:'Reversal', Value:3 } ] },
{Index:"MACD",OverlayIndexType:{ Position:1, LineSpace:3 }},
{Index:"VOL", OverlayIndexType:{ Position:1, LineSpace:3 }},
],
OverlayIndex:
[
// { Index:'两融余额', Windows:1 ,Args:[ { Name:'N', Value:5} ] , ShowRightText:false},
// {Index:'MA', Windows:0 , IsShareY:true, ShowRightText:true },
//{Index:'RSI', Windows:0, ShowRightText:true },
//{ Index:'BOLL', Windows:0, ShowRightText:true,IsShareY:true, ShowToolbar:true },
//{Windows:0, IndexName:"指标ID", Name:"自定义指标", Script:"DRAWTEXT(CLOSE<OPEN,H,14),VALIGN2,ALIGN1,YMOVE(-10), XMOVE(5);", Identify:"guid_66990",ShowRightText:true,IsShareY:true }
//{Index:'MA5', Windows:1 ,ShowRightText:true}
//{Index:"VOL_OVERLAY", Windows:0 },
], //叠加指标
//OverlayIndexFrameWidth:1,
//DragDownload: { Day:{ Enable:true } , Minute:{ Enable:true }},
EnableYDrag:
{
Right:true,
Left:true,
},
Symbol:"000001.sh",
IsAutoUpdate:false, //是自动更新数据
AutoUpdateFrequency:10000, //数据更新频率
SplashTitle:'加载数据中......',
IsShowRightMenu:true, //右键菜单
//CorssCursorTouchEnd:true,
//IsClickShowCorssCursor:true,
//IsCorssOnlyDrawKLine:true,
CtrlMoveStep:10,
EnableVerifyRecvData:true,
CorssCursorInfo: { Right:2, DateFormatType:3, HPenType:1, VPenType:1 ,VLineType:0,RightButton:{ Enable:true }, IsShowCorss:true, PriceFormatType:0, DataFormatType:0 },
EnableZoomIndexWindow:true,
KLine: //K线设置
{
DragMode:1, //拖拽模式 0=禁止拖拽 1=数据拖拽 2=区间选择
Right:0, //复权 0 不复权 1 前复权 2 后复权
Period:0, //周期 0 日线 1 周线 2 月线 3 年线
MaxRequestDataCount:2000, //数据个数
MaxRequestMinuteDayCount:5, //分钟数据获取几天数据 默认取5天数据
PageSize:30, //一屏显示多少数据
//Info:["互动易","大宗交易",'龙虎榜',"调研","业绩预告","公告"], //信息地雷
//Info:["公告"],
IsShowTooltip:true, //是否显示K线提示信息
DrawType:0, //K线类型 0=实心K线柱子 1=收盘价线 2=美国线 3=空心K线柱子 4=收盘价面积图
//FirstShowDate:20161201,
KLineDoubleClick:false, //禁止双击弹框
RightSpaceCount:5,
ZoomType:0,
//DataWidth:5
ShowKLine:true,
},
StepPixel:0,
IsDrawPictureXY:true,
SelectedChart:{ EnableSelected: true, EnableMoveOn:true },
EnableIndexChartDrag:true,
KLineTitle: //标题设置
{
IsShowName:true, //不显示股票名称
IsShowSettingInfo:true //不显示周期/复权
},
EnableYDrag:
{
Right:true,
Left:true,
},
Border: //边框
{
Left:50, //左边间距
Right:90, //右边间距
Bottom:25, //底部间距
Top:25, //顶部间距
AutoLeft:{ Blank:10, MinWidth:30 },
AutoRight:{ Blank:5, MinWidth:40 },
},
Frame: //子框架设置
[
{
SplitCount:6,StringFormat:0, IsShowLeftText:true,
Custom:
[
{
Type:0,
Position:'right',LineType:1 //CountDown:true
//PositionEx:1,
},
{
Type:2,
Position:'right',LineType:-1 //CountDown:true
//PositionEx:1,
},
{
Type:3,
Position:'right',LineType:-1, //CountDown:true
//PositionEx:1,
},
{
Type:1,
Position:'right',LineType:1,
Data:[{ Value:7.22, Color:"rgb(50,100,100)", TextColor:"rgb(100,0,0)", Text:[{Text:"第1行"}, {Text:"第2行"}]}]
},
]
},
{ SplitCount:5, IsShowLeftText:false, IsShowXLine:true,
Custom:
[
{
Type:2,
Position:'right',LineType:-1 //CountDown:true
//PositionEx:1,
}
]
},
{
Custom:
[
{
Type:2,
Position:'right',LineType:-1 //CountDown:true
//PositionEx:1,
}
]
}
],
ExtendChart: //扩展图形
[
//{Name:'KLineTooltip' }, //手机端tooltip
//{Name:"FrameSplitPaint", LineColor:"rgb(200,0,0)" }
],
Overlay:
[
//{Symbol:'399300.sz', DrawType:1, Color:'rgb(0,0,255)'},
//{ Symbol:'600999.sh' }
],
};
this.ScrollbarOption=
{
Border: //边框
{
Left:50, //左边间距
Right:50, //右边间距
Bottom:25, //底部间距
Top:1, //顶部间距
AutoLeft:true,
AutoRight:true
},
DelayDragFrequency:50,
}
this.Create=function() //创建图形
{
var self=this;
//$(window).resize(function() { self.OnSize( {Type:1} ); }); //绑定窗口大小变化事件
$(window).resize(function() { self.OnSize( ); }); //绑定窗口大小变化事件
var blackStyle=HQChartStyle.GetStyleConfig(STYLE_TYPE_ID.BLACK_ID); //读取黑色风格配置
//blackStyle.DRAWICON={ MinSize:20 , MaxSize:60};
blackStyle.DrawPicture.PointType=1;
JSChart.SetStyle(blackStyle);
this.DivKLine.style.backgroundColor=blackStyle.BGColor; //设置最外面的div背景
this.DivScrollBar.style.backgroundColor=blackStyle.BGColor; //设置最外面的div背景
//JSChart.GetResource().FrameLogo.Text=null;
JSChart.GetResource().ToolbarButtonStyle=1;
this.OnSize(); //让K线全屏
this.ScrollbarOption.OnCreatedCallback=(chart)=> { this.OnCreateScrollBar(chart); }
this.Scrollbar.SetOption(this.ScrollbarOption);
this.Option.NetworkFilter=(data, callback)=>{ this.NetworkFilter(data, callback); }
this.Option.OnCreatedCallback=(chart)=> { this.OnCreateHQChart(chart); }
this.Chart.SetOption(this.Option); //设置K线配置
}
this.NetworkFilter=function(data, callback)
{
console.log('[NetworkFilter] data', data);
HQData.NetworkFilter(data, callback);
}
this.OnSize=function(option) //自适应大小调整
{
var height= $(window).height()-150;
var width = $(window).width();
//width=50000;
this.DivKLine.style.top='0px';
this.DivKLine.style.left='0px';
this.DivKLine.style.width=width+'px';
this.DivKLine.style.height=height+'px';
this.Chart.OnSize(option);
this.DivScrollBar.style.width=width+'px';
this.DivScrollBar.style.height='100px';
this.Scrollbar.OnSize(option);
}
this.ChangeSymbol=function(symbol)
{
this.Chart.ChangeSymbol(symbol);
}
this.OnCreateHQChart=function(chart)
{
chart.ScrollBar=this.Scrollbar;
}
this.OnCreateScrollBar=function(chart)
{
chart.HQChart=this.Chart;
}
}
$(function ()
{
var klineControl=new KLineChart(document.getElementById('kline'),document.getElementById('kscrollbar'));
klineControl.Create();
$("#button_1").click(function() { klineControl.ChangeSymbol("000001.sz"); } );
})
</script>
</body>
</html>
