LunarG Vulkan Validiation Layer_vulkan.lunarg-CSDN博客

本文链接：https://blog.csdn.net/jun_8018/article/details/124281227

本文介绍了如何通过VulkanConfigurator图形界面配置Vulkan层，包括程序matic方式（vkCreateInstance）和环境变量（VK_INSTANCE_LAYERS）。重点讲解了如何使用VK_LAYER_PATH指定SDK或本地源层的JSON文件，以及设置环境变量来激活特定的验证层如LUNARG_api_dump和KHRONOS_validation。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1 useful link

https://vulkan.lunarg.com/doc/sdk/1.3.211.0/linux/layer_configuration.html

2 Configure Vulkan Layers

Configuring Vulkan Layers using Vulkan Configurator .Developers can configure layers through a graphical user interface. Vulkan Configurator allows full user control of Vulkan layers, including enabling or disabling specific layers, controlling layer order, changing layer settings, etc.

3 Enabling Vulkan Layers

Two following methods to use Vulkan layers

3.1 using VkCreateInstance()

Applications may programmatically activate layers via the vkCreateInstance() entry point. This is done by setting enabledLayerCount and ppEnabledLayerNames in the VkInstanceCreateInfo structure.

3.2 Enabling Vulkan Layers using Environment Variables

Layers can be activated by using the VK_INSTANCE_LAYERS environment variable.

$ export VK_INSTANCE_LAYERS=VK_LAYER_LUNARG_api_dump:VK_LAYER_KHRONOS_validation

#The api_dump layer will be called before the Khronos validation layer

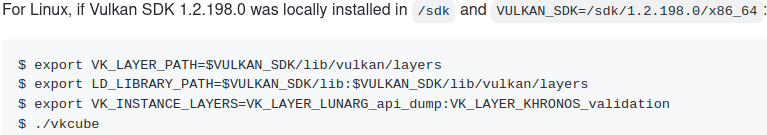

To activate layers located in a particular SDK installation, or layers built locally from source, specify the layer JSON manifest file directory using the VK_LAYER_PATH environment variable.
Here we can see setup-env.sh in the directory, it will help you to export the above environment variable, you need also to set VK_INSTANCE_LAYERS

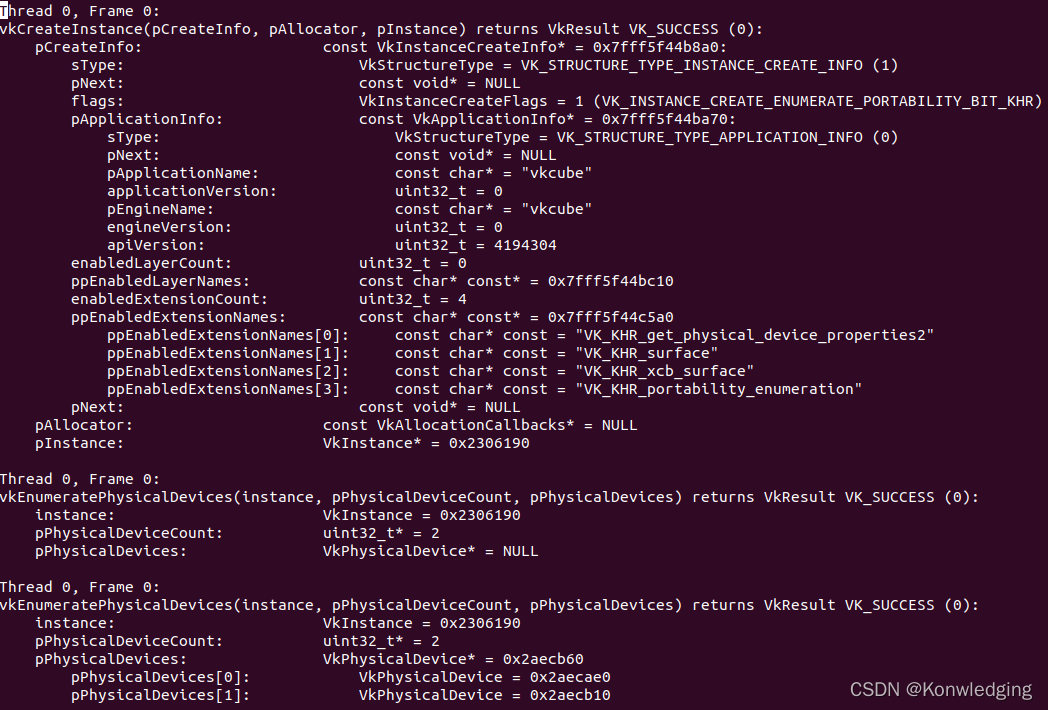

execute vkcube result
