STM32F103+RTT从零开始(三)—— S50门禁卡复制

近期因为各种原因,重新租了个房子住,小区外面有门禁系统,楼下也有个门禁系统。房东只给了一套门禁卡,而我家人也需要门禁卡,所以我就去小区物业那里补卡,结果小区物业那里只能补小区的门禁卡,楼下的门禁卡需要在另外个地方补。物业工作人员给说了下地方,我找了下没找到,又想起了我一年前买了个RFID模块和十几个空白门禁卡,还没开封。又正好时值国庆,空闲时间比较多,不如自己来复制吧。

基础知识

一两个月前,我写了两篇STM32F103+RTT的入门博客。那两篇是非常基础的,到这里直接就是复制门禁卡,看起来好像不是循序渐进。不过也是没法子,毕竟现在从事的工作和这些完全不沾边,工作又忙,所以没太多时间来一步一步学习并且写博客,只能玩到哪是哪了。
先看了下门禁卡的分类和一些基础资料,了解到我新租住的房子所在的小区用的门禁卡是S50类型的。它具有16个 扇区,每个扇区具有四个Block,分别为0、1、2、3,每个Block可以存储16字节的数据。其中每个扇区的Block3存储的为6字节A密码+4字节控制位+6字节B密码。另外第一扇区的Block0存储的为卡号以及厂商的基本信息。卡就是下面的这个鬼样子:

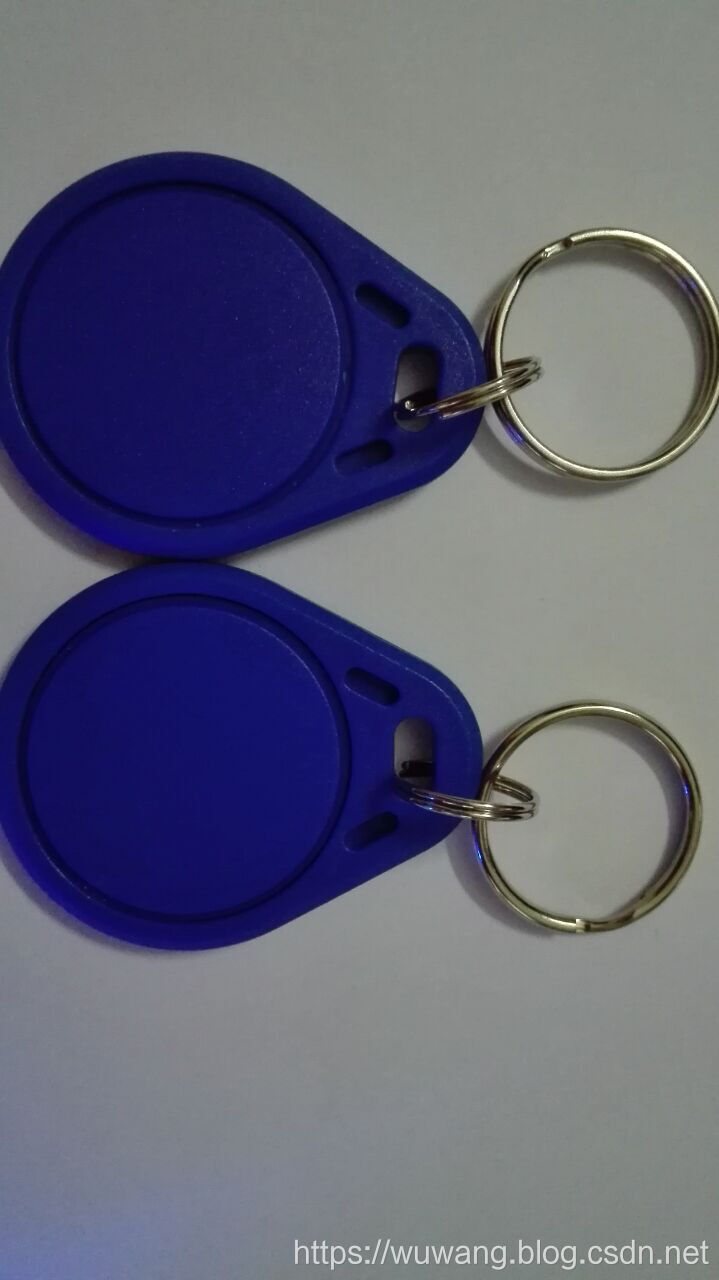

在这里插入图片描述
一般来说,第一扇区的Block0下内容是不能更改的,我原以为小区门禁卡是通过其他扇区的数据来做验证的,后面写好了读数据的代码,发现从门禁卡中从数据块中读取的数据都是0,只有密码区、控制区及ID下第一扇区的Block0中有数据。所以我们的那个小区中的门禁卡应该是通过卡的第一扇区的Block0中的信息来验证的。也就是说我们要做的是复制整个卡,包括第一扇区的Block0。
要复制第一扇区的Block0,普通的IC卡就不行了,我之前买的卡就是普通的IC卡,鼓捣了很久,一直以为是程序写的有问题,后来才发现是卡不行。没办法,只能重新买卡了。
选卡也要选择合适的卡,查了下资料,能够修改第一扇区Block0的兼容S50类型的卡,有UID卡(可以使用后门指令无限制重复修改第一扇区Block0,会响应后门指令)、CUID卡(可以使用后门指令无限制重复修改第一扇区的Block0,不会响应后门指令)、FUID卡(使用普通指令,只能修改一次第一扇区的Block0)等。根据上面的说明,可以知道,UID卡可以无限制修改,但是由于会响应后门指令,所以如果门禁系统有检测后门指令并且禁用,那就不能用了。CUID不响应后门指令,但是由于可以用后面指令修改,门禁系统如果先去修改一下,确认不能修改,再进行门禁验证,那么CUID的卡就也不能用了。FUID显然是最保险的,但是从价格来说,FUID(2.2元) > CUID(1.3元) > UID(0.78元)。
所以我先试了下房东给的门禁卡,发现它是可以被修改的,而且也会响应后门指令,那么考虑性价比,当然是买UID卡了。10块钱13个还包邮,加上8块钱不到的一个RFID-RC522,一共18块钱(PS : 物业那里20块钱一个门禁卡,真坑)。

门禁卡复制实现

上面提到修改门禁卡第一扇区Block0是需要使用后门指令的,直接按照普通的写数据的方式进行修改,是无法修改的。既然主要目的是复制门禁卡,懒得重复去造轮子了。我之前买的RFID-RC522模块,使用的是SPI的通信模式,淘宝上搜索,应该很多都是这样的,如下图所示:
在这里插入图片描述
对,买的就是这样没焊脚的,然后我又买了个电烙铁套装。。。

然后上位机还是使用之前的那个STM32F103C8T6。

RC522驱动程序

然后再网上找了下STM32F103下RC522的驱动程序,并增加利用后门指令写第一扇区block0的代码如下:
驱动头文件rc522.h

#ifndef __RC522_H
#define __RC522_H

#define MF522_RST_PIN                    GPIO_Pin_0
#define MF522_RST_PORT                   GPIOB
#define MF522_RST_CLK                    RCC_APB2Periph_GPIOB

#define MF522_MISO_PIN                   GPIO_Pin_6
#define MF522_MISO_PORT                  GPIOA
#define MF522_MISO_CLK                   RCC_APB2Periph_GPIOA

#define MF522_MOSI_PIN                   GPIO_Pin_7
#define MF522_MOSI_PORT                  GPIOA
#define MF522_MOSI_CLK                   RCC_APB2Periph_GPIOA

#define MF522_SCK_PIN                    GPIO_Pin_5
#define MF522_SCK_PORT                   GPIOA
#define MF522_SCK_CLK                    RCC_APB2Periph_GPIOA

#define MF522_NSS_PIN                    GPIO_Pin_4
#define MF522_NSS_PORT                   GPIOA
#define MF522_NSS_CLK                    RCC_APB2Periph_GPIOA

#define RST_H                            GPIO_SetBits(MF522_RST_PORT, MF522_RST_PIN)
#define RST_L                            GPIO_ResetBits(MF522_RST_PORT, MF522_RST_PIN)
#define MOSI_H                           GPIO_SetBits(MF522_MOSI_PORT, MF522_MOSI_PIN)
#define MOSI_L                           GPIO_ResetBits(MF522_MOSI_PORT, MF522_MOSI_PIN)
#define SCK_H                            GPIO_SetBits(MF522_SCK_PORT, MF522_SCK_PIN)
#define SCK_L                            GPIO_ResetBits(MF522_SCK_PORT, MF522_SCK_PIN)
#define NSS_H                            GPIO_SetBits(MF522_NSS_PORT, MF522_NSS_PIN)
#define NSS_L                            GPIO_ResetBits(MF522_NSS_PORT, MF522_NSS_PIN)
#define READ_MISO                        GPIO_ReadInputDataBit(MF522_MISO_PORT, MF522_MISO_PIN)

// ????
void PcdInit(void);
char PcdReset(void);
void PcdAntennaOn(void);
void PcdAntennaOff(void);
char PcdRequest(unsigned char req_code,unsigned char *pTagType);
char PcdAnticoll(unsigned char *pSnr);
char PcdSelect(unsigned char *pSnr);
char PcdAuthState(unsigned char auth_mode,unsigned char addr,unsigned char *pKey,unsigned char *pSnr);
char PcdRead(unsigned char addr,unsigned char *pData);
char PcdWrite(unsigned char addr,unsigned char *pData);
char PcdValue(unsigned char dd_mode,unsigned char addr,unsigned char *pValue);
char PcdBakValue(unsigned char sourceaddr, unsigned char goaladdr);
char PcdHalt(void);
char PcdComMF522(unsigned char Command,
                 unsigned char *pInData,
                 unsigned char InLenByte,
                 unsigned char *pOutData,
                 unsigned int  *pOutLenBit);
void CalulateCRC(unsigned char *pIndata,unsigned char len,unsigned char *pOutData);
void WriteRawRC(unsigned char Address,unsigned char value);
unsigned char ReadRawRC(unsigned char Address);
void SetBitMask(unsigned char reg,unsigned char mask);
void ClearBitMask(unsigned char reg,unsigned char mask);
char M500PcdConfigISOType(unsigned char type);
void delay_10ms(unsigned int _10ms);
void WaitCardOff(void);
char PcdSpicelWrite(unsigned char *pData);

#define PCD_IDLE              0x00
#define PCD_AUTHENT           0x0E
#define PCD_RECEIVE           0x08
#define PCD_TRANSMIT          0x04
#define PCD_TRANSCEIVE        0x0C
#define PCD_RESETPHASE        0x0F
#define PCD_CALCCRC           0x03

#define PICC_REQIDL           0x26
#define PICC_REQALL           0x52
#define PICC_ANTICOLL1        0x93
#define PICC_ANTICOLL2        0x95
#define PICC_AUTHENT1A        0x60
#define PICC_AUTHENT1B        0x61
#define PICC_READ             0x30
#define PICC_WRITE            0xA0
#define PICC_DECREMENT        0xC0
#define PICC_INCREMENT        0xC1
#define PICC_RESTORE          0xC2
#define PICC_TRANSFER         0xB0
#define PICC_HALT             0x50

#define PCD_SPECIAL_COPY			0x43

#define DEF_FIFO_LENGTH       64

#define     RFU00                 0x00
#define     CommandReg            0x01
#define     ComIEnReg             0x02
#define     DivlEnReg             0x03
#define     ComIrqReg             0x04
#define     DivIrqReg             0x05
#define     ErrorReg              0x06
#define     Status1Reg            0x07
#define     Status2Reg            0x08
#define     FIFODataReg           0x09
#define     FIFOLevelReg          0x0A
#define     WaterLevelReg         0x0B
#define     ControlReg            0x0C
#define     BitFramingReg         0x0D
#define     CollReg               0x0E
#define     RFU0F                 0x0F
// PAGE 1
#define     RFU10                 0x10
#define     ModeReg               0x11
#define     TxModeReg             0x12
#define     RxModeReg             0x13
#define     TxControlReg          0x14
#define     TxAutoReg             0x15
#define     TxSelReg              0x16
#define     RxSelReg              0x17
#define     RxThresholdReg        0x18
#define     DemodReg              0x19
#define     RFU1A                 0x1A
#define     RFU1B                 0x1B
#define     MifareReg             0x1C
#define     RFU1D                 0x1D
#define     RFU1E                 0x1E
#define     SerialSpeedReg        0x1F
// PAGE 2
#define     RFU20                 0x20
#define     CRCResultRegM         0x21
#define     CRCResultRegL         0x22
#define     RFU23                 0x23
#define     ModWidthReg           0x24
#define     RFU25                 0x25
#define     RFCfgReg              0x26
#define     GsNReg                0x27
#define     CWGsCfgReg            0x28
#define     ModGsCfgReg           0x29
#define     TModeReg              0x2A
#define     TPrescalerReg         0x2B
#define     TReloadRegH           0x2C
#define     TReloadRegL           0x2D
#define     TCounterValueRegH     0x2E
#define     TCounterValueRegL     0x2F
// PAGE 3
#define     RFU30                 0x30
#define     TestSel1Reg           0x31
#define     TestSel2Reg           0x32
#define     TestPinEnReg          0x33
#define     TestPinValueReg       0x34
#define     TestBusReg            0x35
#define     AutoTestReg           0x36
#define     VersionReg            0x37
#define     AnalogTestReg         0x38
#define     TestDAC1Reg           0x39
#define     TestDAC2Reg           0x3A
#define     TestADCReg            0x3B
#define     RFU3C                 0x3C
#define     RFU3D                 0x3D
#define     RFU3E                 0x3E
#define     RFU3F		          		0x3F


#define     REQ_ALL               0x52
#define     KEYA                  0x60
#define     KEYB                  0x61

#define MI_OK                          (char)0
#define MI_NOTAGERR                    (char)(-1)
#define MI_ERR                         (char)(-2)

#endif


驱动实现rc522.c

#include "rc522.h"
#include "stm32f10x_gpio.h"

#define MAXRLEN 18

void PcdInit()
{
	  GPIO_InitTypeDef  GPIO_InitStructure;

	  /* Enable the GPIO Clock */
	  RCC_APB2PeriphClockCmd(MF522_RST_CLK, ENABLE);

	  /* Configure the GPIO pin */
	  GPIO_InitStructure.GPIO_Pin = MF522_RST_PIN;
	  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
	  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

	  GPIO_Init(MF522_RST_PORT, &GPIO_InitStructure);

	  /* Enable the GPIO Clock */
	  RCC_APB2PeriphClockCmd(MF522_MISO_CLK, ENABLE);

	  /* Configure the GPIO pin */
	  GPIO_InitStructure.GPIO_Pin = MF522_MISO_PIN;
	  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
	  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

	  GPIO_Init(MF522_MISO_PORT, &GPIO_InitStructure);

	  /* Enable the GPIO Clock */
	  RCC_APB2PeriphClockCmd(MF522_MOSI_CLK, ENABLE);

	  /* Configure the GPIO pin */
	  GPIO_InitStructure.GPIO_Pin = MF522_MOSI_PIN;
	  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
	  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

	  GPIO_Init(MF522_MOSI_PORT, &GPIO_InitStructure);

	  /* Enable the GPIO Clock */
	  RCC_APB2PeriphClockCmd(MF522_SCK_CLK, ENABLE);

	  /* Configure the GPIO pin */
	  GPIO_InitStructure.GPIO_Pin = MF522_SCK_PIN;
	  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
	  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

	  GPIO_Init(MF522_SCK_PORT, &GPIO_InitStructure);

	  /* Enable the GPIO Clock */
	  RCC_APB2PeriphClockCmd(MF522_NSS_CLK, ENABLE);

	  /* Configure the GPIO pin */
	  GPIO_InitStructure.GPIO_Pin = MF522_NSS_PIN;
	  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
	  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

	  GPIO_Init(MF522_NSS_PORT, &GPIO_InitStructure);
}

char PcdRequest(unsigned char req_code,unsigned char *pTagType)
{
   char status;
   unsigned int  unLen;
   unsigned char ucComMF522Buf[MAXRLEN];
   ClearBitMask(Status2Reg,0x08);
   WriteRawRC(BitFramingReg,0x07);

   SetBitMask(TxControlReg,0x03);

   ucComMF522Buf[0] = req_code;

   status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,1,ucComMF522Buf,&unLen);
//     if(status  == MI_OK )
//   { LED_GREEN  =0 ;}
//   else {LED_GREEN =1 ;}
   if ((status == MI_OK) && (unLen == 0x10))
   {
       *pTagType     = ucComMF522Buf[0];
       *(pTagType+1) = ucComMF522Buf[1];
   }
   else
   {   status = MI_ERR;   }

   return status;
}

char PcdAnticoll(unsigned char *pSnr)
{
    char status;
    unsigned char i,snr_check=0;
    unsigned int  unLen;
    unsigned char ucComMF522Buf[MAXRLEN];


    ClearBitMask(Status2Reg,0x08);
    WriteRawRC(BitFramingReg,0x00);
    ClearBitMask(CollReg,0x80);

    ucComMF522Buf[0] = PICC_ANTICOLL1;
    ucComMF522Buf[1] = 0x20;

    status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,2,ucComMF522Buf,&unLen);

    if (status == MI_OK)
    {
    	 for (i=0; i<4; i++)
         {
             *(pSnr+i)  = ucComMF522Buf[i];
             snr_check ^= ucComMF522Buf[i];
         }
         if (snr_check != ucComMF522Buf[i])
         {   status = MI_ERR;    }
    }

    SetBitMask(CollReg,0x80);
    return status;
}

char PcdSelect(unsigned char *pSnr)
{
    char status;
    unsigned char i;
    unsigned int  unLen;
    unsigned char ucComMF522Buf[MAXRLEN];

    ucComMF522Buf[0] = PICC_ANTICOLL1;
    ucComMF522Buf[1] = 0x70;
    ucComMF522Buf[6] = 0;
    for (i=0; i<4; i++)
    {
    	ucComMF522Buf[i+2] = *(pSnr+i);
    	ucComMF522Buf[6]  ^= *(pSnr+i);
    }
    CalulateCRC(ucComMF522Buf,7,&ucComMF522Buf[7]);

    ClearBitMask(Status2Reg,0x08);

    status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,9,ucComMF522Buf,&unLen);

    if ((status == MI_OK) && (unLen == 0x18))
    {   status = MI_OK;  }
    else
    {   status = MI_ERR;    }

    return status;
}

char PcdAuthState(unsigned char auth_mode,unsigned char addr,unsigned char *pKey,unsigned char *pSnr)
{
    char status;
    unsigned int  unLen;
    unsigned char i,ucComMF522Buf[MAXRLEN];

    ucComMF522Buf[0] = auth_mode;
    ucComMF522Buf[1] = addr;
    for (i=0; i<6; i++)
    {    ucComMF522Buf[i+2] = *(pKey+i);   }
    for (i=0; i<6; i++)
    {    ucComMF522Buf[i+8] = *(pSnr+i);   }
 //   memcpy(&ucComMF522Buf[2], pKey, 6);
 //   memcpy(&ucComMF522Buf[8], pSnr, 4);

    status = PcdComMF522(PCD_AUTHENT,ucComMF522Buf,12,ucComMF522Buf,&unLen);
    if ((status != MI_OK) || (!(ReadRawRC(Status2Reg) & 0x08)))
    {   status = MI_ERR;   }

    return status;
}

char PcdRead(unsigned char addr,unsigned char *pData)
{
    char status;
    unsigned int  unLen;
    unsigned char i,ucComMF522Buf[MAXRLEN];

    ucComMF522Buf[0] = PICC_READ;
    ucComMF522Buf[1] = addr;
    CalulateCRC(ucComMF522Buf,2,&ucComMF522Buf[2]);

    status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,4,ucComMF522Buf,&unLen);
    if ((status == MI_OK) && (unLen == 0x90))
 //   {   memcpy(pData, ucComMF522Buf, 16);   }
    {
        for (i=0; i<16; i++)
        {    *(pData+i) = ucComMF522Buf[i];   }
    }
    else
    {   status = MI_ERR;   }

    return status;
}

char PcdWrite(unsigned char addr,unsigned char *pData)
{
    char status;
    unsigned int  unLen;
    unsigned char i,ucComMF522Buf[MAXRLEN];

    ucComMF522Buf[0] = PICC_WRITE;
    ucComMF522Buf[1] = addr;
    CalulateCRC(ucComMF522Buf,2,&ucComMF522Buf[2]);

    status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,4,ucComMF522Buf,&unLen);

    if ((status != MI_OK) || (unLen != 4) || ((ucComMF522Buf[0] & 0x0F) != 0x0A))
    {   status = MI_ERR;   }

    if (status == MI_OK)
    {
        //memcpy(ucComMF522Buf, pData, 16);

        for (i=0; i<16; i++)
        {    ucComMF522Buf[i] = *(pData+i);   }
        CalulateCRC(ucComMF522Buf,16,&ucComMF522Buf[16]);

        status = PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,18,ucComMF522Buf,&unLen);
        if ((status != MI_OK) || (unLen != 4) || ((ucComMF522Buf[0] & 0x0F) != 0x0A))
        {   status = MI_ERR;   }
    }

    return status;
}

//这个是写第一扇区Block0的代码
char PcdSpicelWrite(unsigned char *pData)
{
    char status;
    unsigned int  unLen;
    unsigned char i,ucComMF522Buf[MAXRLEN];

	//需要使用以下步骤开启后门
	PcdHalt();
	WriteRawRC(BitFramingReg, 0x07);
	//WriteRawRC(CommandReg, 0x40);
	ucComMF522Buf[0] = 0x40;
	PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,1,ucComMF522Buf,&unLen);
	WriteRawRC(BitFramingReg, 0x00);
	ucComMF522Buf[0] = 0x43;
	PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,1,ucComMF522Buf,&unLen);

    return PcdWrite(0, pData);
}

char PcdHalt(void)
{
    unsigned int  unLen;
    unsigned char ucComMF522Buf[MAXRLEN];

    ucComMF522Buf[0] = PICC_HALT;
    ucComMF522Buf[1] = 0;
    CalulateCRC(ucComMF522Buf,2,&ucComMF522Buf[2]);

    PcdComMF522(PCD_TRANSCEIVE,ucComMF522Buf,4,ucComMF522Buf,&unLen);

    return MI_OK;
}

//?MF522??CRC16??
void CalulateCRC(unsigned char *pIndata,unsigned char len,unsigned char *pOutData)
{
    unsigned char i,n;
    ClearBitMask(DivIrqReg,0x04);
    WriteRawRC(CommandReg,PCD_IDLE);
    SetBitMask(FIFOLevelReg,0x80);
    for (i=0; i<len; i++)
    {   WriteRawRC(FIFODataReg, *(pIndata+i));   }
    WriteRawRC(CommandReg, PCD_CALCCRC);
    i = 0xFF;
    do
    {
        n = ReadRawRC(DivIrqReg);
        i--;
    }
    while ((i!=0) && !(n&0x04));
    pOutData[0] = ReadRawRC(CRCResultRegL);
    pOutData[1] = ReadRawRC(CRCResultRegM);
}

char PcdReset(void)
{
    RST_H;
    delay_10ms(1);
    RST_L;
    delay_10ms(1);
    RST_H;
	  delay_10ms(10);

		if(ReadRawRC(0x02) == 0x80)
		{
		}

    WriteRawRC(CommandReg,PCD_RESETPHASE);

    WriteRawRC(ModeReg,0x3D);
    WriteRawRC(TReloadRegL,30);
    WriteRawRC(TReloadRegH,0);
    WriteRawRC(TModeReg,0x8D);
    WriteRawRC(TPrescalerReg,0x3E);
    WriteRawRC(TxAutoReg,0x40);
    return MI_OK;
}

char M500PcdConfigISOType(unsigned char type)
{
   if (type == 'A')
   {
      ClearBitMask(Status2Reg,0x08);
      WriteRawRC(ModeReg,0x3D);//3F
      WriteRawRC(RxSelReg,0x86);//84
      WriteRawRC(RFCfgReg,0x7F);   //4F
   	  WriteRawRC(TReloadRegL,30);//tmoLength);// TReloadVal = 'h6a =tmoLength(dec)
			WriteRawRC(TReloadRegH,0);
      WriteRawRC(TModeReg,0x8D);
			WriteRawRC(TPrescalerReg,0x3E);
	    delay_10ms(1);
      PcdAntennaOn();
   }
   else{ return (char)-1; }

   return MI_OK;
}

unsigned char ReadRawRC(unsigned char Address)
{
     unsigned char i, ucAddr;
     unsigned char ucResult=0;

     NSS_L;
     ucAddr = ((Address<<1)&0x7E)|0x80;

     for(i=8;i>0;i--)
     {
         SCK_L;
	 	 if(ucAddr&0x80)
         	MOSI_H;
		 else
				 MOSI_L;
         SCK_H;
         ucAddr <<= 1;
     }

     for(i=8;i>0;i--)
     {
         SCK_L;
         ucResult <<= 1;
         SCK_H;
		 if(READ_MISO == 1)
         	ucResult |= 1;
     }

     NSS_H;
     SCK_H;
     return ucResult;
}

void WriteRawRC(unsigned char Address, unsigned char value)
{
    unsigned char i, ucAddr;

    SCK_L;
    NSS_L;
    ucAddr = ((Address<<1)&0x7E);

    for(i=8;i>0;i--)
    {
		if(ucAddr&0x80)
        	MOSI_H;
		else
			MOSI_L;
        SCK_H;
        ucAddr <<= 1;
        SCK_L;
    }

    for(i=8;i>0;i--)
    {
		if(value&0x80)
        	MOSI_H;
		else
			MOSI_L;
        SCK_H;
        value <<= 1;
        SCK_L;
    }
    NSS_H;
    SCK_H;
}

void SetBitMask(unsigned char reg,unsigned char mask)
{
    char tmp = 0x0;
    tmp = ReadRawRC(reg);
    WriteRawRC(reg,tmp | mask);  // set bit mask
}

void ClearBitMask(unsigned char reg,unsigned char mask)
{
    char tmp = 0x0;
    tmp = ReadRawRC(reg);
    WriteRawRC(reg, tmp & ~mask);  // clear bit mask
}

char PcdComMF522(unsigned char Command,
                 unsigned char *pInData,
                 unsigned char InLenByte,
                 unsigned char *pOutData,
                 unsigned int  *pOutLenBit)
{
    char status = MI_ERR;
    unsigned char irqEn   = 0x00;
    unsigned char waitFor = 0x00;
    unsigned char lastBits;
    unsigned char n;
    unsigned int i;
    switch (Command)
    {
       case PCD_AUTHENT:
          irqEn   = 0x12;
          waitFor = 0x10;
          break;
       case PCD_TRANSCEIVE:
			 case PCD_SPECIAL_COPY:
          irqEn   = 0x77;
          waitFor = 0x30;
          break;
       default:
         break;
    }

    WriteRawRC(ComIEnReg,irqEn|0x80);
    ClearBitMask(ComIrqReg,0x80);
    WriteRawRC(CommandReg,PCD_IDLE);
    SetBitMask(FIFOLevelReg,0x80);

    for (i=0; i<InLenByte; i++)
    {   WriteRawRC(FIFODataReg, pInData[i]);    }
    WriteRawRC(CommandReg, Command);


    if (Command == PCD_TRANSCEIVE)
    {    SetBitMask(BitFramingReg,0x80);  }

 i = 2000;
    do
    {
         n = ReadRawRC(ComIrqReg);
         i--;
    }
    while ((i!=0) && !(n&0x01) && !(n&waitFor));
    ClearBitMask(BitFramingReg,0x80);

    if (i!=0)
    {
         if(!(ReadRawRC(ErrorReg)&0x1B))
         {
             status = MI_OK;
             if (n & irqEn & 0x01)
             {   status = MI_NOTAGERR;   }
             if (Command == PCD_TRANSCEIVE)
             {
               	n = ReadRawRC(FIFOLevelReg);
              	lastBits = ReadRawRC(ControlReg) & 0x07;
                if (lastBits)
                {   *pOutLenBit = (n-1)*8 + lastBits;   }
                else
                {   *pOutLenBit = n*8;   }
                if (n == 0)
                {   n = 1;    }
                if (n > MAXRLEN)
                {   n = MAXRLEN;   }
                for (i=0; i<n; i++)
                {   pOutData[i] = ReadRawRC(FIFODataReg);    }
            }
         }
         else
         {   status = MI_ERR;   }

   }


   SetBitMask(ControlReg,0x80);           // stop timer now
   WriteRawRC(CommandReg,PCD_IDLE);
   return status;
}

void PcdAntennaOn()
{
    unsigned char i;
    i = ReadRawRC(TxControlReg);
    if (!(i & 0x03))
    {
        SetBitMask(TxControlReg, 0x03);
    }
}

void PcdAntennaOff()
{
    ClearBitMask(TxControlReg, 0x03);
}

void WaitCardOff(void)
{
	char          status;
  unsigned char	TagType[2];

	while(1)
	{
		status = PcdRequest(REQ_ALL, TagType);
		if(status)
		{
			status = PcdRequest(REQ_ALL, TagType);
			if(status)
			{
				status = PcdRequest(REQ_ALL, TagType);
				if(status)
				{
					return;
				}
			}
		}
		delay_10ms(10);
	}
}

void delay_10ms(unsigned int _10ms)
{
	unsigned int i, j;

	for(i=0; i<_10ms; i++)
	{
		for(j=0; j<60000; j++);
	}
}

后门代码实现依据来源于这篇博客,RC522驱动代码来源于这篇博客,在此表示感谢。

主要控制逻辑

按照之前点亮LED的经验,我们使用RTthread来进行进行门禁卡的检测和复制。主要代码如下:
复制代码被注释了,我们先使用检测并读取的代码,读取出原卡的内容,然后把读取内容记录下来,复制到新卡上去。正确的做法应该是使用完整逻辑来实现这个流程,这里为了方便,直接手动记录,然后修改代码重新编译来进行卡的复制,有兴趣有需要的朋友可在此基础上自行补充完成。


#include <board.h>
#include <rtthread.h>
#include "led.h"
#include "rc522.h"

ALIGN(RT_ALIGN_SIZE)
static rt_uint8_t led_stack[ 512 ];
static struct rt_thread led_thread;
static void led_thread_entry(void* parameter)
{
    unsigned int count=0;

    rt_hw_led_init();

    while (1)
    {
        count++;
        rt_hw_led_on(0);
        rt_thread_delay( RT_TICK_PER_SECOND/2 ); /* sleep 0.5 second and switch to other thread */

        rt_hw_led_off(0);
        rt_thread_delay( RT_TICK_PER_SECOND/2 );
    }
}

static void ShowID(u8 *p)
{
    u8 num[9];
    u8 i;

    for(i=0; i<4; i++)
    {
        num[i*2]=p[i]/16;
        num[i*2]>9?(num[i*2]+='7'):(num[i*2]+='0');
        num[i*2+1]=p[i]%16;
        num[i*2+1]>9?(num[i*2+1]+='7'):(num[i*2+1]+='0');
    }
    num[8]=0;
    rt_kprintf("ID>>>%s\r\n", num);
}

static rt_uint8_t rfid_stack[ 512 ];
static struct rt_thread rfid_thread;
static void rfid_thread_entry(void* parameter)
{
    unsigned int count=0;

    char status;
	unsigned char snr, buf[16], TagType[2], SelectedSnr[4], DefaultKey[6] = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF};

  PcdInit();
	PcdReset();
	PcdAntennaOff();
	PcdAntennaOn();
	M500PcdConfigISOType( 'A' );

  rt_kprintf( "rc522 init over!\n" );

  while(1){
    status= PcdRequest( REQ_ALL , TagType );
		if(!status) {
			status = PcdAnticoll(SelectedSnr);
			if(!status){
				status=PcdSelect(SelectedSnr);
				if(!status){
					ShowID(SelectedSnr);
					/*unsigned char inDoor[16] = {
							0x91, 0x94, 0x09, 0xa5, 0xa9, 0x88, 0x04, 0x00,
							0x85, 0x00, 0xb4, 0x2e, 0xf0, 0xbb, 0x6a, 0xa8
						};
					unsigned char outDoor[16] = {
						0x1c, 0x6a, 0xa0, 0xa5, 0x73, 0x88, 0x04, 0x00,
						0x85, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
					};
					status = PcdSpicelWrite(inDoor);*/
					if(!status){
						for(int i = 0;i < 16 ;i++){
							snr = i;
							status = PcdAuthState(KEYB, (snr*4+3), DefaultKey, SelectedSnr);
							for(int j = 0; j < 4; j++){
								status = PcdRead((snr*4+j), buf);
								//status = PcdWrite((snr*4+0), "way2");
								if(!status){
									uint16_t * e = 0;
									e = (uint16_t *)TagType;
									//rt_kprintf("Snr Index : %d, type = %x \n", snr * 4 + j, *e);
									for(int n = 0; n < 16; n++){
										rt_kprintf("%x ", (uint16_t)buf[n]);
									}
									rt_kprintf("\n");
								}
							}
						}
					}
					rt_kprintf("operate finished! %x \n", status);
					WaitCardOff();
				}
			}
		}
	}
}

void rt_init_thread_entry(void* parameter)
{
#ifdef RT_USING_COMPONENTS_INIT
    /* initialization RT-Thread Components */
    rt_components_init();
#endif
}

int rt_application_init(void)
{
    rt_thread_t init_thread;

    rt_err_t result;

    /* init led thread */
    result = rt_thread_init(&led_thread,
                            "led",
                            led_thread_entry,
                            RT_NULL,
                            (rt_uint8_t*)&led_stack[0],
                            sizeof(led_stack),
                            20,
                            5);
    if (result == RT_EOK)
    {
        rt_thread_startup(&led_thread);
    }

		 result = rt_thread_init(&rfid_thread,
                            "rfid",
                            rfid_thread_entry,
                            RT_NULL,
                            (rt_uint8_t*)&rfid_stack[0],
                            sizeof(rfid_stack),
                            22,
                            5);
    if (result == RT_EOK)
    {
        rt_thread_startup(&rfid_thread);
    }

#if (RT_THREAD_PRIORITY_MAX == 32)
    init_thread = rt_thread_create("init",
                                   rt_init_thread_entry, RT_NULL,
                                   2048, 8, 20);
#else
    init_thread = rt_thread_create("init",
                                   rt_init_thread_entry, RT_NULL,
                                   2048, 80, 20);
#endif

    if (init_thread != RT_NULL)
        rt_thread_startup(init_thread);

    return 0;
}

/*@}*/

工程源码

工程源码挂载在CSDN下载频道,攒点下载分备用。欢迎转载,转载博客请注明出处湖广午王的博客

©️2020 CSDN 皮肤主题: 大白 设计师: CSDN官方博客 返回首页
实付0元
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
