一、SPI FLASH驱动
为了完成FATFs的移植，需要提前准备好W25Q64的驱动程序，MCU使用的stm32f103rct6,正点原子的mini板。驱动文件改自王维波老师的<<STM32CubeMX高效开发教程高级篇>>,在王老师的基础上进一步实现了任意地址可自动跨block写Flash的函数。
因为测试时使用的缓冲区比较大，为了保证读取正确，请先把startup_stm32f103xe.s中的Heap Size调大至0x3000，也就是3KB。
这个驱动我抄的乱七八糟的，正点原子野火普中CSDN抄了一大通，目前就测了一下W25Q64能用，其他没搞。
w25flash.h
/* 文件： w25flash.h
* 功能描述： Flash 存储器W25Q128的驱动程序
* 作者：王维波
* 修改日期：2019-06-05
* W25Q128 芯片参数： 16M字节，24位地址线
* 分为256个Block，每个Block 64K字节
* 一个Block又分为16个Sector，共4096个Sector，每个Sector 4K字节
* 一个Sector又分为16个Page，共65536个Page，每个Page 256字节
* 写数据操作的基本单元是Page，一次连续写入操作不能超过一个Page的范围。写的Page必须是擦除过的。
*W25Q64 8M字节 Block：128个，每个block 64KByte
*Sector：每个Block有16个，每个sector： 4Kbyte
*Page:每个Sector有16个page，每个page： 256 Byte
在王老师的基础上增加了Flash_write函数，可以任意地址连续写，支持跨block写，不检测边界
实验硬件：正点原子Mini开发板，stm32f103rct6，w25q64
软件片选，片选线PA2。调试信息串口使用UART1
*/
#ifndef _W25FLASH_H
#define _W25FLASH_H
#include "stm32f1xx_hal.h"
#include "spi.h" //使用其中的变量 hspi1，表示SPI1接口
#include <stdio.h>
//指令表
#define W25X_WriteEnable 0x06
#define W25X_WriteDisable 0x04
#define W25X_ReadStatusReg1 0x05
#define W25X_ReadStatusReg2 0x35
#define W25X_ReadStatusReg3 0x15
#define W25X_WriteStatusReg1 0x01
#define W25X_WriteStatusReg2 0x31
#define W25X_WriteStatusReg3 0x11
#define W25X_ReadData 0x03
#define W25X_FastReadData 0x0B
#define W25X_FastReadDual 0x3B
#define W25X_PageProgram 0x02
#define W25X_BlockErase 0xD8
#define W25X_SectorErase 0x20
#define W25X_ChipErase 0xC7
#define W25X_PowerDown 0xB9
#define W25X_ReleasePowerDown 0xAB
//0xAB is Release Power down or HPM / Device ID
#define W25X_DeviceID 0xAB
#define W25X_ManufactDeviceID 0x90
#define W25X_JedecDeviceID 0x9F
#define W25X_Enable4ByteAddr 0xB7
#define W25X_Exit4ByteAddr 0xE9
/* W25Q128硬件接口相关的部分：CS引脚和SPI接口 ，若电路不同，更改这部分配置即可 */
// Flash_CS -->PB14, 片选信号CS操作的宏定义函数
#define CS_PORT GPIOA
#define CS_PIN GPIO_PIN_2
#define SPI_HANDLE hspi1 //SPI接口对象，使用spi.h中的变量 hspi1
#define __Select_Flash() HAL_GPIO_WritePin(CS_PORT, CS_PIN, GPIO_PIN_RESET) //CS=0
#define __Deselect_Flash() HAL_GPIO_WritePin(CS_PORT, CS_PIN, GPIO_PIN_SET) //CS=1
//===========Flash存储芯片W25Q128的存储容量参数================
#define EX_FLASH_PAGE_SIZE 256 //一个Page是256字节
#define FLASH_SECTOR_SIZE 4096 //一个Sector是4096字节
#define FLASH_SECTOR_COUNT 2048 //W25Q64总共2048个 Sector
#define FLASH_BLOCK_COUNT 128
#define FLASH_BLOCK_PER_SIZE 65536//每个block大小
#define W25Q64 0xEF16
//=======1. SPI 基本发送和接收函数，阻塞式传输============
HAL_StatusTypeDef SPI_TransmitOneByte(uint8_t byteData); //SPI接口发送一个字节
HAL_StatusTypeDef SPI_TransmitBytes(uint8_t *pBuffer, uint16_t byteCount);//SPI接口发送多个字节
uint8_t SPI_ReceiveOneByte(); //SPI接口接收一个字节
HAL_StatusTypeDef SPI_ReceiveBytes(uint8_t *pBuffer, uint16_t byteCount);//SPI接口接收多个字节
//=========2. W25Qxx 基本控制指令==========
// 0xEF17,表示芯片型号为W25Q128, Winbond,用过
// 0xC817，表示芯片型号为GD25Q128,ELM，用过
// 0x1C17，表示芯片型号为EN25Q128,台湾EON
// 0xA117，表示芯片型号为FM25Q128，复旦微电子
// 0x2018，表示芯片型号为N25Q128，美光
// 0x2017，表示芯片型号为XM25QH128，武汉新芯，用过
uint16_t Flash_ReadID(void); // Command=0x90, Manufacturer/Device ID
uint32_t Flash_ReadJedecID();
uint64_t Flash_ReadSerialNum(uint32_t *High32, uint32_t *Low32); //Command=0x4B, Read Unique ID, 64-bit
HAL_StatusTypeDef Flash_WriteVolatile_Enable(void); //Command=0x50: Write Volatile Enable
HAL_StatusTypeDef Flash_Write_Enable(void); //Command=0x06: Write Enable, 使WEL=1
HAL_StatusTypeDef Flash_Write_Disable(void);//Command=0x04, Write Disable， 使WEL=0
uint8_t Flash_ReadSR1(void); //Command=0x05: Read Status Register-1, 返回寄存器SR1的值
uint8_t Flash_ReadSR2(void); //Command=0x35: Read Status Register-2, 返回寄存器SR2的值
void Flash_WriteSR1(uint8_t SR1); //Command=0x01: Write Status Register, 只写SR1的值,禁止写状态寄存器
uint32_t Flash_Wait_Busy(void); //读状态寄存器SR1，等待BUSY变为0,返回值是等待时间
void Flash_PowerDown(void); //Command=0xB9: Power Down
void Flash_WakeUp(void); //Command=0xAB: Release Power Down
//========3. 计算地址的辅助功能函数========
//根据Block 绝对编号获取地址,共256个Block
uint32_t Flash_Addr_byBlock(uint8_t BlockNo);
//根据Sector 绝对编号获取地址,共4096个Sector
uint32_t Flash_Addr_bySector(uint16_t SectorNo);
//根据Page 绝对编号获取地址，共65536个Page
uint32_t Flash_Addr_byPage(uint16_t PageNo);
//根据Block编号，和内部Sector编号计算地址，一个Block有16个Sector,
uint32_t Flash_Addr_byBlockSector(uint8_t BlockNo, uint8_t SubSectorNo);
//根据Block编号，内部Sector编号，内部Page编号计算地址
uint32_t Flash_Addr_byBlockSectorPage(uint8_t BlockNo, uint8_t SubSectorNo,
uint8_t SubPageNo);
//将24位地址分解为3个字节
void Flash_SpliteAddr(uint32_t globalAddr, uint8_t *addrHigh, uint8_t *addrMid,
uint8_t *addrLow);
//=======4. chip、Block，Sector擦除函数============
//Command=0xC7: Chip Erase, 擦除整个器件,大约25秒
void Flash_EraseChip(void);
//Command=0xD8: Block Erase(64KB) 擦除整个Block, globalAddr是全局地址，耗时大约150ms
void Flash_EraseBlock64K(uint32_t globalAddr);
//Command=0x20: Sector Erase(4KB) 扇区擦除, globalAddr是扇区的全局地址，耗时大约30ms
void Flash_EraseSector(uint32_t globalAddr);
//=========5. 数据读写函数=============
//Command=0x03, 读取一个字节，任意全局地址
uint8_t Flash_ReadOneByte(uint32_t globalAddr);
//Command=0x03, 连续读取多个字节，任意全局地址
void Flash_ReadBytes(uint32_t globalAddr, uint8_t *pBuffer, uint16_t byteCount);
//Command=0x0B, 高速连续读取多个字节，任意全局地址， 速度大约是常规读取的2倍
void Flash_FastReadBytes(uint32_t globalAddr, uint8_t *pBuffer,
uint16_t byteCount);
//Command=0x02: Page program 对一个Page写入数据（最多256字节）, globalAddr是初始位置的全局地址，耗时大约3ms
void Flash_WriteInPage(uint32_t globalAddr, uint8_t *pBuffer,
uint16_t byteCount);
//从某个Sector的起始地址开始写数据，数据可能跨越多个Page,甚至跨越Sector，总字节数byteCount不能超过64K，也就是一个Block的大小
void Flash_WriteSector(uint32_t globalAddr, const uint8_t *pBuffer,
uint16_t byteCount);
//任意地址写，可以跨blcok写，自动擦除，正确工作依赖与Flash_WriteSector
void Flash_Write(uint32_t addr,uint8_t* pData, uint32_t size);
#endif
w25flash.c
/* 文件： w25flash.c
* 功能描述： Flash 存储器W25Q128的驱动程序
* 作者：王维波
* 修改日期：2019-06-05
*/
#include "w25flash.h"
#define MAX_TIMEOUT 100 //SPI轮询操作时的最大等待时间,ms
//SPI接口发送一个字节,byteData是需要发送的数据
HAL_StatusTypeDef SPI_TransmitOneByte(uint8_t byteData) {
return HAL_SPI_Transmit(&SPI_HANDLE, &byteData, 1, MAX_TIMEOUT);
}
//SPI接口发送多个字节, pBuffer是发送数据缓存区指针，byteCount是发送数据字节数，byteCount最大256
HAL_StatusTypeDef SPI_TransmitBytes(uint8_t *pBuffer, uint16_t byteCount) {
return HAL_SPI_Transmit(&SPI_HANDLE, pBuffer, byteCount, MAX_TIMEOUT);
}
//SPI接口接收一个字节， 返回接收的一个字节数据
uint8_t SPI_ReceiveOneByte() {
uint8_t byteData = 0;
HAL_SPI_Receive(&SPI_HANDLE, &byteData, 1, MAX_TIMEOUT);
return byteData;
}
//SPI接口接收多个字节， pBuffer是接收数据缓存区指针，byteCount是需要接收数据的字节数
HAL_StatusTypeDef SPI_ReceiveBytes(uint8_t *pBuffer, uint16_t byteCount) {
return HAL_SPI_Receive(&SPI_HANDLE, pBuffer, byteCount, MAX_TIMEOUT);
}
//Command=0x05: Read Status Register-1,返回寄存器SR1的值
uint8_t Flash_ReadSR1(void) {
uint8_t byte = 0;
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_ReadStatusReg1); //Command=0x05: Read Status Register-1
HAL_SPI_Receive(&SPI_HANDLE,&byte,1,0xFF);
HAL_SPI_Receive(&SPI_HANDLE,&byte,1,0xFF);
//byte = SPI_ReceiveOneByte();
__Deselect_Flash(); //CS=1
return byte;
}
//Command=0x35: Read Status Register-2,返回寄存器SR2的值
uint8_t Flash_ReadSR2(void) {
uint8_t byte = 0;
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_ReadStatusReg2); //Command=0x35: Read Status Register-2
byte = SPI_ReceiveOneByte(); //读取一个字节
__Deselect_Flash(); //CS=1
return byte;
}
//Command=0x01: Write Status Register, 只写SR1的值
//耗时大约10-15ms
void Flash_WriteSR1(uint8_t SR1) {
Flash_Write_Enable(); //必须使 WEL=1
__Select_Flash(); //CS=0
SPI_TransmitOneByte(0x01); //Command=0x01: Write Status Register, 只写SR1的值
SPI_TransmitOneByte(0x00); //SR1的值
// SPI_WriteOneByte(0x00); //SR2的值, 只发送SR1的值，而不发送SR2的值， QE和CMP将自动被清零
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //耗时大约10-15ms
}
HAL_StatusTypeDef Flash_WriteVolatile_Enable(void) //Command=0x50: Write Volatile Enable
{
__Select_Flash(); //CS=0
HAL_StatusTypeDef result = SPI_TransmitOneByte(0x50);
__Deselect_Flash(); //CS=1
return result;
}
//Command=0x06: Write Enable, 使WEL=1
HAL_StatusTypeDef Flash_Write_Enable(void) {
__Select_Flash(); //CS=0
HAL_StatusTypeDef result = SPI_TransmitOneByte(W25X_WriteEnable); //Command=0x06: Write Enable, 使WEL=1
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //等待操作完成
return result;
}
//Command=0x04, Write Disable， 使WEL=0
HAL_StatusTypeDef Flash_Write_Disable(void) {
__Select_Flash(); //CS=0
HAL_StatusTypeDef result = SPI_TransmitOneByte(W25X_WriteDisable); //Command=0x04, Write Disable， 使WEL=0
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //
return result;
}
//根据Block绝对编号获取地址, 共128个Block， BlockNo 取值范围0-127
//每个块64K字节，16位地址，块内地址范围0x0000-0xFFFF。
uint32_t Flash_Addr_byBlock(uint8_t BlockNo) {
// uint32_t addr=BlockNo*0x10000;
uint32_t addr = BlockNo;
addr = addr << 16; //左移16位，等于乘以0x10000
return addr;
}
//根据Sector绝对编号获取地址, 共2048个Sector, SectorNo取值范围0-2047
//每个扇区4K字节，12位地址，扇区内地址范围0x000-0xFFF
uint32_t Flash_Addr_bySector(uint16_t SectorNo) {
if (SectorNo > 2047) //不能超过4095
SectorNo = 0;
// uint32_t addr=SectorNo*0x1000;
uint32_t addr = SectorNo;
addr = addr << 12; //左移12位,等于乘以0x1000
return addr;
}
//根据Page绝对编号获取地址，共32768个Page, PageNo取值范围0-32767
//每个页256字节，8位地址，页内地址范围0x00—0xFF
uint32_t Flash_Addr_byPage(uint16_t PageNo) {
// uint32_t addr=PageNo*0x100;
uint32_t addr = PageNo;
addr = addr << 8; //左移8位，等于乘以0x100
return addr;
}
//根据Block编号和内部Sector编号计算地址，一个Block有16个Sector
//BlockNo取值范围0-127， 内部SubSectorNo取值范围0-15
uint32_t Flash_Addr_byBlockSector(uint8_t BlockNo, uint8_t SubSectorNo) {
if (SubSectorNo > 15) //不能超过15
SubSectorNo = 0;
// uint32_t addr=BlockNo*0x10000; //先计算Block的起始地址
uint32_t addr = BlockNo;
addr = addr << 16; //先计算Block的起始地址
// uint32_t offset=SubSectorNo*0x1000; //计算Sector的偏移地址
uint32_t offset = SubSectorNo; //计算Sector的偏移地址
offset = offset << 12; //计算Sector的偏移地址
addr += offset;
return addr;
}
//根据Block编号，内部Sector编号，内部Page编号获取地址
//BlockNo取值范围0-127
//一个Block有16个Sector， 内部SubSectorNo取值范围0-15
//一个Sector有16个Page , 内部SubPageNo取值范围0-15
uint32_t Flash_Addr_byBlockSectorPage(uint8_t BlockNo, uint8_t SubSectorNo,
uint8_t SubPageNo) {
if (SubSectorNo > 15) //不能超过15
SubSectorNo = 0;
if (SubPageNo > 15) //不能超过15
SubPageNo = 0;
// uint32_t addr=BlockNo*0x10000; //先计算Block的起始地址
uint32_t addr = BlockNo;
addr = addr << 16; //先计算Block的起始地址
// uint32_t offset=SubSectorNo*0x1000; //计算Sector的偏移地址
uint32_t offset = SubSectorNo; //计算Sector的偏移地址
offset = offset << 12; //计算Sector的偏移地址
addr += offset;
// offset=SubPageNo*0x100; //计算Page的偏移地址
offset = SubPageNo;
offset = offset << 8; //计算Page的偏移地址
addr += offset; //Page的起始地址
return addr;
}
//将24位地址分解为3个字节
//globalAddr是全局24位地址, 返回 addrHigh高字节，addrMid中间字节，addrLow低字节
void Flash_SpliteAddr(uint32_t globalAddr, uint8_t *addrHigh, uint8_t *addrMid,
uint8_t *addrLow) {
*addrHigh = (globalAddr >> 16); //addrHigh=高字节
globalAddr = globalAddr & 0x0000FFFF; //屏蔽高字节
*addrMid = (globalAddr >> 8); //addrMid=中间字节
*addrLow = globalAddr & 0x000000FF; //屏蔽中间字节， 只剩低字节，addrLow=低字节
}
//读取芯片ID
//返回值如下:
// 0xEF17,表示芯片型号为W25Q128, Winbond,用过
// 0xC817，表示芯片型号为GD25Q128,ELM，用过
// 0x1C17，表示芯片型号为EN25Q128,台湾EON
// 0xA117，表示芯片型号为FM25Q128，复旦微电子
// 0x2018，表示芯片型号为N25Q128，美光
// 0x2017，表示芯片型号为XM25QH128，武汉新芯，用过
//读取芯片的制造商和器件ID，高字节是Manufacturer ID,低字节是Device ID
uint16_t Flash_ReadID(void) {
uint16_t Temp = 0;
__Select_Flash(); //CS=0
uint8_t cmd[4]={W25X_ManufactDeviceID,0x00,0x00,0x00};
HAL_SPI_Transmit(&SPI_HANDLE,cmd,4,MAX_TIMEOUT);
Temp = SPI_ReceiveOneByte() << 8; //Manufacturer ID
Temp |= SPI_ReceiveOneByte(); //Device ID, 与具体器件相关
__Deselect_Flash(); //CS=1
return Temp;
}
/*获取JedecID,0x9F*/
uint32_t Flash_ReadJedecID()
{
uint32_t Temp = 0;
__Select_Flash(); //CS=0
uint8_t cmd[4]={W25X_JedecDeviceID,0x00,0x00,0x00};
HAL_SPI_Transmit(&SPI_HANDLE,cmd,1,MAX_TIMEOUT);
HAL_SPI_Receive(&SPI_HANDLE,cmd,3,MAX_TIMEOUT);
Temp = (cmd[0]<<16)|(cmd[1]<<8)|cmd[2];
__Deselect_Flash(); //CS=1
return Temp;
}
// 参数High32和Low32分别返回64位序列号的高32位和低32位的值
// 函数返回值为64位序列号的值
uint64_t Flash_ReadSerialNum(uint32_t *High32, uint32_t *Low32) //读取64位序列号，
{
uint8_t Temp = 0;
uint64_t SerialNum = 0;
uint32_t High = 0, Low = 0;
__Select_Flash(); //CS=0
SPI_TransmitOneByte(0x4B); //发送指令码, 4B=read Unique ID
SPI_TransmitOneByte(0x00); //发送4个Dummy字节数据
SPI_TransmitOneByte(0x00);
SPI_TransmitOneByte(0x00);
SPI_TransmitOneByte(0x00);
for (uint8_t i = 0; i < 4; i++) //高32位
{
Temp = SPI_ReceiveOneByte();
High = (High << 8);
High = High | Temp; //按位或
}
for (uint8_t i = 0; i < 4; i++) //低32位
{
Temp = SPI_ReceiveOneByte();
Low = (Low << 8);
Low = Low | Temp; //按位或
}
__Deselect_Flash(); //CS=1
*High32 = High;
*Low32 = Low;
SerialNum = High;
SerialNum = SerialNum << 32; //高32位
SerialNum = SerialNum | Low;
return SerialNum;
}
//在任意地址读取一个字节的数据,返回读取的字节数据
// globalAddr是24位全局地址
uint8_t Flash_ReadOneByte(uint32_t globalAddr) {
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_ReadData); //Command=0x03, read data
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
byte2 = SPI_ReceiveOneByte(); //接收1个字节
__Deselect_Flash(); //CS=1
return byte2;
}
//从任何地址开始读取指定长度的数据
//globalAddr：开始读取的地址(24bit)， pBuffer：数据存储区指针，byteCount:要读取的字节数
void Flash_ReadBytes(uint32_t globalAddr, uint8_t *pBuffer, uint16_t byteCount) {
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_ReadData); //Command=0x03, read data
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
SPI_ReceiveBytes(pBuffer, byteCount); //接收byteCount个字节数据
__Deselect_Flash(); //CS=1
}
//Command=0x0B, 高速连续读取flash多个字节，任意全局地址， 速度大约是常规读取的2倍
void Flash_FastReadBytes(uint32_t globalAddr, uint8_t *pBuffer,
uint16_t byteCount) {
// uint16_t i;
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_FastReadData); //Command=0x0B, fast read data
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
SPI_TransmitOneByte(0x00); //Dummy字节
SPI_ReceiveBytes(pBuffer, byteCount); //接收byteCount个字节数据
__Deselect_Flash(); //CS=1
}
//Command=0xC7: Chip Erase, 擦除整个器件
// 擦除后，所有存储区内容为0xFF,耗时大约25秒
void Flash_EraseChip(void) {
Flash_Write_Enable(); //使 WEL=1
Flash_Wait_Busy(); //等待空闲
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_ChipErase); // Command=0xC7: Chip Erase, 擦除整个器件
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //等待芯片擦除结束,大约25秒
}
// Command=0x02: Page program, 对一个页（256字节）编程, 耗时大约3ms,
// globalAddr是写入初始地址，全局地址
// pBuffer是要写入数据缓冲区指针，byteCount是需要写入的数据字节数
// 写入的Page必须是前面已经擦除过的，如果写入地址超出了page的边界，就从Page的开头重新写
void Flash_WriteInPage(uint32_t globalAddr, uint8_t *pBuffer,
uint16_t byteCount) {
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
Flash_Write_Enable(); //SET WEL
Flash_Wait_Busy();
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_PageProgram); //Command=0x02: Page program 对一个扇区编程
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
SPI_TransmitBytes(pBuffer, byteCount); //发送byteCount个字节的数据
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //耗时大约3ms
}
//从某个Sector的起始位置开始写数据，数据可能跨越多个Page,甚至跨越Sector,不必提前擦除
// globalAddr是写入初始地址，全局地址,是扇区的起始地址，
// pBuffer是要写入数据缓冲区指针
// byteCount是需要写入的数据字节数，byteCount不能超过64K，也就是一个Block（16个扇区）的大小,但是可以超过一个Sector(4K字节)
// 如果数据超过一个Page，自动分成多个Page，调用EN25Q_WriteInPage分别写入
void Flash_WriteSector(uint32_t globalAddr, const uint8_t *pBuffer,
uint16_t byteCount)
{
//需要先擦除扇区，可能是重复写文件
uint8_t secCount = (byteCount / FLASH_SECTOR_SIZE); //数据覆盖的扇区个数
if ((byteCount % FLASH_SECTOR_SIZE) > 0)
secCount++;
uint32_t startAddr = globalAddr;
for (uint8_t k = 0; k < secCount; k++) {
Flash_EraseSector(startAddr); //擦除扇区
startAddr += FLASH_SECTOR_SIZE; //移到下一个扇区
}
//分成Page写入数据,写入数据的最小单位是Page
uint16_t leftBytes = byteCount % EX_FLASH_PAGE_SIZE; //非整数个Page剩余的字节数，即最后一个Page写入的数据
uint16_t pgCount = byteCount / EX_FLASH_PAGE_SIZE; //前面整数个Page
uint8_t *buff = pBuffer;
for (uint16_t i = 0; i < pgCount; i++) //写入前面pgCount个Page的数据，
{
Flash_WriteInPage(globalAddr, buff, EX_FLASH_PAGE_SIZE); //写一整个Page的数据
globalAddr += EX_FLASH_PAGE_SIZE; //地址移动一个Page
buff += EX_FLASH_PAGE_SIZE; //数据指针移动一个Page大小
}
if (leftBytes > 0)
Flash_WriteInPage(globalAddr, buff, leftBytes); //最后一个Page，不是一整个Page的数据
}
//Command=0xD8: Block Erase(64KB) 擦除整个Block, globalAddr是全局地址
//清除后存储区内容全部为0xFF, 耗时大概150ms
void Flash_EraseBlock64K(uint32_t globalAddr) {
Flash_Write_Enable(); //SET WEL
Flash_Wait_Busy();
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_BlockErase); //Command=0xD8, Block Erase(64KB)
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //耗时大概150ms
}
//擦除一个扇区(4KB字节)，Command=0x20, Sector Erase(4KB)
//globalAddr: 扇区的绝对地址，24位地址0x00XXXXXX
//擦除后，扇区内全部内容为0xFF, 耗时大约30ms，
void Flash_EraseSector(uint32_t globalAddr) {
Flash_Write_Enable(); //SET WEL
Flash_Wait_Busy();
uint8_t byte2, byte3, byte4;
Flash_SpliteAddr(globalAddr, &byte2, &byte3, &byte4); //24位地址分解为3个字节
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_SectorErase); //Command=0x20, Sector Erase(4KB)
SPI_TransmitOneByte(byte2); //发送24位地址
SPI_TransmitOneByte(byte3);
SPI_TransmitOneByte(byte4);
__Deselect_Flash(); //CS=1
Flash_Wait_Busy(); //大约30ms
}
//检查寄存器SR1的BUSY位，直到BUSY位为0
uint32_t Flash_Wait_Busy(void) {
uint8_t SR1 = 0;
uint32_t delay = 0;
SR1 = Flash_ReadSR1(); //读取状态寄存器SR1
while ((SR1 & 0x01) == 0x01) {
HAL_Delay(1); //延时1ms
delay++;
SR1 = Flash_ReadSR1(); //读取状态寄存器SR1
}
return delay;
}
//进入掉电模式
//Command=0xB9: Power Down
void Flash_PowerDown(void) {
__Select_Flash(); //CS=0
SPI_TransmitOneByte(W25X_PowerDown); //Command=0xB9: Power Down
__Deselect_Flash(); //CS=1
HAL_Delay(1); //等待TPD
}
//唤醒
//Command=0xAB: Release Power Down
void Flash_WakeUp(void) {
__Select_Flash(); //CS=0
SPI_TransmitOneByte(0xAB); //Command=0xAB: Release Power Down
__Deselect_Flash(); //CS=1
HAL_Delay(1); //等待TRES1
}
//W25Q64. 8M ,128个block 64kb/block,16 sector/block,4KB/sector
//16page/sector 256byte/page
void Flash_Write(uint32_t addr,uint8_t* pData, uint32_t size)
{
if(addr>(8*1024*1024))
{
printf("Error Write address is over W25Q64!");
}
else if((addr+size-1)> (8*1024*1024))
{
printf("Error Write address+size is over W25Q64!");
}
uint8_t blockoffset = addr / (256 * 16 * 16);//一个block 64kb
//根据地址范围，判断是否存放在同一个block
int i = 1;
for (; i < 128; i++) {
if ((addr + size - 1) < ((blockoffset + i) * 65536))
{
break;
}
}
//一个block就行
if (i == 1)
{
Flash_WriteSector(addr, pData,size);
}
else
{ //多个block
uint32_t tAddr = addr, tDataoffset = 0,tpoffset = 0;
//切分数据段，分成几个block，然后逐个sector写
for (int j = 1; j <= i; j++)
{
//tsize分步传输时的大小,
uint32_t tsize;
if (j != i)
{
tsize = (blockoffset+j)*65536 - tAddr;
Flash_WriteSector(tAddr,pData+tpoffset,tsize);
tpoffset += tsize;
tAddr += tsize;
}
else//最后一次
{
tsize = size + addr - tAddr;
Flash_WriteSector(tAddr,pData+tpoffset, tsize);
tpoffset = size - tpoffset;
}
}
}
}GPIO模拟SPI：
某些开发板不能使用硬件SPI，所以使用GPIO模拟SPI，这部分可以不看，博客里没用到。
//w25qxx.h
#include "stm32f4xx_hal.h"
#include "delay.h"
#include <stdio.h>
#define FLASH_CS_PORT GPIOC
#define FLASH_CS_PIN GPIO_PIN_10
#define FLASH_MISO_PORT GPIOA
#define FLASH_MISO_PIN GPIO_PIN_15
#define FLASH_MOSI_PORT GPIOC
#define FLASH_MOSI_PIN GPIO_PIN_11
#define FLASH_CLK_PORT GPIOC
#define FLASH_CLK_PIN GPIO_PIN_12
#define W25QXX_CS_H() HAL_GPIO_WritePin(FLASH_CS_PORT, FLASH_CS_PIN, GPIO_PIN_SET)
#define W25QXX_CS_L() HAL_GPIO_WritePin(FLASH_CS_PORT, FLASH_CS_PIN, GPIO_PIN_RESET)
#define W25QXX_SCK_H() HAL_GPIO_WritePin(FLASH_CLK_PORT, FLASH_CLK_PIN, GPIO_PIN_SET)
#define W25QXX_SCK_L() HAL_GPIO_WritePin(FLASH_CLK_PORT, FLASH_CLK_PIN, GPIO_PIN_RESET)
#define W25QXX_MOSI_H() HAL_GPIO_WritePin(FLASH_MOSI_PORT, FLASH_MOSI_PIN, GPIO_PIN_SET)
#define W25QXX_MOSI_L() HAL_GPIO_WritePin(FLASH_MOSI_PORT, FLASH_MOSI_PIN, GPIO_PIN_RESET)
#define W25QXX_MISO_GET() (HAL_GPIO_ReadPin(FLASH_MISO_PORT, FLASH_MISO_PIN) == GPIO_PIN_SET ? 1 : 0)
#define W25Q80 0XEF13
#define W25Q16 0XEF14
#define W25Q32 0XEF15
#define W25Q64 0XEF16
#define W25Q128 0XEF17
extern uint16_t W25QXX_TYPE; //定义W25QXX芯片型号
extern uint32_t W25QXX_SIZE; //容量
extern uint8_t W25QXX_UID[]; //唯一ID
//指令表
#define W25X_WriteEnable 0x06
#define W25X_WriteDisable 0x04
#define W25X_ReadStatusReg 0x05
#define W25X_WriteStatusReg 0x01
#define W25X_ReadData 0x03
#define W25X_FastReadData 0x0B
#define W25X_FastReadDual 0x3B
#define W25X_PageProgram 0x02
#define W25X_BlockErase 0xD8
#define W25X_SectorErase 0x20
#define W25X_ChipErase 0xC7
#define W25X_PowerDown 0xB9
#define W25X_ReleasePowerDown 0xAB
#define W25X_DeviceID 0xAB
#define W25X_ManufactDeviceID 0x90
#define W25X_JedecDeviceID 0x9F
//初始化SPI FLASH的IO口
void W25QXX_Init(void);
uint8_t W25QXX_SPI_ReadWriteByte(uint8_t TxData);
uint16_t W25QXX_ReadID(void); //读取FLASH ID
void W25QXX_ReadUniqueID(uint8_t UID[8]); //读取唯一ID
uint32_t W25QXX_ReadCapacity(void); //读取容量
uint8_t W25QXX_ReadSR(void); //读取状态寄存器
void W25QXX_Write_SR(uint8_t sr); //写状态寄存器
void W25QXX_Write_Enable(void); //写使能
void W25QXX_Write_Disable(void); //写保护
void W25QXX_Write_NoCheck(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite);
void W25QXX_Read(uint8_t* pBuffer,uint32_t ReadAddr,uint16_t NumByteToRead); //读取flash
void W25QXX_Write(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite);//写入flash
void W25QXX_Erase_Chip(void); //整片擦除
void W25QXX_Erase_Sector(uint32_t Dst_Addr); //扇区擦除
void W25QXX_Wait_Busy(void); //等待空闲
void W25QXX_PowerDown(void); //进入掉电模式
void W25QXX_WAKEUP(void); //唤醒//w25qxx.c
#include "w25qxx.h"
uint16_t W25QXX_TYPE; //定义W25QXX芯片型号
uint32_t W25QXX_SIZE; //容量
uint8_t W25QXX_UID[]; //唯一ID
void W25QXX_SPI_Init()
{
GPIO_InitTypeDef gpio_spi={0};
gpio_spi.Pin = FLASH_CS_PIN;
gpio_spi.Mode = GPIO_MODE_OUTPUT_PP;
gpio_spi.Pull = GPIO_NOPULL;
gpio_spi.Speed = GPIO_SPEED_FREQ_HIGH;
HAL_GPIO_Init(FLASH_CS_PORT,&gpio_spi);
gpio_spi.Pin = FLASH_CLK_PIN;
HAL_GPIO_Init(FLASH_CLK_PORT,&gpio_spi);
gpio_spi.Pin = FLASH_MOSI_PIN;
HAL_GPIO_Init(FLASH_MOSI_PORT,&gpio_spi);
gpio_spi.Pin = FLASH_MISO_PIN;
gpio_spi.Mode = GPIO_MODE_INPUT;
HAL_GPIO_Init(FLASH_MISO_PORT,&gpio_spi);
}
uint8_t W25QXX_SPI_ReadWriteByte(uint8_t TxData)
{
int i = 0;
uint8_t RxData = 0;
W25QXX_SCK_L();
for(i = 7; i >= 0; i--)
{
W25QXX_SCK_L();
if(TxData & (1 << i))
{
W25QXX_MOSI_H();
}
else
{
W25QXX_MOSI_L();
}
delay_us(1);
W25QXX_SCK_H();
RxData <<= 1;
RxData |= W25QXX_MISO_GET();
delay_us(1);
}
W25QXX_SCK_L();
return RxData;
}
//4Kbytes为一个Sector
//16个扇区为1个Block
//W25Q128
//容量为16M字节,共有128个Block,4096个Sector
//初始化SPI FLASH的IO口
void W25QXX_Init(void)
{
W25QXX_SPI_Init();
W25QXX_CS_H(); // 取消片选
W25QXX_SCK_L(); // 时钟空闲为低电平
W25QXX_CS_L();
W25QXX_SPI_ReadWriteByte(0XFF);
W25QXX_CS_H();
W25QXX_TYPE=W25QXX_ReadID(); //读取FLASH ID
//printf("FLASH ID:0x%X\r\n",W25QXX_TYPE);
W25QXX_SIZE=W25QXX_ReadCapacity(); //读取容量
W25QXX_ReadUniqueID(W25QXX_UID); //读取唯一ID
}
uint32_t W25QXX_ReadCapacity(void)
{
int i = 0;
uint8_t arr[4] = {0,0,0,0};
W25QXX_CS_L();
W25QXX_SPI_ReadWriteByte(0x5A);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x84);
W25QXX_SPI_ReadWriteByte(0x00);
for(i = 0; i < sizeof(arr); i++)
{
arr[i] = W25QXX_SPI_ReadWriteByte(0xFF);
}
W25QXX_CS_H();
return ((((*(uint32_t *)arr)) + 1) >> 3);
}
void W25QXX_ReadUniqueID(uint8_t UID[8])
{
int i = 0;
W25QXX_CS_L();
W25QXX_SPI_ReadWriteByte(0x4B);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
for(i = 0; i < 8; i++)
{
UID[i] = W25QXX_SPI_ReadWriteByte(0xFF);
}
W25QXX_CS_H();
}
//读取W25QXX的状态寄存器
//BIT7 6 5 4 3 2 1 0
//SPR RV TB BP2 BP1 BP0 WEL BUSY
//SPR:默认0,状态寄存器保护位,配合WP使用
//TB,BP2,BP1,BP0:FLASH区域写保护设置
//WEL:写使能锁定
//BUSY:忙标记位(1,忙;0,空闲)
//默认:0x00
uint8_t W25QXX_ReadSR(void)
{
uint8_t byte=0;
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_ReadStatusReg); //发送读取状态寄存器命令
byte=W25QXX_SPI_ReadWriteByte(0Xff); //读取一个字节
W25QXX_CS_H(); //取消片选
return byte;
}
//写W25QXX状态寄存器
//只有SPR,TB,BP2,BP1,BP0(bit 7,5,4,3,2)可以写!!!
void W25QXX_Write_SR(uint8_t sr)
{
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_WriteStatusReg);//发送写取状态寄存器命令
W25QXX_SPI_ReadWriteByte(sr); //写入一个字节
W25QXX_CS_H(); //取消片选
}
//W25QXX写使能
//将WEL置位
void W25QXX_Write_Enable(void)
{
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_WriteEnable); //发送写使能
W25QXX_CS_H(); //取消片选
}
//W25QXX写禁止
//将WEL清零
void W25QXX_Write_Disable(void)
{
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_WriteDisable); //发送写禁止指令
W25QXX_CS_H(); //取消片选
}
//读取芯片ID
//返回值如下:
//0XEF13,表示芯片型号为W25Q80
//0XEF14,表示芯片型号为W25Q16
//0XEF15,表示芯片型号为W25Q32
//0XEF16,表示芯片型号为W25Q64
//0XEF17,表示芯片型号为W25Q128
uint16_t W25QXX_ReadID(void)
{
uint16_t Temp = 0;
W25QXX_CS_L();
W25QXX_SPI_ReadWriteByte(0x90);//发送读取ID命令
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
W25QXX_SPI_ReadWriteByte(0x00);
Temp|=W25QXX_SPI_ReadWriteByte(0xFF)<<8;
Temp|=W25QXX_SPI_ReadWriteByte(0xFF);
W25QXX_CS_H();
return Temp;
}
//读取SPI FLASH
//在指定地址开始读取指定长度的数据
//pBuffer:数据存储区
//ReadAddr:开始读取的地址(24bit)
//NumByteToRead:要读取的字节数(最大65535)
void W25QXX_Read(uint8_t* pBuffer,uint32_t ReadAddr,uint16_t NumByteToRead)
{
uint16_t i;
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_ReadData); //发送读取命令
W25QXX_SPI_ReadWriteByte((uint8_t)((ReadAddr)>>16)); //发送24bit地址
W25QXX_SPI_ReadWriteByte((uint8_t)((ReadAddr)>>8));
W25QXX_SPI_ReadWriteByte((uint8_t)ReadAddr);
for(i=0; i<NumByteToRead; i++)
{
pBuffer[i]=W25QXX_SPI_ReadWriteByte(0XFF); //循环读数
}
W25QXX_CS_H();
}
//SPI在一页(0~65535)内写入少于256个字节的数据
//在指定地址开始写入最大256字节的数据
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大256),该数不应该超过该页的剩余字节数!!!
void W25QXX_Write_Page(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
uint16_t i;
W25QXX_Write_Enable(); //SET WEL
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_PageProgram); //发送写页命令
W25QXX_SPI_ReadWriteByte((uint8_t)((WriteAddr)>>16)); //发送24bit地址
W25QXX_SPI_ReadWriteByte((uint8_t)((WriteAddr)>>8));
W25QXX_SPI_ReadWriteByte((uint8_t)WriteAddr);
for(i=0; i<NumByteToWrite; i++)W25QXX_SPI_ReadWriteByte(pBuffer[i]); //循环写数
W25QXX_CS_H(); //取消片选
W25QXX_Wait_Busy(); //等待写入结束
}
//无检验写SPI FLASH
//必须确保所写的地址范围内的数据全部为0XFF,否则在非0XFF处写入的数据将失败!
//具有自动换页功能
//在指定地址开始写入指定长度的数据,但是要确保地址不越界!
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大65535)
//CHECK OK
void W25QXX_Write_NoCheck(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
uint16_t pageremain;
pageremain=256-WriteAddr%256; //单页剩余的字节数
if(NumByteToWrite<=pageremain)pageremain=NumByteToWrite;//不大于256个字节
while(1)
{
W25QXX_Write_Page(pBuffer,WriteAddr,pageremain);
if(NumByteToWrite==pageremain)break;//写入结束了
else //NumByteToWrite>pageremain
{
pBuffer+=pageremain;
WriteAddr+=pageremain;
NumByteToWrite-=pageremain; //减去已经写入了的字节数
if(NumByteToWrite>256)pageremain=256; //一次可以写入256个字节
else pageremain=NumByteToWrite; //不够256个字节了
}
};
}
//写SPI FLASH
//在指定地址开始写入指定长度的数据
//该函数带擦除操作!
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大65535)
uint8_t W25QXX_BUFFER[4096];
void W25QXX_Write(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
uint32_t secpos;
uint16_t secoff;
uint16_t secremain;
uint16_t i;
uint8_t * W25QXX_BUF;
W25QXX_BUF=W25QXX_BUFFER;
secpos=WriteAddr/4096;//扇区地址
secoff=WriteAddr%4096;//在扇区内的偏移
secremain=4096-secoff;//扇区剩余空间大小
if(NumByteToWrite<=secremain)secremain=NumByteToWrite;//不大于4096个字节
while(1)
{
W25QXX_Read(W25QXX_BUF,secpos*4096,4096);//读出整个扇区的内容
for(i=0; i<secremain; i++) //校验数据
{
if(W25QXX_BUF[secoff+i]!=0XFF)break;//需要擦除
}
if(i<secremain)//需要擦除
{
W25QXX_Erase_Sector(secpos); //擦除这个扇区
for(i=0; i<secremain; i++) //复制
{
W25QXX_BUF[i+secoff]=pBuffer[i];
}
W25QXX_Write_NoCheck(W25QXX_BUF,secpos*4096,4096);//写入整个扇区
}
else W25QXX_Write_NoCheck(pBuffer,WriteAddr,secremain); //写已经擦除了的,直接写入扇区剩余区间.
if(NumByteToWrite==secremain)break;//写入结束了
else//写入未结束
{
secpos++;//扇区地址增1
secoff=0;//偏移位置为0
pBuffer+=secremain; //指针偏移
WriteAddr+=secremain; //写地址偏移
NumByteToWrite-=secremain; //字节数递减
if(NumByteToWrite>4096)secremain=4096;//下一个扇区还是写不完
else secremain=NumByteToWrite; //下一个扇区可以写完了
}
};
}
//擦除整个芯片
//等待时间超长...
void W25QXX_Erase_Chip(void)
{
W25QXX_Write_Enable(); //SET WEL
W25QXX_Wait_Busy();
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_ChipErase); //发送片擦除命令
W25QXX_CS_H(); //取消片选
W25QXX_Wait_Busy(); //等待芯片擦除结束
}
//擦除一个扇区
//Dst_Addr:扇区地址 根据实际容量设置
//擦除一个山区的最少时间:150ms
void W25QXX_Erase_Sector(uint32_t Dst_Addr)
{
//监视falsh擦除情况,测试用
Dst_Addr*=4096;
W25QXX_Write_Enable(); //SET WEL
W25QXX_Wait_Busy();
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_SectorErase); //发送扇区擦除指令
W25QXX_SPI_ReadWriteByte((uint8_t)((Dst_Addr)>>16)); //发送24bit地址
W25QXX_SPI_ReadWriteByte((uint8_t)((Dst_Addr)>>8));
W25QXX_SPI_ReadWriteByte((uint8_t)Dst_Addr);
W25QXX_CS_H(); //取消片选
W25QXX_Wait_Busy(); //等待擦除完成
}
//等待空闲
void W25QXX_Wait_Busy(void)
{
while((W25QXX_ReadSR()&0x01)==0x01); // 等待BUSY位清空
}
//进入掉电模式
void W25QXX_PowerDown(void)
{
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_PowerDown); //发送掉电命令
W25QXX_CS_H(); //取消片选
delay_us(3); //等待TPD
}
//唤醒
void W25QXX_WAKEUP(void)
{
W25QXX_CS_L(); //使能器件
W25QXX_SPI_ReadWriteByte(W25X_ReleasePowerDown); // send W25X_PowerDown command 0xAB
W25QXX_CS_H(); //取消片选
delay_us(3); //等待TRES1
}一、FATFS
FATFS一般是配合Flash使用的。
方法一使用CubeMX 移植
方法二：手动移植
1.下载后解压：
"document"文件夹存放的是官方的API参考
"source"文件夹存放的是源文件
2.用CubeMX配置好SPI端口
主频72Mhz，用UART1和SPI1，具体请看本文末的工程连接。
3、复制文件
将FATFS中的“source”文件夹下的“ff.c”、“ff.h”、“ffconf.h”、“diskio.c”、“diskio.h”的5个文件复制到工程文件夹下的"FATFS"子文件夹（没有就新建）中。“source”文件夹下的其他文件可以不用移植。在这个5个文件中，我们需要修改其中的“ffconf.h”配置文件和“diskio.c”，“ff.c"底层存储设备驱动文件。
4.移植文件添加到工程

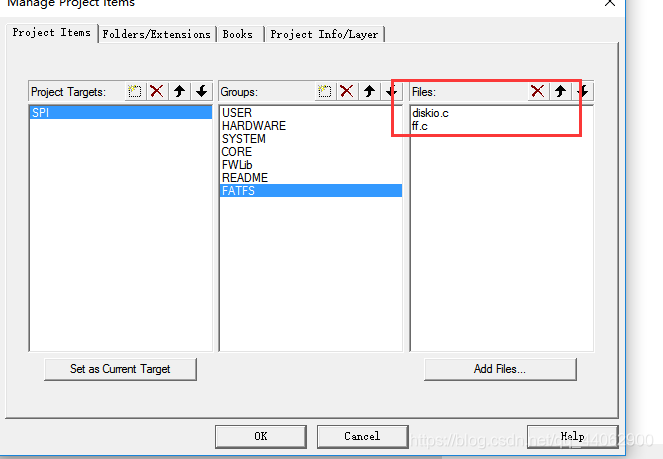

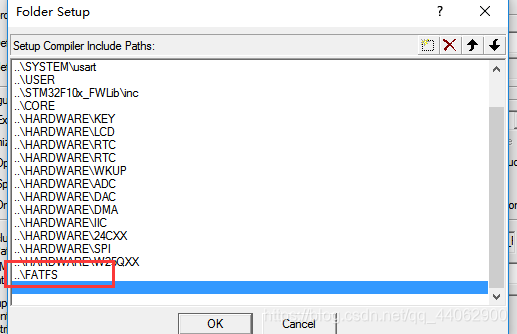

4.11、打开工程，在工程分组中创建一个“FATFS”分组，并将上述3个.c文件添加到工程，并设置头文件路径
4.2、编译工程
首先哪里报错删哪里。
查看错误或警告信息，正常为13个错误和17个警告
关于get_fattime() 这个错误是默认FATFS是使能RTC功能的。在ffconf.h中，将宏定义FF_FS_NORTC 设为1 可以将其关闭.。
此时编译工程不应该出现错误。
5.修改diskio.c
5.1、定义一个物理驱动器号
这个是定义在diskio.c的接近开头位置，原来的定义删除掉就好
这里我使用外部FLASH，如有多个存储设备，在这定义即可，物理驱动器号从“0”开始
/* 为每个设备定义一个物理编号 */
#define ATA 0 // 预留SD卡使用
#define SPI_FLASH 1 // 外部SPI Flash5.2、修改disk_status()函数
这个是获取驱动器状态的，大家可以根据返回状态自己编写，基本上能读取到ID就是正常的。
/*-----------------------------------------------------------------------*/
/* Get Drive Status */
/*-----------------------------------------------------------------------*/
DSTATUS disk_status (
BYTE pdrv /* Physical drive nmuber to identify the drive */
)
{
DSTATUS status = STA_NOINIT;
switch (pdrv) {
case ATA: /* SD CARD */
break;
case SPI_FLASH:
/* SPI Flash状态检测：读取SPI Flash 设备ID ,这里的W25Q64是宏定义的0xEF16*/
if(W25Q64 == Flash_ReadID())
{
/* 设备ID读取结果正确 */
status &= ~STA_NOINIT;
//printf("flashID:%X",sFLASH_ID);
}
else
{
/* 设备ID读取结果错误 */
status = STA_NOINIT;;
}
break;
default:
status = STA_NOINIT;
}
return status;
}5.3、修改disk_initialize()函数
这里对硬件进行初始化，注意包含相应的头文件,使用CubeMX，和硬件SPI不用初始化。
DSTATUS disk_initialize (
BYTE pdrv /* Physical drive nmuber to identify the drive */
)
{
uint16_t i;
DSTATUS status = STA_NOINIT;
switch (pdrv) {
case ATA: /* SD CARD */
break;
case SPI_FLASH: /* SPI Flash */
/* 初始化SPI Flash */
//SPI_FLASH_Init();
/* 延时一小段时间 */
i=500;
while(--i);
/* 唤醒SPI Flash */
//SPI_Flash_WAKEUP();
/* 获取SPI Flash芯片状态 */
status=disk_status(SPI_FLASH);
break;
default:
status = STA_NOINIT;
}
return status;
}5.4、修改disk_read()函数
这个函数的功能是从外部FLASH中读取数据
/*-----------------------------------------------------------------------*/
/* Read Sector(s) */
/*-----------------------------------------------------------------------*/
DRESULT disk_read (
BYTE pdrv, /* Physical drive nmuber to identify the drive */
BYTE *buff, /* Data buffer to store read data */
LBA_t sector, /* Start sector in LBA */
UINT count /* Number of sectors to read */
)
{
DRESULT status = RES_PARERR;
switch (pdrv) {
case ATA: /* SD CARD */
break;
case SPI_FLASH:
/* 扇区偏移2MB，外部Flash文件系统空间放在SPI Flash后面6MB空间 */
sector+=512;
Flash_ReadBytes( sector<<12,buff,count<<12);
status = RES_OK;
break;
default:
status = RES_PARERR;
}
return status;
}
5.5定义以下宏
不用定义
5.6、修改disk_write()函数
这个函数的功能是向外部FLASH中写入数据
DRESULT disk_write (
BYTE pdrv, /* Physical drive nmuber to identify the drive */
const BYTE *buff, /* Data to be written */
LBA_t sector, /* Start sector in LBA */
UINT count /* Number of sectors to write */
)
{
uint32_t write_addr;
DRESULT status = RES_PARERR;
if (!count) {
return RES_PARERR; /* Check parameter */
}
switch (pdrv) {
case ATA: /* SD CARD */
break;
case SPI_FLASH:
/* 扇区偏移2MB，外部Flash文件系统空间放在SPI Flash后面6MB空间 */
sector+=512;
write_addr = sector<<12;
/*调用任意位置写函数*/
Flash_Write(write_addr,(uint8_t *)buff,count<<12);
status = RES_OK;
break;
default:
status = RES_PARERR;
}
return status;
}
5.7 修改disk_ioctl()函数
这个函数是控制设备实现指定功能，用于辅助FATFS中其他API。
DRESULT disk_ioctl (
BYTE pdrv, /* Physical drive nmuber (0..) */
BYTE cmd, /* Control code */
void *buff /* Buffer to send/receive control data */
)
{
DRESULT status = RES_PARERR;
switch (pdrv) {
case ATA: /* SD CARD */
break;
case SPI_FLASH:
switch (cmd) {
/* 扇区数量：2048*4096/1024/1024=8(MB) ,这个是以W25Q64为例*/
/* 扇区数量：1536*4096/1024/1024=6(MB)，这里是使用了后6M空间 */
case GET_SECTOR_COUNT:
*(DWORD * )buff = 1536;
break;
/* 扇区大小，操作系统是按扇区读写的，写不够一个扇区下次也不会再用了,读写都用同一个大小。Flash写的时候需要先擦除再写入，W25Q64最小可以写一个page，256byte。但是最小擦除却是一个sector，所以这里选4Kb*/
case GET_SECTOR_SIZE :
*(WORD * )buff = 4096;
break;
/* 同时擦除扇区个数 */
case GET_BLOCK_SIZE :
*(DWORD * )buff = 1;
break;
}
status = RES_OK;
break;
default:
status = RES_PARERR;
}
return status;
}文件修改完成。
8、配置“ffconf.h”文件

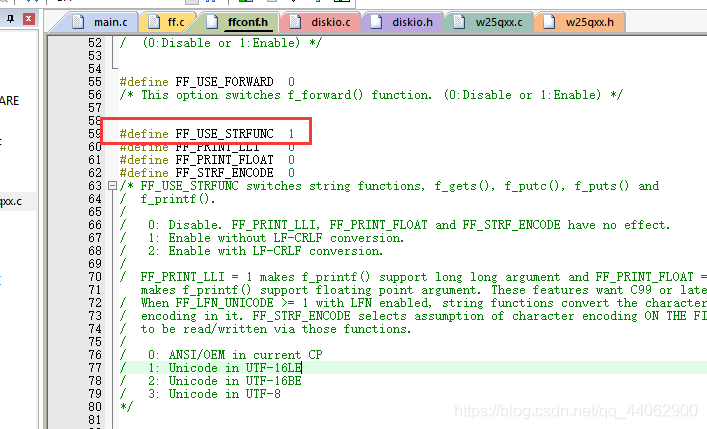

设置"FF_USE_STRFUNC" 宏为1，这个开启之后可以使用字符串辅助函数，例如f_gets()、f_putc()、f_puts() 、 f_printf() 等等
"FF_CODE_PAGE"为936，即为简体中文编码，设置不正确可能会导致打开文件失败
3、"FF_VOLUMES"这个宏是设置有几个卷，这里我的只有2个，填此处预留了SD卡为0，FLASH为1。
/*---------------------------------------------------------------------------/
/ Configurations of FatFs Module
/---------------------------------------------------------------------------*/
#define FFCONF_DEF 5380 /* Revision ID */
/*---------------------------------------------------------------------------/
/ Function Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_READONLY 0
/* This option switches read-only configuration. (0:Read/Write or 1:Read-only)
/ Read-only configuration removes writing API functions, f_write(), f_sync(),
/ f_unlink(), f_mkdir(), f_chmod(), f_rename(), f_truncate(), f_getfree()
/ and optional writing functions as well. */
#define FF_FS_MINIMIZE 0
/* This option defines minimization level to remove some basic API functions.
/
/ 0: Basic functions are fully enabled.
/ 1: f_stat(), f_getfree(), f_unlink(), f_mkdir(), f_truncate() and f_rename()
/ are removed.
/ 2: f_opendir(), f_readdir() and f_closedir() are removed in addition to 1.
/ 3: f_lseek() function is removed in addition to 2. */
#define FF_USE_FIND 0
/* This option switches filtered directory read functions, f_findfirst() and
/ f_findnext(). (0:Disable, 1:Enable 2:Enable with matching altname[] too) */
#define FF_USE_MKFS 1
/* This option switches f_mkfs(). (0:Disable or 1:Enable) */
#define FF_USE_FASTSEEK 1
/* This option switches fast seek feature. (0:Disable or 1:Enable) */
#define FF_USE_EXPAND 0
/* This option switches f_expand(). (0:Disable or 1:Enable) */
#define FF_USE_CHMOD 0
/* This option switches attribute control API functions, f_chmod() and f_utime().
/ (0:Disable or 1:Enable) Also FF_FS_READONLY needs to be 0 to enable this option. */
#define FF_USE_LABEL 0
/* This option switches volume label API functions, f_getlabel() and f_setlabel().
/ (0:Disable or 1:Enable) */
#define FF_USE_FORWARD 0
/* This option switches f_forward(). (0:Disable or 1:Enable) */
#define FF_USE_STRFUNC 0
#define FF_PRINT_LLI 0
#define FF_PRINT_FLOAT 0
#define FF_STRF_ENCODE 3
/* FF_USE_STRFUNC switches the string API functions, f_gets(), f_putc(), f_puts()
/ and f_printf().
/
/ 0: Disable. FF_PRINT_LLI, FF_PRINT_FLOAT and FF_STRF_ENCODE have no effect.
/ 1: Enable without LF - CRLF conversion.
/ 2: Enable with LF - CRLF conversion.
/
/ FF_PRINT_LLI = 1 makes f_printf() support long long argument and FF_PRINT_FLOAT = 1/2
/ makes f_printf() support floating point argument. These features want C99 or later.
/ When FF_LFN_UNICODE >= 1 with LFN enabled, string API functions convert the character
/ encoding in it. FF_STRF_ENCODE selects assumption of character encoding ON THE FILE
/ to be read/written via those functions.
/
/ 0: ANSI/OEM in current CP
/ 1: Unicode in UTF-16LE
/ 2: Unicode in UTF-16BE
/ 3: Unicode in UTF-8
*/
/*---------------------------------------------------------------------------/
/ Locale and Namespace Configurations
/---------------------------------------------------------------------------*/
#define FF_CODE_PAGE 936
/* This option specifies the OEM code page to be used on the target system.
/ Incorrect code page setting can cause a file open failure.
/
/ 437 - U.S.
/ 720 - Arabic
/ 737 - Greek
/ 771 - KBL
/ 775 - Baltic
/ 850 - Latin 1
/ 852 - Latin 2
/ 855 - Cyrillic
/ 857 - Turkish
/ 860 - Portuguese
/ 861 - Icelandic
/ 862 - Hebrew
/ 863 - Canadian French
/ 864 - Arabic
/ 865 - Nordic
/ 866 - Russian
/ 869 - Greek 2
/ 932 - Japanese (DBCS)
/ 936 - Simplified Chinese (DBCS)
/ 949 - Korean (DBCS)
/ 950 - Traditional Chinese (DBCS)
/ 0 - Include all code pages above and configured by f_setcp()
*/
#define FF_USE_LFN 1
#define FF_MAX_LFN 255
/* The FF_USE_LFN switches the support for LFN (long file name).
/
/ 0: Disable LFN. FF_MAX_LFN has no effect.
/ 1: Enable LFN with static working buffer on the BSS. Always NOT thread-safe.
/ 2: Enable LFN with dynamic working buffer on the STACK.
/ 3: Enable LFN with dynamic working buffer on the HEAP.
/
/ To enable the LFN, ffunicode.c needs to be added to the project. The LFN feature
/ requiers certain internal working buffer occupies (FF_MAX_LFN + 1) * 2 bytes and
/ additional (FF_MAX_LFN + 44) / 15 * 32 bytes when exFAT is enabled.
/ The FF_MAX_LFN defines size of the working buffer in UTF-16 code unit and it can
/ be in range of 12 to 255. It is recommended to be set 255 to fully support the LFN
/ specification.
/ When use stack for the working buffer, take care on stack overflow. When use heap
/ memory for the working buffer, memory management functions, ff_memalloc() and
/ ff_memfree() exemplified in ffsystem.c, need to be added to the project. */
#define FF_LFN_UNICODE 0
/* This option switches the character encoding on the API when LFN is enabled.
/
/ 0: ANSI/OEM in current CP (TCHAR = char)
/ 1: Unicode in UTF-16 (TCHAR = WCHAR)
/ 2: Unicode in UTF-8 (TCHAR = char)
/ 3: Unicode in UTF-32 (TCHAR = DWORD)
/
/ Also behavior of string I/O functions will be affected by this option.
/ When LFN is not enabled, this option has no effect. */
#define FF_LFN_BUF 255
#define FF_SFN_BUF 12
/* This set of options defines size of file name members in the FILINFO structure
/ which is used to read out directory items. These values should be suffcient for
/ the file names to read. The maximum possible length of the read file name depends
/ on character encoding. When LFN is not enabled, these options have no effect. */
#define FF_FS_RPATH 0
/* This option configures support for relative path.
/
/ 0: Disable relative path and remove related API functions.
/ 1: Enable relative path. f_chdir() and f_chdrive() are available.
/ 2: f_getcwd() is available in addition to 1.
*/
/*---------------------------------------------------------------------------/
/ Drive/Volume Configurations
/---------------------------------------------------------------------------*/
#define FF_VOLUMES 2
/* Number of volumes (logical drives) to be used. (1-10) */
#define FF_STR_VOLUME_ID 0
#define FF_VOLUME_STRS "RAM","NAND","CF","SD","SD2","USB","USB2","USB3"
/* FF_STR_VOLUME_ID switches support for volume ID in arbitrary strings.
/ When FF_STR_VOLUME_ID is set to 1 or 2, arbitrary strings can be used as drive
/ number in the path name. FF_VOLUME_STRS defines the volume ID strings for each
/ logical drive. Number of items must not be less than FF_VOLUMES. Valid
/ characters for the volume ID strings are A-Z, a-z and 0-9, however, they are
/ compared in case-insensitive. If FF_STR_VOLUME_ID >= 1 and FF_VOLUME_STRS is
/ not defined, a user defined volume string table is needed as:
/
/ const char* VolumeStr[FF_VOLUMES] = {"ram","flash","sd","usb",...
*/
#define FF_MULTI_PARTITION 0
/* This option switches support for multiple volumes on the physical drive.
/ By default (0), each logical drive number is bound to the same physical drive
/ number and only an FAT volume found on the physical drive will be mounted.
/ When this feature is enabled (1), each logical drive number can be bound to
/ arbitrary physical drive and partition listed in the VolToPart[]. Also f_fdisk()
/ will be available. */
/*W25Q64的Sector大小是4096所以FF_MAX_SS配成4096*/
#define FF_MIN_SS 512
#define FF_MAX_SS 4096
/* This set of options configures the range of sector size to be supported. (512,
/ 1024, 2048 or 4096) Always set both 512 for most systems, generic memory card and
/ harddisk, but a larger value may be required for on-board flash memory and some
/ type of optical media. When FF_MAX_SS is larger than FF_MIN_SS, FatFs is
/ configured for variable sector size mode and disk_ioctl() needs to implement
/ GET_SECTOR_SIZE command. */
#define FF_LBA64 0
/* This option switches support for 64-bit LBA. (0:Disable or 1:Enable)
/ To enable the 64-bit LBA, also exFAT needs to be enabled. (FF_FS_EXFAT == 1) */
#define FF_MIN_GPT 0x10000000
/* Minimum number of sectors to switch GPT as partitioning format in f_mkfs() and
/ f_fdisk(). 2^32 sectors maximum. This option has no effect when FF_LBA64 == 0. */
#define FF_USE_TRIM 0
/* This option switches support for ATA-TRIM. (0:Disable or 1:Enable)
/ To enable this feature, also CTRL_TRIM command should be implemented to
/ the disk_ioctl(). */
/*---------------------------------------------------------------------------/
/ System Configurations
/---------------------------------------------------------------------------*/
#define FF_FS_TINY 0
/* This option switches tiny buffer configuration. (0:Normal or 1:Tiny)
/ At the tiny configuration, size of file object (FIL) is shrinked FF_MAX_SS bytes.
/ Instead of private sector buffer eliminated from the file object, common sector
/ buffer in the filesystem object (FATFS) is used for the file data transfer. */
#define FF_FS_EXFAT 0
/* This option switches support for exFAT filesystem. (0:Disable or 1:Enable)
/ To enable exFAT, also LFN needs to be enabled. (FF_USE_LFN >= 1)
/ Note that enabling exFAT discards ANSI C (C89) compatibility. */
#define FF_FS_NORTC 0
#define FF_NORTC_MON 11
#define FF_NORTC_MDAY 1
#define FF_NORTC_YEAR 2024
/* The option FF_FS_NORTC switches timestamp feature. If the system does not have
/ an RTC or valid timestamp is not needed, set FF_FS_NORTC = 1 to disable the
/ timestamp feature. Every object modified by FatFs will have a fixed timestamp
/ defined by FF_NORTC_MON, FF_NORTC_MDAY and FF_NORTC_YEAR in local time.
/ To enable timestamp function (FF_FS_NORTC = 0), get_fattime() need to be added
/ to the project to read current time form real-time clock. FF_NORTC_MON,
/ FF_NORTC_MDAY and FF_NORTC_YEAR have no effect.
/ These options have no effect in read-only configuration (FF_FS_READONLY = 1). */
#define FF_FS_NOFSINFO 0
/* If you need to know correct free space on the FAT32 volume, set bit 0 of this
/ option, and f_getfree() at the first time after volume mount will force
/ a full FAT scan. Bit 1 controls the use of last allocated cluster number.
/
/ bit0=0: Use free cluster count in the FSINFO if available.
/ bit0=1: Do not trust free cluster count in the FSINFO.
/ bit1=0: Use last allocated cluster number in the FSINFO if available.
/ bit1=1: Do not trust last allocated cluster number in the FSINFO.
*/
#define FF_FS_LOCK 0
/* The option FF_FS_LOCK switches file lock function to control duplicated file open
/ and illegal operation to open objects. This option must be 0 when FF_FS_READONLY
/ is 1.
/
/ 0: Disable file lock function. To avoid volume corruption, application program
/ should avoid illegal open, remove and rename to the open objects.
/ >0: Enable file lock function. The value defines how many files/sub-directories
/ can be opened simultaneously under file lock control. Note that the file
/ lock control is independent of re-entrancy. */
#define FF_FS_REENTRANT 0
#define FF_FS_TIMEOUT 1000
/* The option FF_FS_REENTRANT switches the re-entrancy (thread safe) of the FatFs
/ module itself. Note that regardless of this option, file access to different
/ volume is always re-entrant and volume control functions, f_mount(), f_mkfs()
/ and f_fdisk(), are always not re-entrant. Only file/directory access to
/ the same volume is under control of this featuer.
/
/ 0: Disable re-entrancy. FF_FS_TIMEOUT have no effect.
/ 1: Enable re-entrancy. Also user provided synchronization handlers,
/ ff_mutex_create(), ff_mutex_delete(), ff_mutex_take() and ff_mutex_give(),
/ must be added to the project. Samples are available in ffsystem.c.
/
/ The FF_FS_TIMEOUT defines timeout period in unit of O/S time tick.
*/
/*--- End of configuration options ---*/
其他宏可根据需求选择开启。
一般最简单的就是FF_USE_MKFS 1。就是flash文件系统的格式化。
FF_USE_LEN 1支持长文件名
FF_MAX_SS 4096。最大sector大小，只要比最小的大运行起来后就会自动获取到。
FF_FS_REENTRANT 0//这个是线程安全方面的配置，主要用在RTOS上边。
ff.c
由于在ffconf.h中设置了FF_FS_NORTC 0,就是启用了系统时间戳，所以需要实现一个get_fattime函数，这里简单低返回一个固定时间。
/* Timestamp */
#if FF_FS_NORTC == 1
#if FF_NORTC_YEAR < 1980 || FF_NORTC_YEAR > 2107 || FF_NORTC_MON < 1 || FF_NORTC_MON > 12 || FF_NORTC_MDAY < 1 || FF_NORTC_MDAY > 31
#error Invalid FF_FS_NORTC settings
#endif
#define GET_FATTIME() ((DWORD)(FF_NORTC_YEAR - 1980) << 25 | (DWORD)FF_NORTC_MON << 21 | (DWORD)FF_NORTC_MDAY << 16)
#else
#define GET_FATTIME() get_fattime()
DWORD get_fattime (void)
{
/* 在这里添加实际的获取时间的方法... */
/* 对应的要修改返回值 */
return ((2021-1980)<<25) | ((1)<<21) | ((1)<<16) | ((1)<<11) | ((1)<<5) | ((1)<<0);
}
#endif重点 &疑难杂症：
main.c文件测试用例：
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "spi.h"
#include "usart.h"
#include "gpio.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "w25flash.h"
#include "ff.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
int fputc(int ch, FILE *f)
{
//这里假设UART1是要打印的串口
HAL_UART_Transmit(&huart1, (uint8_t *)&ch, 1, 10);
return ch;
}
BYTE work[FF_MAX_SS];//格式化设备工作区,注意这个空间太大，不能放到栈里，否则卡死。或者malloc一个也行（注意修改startup_stm32f103xe.s中的堆大小）
FATFS fs; /* FatFs文件系统对象 */
FIL fnew; /* 文件对象 */
FRESULT res_flash; /* 文件操作结果 */
UINT fnum; /* 文件成功读写数量 */
BYTE ReadBuffer[1024]={0}; /* 读缓冲区 */
BYTE WriteBuffer[] = "图片较大请等待\r\n";
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
//串口接收中断处理函数
char USART_RX_BUF[255]="";//字符串缓冲区
uint8_t aRxBuffer; //单个字符接收缓冲区
uint8_t Uart1_Rx_Cnt = 0; //接收字符计数器
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
if(Uart1_Rx_Cnt >= 255) //溢出了
{
Uart1_Rx_Cnt = 0;
memset(USART_RX_BUF,0x00,sizeof(USART_RX_BUF));
//HAL_UART_Transmit(&huart1, (uint8_t *)"串口接收缓冲区溢出，size>255", strlen(""串口接收缓冲区溢出，size>255""),0xFFFF);
}
else
{
USART_RX_BUF[Uart1_Rx_Cnt++] = aRxBuffer; //接收到的单个字符放到缓冲区
if((USART_RX_BUF[Uart1_Rx_Cnt-1] == 0x0A)&&(USART_RX_BUF[Uart1_Rx_Cnt-2] == 0x0D)) //是否接收到了回车换行符，判断发送完成了吗
{
HAL_UART_Transmit(&huart1, (uint8_t *)"receive:\n", strlen("receive:\n"),0xFFFF);
while(HAL_UART_GetState(&huart1) == HAL_UART_STATE_BUSY_TX)
{
}
HAL_UART_Transmit(&huart1, (uint8_t *)&USART_RX_BUF, Uart1_Rx_Cnt,0xFFFF);
while(HAL_UART_GetState(&huart1) == HAL_UART_STATE_BUSY_TX)
{
}
Uart1_Rx_Cnt = 0;
memset(USART_RX_BUF,0x00,sizeof(USART_RX_BUF));
}
}
HAL_UART_Receive_IT(&huart1, (uint8_t *)&aRxBuffer, 1);
}
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
//要写入到W25Q64的字符串数组
const uint8_t TEXT_Buffer[]={"MyTest FAT TeST"};
#define SIZE sizeof(TEXT_Buffer)
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_SPI1_Init();
MX_USART1_UART_Init();
/* USER CODE BEGIN 2 */
HAL_UART_Receive_IT(&huart1, (uint8_t *)&aRxBuffer, 1);
printf("****** 这是一个SPI FLASH 文件系统实验 ******\r\n");
//在外部SPI Flash挂载文件系统，文件系统挂载时会对SPI设备初始化
//初始化函数调用流程如下
//f_mount()->find_volume()->disk_initialize->SPI_FLASH_Init()
res_flash = f_mount(&fs,"1:",1);
/*----------------------- 格式化测试 -----------------*/
/* 如果没有文件系统就格式化创建创建文件系统 */
if(res_flash == FR_NO_FILESYSTEM)
{
printf("》FLASH还没有文件系统，即将进行格式化...\r\n");
/* 格式化 */
res_flash=f_mkfs("1:", 0, work, sizeof(work));
if(res_flash == FR_OK)
{
printf("》FLASH已成功格式化文件系统。\r\n");
/* 格式化后，先取消挂载 */
res_flash = f_mount(NULL,"1:",1);
/* 重新挂载 */
res_flash = f_mount(&fs,"1:",1);
}
else
{
printf("《《格式化失败。》》\r\n");
while(1);
}
}
else if(res_flash!=FR_OK)
{
printf("！！外部Flash挂载文件系统失败。(%d)\r\n",res_flash);
printf("请下载 SPI—读写串行FLASH 例程测试，如果正常，在该例程f_mount语句下if语句前临时多添加一句 res_flash = FR_NO_FILESYSTEM; 让重新直接执行格式化流程\r\n");
while(1);
}
else
{
printf("》文件系统挂载成功，可以进行读写测试\r\n");
}
/*----------------------- 文件系统测试：写测试 -------------------*/
/* 打开文件，每次都以新建的形式打开，属性为可写 */
printf("\r\n****** 即将进行文件写入测试... ******\r\n");
res_flash = f_open(&fnew, "1:FatFs读写测试文件.txt",FA_CREATE_ALWAYS | FA_WRITE );
if ( res_flash == FR_OK )
{
printf("》打开/创建FatFs读写测试文件.txt文件成功，向文件写入数据。\r\n");
/* 将指定存储区内容写入到文件内 */
res_flash=f_write(&fnew,WriteBuffer,sizeof(WriteBuffer),&fnum);
if(res_flash==FR_OK)
{
printf("》文件写入成功，写入字节数据：%d\n",fnum);
printf("》向文件写入的数据为：\r\n%s\r\n",WriteBuffer);
}
else
{
printf("！！文件写入失败：(%d)\n",res_flash);
}
/* 不再读写，关闭文件 */
f_close(&fnew);
}
else
{
printf("！！打开/创建文件失败。\r\n");
}
/*------------------- 文件系统测试：读测试 --------------------------*/
printf("****** 即将进行文件读取测试... ******\r\n");
res_flash = f_open(&fnew, "1:FatFs读写测试文件.txt",FA_OPEN_EXISTING | FA_READ);
if(res_flash == FR_OK)
{
printf("》打开文件成功。\r\n");
res_flash = f_read(&fnew, ReadBuffer, sizeof(ReadBuffer), &fnum);
if(res_flash==FR_OK)
{
printf("》文件读取成功,读到字节数据：%d\r\n",fnum);
printf("》读取得的文件数据为：\r\n%s \r\n", ReadBuffer);
}
else
{
printf("！！文件读取失败：(%d)\n",res_flash);
}
}
else
{
printf("！！打开文件失败。\r\n");
}
/* 不再读写，关闭文件 */
f_close(&fnew);
/* 不再使用文件系统，取消挂载文件系统 */
f_mount(NULL,"1:",1);
printf("测试完成进入while循环\r\n");
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
HAL_Delay(1000);
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
__disable_irq();
while (1)
{
}
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
缓冲区work，不能放到main函数体里，程序会卡死，没有反应也没有输出，因为在分配栈空间时就卡死了，没有机会发串口数据。如果你和我一样把它当全局变量定义那就没问题了，stm32f103rct6的RAM大小有20K，可以完全载入内存中，在c语言里未初始化的全局变量即不在栈空间也不在堆空间里，而是在bss段中，不受堆栈空间大小限制。
野火的示例还是用HAL的封装，按标准库流程进行编程，感觉差点意思，所以就封装了一下。
运行结果：
参考文献：
主要成功是参考了王维波的W25Q64驱动程序，然后是参考野火F103霸道开发板示例。
公益项目，免费分享工程压缩包：
通过网盘分享的文件：FatFs.rar
链接: https://pan.baidu.com/s/177kN9Q-kCFZIQZM-xJ3hcQ?pwd=rhsz 提取码: rhsz
--来自百度网盘超级会员v5的分享
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
