workbench修改网格节点

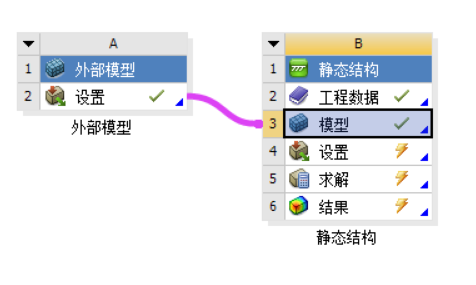

workbench绘制好网格后点击生成Mapdl输入文件，导出的格式是.dat，启动Mechanical APDL 导入.dat，cdwrite,db,test,cdb命令导出成.cdb文件，在matlab中进行节点的修改，重新写入.cdb文件。通过在workbench的外部模型导入，直接使用修改后的网格进行有限元仿真。

matlab程序如下：


clc; clear;


% === 启动并行池（基于线程的轻量加速） ===

if isempty(gcp('nocreate'))

parpool('threads');

end


% === 文件读取 ===

filename = "D:\ANASYS results\CDB\test222.cdb";

fid = fopen(filename, 'r');

raw_lines = {};

in_nblock = false;

format_line_idx = 0;

nblock_end_idx = 0;


while ~feof(fid)

line = fgetl(fid);

raw_lines{end+1} = line; %#ok<AGROW>


if contains(line, 'NBLOCK')

in_nblock = true;

elseif in_nblock && startsWith(strtrim(line), '(')

format_line_idx = length(raw_lines); % 格式说明行索引

elseif in_nblock && ~isempty(regexp(line, '^\s*\d+', 'once'))

% 正常数据行

elseif in_nblock

in_nblock = false;

nblock_end_idx = length(raw_lines);

end

end

fclose(fid);


% === 提取 NBLOCK 数据行 ===

data_lines = raw_lines(format_line_idx+1 : nblock_end_idx-1);

n_lines = length(data_lines);


% === 预分配 ===

node_ids = zeros(n_lines, 1);

coords = zeros(n_lines, 3);


% === 并行解析节点数据 ===

parfor i = 1:n_lines

line = data_lines{i};

if isempty(strtrim(line)), continue; end

if length(line) < 90

line = [line repmat(' ', 1, 90-length(line))];

end


node_ids(i) = str2double(line(1:9));

coords(i, :) = [str2double(line(28:48)), ...

str2double(line(49:69)), ...

str2double(line(70:90))];

end


% === 显示部分节点 ===

disp('前5个节点坐标：');

disp(table(node_ids(1:5), coords(1:5,1), coords(1:5,2), coords(1:5,3), ...

'VariableNames', {'NodeID', 'X', 'Y', 'Z'}));


%% === z = -10 平面分割并上下移动 ===

upper_idx = coords(:,3) > -10;

lower_idx = ~upper_idx;

coords_new = coords;

coords_new=changecoords(coords);


%% === 科学计数法修正函数（E+01 -> E+001）===

fixE = @(s) regexprep(fix_leading_space(s), 'E([\+\-])(\d{1,2})$', 'E$10$2');




% === 构造新数据行 ===

new_data_lines = data_lines;


for i = 1:n_lines

if isempty(strtrim(data_lines{i})), continue; end

node_id = node_ids(i);

x = fixScientific(coords_new(i, 1));

y = fixScientific(coords_new(i, 2));

z = fixScientific(coords_new(i, 3));

new_line = sprintf('%9d%9d%9d%s%s%s', node_id, 0, 0, x, y, z);

new_data_lines{i} = new_line;

end


% === 构造完整新文件 ===

output_file = "D:\ANASYS results\CDB\output333.cdb";

fid = fopen(output_file, 'w');


for i = 1:format_line_idx

fprintf(fid, '%s\n', raw_lines{i});

end


for i = 1:n_lines

fprintf(fid, '%s\n', new_data_lines{i});

end


fprintf(fid, 'N,UNBL,LOC, -1,\n');


for i = nblock_end_idx+1 : length(raw_lines)

fprintf(fid, '%s\n', raw_lines{i});

end


fclose(fid);

disp(['✅ 修改后的 .cdb 文件已保存至：' output_file]);


%% === 可视化验证 ===

figure;

scatter3(coords(:,1), coords(:,2), coords(:,3), 0.1, 'k.');

title('原始节点坐标');


figure;

scatter3(coords_new(:,1), coords_new(:,2), coords_new(:,3), 0.1, 'k.');

title('新节点坐标');



%% === 科学计数法修正函数 ===

% 确保三位指数并处理前导空格

function str = fixScientific(num)

% 使用21位宽度，13位小数的科学计数法

str = sprintf('%21.13E', num);

% 处理指数部分为3位数

str = regexprep(str, 'E([\+\-])(\d{1,2})$', 'E$10$2');

% 移除所有前导空格

str = strtrim(str);

% 确保总长度为21，正数添加一个前导空格

if num >= 0

str = [' ' str];

end

% 如果长度不足21，在前面补充需要的空格

if length(str) < 21

str = [repmat(' ', 1, 21-length(str)) str];

end

end
