本文基于ESP8266 + DHT11 + OLED0.96温湿度显示和MQTT 数据传输的过程

1、硬件选择

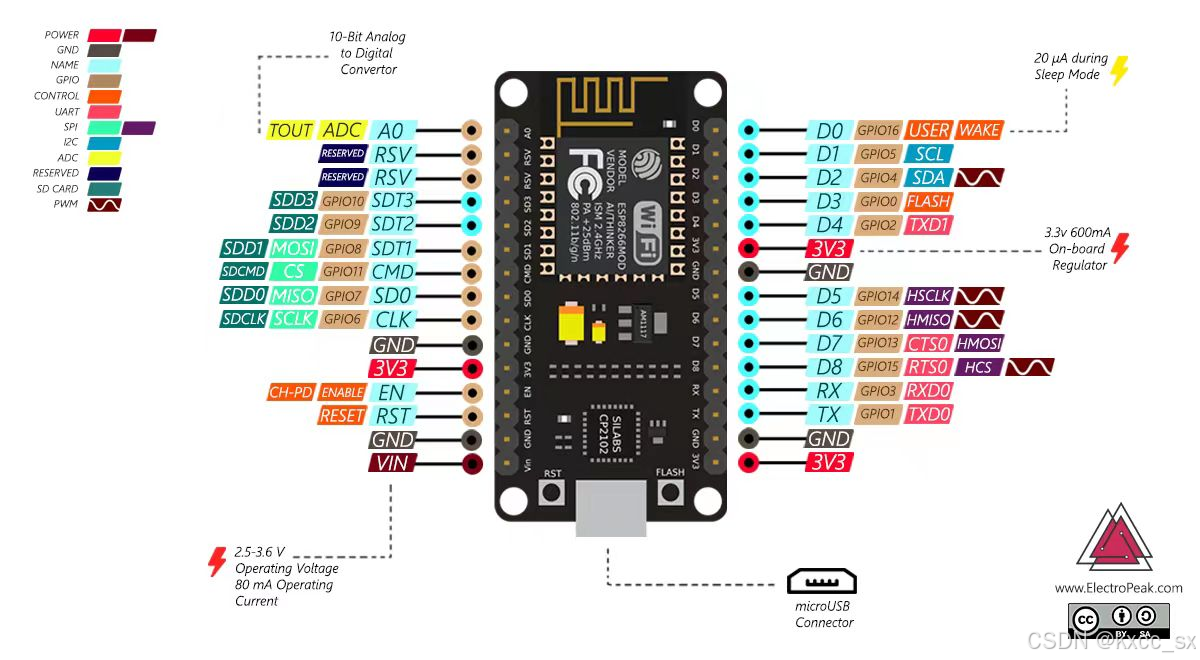

a.ESP8266 NodeMCU 主控芯片

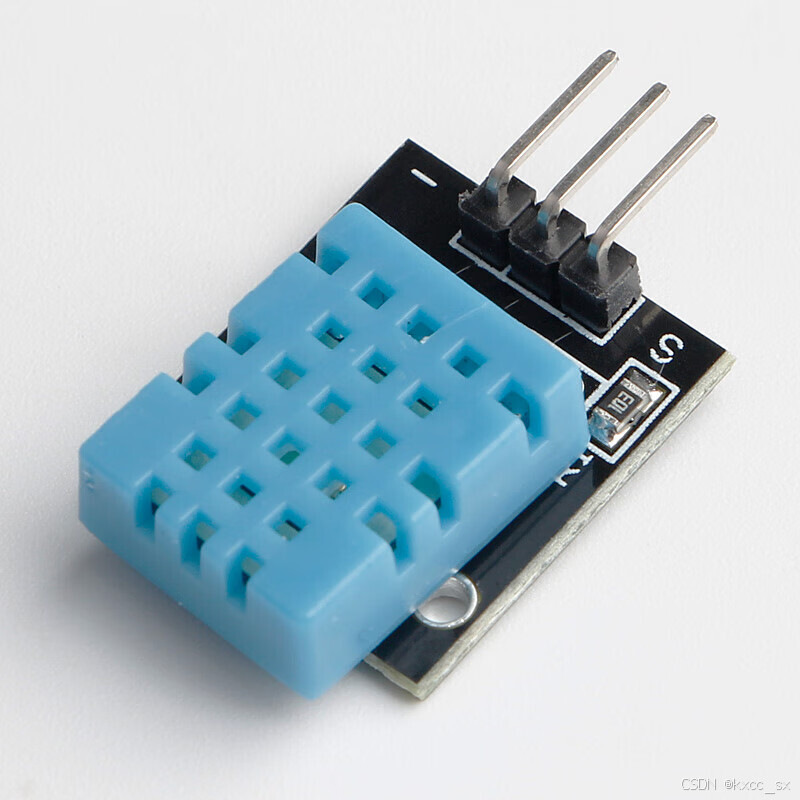

b.DHT11 温湿度探测

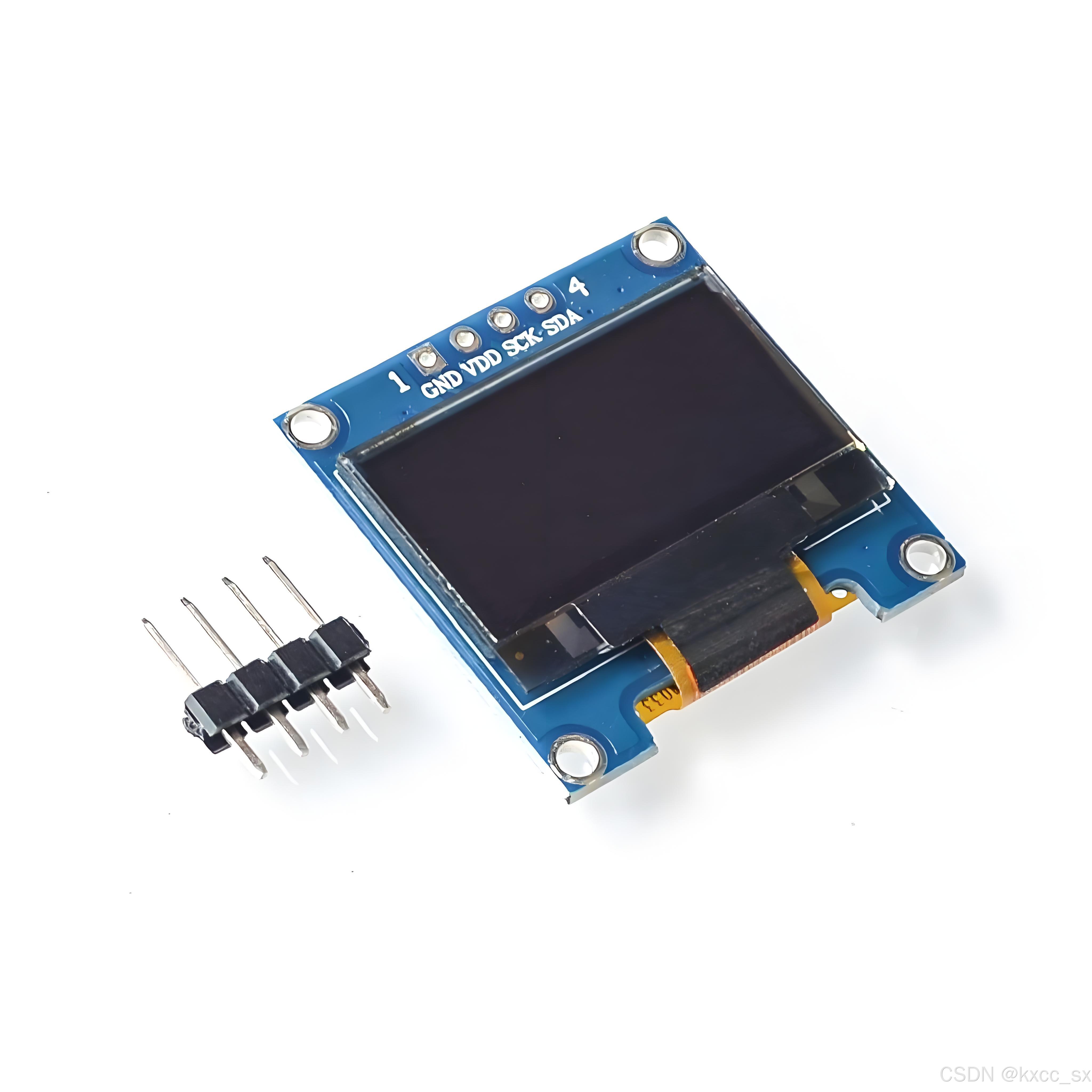

c.oled0.96 显示屏（有4脚和7脚2种，我这里用的是4脚）

2、接线图

我们使用杜邦线进行线路连接，接线较为简单，接线如下

Oled0.96	ESP8266
GND	GND
VCC	3V
SCL	D1
SDA	D2

DTH11	ESP8266
GND	GND
VCC	3V
DATA	D4

实物图：

3、编写程序

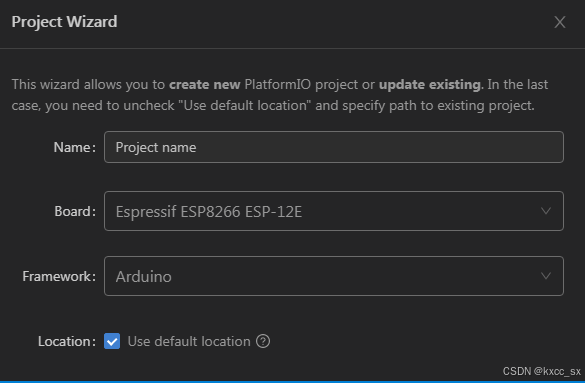

a.打开VScode ，platformio IDE 新建一个项目，Board 选择“Espressif ESP8266 ESP-12E”

Framework 选择 Arduino

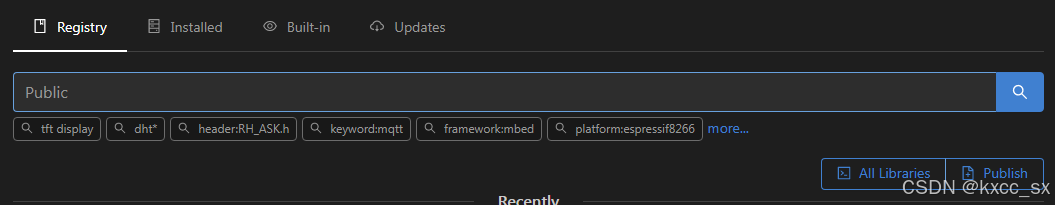

b、加入所需的包，点击platformio 的lib 搜索并增加以下依赖

knolleary/PubSubClient@^2.8 （mqtt client 库）

adafruit/DHT sensor library@^1.4.6 （DHT11 库）

olikraus/U8g2@^2.36.2 （oled 显示库）

也可以直接打开根目录下的platformio.ini文件添加如下

lib_deps =

knolleary/PubSubClient@^2.8

adafruit/DHT sensor library@^1.4.6

olikraus/U8g2@^2.36.2

c. 打开src 下的main.cpp 开始写入基本代码

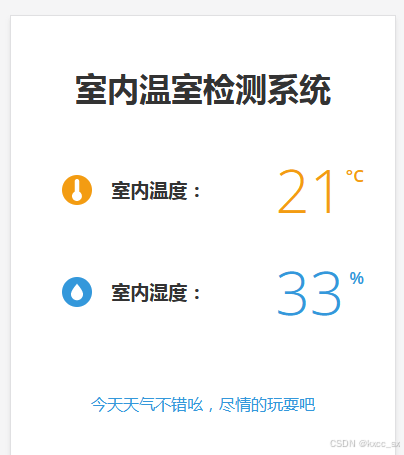

1）我们先实现连接wifi 采集DHT11数据，显示到页面上，代码如下：

#include <main.h>
#include <Adafruit_Sensor.h>
#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266WebServer.h>
#define DHTPIN D4
#define DHTTYPE DHT11//说明使用的模块是DHT11

DHT dht(DHTPIN,DHTTYPE);

WiFiClient espClient;

// WIFI相关
const char* g_ssid = "ChinaNet-XXX";
const char* g_password = "XXXXXX";

ESP8266WebServer server(80);

float temperature;
float humidity;
String localIp;

void startWebServer()
{
   server.begin();
   server.on("/", handle_OnConnect);
   server.onNotFound(handle_NotFound);
   Serial.println("Http web server started.");
}

// 连接wifi
void connectWifi()
{
  // 连接到Wi-Fi
  WiFi.begin(g_ssid, g_password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  localIp = WiFi.localIP().toString().c_str();
  Serial.println("");
  Serial.println("wifi connected!");
  Serial.println("IP地址: ");
  Serial.print(localIp);
}


void handle_OnConnect() {

  float t = dht.readTemperature(); // Gets the values of the temperature
  float h = dht.readHumidity(); // Gets the values of the humidity
  server.send(200, "text/html", sendHTML(t,h));
}

void handle_NotFound(){
  server.send(404, "text/plain", "Not found");
}

String sendHTML(float Temperaturestat,float Humiditystat){
  String ptr = "<!DOCTYPE html> <html>\n";
  ptr +="<head> <meta name=\"viewport\" content=\"width=device-width,  initial-scale=1.0, user-scalable=no\">\n";
  ptr +="<link href=\"https://fonts.googleapis.com/css?family=Open+Sans:300,400,600\" rel=\"stylesheet\">\n";
  ptr +="<meta charset=\"UTF-8\">\n";
  ptr +="<title>智能温湿计</title>\n";
  ptr +="<style>html { font-family: 'Open Sans', sans-serif; display: block; margin: 0px auto; text-align: center;color: #333333;}\n";
  ptr +="body{margin-top: 50px;}\n";
  ptr +="h1 {margin: 50px auto 30px;}\n";
  ptr +=" .wd {margin: 50px auto 30px;width: auto;color: #f39c12}\n";
  ptr +=" .wd1 {margin: 50px auto 30px;width: auto;color: #3498db}\n";
  ptr +=".side-by-side{display: inline-block;vertical-align: middle;position: relative;}\n";
  ptr +=".humidity-icon{background-color: #3498db;width: 30px;height: 30px;border-radius: 50%;line-height: 36px;}\n";
  ptr +=".humidity-text{font-weight: 600;padding-left: 15px;font-size: 19px;width: 160px;text-align: left;}\n";
  ptr +=".humidity{font-weight: 300;font-size: 60px;color: #3498db;}\n";
  ptr +=".temperature-icon{background-color: #f39c12;width: 30px;height: 30px;border-radius: 50%;line-height: 40px;}\n";
  ptr +=".temperature-text{font-weight: 600;padding-left: 15px;font-size: 19px;width: 160px;text-align: left;}\n";
  ptr +=".temperature{font-weight: 300;font-size: 60px;color: #f39c12;}\n";
  ptr +=".superscript{font-size: 17px;font-weight: 600;position: absolute;right: -20px;top: 15px;}\n";
  ptr +=".data{padding: 10px;}\n";
  ptr +="</style>\n";
  ptr +="</head>\n";
  ptr +="<body>\n";

   ptr +="<div id=\"webpage\">\n";

   ptr +="<h1>室内温室检测系统</h1>\n";
   ptr +="<div class=\"data\">\n";
   ptr +="<div class=\"side-by-side temperature-icon\">\n";
   ptr +="<svg version=\"1.1\" id=\"Layer_1\" xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" x=\"0px\" y=\"0px\"\n";
   ptr +="width=\"9.915px\" height=\"22px\" viewBox=\"0 0 9.915 22\" enable-background=\"new 0 0 9.915 22\" xml:space=\"preserve\">\n";
   ptr +="<path fill=\"#FFFFFF\" d=\"M3.498,0.53c0.377-0.331,0.877-0.501,1.374-0.527C5.697-0.04,6.522,0.421,6.924,1.142\n";
   ptr +="c0.237,0.399,0.315,0.871,0.311,1.33C7.229,5.856,7.245,9.24,7.227,12.625c1.019,0.539,1.855,1.424,2.301,2.491\n";
   ptr +="c0.491,1.163,0.518,2.514,0.062,3.693c-0.414,1.102-1.24,2.038-2.276,2.594c-1.056,0.583-2.331,0.743-3.501,0.463\n";
   ptr +="c-1.417-0.323-2.659-1.314-3.3-2.617C0.014,18.26-0.115,17.104,0.1,16.022c0.296-1.443,1.274-2.717,2.58-3.394\n";
   ptr +="c0.013-3.44,0-6.881,0.007-10.322C2.674,1.634,2.974,0.955,3.498,0.53z\"/>\n";
   ptr +="</svg>\n";
   ptr +="</div>\n";
   ptr +="<div class=\"side-by-side temperature-text\">室内温度：</div>\n";
   ptr +="<div class=\"side-by-side temperature\">";
   ptr +=(int)Temperaturestat;
   ptr +="<span class=\"superscript\">°C</span></div>\n";
   ptr +="</div>\n";
   ptr +="<div class=\"data\">\n";
   ptr +="<div class=\"side-by-side humidity-icon\">\n";
   ptr +="<svg version=\"1.1\" id=\"Layer_2\" xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" x=\"0px\" y=\"0px\"\n\"; width=\"12px\" height=\"17.955px\" viewBox=\"0 0 13 17.955\" enable-background=\"new 0 0 13 17.955\" xml:space=\"preserve\">\n";
   ptr +="<path fill=\"#FFFFFF\" d=\"M1.819,6.217C3.139,4.064,6.5,0,6.5,0s3.363,4.064,4.681,6.217c1.793,2.926,2.133,5.05,1.571,7.057\n";
   ptr +="c-0.438,1.574-2.264,4.681-6.252,4.681c-3.988,0-5.813-3.107-6.252-4.681C-0.313,11.267,0.026,9.143,1.819,6.217\"></path>\n";
   ptr +="</svg>\n";
   ptr +="</div>\n";
   ptr +="<div class=\"side-by-side humidity-text\">室内湿度：</div>\n";
   ptr +="<div class=\"side-by-side humidity\">";
   ptr +=(int)Humiditystat;
   ptr +="<span class=\"superscript\">%</span></div>\n";
   ptr +="</div>\n";
   //定义温度变量，并且赋值，用于逻辑判断。
    int wd = Temperaturestat ;

   if (wd>=30){
    ptr +="<div class=\"wd\">今天天气热，注意防暑哦</div>\n";
   }
   if (29>=wd&&wd>20){
    ptr +="<div class=\"wd1\">今天天气不错吆，尽情的玩耍吧</div>\n";
   }
   if (wd<10){
    ptr +="<div class=\"side-by-side humidity-text\">今天天气比较冷，多穿点衣服，小心着凉</div>\n";
   }
   ptr +="</div>\n";
   ptr +="</body>\n";
   ptr +="</html>\n";
   return ptr;
   }

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200); // 初始化串行通信

  Serial.println();
  connectWifi();
  Serial.println();
  if(WiFi.status() == WL_CONNECTED){
    startWebServer();
   }

  dht.begin();//开始测量
}
void loop() {
  // put your main code here, to run repeatedly:
  delay(200);//延时，等待测量完成

  temperature = dht.readTemperature(); // Gets the values of the temperature
  humidity = dht.readHumidity(); // Gets the values of the humidity

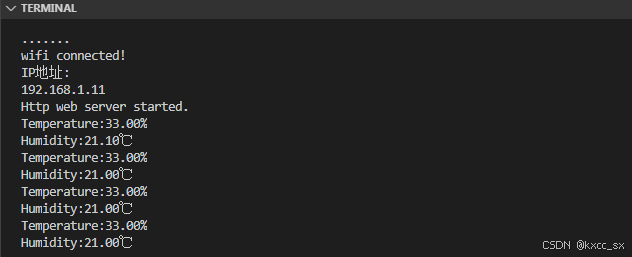

  Serial.print("Temperature:");//发送字符“当前湿度：”
  Serial.print(humidity);//发送湿度值
  Serial.println("%");//发送湿度值

  Serial.print("Humidity:");//发送字符“当前温度：”
  Serial.print(temperature);//发送温度值
  Serial.println("℃");//发送湿度值
  server.handleClient();
}

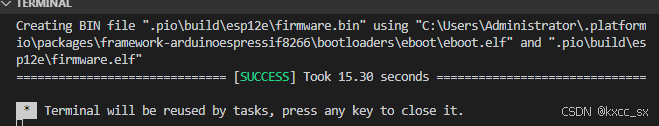

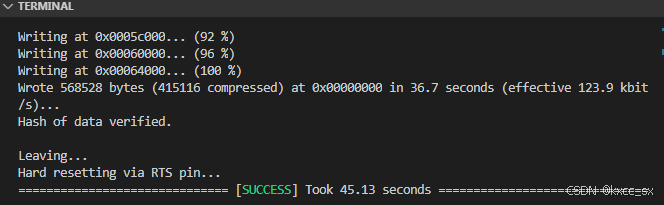

2）编译，上传
