一 事务概念解析
1.1 什么是事务?
事务是逻辑上的一组执行单元,要么都执行,要么都不执行.
1.2 事务的特性(ACID)
什么是ACID
ACID是指数据库管理系统DBMS中事务所具有四个特性
eg:在数据库系统中,一个事务由一系列的数据库操作组成一个完整的逻辑过程,比如银行转账,从原账户扣除金额,目标账户增加金额
①:atomicity【原子性】
原子性表现为操作不能被分割,那么这二个操作 要么同时完成,要么就全部不完成,若事务出错了,那么事务就会回滚,
好像什么 都 没有发生过
②:Consistency【一致性】
一致性也比较容易理解,也就是说数据库要一直处于一致的状态,事务开始前是一个一致状态,事务结束后是另一个一致状态,
事务将数据库从一个一致状态转移到另一个一致状态
③:Isolation【隔离性】
所谓的独立性就是指并发的事务之间不会互相影响,如果一个事务要访问的数据正在被另外一个事务修改,只要另外一个事务还未提交,它所访问的数据就不受未提交事务的影响。换句话说,一个事务的影响在该事务提交前对其它事务是不可见的
④:Durability【持久性】
若事务已经提交了,那么就回在数据库中永久的保存下来
二 Spring事务三大接口介绍
1 PlatformTransactionManager: (平台)事务管理器
2 TransactionDefinition: 事务定义信息(事务隔离级别、传播行为、超时、只读、回滚规则
3 TransactionStatus: 事务运行状态
2.1 PlatformTransactionManager接口介绍
Spring并不直接管理事务,而是提供了多种事务管理器 ,他们将事务管理的职责委托给Hibernate或者JTA等持久化机制所提供的相关平台框架的事务来实现。
Spring事务管理器的接口是:
org.springframework.transaction.PlatformTransactionManager,
通过这个接口,Spring为各个平台如JDBC、Hibernate等都提供了对应的事务管理器,但是具体的实现就是各个平台自己的事情了。
public interface PlatformTransactionManager {
/**
*获取事务状态
*/
TransactionStatus getTransaction(@Nullable TransactionDefinition definition) throws TransactionException;
/**
*事务提交
*/
void commit(TransactionStatus status) throws TransactionException;
/**
*事务回滚
*/
void rollback(TransactionStatus status) throws TransactionException;
}

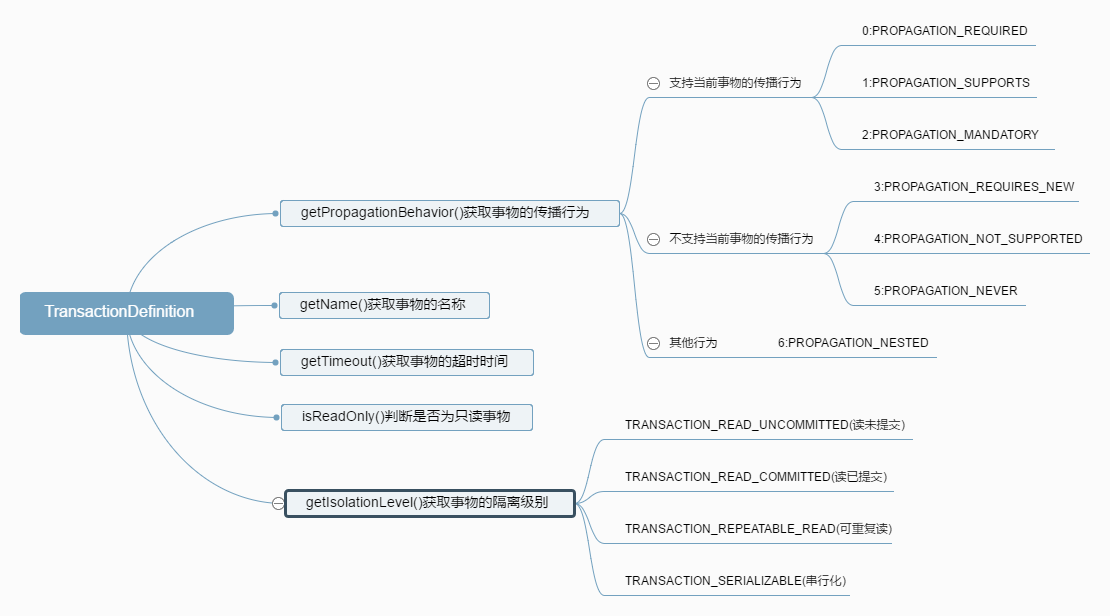

2.2 TransactionDefinition 事务属性的定义
org.springframework.transaction.TransactionDefinition
TransactionDefinition接口中定义了5个方法以及一些表示事务属性的常量比如隔离级别、传播行为等等的常量。
我下面只是列出了TransactionDefinition接口中的方法而没有给出接口中定义的常量,该接口中的常量信息会在后面依次介绍到
public interface TransactionDefinition {
/**
* 支持当前事务,若当前没有事务就创建一个事务
* */
int PROPAGATION_REQUIRED = 0;
/**
* 如果当前存在事务,则加入该事务;如果当前没有事务,则以非事务的方式继续运行
* */
int PROPAGATION_SUPPORTS = 1;
/**
*如果当前存在事务,则加入该事务;如果当前没有事务,则抛出异常
*/
int PROPAGATION_MANDATORY = 2;
/**
*创建一个新的事务,如果当前存在事务,则把当前事务挂起
**/
int PROPAGATION_REQUIRES_NEW = 3;
/**
* 以非事务方式运行,如果当前存在事务,则把当前事务挂起
* */
int PROPAGATION_NOT_SUPPORTED = 4;
/**
* 以非事务方式运行,如果当前存在事务,则抛出异常。
* */
int PROPAGATION_NEVER = 5;
/**
* 表示如果当前正有一个事务在运行中,则该方法应该运行在 一个嵌套的事务中,
被嵌套的事务可以独立于封装事务进行提交或者回滚(保存点),
如果封装事务不存在,行为就像 PROPAGATION_REQUIRES NEW
* */
int PROPAGATION_NESTED = 6;
/**
*使用后端数据库默认的隔离级别,Mysql 默认采用的 REPEATABLE_READ隔离级别 Oracle 默认采用的 READ_COMMITTED隔离级别
*/
int ISOLATION_DEFAULT = -1;
/**
*最低的隔离级别,允许读取尚未提交的数据变更,可能会导致脏读、幻读或不可重复读
*/
int ISOLATION_READ_UNCOMMITTED = Connection.TRANSACTION_READ_UNCOMMITTED;
/**
*允许读取并发事务已经提交的数据,可以阻止脏读,但是幻读或不可重复读仍有可能发生
*/
int ISOLATION_READ_COMMITTED = Connection.TRANSACTION_READ_COMMITTED;
/**
*对同一字段的多次读取结果都是一致的,除非数据是被本身事务自己所修改,可以阻止脏读和不可重复读,但幻读仍有可能发生
*/
int ISOLATION_REPEATABLE_READ = Connection.TRANSACTION_REPEATABLE_READ;
/**
*最高的隔离级别,完全服从ACID的隔离级别。所有的事务依次逐个执行,这样事务之间就完全不可能产生干扰,
* 也就是说,该级别可以防止脏读、不可重复读以及幻读。但是这将严重影响程序的性能通常情况下也不会用到该级别
*/
int ISOLATION_SERIALIZABLE = Connection.TRANSACTION_SERIALIZABLE;
/**
*使用默认的超时时间
*/
int TIMEOUT_DEFAULT = -1;
/**
*获取事务的传播行为
*/
int getPropagationBehavior();
/**
*获取事务的隔离级别
*/
int getIsolationLevel();
/**
*返回事务的超时时间
*/
int getTimeout();
/**
*返回当前是否为只读事务
*/
boolean isReadOnly();
/**
*获取事务的名称
*/
@Nullable
String getName();
}
2.3 TransactionStatus接口介绍
TransactionStatus接口用来记录事务的状态 该接口定义了一组方法,用来获取或判断事务的相应状态信息.
PlatformTransactionManager.getTransaction(…) 方法返回一个 TransactionStatus 对象。返回的TransactionStatus 对象可能代表一个新的或已经存在的事务(如果在当前调用堆栈有一个符合条件的事务
public interface TransactionStatus extends SavepointManager, Flushable {
/**
* 是否为新事务
* */
boolean isNewTransaction();
/**
*是否有保存点
*/
boolean hasSavepoint();
/**
*设置为只回滚
*/
void setRollbackOnly();
/**
*是否为只回滚
*/
boolean isRollbackOnly();
/**
*属性
*/
@Override
void flush();
/**
*判断当前事务是否已经完成
*/
boolean isCompleted();
}

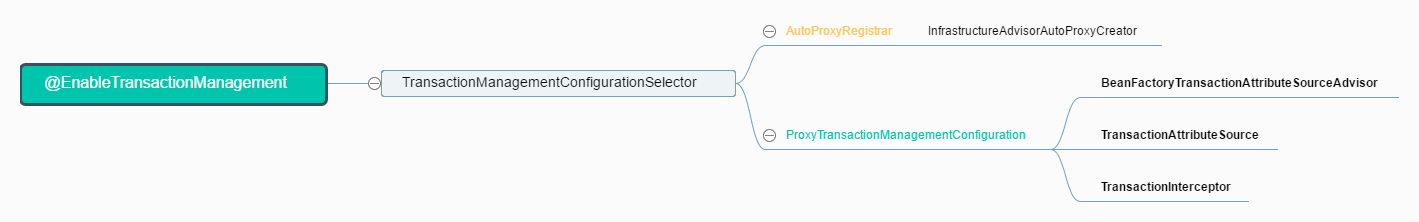

三:我们来分析@EnableTransactionManagement注解来给我们容器加入了什么组件
从源码开始分析注册的组件
3.1 @EnableTransactionManagement开始分析
org.springframework.transaction.annotation.EnableTransactionManagement
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(TransactionManagementConfigurationSelector.class)
public @interface EnableTransactionManagement {
/**
* 指定使用什么代理模式(true为cglib代理,false 为jdk代理)
* */
boolean proxyTargetClass() default false;
/**
* 通知模式 是使用代理模式还是aspectj 我们一般使用Proxy
* */
AdviceMode mode() default AdviceMode.PROXY;
int order() default Ordered.LOWEST_PRECEDENCE;
}
3.2 我们从3.1处的源码可以分析处他通过@Import导入了TransactionManagementConfigurationSelector组件
TransactionManagementConfigurationSelector源码分析
我们可以分析处向容器中导入了二个组件
1)AutoProxyRegistrar
2)ProxyTransactionManagementConfiguration
public class TransactionManagementConfigurationSelector extends AdviceModeImportSelector<EnableTransactionManagement> {
/**
* 往容器中添加组件 1) AutoProxyRegistrar
* 2) ProxyTransactionManagementConfiguration
* */
@Override
protected String[] selectImports(AdviceMode adviceMode) {
switch (adviceMode) { //因为我们配置的默认模式是PROXY
case PROXY:
return new String[] {AutoProxyRegistrar.class.getName(),
ProxyTransactionManagementConfiguration.class.getName()};
case ASPECTJ:
return new String[] {
TransactionManagementConfigUtils.TRANSACTION_ASPECT_CONFIGURATION_CLASS_NAME};
default:
return null;
}
}
}
3.2.1 首先我们来分析AutoProxyRegistrar给我们容器中干了什么?
从源码分析出,AutoProxyRegistrar为我们容器注册了一个InfrastructureAdvisorAutoProxyCreator组件
public class AutoProxyRegistrar implements ImportBeanDefinitionRegistrar {
private final Log logger = LogFactory.getLog(getClass());
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
boolean candidateFound = false;
//从我们传入进去的配置类上获取所有的注解的
Set<String> annoTypes = importingClassMetadata.getAnnotationTypes();
//循环我们上一步获取的注解
for (String annoType : annoTypes) {
//获取注解的元信息
AnnotationAttributes candidate = AnnotationConfigUtils.attributesFor(importingClassMetadata, annoType);
if (candidate == null) {
continue;
}
//获取注解的mode属性
Object mode = candidate.get("mode");
//获取注解的proxyTargetClass
Object proxyTargetClass = candidate.get("proxyTargetClass");
//根据mode和proxyTargetClass的判断来注册不同的组件
if (mode != null && proxyTargetClass != null && AdviceMode.class == mode.getClass() &&
Boolean.class == proxyTargetClass.getClass()) {
candidateFound = true;
if (mode == AdviceMode.PROXY) {
AopConfigUtils.registerAutoProxyCreatorIfNecessary(registry);
if ((Boolean) proxyTargetClass) {
AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
return;
}
}
}
}
}
}
public static BeanDefinition registerAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
return registerAutoProxyCreatorIfNecessary(registry, null);
}
public static BeanDefinition registerAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, Object source) {
return registerOrEscalateApcAsRequired(InfrastructureAdvisorAutoProxyCreator.class, registry, source);
}
private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry, Object source) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
//判断容器中有没有org.springframework.aop.config.internalAutoProxyCreator名字的bean定义,
if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
int requiredPriority = findPriorityForClass(cls);
if (currentPriority < requiredPriority) {
apcDefinition.setBeanClassName(cls.getName());
}
}
return null;
}
//自己注册一个org.springframework.aop.config.internalAutoProxyCreator的组件
RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
beanDefinition.setSource(source);
beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
return beanDefinition;
}
3.2.1.1 我们从3.2.1可以分析出AutoProxyRegistrar会为我们容器中导入了一个叫InfrastructureAdvisorAutoProxyCreator的组件

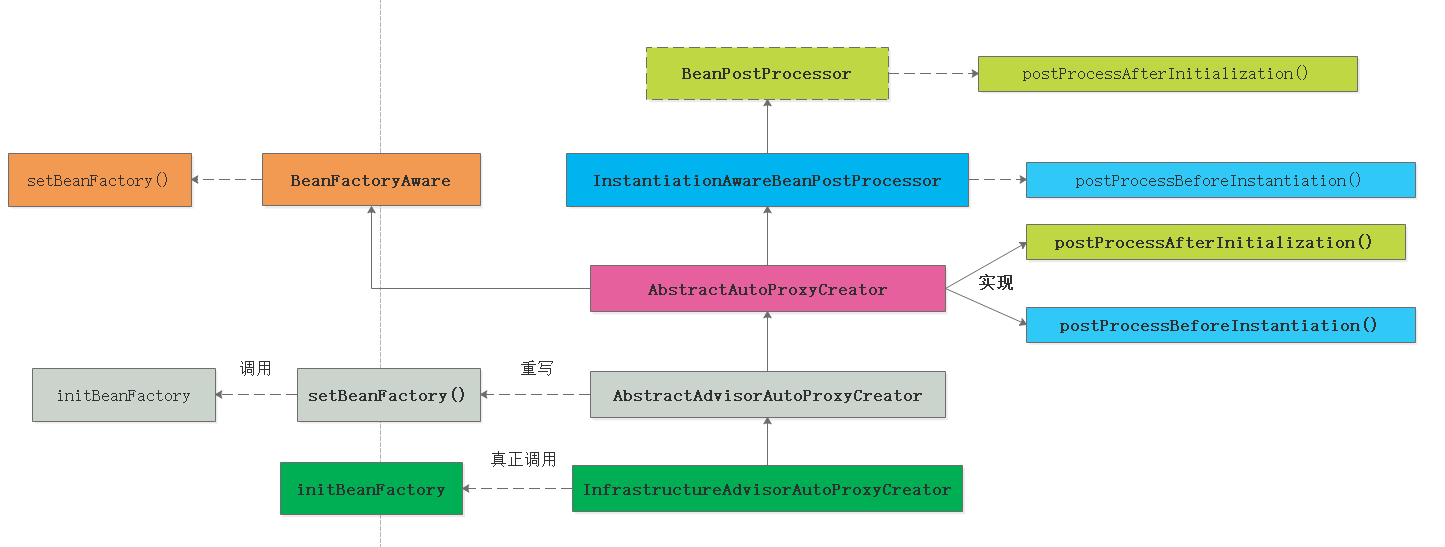

我们来看下InfrastructureAdvisorAutoProxyCreator继承图,有没有一点熟悉的味道?
所以我们来分析InfrastructureAdvisorAutoProxyCreator 实现了如下的接口
①:实现了Aware接口(具体代表 BeanFactoryAware接口)
做了什么事情)
a:把我们的BeanFacotry容器设置到了InfrastructureAdvisorAutoProxyCreator组件中去
b: 创建了一个advisorRetrievalHelper组件 增强器检索工具
AbstractAutoProxyCreator 实现了BeanFactoryAware接口,但是马上又被AbstractAdvisorAutoProxyCreator给重写了;
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator
public void setBeanFactory(BeanFactory beanFactory) {
this.beanFactory = beanFactory;
}
马上又被org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator重写了
public void setBeanFactory(BeanFactory beanFactory) {
super.setBeanFactory(beanFactory);
if (!(beanFactory instanceof ConfigurableListableBeanFactory)) {
throw new IllegalArgumentException(
"AdvisorAutoProxyCreator requires a ConfigurableListableBeanFactory: " + beanFactory);
}
initBeanFactory((ConfigurableListableBeanFactory) beanFactory);
}
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
this.advisorRetrievalHelper = new BeanFactoryAdvisorRetrievalHelperAdapter(beanFactory);
}
但是AbstractAdvisorAutoProxyCreator类的initBeanFactory又被InfrastructureAdvisorAutoProxyCreator重写了
org.springframework.aop.framework.autoproxy.InfrastructureAdvisorAutoProxyCreator
protected void initBeanFactory(ConfigurableListableBeanFactory beanFactory) {
super.initBeanFactory(beanFactory);
this.beanFactory = beanFactory;
}
②:实现了我们的接口 InstantiationAwareBeanPostProcessor类型的后置处理器,为我们容器中做了什么事情
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInitialization
postProcessBeforeInstantiation方法
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
Object cacheKey = getCacheKey(beanClass, beanName);
if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
}
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
// Create proxy here if we have a custom TargetSource.
// Suppresses unnecessary default instantiation of the target bean:
// The TargetSource will handle target instances in a custom fashion.
if (beanName != null) {
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
if (targetSource != null) {
this.targetSourcedBeans.add(beanName);
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
}
return null;
}
postProcessAfterInstantiation方法(没有做任何事情,直接返回)
public boolean postProcessAfterInstantiation(Object bean, String beanName) {
return true;
}
③:实现了我们的接口BeanPostProcessor类型的后置处理器,为我们容器中做了什么事情
postProcessBeforeInitialization方法没有做任何事情,直接返回
public Object postProcessBeforeInitialization(Object bean, String beanName) {
return bean;
}
postProcessAfterInitialization 为我们做了事情
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (!this.earlyProxyReferences.contains(cacheKey)) {
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
3.3 然后我们在来分析一下TransactionManagementConfigurationSelector 为我们还导入了一个类ProxyTransactionManagementConfiguration
@Configuration
public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {
/**
* 为我我们容器中导入了 beanName为org.springframework.transaction.config.internalTransactionAdvisor
* 类型为:BeanFactoryTransactionAttributeSourceAdvisor 的增强器
*
* */
@Bean(name = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor() {
BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();
//设置了事务源属性对象
advisor.setTransactionAttributeSource(transactionAttributeSource());
//设置了事务拦截器对象
advisor.setAdvice(transactionInterceptor());
advisor.setOrder(this.enableTx.<Integer>getNumber("order"));
return advisor;
}
/**
* 定义了一个事务属性源对象
* */
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public TransactionAttributeSource transactionAttributeSource() {
return new AnnotationTransactionAttributeSource();
}
/**
* 事务拦截器对象
*
* */
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public TransactionInterceptor transactionInterceptor() {
TransactionInterceptor interceptor = new TransactionInterceptor();
* 把事务属性源对象设置到我们的事务拦截器对象中
interceptor.setTransactionAttributeSource(transactionAttributeSource());
//把我们容器中的 事务对象配置到事务拦截器中
if (this.txManager != null) {
interceptor.setTransactionManager(this.txManager);
}
return interceptor;
}
}
上诉我们画图总结,下面再将具体的源码分析
四 事务源代码解析流程
4.1 创建源代码过程
我们知道上图分析出,事务创建代理对象最最最主要的是InfrastructureAdvisorAutoProxyCreator这个类型作为
后置处理器为我们创建代理对象,实际上是他的父类AbstractAutoProxyCreator实现了postProcessBeforeInstantiation这个接口
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessBeforeInstantiation
我们分析代码得出,再InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation没有为我们做了什么事情,那么是怎么创建代理对象的了?
public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
Object cacheKey = getCacheKey(beanClass, beanName);
//判断我们的beanName以及是否处理过
if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
if (this.advisedBeans.containsKey(cacheKey)) {
return null;
}
/*
*判断当前的bean是不是基础的bean或者直接跳过,不需要代理的
advice
Pointcut
Advisor
AopInfrastructureBean
**/
if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return null;
}
}
/**
* 判断我们容器中有没有自定义的targetSource 有为我们自动创建对象
* 当时这一步的要求比较高,而且我们正常不会这里创建对象 ...
* */
if (beanName != null) {
TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
if (targetSource != null) {
this.targetSourcedBeans.add(beanName);
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
}
return null;
}
protected TargetSource getCustomTargetSource(Class<?> beanClass, String beanName) {
//容器中必须要包含有个TargetSourceCreators 并且我们的组件也需要实现TargetSource接口
if (this.customTargetSourceCreators != null &&
this.beanFactory != null && this.beanFactory.containsBean(beanName)) {
for (TargetSourceCreator tsc : this.customTargetSourceCreators) {
TargetSource ts = tsc.getTargetSource(beanClass, beanName);
if (ts != null) {
// Found a matching TargetSource.
if (logger.isDebugEnabled()) {
logger.debug("TargetSourceCreator [" + tsc +
"] found custom TargetSource for bean with name '" + beanName + "'");
}
return ts;
}
}
}
return null;
}
4.2 我们知道上图分析出,事务创建代理对象最最最主要的是InfrastructureAdvisorAutoProxyCreator这个类型作为后置处理器为我们创建代理对象,实际上是他的父类AbstractAutoProxyCreator实现了 postProcessAfterInitialization这个接口
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (!this.earlyProxyReferences.contains(cacheKey)) {
//当前对象是否需要包装
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
//判断代理对象再postProcessAfterInitialization接口中是否被处理过
if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
//是否为基础的Bean 或者该对象不应该被调用
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
//找到我们容器中所有的增强器
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
//增强器不为空
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
//创建代理对象
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean(AbstractAutoProxyCreator的子类)
protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, TargetSource targetSource) {
//找到合适的增强器
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
//增强器为空,不需要代理
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
//返回增强器
return advisors.toArray();
}
/*
*找到合适的增强器
**/
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
//找到候选的增强器
List<Advisor> candidateAdvisors = findCandidateAdvisors();
//从候选的中挑选出合适的增强器
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
//增强器进行扩展
extendAdvisors(eligibleAdvisors);
//对增强器进行排序
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}
==========================================findCandidateAdvisors();==================================================
/**
* 找到候选的增强器
* */
protected List<Advisor> findCandidateAdvisors() {
//通过我们我们增强器探测工具找
return this.advisorRetrievalHelper.findAdvisorBeans();
}
org.springframework.aop.framework.autoproxy.BeanFactoryAdvisorRetrievalHelper#findAdvisorBeans
public List<Advisor> findAdvisorBeans() {
//看我们类级别缓存中有没有
String[] advisorNames = this.cachedAdvisorBeanNames;
if (advisorNames == null) {
//去容器中查找实现了我们Advisor接口的实现类 的名称:(org.springframework.transaction.config.internalTransactionAdvisor 类型为BeanFactoryTransactionAttributeSourceAdvisor)
advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this.beanFactory, Advisor.class, true, false);
//放入到缓存中
this.cachedAdvisorBeanNames = advisorNames;
}
if (advisorNames.length == 0) {
return new ArrayList<Advisor>();
}
List<Advisor> advisors = new ArrayList<Advisor>();
//循环我们的增强器
for (String name : advisorNames) {
//判断是不是合适的
if (isEligibleBean(name)) {
//当前的增强器是不是正在创建的
if (this.beanFactory.isCurrentlyInCreation(name)) {
if (logger.isDebugEnabled()) {
logger.debug("Skipping currently created advisor '" + name + "'");
}
}
else {
try {
//通过getBean的显示调用获取BeanFactoryTransactionAttributeSourceAdvisor 组件
advisors.add(this.beanFactory.getBean(name, Advisor.class));
}
catch (BeanCreationException ex) {
Throwable rootCause = ex.getMostSpecificCause();
if (rootCause instanceof BeanCurrentlyInCreationException) {
BeanCreationException bce = (BeanCreationException) rootCause;
if (this.beanFactory.isCurrentlyInCreation(bce.getBeanName())) {
if (logger.isDebugEnabled()) {
logger.debug("Skipping advisor '" + name +
"' with dependency on currently created bean: " + ex.getMessage());
}
// Ignore: indicates a reference back to the bean we're trying to advise.
// We want to find advisors other than the currently created bean itself.
continue;
}
}
throw ex;
}
}
}
}
return advisors;
}
/**
* 判断包含是否为合适的最终逻辑
* 容器中的bean定义包含当前的增强器的bean定义,且bean的role是int ROLE_INFRASTRUCTURE = 2;
* */
protected boolean isEligibleAdvisorBean(String beanName) {
return (this.beanFactory.containsBeanDefinition(beanName) &&
this.beanFactory.getBeanDefinition(beanName).getRole() == BeanDefinition.ROLE_INFRASTRUCTURE);
}
================================================ findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);===============================
protected List<Advisor> findAdvisorsThatCanApply(
List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
ProxyCreationContext.setCurrentProxiedBeanName(beanName);
try {
//真正的去候选的增强器中找到当前能用的增强器
return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
}
finally {
ProxyCreationContext.setCurrentProxiedBeanName(null);
}
}
org.springframework.aop.support.AopUtils#findAdvisorsThatCanApply
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
//若传入进来的候选增强器为空直接返回
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
}
//创建一个本类能用的增前期集合
List<Advisor> eligibleAdvisors = new LinkedList<Advisor>();
//循环候选的增强器
for (Advisor candidate : candidateAdvisors) {
//判断增强器是不是实现了IntroductionAdvisor 很明显没实现该接口
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
}
}
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor) {
// already processed
continue;
}
//正在找出能用的增强器
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}
/**
* 判断当前增强器是否为本来能用的
* */
public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
//根据类的继承图 发现 BeanFactoryTransactionAttributeSourceAdvisor没实现IntroductionAdvisor接口
if (advisor instanceof IntroductionAdvisor) {
return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
}
//BeanFactoryTransactionAttributeSourceAdvisor实现了PointcutAdvisor接口
else if (advisor instanceof PointcutAdvisor) {
//强制转换为PointcutAdvisor
PointcutAdvisor pca = (PointcutAdvisor) advisor;
return canApply(pca.getPointcut(), targetClass, hasIntroductions);
}
else {
// It doesn't have a pointcut so we assume it applies.
return true;
}
}
/**
* 判断当前增强器是否为本来能用的
* */
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
Assert.notNull(pc, "Pointcut must not be null");
if (!pc.getClassFilter().matches(targetClass)) {
return false;
}
/**
* 获取切点中的方法匹配器 TransactionAttributeSourcePointcut
* 该切点在创建BeanFactoryTransactionAttributeSourceAdvisor的时候 创建了切点TransactionAttributeSourcePointcut
* */
MethodMatcher methodMatcher = pc.getMethodMatcher();
if (methodMatcher == MethodMatcher.TRUE) {
// No need to iterate the methods if we're matching any method anyway...
return true;
}
/**
* 判断方法匹配器是不是IntroductionAwareMethodMatcher
* */
IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
}
//获取当前类的实现接口类型
Set<Class<?>> classes = new LinkedHashSet<Class<?>>(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
classes.add(targetClass);
//循环上一步的接口类型
for (Class<?> clazz : classes) {
//获取接口的所有方法
Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
//循环我们接口中的方法
for (Method method : methods) {
//正在进行匹配的是methodMatcher.matches(method, targetClass)这个逻辑
if ((introductionAwareMethodMatcher != null &&introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) ||
methodMatcher.matches(method, targetClass)) {
return true;
}
}
}
return false;
}
org.springframework.transaction.interceptor.TransactionAttributeSourcePointcut#matches
public boolean matches(Method method, Class<?> targetClass) {
if (targetClass != null && TransactionalProxy.class.isAssignableFrom(targetClass)) {
return false;
}
//获取我们的事务源对象(在ProxyTransactionManagementConfiguration配置类配置的这里获取)
TransactionAttributeSource tas = getTransactionAttributeSource();
//从事务源对象中获取事务属性
return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
}
/**
* 获取事务属性对象
* */
public TransactionAttribute getTransactionAttribute(Method method, Class<?> targetClass) {
if (method.getDeclaringClass() == Object.class) {
return null;
}
//通过目标类和目标类的接口方法 拼接缓存key
Object cacheKey = getCacheKey(method, targetClass);
//去缓存中获取
TransactionAttribute cached = this.attributeCache.get(cacheKey);
if (cached != null) {
//缓存中有 直接返回就可以了
if (cached == NULL_TRANSACTION_ATTRIBUTE) {
return null;
}
else {
return cached;
}
}
else {
//计算事务属性.
TransactionAttribute txAttr = computeTransactionAttribute(method, targetClass);
//若事务属性为空.
if (txAttr == null) {
//在缓存中标识 为事务方法
this.attributeCache.put(cacheKey, NULL_TRANSACTION_ATTRIBUTE);
}
else {
String methodIdentification = ClassUtils.getQualifiedMethodName(method, targetClass);
//为事务属性设置方法描述符号
if (txAttr instanceof DefaultTransactionAttribute) {
((DefaultTransactionAttribute) txAttr).setDescriptor(methodIdentification);
}
if (logger.isDebugEnabled()) {
logger.debug("Adding transactional method '" + methodIdentification + "' with attribute: " + txAttr);
}
//加入到缓存
this.attributeCache.put(cacheKey, txAttr);
}
return txAttr;
}
}
/**
* 计算事务属性
* */
protected TransactionAttribute computeTransactionAttribute(Method method, Class<?> targetClass) {
//判断方法的修饰夫
if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
return null;
}
//忽略cglib的代理
Class<?> userClass = ClassUtils.getUserClass(targetClass);
/**
* method为接口中的方法,specificMethod为我们实现类方法
* */
Method specificMethod = ClassUtils.getMostSpecificMethod(method, userClass);
// If we are dealing with method with generic parameters, find the original method.
specificMethod = BridgeMethodResolver.findBridgedMethod(specificMethod);
// 找我们【实现类】中的【方法】上的事务属性
TransactionAttribute txAttr = findTransactionAttribute(specificMethod);
if (txAttr != null) {
return txAttr;
}
//【方法所在类】上有没有事务属性
txAttr = findTransactionAttribute(specificMethod.getDeclaringClass());
if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
return txAttr;
}
//【接口上的指定的方法】
if (specificMethod != method) {
// Fallback is to look at the original method.
txAttr = findTransactionAttribute(method);
if (txAttr != null) {
return txAttr;
}
【接口上】
txAttr = findTransactionAttribute(method.getDeclaringClass());
if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
return txAttr;
}
}
return null;
}
/**
* 从方法上找事务属性对象
* */
protected TransactionAttribute findTransactionAttribute(Method method) {
return determineTransactionAttribute(method);
}
protected TransactionAttribute determineTransactionAttribute(AnnotatedElement element) {
//获取方法上的注解
if (element.getAnnotations().length > 0) {
//事务注解解析器
for (TransactionAnnotationParser annotationParser : this.annotationParsers) {
//解析我们的注解
TransactionAttribute attr = annotationParser.parseTransactionAnnotation(element);
if (attr != null) {
return attr;
}
}
}
return null;
}
/**
* 解析事务注解
* */
public TransactionAttribute parseTransactionAnnotation(AnnotatedElement element) {
//解析@Transactional属性对象
AnnotationAttributes attributes = AnnotatedElementUtils.getMergedAnnotationAttributes(
element, Transactional.class);
if (attributes != null) {
//真正的解析@Transactional属性
return parseTransactionAnnotation(attributes);
}
else {
return null;
}
}
/**
* 解析事务注解
* */
protected TransactionAttribute parseTransactionAnnotation(AnnotationAttributes attributes) {
RuleBasedTransactionAttribute rbta = new RuleBasedTransactionAttribute();
//传播行为
Propagation propagation = attributes.getEnum("propagation");
rbta.setPropagationBehavior(propagation.value());
//隔离级别
Isolation isolation = attributes.getEnum("isolation");
rbta.setIsolationLevel(isolation.value());
//事务超时
rbta.setTimeout(attributes.getNumber("timeout").intValue());
//判断是否为只读事务
rbta.setReadOnly(attributes.getBoolean("readOnly"));
//事务的名称吧
rbta.setQualifier(attributes.getString("value"));
List<RollbackRuleAttribute> rollbackRules = new ArrayList<RollbackRuleAttribute>();
//事务回滚规则
for (Class<?> rbRule : attributes.getClassArray("rollbackFor")) {
rollbackRules.add(new RollbackRuleAttribute(rbRule));
}
//对哪个类进行回滚
for (String rbRule : attributes.getStringArray("rollbackForClassName")) {
rollbackRules.add(new RollbackRuleAttribute(rbRule));
}
//对哪些异常不回滚
for (Class<?> rbRule : attributes.getClassArray("noRollbackFor")) {
rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
}
//对哪些类不回滚
for (String rbRule : attributes.getStringArray("noRollbackForClassName")) {
rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
}
rbta.setRollbackRules(rollbackRules);
return rbta;
}
4.2.1 真正的创建代理对象org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#createProxy
protected Object createProxy(
Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) {
//暴露代理对象
if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
}
//创建代理工厂
ProxyFactory proxyFactory = new ProxyFactory();
proxyFactory.copyFrom(this);
//判断是cglib代理还是jdk代理
if (!proxyFactory.isProxyTargetClass()) {
if (shouldProxyTargetClass(beanClass, beanName)) {
proxyFactory.setProxyTargetClass(true);
}
else {
evaluateProxyInterfaces(beanClass, proxyFactory);
}
}
//把合适的拦截器转为增强器
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
proxyFactory.addAdvisors(advisors);
proxyFactory.setTargetSource(targetSource);
customizeProxyFactory(proxyFactory);
proxyFactory.setFrozen(this.freezeProxy);
if (advisorsPreFiltered()) {
proxyFactory.setPreFiltered(true);
}
//真正的创建代理对象
return proxyFactory.getProxy(getProxyClassLoader());
}
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
Class<?> targetClass = config.getTargetClass();
if (targetClass == null) {
throw new AopConfigException("TargetSource cannot determine target class: " +
"Either an interface or a target is required for proxy creation.");
}
//标识的是接口或者
if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
return new JdkDynamicAopProxy(config);
}
//创建cglib接口
return new ObjenesisCglibAopProxy(config);
}
else {
创建jdk代理
return new JdkDynamicAopProxy(config);
}
}
public Object getProxy(ClassLoader classLoader) {
if (logger.isDebugEnabled()) {
logger.debug("Creating JDK dynamic proxy: target source is " + this.advised.getTargetSource());
}
Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true);
findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
}
五 代理对象调用流程
详情请见 事务代理对象调用流程图.eddx
5.1 org.springframework.aop.framework.JdkDynamicAopProxy#invoke
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
MethodInvocation invocation;
Object oldProxy = null;
boolean setProxyContext = false;
TargetSource targetSource = this.advised.targetSource;
Class<?> targetClass = null;
Object target = null;
try {
Object retVal;
//暴露代理对象
if (this.advised.exposeProxy) {
// Make invocation available if necessary.
oldProxy = AopContext.setCurrentProxy(proxy);
setProxyContext = true;
}
// May be null. Get as late as possible to minimize the time we "own" the target,
// in case it comes from a pool.
target = targetSource.getTarget();
if (target != null) {
targetClass = target.getClass();
}
//把增强器转为方法拦截器链条
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
//拦截器链为空,直接通过反射进行调用
if (chain.isEmpty()) {
//通过反射进行调用
Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
}
else {
//创建反射方法调用对象
invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
//通过方法拦截器进行拦截调用
retVal = invocation.proceed();
}
// Massage return value if necessary.
Class<?> returnType = method.getReturnType();
if (retVal != null && retVal == target &&
returnType != Object.class && returnType.isInstance(proxy) &&
!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
// Special case: it returned "this" and the return type of the method
// is type-compatible. Note that we can't help if the target sets
// a reference to itself in another returned object.
retVal = proxy;
}
else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
throw new AopInvocationException(
"Null return value from advice does not match primitive return type for: " + method);
}
return retVal;
}
finally {
if (target != null && !targetSource.isStatic()) {
// Must have come from TargetSource.
targetSource.releaseTarget(target);
}
if (setProxyContext) {
// Restore old proxy.
AopContext.setCurrentProxy(oldProxy);
}
}
}
5.2 org.springframework.aop.framework.ReflectiveMethodInvocation#proceed
public Object proceed() throws Throwable {
//当前下标从-1开始,若当前索引值=执行到最后一个拦截器的下标,就执行目标方法
if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
return invokeJoinpoint();
}
//获取我们的方法拦截器(TransactionInterceptor)
Object interceptorOrInterceptionAdvice =
this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
// Evaluate dynamic method matcher here: static part will already have
// been evaluated and found to match.
InterceptorAndDynamicMethodMatcher dm =
(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
if (dm.methodMatcher.matches(this.method, this.targetClass, this.arguments)) {
return dm.interceptor.invoke(this);
}
else {
// Dynamic matching failed.
// Skip this interceptor and invoke the next in the chain.
return proceed();
}
}
else {
//事务拦截器进行调用
return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
}
}

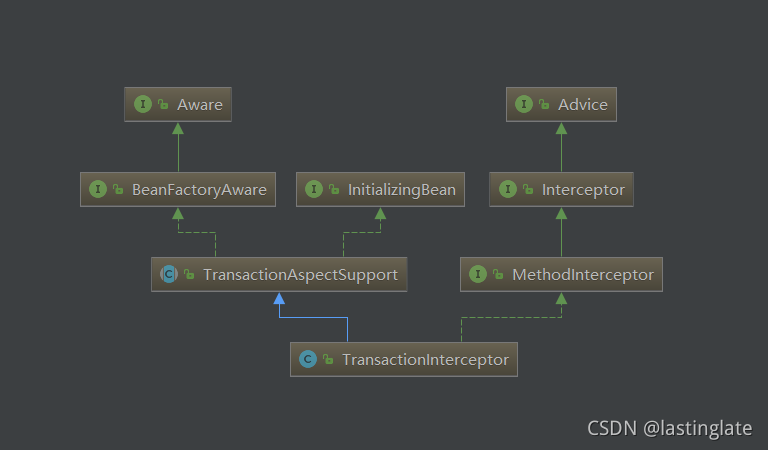

org.springframework.transaction.interceptor.TransactionInterceptor#invoke(事务拦截器进行调用)
public Object invoke(final MethodInvocation invocation) throws Throwable {
//获取代理对象的目标class
Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);
//使用事务调用
return invokeWithinTransaction(invocation.getMethod(), targetClass, new InvocationCallback() {
//从这里触发调用目标方法的
public Object proceedWithInvocation() throws Throwable {
return invocation.proceed();
}
});
}
5.3 org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction(事务调用)
事物流程简图
protected Object invokeWithinTransaction(Method method, Class<?> targetClass, final InvocationCallback invocation)
throws Throwable {
//通过@EnableTransactionManager 到入了TransactionAttributeSource 可以获取出事务属性对象
final TransactionAttribute txAttr = getTransactionAttributeSource().getTransactionAttribute(method, targetClass);
//获取工程中的事务管理器
final PlatformTransactionManager tm = determineTransactionManager(txAttr);
//获取我们需要切入的方法(也就是我们标识了@Transactional注解的方法)
final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
//再这里我们只看我们常用的事务管理器,很明显我们不会配置CallbackPreferringPlatformTransactionManager事务管理器
if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
//判断有没有必要开启事务
TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
Object retVal = null;
try {
//调用我们的目标方法
retVal = invocation.proceedWithInvocation();
}
catch (Throwable ex) {
//抛出异常进行回顾
completeTransactionAfterThrowing(txInfo, ex);
throw ex;
}
finally {
//清除事务信息
cleanupTransactionInfo(txInfo);
}
//提交事务
commitTransactionAfterReturning(txInfo);
return retVal;
}
}
5.3.1 org.springframework.transaction.interceptor.TransactionAspectSupport#createTransactionIfNecessary
protected TransactionInfo createTransactionIfNecessary(
PlatformTransactionManager tm, TransactionAttribute txAttr, final String joinpointIdentification) {
//把事务属性包装为
if (txAttr != null && txAttr.getName() == null) {
txAttr = new DelegatingTransactionAttribute(txAttr) {
@Override
public String getName() {
return joinpointIdentification;
}
};
}
TransactionStatus status = null;
if (txAttr != null) {
if (tm != null) {
//获取一个事务状态
status = tm.getTransaction(txAttr);
}
else {
if (logger.isDebugEnabled()) {
logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
"] because no transaction manager has been configured");
}
}
}
//准备事务信息
return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
}
5.3.2 org.springframework.transaction.support.AbstractPlatformTransactionManager#getTransaction
public final TransactionStatus getTransaction(TransactionDefinition definition) throws TransactionException {
1:)先去尝试开启一个事务
Object transaction = doGetTransaction();
// Cache debug flag to avoid repeated checks.
boolean debugEnabled = logger.isDebugEnabled();
//传入进来的事务定义为空
if (definition == null) {
//使用系统默认的
definition = new DefaultTransactionDefinition();
}
2:)//判断是否存在事务(若存在事务,在这边直接返回不走下面的处理了)
if (isExistingTransaction(transaction)) {
// Existing transaction found -> check propagation behavior to find out how to behave.
return handleExistingTransaction(definition, transaction, debugEnabled);
}
3:)判读事务超时
if (definition.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
throw new InvalidTimeoutException("Invalid transaction timeout", definition.getTimeout());
}
//不存在事务,需要在这边判断(PROPAGATION_MANDATORY 标识要求当前允许的在事务中,但是第二步进行判断之后 说明这里没有事务)
if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
throw new IllegalTransactionStateException(
"No existing transaction found for transaction marked with propagation 'mandatory'");
}
//PROPAGATION_REQUIRED
//PROPAGATION_REQUIRES_NEW
//PROPAGATION_NESTED
else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
//挂起当前事务,但是当前是没有事务的
SuspendedResourcesHolder suspendedResources = suspend(null);
if (debugEnabled) {
logger.debug("Creating new transaction with name [" + definition.getName() + "]: " + definition);
}
try {
boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
//创建一个新的事务状态
DefaultTransactionStatus status = newTransactionStatus(
definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
//开启一个事务
doBegin(transaction, definition);
//准备事务同步
prepareSynchronization(status, definition);
return status;
}
catch (RuntimeException ex) {
resume(null, suspendedResources);
throw ex;
}
catch (Error err) {
resume(null, suspendedResources);
throw err;
}
}
else {
//创建一个空的事务.
if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
logger.warn("Custom isolation level specified but no actual transaction initiated; " +
"isolation level will effectively be ignored: " + definition);
}
boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
return prepareTransactionStatus(definition, null, true, newSynchronization, debugEnabled, null);
}
}
================================================代码1处中的代码============================================
/**
* 第一次进来的时候,是没有事务持有对象
* */
protected Object doGetTransaction() {
//创建一个数据库事务管理器
DataSourceTransactionObject txObject = new DataSourceTransactionObject();
//设置一个事务保存点
txObject.setSavepointAllowed(isNestedTransactionAllowed());
//从事务同步管理器中获取连接持有器
ConnectionHolder conHolder =
(ConnectionHolder) TransactionSynchronizationManager.getResource(this.dataSource);
//把持有器设置到对象中
txObject.setConnectionHolder(conHolder, false);
//返回一个事务对象
return txObject;
}
//第一次进来不会走这个逻辑
protected boolean isExistingTransaction(Object transaction) {
//获取事务对象中的持有器
DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
//持有器不为空且 有事务激活
return (txObject.hasConnectionHolder() && txObject.getConnectionHolder().isTransactionActive());
}
=====================handleExistingTransaction================================
/**
* 第一次调用的时候
* */
protected void doBegin(Object transaction, TransactionDefinition definition) {
DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
Connection con = null;
try {
//第一次进来,事务持有器中是没有对象的,所以我们需要自己手动的设置进去
if (!txObject.hasConnectionHolder() ||
txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
//获取一个数据库连接
Connection newCon = this.dataSource.getConnection();
if (logger.isDebugEnabled()) {
logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");
}
//把数据库连接封装为一个持有器对象并且设置到事务对象中
txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
}
/开始同步标志
txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
con = txObject.getConnectionHolder().getConnection();
//获取事务的隔离级别
Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
txObject.setPreviousIsolationLevel(previousIsolationLevel);
/**
* 关闭事务自动提交
* */
if (con.getAutoCommit()) {
txObject.setMustRestoreAutoCommit(true);
if (logger.isDebugEnabled()) {
logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
}
con.setAutoCommit(false);
}
//判断事务是不是为只读的事务
prepareTransactionalConnection(con, definition);
//设置事务激活
txObject.getConnectionHolder().setTransactionActive(true);
int timeout = determineTimeout(definition);
if (timeout != TransactionDefinition.TIMEOUT_DEFAULT) {
txObject.getConnectionHolder().setTimeoutInSeconds(timeout);
}
//把数据源和事务持有器保存到事务同步管理器中
if (txObject.isNewConnectionHolder()) {
TransactionSynchronizationManager.bindResource(getDataSource(), txObject.getConnectionHolder());
}
}
catch (Throwable ex) {
if (txObject.isNewConnectionHolder()) {
//抛出异常,释放资源
DataSourceUtils.releaseConnection(con, this.dataSource);
txObject.setConnectionHolder(null, false);
}
throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", ex);
}
}
========================== prepareSynchronization(status, definition);把当前的事务设置到同步管理器中(为下次准备)===========================
protected void prepareSynchronization(DefaultTransactionStatus status, TransactionDefinition definition) {
if (status.isNewSynchronization()) {
//设置事务激活
TransactionSynchronizationManager.setActualTransactionActive(status.hasTransaction());
//设置隔离级别
TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(
definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT ?
definition.getIsolationLevel() : null);
//设置只读书屋
ransactionSynchronizationManager.setCurrentTransactionReadOnly(definition.isReadOnly());
//设置事务的名称
TransactionSynchronizationManager.setCurrentTransactionName(definition.getName());
TransactionSynchronizationManager.initSynchronization();
}
}
=================================== //准备事务信息 prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
protected TransactionInfo prepareTransactionInfo(PlatformTransactionManager tm,
TransactionAttribute txAttr, String joinpointIdentification, TransactionStatus status) {
//把事务管理器,事务属性,连接点信息封装成为TransactionInfo
TransactionInfo txInfo = new TransactionInfo(tm, txAttr, joinpointIdentification);
if (txAttr != null) {
// We need a transaction for this method...
if (logger.isTraceEnabled()) {
logger.trace("Getting transaction for [" + txInfo.getJoinpointIdentification() + "]");
}
//设置事务状态
txInfo.newTransactionStatus(status);
}
else {
// The TransactionInfo.hasTransaction() method will return false. We created it only
// to preserve the integrity of the ThreadLocal stack maintained in this class.
if (logger.isTraceEnabled())
logger.trace("Don't need to create transaction for [" + joinpointIdentification +
"]: This method isn't transactional.");
}
//把事务信息绑定到当前线程上去
txInfo.bindToThread();
return txInfo;
}
