Cd flume2.1.2 安装部署
(1)将 apache-flume-1.9.0-bin.tar.gz 上传到 linux 的/export/software 目录下
(2)解压 apache-flume-1.9.0-bin.tar.gz 到/opt/module/目录下
[atguigu@hadoop102 software]$ tar -zxvf /export/software/apacheflume-1.9.0-bin.tar.gz -C /export/server/
(3)修改 apache-flume-1.9.0-bin 的名称为 flume
[atguigu@hadoop102 module]$ mv /export/server/apache-flume-1.9.0-bin
/export/server/flume
(4)将 lib 文件夹下的 guava-11.0.2.jar 删除以兼容 Hadoop 3.1.3
[atguigu@hadoop102 lib]$ rm /export/server/flume/lib/guava-11.0.2.jar
5)配置环境变量
vim /etc/profile
保存退出后,刷新profile
source /etc/profile
mv
6、验证版本
#查看版本在flume下的bin目录下查看
[root@hadoop bin]# ./flume-ng version
flume-ng flume-ng.cmd flume-ng.ps1<strong>
</strong>
出现以下信息,表示安装成功
Flume 1.6.0
Source code repository: https://git-wip-us.apache.org/repos/asf/flume.git
Revision: 2561a23240a71ba20bf288c7c2cda88f443c2080
Compiled by hshreedharan on Mon May 11 11:15:44 PDT 2015
From source with checksum b29e416802ce9ece3269d34233baf43f
7,修改配置文件
/flume/conf目录下:
1.flume-env.sh.template
修改flume-env.sh.template重命名为flume-env.sh;
mv flume-env.sh.template flume-env.sh
2.cd flume-env.sh

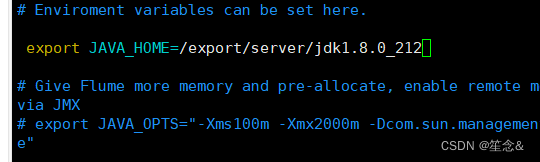

修改java环境变量为:
export JAVA_HOME=/export/server/jdk1.8.0_212
Source flume-env.sh
9.flume监听验证

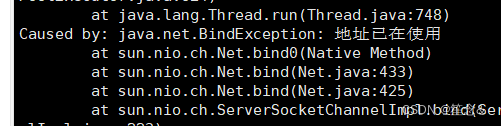

如果显示使用jps后查看进程号。然后kill -9 删除该进程
1、检查telnet是否已安装:
rpm -qa telnet
2、有输出说明已安装,如果没有输出则没有安装,使用yum install telnet进行安装
3、检查telnet-server是否已安装:
rpm -qa telnet-server
有输出说明已安装,如果没有输出则没有安装,使用yum install telnet-server进行安装
4、如果进行了telnet-server安装操作,且已成功安装,则由于telnet服务是由xinetd守护的,所以我们需要重新启动xinetd
service xinetd restart
5、如果报错:Redirecting to /bin/systemctl restart xinetd.service
1)首先,检查服务器已安装的tftp-server
使用命令:rpm -qa | grep tftp-server
如果存在已安装的tftp这里会列出来
2)安装tftp-server 和 xinetd
使用如下的命令,进行相应服务的安装:
$yum -y install tftp-server
$yum -y install xinetd
3)修改tftp配置文件
使用如下命令:
$vi /etc/xinetd.d/tftp 打开配置文件
service tftp
{
socket_type = dgram
protocol = udp
wait = yes
user = root
server = /usr/sbin/in.tftpd
server_args = -s /var/lib/tftpboot
disable = no //需要修改的地方,初始时刻为yes
per_source = 11
cps = 100 2
flags = IPv4
}
4)重起服务
使用如下命令进行服务的重新启动
$/bin/systemctl restart xinetd.service
如果没有效果,使用如下命令
$/bin/systemctl enable xinetd.service //开启服务
$/bin/systemctl start xinetd.service //启动服务
查看服务启动状况
$ps aux | grep xinetd 或者 $ps -ef|grep xinetd 或者 ps -a | grep tftp
5)可能出现的问题
5.1)在启动 xinetd.service 时提示
Redirecting to /bin/systemctl restart xinetd.service
Failed to issue method call: Unit xinetd.service failed to load: No such file or directory.
说明系统没有安装 xinetd,需要使用 yum -y instal xinetd.service进行服务的安装
5.2)在启动xinetd.service时出现:
Redirecting to /bin/systemctl restart xinetd.service
可能启动的命令是systemctl restart xinetd.service
以上是我安装tftp的步骤及遇到的一些问题,可能读者这自己安装的过程中有其它的一些问题,但是问题应该不大
6)xinetd启动成功,可以查看xinetd的运行情况
netstat -tnlp
/创建一个Flume配置文件
$ cd flume/
$ mkdir example
$ cp conf/flume-conf.properties.template example/netcat.conf
进入到/home/hadoop/flume/example/ 下的netcat.conf 文件进行修改
$ cd /home/hadoop/flume/example/
$ vi netcat.conf
修改如下( 配置netcat.conf用于实时获取另一终端输入的数据):
# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1
# Describe/configure the source
a1.sources.r1.type = netcat
a1.sources.r1.bind =master
a1.sources.r1.port = 4444
# Describe the sink
a1.sinks.k1.type = logger
# Use a channel that buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
运行FlumeAgent,监听本机的44444端口
flume-ng agent -c conf -f netcat.conf -n a1 -Dflume.root.logger=INFO,console

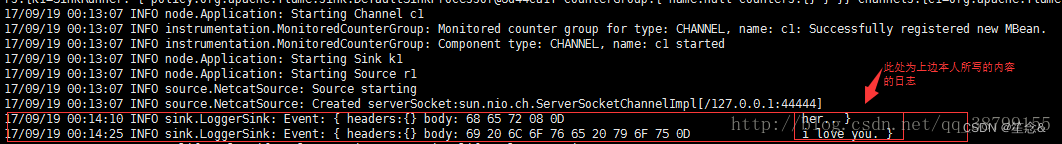

效果如图所示:
打开另一终端,通过telnet登录localhost的44444,输入测试数据
$ telnet localhost 44444
如图所示,证明启动成功
查看flume收集数据情况
Flume简单案例
采集需求:服务器的某特定目录下,会不断产生新的文件,每当有新文件出现,就需要把文件采集到HDFS中去
根据需求,首先定义以下3大要素
- 采集源,即source——监控文件目录 : spooldir
- 下沉目标,即sink——HDFS文件系统 : hdfs sink
- source和sink之间的传递通道——channel,可用file channel 也可以用内存channel
配置文件编写:
# Name the components on this agent a1.sources = r1 a1.sinks = k1 a1.channels = c1 # Describe/configure the source ##注意:不能往监控目中重复丢同名文件 a1.sources.r1.type = spooldir a1.sources.r1.spoolDir = /root/logs a1.sources.r1.fileHeader = true # Describe the sink a1.sinks.k1.type = hdfs a1.sinks.k1.hdfs.path = /flume/events/%y-%m-%d/%H%M/ a1.sinks.k1.hdfs.filePrefix = events- a1.sinks.k1.hdfs.round = true a1.sinks.k1.hdfs.roundValue = 10 a1.sinks.k1.hdfs.roundUnit = minute a1.sinks.k1.hdfs.rollInterval = 3 a1.sinks.k1.hdfs.rollSize = 20 a1.sinks.k1.hdfs.rollCount = 5 a1.sinks.k1.hdfs.batchSize = 1 a1.sinks.k1.hdfs.useLocalTimeStamp = true #生成的文件类型,默认是Sequencefile,可用DataStream,则为普通文本 a1.sinks.k1.hdfs.fileType = DataStream # Use a channel which buffers events in memory a1.channels.c1.type = memory a1.channels.c1.capacity = 1000 a1.channels.c1.transactionCapacity = 100 # Bind the source and sink to the channel a1.sources.r1.channels = c1 a1.sinks.k1.channel = c1 |
Channel参数解释:
capacity:默认该通道中最大的可以存储的event数量
trasactionCapacity:每次最大可以从source中拿到或者送到sink中的event数量
采集需求:比如业务系统使用log4j生成的日志,日志内容不断增加,需要把追加到日志文件中的数据实时采集到hdfs
根据需求,首先定义以下3大要素
- 采集源,即source——监控文件内容更新 : exec ‘tail -F file’
- 下沉目标,即sink——HDFS文件系统 : hdfs sink
- Source和sink之间的传递通道——channel,可用file channel 也可以用 内存channel
配置文件编写:
# Name the components on this agent
a1.sources = r1
a1.sinks = k1
a1.channels = c1
# Describe/configure the source
a1.sources.r1.type = exec
a1.sources.r1.command = tail -F /root/logs/test.log
a1.sources.r1.channels = c1
# Describe the sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path = /flume/tailout/%y-%m-%d/%H%M/
a1.sinks.k1.hdfs.filePrefix = events-
a1.sinks.k1.hdfs.round = true
a1.sinks.k1.hdfs.roundValue = 10
a1.sinks.k1.hdfs.roundUnit = minute
a1.sinks.k1.hdfs.rollInterval = 3
a1.sinks.k1.hdfs.rollSize = 20
a1.sinks.k1.hdfs.rollCount = 5
a1.sinks.k1.hdfs.batchSize = 1
a1.sinks.k1.hdfs.useLocalTimeStamp = true
#生成的文件类型,默认是Sequencefile,可用DataStream,则为普通文本
a1.sinks.k1.hdfs.fileType = DataStream
# Use a channel which buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
参数解析:
- rollInterval
默认值:30
hdfs sink间隔多长将临时文件滚动成最终目标文件,单位:秒;
如果设置成0,则表示不根据时间来滚动文件;
注:滚动(roll)指的是,hdfs sink将临时文件重命名成最终目标文件,并新打开一个临时文件来写入数据;
- rollSize
默认值:1024
当临时文件达到该大小(单位:bytes)时,滚动成目标文件;
如果设置成0,则表示不根据临时文件大小来滚动文件;
- rollCount
默认值:10
当events数据达到该数量时候,将临时文件滚动成目标文件;
如果设置成0,则表示不根据events数据来滚动文件;
- round
默认值:false
是否启用时间上的“舍弃”,这里的“舍弃”,类似于“四舍五入”。
- roundValue
默认值:1
时间上进行“舍弃”的值;
- roundUnit
默认值:seconds
时间上进行“舍弃”的单位,包含:second,minute,hour
示例:
a1.sinks.k1.hdfs.path = /flume/events/%y-%m-%d/%H%M/%S
a1.sinks.k1.hdfs.round = true
a1.sinks.k1.hdfs.roundValue = 10
a1.sinks.k1.hdfs.roundUnit = minute
当时间为2015-10-16 17:38:59时候,hdfs.path依然会被解析为:
/flume/events/20151016/17:30/00
因为设置的是舍弃10分钟内的时间,因此,该目录每10分钟新生成一个。
