引言：笔者在工作过程中，用户上报某某市信息科技学业水平测试软件在云电脑上打开初始化的情况下出现了加载和绑定机器失败的问题。一般情况下，在实体机上用户进行登录后，用户的账号信息跟主机的机器码进行绑定然后保存到配置文件，等下次再次登录的时候就可以不用再次输入用户账户信息的情况下完成自动登录。但是用户反馈在我们的云电脑上出现了无法完成自动登录的情况。

解决过程：

用dbgx64.exe对该软件进行逆向调试分析（这里过程复杂，不具体罗列），发现该软件是用vb写的程序，并最后调试并发现该软件获取机器序列号的函数，该软件是通过DeviceIoControl这个Api来获取机器的序列号的，通过hook该Api发现该软件会调用三次DeviceIoControl这个api来获取机器码。到底要hook哪一次的调用呢。

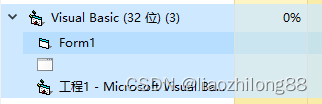

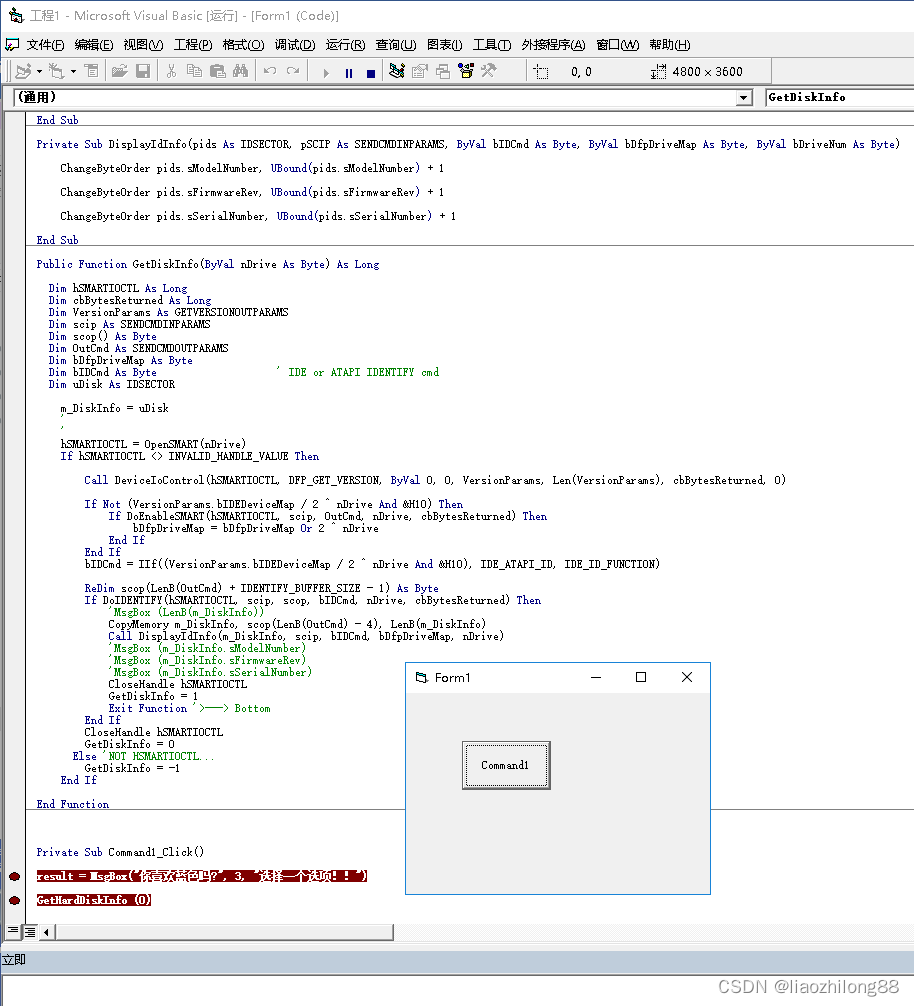

通过在网上找到vb程序写的获取机器码的相关代码（代码放在后面的附录里面）。通过vb6.0对改代码进行调试，发现该代码基本就是该软件获取机器码的方式：

并发现，在云桌面上每次通过DeviceIoCtrol获取的机器码都是不一样的，而在实体机上发现，该Api调用会返回失败，但为什么在实体机软件能运行正常呢，这里猜测是软件在获取机器码失败的情况会通过固定算法自动生成一个ID的方式来替代本机的机器码，而在云主机上由于每次调用DeviceIoCtrol都能调用成功，但是获取的机器码不一样导致校验失败。

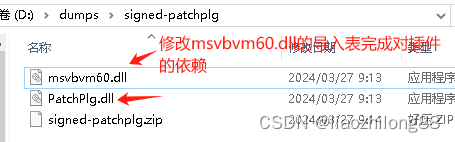

这里通过Hook DeviceIoCtrol并根据特定的ID进行返回失败操作来达到目的。可以通过CFF对软件进行修改导入表的方式来完成软件对自己插件的自动依赖和加载，但同时考虑到软件软件的升级，所以这里不建议直接给软件程序打补丁，而是通过对软件依赖的msvbvm60.dll进行打补丁，这样哪怕软件完成了升级也不会导致因为软件文件升级而导致补丁加载失效：

附录代码：

static BOOL(WINAPI* OrgDeviceIoControl)(
    HANDLE       hDevice,
    DWORD        dwIoControlCode,
    LPVOID       lpInBuffer,
    DWORD        nInBufferSize,
    LPVOID       lpOutBuffer,
    DWORD        nOutBufferSize,
    LPDWORD      lpBytesReturned,
    LPOVERLAPPED lpOverlapped
) = DeviceIoControl;

BOOL WINAPI NewDeviceIoControl(
    HANDLE       hDevice,
    DWORD        dwIoControlCode,
    LPVOID       lpInBuffer,
    DWORD        nInBufferSize,
    LPVOID       lpOutBuffer,
    DWORD        nOutBufferSize,
    LPDWORD      lpBytesReturned,
    LPOVERLAPPED lpOverlapped
)
{
     BOOL bRet = OrgDeviceIoControl(hDevice,
        dwIoControlCode,
        lpInBuffer,
        nInBufferSize,
        lpOutBuffer,
        nOutBufferSize,
        lpBytesReturned,
        lpOverlapped);

     //IOCTL_DISK_GET_DRIVE_GEOMETRY;

    /* if (0x74080 == dwIoControlCode || 0x7C084 == dwIoControlCode || dwIoControlCode == 0x7C088)
     {
         bRet = FALSE;
         return FALSE;
     } */

     if (dwIoControlCode == 0x7C088)
     {
         bRet = FALSE;
         OutputDebugString(L"DeviceIoCtrol Code is 0x7C088, process it!");

         SENDCMDOUTPARAMS out;
         int outparamsize = sizeof(out);
         memcpy(&out, lpOutBuffer, sizeof(out));

         IDSECTOR idsector;
         memcpy(&idsector, &out.bBuffer[0], sizeof(idsector));

         char* pcNumber = idsector.sModelNumber;
         __int64 pNumber = (__int64)pcNumber;
         __int64 pFirmware = (__int64)idsector.sFirmwareRev;
         __int64 pSerNum = (__int64)idsector.sSerialNumber;

         WCHAR szBuf[350] = { 0 };
         wsprintf(szBuf, L" sModelNumber 1:0x%p  0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X %02X %02X %02X %02X \n",
             pcNumber, *(char*)(pNumber+0), *(char*)(pNumber + 1), *(char*)(pNumber + 2), *(char*)(pNumber + 3), *(char*)(pNumber + 4), *(char*)(pNumber + 5), *(char*)(pNumber + 6), *(char*)(pNumber + 7),
             *(char*)(pNumber + 8), *(char*)(pNumber + 9), *(char*)(pNumber + 10), *(char*)(pNumber + 11), *(char*)(pNumber + 12), *(char*)(pNumber + 13), *(char*)(pNumber + 14), *(char*)(pNumber + 15),
             *(char*)(pNumber + 16), *(char*)(pNumber + 17), *(char*)(pNumber + 18), *(char*)(pNumber + 19), *(char*)(pNumber + 20), *(char*)(pNumber + 21), *(char*)(pNumber + 22), *(char*)(pNumber + 23),
             *(char*)(pNumber + 24), *(char*)(pNumber + 25), *(char*)(pNumber + 26), *(char*)(pNumber + 27), *(char*)(pNumber + 28), *(char*)(pNumber + 29), *(char*)(pNumber + 30), *(char*)(pNumber + 31),
             *(char*)(pNumber + 32), *(char*)(pNumber + 33), *(char*)(pNumber + 34), *(char*)(pNumber + 35), *(char*)(pNumber + 36), *(char*)(pNumber + 37), *(char*)(pNumber + 38), *(char*)(pNumber + 39)
            );
         OutputDebugStringW(szBuf);

         wsprintf(szBuf, L" sFirmwareRev 2:0x%p  0x%02X %02X %02X %02X %02X %02X %02X %02X \n",
              pFirmware, *(char*)(pFirmware + 0), *(char*)(pFirmware + 1), *(char*)(pFirmware + 2), *(char*)(pFirmware + 3), *(char*)(pFirmware + 4), *(char*)(pFirmware + 5), *(char*)(pFirmware + 6), *(char*)(pFirmware + 7));
         OutputDebugStringW(szBuf);

         wsprintf(szBuf,
             L"sSerialNumber 3:0x%p  0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X %02X %02X %02X %02X \n"
             L"0x%02X %02X %02X %02X \n",
             pSerNum, *(char*)(pSerNum + 0), *(char*)(pSerNum + 1), *(char*)(pSerNum + 2), *(char*)(pSerNum + 3), *(char*)(pSerNum + 4), *(char*)(pSerNum + 5), *(char*)(pSerNum + 6), *(char*)(pSerNum + 7),
             *(char*)(pSerNum + 8), *(char*)(pSerNum + 9), *(char*)(pSerNum + 10), *(char*)(pSerNum + 11), *(char*)(pSerNum + 12), *(char*)(pSerNum + 13), *(char*)(pSerNum + 14), *(char*)(pSerNum + 15),
             *(char*)(pSerNum + 16), *(char*)(pSerNum + 17), *(char*)(pSerNum + 18), *(char*)(pSerNum + 19)
         );
         OutputDebugStringW(szBuf);
     }
     return bRet;
}

bool Hook()
{
    // 相关的初始化信息
    DetourTransactionBegin();
    // 更新线程信息
    DetourUpdateThread(GetCurrentThread());
    DetourAttach(&(PVOID&)OrgDeviceIoControl, NewDeviceIoControl);

//    org_vbaStrCmp = (_vbaStrCmp)GetProcAddress(LoadLibraryA("msvbvm60.dll"), "__vbaStrCmp");
    //int iRet2 = DetourAttach(&(PVOID&)org_vbaStrCmp, new_vbaStrCmp);

    return NO_ERROR == DetourTransactionCommit();
}

// 卸载Hook
bool UnHoo()
{
    DetourTransactionBegin();
    DetourUpdateThread(GetCurrentThread());
    return NO_ERROR == DetourTransactionCommit();
}

C#获取机器码的相关代码：

VERSION 5.00
Begin VB.Form Form1
   Caption         =   "Form1"
   ClientHeight    =   3015
   ClientLeft      =   120
   ClientTop       =   465
   ClientWidth     =   4560
   LinkTopic       =   "Form1"
   ScaleHeight     =   3015
   ScaleWidth      =   4560
   StartUpPosition =   3  '窗口缺省
   Begin VB.CommandButton Command1
      Caption         =   "Command1"
      Height          =   855
      Left            =   1080
      TabIndex        =   0
      Top             =   600
      Width           =   1335
   End
End
Attribute VB_Name = "Form1"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = False

'============================================
'模块功能：取得硬盘的信息
'编    程：来自互联网，阿勇修改
'更新日期：2005/7/8
'调用方法：
'   GetDiskVolume() 取得逻辑盘的序列号
'   GetHardDiskInfo() 取得物理盘的型号或序列号
'============================================

Private Const MAX_IDE_DRIVES As Long = 4
Private Const READ_ATTRIBUTE_BUFFER_SIZE As Long = 512
Private Const IDENTIFY_BUFFER_SIZE As Long = 512
Private Const READ_THRESHOLD_BUFFER_SIZE As Long = 512
Private Const DFP_GET_VERSION As Long = &H74080
Private Const DFP_SEND_DRIVE_COMMAND As Long = &H7C084
Private Const DFP_RECEIVE_DRIVE_DATA As Long = &H7C088

Private Type GETVERSIONOUTPARAMS
    bVersion As Byte       ' Binary driver version.
    bRevision As Byte      ' Binary driver revision.
    bReserved As Byte      ' Not used.
    bIDEDeviceMap As Byte  ' Bit map of IDE devices.
    fCapabilities As Long  ' Bit mask of driver capabilities.
    dwReserved(3) As Long  ' For future use.
End Type

Private Const CAP_IDE_ID_FUNCTION As Long = 1               ' ATA ID command supported
Private Const CAP_IDE_ATAPI_ID As Long = 2                  ' ATAPI ID command supported
Private Const CAP_IDE_EXECUTE_SMART_FUNCTION As Long = 4    ' SMART commannds supported

Private Type IDEREGS
    bFeaturesReg As Byte       ' Used for specifying SMART "commands".
    bSectorCountReg As Byte    ' IDE sector count register
    bSectorNumberReg As Byte   ' IDE sector number register
    bCylLowReg As Byte         ' IDE low order cylinder value
    bCylHighReg As Byte        ' IDE high order cylinder value
    bDriveHeadReg As Byte      ' IDE drive/head register
    bCommandReg As Byte        ' Actual IDE command.
    bReserved As Byte          ' reserved for future use.  Must be zero.
End Type

Private Type SENDCMDINPARAMS
    cBufferSize As Long        ' Buffer size in bytes
    irDriveRegs As IDEREGS     ' Structure with drive register values.
    bDriveNumber As Byte       ' Physical drive number to send
    ' command to (0,1,2,3).
    bReserved(2) As Byte       ' Reserved for future expansion.
    dwReserved(3) As Long      ' For future use.
    bBuffer(0) As Byte         ' Input buffer.
End Type

Private Const IDE_ATAPI_ID As Long = &HA1  ' Returns ID sector for ATAPI.
Private Const IDE_ID_FUNCTION As Long = &HEC  ' Returns ID sector for ATA.
Private Const IDE_EXECUTE_SMART_FUNCTION As Long = &HB0  ' Performs SMART cmd.
Private Const SMART_CYL_LOW As Long = &H4F
Private Const SMART_CYL_HI As Long = &HC2

Private Type DRIVERSTATUS
    bDriverError As Byte       ' Error code from driver,
    bIDEStatus As Byte         ' Contents of IDE Error register.
    bReserved(1) As Byte       ' Reserved for future expansion.
    dwReserved(1) As Long      ' Reserved for future expansion.
End Type

Private Const SMART_NO_ERROR As Long = 0  ' No error
Private Const SMART_IDE_ERROR As Long = 1  ' Error from IDE controller
Private Const SMART_INVALID_FLAG As Long = 2  ' Invalid command flag
Private Const SMART_INVALID_COMMAND As Long = 3  ' Invalid command byte
Private Const SMART_INVALID_BUFFER As Long = 4  ' Bad buffer (null, invalid addr..)
Private Const SMART_INVALID_DRIVE As Long = 5  ' Drive number not valid
Private Const SMART_INVALID_IOCTL As Long = 6   ' Invalid IOCTL
Private Const SMART_ERROR_NO_MEM As Long = 7  ' Could not lock user's buffer
Private Const SMART_INVALID_REGISTER As Long = 8  ' Some IDE Register not valid
Private Const SMART_NOT_SUPPORTED As Long = 9  ' Invalid cmd flag set
Private Const SMART_NO_IDE_DEVICE As Long = 10 ' Cmd issued to device not present

Private Type SENDCMDOUTPARAMS
    cBufferSize As Long        ' Size of bBuffer in bytes
    drvStatus As DRIVERSTATUS  ' Driver status structure.
    bBuffer(0) As Byte         ' Buffer of arbitrary length in which to store the data read from the                                          ' drive.
End Type


Private Const SMART_READ_ATTRIBUTE_VALUES As Long = &HD0    ' ATA4: Renamed
Private Const SMART_READ_ATTRIBUTE_THRESHOLDS As Long = &HD1    ' Obsoleted in ATA4!
Private Const SMART_ENABLE_DISABLE_ATTRIBUTE_AUTOSAVE As Long = &HD2
Private Const SMART_SAVE_ATTRIBUTE_VALUES As Long = &HD3
Private Const SMART_EXECUTE_OFFLINE_IMMEDIATE As Long = &HD4    ' ATA4
Private Const SMART_ENABLE_SMART_OPERATIONS As Long = &HD8
Private Const SMART_DISABLE_SMART_OPERATIONS As Long = &HD9
Private Const SMART_RETURN_SMART_STATUS As Long = &HDA

Private Type DRIVEATTRIBUTE
    bAttrID As Byte        ' Identifies which attribute
    wStatusFlags As Integer    ' see bit definitions below
    bAttrValue As Byte     ' Current normalized value
    bWorstValue As Byte    ' How bad has it ever been?
    bRawValue(5) As Byte   ' Un-normalized value
    bReserved As Byte      ' ...
End Type

Private Type ATTRTHRESHOLD
    bAttrID As Byte            ' Identifies which attribute
    bWarrantyThreshold As Byte ' Triggering value
    bReserved(9) As Byte      ' ...
End Type

Private Type IDSECTOR
    wGenConfig As Integer
    wNumCyls As Integer
    wReserved As Integer
    wNumHeads As Integer
    wBytesPerTrack As Integer
    wBytesPerSector As Integer
    wSectorsPerTrack As Integer
    wVendorUnique(2) As Integer
    sSerialNumber(19) As Byte
    wBufferType As Integer
    wBufferSize As Integer
    wECCSize As Integer
    sFirmwareRev(7) As Byte
    sModelNumber(39) As Byte
    wMoreVendorUnique As Integer
    wDoubleWordIO As Integer
    wCapabilities As Integer
    wReserved1 As Integer
    wPIOTiming As Integer
    wDMATiming As Integer
    wBS As Integer
    wNumCurrentCyls As Integer
    wNumCurrentHeads As Integer
    wNumCurrentSectorsPerTrack As Integer
    ulCurrentSectorCapacity(3) As Byte    '这里只能用byte，因为VB没有无符号的LONG型变量
    wMultSectorStuff As Integer
    ulTotalAddressableSectors(3) As Byte   '这里只能用byte，因为VB没有无符号的LONG型变量
    wSingleWordDMA As Integer
    wMultiWordDMA As Integer
    bReserved(127) As Byte
End Type

Private Const ATTR_INVALID As Long = 0
Private Const ATTR_READ_ERROR_RATE As Long = 1
Private Const ATTR_THROUGHPUT_PERF As Long = 2
Private Const ATTR_SPIN_UP_TIME As Long = 3
Private Const ATTR_START_STOP_COUNT As Long = 4
Private Const ATTR_REALLOC_SECTOR_COUNT As Long = 5
Private Const ATTR_READ_CHANNEL_MARGIN As Long = 6
Private Const ATTR_SEEK_ERROR_RATE As Long = 7
Private Const ATTR_SEEK_TIME_PERF As Long = 8
Private Const ATTR_POWER_ON_HRS_COUNT As Long = 9
Private Const ATTR_SPIN_RETRY_COUNT As Long = 10
Private Const ATTR_CALIBRATION_RETRY_COUNT As Long = 11
Private Const ATTR_POWER_CYCLE_COUNT As Long = 12

Private Const PRE_FAILURE_WARRANTY As Long = &H1
Private Const ON_LINE_COLLECTION As Long = &H2
Private Const PERFORMANCE_ATTRIBUTE As Long = &H4
Private Const ERROR_RATE_ATTRIBUTE As Long = &H8
Private Const EVENT_COUNT_ATTRIBUTE As Long = &H10
Private Const SELF_PRESERVING_ATTRIBUTE As Long = &H20

Private Const NUM_ATTRIBUTE_STRUCTS As Long = 30
Private Const INVALID_HANDLE_VALUE As Long = -1

Private Const VER_PLATFORM_WIN32s As Long = 0
Private Const VER_PLATFORM_WIN32_WINDOWS As Long = 1
Private Const VER_PLATFORM_WIN32_NT As Long = 2


Private Type OSVERSIONINFO
    dwOSVersionInfoSize As Long
    dwMajorVersion As Long
    dwMinorVersion As Long
    dwBuildNumber As Long
    dwPlatformId As Long
    szCSDVersion As String * 128      '  Maintenance string for PSS usage
End Type

Private Const CREATE_NEW As Long = 1
Private Const GENERIC_READ As Long = &H80000000
Private Const GENERIC_WRITE As Long = &H40000000
Private Const FILE_SHARE_READ As Long = &H1
Private Const FILE_SHARE_WRITE As Long = &H2
Private Const OPEN_EXISTING  As Long = 3

Private m_DiskInfo As IDSECTOR

Private Declare Function GetVersionEx Lib "kernel32" Alias "GetVersionExA" (lpVersionInformation As OSVERSIONINFO) As Long
Private Declare Function CreateFile Lib "kernel32" Alias "CreateFileA" (ByVal lpFileName As String, ByVal dwDesiredAccess As Long, ByVal dwShareMode As Long, ByVal lpSecurityAttributes As Long, ByVal dwCreationDisposition As Long, ByVal dwFlagsAndAttributes As Long, ByVal hTemplateFile As Long) As Long
Private Declare Function DeviceIoControl Lib "kernel32" (ByVal hDevice As Long, ByVal dwIoControlCode As Long, lpInBuffer As Any, ByVal nInBufferSize As Long, lpOutBuffer As Any, ByVal nOutBufferSize As Long, lpBytesReturned As Long, ByVal lpOverlapped As Long) As Long
Private Declare Function CloseHandle Lib "kernel32" (ByVal hObject As Long) As Long
Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" (Destination As Any, Source As Any, ByVal Length As Long)

Private Declare Function GetVolumeInformation Lib "kernel32" Alias "GetVolumeInformationA" (ByVal lpRootPathName As String, ByVal lpVolumeNameBuffer As String, ByVal nVolumeNameSize As Long, lpVolumeSerialNumber As Long, lpMaximumComponentLength As Long, lpFileSystemFlags As Long, ByVal lpFileSystemNameBuffer As String, ByVal nFileSystemNameSize As Long) As Long

'信息类型枚举
Enum eumInfoType
    hdmodelsn = 0
    hdOnlyModel = 1
    hdOnlySN = 2
End Enum

'磁盘通道枚举
Enum eumDiskNo
    hdPrimaryMaster = 0
    hdPrimarySlave = 1
    hdSecondaryMaster = 2
    hdSecondarySlave = 3
End Enum

'取得逻辑盘序列号（非唯一）
Function GetDiskVolume(Optional ByVal strDiskName = "C") As String
    Dim TempStr1 As String * 256, TempStr2 As String * 256
    Dim TempLon1 As Long, TempLon2 As Long, GetVal As Long

    Dim tmpVol As String

    Call GetVolumeInformation(strDiskName & ":/", TempStr1, 256, GetVal, TempLon1, TempLon2, TempStr2, 256)
    If GetVal = 0 Then
        tmpVol = ""
    Else
        tmpVol = Hex(GetVal)
        tmpVol = String(8 - Len(tmpVol), "0") & tmpVol
        tmpVol = Left(tmpVol, 4) & "-" & Right(tmpVol, 4)
    End If
    GetDiskVolume = tmpVol
End Function

'取得硬盘信息：型号/物理系列号（唯一）
Function GetHardDiskInfo(Optional ByVal numDisk As eumDiskNo = hdPrimaryMaster, Optional ByVal numType As eumInfoType = hdOnlySN) As String

    If GetDiskInfo(numDisk) = 1 Then
        Dim pSerialNumber As String, pModelNumber As String
        pSerialNumber = StrConv(m_DiskInfo.sSerialNumber, vbUnicode)
        pModelNumber = StrConv(m_DiskInfo.sModelNumber, vbUnicode)

        Select Case numType
            Case hdOnlyModel  '仅型号
                GetHardDiskInfo = Trim(pModelNumber)
            Case hdOnlySN  '仅系列号
                GetHardDiskInfo = Trim(pSerialNumber)
            Case Else   '型号,系列号
                GetHardDiskInfo = Trim(pModelNumber) & "," & Trim(pSerialNumber)
        End Select
     End If

End Function

Private Function OpenSMART(ByVal nDrive As Byte) As Long
  Dim hSMARTIOCTL As Long
  Dim hd As String
  Dim VersionInfo As OSVERSIONINFO

    hSMARTIOCTL = INVALID_HANDLE_VALUE
    VersionInfo.dwOSVersionInfoSize = Len(VersionInfo)
    GetVersionEx VersionInfo
    Select Case VersionInfo.dwPlatformId
      Case VER_PLATFORM_WIN32s
        OpenSMART = hSMARTIOCTL
      Case VER_PLATFORM_WIN32_WINDOWS
        hSMARTIOCTL = CreateFile("//./SMARTVSD", 0, 0, 0, CREATE_NEW, 0, 0)
      Case VER_PLATFORM_WIN32_NT
        If nDrive < MAX_IDE_DRIVES Then
            hd = "//./PhysicalDrive" & nDrive
            hSMARTIOCTL = CreateFile(hd, GENERIC_READ Or GENERIC_WRITE, FILE_SHARE_READ Or FILE_SHARE_WRITE, 0, OPEN_EXISTING, 0, 0)
        End If
    End Select
    OpenSMART = hSMARTIOCTL

End Function

Private Function DoIDENTIFY(ByVal hSMARTIOCTL As Long, pSCIP As SENDCMDINPARAMS, pSCOP() As Byte, ByVal bIDCmd As Byte, ByVal bDriveNum As Byte, lpcbBytesReturned As Long) As Boolean
    pSCIP.cBufferSize = IDENTIFY_BUFFER_SIZE

    pSCIP.irDriveRegs.bFeaturesReg = 0
    pSCIP.irDriveRegs.bSectorCountReg = 1
    pSCIP.irDriveRegs.bSectorNumberReg = 1
    pSCIP.irDriveRegs.bCylLowReg = 0
    pSCIP.irDriveRegs.bCylHighReg = 0

    pSCIP.irDriveRegs.bDriveHeadReg = &HA0 Or ((bDriveNum And 1) * 2 ^ 4)
    '
    pSCIP.irDriveRegs.bCommandReg = bIDCmd
    pSCIP.bDriveNumber = bDriveNum
    pSCIP.cBufferSize = IDENTIFY_BUFFER_SIZE
   DoIDENTIFY = CBool(DeviceIoControl(hSMARTIOCTL, DFP_RECEIVE_DRIVE_DATA, _
                 pSCIP, 32, _
                 pSCOP(0), 528, _
                 lpcbBytesReturned, 0))

End Function


Private Function DoEnableSMART(ByVal hSMARTIOCTL As Long, pSCIP As SENDCMDINPARAMS, pSCOP As SENDCMDOUTPARAMS, ByVal bDriveNum As Byte, lpcbBytesReturned As Long) As Boolean
    pSCIP.cBufferSize = 0

    pSCIP.irDriveRegs.bFeaturesReg = SMART_ENABLE_SMART_OPERATIONS
    pSCIP.irDriveRegs.bSectorCountReg = 1
    pSCIP.irDriveRegs.bSectorNumberReg = 1
    pSCIP.irDriveRegs.bCylLowReg = SMART_CYL_LOW
    pSCIP.irDriveRegs.bCylHighReg = SMART_CYL_HI
    pSCIP.irDriveRegs.bDriveHeadReg = &HA0 Or ((bDriveNum And 1) * 2 ^ 4)
    pSCIP.irDriveRegs.bCommandReg = IDE_EXECUTE_SMART_FUNCTION
    pSCIP.bDriveNumber = bDriveNum

    DoEnableSMART = CBool(DeviceIoControl(hSMARTIOCTL, DFP_SEND_DRIVE_COMMAND, _
                    pSCIP, LenB(pSCIP) - 1, _
                    pSCOP, LenB(pSCOP) - 1, _
                    lpcbBytesReturned, 0))

End Function

'---------------------------------------------------------------------
'---------------------------------------------------------------------
Private Sub ChangeByteOrder(szString() As Byte, ByVal uscStrSize As Integer)

  Dim i As Integer
  Dim bTemp As Byte

    For i = 0 To uscStrSize - 1 Step 2
        bTemp = szString(i)
        szString(i) = szString(i + 1)
        szString(i + 1) = bTemp
    Next i

End Sub

Private Sub DisplayIdInfo(pids As IDSECTOR, pSCIP As SENDCMDINPARAMS, ByVal bIDCmd As Byte, ByVal bDfpDriveMap As Byte, ByVal bDriveNum As Byte)

    ChangeByteOrder pids.sModelNumber, UBound(pids.sModelNumber) + 1

    ChangeByteOrder pids.sFirmwareRev, UBound(pids.sFirmwareRev) + 1

    ChangeByteOrder pids.sSerialNumber, UBound(pids.sSerialNumber) + 1

End Sub

Public Function GetDiskInfo(ByVal nDrive As Byte) As Long

  Dim hSMARTIOCTL As Long
  Dim cbBytesReturned As Long
  Dim VersionParams As GETVERSIONOUTPARAMS
  Dim scip As SENDCMDINPARAMS
  Dim scop() As Byte
  Dim OutCmd As SENDCMDOUTPARAMS
  Dim bDfpDriveMap As Byte
  Dim bIDCmd As Byte                    ' IDE or ATAPI IDENTIFY cmd
  Dim uDisk As IDSECTOR

    m_DiskInfo = uDisk

    hSMARTIOCTL = OpenSMART(nDrive)
    If hSMARTIOCTL <> INVALID_HANDLE_VALUE Then

        Call DeviceIoControl(hSMARTIOCTL, DFP_GET_VERSION, ByVal 0, 0, VersionParams, Len(VersionParams), cbBytesReturned, 0)

        If Not (VersionParams.bIDEDeviceMap / 2 ^ nDrive And &H10) Then
            If DoEnableSMART(hSMARTIOCTL, scip, OutCmd, nDrive, cbBytesReturned) Then
                bDfpDriveMap = bDfpDriveMap Or 2 ^ nDrive
            End If
        End If
        bIDCmd = IIf((VersionParams.bIDEDeviceMap / 2 ^ nDrive And &H10), IDE_ATAPI_ID, IDE_ID_FUNCTION)

        ReDim scop(LenB(OutCmd) + IDENTIFY_BUFFER_SIZE - 1) As Byte
        If DoIDENTIFY(hSMARTIOCTL, scip, scop, bIDCmd, nDrive, cbBytesReturned) Then
            CopyMemory m_DiskInfo, scop(LenB(OutCmd) - 4), LenB(m_DiskInfo)
            Call DisplayIdInfo(m_DiskInfo, scip, bIDCmd, bDfpDriveMap, nDrive)
            CloseHandle hSMARTIOCTL
            GetDiskInfo = 1
            Exit Function '>---> Bottom
        End If
        CloseHandle hSMARTIOCTL
        GetDiskInfo = 0
      Else 'NOT HSMARTIOCTL...
        GetDiskInfo = -1
    End If

End Function



Private Sub Command1_Click()

result = MsgBox("你喜欢蓝色吗?", 3, "选择一个选项")

GetDiskInfo (0)


End Sub
