【机智云教程】STM32+ESP8266连接机智云的详细步骤，上传温湿度+继电器控制

先看效果：

【教程】STM32+ESP8266连接机智云，实现远程开关控制与温湿度显示

---

一、前期准备

资料下载链接：资料下载

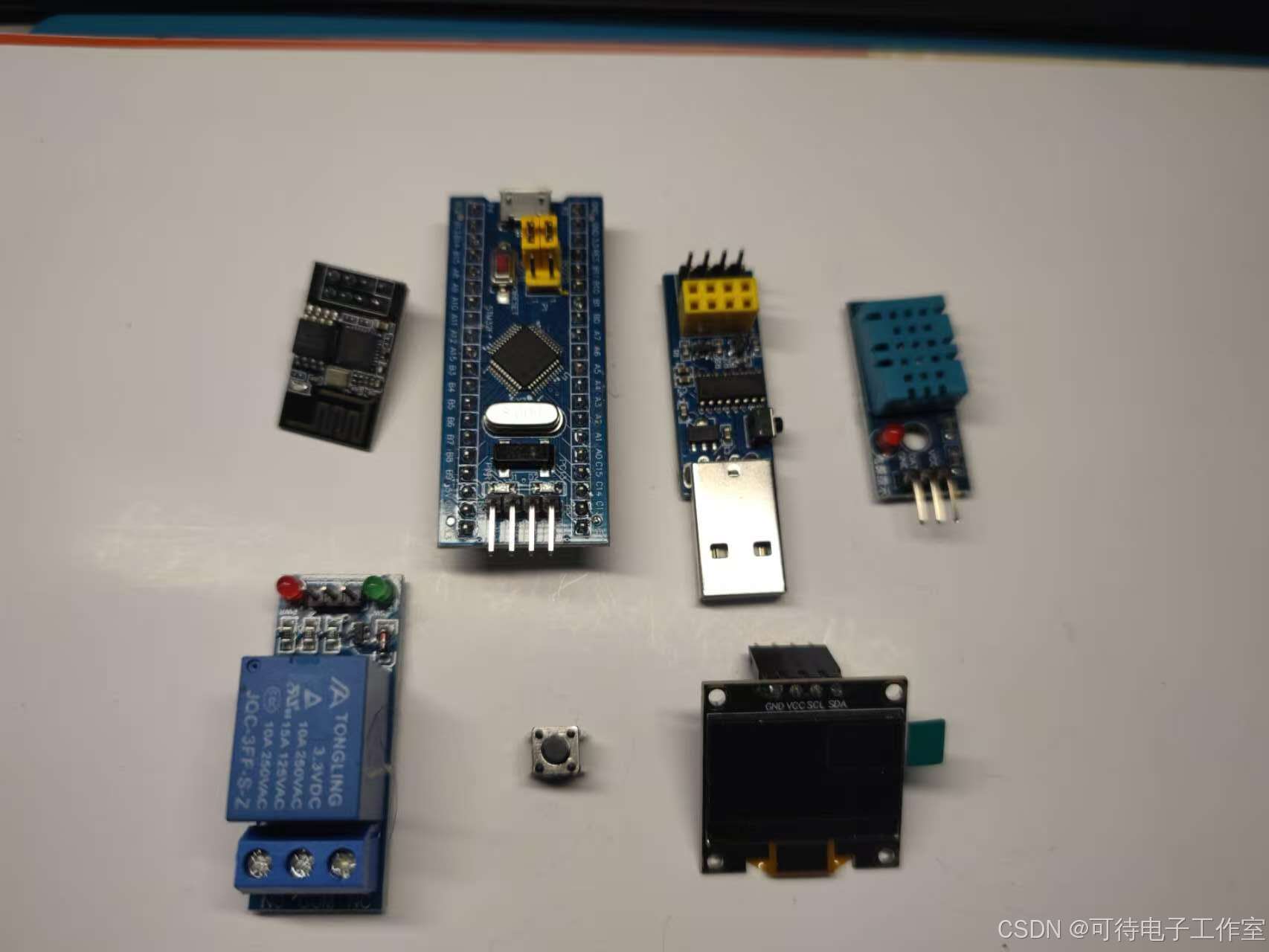

1、元器件

  STM32F103C8T6最小系统板
  DHT11
  ESP8266-01s
  ESP8266烧录器
  杜邦线
  继电器
  OLED屏幕

2、硬件连接

STM32最小系统	传感器
PA9	ESP8266–RX
PA10	ESP8266–TX
PB6	OLED–SCL
PB7	OLED–SDA
PB9	继电器–SCL
PB0	DHT11–DAT
PB13	按键

二、ESP8266固件烧录

  将ESP8266和ESP8266烧录器组装，插入电脑。（需要安装CH340C驱动）。

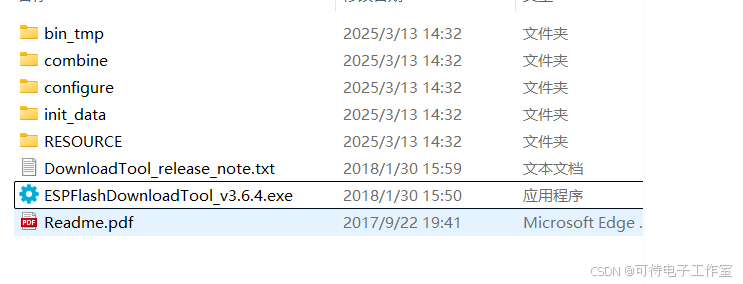

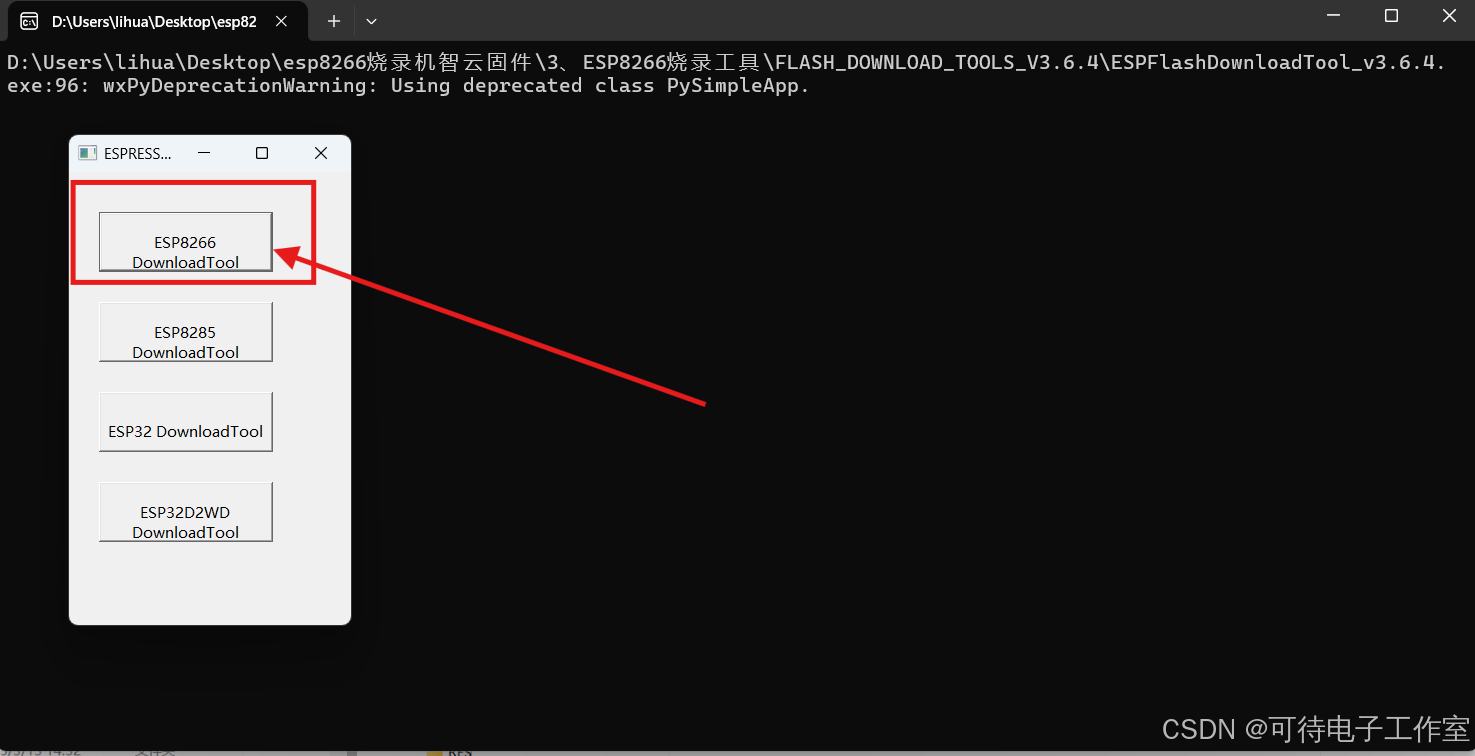

  打开资料包里的“ESP8266烧录工具”文件夹，双击运行“ESPFlashDownloadTool_v3.6.4.exe"。

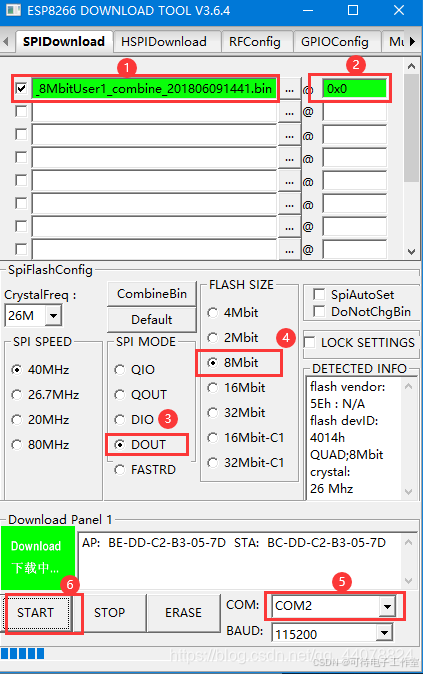

如图进行设置，等待下载完成
;第一步，在资料里面选择 “ESP8266机智云固件” 文件夹里的

第五步，COMx 根据自己电脑识别到的COM口来选择。

三、机智云平台配置

在机智云开发者中心网址进行注册：https://dev.gizwits.com/zh-cn/developer/intro

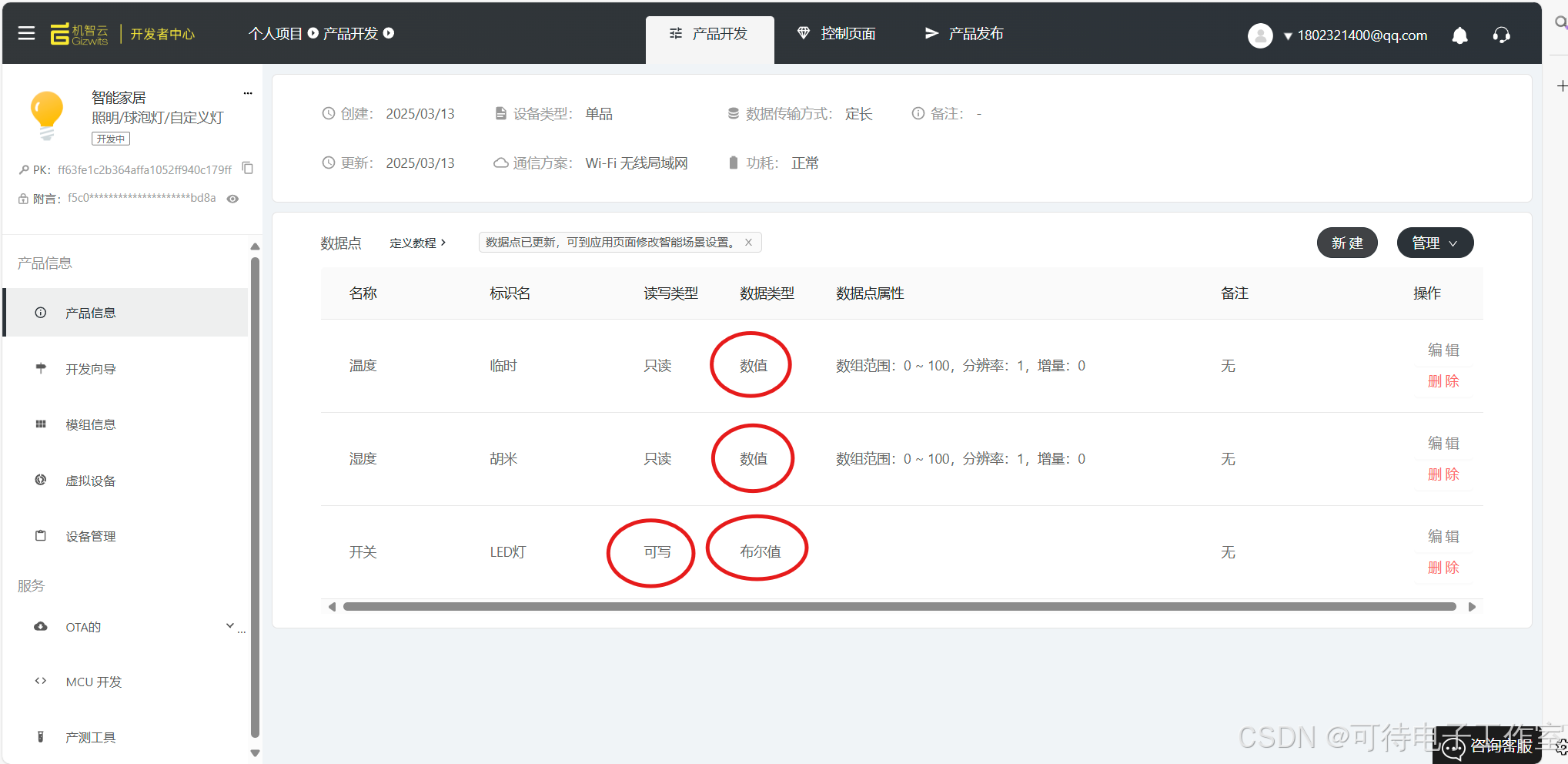

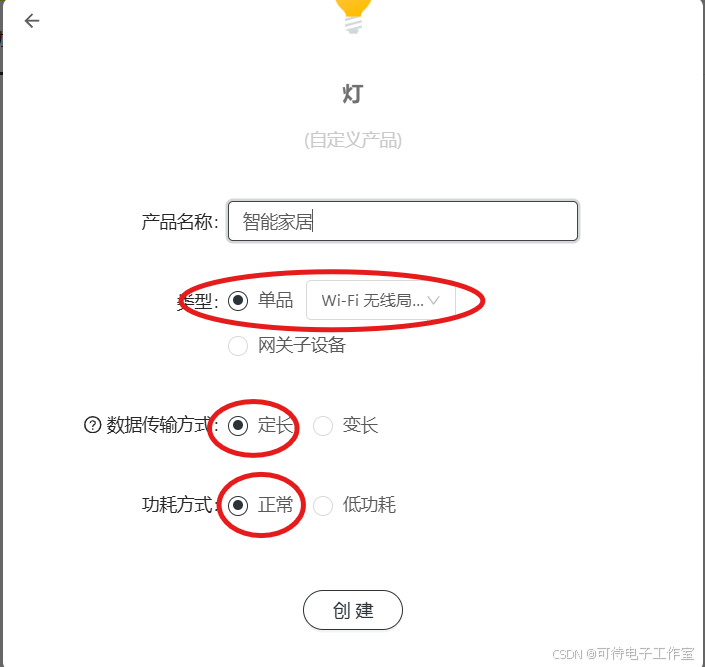

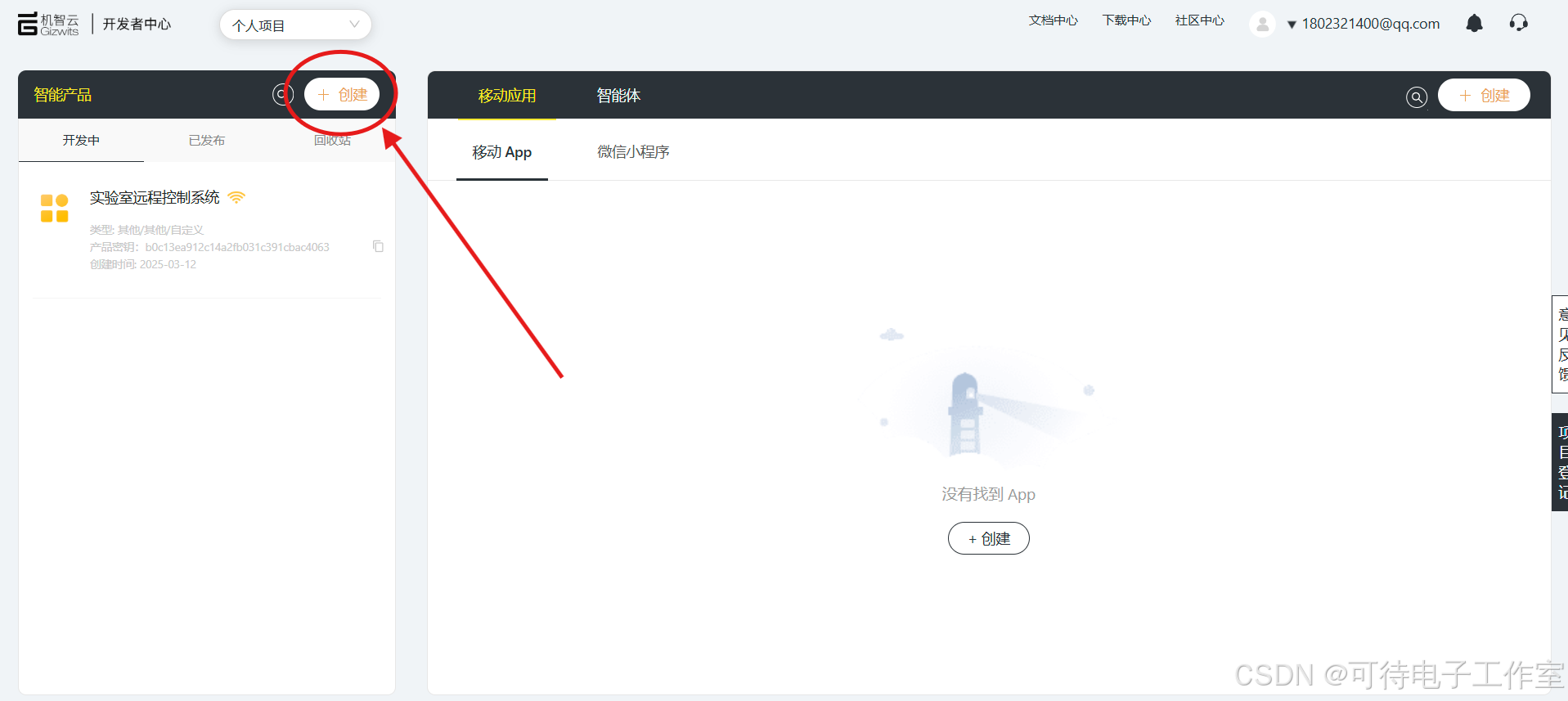

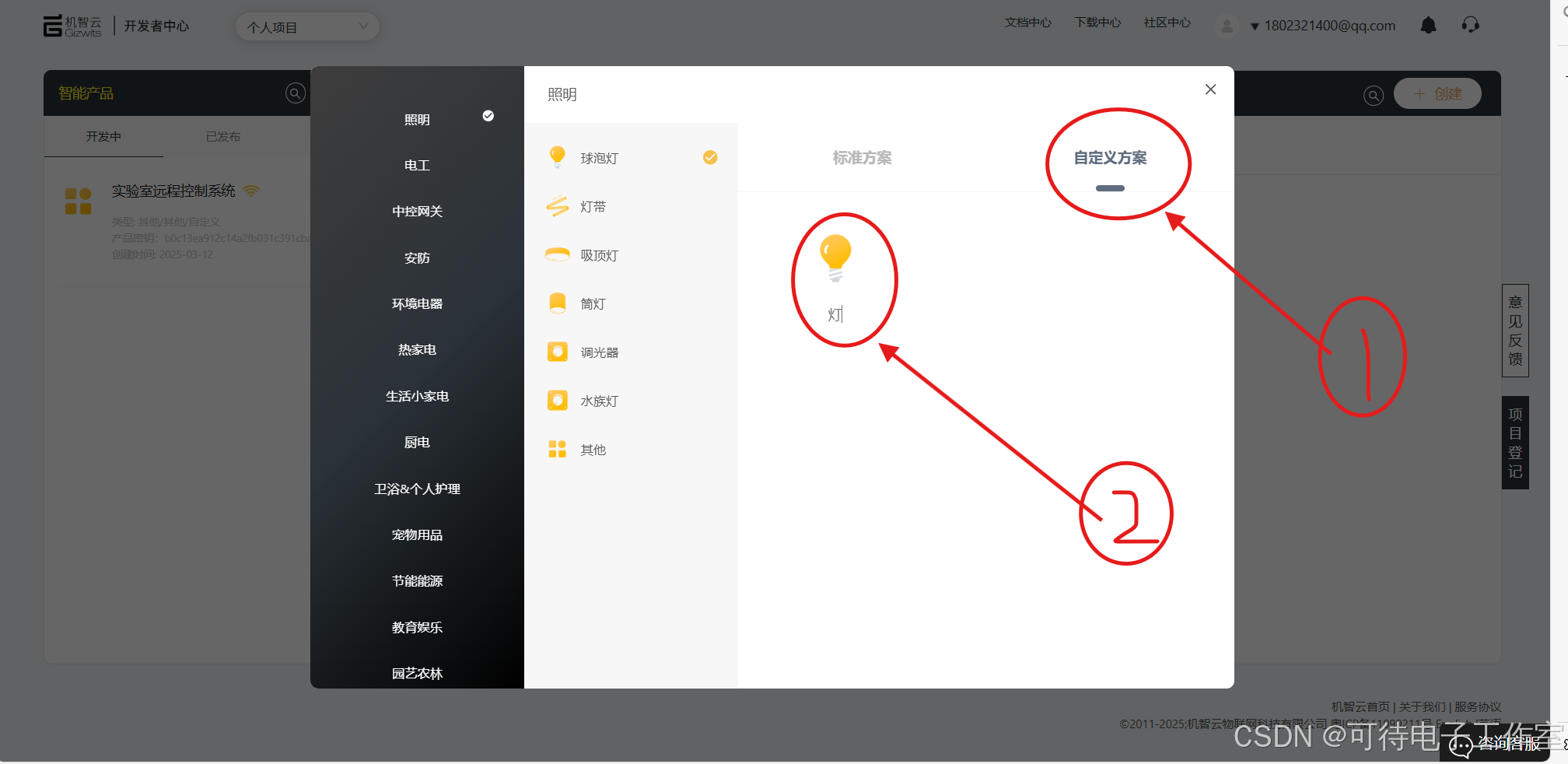

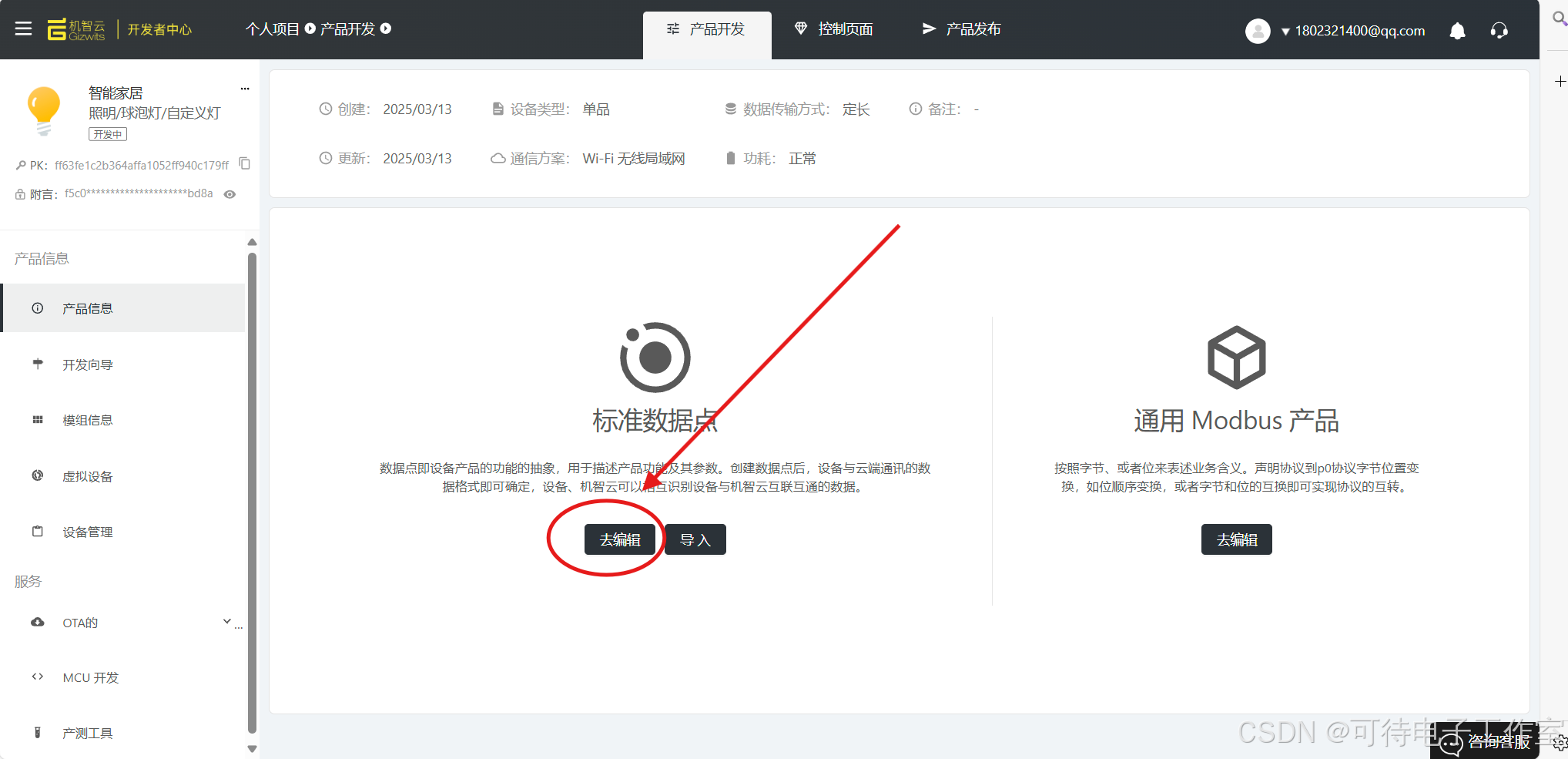

注册后，进入开发者中心网址：https://developer.gizwits.com/menu/dashboard

四、代码移植

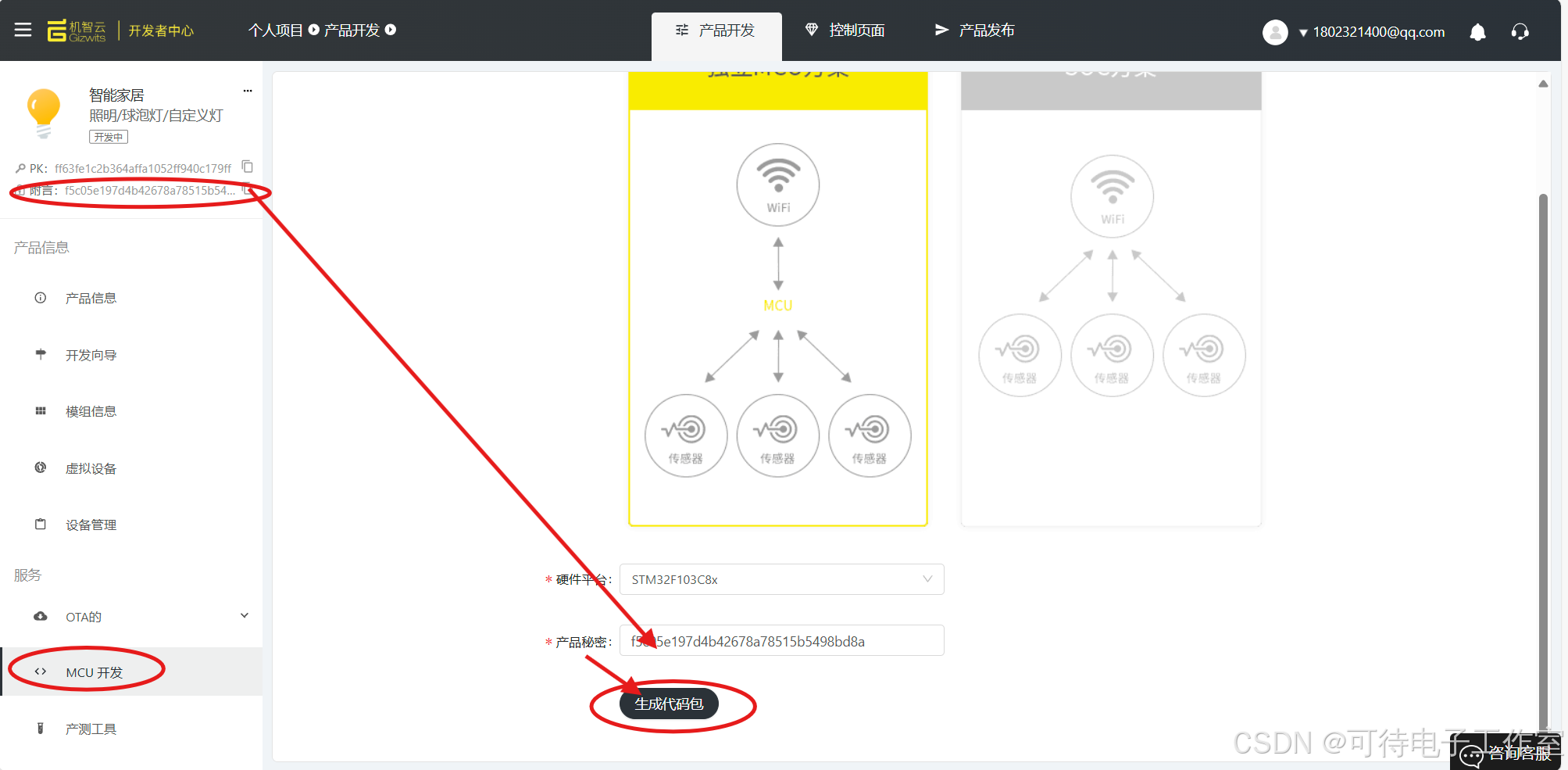

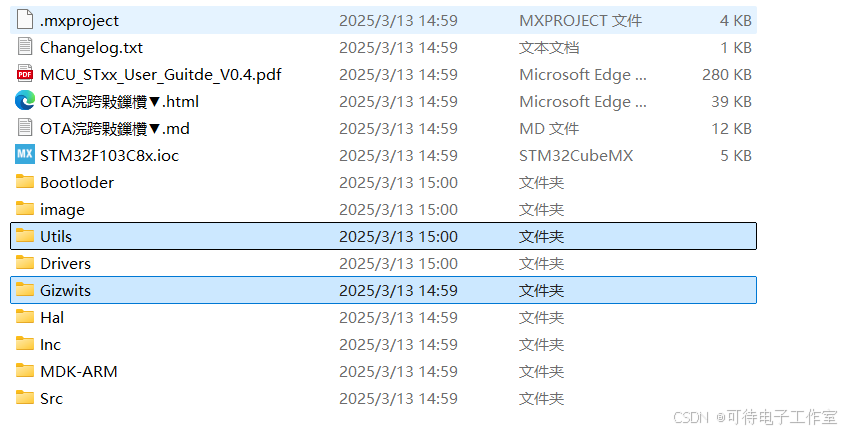

将生成的代码，下载解压后，复制以下2个文件到我的工程中

打开我的代码

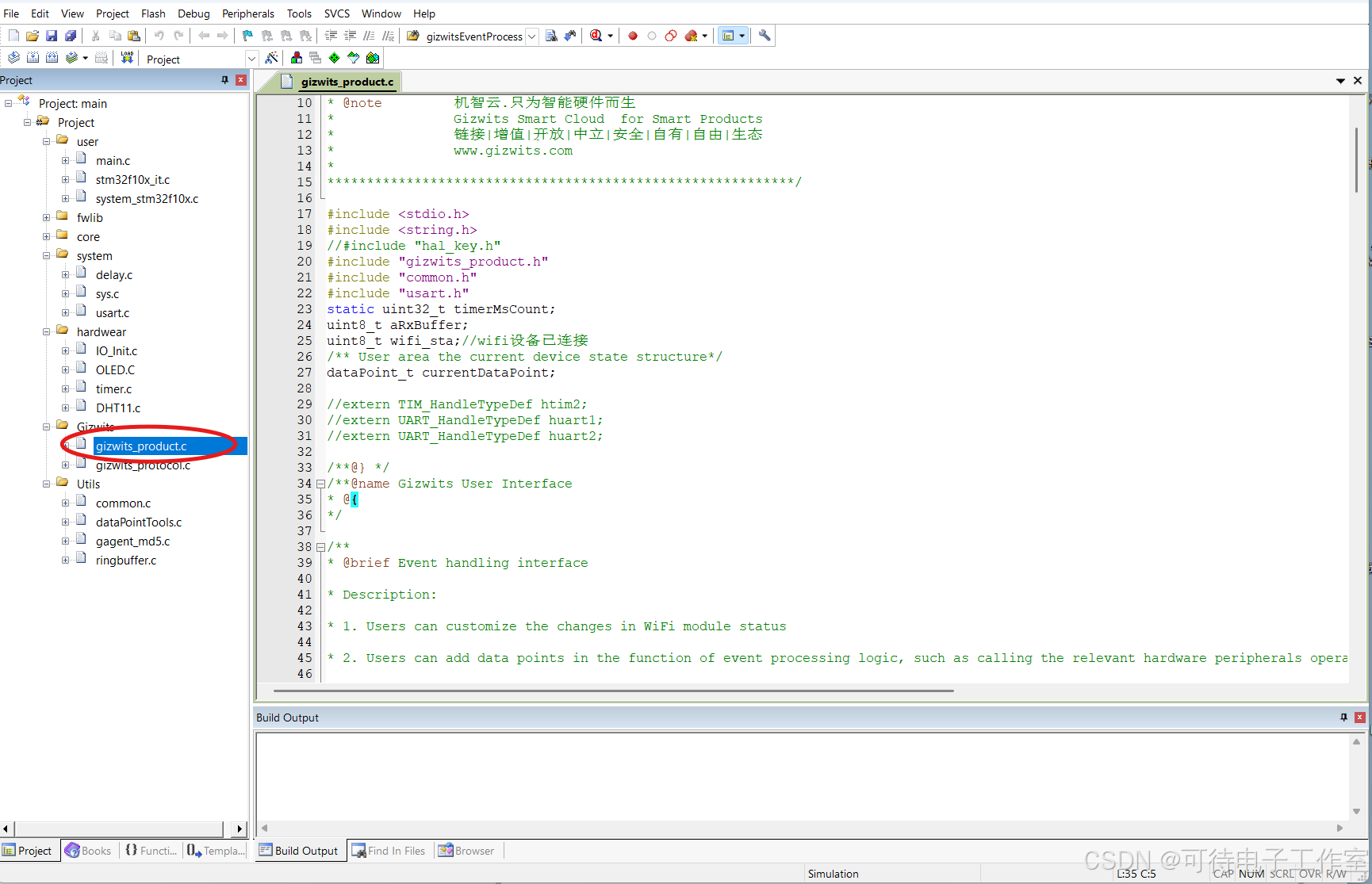

将gizwits_product.c中的文件用下面的代码替换就ok了。

/**
************************************************************
* @file         gizwits_product.c
* @brief        Gizwits control protocol processing, and platform-related       hardware initialization
* @author       Gizwits
* @date         2017-07-19
* @version      V03030000
* @copyright    Gizwits
*
* @note         机智云.只为智能硬件而生
*               Gizwits Smart Cloud  for Smart Products
*               链接|增值ֵ|开放|中立|安全|自有|自由|生态
*               www.gizwits.com
*
***********************************************************/

#include <stdio.h>
#include <string.h>
//#include "hal_key.h"
#include "gizwits_product.h"
#include "common.h"
#include "usart.h"
static uint32_t timerMsCount;
uint8_t aRxBuffer;
uint8_t wifi_sta;//wifi设备已连接
/** User area the current device state structure*/
dataPoint_t currentDataPoint;


/**@} */
/**@name Gizwits User Interface
* @{
*/

/**
* @brief Event handling interface

* Description:

* 1. Users can customize the changes in WiFi module status

* 2. Users can add data points in the function of event processing logic, such as calling the relevant hardware peripherals operating interface

* @param [in] info: event queue
* @param [in] data: protocol data
* @param [in] len: protocol data length
* @return NULL
* @ref gizwits_protocol.h
*/
int8_t gizwitsEventProcess(eventInfo_t *info, uint8_t *gizdata, uint32_t len)
{
    uint8_t i = 0;
    dataPoint_t *dataPointPtr = (dataPoint_t *)gizdata;
    moduleStatusInfo_t *wifiData = (moduleStatusInfo_t *)gizdata;
    protocolTime_t *ptime = (protocolTime_t *)gizdata;

#if MODULE_TYPE
    gprsInfo_t *gprsInfoData = (gprsInfo_t *)gizdata;
#else
    moduleInfo_t *ptModuleInfo = (moduleInfo_t *)gizdata;
#endif

    if((NULL == info) || (NULL == gizdata))
    {
        return -1;
    }

    for(i=0; i<info->num; i++)
    {
        switch(info->event[i])
        {
        case EVENT_relay:
            currentDataPoint.valuerelay = dataPointPtr->valuerelay;
            GIZWITS_LOG("Evt: EVENT_relay %d \n", currentDataPoint.valuerelay);
            if(0x01 == currentDataPoint.valuerelay)
            {
            //user handle
            }
            else
            {
            //user handle
            }
            break;
        case WIFI_SOFTAP:
            break;
        case WIFI_AIRLINK:
            break;
        case WIFI_STATION:
            break;
        case WIFI_CON_ROUTER:

            break;
        case WIFI_DISCON_ROUTER:

            break;
        case WIFI_CON_M2M: wifi_sta = 1;

            break;
        case WIFI_DISCON_M2M: wifi_sta=0;//wifi设备断开//第三处，添加
            break;
        case WIFI_RSSI:
            GIZWITS_LOG("RSSI %d\n", wifiData->rssi);
            break;
        case TRANSPARENT_DATA:
            GIZWITS_LOG("TRANSPARENT_DATA \n");
            //user handle , Fetch data from [data] , size is [len]
            break;
        case WIFI_NTP:
            GIZWITS_LOG("WIFI_NTP : [%d-%d-%d %02d:%02d:%02d][%d] \n",ptime->year,ptime->month,ptime->day,ptime->hour,ptime->minute,ptime->second,ptime->ntp);
            break;
        case MODULE_INFO:
            GIZWITS_LOG("MODULE INFO ...\n");
#if MODULE_TYPE
            GIZWITS_LOG("GPRS MODULE ...\n");
            //Format By gprsInfo_t
            GIZWITS_LOG("moduleType : [%d] \n",gprsInfoData->Type);
#else
            GIZWITS_LOG("WIF MODULE ...\n");
            //Format By moduleInfo_t
            GIZWITS_LOG("moduleType : [%d] \n",ptModuleInfo->moduleType);
#endif
        break;
        default:
            break;
        }
    }

    return 0;
}

/**
* User data acquisition

* Here users need to achieve in addition to data points other than the collection of data collection, can be self-defined acquisition frequency and design data filtering algorithm

* @param none
* @return none
*/
void userHandle(void)
{
 /*
    currentDataPoint.valuetemp = ;//Add Sensor Data Collection
    currentDataPoint.valuehumi = ;//Add Sensor Data Collection
    */
}

/**
* Data point initialization function

* In the function to complete the initial user-related data
* @param none
* @return none
* @note The developer can add a data point state initialization value within this function
*/
void userInit(void)
{
    memset((uint8_t*)&currentDataPoint, 0, sizeof(dataPoint_t));

    /** Warning !!! DataPoint Variables Init , Must Within The Data Range **/
    /*
    currentDataPoint.valuerelay = ;
    currentDataPoint.valuetemp = ;
    currentDataPoint.valuehumi = ;
    */

}


/**
* @brief Millisecond timing maintenance function, milliseconds increment, overflow to zero

* @param none
* @return none
*/
void gizTimerMs(void)
{
    timerMsCount++;
}

/**
* @brief Read millisecond count

* @param none
* @return millisecond count
*/
uint32_t gizGetTimerCount(void)
{
    return timerMsCount;
}

/**
* @brief MCU reset function

* @param none
* @return none
*/
void mcuRestart(void)
{
    __set_FAULTMASK(1);
    NVIC_SystemReset();
}

/**@} */

#ifdef __GNUC__
  /* With GCC/RAISONANCE, small printf (option LD Linker->Libraries->Small printf
     set to 'Yes') calls __io_putchar() */
  #define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
  #define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif /* __GNUC__ */
/**
  * @brief  Retargets the C library printf function to the USART.
  * @param  None
  * @retval None
  */
PUTCHAR_PROTOTYPE
{
  /* Place your implementation of fputc here */
  /* e.g. write a character to the USART1 and Loop until the end of transmission */
	UsartSendData(USART2,ch);
  return ch;
}

/**
  * @brief  This function handles USART IDLE interrupt.
  */
void USART1_IRQHandler(void)                	//串口1中断服务程序
{
	u8 res;
	if(USART_GetITStatus(USART1, USART_IT_RXNE) != RESET)  //接收中断(接收到的数据必须是0x0d 0x0a结尾)
	{
		res =USART1->DR;	//读取接收到的数据
		gizPutData(&res, 1);
  }
}
/**
* @brief Serial port write operation, send data to WiFi module
*
* @param buf      : buf address
* @param len      : buf length
*
* @return : Return effective data length;-1，return failure
*/
int32_t uartWrite(uint8_t *buf, uint32_t len)
{
		uint8_t crc[1] = {0x55};
    uint32_t i = 0;

    if(NULL == buf)
    {
        return -1;
    }

    for(i=0; i<len; i++)
    {
        UsartSendData(USART1,buf[i]);

        if(i >=2 && buf[i] == 0xFF)
        {
						UsartSendData(USART1, crc[0]);
        }
    }

#ifdef PROTOCOL_DEBUG
    GIZWITS_LOG("MCU2WiFi[%4d:%4d]: ", gizGetTimerCount(), len);
    for(i=0; i<len; i++)
    {
        GIZWITS_LOG("%02x ", buf[i]);

        if(i >=2 && buf[i] == 0xFF)
        {
            GIZWITS_LOG("%02x ", 0x55);
        }
    }
    GIZWITS_LOG("\n");
#endif
		return len;
}

五、APP机智云上绑定设备

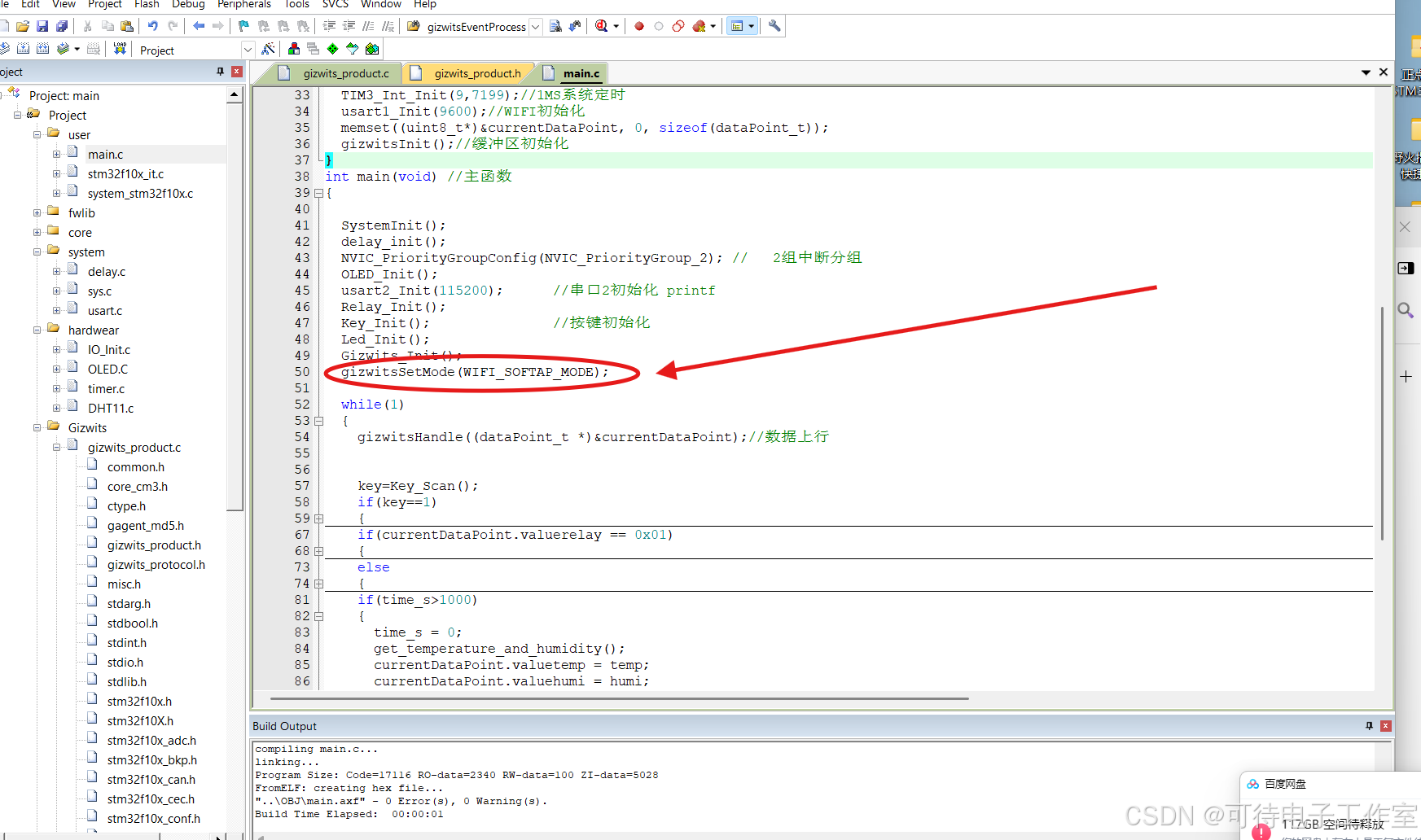

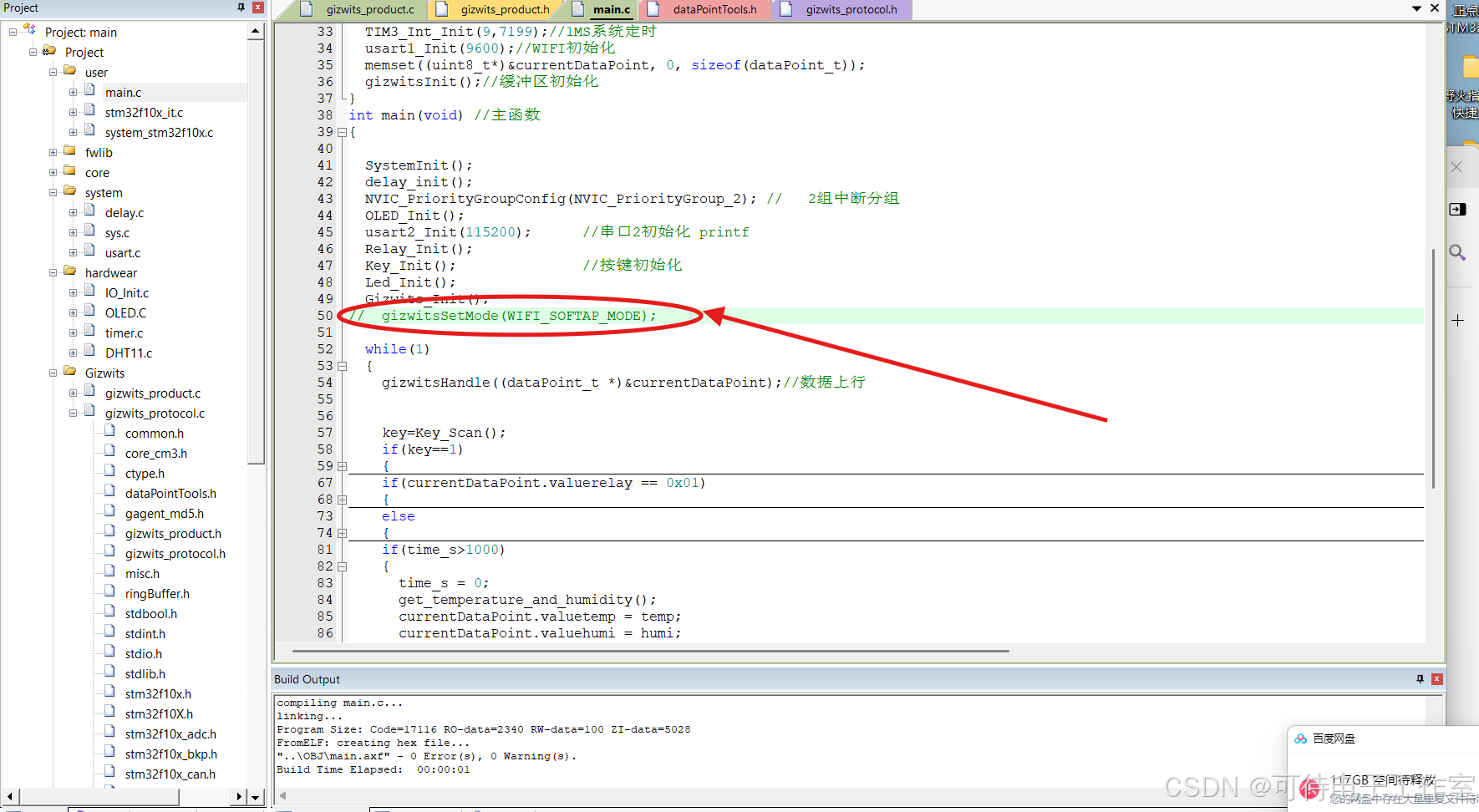

取消这一段的屏蔽，然后烧录一次代码
ESP8266就会进入Soft配网模式。手机查看ESP8266的热点名称，一般是XPG-GAgent-xxx，密码123456789。
在手机APP添加设备，选择热点配网模式，第一、二行输入你家路由器的WiFi名称，密码，第三、四行输入设备产生的热点名称：XPG-GAgent-xxx和密码123456789。选择模组类型：乐鑫、乐鑫广播。根据提示操作即可。

配网完成后，不要断电，直接给STM32烧录屏蔽掉这个配网的代码（不然路由器信息不能保存，每次设备上电都要进行配网。。。。）

现在就可以进行控制了。
