VC WMI应用获取SMBios中的信息



首先关于WMI 的基本使用

请参考：http://blog.csdn.net/breaksoftware/article/details/8439975

在那里你可以找到系列连贯的文章，笔者写的很好很细腻，就是代码缺少了微量细节，其实这样也好，让你动动脑，杜绝“拿来主义”。

参考他的文章http://blog.csdn.net/breaksoftware/article/details/8821025，我们可以获取到很多常用信息



但有时我们需要获取SMBios中的一些OEM字段信息，而文章中并没有提到。

比如一个公司的PC有多个子品牌，对于他们的区分通常会存在SMBios中的OEM数据段的标志位里，如何获取这些信息呢？

于是我又为代码增加了几个函数：

HRESULT CWMI::GetSMBiosDataBlock()
{
	HRESULT hr = E_FAIL;
	CComPtr<IWbemLocator> pLoc = NULL;
	CComPtr<IWbemServices> pSvc = NULL;

	do {
		hr = InitialCom();
		CHECKHR(hr);

		hr = SetComSecLevels();
		CHECKHR(hr);

		hr = ObtainLocator2WMI(pLoc);
		CHECKHR(hr);

		hr = Connect2WMI(pLoc, pSvc);
		CHECKHR(hr);

		hr = SetProxySecLevels(pSvc);
		CHECKHR(hr);

		hr = ExcuteGetData(pSvc);
		CHECKHR(hr);

	} while (0);

	return hr;
}

HRESULT CSynQuery::ExcuteGetData(CComPtr<IWbemServices> pSvc)
{
	HRESULT hr = WBEM_S_FALSE;
	do
	{
		CComPtr<IEnumWbemClassObject> pEnumerator = NULL;
		hr = pSvc->CreateInstanceEnum(L"MSSMBios_RawSMBiosTables",
			0,
			NULL,
			&pEnumerator);

		CHECKWMIHR(hr);

		ULONG uReturn = 0;

		while (pEnumerator) {
			CComPtr<IWbemClassObject> pclsObj = NULL;
			HRESULT hr = pEnumerator->Next(WBEM_INFINITE, 1, &pclsObj, &uReturn);


			if ( 0 == uReturn) {
				break;
			}
			DealWithIWbemClassObject_GetBiosData(pclsObj);
		}

	} while (0);

	return hr;

}


HRESULT CSynQuery::DealWithIWbemClassObject_GetBiosData( CComPtr<IWbemClassObject> pclsObj )
{
	HRESULT hr = WBEM_S_NO_ERROR;
	VARIANT data;
	CIMTYPE type;

	VariantInit(&data);

	do  {
		hr = pclsObj->Get(bstr_t("SmbiosMajorVersion"), 0,  &data, &type, NULL);
		CHECKWMIHR(hr);
		m_EPS.SMBIOSMajorVersion = data.bVal;

		hr = pclsObj->Get(bstr_t("SmbiosMinorVersion"), 0,  &data, &type, NULL);
		CHECKWMIHR(hr);
		m_EPS.SMBIOSMinorVersion = data.bVal;

		hr = pclsObj->Get(bstr_t("SMBiosData"), 0,  &data, &type, NULL);
		CHECKWMIHR(hr);

		UCHAR HUGEP *u_TempHugep;
		m_EPS.SmbiosData = data.parray;
		m_EPS.Length = m_EPS.SmbiosData->rgsabound[0].cElements;

		SafeArrayAccessData(data.parray, (void HUGEP *FAR *)&u_TempHugep);
		for(UINT i=0; i < m_EPS.Length; i++)
		{
			m_BiosDataBlock[i] = u_TempHugep[i];
		}

		SafeArrayUnaccessData(data.parray);
		VariantClear(&data);


	} while (0);
	if(SUCCEEDED(hr))
		PrintfBiosDataBlock();
	return hr;
}
VOID CSynQuery::PrintfBiosDataBlock()
{
	int i = 0;
	wprintf(L"---------SMBios data block---------\n---------Data Length %d---------\n---------Version:%d.%d---------\n",
		m_EPS.Length,m_EPS.SMBIOSMajorVersion,m_EPS.SMBIOSMinorVersion);
	system("pause");
	for (i = 0; i < m_EPS.Length; i ++)
	{
		//8列
		if(i% 8 == 0)
			wprintf(L"\n");

		if((47 < m_BiosDataBlock[i] && m_BiosDataBlock[i] < 58) ||
			(64 < m_BiosDataBlock[i] && m_BiosDataBlock[i] < 91) ||
			(96 < m_BiosDataBlock[i] && m_BiosDataBlock[i] < 123))
			wprintf(L"%c", m_BiosDataBlock[i]);
		else
			wprintf(L"0x%0.2X", m_BiosDataBlock[i]);
		wprintf(L"\t");

	}

	wprintf(L"\n");
}

 CSynQueryData的函数被我移到CSynQuery中。



typedef struct StructEPS
{
	UCHAR         SMBIOSMajorVersion;
	UCHAR         SMBIOSMinorVersion;
	UINT          Length;
	SAFEARRAY     *SmbiosData;
}EPS;

使用时的区别

void GetBaseboardInfo()
{
	CSynQuery tSynQuery(L"ROOT\\CIMV2",L"SELECT * FROM Win32_BaseBoard");
	tSynQuery.ExcuteFun();
}

void GetSMBiosDataBlock()
{
	CSynQuery tSynQuery(L"ROOT\\WMI",L"");
	tSynQuery.GetSMBiosDataBlock();
}

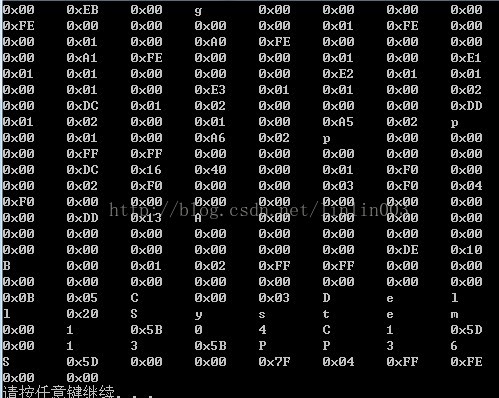

可以看出我用的是DELL的机器，呵呵。
