NET Core微服务之路：基于Consul最少集群实现服务的注册与发现（一）

Consul介绍

　　Consul是HashiCorp公司推出的开源工具[开源地址：https://github.com/hashicorp/consul]，用于实现分布式系统的服务发现与配置。

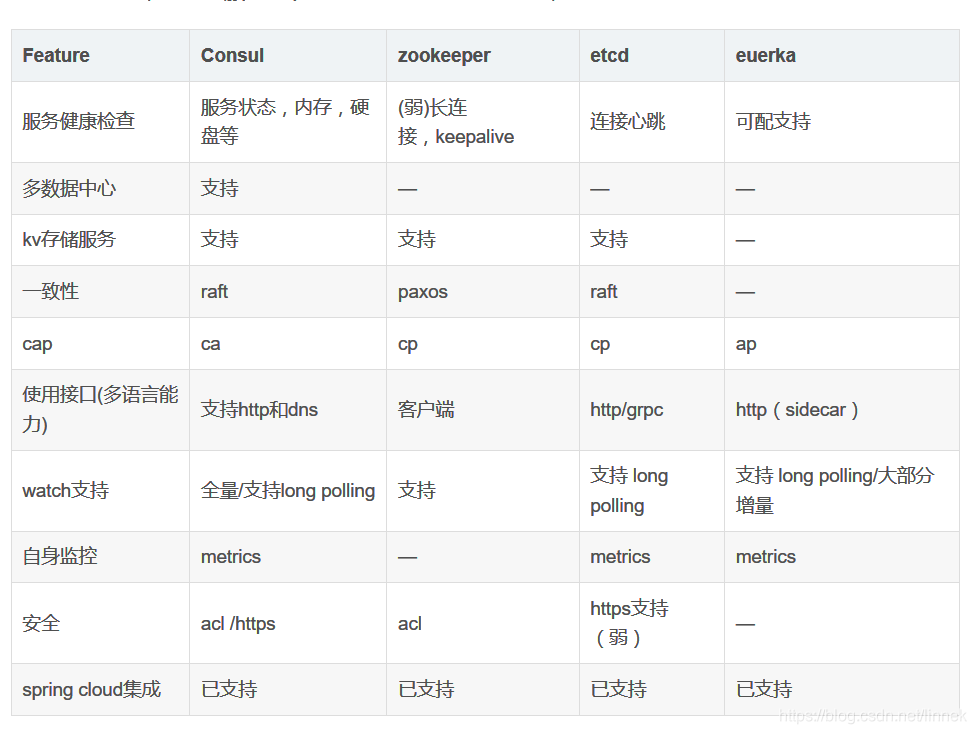

　　与市面上其他系统比较如下：



　　总体而言， Consul用Golang实现，因此具有天然可移植性（支持Linux、windows和Mac OS X）；安装包仅包含一个可执行文件，方便部署，与Docker等轻量级容器可无缝配合。

此外，关于Consul的架构以及相关的角色，如下图所示：

　　以Server模式运行的Consul Agent节点用于维护Consul集群的状态，官方建议每个Consul Cluster至少有3个或以上的运行在Server Mode的Agent，Client节点不限。Consul支持多数据中心，每个数据中心的Consul Cluster都会在运行于Server模式下的Agent节点中选出一个Leader节点，这个选举过程通过Consul实现的raft协议保证，多个 Server节点上的Consul数据信息是强一致的。处于Client Mode的Consul Agent节点比较简单，无状态，仅仅负责将请求转发给Server Agent节点。



集群搭建

　　笔者打算通过五台Centos7来搭建Consul集群，借助VMware Workstation搭建，当然，最主要的是这台虚拟主机一定要相互ping通，最好关闭防火墙，而且，虚拟机也需要和宿主机（实比如笔者的Windows10操作系统）ping通，具体问题和配置可搜索一下，图片如下：



　　其中130作为leader角色，129和131作为follower角色，当然，在实际环境中，leader的角色不一定是固定的，会随着环境变化而变化（比如网络断了、宕机了等等）这个我们后续来验证。132和133作为客户端，并安装NET Core 2.1环境，再次提示，一定要保证在这个环境中的所有系统相互之间均能Ping通。





step1：关闭防火墙

systemctl stop firewalld
systemctl disable firewalld



step2：安装consul

wget https://releases.hashicorp.com/consul/1.3.0/consul_1.3.0_linux_amd64.zip
unzip consul_1.3.0_linux_amd64.zip



step3：节点1

./consul agent -server -ui -bootstrap-expect=3 -data-dir=/tmp/consul -node=consul-1 -client=0.0.0.0 -bind=192.168.153.129 -datacenter=dc1 #设置129为服务器

bootstrap_expect > 0: expecting 3 servers
==> Starting Consul agent...
==> Consul agent running!
           Version: 'v1.3.0'
           Node ID: 'c612a043-8906-d6e1-8f4b-ef1c8afb371b'
         Node name: 'consul-1'
        Datacenter: 'dc1' (Segment: '<all>')
            Server: true (Bootstrap: false)
       Client Addr: [0.0.0.0] (HTTP: 8500, HTTPS: -1, gRPC: -1, DNS: 8600)
      Cluster Addr: 192.168.153.129 (LAN: 8301, WAN: 8302)
           Encrypt: Gossip: false, TLS-Outgoing: false, TLS-Incoming: false

==> Log data will now stream in as it occurs:

    2018/10/15 04:53:30 [INFO] raft: Initial configuration (index=1): [{Suffrage:Voter ID:c612a043-8906-d6e1-8f4b-ef1c8afb3777 Address:192.168.153.131:8300} {Suffrage:Voter ID:c612a043-8906-d6e1-8f4b-ef1c8afb371a Address:192.168.153.130:8300} {Suffrage:Voter ID:c612a043-8906-d6e1-8f4b-ef1c8afb371b Address:192.168.153.129:8300}]
    2018/10/15 04:53:30 [INFO] serf: EventMemberJoin: consul-1.dc1 192.168.153.129
    2018/10/15 04:53:30 [INFO] serf: EventMemberJoin: consul-1 192.168.153.129
    2018/10/15 04:53:30 [WARN] agent: Service name "LZZ.DEV.ClientService" will not be discoverable via DNS due to invalid characters. Valid characters include all alpha-numerics and dashes.
    2018/10/15 04:53:30 [WARN] agent: Service name "LZZ.PRO.ClientService" will not be discoverable via DNS due to invalid characters. Valid characters include all alpha-numerics and dashes.
    2018/10/15 04:53:30 [WARN] agent: check 'service:17947fbe-24ee-40e1-8e49-ea42415ada23' has deregister interval below minimum of 1m0s
    2018/10/15 04:53:30 [WARN] agent: check 'service:81d5b247-73d1-4ae5-9d1a-208770ca4e6a' has deregister interval below minimum of 1m0s
    2018/10/15 04:53:30 [INFO] agent: Started DNS server 0.0.0.0:8600 (udp)
    2018/10/15 04:53:30 [INFO] raft: Node at 192.168.153.129:8300 [Follower] entering Follower state (Leader: "")
    2018/10/15 04:53:30 [INFO] serf: Attempting re-join to previously known node: consul-3.dc1: 192.168.153.131:8302
    2018/10/15 04:53:30 [INFO] serf: Attempting re-join to previously known node: LZZ.PRODUCTS.WebServer: 192.168.153.133:8301
    2018/10/15 04:53:30 [INFO] consul: Adding LAN server consul-1 (Addr: tcp/192.168.153.129:8300) (DC: dc1)
    2018/10/15 04:53:30 [INFO] consul: Raft data found, disabling bootstrap mode
    2018/10/15 04:53:30 [INFO] consul: Handled member-join event for server "consul-1.dc1" in area "wan"
    2018/10/15 04:53:30 [WARN] agent/proxy: running as root, will not start managed proxies
    2018/10/15 04:53:30 [INFO] agent: Started DNS server 0.0.0.0:8600 (tcp)
    2018/10/15 04:53:30 [INFO] agent: Started HTTP server on [::]:8500 (tcp)
    2018/10/15 04:53:30 [INFO] agent: started state syncer
    2018/10/15 04:53:30 [INFO] serf: Attempting re-join to previously known node: consul-3: 192.168.153.131:8301
    2018/10/15 04:53:30 [INFO] serf: EventMemberJoin: consul-3.dc1 192.168.153.131
    2018/10/15 04:53:30 [WARN] memberlist: Refuting an alive message
    2018/10/15 04:53:30 [INFO] serf: EventMemberJoin: consul-2.dc1 192.168.153.130
    2018/10/15 04:53:30 [INFO] serf: Re-joined to previously known node: consul-3.dc1: 192.168.153.131:8302
    2018/10/15 04:53:30 [INFO] consul: Handled member-join event for server "consul-3.dc1" in area "wan"
    2018/10/15 04:53:30 [INFO] consul: Handled member-join event for server "consul-2.dc1" in area "wan"
