1.服务版本号

服务名	版本号	端口	描述
Grafana	latest	3000	日志查看
Fluent-bit	2.1.8或latest	2020	日志收集
Elasticsearch	7.17.12或latest	9200,9300	存储日志数据
Nginx	latest	80,443	网关
Kafka	latest	9092	日志队列

2.服务器环境

服务器IP	服务	描述
192.168.52.171	Nginx
192.168.52.172	Kafka

192.168.52.173	Grafana
192.168.52.174	Fluent-bit
192.168.52.175	Elasticsearch

3.安装

nginx安装

yum安装方式

root@localhost:~# sudo yum install epel-release -y
root@localhost:~# sudo yum install nginx -y

配置nginx日志输出格式

root@localhost:~# vim /etc/nginx/nginx.conf

http {
        # Logging Settings
        log_format main   '{"@timestamp":"$time_iso8601",'
                        '"@source":"$server_addr",'
                        '"hostname":"$hostname",'
                        '"ip":"$http_x_forwarded_for",'
                        '"client":"$remote_addr",'
                        '"request_method":"$request_method",'
                        '"scheme":"$scheme",'
                        '"domain":"$server_name",'
                        '"referer":"$http_referer",'
                        '"request":"$request_uri",'
                        '"args":"$args",'
                        '"size":$body_bytes_sent,'
                        '"status": $status,'
                        '"responsetime":$request_time,'
                        '"upstreamtime":"$upstream_response_time",'
                        '"upstreamaddr":"$upstream_addr",'
                        '"http_user_agent":"$http_user_agent",'
                        '"https":"$https"'
                        '}';

        access_log /var/log/nginx/access.log main;
        error_log /var/log/nginx/error.log;
}

Elasticsearch安装

生产环境建议调整Xms和Xmx参数

// 调整内核参数
sysctl -w vm.max_map_count=262144

// 创建持久化存储文件夹
mkdir -p /home/es/data
mkdir -p /home/es/plugins

// 设置文件夹权限
chmod 777 /home/es/data
chmod 777 /home/es/plugins

// 拉取镜像和安装
docker pull docker.elastic.co/elasticsearch/elasticsearch:7.17.12
docker run \
  --name es \
  --restart always \
  --publish 9200:9200 -p 9300:9300 \
  --env "discovery.type=single-node" \
  --env "ES_JAVA_OPTS=-Xms1024m -Xmx1024m" \
  --volume /home/es/data:/usr/share/elasticsearch/data \
  --volume /home/es/plugins:/usr/share/elasticsearch/plugins \
  -d docker.elastic.co/elasticsearch/elasticsearch:7.17.12

Grafana 安装

// 创建持久化存储文件夹
mkdir -p /home/grafana/data

// 设置文件夹权限
chmod 777 /home/grafana/data

// 拉取镜像和安装
docker pull grafana/grafana-oss
docker run -d -p 3000:3000 --name=grafana \
  --volume /home/grafana/data:/var/lib/grafana \
  grafana/grafana-oss

kafka 安装

注意 --env “KAFKA_CFG_ADVERTISED_LISTENERS=PLAINTEXT://192.168.52.172:9092” 改为自己服务器ip

mkdir -p /home/kafka/data
chmod 777 /home/kafka/data

docker pull bitnami/kafka:3.5
docker run -d -p 9092:9092 --name=kafka \
  --volume /home/kafka/data:/bitnami/kafka/data \
  --env "TZ=Aisa/Shanghai" \
  --env "KAFKA_CFG_NODE_ID=0" \
  --env "KAFKA_CFG_PROCESS_ROLES=controller,broker" \
  --env "KAFKA_CFG_CONTROLLER_QUORUM_VOTERS=0@localhost:9093" \
  --env "KAFKA_CFG_LISTENERS=PLAINTEXT://:9092,CONTROLLER://:9093" \
  --env "KAFKA_CFG_ADVERTISED_LISTENERS=PLAINTEXT://192.168.52.172:9092" \
  --env "KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT" \
  --env "KAFKA_CFG_CONTROLLER_LISTENER_NAMES=CONTROLLER" \
  --env "KAFKA_CFG_INTER_BROKER_LISTENER_NAME=PLAINTEXT" \
  bitnami/kafka:3.5

4.两种方案

优势对比

类型	优点	缺点
第一方案	速度快，简单	定位非常不准
第二方案	定位准确，可定制开发	复杂

4.1第一方案（使用fluent-bit内置geoip2定位ip坐标）

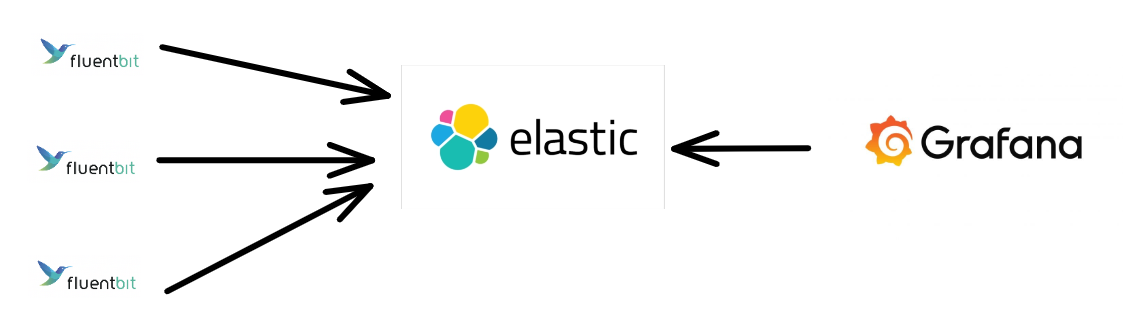

架构图

下载Geoip2离线数据库

访问 https://www.maxmind.com/ 网站

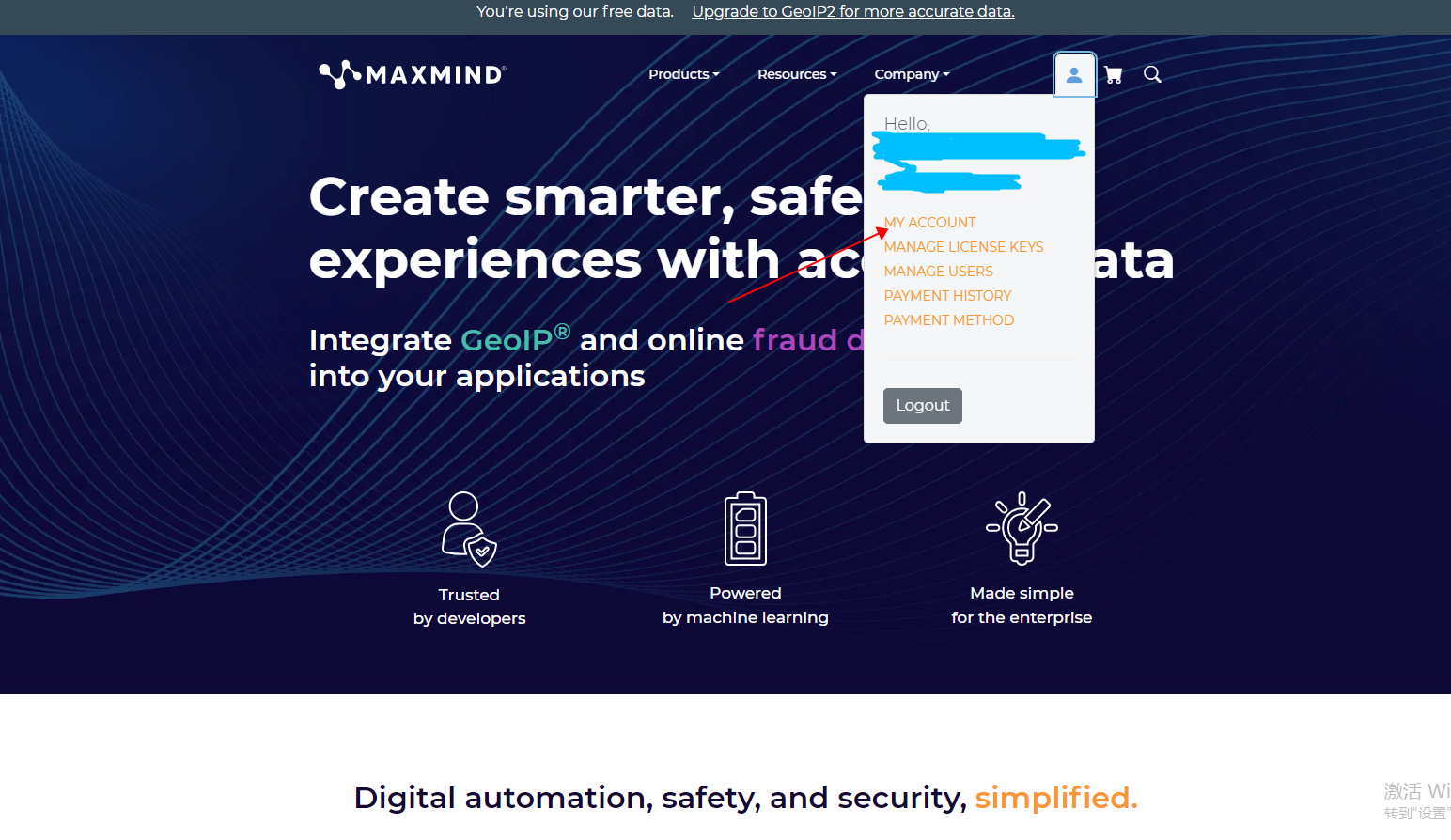

点击 MY ACCOUNT

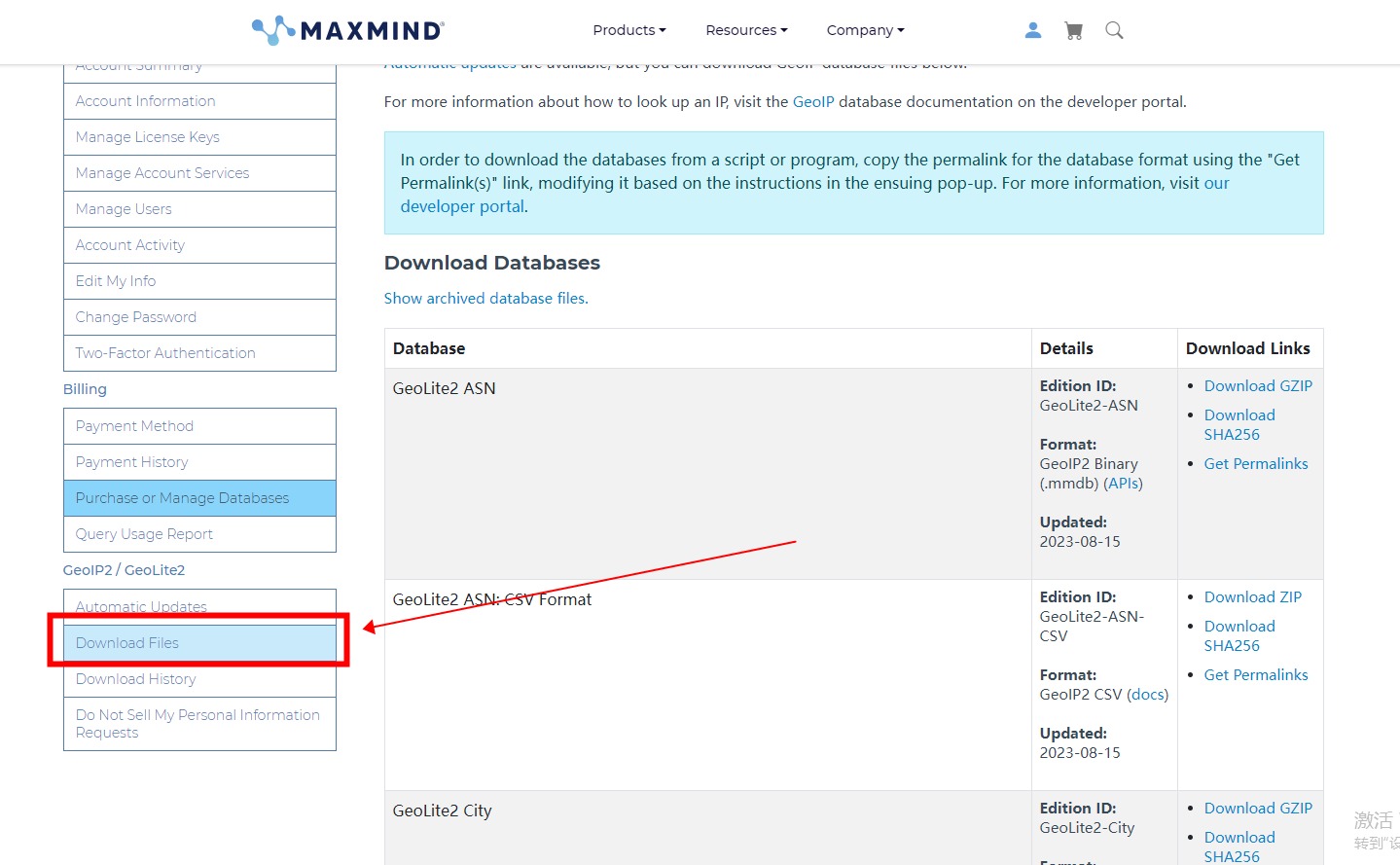

点击 Download Files

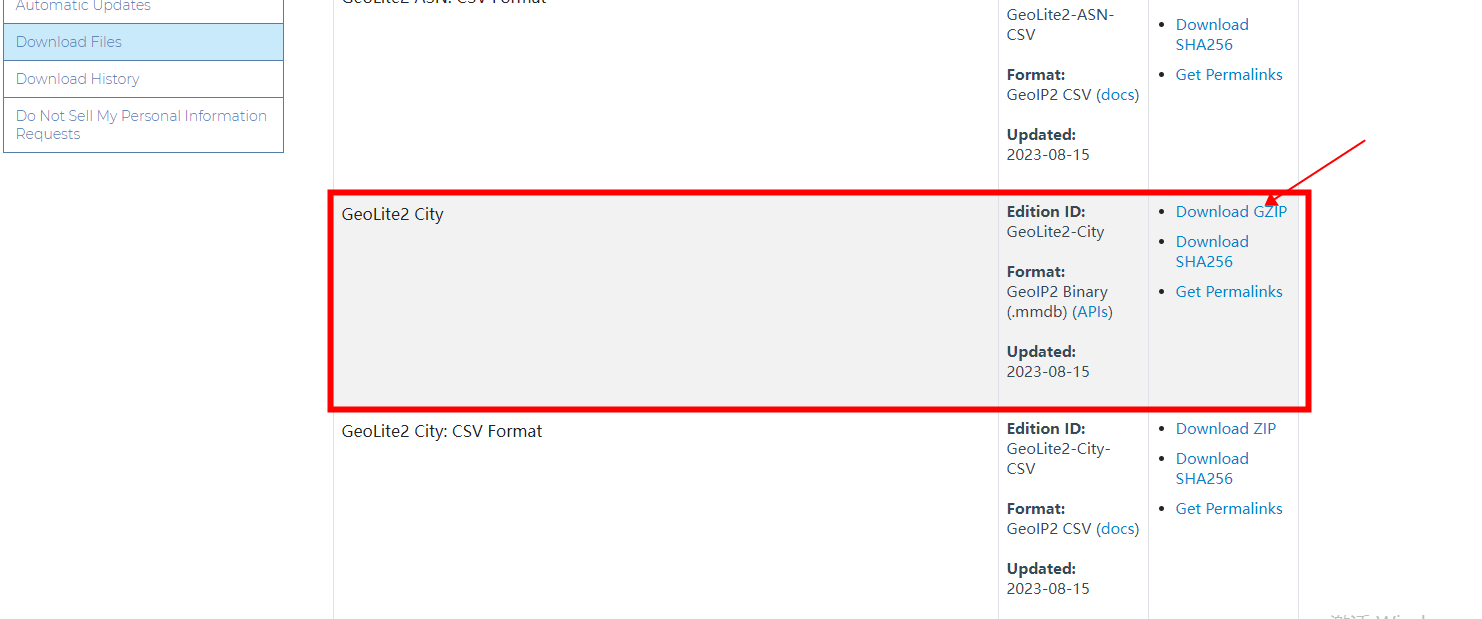

选择 GeoLite2 City 点击Download GZIP（离线数据库每次都会有更新）

fluent-bit安装配置

// 下载好哦上传 GeoLite2-City.mmdb
root@localhost:~# mv GeoLite2-City.mmdb /home/fluent-bit

// 创建fluent-bit目录
root@localhost:~# mkdir -p /home/fluent-bit
root@localhost:~# cd /home/fluent-bit

root@localhost:~# vim /home/fluent-bit/fluent-bit.conf

[SERVICE]
    Flush         1
    Log_Level     info
    Daemon        off
    Parsers_File  parsers.conf
    HTTP_Server   On
    HTTP_Listen   0.0.0.0
    HTTP_Port     2020

[INPUT]
    name              tail
    path              /opt/nginx/*.log
    DB                /fluent-bit/etc/fluent-bit.db
    Mem_Buf_Limit     5MB
    Skip_Long_Lines   On
    Refresh_Interval  10
    Parser            json

[OUTPUT]
    Name               es
    Match              *
    Index              syslog
    Type               journal
    Host               192.168.52.173
    Port               9200
    Generate_ID        On
    Logstash_Format    On
    Time_Key_Nanos     On
    Current_Time_Index On

[FILTER]
    Name             geoip2
    Match            *
    Database         /fluent-bit/etc/GeoLite2-City.mmdb
    Lookup_key       client
    Record country   client %{country.names.zh-CN}
    Record isocode   client %{country.iso_code}
    Record city      client %{city.names.zh-CN}
    Record latitude  client %{location.latitude}
    Record longitude client %{location.longitude}

[OUTPUT]
    Name   stdout
    Match  *

root@localhost:~# vim /home/fluent-bit/parsers.conf

[PARSER]
    Name   apache2
    Format regex
    Regex  ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^ ]*) +\S*)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>.*)")?$
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name   apache_error
    Format regex
    Regex  ^\[[^ ]* (?<time>[^\]]*)\] \[(?<level>[^\]]*)\](?: \[pid (?<pid>[^\]]*)\])?( \[client (?<client>[^\]]*)\])? (?<message>.*)$

[PARSER]
    Name   nginx
    Format regex
    Regex ^(?<remote>[^ ]*) (?<host>[^ ]*) (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    # https://rubular.com/r/IhIbCAIs7ImOkc
    Name        k8s-nginx-ingress
    Format      regex
    Regex       ^(?<host>[^ ]*) - (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*) "(?<referer>[^\"]*)" "(?<agent>[^\"]*)" (?<request_length>[^ ]*) (?<request_time>[^ ]*) \[(?<proxy_upstream_name>[^ ]*)\] (\[(?<proxy_alternative_upstream_name>[^ ]*)\] )?(?<upstream_addr>[^ ]*) (?<upstream_response_length>[^ ]*) (?<upstream_response_time>[^ ]*) (?<upstream_status>[^ ]*) (?<reg_id>[^ ]*).*$
    Time_Key    time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name   json
    Format json
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name         docker
    Format       json
    Time_Key     time
    Time_Format  %Y-%m-%dT%H:%M:%S.%L
    Time_Keep    On
    # --
    # Since Fluent Bit v1.2, if you are parsing Docker logs and using
    # the Kubernetes filter, it's not longer required to decode the
    # 'log' key.
    #
    # Command      |  Decoder | Field | Optional Action
    # =============|==================|=================
    #Decode_Field_As    json     log

[PARSER]
    Name        docker-daemon
    Format      regex
    Regex       time="(?<time>[^ ]*)" level=(?<level>[^ ]*) msg="(?<msg>[^ ].*)"
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L
    Time_Keep   On

[PARSER]
    Name        syslog-rfc5424
    Format      regex
    Regex       ^\<(?<pri>[0-9]{1,5})\>1 (?<time>[^ ]+) (?<host>[^ ]+) (?<ident>[^ ]+) (?<pid>[-0-9]+) (?<msgid>[^ ]+) (?<extradata>(\[(.*?)\]|-)) (?<message>.+)$
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On

[PARSER]
    Name        syslog-rfc3164-local
    Format      regex
    Regex       ^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$
    Time_Key    time
    Time_Format %b %d %H:%M:%S
    Time_Keep   On

[PARSER]
    Name        syslog-rfc3164
    Format      regex
    Regex       /^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<host>[^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$/
    Time_Key    time
    Time_Format %b %d %H:%M:%S
    Time_Keep   On

[PARSER]
    Name    mongodb
    Format  regex
    Regex   ^(?<time>[^ ]*)\s+(?<severity>\w)\s+(?<component>[^ ]+)\s+\[(?<context>[^\]]+)]\s+(?<message>.*?) *(?<ms>(\d+))?(:?ms)?$
    Time_Format %Y-%m-%dT%H:%M:%S.%L
    Time_Keep   On
    Time_Key time

[PARSER]
    # https://rubular.com/r/0VZmcYcLWMGAp1
    Name    envoy
    Format  regex
    Regex ^\[(?<start_time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)? (?<protocol>\S+)" (?<code>[^ ]*) (?<response_flags>[^ ]*) (?<bytes_received>[^ ]*) (?<bytes_sent>[^ ]*) (?<duration>[^ ]*) (?<x_envoy_upstream_service_time>[^ ]*) "(?<x_forwarded_for>[^ ]*)" "(?<user_agent>[^\"]*)" "(?<request_id>[^\"]*)" "(?<authority>[^ ]*)" "(?<upstream_host>[^ ]*)"
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On
    Time_Key start_time

[PARSER]
    # https://rubular.com/r/17KGEdDClwiuDG
    Name    istio-envoy-proxy
    Format  regex
    Regex ^\[(?<start_time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)? (?<protocol>\S+)" (?<response_code>[^ ]*) (?<response_flags>[^ ]*) (?<response_code_details>[^ ]*) (?<connection_termination_details>[^ ]*) (?<upstream_transport_failure_reason>[^ ]*) (?<bytes_received>[^ ]*) (?<bytes_sent>[^ ]*) (?<duration>[^ ]*) (?<x_envoy_upstream_service_time>[^ ]*) "(?<x_forwarded_for>[^ ]*)" "(?<user_agent>[^\"]*)" "(?<x_request_id>[^\"]*)" (?<authority>[^ ]*)" "(?<upstream_host>[^ ]*)" (?<upstream_cluster>[^ ]*) (?<upstream_local_address>[^ ]*) (?<downstream_local_address>[^ ]*) (?<downstream_remote_address>[^ ]*) (?<requested_server_name>[^ ]*) (?<route_name>[^  ]*)
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On
    Time_Key start_time

[PARSER]
    # http://rubular.com/r/tjUt3Awgg4
    Name cri
    Format regex
    Regex ^(?<time>[^ ]+) (?<stream>stdout|stderr) (?<logtag>[^ ]*) (?<message>.*)$
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On

[PARSER]
    Name    kube-custom
    Format  regex
    Regex   (?<tag>[^.]+)?\.?(?<pod_name>[a-z0-9](?:[-a-z0-9]*[a-z0-9])?(?:\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*)_(?<namespace_name>[^_]+)_(?<container_name>.+)-(?<docker_id>[a-z0-9]{64})\.log$

// 拉取镜像
docker pull fluent/fluent-bit:2.1.8
docker run -d --name fluent-bit \
  --restart always \
  -v /var/log/nginx/:/opt/nginx \
  -v /home/fluent-bit:/fluent-bit/etc/ \
  fluent/fluent-bit:2.1.8

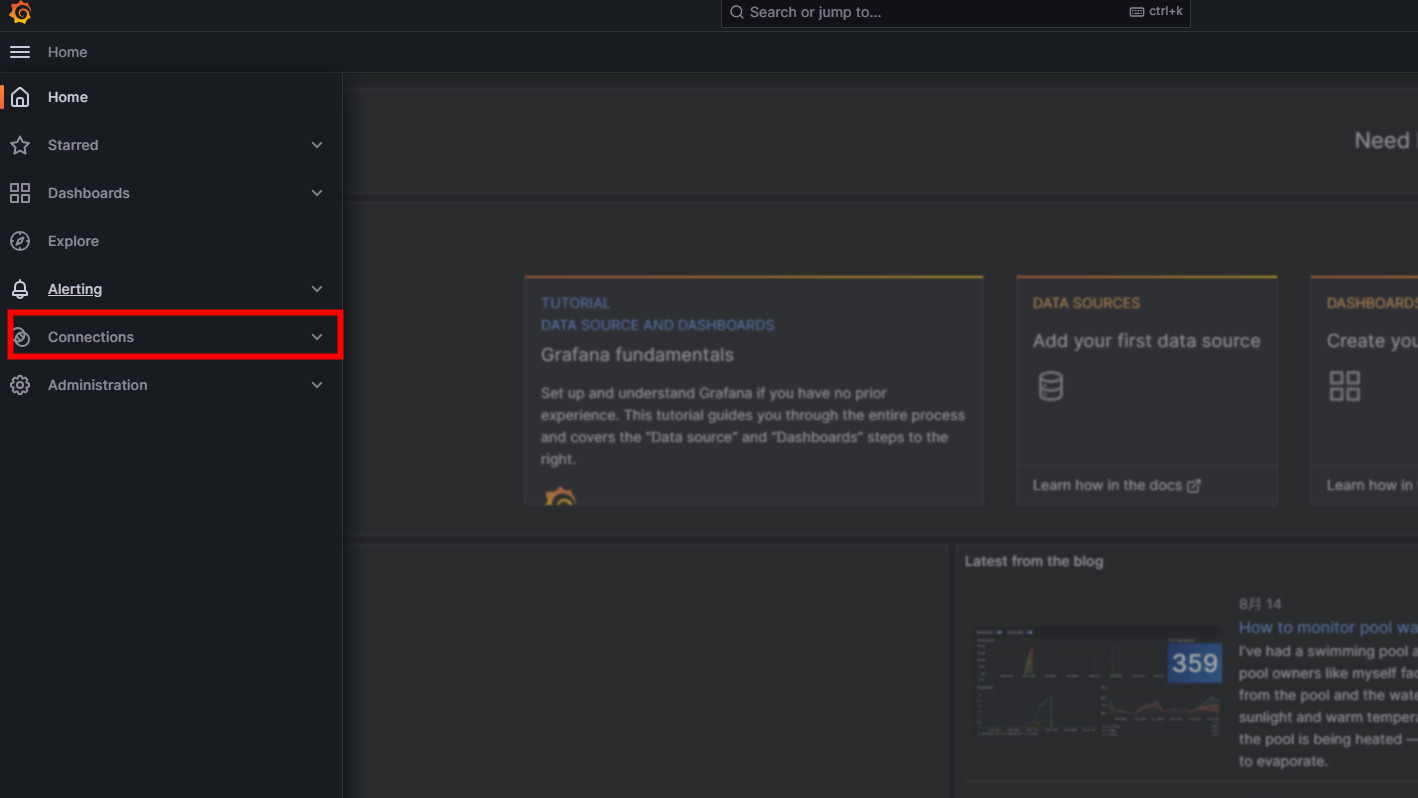

访问 http://192.168.52.173:3000，点击 Connections

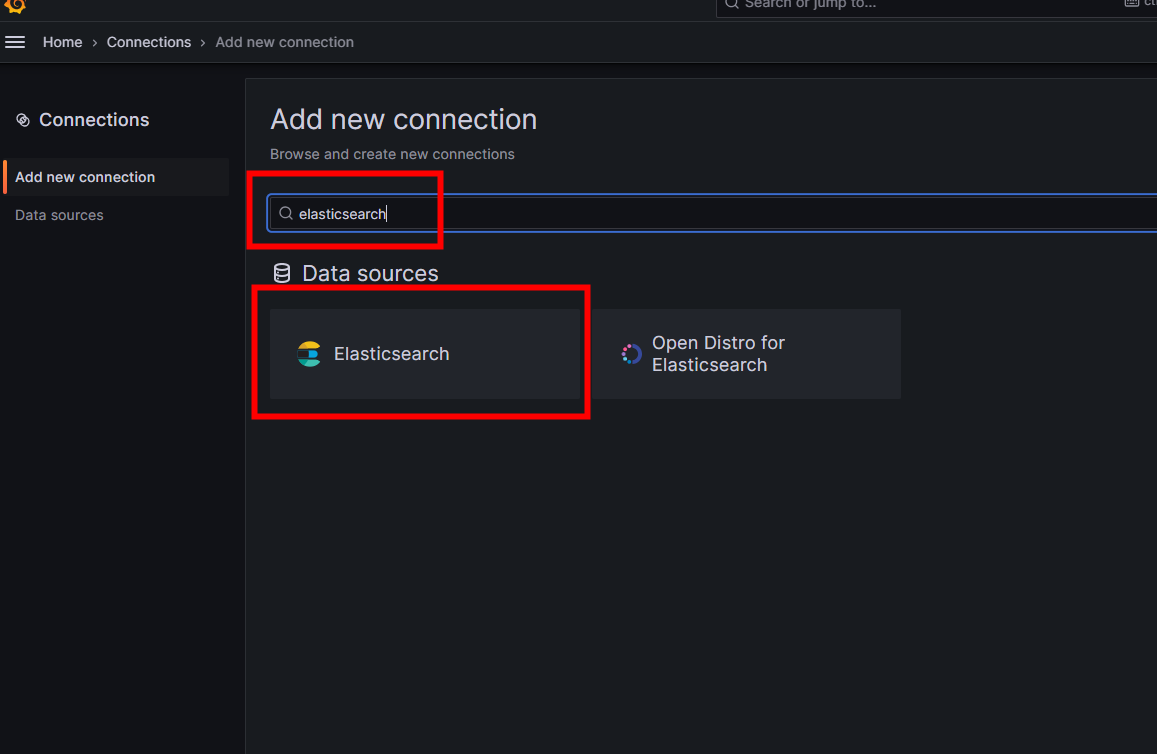

搜索Elasticsearch

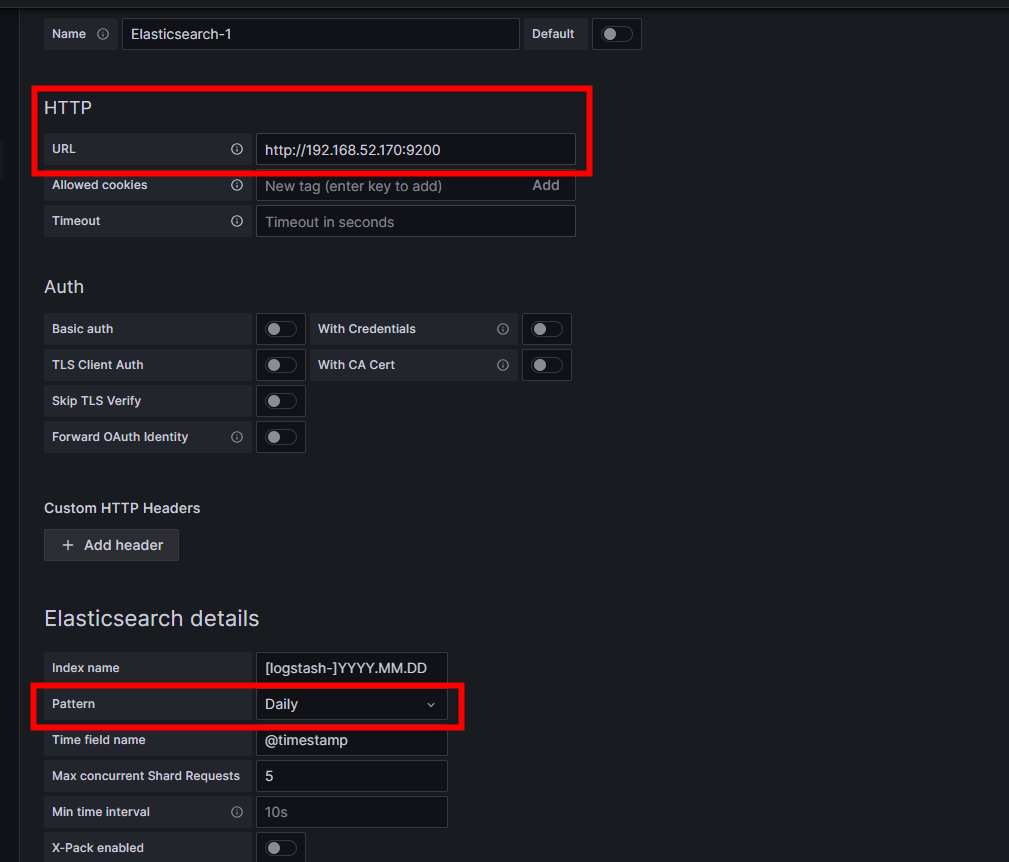

添加Elasticsearch服务器，选择Pattern为Daily

增加Dashboard Geomap

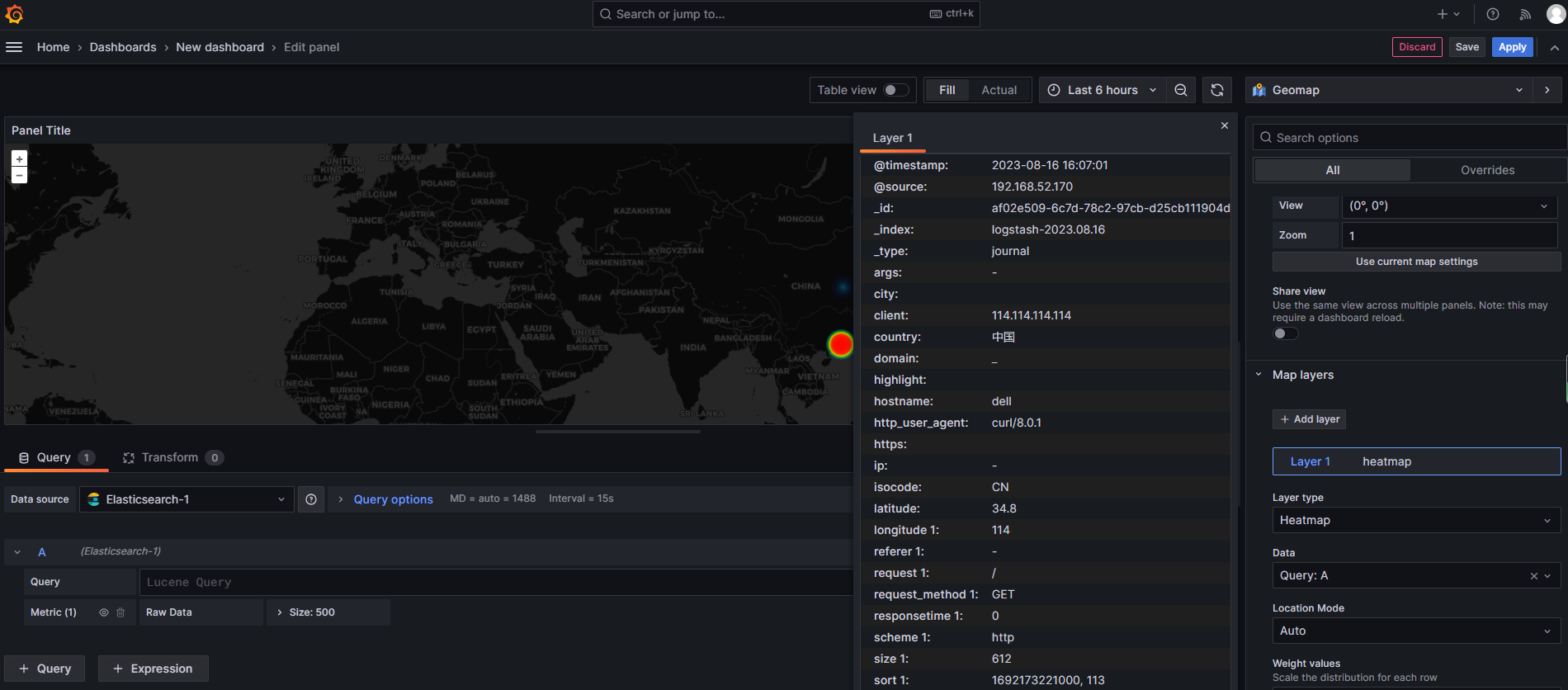

Layer type 选择Heatmap为热力图

4.2第二方案（使用外部程序定位ip坐标）

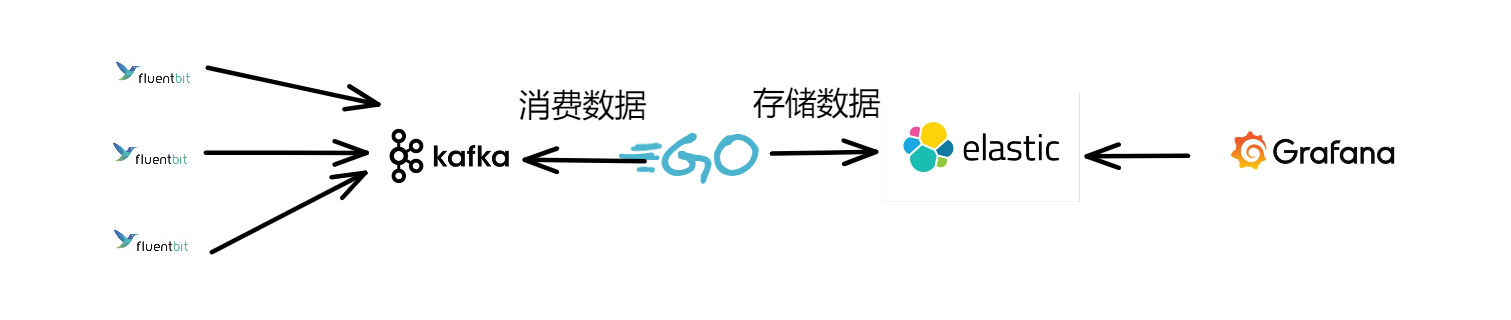

架构图

由于第一方案采用fluent-bit内置geoip2，官方geoip2离线数据库定位效果很差，通过go程序对数据进行二次过滤。

fluent-bit 安装配置

// 创建fluent-bit目录
root@localhost:~# mkdir -p /home/fluent-bit
root@localhost:~# cd /home/fluent-bit

root@localhost:~# vim /home/fluent-bit/fluent-bit.conf

[SERVICE]
    Flush         1
    Log_Level     info
    Daemon        off
    Parsers_File  parsers.conf
    HTTP_Server   On
    HTTP_Listen   0.0.0.0
    HTTP_Port     2020

[INPUT]
    name              tail
    path              /opt/nginx/*.log
    DB                /fluent-bit/etc/fluent-bit.db
    Mem_Buf_Limit     5MB
    Skip_Long_Lines   On
    Refresh_Interval  10
    Parser            json

[OUTPUT]
    Name        kafka
    Match       *
    Brokers     192.168.52.172:9092
    Topics      nginx-log

[OUTPUT]
    Name   stdout
    Match  *

root@localhost:~# vim /home/fluent-bit/parsers.conf

[PARSER]
    Name   apache2
    Format regex
    Regex  ^(?<host>[^ ]*) [^ ]* (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^ ]*) +\S*)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>.*)")?$
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name   apache_error
    Format regex
    Regex  ^\[[^ ]* (?<time>[^\]]*)\] \[(?<level>[^\]]*)\](?: \[pid (?<pid>[^\]]*)\])?( \[client (?<client>[^\]]*)\])? (?<message>.*)$

[PARSER]
    Name   nginx
    Format regex
    Regex ^(?<remote>[^ ]*) (?<host>[^ ]*) (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<agent>[^\"]*)")
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    # https://rubular.com/r/IhIbCAIs7ImOkc
    Name        k8s-nginx-ingress
    Format      regex
    Regex       ^(?<host>[^ ]*) - (?<user>[^ ]*) \[(?<time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)?" (?<code>[^ ]*) (?<size>[^ ]*) "(?<referer>[^\"]*)" "(?<agent>[^\"]*)" (?<request_length>[^ ]*) (?<request_time>[^ ]*) \[(?<proxy_upstream_name>[^ ]*)\] (\[(?<proxy_alternative_upstream_name>[^ ]*)\] )?(?<upstream_addr>[^ ]*) (?<upstream_response_length>[^ ]*) (?<upstream_response_time>[^ ]*) (?<upstream_status>[^ ]*) (?<reg_id>[^ ]*).*$
    Time_Key    time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name   json
    Format json
    Time_Key time
    Time_Format %d/%b/%Y:%H:%M:%S %z

[PARSER]
    Name         docker
    Format       json
    Time_Key     time
    Time_Format  %Y-%m-%dT%H:%M:%S.%L
    Time_Keep    On
    # --
    # Since Fluent Bit v1.2, if you are parsing Docker logs and using
    # the Kubernetes filter, it's not longer required to decode the
    # 'log' key.
    #
    # Command      |  Decoder | Field | Optional Action
    # =============|==================|=================
    #Decode_Field_As    json     log

[PARSER]
    Name        docker-daemon
    Format      regex
    Regex       time="(?<time>[^ ]*)" level=(?<level>[^ ]*) msg="(?<msg>[^ ].*)"
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L
    Time_Keep   On

[PARSER]
    Name        syslog-rfc5424
    Format      regex
    Regex       ^\<(?<pri>[0-9]{1,5})\>1 (?<time>[^ ]+) (?<host>[^ ]+) (?<ident>[^ ]+) (?<pid>[-0-9]+) (?<msgid>[^ ]+) (?<extradata>(\[(.*?)\]|-)) (?<message>.+)$
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On

[PARSER]
    Name        syslog-rfc3164-local
    Format      regex
    Regex       ^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$
    Time_Key    time
    Time_Format %b %d %H:%M:%S
    Time_Keep   On

[PARSER]
    Name        syslog-rfc3164
    Format      regex
    Regex       /^\<(?<pri>[0-9]+)\>(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<host>[^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$/
    Time_Key    time
    Time_Format %b %d %H:%M:%S
    Time_Keep   On

[PARSER]
    Name    mongodb
    Format  regex
    Regex   ^(?<time>[^ ]*)\s+(?<severity>\w)\s+(?<component>[^ ]+)\s+\[(?<context>[^\]]+)]\s+(?<message>.*?) *(?<ms>(\d+))?(:?ms)?$
    Time_Format %Y-%m-%dT%H:%M:%S.%L
    Time_Keep   On
    Time_Key time

[PARSER]
    # https://rubular.com/r/0VZmcYcLWMGAp1
    Name    envoy
    Format  regex
    Regex ^\[(?<start_time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)? (?<protocol>\S+)" (?<code>[^ ]*) (?<response_flags>[^ ]*) (?<bytes_received>[^ ]*) (?<bytes_sent>[^ ]*) (?<duration>[^ ]*) (?<x_envoy_upstream_service_time>[^ ]*) "(?<x_forwarded_for>[^ ]*)" "(?<user_agent>[^\"]*)" "(?<request_id>[^\"]*)" "(?<authority>[^ ]*)" "(?<upstream_host>[^ ]*)"
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On
    Time_Key start_time

[PARSER]
    # https://rubular.com/r/17KGEdDClwiuDG
    Name    istio-envoy-proxy
    Format  regex
    Regex ^\[(?<start_time>[^\]]*)\] "(?<method>\S+)(?: +(?<path>[^\"]*?)(?: +\S*)?)? (?<protocol>\S+)" (?<response_code>[^ ]*) (?<response_flags>[^ ]*) (?<response_code_details>[^ ]*) (?<connection_termination_details>[^ ]*) (?<upstream_transport_failure_reason>[^ ]*) (?<bytes_received>[^ ]*) (?<bytes_sent>[^ ]*) (?<duration>[^ ]*) (?<x_envoy_upstream_service_time>[^ ]*) "(?<x_forwarded_for>[^ ]*)" "(?<user_agent>[^\"]*)" "(?<x_request_id>[^\"]*)" (?<authority>[^ ]*)" "(?<upstream_host>[^ ]*)" (?<upstream_cluster>[^ ]*) (?<upstream_local_address>[^ ]*) (?<downstream_local_address>[^ ]*) (?<downstream_remote_address>[^ ]*) (?<requested_server_name>[^ ]*) (?<route_name>[^  ]*)
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On
    Time_Key start_time

[PARSER]
    # http://rubular.com/r/tjUt3Awgg4
    Name cri
    Format regex
    Regex ^(?<time>[^ ]+) (?<stream>stdout|stderr) (?<logtag>[^ ]*) (?<message>.*)$
    Time_Key    time
    Time_Format %Y-%m-%dT%H:%M:%S.%L%z
    Time_Keep   On

[PARSER]
    Name    kube-custom
    Format  regex
    Regex   (?<tag>[^.]+)?\.?(?<pod_name>[a-z0-9](?:[-a-z0-9]*[a-z0-9])?(?:\.[a-z0-9]([-a-z0-9]*[a-z0-9])?)*)_(?<namespace_name>[^_]+)_(?<container_name>.+)-(?<docker_id>[a-z0-9]{64})\.log$

安装geo程序

// Linux
wget https://github.com/jidancong/geo/releases/download/v1.0.0/geo_v1.0.0_Linux_amd64.tar.gz

// Windows
wget https://github.com/jidancong/geo/releases/download/v1.0.0/geo_v1.0.0_Win-64bit.zip

配置config.yaml文件

kafka:
  host: "localhost:9092"
  topic: "nginx-log"
  groupId: "1"
  numPartitions: 3
  replication: -1
es:
  host: http://localhost:9200
  preName: logstash-

chunzhen:
  path: config/qqwry.dat
ip2location:
  path: config/IP2LOCATION-LITE-DB11.BIN
