普林斯顿大学算法Week3:CollinearPoints共线模式识别(99分)--总结及代码

总结

(代码有详细注释)

1. 本课讲了归并排序,作业应用是排序进行共线的模式识别,java1.8中的排序用的是tim排序,结合了归并排序与插入排序,属于稳定排序:排序之后相同元素的相对位置会不会改变
2. Point.java中有个非常重要的方法,compareTo(),它定义:纵坐标越小则点越小,如果纵坐标相同,那么横坐标越小则点越小.(如果作业中要求横坐标也是按顺序排列,那么排序后的点集映射到二维坐标系中是非递减的折线, 这样找共线只用一层循环即可,可惜作业没加上对x的限制)
3. 比较大小,一开始我用的是points[i-1] == point[i],尽管坐标相同但是points[i-1]不等于points[i]
   因为points[i-1]和points[i]表示引用,在堆中指向两个不同的地址,比较大小得用points[i-1].compareTo(points[i])
4. 在FastCollinearPoints.java中,一定要注意什么时候对共线点数变量count进行判断,有两种情况,一个是,相邻元素与参考点的斜率不同;另一个是循环到最后一个元素.这两种情况在代码注释中有解释
5. 唯一一处FAILED,扣了1分,没系统学过java,先跳过了

Test 7: check for dependence on either compareTo() or compare()
        returning { -1, +1, 0 } instead of { negative integer,
        positive integer, zero }
  * filename = equidistant.txt
    - number of entries in student   solution: 0
    - number of entries in reference solution: 4
    - 4 missing entries in student solution, including: '(30000, 0) -> (20000, 10000) -> (10000, 20000) -> (0, 30000)'
==> FAILED

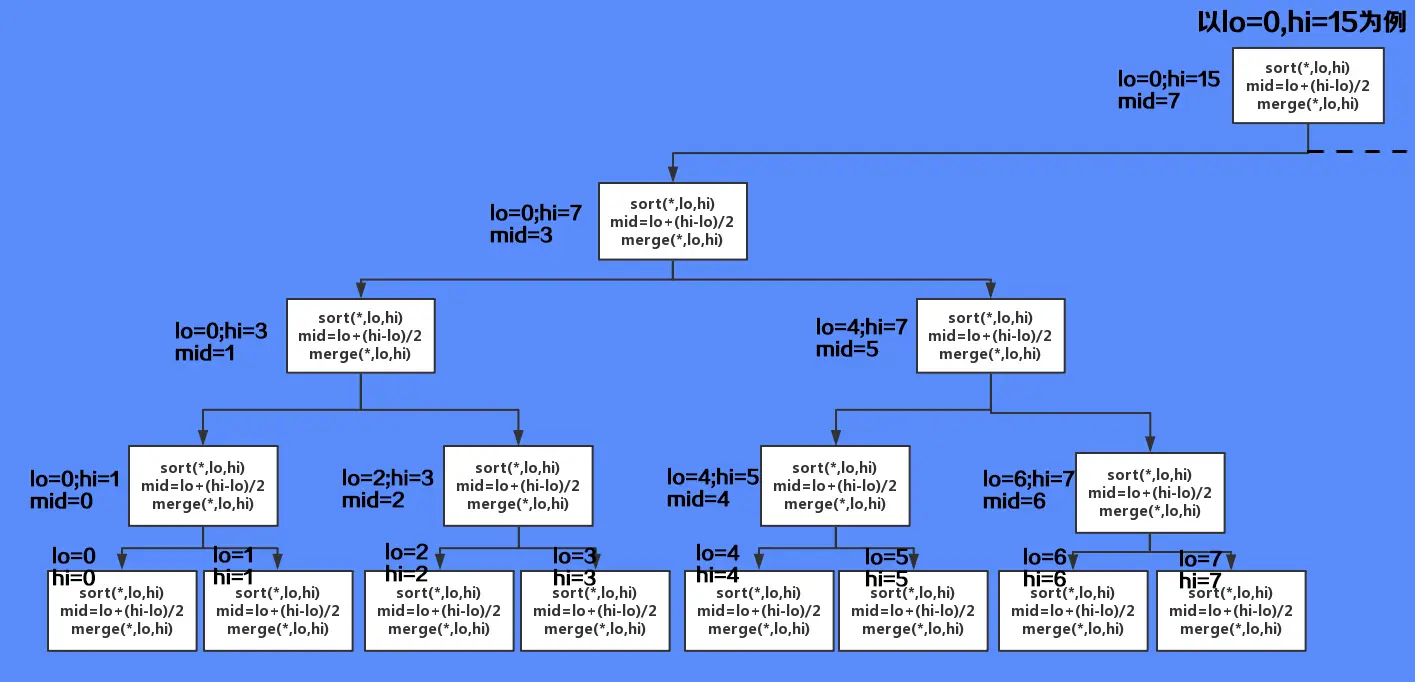

1. week3课件中,递归调用的图示:
   这是包含两个递归调用的递归 (图示只画了一半)


代码

(如需提交,请删除中文注释)

一:Point.java

import java.util.Comparator;
import edu.princeton.cs.algs4.StdDraw;
public class Point implements Comparable<Point> {
    // x-coordinate of this point
    private final int x;
    // y-coordinate of this point
    private final int y;
    // constructs the point (x, y)
    public Point(int x, int y) {
        this.x = x;
        this.y = y;
    }
    // draws this point
    public   void draw() {
        StdDraw.point(x,y);
    }
    // draws the line segment from this point to that point
    public   void drawTo(Point that) {
        StdDraw.line(this.x, this.y, that.x, that.y);
    }
    // string representation
    public String toString() {
        return "(" + x + ", " + y + ")";
    }
    // compare two points by y-coordinates, breaking ties by x-coordinates
    public  int compareTo(Point that) {
        if(y<that.y || (y==that.y && x<that.x)) return -1;
        else if(y==that.y && x==that.x) return 0;
        else return +1;
    }
    // the slope between this point and that point
    public  double slopeTo(Point that) {
        if(x==that.x && y==that.y) return Double.NEGATIVE_INFINITY;
        if(x==that.x && y!=that.y) return Double.POSITIVE_INFINITY;
        if(y==that.y)
