通过nginx+xray服务搭建及本地配置

 一、xray 服务端配置

下载：https://github.com/XTLS/Xray-core

进入下载界面

这里我选择的是Xray-linux-64.zip

将文件解压到 /usr/local/xray

编辑配置文件/usr/local/xray/config.json

uuid可以在自动生成，也可以在UUID v4 生成器 - KKTool工具箱 (kktoolkit.com)    上获取uuid

vmess方式1：

{
    "inbounds": [
        {
            "port": 10000,
            "protocol": "vmess",
            "settings": {
                "clients": [
                    {
                        "id": "6ec56d51-52cd-4b64-a925-52982ed7044e",
                        "alterId": 100
                    }
                ],
                "decryption": "none"
            },
           "streamSettings": {
             "network": "ws",
             "wsSettings": {
               "path": "/kazfs"
             }
            }
        }
    ],
    "outbounds": [
        {
            "protocol": "freedom"
        }
    ]
}

vless方式2：

如果不使用vmess，vmess有时间限制问题

{
  "log": {
    "loglevel": "warning"
  },
  "inbounds": [
    {
      "port": 10000,
      "protocol": "vless",
      "settings": {
        "clients": [
          {
            "id": "6ec56d51-52cd-4b64-a925-52982ed704a1",
            "level": 0
          },
          {
            "id": "f6725b1b-546a-4fff-9fc3-4b60e8c1cd41",
            "level": 1
          }
        ],
        "decryption": "none"
      },
      "streamSettings": {
        "network": "ws",
        "wsSettings": {
            "path": "/kazfs"
         }
      }
    }
  ],
  "outbounds": [
    {
      "protocol": "freedom",
      "settings": {}
    }
  ]
}

配置xray启动服务 vi /etc/systemd/system/xray.service

[Unit]
Description=Xray Service
After=network.target

[Service]
User=nobody
ExecStart=/usr/local/xray/xray -config /usr/local/xray/config.json
Restart=on-failure
RestartSec=10
LimitNOFILE=51200

[Install]
WantedBy=multi-user.target

设置开机启动xray

systemctl enable xray --now

二、nginx配置

    location /kazfs {
        if ($http_upgrade != "websocket") { # WebSocket协商失败时返回404
            return 404;
        }
        proxy_redirect off;
        proxy_pass http://127.0.0.1:10000;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        # Show real IP in v2ray access.log
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

三、本地配置

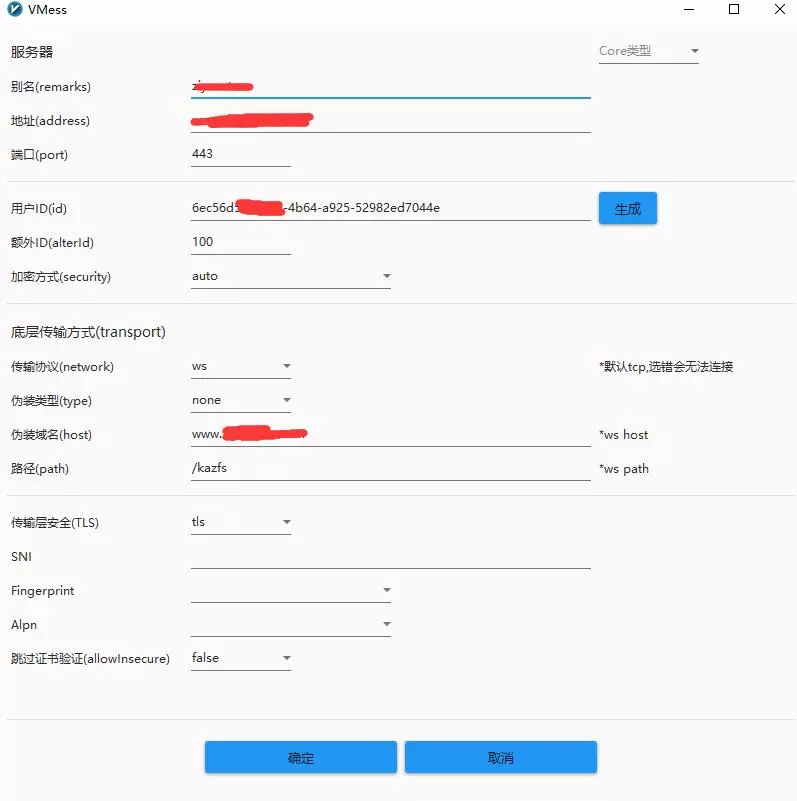

3.1 windows

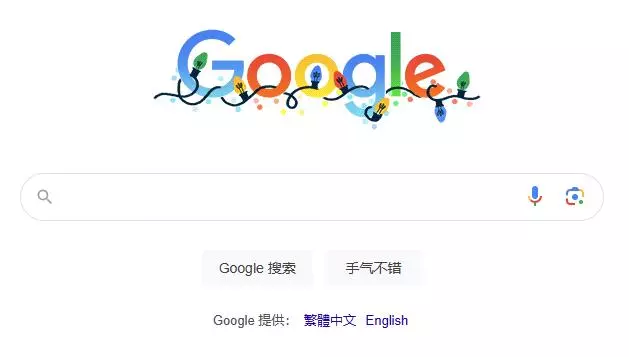

测试结果：

3.2 linux

下载软件还是去https://github.com/XTLS/Xray-core下载，用的还是服务端一样的xray

/usr/local/xray/config.json

vmess方式1：

{
    "log":{
        "loglevel":"warning"
    },
    "inbounds":[
        {
            "port":10808,
            "listen":"127.0.0.1",
            "protocol":"socks",
            "settings":{
                "udp":true
            }
        },
        {
            "tag":"http",
            "port":10809,
            "listen":"127.0.0.1",
            "protocol":"http",
            "sniffing":{
                "enabled":true,
                "destOverride":[
                    "http",
                    "tls"
                ]
            },
            "settings":{
                "auth":"noauth",
                "udp":true,
                "allowTransparent":false
            }
        }
    ],
    "outbounds":[
        {
            "tag":"proxy",
            "protocol":"vmess",
            "settings":{
                "vnext":[
                    {
                        "address":"www.yuantao.com",
                        "port":443,
                        "users":[
                            {
                                "id":"6ec56d51-52cd-4b64-a925-52982ed7044e",
                                "alterId": 100
                            }
                        ]
                    }
                ]
            },
            "streamSettings":{
                "network":"ws",
                "security":"tls",
                "tlsSettings":{
                    "serverName":"www.yuantao.com"
                },
                "wsSettings":{
                    "path":"/kazfs"
                }
            }
        },
        {
            "tag":"direct",
            "protocol":"freedom",
            "settings":{

            }
        },
        {
            "tag":"block",
            "protocol":"blackhole",
            "settings":{
                "response":{
                    "type":"http"
                }
            }
        }
    ],
    "routing":{
        "domainStrategy":"IPIfNonMatch",
        "domainMatcher":"linear",
        "rules":[
            {
                "type":"field",
                "inboundTag":[
                    "api"
                ],
                "outboundTag":"api",
                "enabled":true
            },
            {
                "type":"field",
                "outboundTag":"direct",
                "domain":[
                    "domain:example-example.com",
                    "domain:example-example2.com"
                ],
                "enabled":true
            },
            {
                "type":"field",
                "outboundTag":"direct",
                "ip":[
                    "192.168.10.1/24"
                ],
                "protocol":[
                    "http",
                    "tls",
                    "bittorrent"
                ]
            },
            {
                "type":"field",
                "outboundTag":"block",
                "domain":[
                    "geosite:category-ads-all"
                ],
                "enabled":true
            },
            {
                "type":"field",
                "outboundTag":"direct",
                "domain":[
                    "geosite:cn"
                ],
                "enabled":true
            },
            {
                "type":"field",
                "outboundTag":"direct",
                "ip":[
                    "geoip:private",
                    "geoip:cn"
                ],
                "enabled":true
            },
            {
                "type":"field",
                "port":"0-65535",
                "outboundTag":"proxy",
                "enabled":true
            },
            {
                "type":"field",
                "port":"0-65535",
                "outboundTag":"proxy",
                "enabled":true
            }
        ]
    }
}

vless方式2：

{
  "log": {
    "access": "",
    "error": "",
    "loglevel": "warning"
  },
  "inbounds": [
    {
      "tag": "socks",
      "port": 10808,
      "listen": "127.0.0.1",
      "protocol": "socks",
      "sniffing": {
        "enabled": true,
        "destOverride": [
          "http",
          "tls"
        ],
        "routeOnly": false
      },
      "settings": {
        "auth": "noauth",
        "udp": true,
        "allowTransparent": false
      }
    },
    {
      "tag": "http",
      "port": 10809,
      "listen": "127.0.0.1",
      "protocol": "http",
      "sniffing": {
        "enabled": true,
        "destOverride": [
          "http",
          "tls"
        ],
        "routeOnly": false
      },
      "settings": {
        "auth": "noauth",
        "udp": true,
        "allowTransparent": false
      }
    }
  ],
  "outbounds": [
    {
      "tag": "proxy",
      "protocol": "vless",
      "settings": {
        "vnext": [
          {
            "address": "www.ziyuantao.com",
            "port": 1443,
            "users": [
              {
                "id": "6ec56d51-52cd-4b64-a925-52982ed704a1",
                "alterId": 0,
                "email": "t@t.tt",
                "security": "auto",
                "encryption": "none"
              }
            ]
          }
        ]
      },
      "streamSettings": {
        "network": "ws",
        "security": "tls",
        "tlsSettings": {
          "allowInsecure": false,
          "serverName": "www.ziyuantao.com",
          "show": false
        },
        "wsSettings": {
          "path": "/kazfs",
          "headers": {
            "Host": "www.ziyuantao.com"
          }
        }
      },
      "mux": {
        "enabled": false,
        "concurrency": -1
      }
    },
    {
      "tag": "direct",
      "protocol": "freedom",
      "settings": {}
    },
    {
      "tag": "block",
      "protocol": "blackhole",
      "settings": {
        "response": {
          "type": "http"
        }
      }
    }
  ],
  "dns": {
    "servers": [
      "1.1.1.1",
      "8.8.8.8"
    ]
  },
  "routing": {
    "domainStrategy": "AsIs",
    "rules": [
      {
        "type": "field",
        "inboundTag": [
          "api"
        ],
        "outboundTag": "api"
      },
      {
        "type": "field",
        "outboundTag": "direct",
        "domain": [
          "domain:example-example.com",
          "domain:example-example2.com"
        ]
      },
      {
        "type": "field",
        "outboundTag": "block",
        "domain": [
          "geosite:category-ads-all"
        ]
      },
      {
        "type": "field",
        "outboundTag": "direct",
        "domain": [
          "geosite:cn"
        ]
      },
      {
        "type": "field",
        "outboundTag": "direct",
        "ip": [
          "geoip:private",
          "geoip:cn"
        ]
      }
    ]
  }
}

service配置：

[Unit]
Description=Xray Service
After=network.target

[Service]
User=nobody
ExecStart=/usr/local/xray/xray -config /usr/local/xray/config.json
Restart=on-failure
RestartSec=10
LimitNOFILE=51200

[Install]
WantedBy=multi-user.target

启动service：

systemctl start xray

四、测试

curl -x socks5h://127.0.0.1:10808 https://www.xxx.com
curl -x http://127.0.0.1:10809 https://www.xxx.com

五、设置

export http_proxy=http://127.0.0.1:10809
export https_proxy=http://127.0.0.1:10809

然后通过curl 测试就能访问

六、问题排查（重要）

VMess: Invalid User 可能的原因：

1、客户端和服务端的用户 ID 不匹配；
2、客户端和服务端的用户 alterId 不匹配；
3、客户端与服务端的时间不匹配，误差不能超过90秒钟；

可以选择证书自申请的caddy+xray，也可以选择网上那些一键式搭建的方式

由于我的服务端需要nginx，就用nginx做websocket连接了
