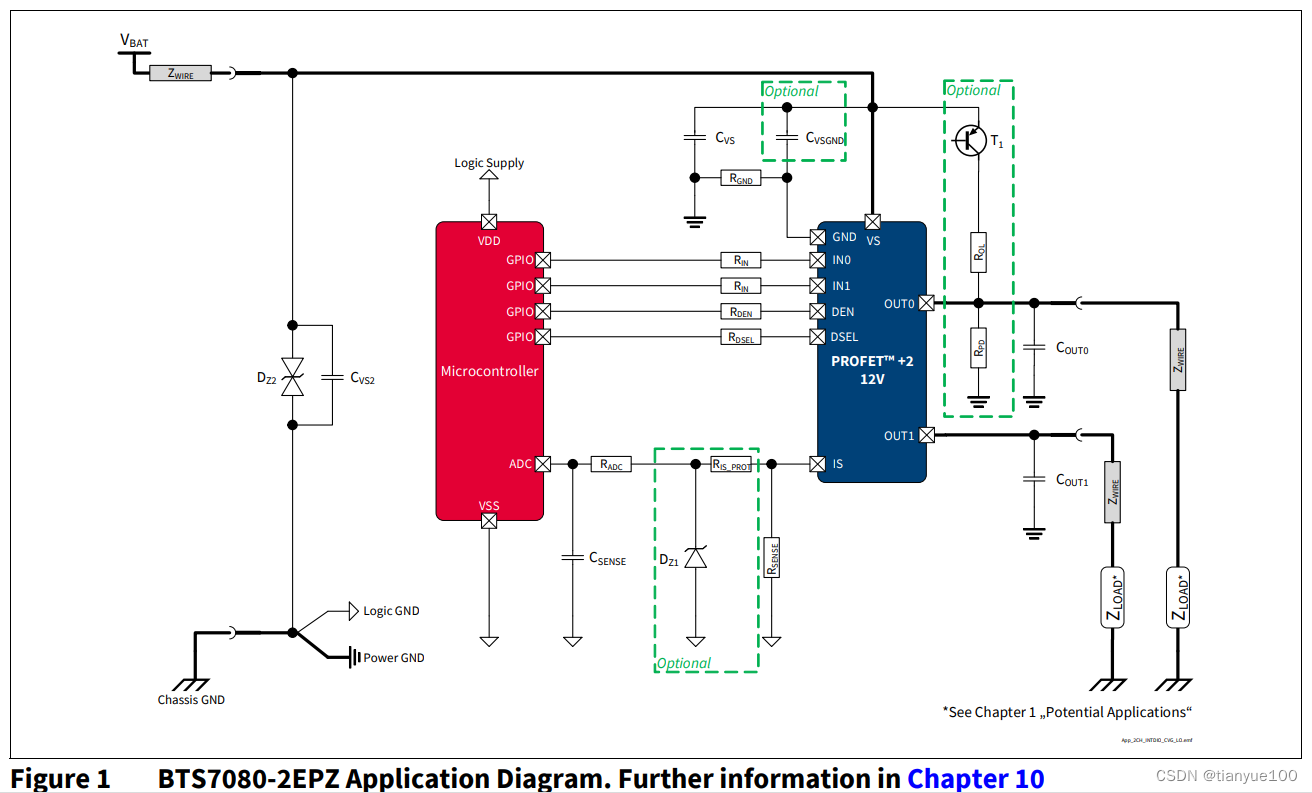

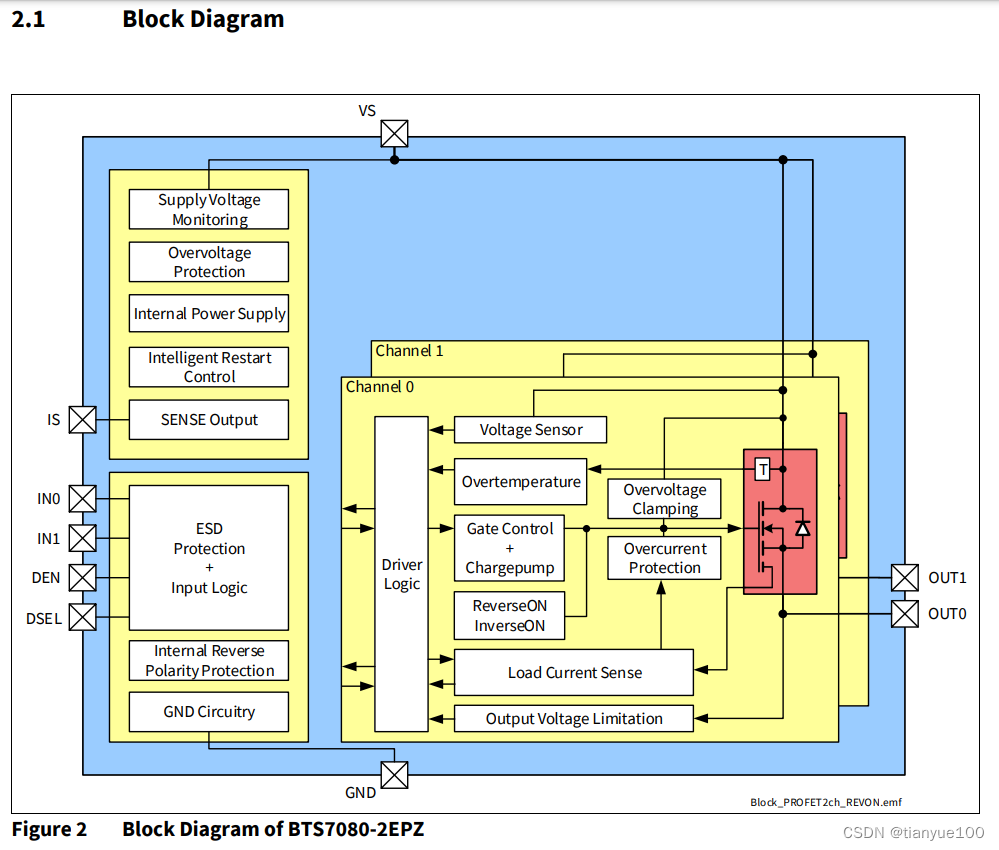

BTS7080-2EPZ

BTS7080-2EPZ - Infineon Technologies

Basic Features

• High-Side Switch with Diagnosis and Embedded Protection

• Part of PROFET™ +2 12V Family

• Switch ON capability while Inverse Current condition (InverseON)

• Green Product (RoHS compliant)

Protection Features

• Absolute and dynamic temperature limitation with controlled restart

• Overcurrent protection (tripping) with Intelligent Restart Control

• Undervoltage shutdown

• Overvoltage protection with external components

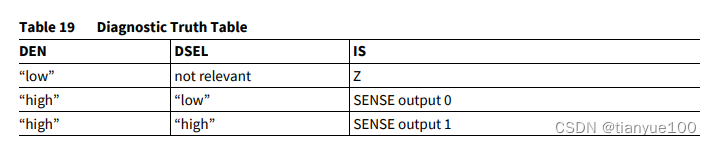

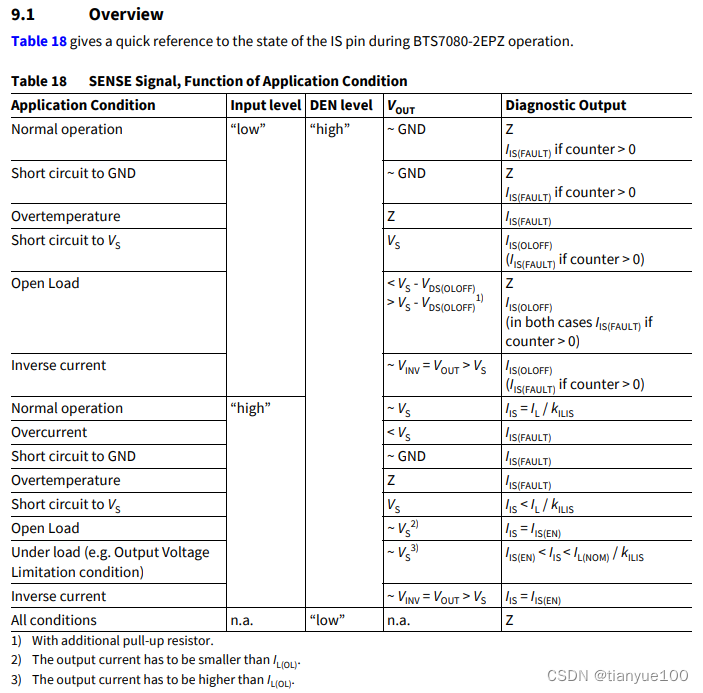

Diagnostic Features

• Proportional load current sense

• Open Load in ON and OFF state

• Short circuit to ground and battery Product Validation Qualified for automotive applications.

Product validation according to AEC-Q100 Grade 1.

Description The BTS7200-2EPC is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.

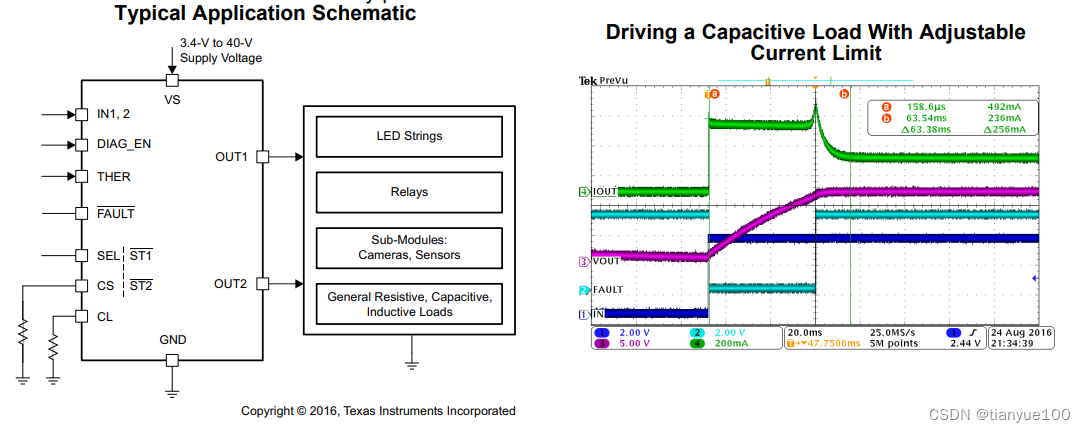

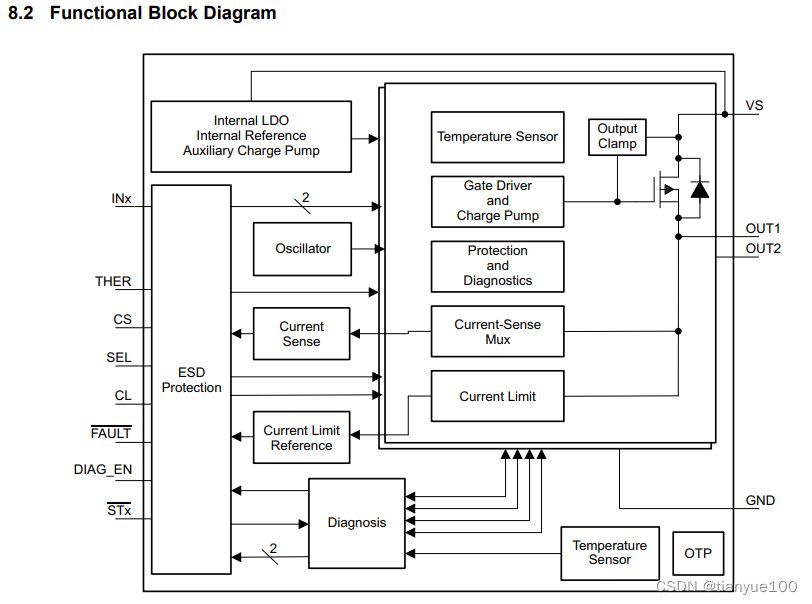

TPS2H000-Q1 40-V, 1000-mΩ Dual-Channel Smart High-Side Power Switch-TI

https://www.ti.com/lit/ds/symlink/tps2h000-q1.pdf?ts=1651239190099&ref_url=https%253A%252F%252Fwww.ti.com%252Fpower-management%252Fpower-switches%252Fhigh-side-switches%252Fproducts.html%253FkeyMatch%253DHIGH%2BSIDE%2BSWITCH

• Protection:

– Short-to-GND protection by current limit (internal or external)

– Thermal shutdown with latch-off option and thermal swing

– Inductive load negative voltage clamp with optimized slew rate

– Loss of GND and loss of battery protection

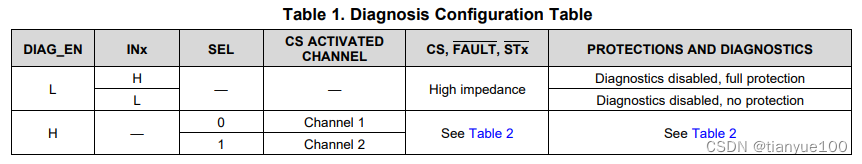

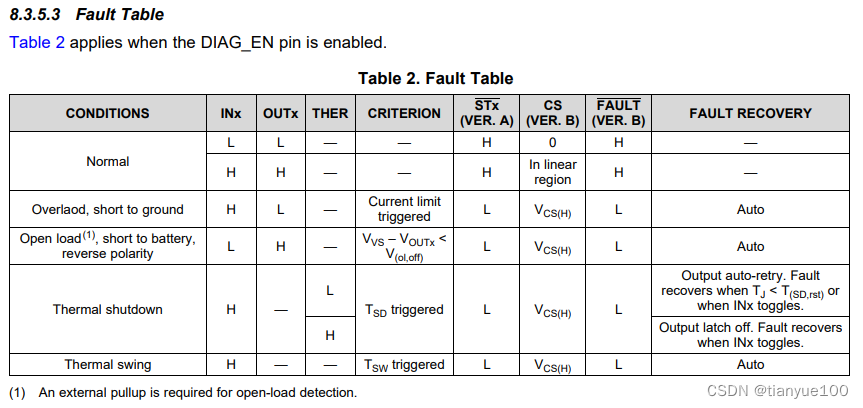

• Diagnostic:

– Overcurrent and short-to-ground detection

– Open-Load and short-to-battery detection

– Global fault for fast interrupt

• 16-Pin Thermally-Enhanced PWP package





Application Notes

• PROFET™ +2 12V Repetitive Energy during Demagnetization  EN

  Share

  01_10 | 2021-05-21 | pdf | 2.5 MB

• PROFET+2_12V_Counter-reset_AppNote  EN

  Share

  01_00 | 2020-03-11 | pdf | 141 KB

• PROFET+2_12V_Sense-Accuracy-and-Calibration_AppNote  EN

  Share

  01_02 | 2020-03-11 | pdf | 436 KB

• PROFET+2_12V_Thermal-behavior_AppNote  EN

  Share

  01_10 | 2020-03-11 | pdf | 2.6 MB
