本文介绍如何在Cesium中加载Mapbox矢量瓦片，通过扩展类和引入库的方式实现。相较于其他方法，使用mapbox_gl渲染更迅速。文中提供了详细步骤，包括引入库、调用方法、核心扩展类的编写，以及展示最终效果。在实际操作中，需要注意模块引入方式，避免与ES6混淆导致错误。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档

文章目录

目录

前言

一、为什么使用mapbox_gl这种显示方式？

二、使用步骤

1.引入库

2.调用

3 核心的扩展类

4.全部代码

5 效果

总结

前言

Cesium并不支持矢量瓦片数据格式，通过询问官方，得到的结论是，他们并没有计划增加这个功能，最近的项目是需要将城市建筑物显示在Cesium中，如果将其转为3Dtiles格式，需要自己写代码转格式，并且数据量大的情况下，需要占用大量的存储空间，所以研究Cesium地图加载矢量瓦片。

一、为什么使用mapbox_gl这种显示方式？

网上有两种显示方式，一种是采用geoserver+ol的方式，另外一种是通过mapbox_gl显示矢量瓦片的方法渲染，据说这种方式要比geoserver+ol的方式迅速，经过了一系列的实践，终于达到了显示目的，但最终目的还需要进一步探索。

二、使用步骤

1.引入库

代码如下：

<script src="Cesium/Cesium.js">

  </script>
  <script>
    const module = {};
  </script>
  <script src="mapbox-gl.js">

  </script>
  <script>
    const Mapbox = module.exports;
  </script>
  <style>
    @import url(Cesium/Widgets/widgets.css);
  </style>

2.调用

代码如下（示例）：

fetch("https://api.maptiler.com/maps/basic/style.json?key=pSHUA9sSkNny3iqoWG4P")
 .then((res) => res.json())
  .then((style) => {
    const provider = new MVTImageryProvider({
     style,
    });
   provider.readyPromise.then(() => {
     cesiumViewer.imageryLayers.addImageryProvider(provider);
   });
  });

该处使用的fetch的方式请求的网络数据。

3 核心的扩展类

class MVTImageryProvider {
  /**
   *
   * @param {Object} options
   * @param {Object} options.style - mapbox style object
   * @param {Function} [options.sourceFilter] - sourceFilter is used to filter which source participate in pickFeature process.
   * @param {Number} [options.maximumLevel] - if cesium zoom level exceeds maximumLevel, layer will be invisible.
   * @param {Number} [options.minimumLevel] - if cesium zoom level belows minimumLevel, layer will be invisible.
   * @param {Number} [options.tileSize=512] - can be 256 or 512.
   * @param {Boolean} [options.hasAlphaChannel] -
   * @param {String} [options.credit] -
   *
   */
  constructor(options) {
    this.mapboxRenderer = new Mapbox.BasicRenderer({ style: options.style });
    this.ready = false;
    this.readyPromise = this.mapboxRenderer._style.loadedPromise.then(
      () => (this.ready = true)
    );
    this.tilingScheme = new Cesium.WebMercatorTilingScheme();
    this.rectangle = this.tilingScheme.rectangle;
    this.tileSize = this.tileWidth = this.tileHeight = options.tileSize || 512;
    this.maximumLevel = options.maximumLevel || Number.MAX_SAFE_INTEGER;
    this.minimumLevel = options.minimumLevel || 0;
    this.tileDiscardPolicy = undefined;
    this.errorEvent = new Cesium.Event();
    this.credit = new Cesium.Credit(options.credit || "", false);
    this.proxy = new Cesium.DefaultProxy("");
    this.hasAlphaChannel =
      options.hasAlphaChannel !== undefined ? options.hasAlphaChannel : true;
    this.sourceFilter = options.sourceFilter;
  }

  getTileCredits(x, y, level) {
    return [];
  }

  createTile() {
    let canv = document.createElement("canvas");
    canv.width = this.tileSize;
    canv.height = this.tileSize;
    canv.style.imageRendering = "pixelated";
    canv.getContext("2d").globalCompositeOperation = "copy";
    return canv;
  }

  requestImage(x, y, zoom, releaseTile = true) {
    if (zoom > this.maximumLevel || zoom < this.minimumLevel)
      return Promise.reject(undefined);

    this.mapboxRenderer.filterForZoom(zoom);
    const tilesSpec = [];
    this.mapboxRenderer.getVisibleSources().forEach((s) => {
      tilesSpec.push({
        source: s,
        z: zoom,
        x: x,
        y: y,
        left: 0,
        top: 0,
        size: this.tileSize,
      });
    });

    return new Promise((resolve, reject) => {
      let canv = this.createTile();
      const renderRef = this.mapboxRenderer.renderTiles(
        canv.getContext("2d"),
        {
          srcLeft: 0,
          srcTop: 0,
          width: this.tileSize,
          height: this.tileSize,
          destLeft: 0,
          destTop: 0,
        },
        tilesSpec,
        (err) => {
          if (!!err) {
            switch (err) {
              case "canceled":
              case "fully-canceled":
                reject(undefined);
                break;
              default:
                reject(undefined);
            }
          } else {
            if (releaseTile) {
              renderRef.consumer.ctx = undefined;
              resolve(canv);
              // releaseTile默认为true，对应Cesium请求图像的情形
              this.mapboxRenderer.releaseRender(renderRef);
            } else {
              // releaseTile为false时在由pickFeature手动调用，在渲染完成之后在pickFeature里边手动释放tile
              resolve(renderRef);
            }
          }
        }
      );
    });
  }

  pickFeatures(x, y, zoom, longitude, latitude) {
    return this.requestImage(x, y, zoom, false).then((renderRef) => {
      let targetSources = this.mapboxRenderer.getVisibleSources();
      targetSources = this.sourceFilter
        ? this.sourceFilter(targetSources)
        : targetSources;

      const queryResult = [];

      longitude = Cesium.Math.toDegrees(longitude);
      latitude = Cesium.Math.toDegrees(latitude);

      targetSources.forEach((s) => {
        queryResult.push({
          data: this.mapboxRenderer.queryRenderedFeatures({
            source: s,
            renderedZoom: zoom,
            lng: longitude,
            lat: latitude,
            tileZ: zoom,
          }),
        });
      });

      // release tile
      renderRef.consumer.ctx = undefined;
      this.mapboxRenderer.releaseRender(renderRef);
      return queryResult;
    });
  }

  destroy() {
    this.mapboxRenderer._cancelAllPendingRenders();
    Object.values(this.mapboxRenderer._style.sourceCaches).forEach(cache => cache._tileCache.reset());
    this.mapboxRenderer._gl.getExtension('WEBGL_lose_context').loseContext();
  }
}

4.全部代码

<html>

<head>
  <meta charset="utf-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport"
    content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
  <title>Cesium + Webpack</title>
  <style>
    body,
    #cesiumContainer {
      width: 100%;
      height: 100%;
      margin: 0;
    }
  </style>
  <script src="Cesium/Cesium.js">

  </script>
  <script>
    const module = {};
  </script>
  <script src="mapbox-gl.js">

  </script>
  <script>
    const Mapbox = module.exports;
  </script>
  <style>
    @import url(Cesium/Widgets/widgets.css);
  </style>



</head>

<body>
  <div id="cesiumContainer"></div>
  <script>
    Cesium.Ion.defaultServer = "";
    const cesiumViewer = new Cesium.Viewer("cesiumContainer", {
      terrainProvider: undefined,
      imageryProvider: new Cesium.GridImageryProvider(),
    });



    class MVTImageryProvider {
      /**
       *
       * @param {Object} options
       * @param {Object} options.style - mapbox style object
       * @param {Function} [options.sourceFilter] - sourceFilter is used to filter which source participate in pickFeature process.
       * @param {Number} [options.maximumLevel] - if cesium zoom level exceeds maximumLevel, layer will be invisible.
       * @param {Number} [options.minimumLevel] - if cesium zoom level belows minimumLevel, layer will be invisible.
       * @param {Number} [options.tileSize=512] - can be 256 or 512.
       * @param {Boolean} [options.hasAlphaChannel] -
       * @param {String} [options.credit] -
       *
       */
      constructor(options) {
        this.mapboxRenderer = new Mapbox.BasicRenderer({ style: options.style });
        this.ready = false;
        this.readyPromise = this.mapboxRenderer._style.loadedPromise.then(
          () => (this.ready = true)
        );
        this.tilingScheme = new Cesium.WebMercatorTilingScheme();
        this.rectangle = this.tilingScheme.rectangle;
        this.tileSize = this.tileWidth = this.tileHeight = options.tileSize || 512;
        this.maximumLevel = options.maximumLevel || Number.MAX_SAFE_INTEGER;
        this.minimumLevel = options.minimumLevel || 0;
        this.tileDiscardPolicy = undefined;
        this.errorEvent = new Cesium.Event();
        this.credit = new Cesium.Credit(options.credit || "", false);
        this.proxy = new Cesium.DefaultProxy("");
        this.hasAlphaChannel =
          options.hasAlphaChannel !== undefined ? options.hasAlphaChannel : true;
        this.sourceFilter = options.sourceFilter;
      }

      getTileCredits(x, y, level) {
        return [];
      }

      createTile() {
        let canv = document.createElement("canvas");
        canv.width = this.tileSize;
        canv.height = this.tileSize;
        canv.style.imageRendering = "pixelated";
        canv.getContext("2d").globalCompositeOperation = "copy";
        return canv;
      }

      requestImage(x, y, zoom, releaseTile = true) {
        if (zoom > this.maximumLevel || zoom < this.minimumLevel)
          return Promise.reject(undefined);

        this.mapboxRenderer.filterForZoom(zoom);
        const tilesSpec = [];
        this.mapboxRenderer.getVisibleSources().forEach((s) => {
          tilesSpec.push({
            source: s,
            z: zoom,
            x: x,
            y: y,
            left: 0,
            top: 0,
            size: this.tileSize,
          });
        });

        return new Promise((resolve, reject) => {
          let canv = this.createTile();
          const renderRef = this.mapboxRenderer.renderTiles(
            canv.getContext("2d"),
            {
              srcLeft: 0,
              srcTop: 0,
              width: this.tileSize,
              height: this.tileSize,
              destLeft: 0,
              destTop: 0,
            },
            tilesSpec,
            (err) => {
              if (!!err) {
                switch (err) {
                  case "canceled":
                  case "fully-canceled":
                    reject(undefined);
                    break;
                  default:
                    reject(undefined);
                }
              } else {
                if (releaseTile) {
                  renderRef.consumer.ctx = undefined;
                  resolve(canv);
                  // releaseTile默认为true，对应Cesium请求图像的情形
                  this.mapboxRenderer.releaseRender(renderRef);
                } else {
                  // releaseTile为false时在由pickFeature手动调用，在渲染完成之后在pickFeature里边手动释放tile
                  resolve(renderRef);
                }
              }
            }
          );
        });
      }

      pickFeatures(x, y, zoom, longitude, latitude) {
        return this.requestImage(x, y, zoom, false).then((renderRef) => {
          let targetSources = this.mapboxRenderer.getVisibleSources();
          targetSources = this.sourceFilter
            ? this.sourceFilter(targetSources)
            : targetSources;

          const queryResult = [];

          longitude = Cesium.Math.toDegrees(longitude);
          latitude = Cesium.Math.toDegrees(latitude);

          targetSources.forEach((s) => {
            queryResult.push({
              data: this.mapboxRenderer.queryRenderedFeatures({
                source: s,
                renderedZoom: zoom,
                lng: longitude,
                lat: latitude,
                tileZ: zoom,
              }),
            });
          });

          // release tile
          renderRef.consumer.ctx = undefined;
          this.mapboxRenderer.releaseRender(renderRef);
          return queryResult;
        });
      }

      destroy() {
        this.mapboxRenderer._cancelAllPendingRenders();
        Object.values(this.mapboxRenderer._style.sourceCaches).forEach(cache => cache._tileCache.reset());
        this.mapboxRenderer._gl.getExtension('WEBGL_lose_context').loseContext();
      }
    }


//demo2
fetch("https://api.maptiler.com/maps/basic/style.json?key=pSHUA9sSkNny3iqoWG4P")
 .then((res) => res.json())
  .then((style) => {
    const provider = new MVTImageryProvider({
     style,
    });
   provider.readyPromise.then(() => {
     cesiumViewer.imageryLayers.addImageryProvider(provider);
   });
  });
  </script>
</body>

</html>

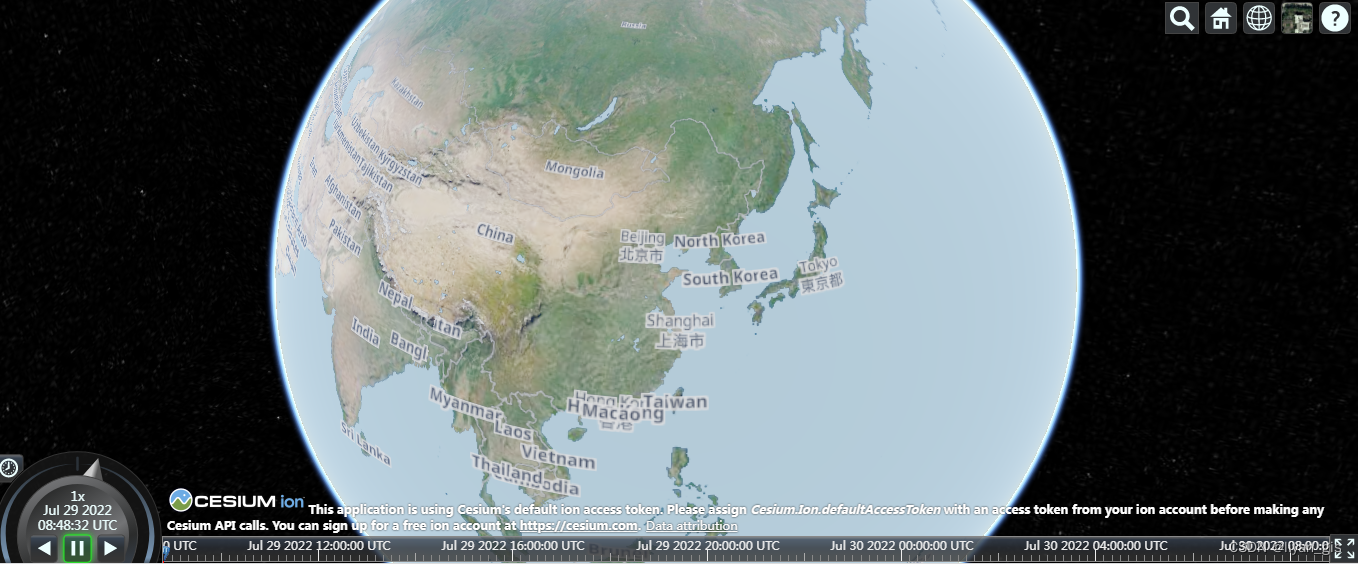

5 效果

总结

具体过程，大概就是通过一个依赖于mapbox_gl这样一个开源的库实现的绘制渲染，实际加载的pbf格式的矢量瓦片。

这里需要注意的一点是，我是从html页面直接加载的，如果需要使用es6 webpak的方式加载，就需要注意模块引入的方式，这里是使用CommonJS的模块加载方式的，他是不能和es6混用的，否则会报错的，导致无法加载。

其次，如果是自己Geoserver的数据，需要按照指定的配置文件格式

//测试本地geoserver
    const geoserverStyle = {
      version: 8,
      sources: {
        countries: {
          type: "vector",
          'scheme': 'tms',
          tiles: ['http://localhost:8080/geoserver/gwc/service/tms/1.0.0/topp%3Astates@EPSG%3A900913@pbf/{z}/{x}/{y}.pbf'],
          maxzoom: 6,
        },
      },
      glyphs: "https://cdn.rawgit.com/klokantech/mapbox-gl-js-offline-example/v1.0/font/{fontstack}/{range}.pbf",
      layers: [
        {
          id: "buildinds_ly",
          'source': 'countries',
        'source-layer': 'states',
          type: "fill",
          paint: {
            "fill-color": "#fdaf6b",
          },
        }
    ]
    };
