Pytorch的gather和scatter

最近在看pytorch的gather与scatter函数，现在详细记录一下

1、Gather

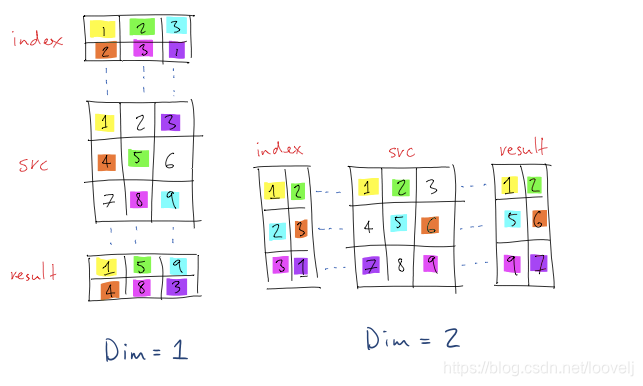

gather是根据索引取数据，下图可以表示gather，具体见[gather]的介绍(https://stackoverflow.com/a/54706716)
但是要注意的是，dim为0和1时，index是有区别的，要转置一下

index = torch.as_tensor([[0,1,2],[1,2,0]])
src = torch.arange(9).reshape(3,3)
torch.gather(src,0,index)
torch.gather(src,1,index.T) #dim 为1时，index要转置

2、Scatter

scatter是将数据根据索引回填到新的矩阵里面，这个适合做onehot矩阵

1)对于2D转3D

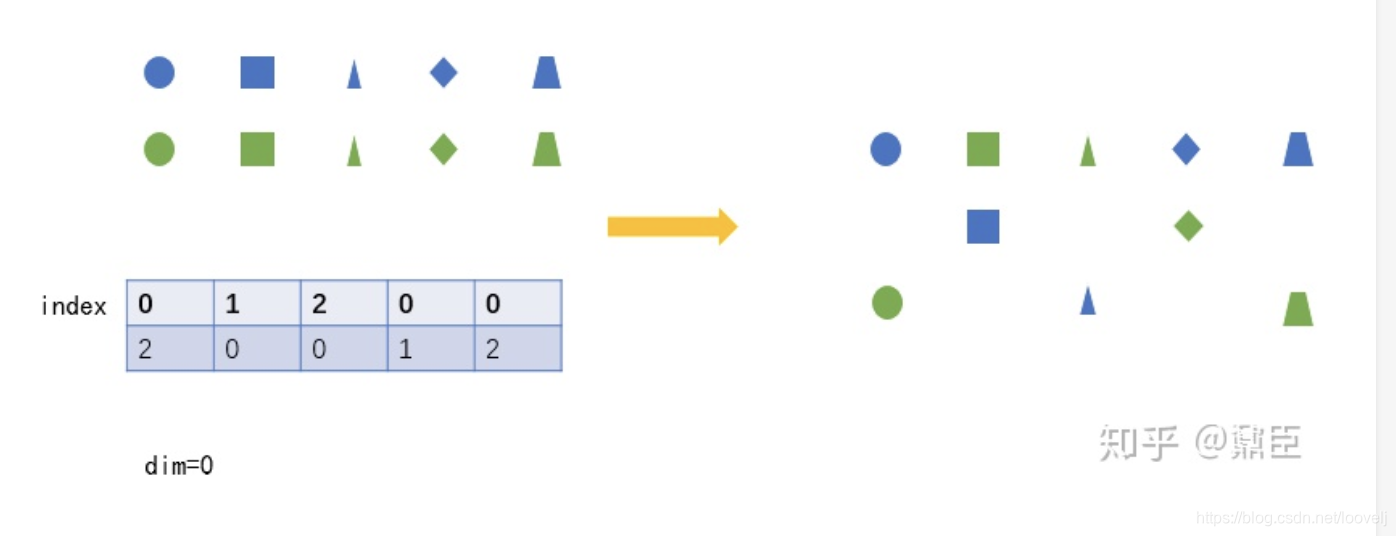

如下图，进行回填，参考知乎

a = torch.rand(2, 5)
print(a)
b = torch.zeros(3, 5).scatter_(0, torch.tensor([[0, 1, 2, 0, 0], [2, 0, 0, 1, 2]]), a)
print(b)

制作one-hot的代码，参考PyTorch笔记之 scatter() 函数

class_num = 10
batch_size = 4
label = torch.LongTensor(batch_size, 1).random_() % class_num
#tensor([[6],
#        [0],
#        [3],
#        [2]])
torch.zeros(batch_size, class_num).scatter_(1, label, 1)
#tensor([[0., 0., 0., 0., 0., 0., 1., 0., 0., 0.],
#        [1., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
#        [0., 0., 0., 1., 0., 0., 0., 0., 0., 0.],
#        [0., 0., 1., 0., 0., 0., 0., 0., 0., 0.]])

1)对于3D转4D的

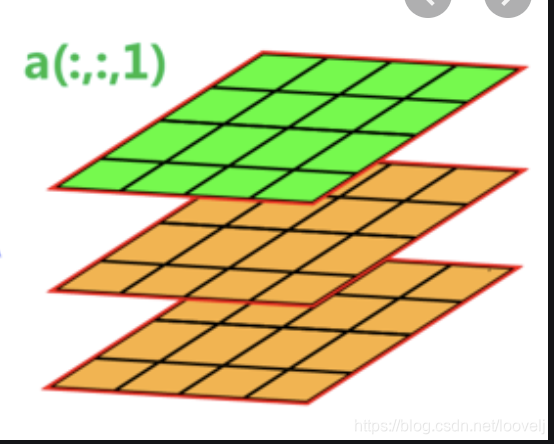

这个对于图像分割的onehot制作比较多，这时，每个类别在一个面上设置为0或1，具体参考PyTorch One-Hot Labels

def make_one_hot(labels, C=2):
    '''
    Converts an integer label torch.autograd.Variable to a one-hot Variable.

    Parameters
    ----------
    labels : torch.autograd.Variable of torch.cuda.LongTensor
        N x 1 x H x W, where N is batch size.
        Each value is an integer representing correct classification.
    C : integer.
        number of classes in labels.

    Returns
    -------
    target : torch.autograd.Variable of torch.cuda.FloatTensor
        N x C x H x W, where C is class number. One-hot encoded.
    '''
    one_hot = torch.cuda.FloatTensor(labels.size(0), C, labels.size(2), labels.size(3)).zero_()
    target = one_hot.scatter_(1, labels.data, 1)

    target = Variable(target)

    return target

具体结果为

>> labels = torch.LongTensor(4,4) % 3

2  1  0  0
1  0  0  0
2  0  0  1
2  0  0  1
[torch.LongTensor of size 4x4]

>> make_one_hot(labels)

(0 ,0 ,.,.) =
  0  0  1  1
  0  1  1  1
  0  1  1  0
  0  1  1  0

(0 ,1 ,.,.) =
  0  0  0  0
  1  0  0  0
  0  0  0  1
  0  0  0  1

(0 ,2 ,.,.) =
  1  1  0  0
  0  0  0  0
  1  0  0  0
  1  0  0  0
[torch.LongTensor of size 1x3x4x4]

这个由于是三维图像，所以要立体的看，竖着从上往下看，看这个位置中，1放在第几层
