一、前情提要
基于数据湖对两条实时流进行拼接（如前端埋点+服务端埋点、日志流+订单流等）；
基础概念见前一篇文章：基于数据湖的多流拼接方案-HUDI概念篇_Leonardo_KY的博客-CSDN博客
二、代码Demo
下文demo均使用datagen生成mock数据进行测试，如到生产，改成Kafka或者其他source即可。
第一个job：stream A，落hudi表：
env.getCheckpointConfig().setMinPauseBetweenCheckpoints(minPauseBetweenCP); // 1s
env.getCheckpointConfig().setCheckpointTimeout(checkpointTimeout); // 2 min
env.getCheckpointConfig().setMaxConcurrentCheckpoints(maxConcurrentCheckpoints);
// env.getCheckpointConfig().setCheckpointStorage("file:///D:/Users/yakang.lu/tmp/checkpoints/");
TableEnvironment tableEnv = StreamTableEnvironment.create(env);
// datagen====================================================================
tableEnv.executeSql("CREATE TABLE sourceA (\n" +
" uuid bigint PRIMARY KEY NOT ENFORCED,\n" +
" `name` VARCHAR(3)," +
" _ts1 TIMESTAMP(3)\n" +
") WITH (\n" +
" 'connector' = 'datagen', \n" +
" 'fields.uuid.kind'='sequence',\n" +
" 'fields.uuid.start'='0', \n" +
" 'fields.uuid.end'='1000000', \n" +
" 'rows-per-second' = '1' \n" +
")");
// hudi====================================================================
tableEnv.executeSql("create table hudi_tableA(\n"
+ " uuid bigint PRIMARY KEY NOT ENFORCED,\n"
+ " age int,\n"
+ " name VARCHAR(3),\n"
+ " _ts1 TIMESTAMP(3),\n"
+ " _ts2 TIMESTAMP(3),\n"
+ " d VARCHAR(10)\n"
+ ")\n"
+ " PARTITIONED BY (d)\n"
+ " with (\n"
+ " 'connector' = 'hudi',\n"
+ " 'path' = 'hdfs://ns/user/hive/warehouse/ctripdi_prodb.db/hudi_mor_mutil_source_test', \n" // hdfs path
+ " 'table.type' = 'MERGE_ON_READ',\n"
+ " 'write.bucket_assign.tasks' = '10',\n"
+ " 'write.tasks' = '10',\n"
+ " 'write.partition.format' = 'yyyyMMddHH',\n"
+ " 'write.partition.timestamp.type' = 'EPOCHMILLISECONDS',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ " 'changelog.enabled' = 'true',\n"
+ " 'index.type' = 'BUCKET',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ String.format(" '%s' = '%s',\n", FlinkOptions.PRECOMBINE_FIELD.key(), "_ts1")
+ " 'write.payload.class' = '" + PartialUpdateAvroPayload.class.getName() + "',\n"
+ " 'hoodie.write.log.suffix' = 'job1',\n"
+ " 'hoodie.write.concurrency.mode' = 'optimistic_concurrency_control',\n"
+ " 'hoodie.write.lock.provider' = 'org.apache.hudi.client.transaction.lock.FileSystemBasedLockProvider',\n"
+ " 'hoodie.cleaner.policy.failed.writes' = 'LAZY',\n"
+ " 'hoodie.cleaner.policy' = 'KEEP_LATEST_BY_HOURS',\n"
+ " 'hoodie.consistency.check.enabled' = 'false',\n"
// + " 'hoodie.write.lock.early.conflict.detection.enable' = 'true',\n" // todo
// + " 'hoodie.write.lock.early.conflict.detection.strategy' = '"
// + SimpleTransactionDirectMarkerBasedEarlyConflictDetectionStrategy.class.getName() + "',\n" //
+ " 'hoodie.keep.min.commits' = '1440',\n"
+ " 'hoodie.keep.max.commits' = '2880',\n"
+ " 'compaction.schedule.enabled'='false',\n"
+ " 'compaction.async.enabled'='false',\n"
+ " 'compaction.trigger.strategy'='num_or_time',\n"
+ " 'compaction.delta_commits' ='3',\n"
+ " 'compaction.delta_seconds' ='60',\n"
+ " 'compaction.max_memory' = '3096',\n"
+ " 'clean.async.enabled' ='false',\n"
+ " 'hive_sync.enable' = 'false'\n"
// + " 'hive_sync.mode' = 'hms',\n"
// + " 'hive_sync.db' = '%s',\n"
// + " 'hive_sync.table' = '%s',\n"
// + " 'hive_sync.metastore.uris' = '%s'\n"
+ ")");
// sql====================================================================
StatementSet statementSet = tableEnv.createStatementSet();
String sqlString = "insert into hudi_tableA(uuid, name, _ts1, d) select * from " +
"(select *,date_format(CURRENT_TIMESTAMP,'yyyyMMdd') AS d from sourceA) view1";
statementSet.addInsertSql(sqlString);
statementSet.execute();第二个job：stream B，落hudi表：
StreamExecutionEnvironment env = manager.getEnv();
env.getCheckpointConfig().setMinPauseBetweenCheckpoints(minPauseBetweenCP); // 1s
env.getCheckpointConfig().setCheckpointTimeout(checkpointTimeout); // 2 min
env.getCheckpointConfig().setMaxConcurrentCheckpoints(maxConcurrentCheckpoints);
// env.getCheckpointConfig().setCheckpointStorage("file:///D:/Users/yakang.lu/tmp/checkpoints/");
TableEnvironment tableEnv = StreamTableEnvironment.create(env);
// datagen====================================================================
tableEnv.executeSql("CREATE TABLE sourceB (\n" +
" uuid bigint PRIMARY KEY NOT ENFORCED,\n" +
" `age` int," +
" _ts2 TIMESTAMP(3)\n" +
") WITH (\n" +
" 'connector' = 'datagen', \n" +
" 'fields.uuid.kind'='sequence',\n" +
" 'fields.uuid.start'='0', \n" +
" 'fields.uuid.end'='1000000', \n" +
" 'rows-per-second' = '1' \n" +
")");
// hudi====================================================================
tableEnv.executeSql("create table hudi_tableB(\n"
+ " uuid bigint PRIMARY KEY NOT ENFORCED,\n"
+ " age int,\n"
+ " name VARCHAR(3),\n"
+ " _ts1 TIMESTAMP(3),\n"
+ " _ts2 TIMESTAMP(3),\n"
+ " d VARCHAR(10)\n"
+ ")\n"
+ " PARTITIONED BY (d)\n"
+ " with (\n"
+ " 'connector' = 'hudi',\n"
+ " 'path' = 'hdfs://ns/user/hive/warehouse/ctripdi_prodb.db/hudi_mor_mutil_source_test', \n" // hdfs path
+ " 'table.type' = 'MERGE_ON_READ',\n"
+ " 'write.bucket_assign.tasks' = '10',\n"
+ " 'write.tasks' = '10',\n"
+ " 'write.partition.format' = 'yyyyMMddHH',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ " 'changelog.enabled' = 'true',\n"
+ " 'index.type' = 'BUCKET',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ String.format(" '%s' = '%s',\n", FlinkOptions.PRECOMBINE_FIELD.key(), "_ts1")
+ " 'write.payload.class' = '" + PartialUpdateAvroPayload.class.getName() + "',\n"
+ " 'hoodie.write.log.suffix' = 'job2',\n"
+ " 'hoodie.write.concurrency.mode' = 'optimistic_concurrency_control',\n"
+ " 'hoodie.write.lock.provider' = 'org.apache.hudi.client.transaction.lock.FileSystemBasedLockProvider',\n"
+ " 'hoodie.cleaner.policy.failed.writes' = 'LAZY',\n"
+ " 'hoodie.cleaner.policy' = 'KEEP_LATEST_BY_HOURS',\n"
+ " 'hoodie.consistency.check.enabled' = 'false',\n"
// + " 'hoodie.write.lock.early.conflict.detection.enable' = 'true',\n" // todo
// + " 'hoodie.write.lock.early.conflict.detection.strategy' = '"
// + SimpleTransactionDirectMarkerBasedEarlyConflictDetectionStrategy.class.getName() + "',\n"
+ " 'hoodie.keep.min.commits' = '1440',\n"
+ " 'hoodie.keep.max.commits' = '2880',\n"
+ " 'compaction.schedule.enabled'='true',\n"
+ " 'compaction.async.enabled'='true',\n"
+ " 'compaction.trigger.strategy'='num_or_time',\n"
+ " 'compaction.delta_commits' ='2',\n"
+ " 'compaction.delta_seconds' ='90',\n"
+ " 'compaction.max_memory' = '3096',\n"
+ " 'clean.async.enabled' ='false'\n"
// + " 'hive_sync.mode' = 'hms',\n"
// + " 'hive_sync.db' = '%s',\n"
// + " 'hive_sync.table' = '%s',\n"
// + " 'hive_sync.metastore.uris' = '%s'\n"
+ ")");
// sql====================================================================
StatementSet statementSet = tableEnv.createStatementSet();
String sqlString = "insert into hudi_tableB(uuid, age, _ts1, _ts2, d) select * from " +
"(select *, _ts2 as ts1, date_format(CURRENT_TIMESTAMP,'yyyyMMdd') AS d from sourceB) view2";
// statementSet.addInsertSql("insert into hudi_tableB(uuid, age, _ts2) select * from sourceB");
statementSet.addInsertSql(sqlString);

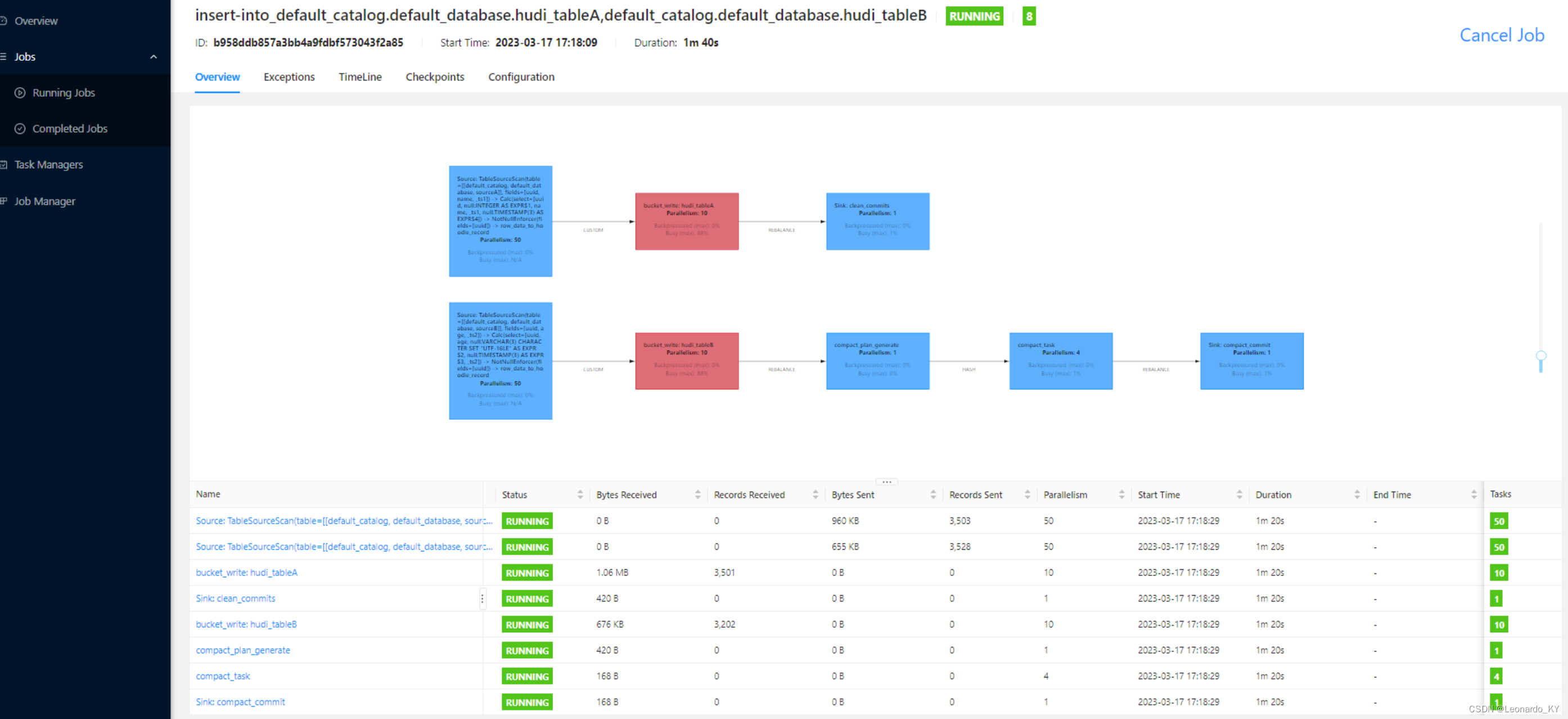

statementSet.execute();也可以将两个 writer 放到同一个app中（使用statement）：
import java.time.ZoneOffset;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.StatementSet;
import org.apache.flink.table.api.TableConfig;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.apache.flink.table.api.config.TableConfigOptions;
import org.apache.hudi.common.model.PartialUpdateAvroPayload;
import org.apache.hudi.configuration.FlinkOptions;
// import org.apache.hudi.table.marker.SimpleTransactionDirectMarkerBasedEarlyConflictDetectionStrategy;
public class Test00 {
public static void main(String[] args) {
Configuration configuration = TableConfig.getDefault().getConfiguration();
configuration.setString(TableConfigOptions.LOCAL_TIME_ZONE, ZoneOffset.ofHours(8).toString());//设置东八区
// configuration.setInteger("rest.port", 8086);
StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironment(
configuration);
env.setParallelism(1);
env.enableCheckpointing(12000L);
// env.getCheckpointConfig().setCheckpointStorage("file:///Users/laifei/tmp/checkpoints/");
TableEnvironment tableEnv = StreamTableEnvironment.create(env);
// datagen====================================================================
tableEnv.executeSql("CREATE TABLE sourceA (\n" +
" uuid bigint PRIMARY KEY NOT ENFORCED,\n" +
" `name` VARCHAR(3)," +
" _ts1 TIMESTAMP(3)\n" +
") WITH (\n" +
" 'connector' = 'datagen', \n" +
" 'fields.uuid.kind'='sequence',\n" +
" 'fields.uuid.start'='0', \n" +
" 'fields.uuid.end'='1000000', \n" +
" 'rows-per-second' = '1' \n" +
")");
tableEnv.executeSql("CREATE TABLE sourceB (\n" +
" uuid bigint PRIMARY KEY NOT ENFORCED,\n" +
" `age` int," +
" _ts2 TIMESTAMP(3)\n" +
") WITH (\n" +
" 'connector' = 'datagen', \n" +
" 'fields.uuid.kind'='sequence',\n" +
" 'fields.uuid.start'='0', \n" +
" 'fields.uuid.end'='1000000', \n" +
" 'rows-per-second' = '1' \n" +
")");
// hudi====================================================================
tableEnv.executeSql("create table hudi_tableA(\n"
+ " uuid bigint PRIMARY KEY NOT ENFORCED,\n"
+ " name VARCHAR(3),\n"
+ " age int,\n"
+ " _ts1 TIMESTAMP(3),\n"
+ " _ts2 TIMESTAMP(3)\n"
+ ")\n"
+ " PARTITIONED BY (_ts1)\n"
+ " with (\n"
+ " 'connector' = 'hudi',\n"
+ " 'path' = 'file:\\D:\\Ctrip\\dataWork\\tmp', \n" // hdfs path
+ " 'table.type' = 'MERGE_ON_READ',\n"
+ " 'write.bucket_assign.tasks' = '2',\n"
+ " 'write.tasks' = '2',\n"
+ " 'write.partition.format' = 'yyyyMMddHH',\n"
+ " 'write.partition.timestamp.type' = 'EPOCHMILLISECONDS',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ " 'changelog.enabled' = 'true',\n"
+ " 'index.type' = 'BUCKET',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
// + String.format(" '%s' = '%s',\n", FlinkOptions.PRECOMBINE_FIELD.key(), "_ts1:name|_ts2:age")
// + " 'write.payload.class' = '" + PartialUpdateAvroPayload.class.getName() + "',\n"
+ " 'hoodie.write.log.suffix' = 'job1',\n"
+ " 'hoodie.write.concurrency.mode' = 'optimistic_concurrency_control',\n"
+ " 'hoodie.write.lock.provider' = 'org.apache.hudi.client.transaction.lock.FileSystemBasedLockProvider',\n"
+ " 'hoodie.cleaner.policy.failed.writes' = 'LAZY',\n"
+ " 'hoodie.cleaner.policy' = 'KEEP_LATEST_BY_HOURS',\n"
+ " 'hoodie.consistency.check.enabled' = 'false',\n"
+ " 'hoodie.write.lock.early.conflict.detection.enable' = 'true',\n"
+ " 'hoodie.write.lock.early.conflict.detection.strategy' = '"
// + SimpleTransactionDirectMarkerBasedEarlyConflictDetectionStrategy.class.getName() + "',\n" //
+ " 'hoodie.keep.min.commits' = '1440',\n"
+ " 'hoodie.keep.max.commits' = '2880',\n"
+ " 'compaction.schedule.enabled'='false',\n"
+ " 'compaction.async.enabled'='false',\n"
+ " 'compaction.trigger.strategy'='num_or_time',\n"
+ " 'compaction.delta_commits' ='3',\n"
+ " 'compaction.delta_seconds' ='60',\n"
+ " 'compaction.max_memory' = '3096',\n"
+ " 'clean.async.enabled' ='false',\n"
+ " 'hive_sync.enable' = 'false'\n"
// + " 'hive_sync.mode' = 'hms',\n"
// + " 'hive_sync.db' = '%s',\n"
// + " 'hive_sync.table' = '%s',\n"
// + " 'hive_sync.metastore.uris' = '%s'\n"
+ ")");
tableEnv.executeSql("create table hudi_tableB(\n"
+ " uuid bigint PRIMARY KEY NOT ENFORCED,\n"
+ " name VARCHAR(3),\n"
+ " age int,\n"
+ " _ts1 TIMESTAMP(3),\n"
+ " _ts2 TIMESTAMP(3)\n"
+ ")\n"
+ " PARTITIONED BY (_ts2)\n"
+ " with (\n"
+ " 'connector' = 'hudi',\n"
+ " 'path' = '/Users/laifei/tmp/hudi/local.db/mutiwrite1', \n" // hdfs path
+ " 'table.type' = 'MERGE_ON_READ',\n"
+ " 'write.bucket_assign.tasks' = '2',\n"
+ " 'write.tasks' = '2',\n"
+ " 'write.partition.format' = 'yyyyMMddHH',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
+ " 'changelog.enabled' = 'true',\n"
+ " 'index.type' = 'BUCKET',\n"
+ " 'hoodie.bucket.index.num.buckets' = '2',\n"
// + String.format(" '%s' = '%s',\n", FlinkOptions.PRECOMBINE_FIELD.key(), "_ts1:name|_ts2:age")
// + " 'write.payload.class' = '" + PartialUpdateAvroPayload.class.getName() + "',\n"
+ " 'hoodie.write.log.suffix' = 'job2',\n"
+ " 'hoodie.write.concurrency.mode' = 'optimistic_concurrency_control',\n"
+ " 'hoodie.write.lock.provider' = 'org.apache.hudi.client.transaction.lock.FileSystemBasedLockProvider',\n"
+ " 'hoodie.cleaner.policy.failed.writes' = 'LAZY',\n"
+ " 'hoodie.cleaner.policy' = 'KEEP_LATEST_BY_HOURS',\n"
+ " 'hoodie.consistency.check.enabled' = 'false',\n"
+ " 'hoodie.write.lock.early.conflict.detection.enable' = 'true',\n"
+ " 'hoodie.write.lock.early.conflict.detection.strategy' = '"
// + SimpleTransactionDirectMarkerBasedEarlyConflictDetectionStrategy.class.getName() + "',\n"
+ " 'hoodie.keep.min.commits' = '1440',\n"
+ " 'hoodie.keep.max.commits' = '2880',\n"
+ " 'compaction.schedule.enabled'='true',\n"
+ " 'compaction.async.enabled'='true',\n"
+ " 'compaction.trigger.strategy'='num_or_time',\n"
+ " 'compaction.delta_commits' ='2',\n"
+ " 'compaction.delta_seconds' ='90',\n"
+ " 'compaction.max_memory' = '3096',\n"
+ " 'clean.async.enabled' ='false'\n"
// + " 'hive_sync.mode' = 'hms',\n"
// + " 'hive_sync.db' = '%s',\n"
// + " 'hive_sync.table' = '%s',\n"
// + " 'hive_sync.metastore.uris' = '%s'\n"
+ ")");
// sql====================================================================
StatementSet statementSet = tableEnv.createStatementSet();
statementSet.addInsertSql("insert into hudi_tableA(uuid, name, _ts1) select * from sourceA");
statementSet.addInsertSql("insert into hudi_tableB(uuid, age, _ts2) select * from sourceB");
statementSet.execute();
}
}（一）多写问题
由于HUDI官方提供的code打成jar包是不支持“多写”的，这里使用Tencent改造之后的code进行打包测试；

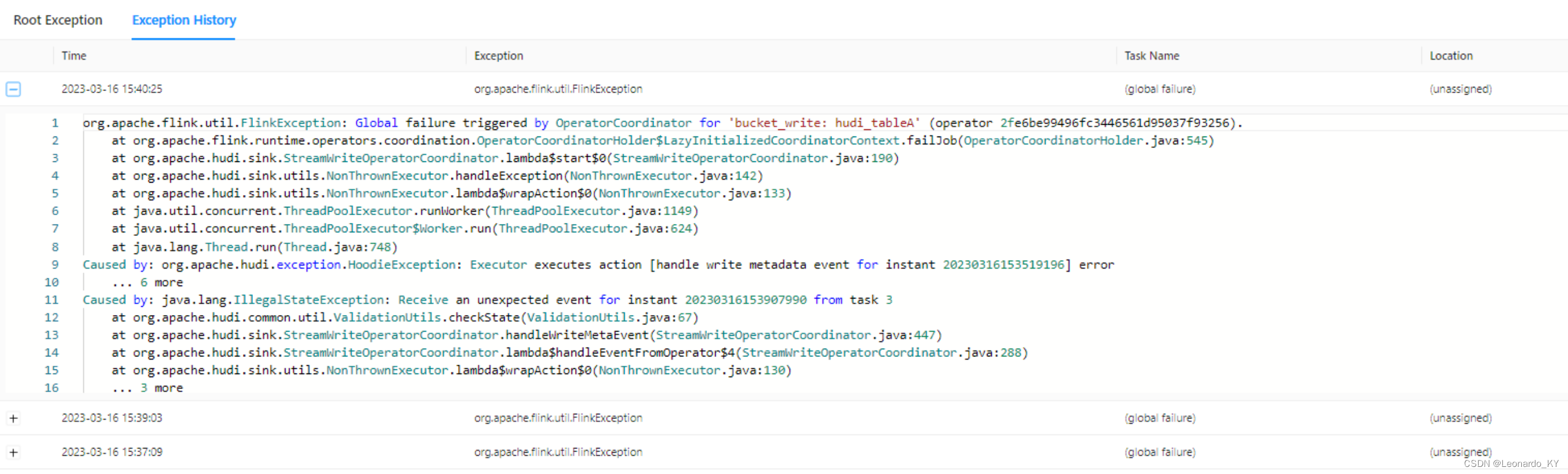

如果使用官方包，多个writer写入同一个hudi表，则会报如下异常：
而且：
hudi中有个preCombineField，在建表的时候只能指定其中一个字段为preCombineField，但是如果使用官方版本，双流写同一个hudi的时候出现两种情况：
1. 一条流写preCombineField，另一条流不写这个字段，后者会出现 ordering value不能为null；
2. 两条流都写这个字段，出现字段冲突异常；
（二）如果要两个流写一个表，这种情况怎么处理？
经过本地测试：
hudi0.12-multiWrite版本（Tencent修改版），可以支持多 precombineField（在此版本中，只要保证主键、分区字段之外的字段，在多个流中不冲突即可实现多写！）
hudi0.13版本，不支持，而且存在上述问题；
（三）测试结果
Tencent文章链接：https://cloud.tencent.com/developer/article/2189914
github链接：GitHub - XuQianJin-Stars/hudi at multiwrite-master-7
hudi打包很麻烦，如果需要我将后续上传打好的jar包；
三、后序
基于上述code，当流量比较大的时候，似乎会存在一定程度的数据丢失（在其中一条流进行compact，则另一条流就会存在一定程度的数据丢失）；
可以尝试：
（1）先将两个流UNION为一个流，再sink到hudi表（也避免了写冲突）；
（2）使用其他数据湖工具，比如apache paimon，参考：新一代数据湖存储技术Apache Paimon入门Demo_Leonardo_KY的博客-CSDN博客
134
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
