应后台读者要求，绘制一下西藏地区的底图。数据来源于国家地理信息公共服务平台（天地图）。

代码实现

导入相关库

# -*- coding: UTF-8 -*-
# 导入相关库
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from copy import copy
from cartopy.mpl.gridliner import LATITUDE_FORMATTER, LONGITUDE_FORMATTER
import shapely.geometry as sgeom

加载数据

读取西藏地区的市、县的区划信息：

# 读取西藏市级行政区划
xzcity = gpd.read_file('西藏自治区_市.geojson')
# 读取西藏县级行政区划
xzcounty = gpd.read_file('西藏自治区_县.geojson')

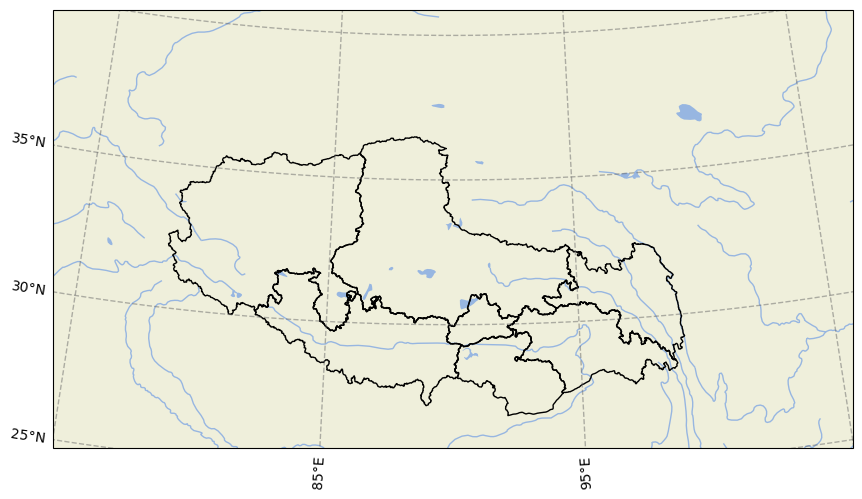

西藏自治区市级行政区划展示

# 设置地图投影
proj = ccrs.LambertConformal(central_longitude=90, central_latitude=90,standard_parallels=(25, 47))

# 设置图片大小
fig = plt.figure(figsize=[10, 8],frameon=True)

# Set projection and plot the main figure
ax = fig.add_axes([0.08, 0.05, 0.8, 0.94], projection=proj)
# 设置地图范围
ax.set_extent([75, 105, 25, 40],crs=ccrs.PlateCarree())
# 添加地理要素
ax.add_geometries(xzcity.geometry,
                  crs=ccrs.PlateCarree(),
                  edgecolor='k',
                  facecolor='none',
                  zorder=1)

# 添加海洋、陆地、河流、湖泊
ax.add_feature(cfeature.OCEAN.with_scale('50m'),zorder=0)
ax.add_feature(cfeature.LAND.with_scale('50m'),zorder=0)
ax.add_feature(cfeature.RIVERS.with_scale('50m'),zorder=0)
ax.add_feature(cfeature.LAKES.with_scale('50m'),zorder=0)

# 设置并添加经纬度标签
xticks = [75, 85, 95, 105, 115]
yticks = [20, 25 , 30 , 35 , 40 , 45 ]

gl = ax.gridlines(xlocs=xticks,
                  ylocs=yticks,
                  draw_labels=True,
                  x_inline=False,
                  y_inline=False,
                  linewidth=1,
                  color='dimgrey',
                  alpha=0.5,
                  linestyle='--')

gl.top_labels = False
gl.right_labels = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER

# 添加海洋、陆地、河流、湖泊
sub_ax.add_feature(cfeature.OCEAN.with_scale('50m'))
sub_ax.add_feature(cfeature.LAND.with_scale('50m'))
sub_ax.add_feature(cfeature.RIVERS.with_scale('50m'))
sub_ax.add_feature(cfeature.LAKES.with_scale('50m'))


plt.show()
