一、在配置负载均衡之前的准备
(1)保证要负载的每台服务器能通过ip+端口访问,能正常的访问你的数据;
(2)相关端口在安全组里面有开启;
(3)以上两点是搭建负载均衡的大前提
server {
listen 1111;
server_name localhost;
root "aaa/";
location / {
if (!-e $request_filename) {
rewrite ^(.*)$ /index.php/$1 last;
break;
}
index home.php index.html index.htm index.php l.php;
error_page 405 =200 http://$host$request_uri;
autoindex off;
}
location ~ \.php(.*)$ {
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
fastcgi_split_path_info ^((?U).+\.php)(/?.+)$;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
fastcgi_param PATH_INFO $fastcgi_path_info;
fastcgi_param PATH_TRANSLATED $document_root$fastcgi_path_info;
include fastcgi_params;
}
location /wss/ {
proxy_pass http://127.0.0.1:8766;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Real-IP $remote_addr;
}
}

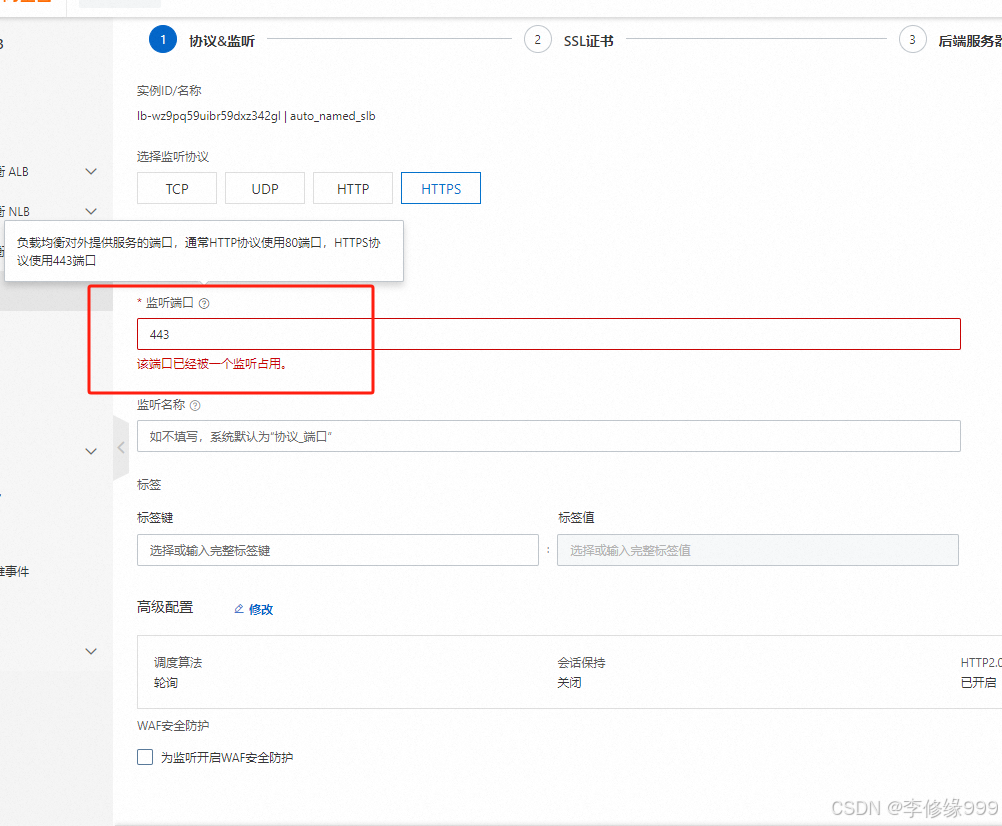

二、选择对外访问端口 我选择https 443

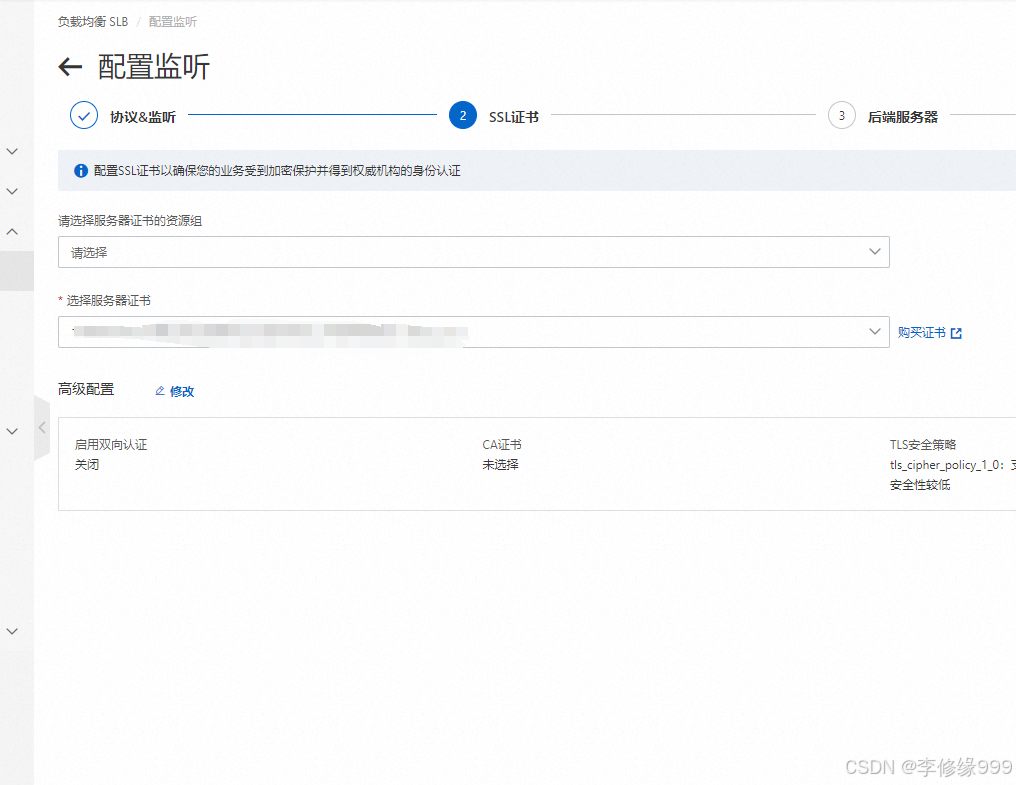

三、选择证书
(1)这里的证书可以是阿里云的证书也可以是你自己上传的要访问域名的证书

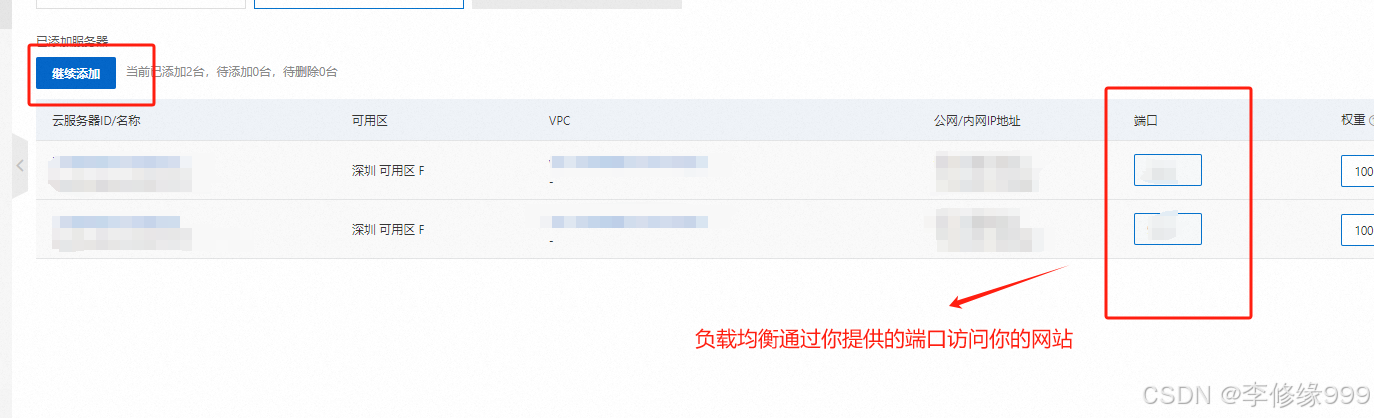

四、添加你要负载的服务器,选择要监听的端口
(1)这里的端口就是你负载要监听你服务器的端口;就是浏览器https 访问负载均衡,负载均衡通过你的ip+端口访问你的服务器
